Support up to 8 fans
Support GPU length up to 320 mm
Support CPU cooler height up to 165 mm
Support 240 mm radiator at the top and 360 mm radiator at the front

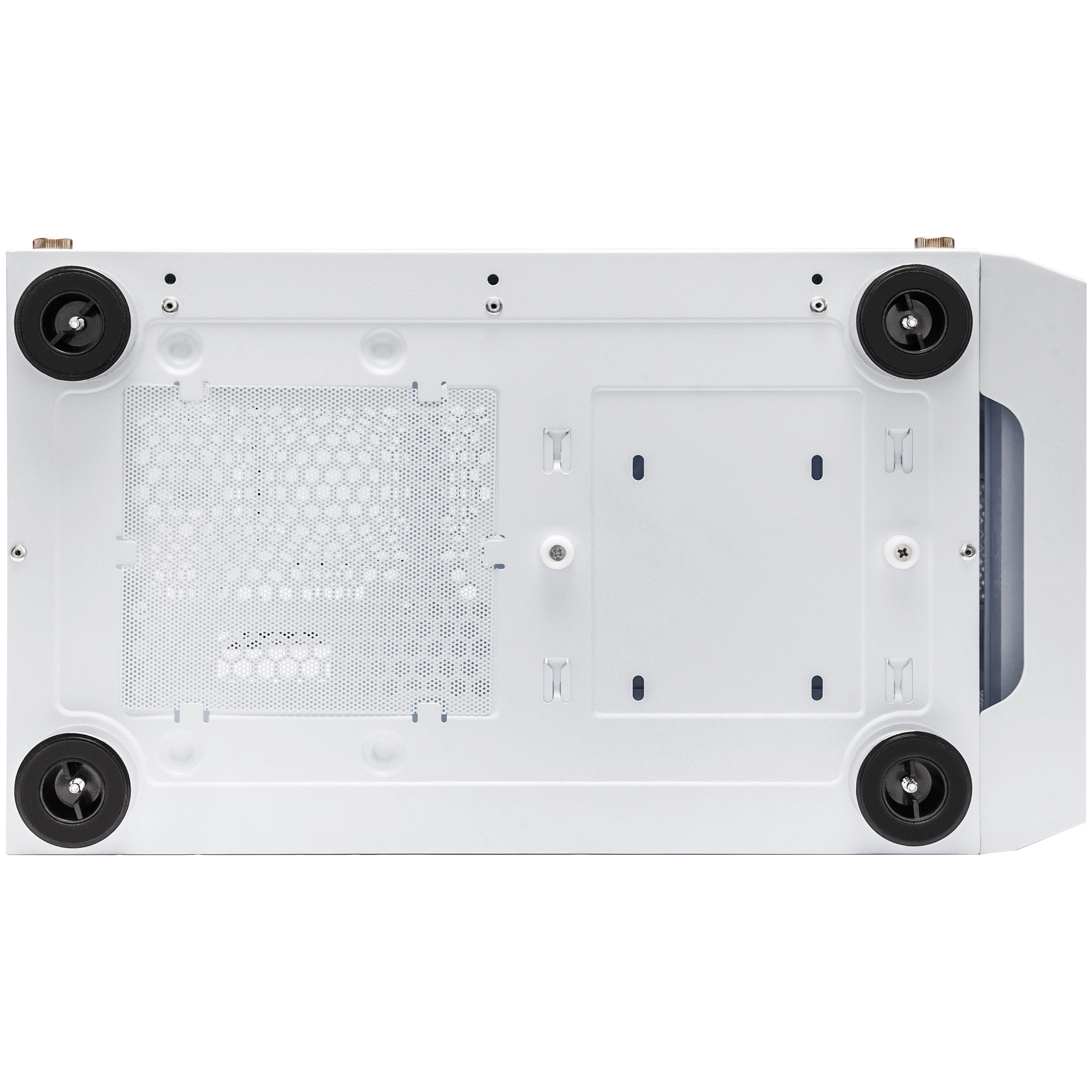

Easy-to-remove dust filter at the top and bottom for optimized airflow
*Computer parts are not included. Cooling fan may vary among different countries/regions.
MODEL
XP
STRUCTURE DIMENSIONS (L x W x H)
335 x 210 x 468 mm
PRODUCT DIMENSIONS (L x W x H)
368 x 210 x 480 mm
PACKAGE DIMENSIONS (L x W x H)
530 x 265 x 425 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm

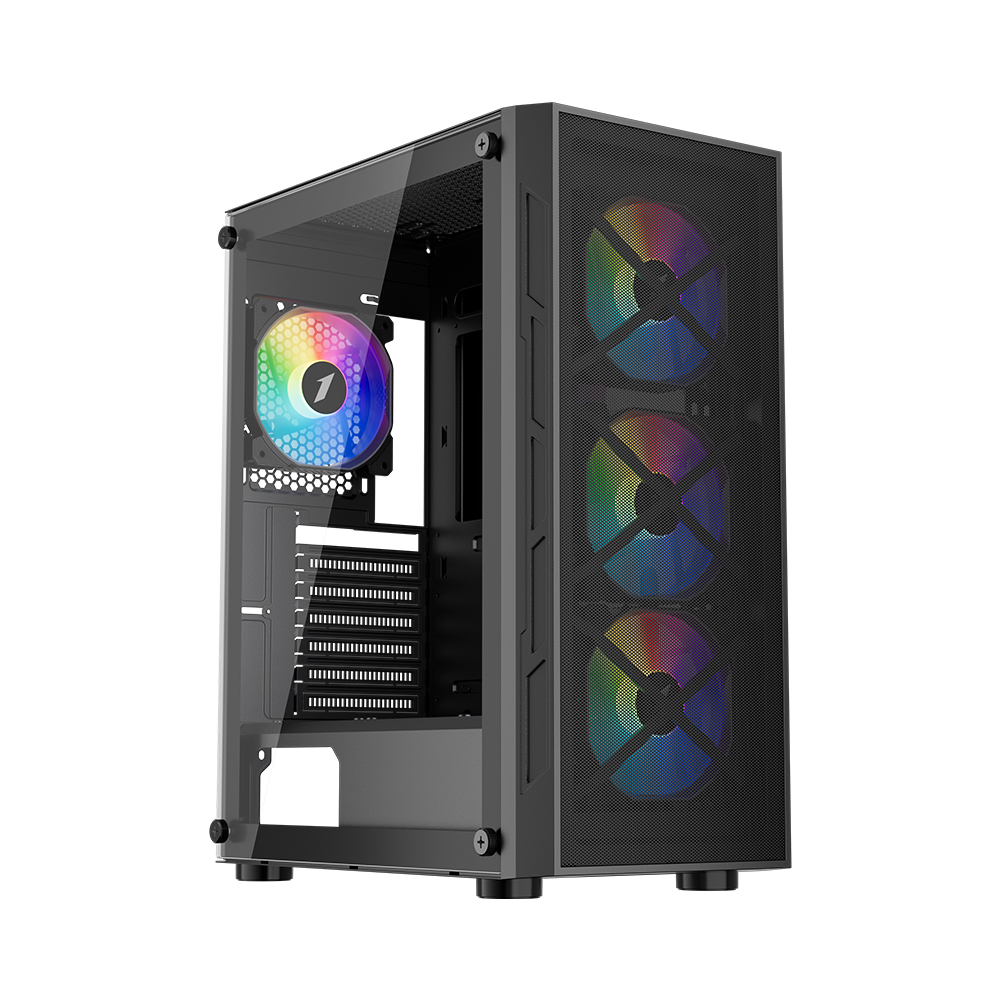

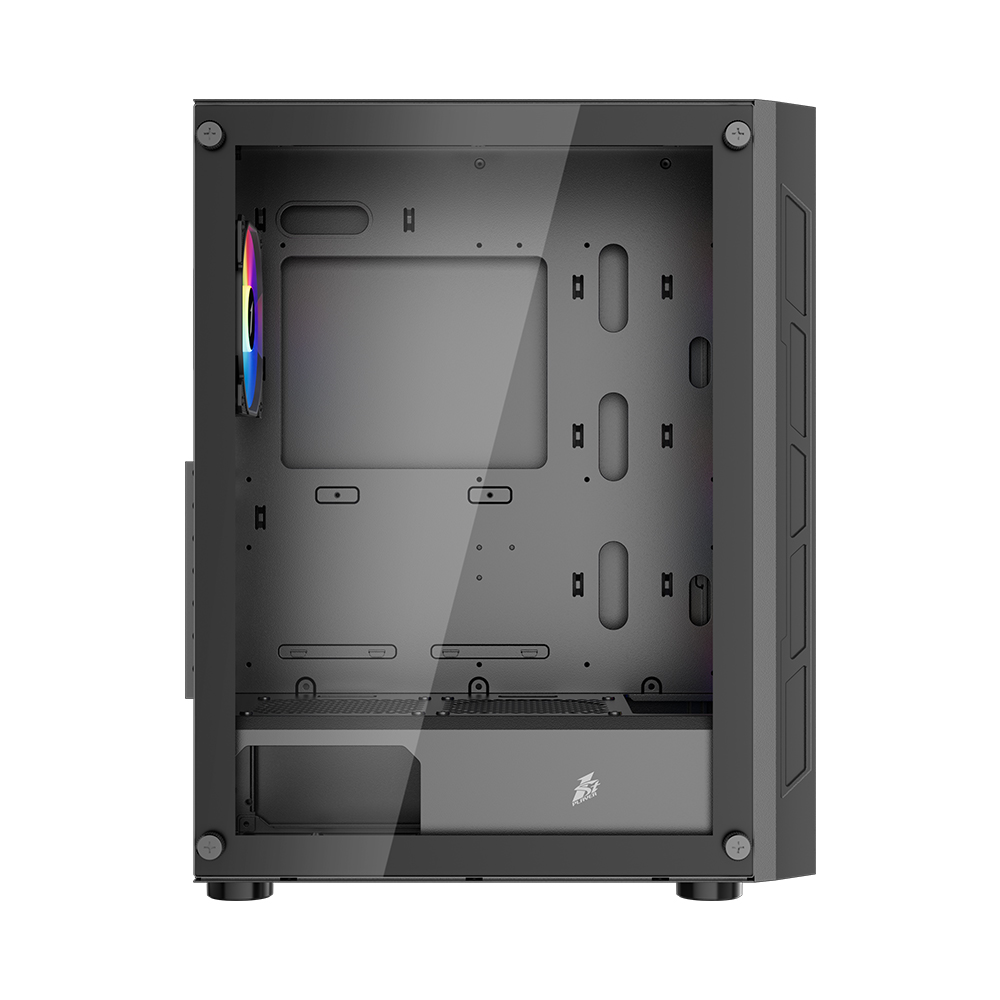

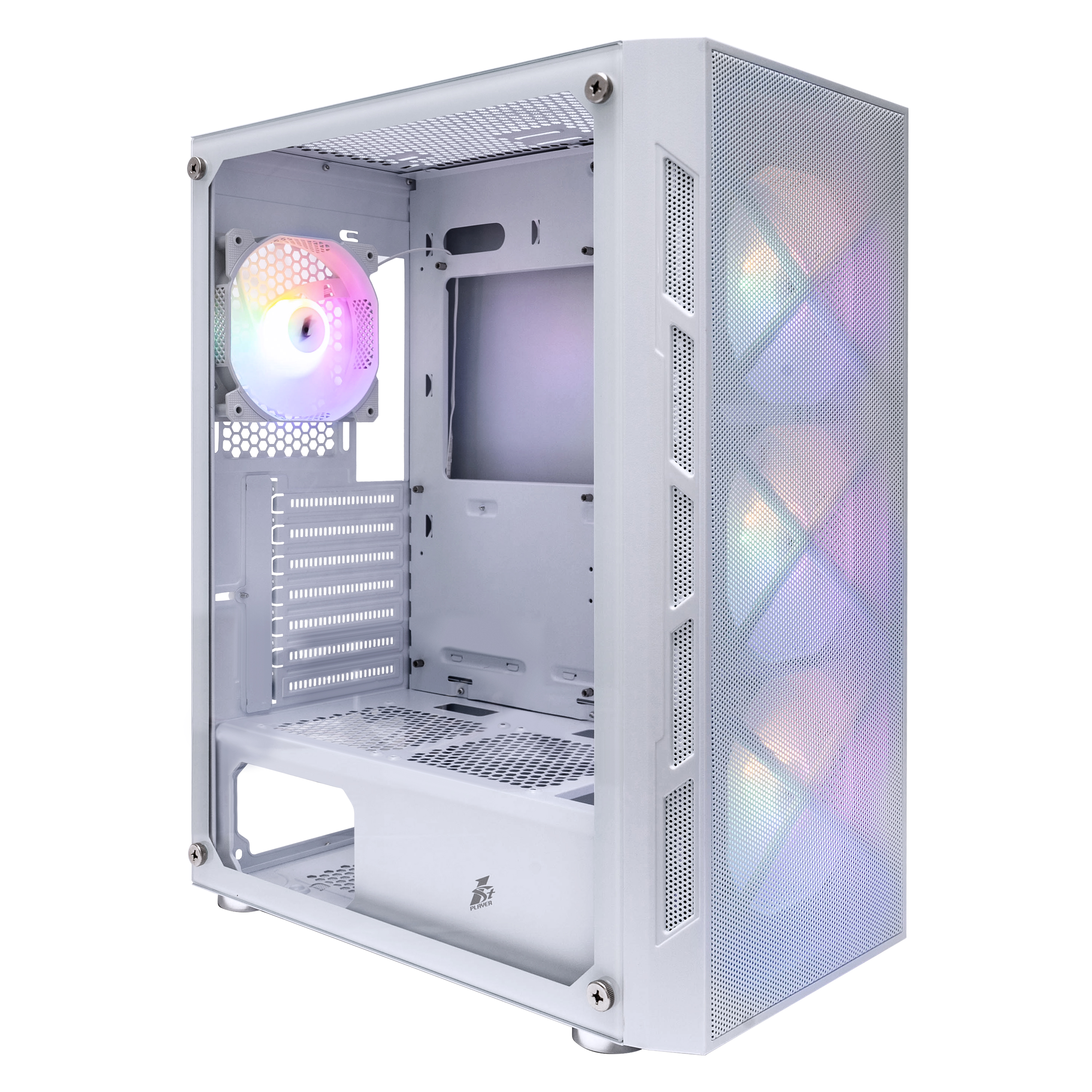

Left Panel: Tempered glass

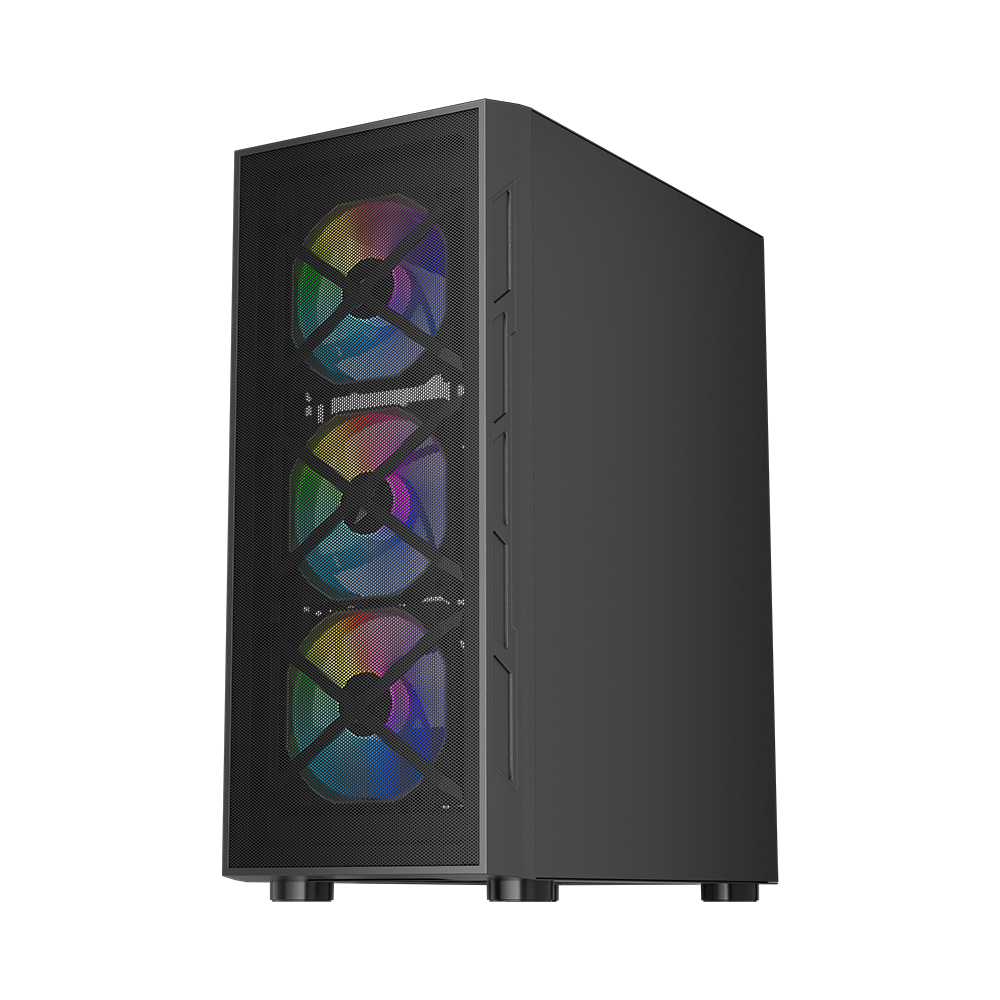

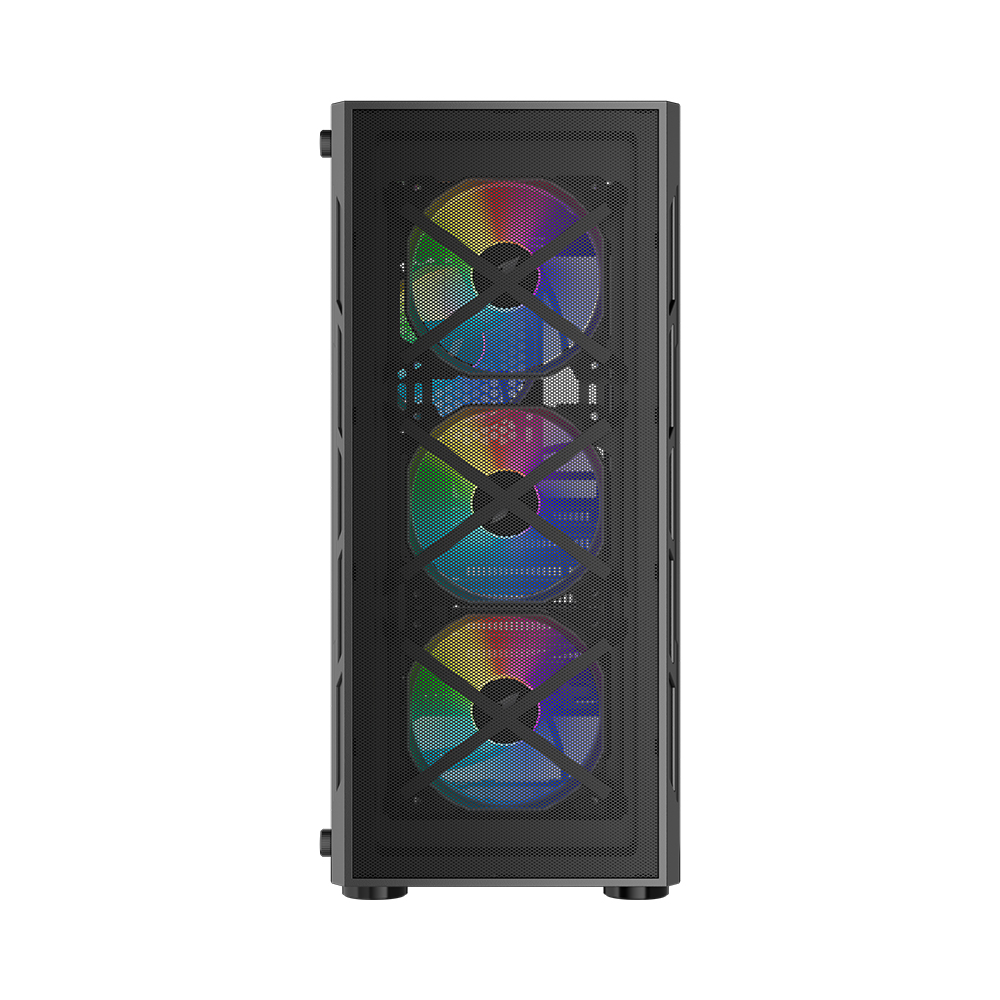

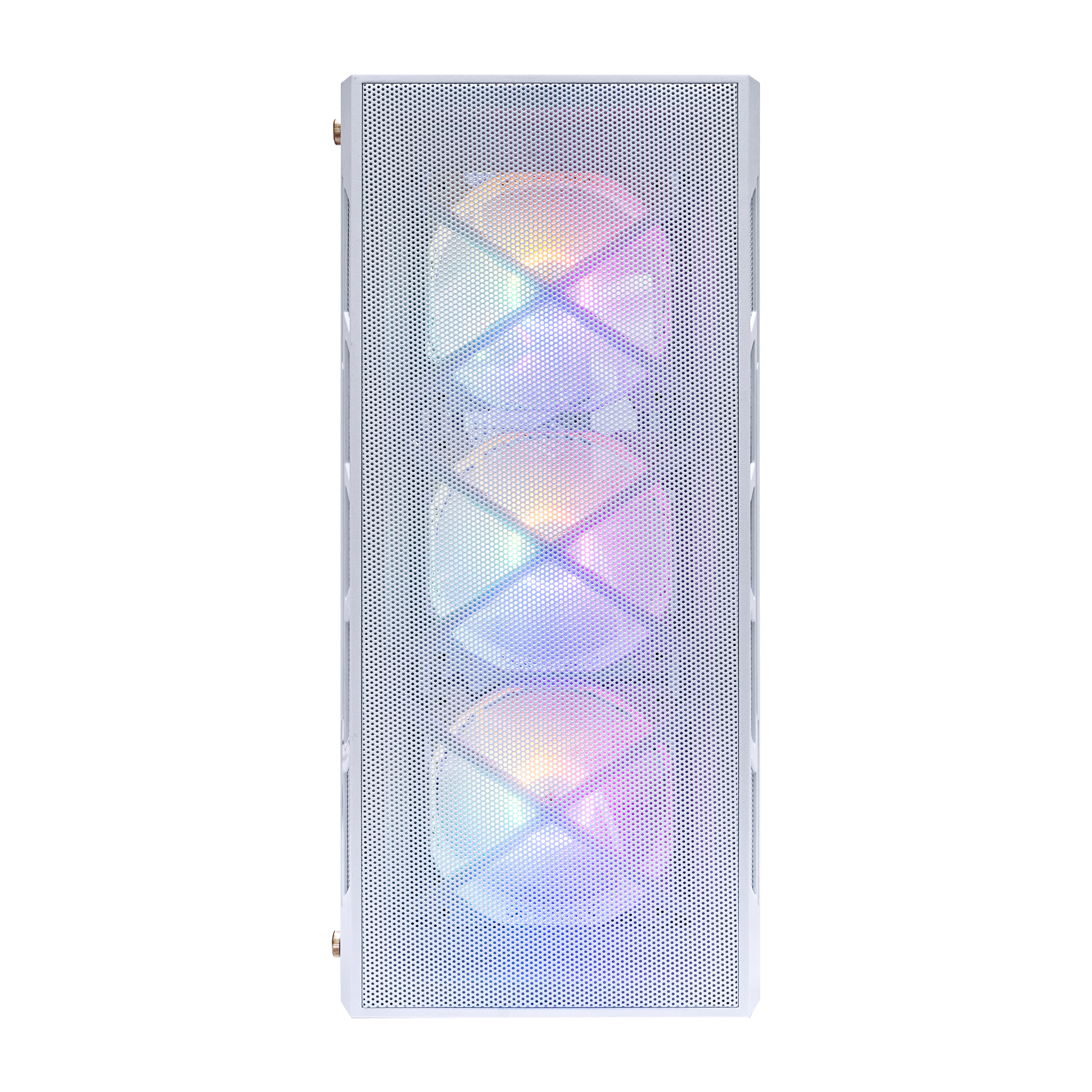

Front Panel: Metal mesh
FORM FACTOR
ATX / M-ATX
5.25" CD ROM: 0
3.5" HDD: 2 + 2.5" SSD: 2
3.5" HDD: 1 + 2.5" SSD: 3
CPU MAX HEIGHT
165 mm
GPU MAX LENGTH
320 mm
I/O PANEL
HD AUDIO + USB 3.0 x 1 + USB 2.0 x 2
PCI CARD SLOT
7
FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm

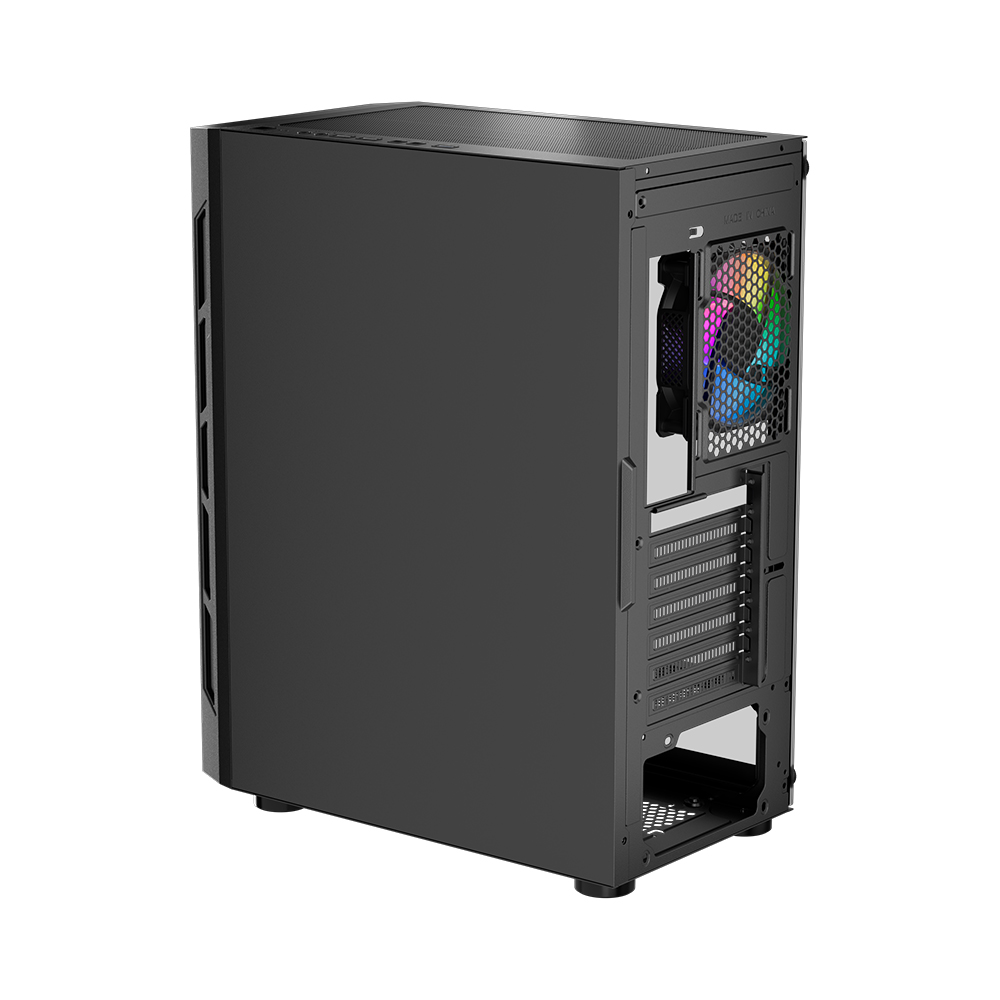

Rear: 1 x 12 cm
Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
Top: 240 mm
Front: 360 mm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
5.45 kg / 12.01 lb
6.05 kg / 13.33 lb
