Supports GPU length up to 420 mm
Supports CPU cooler height up to 174 mm
Supports installing of up to 9 x 120 mm fans
Supports 360 mm radiator at the top

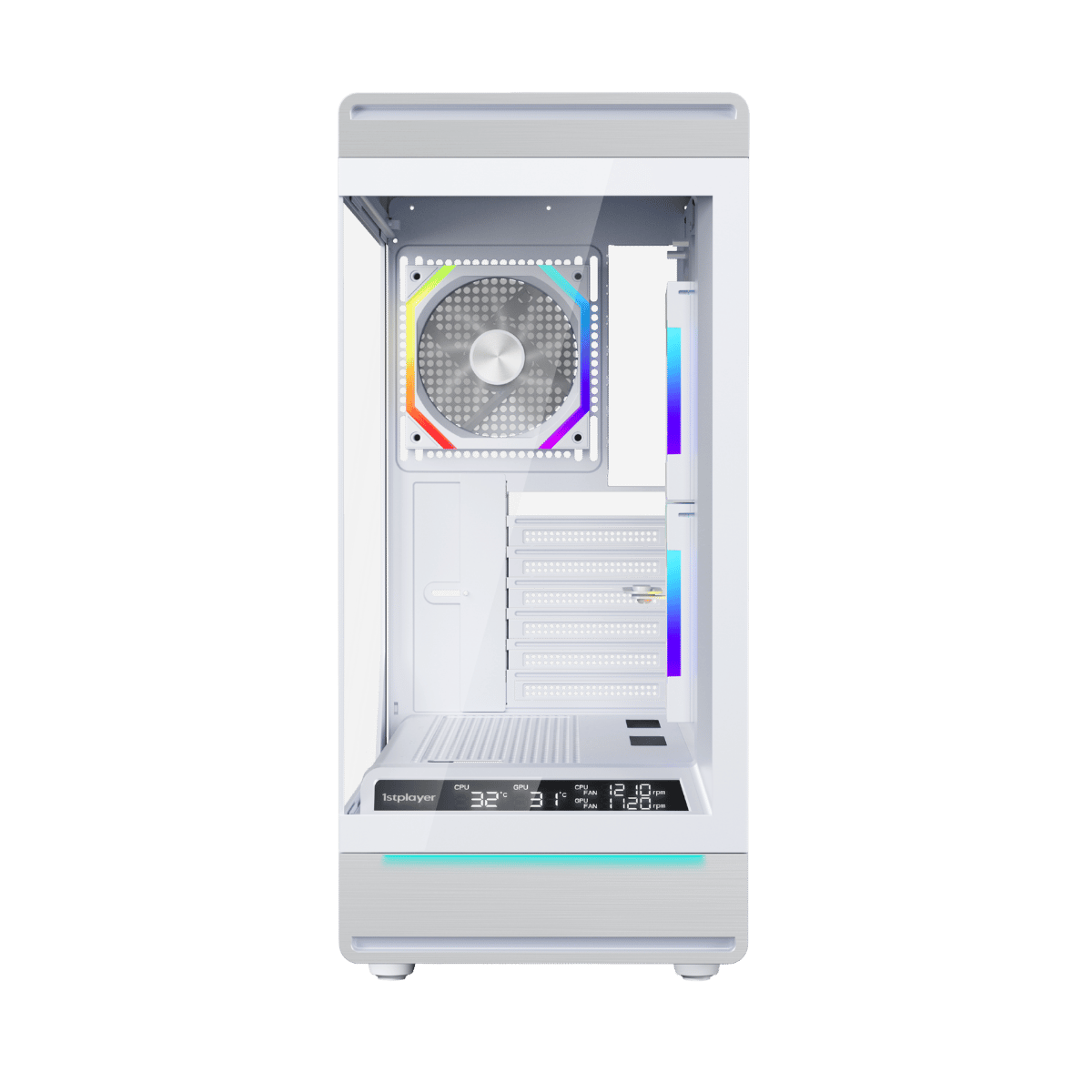

Integrated Monitor Screen: Real-time CPU & GPU temps plus CPU fan & GPU fan speeds (RPM) displayed simultaneously at a glance

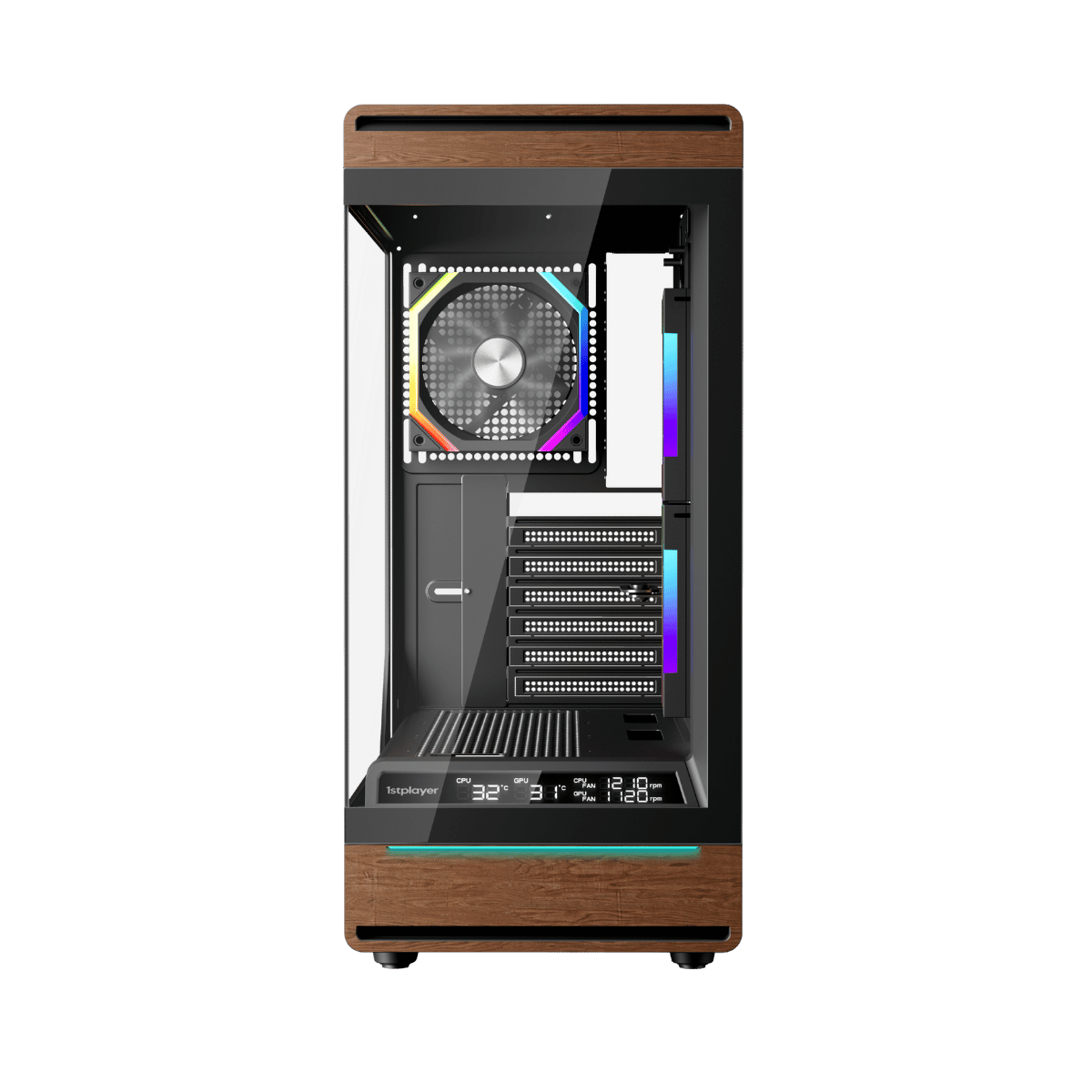

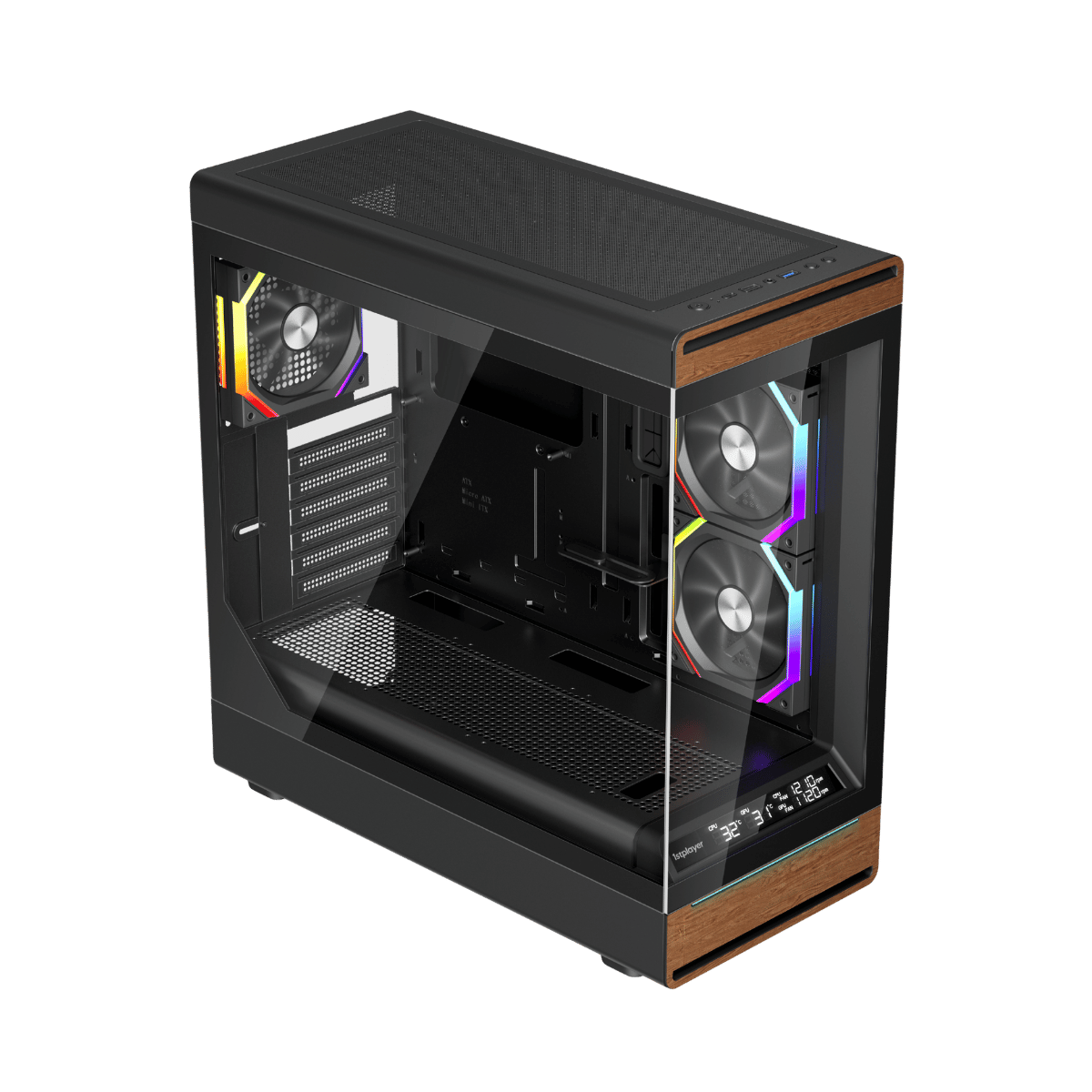

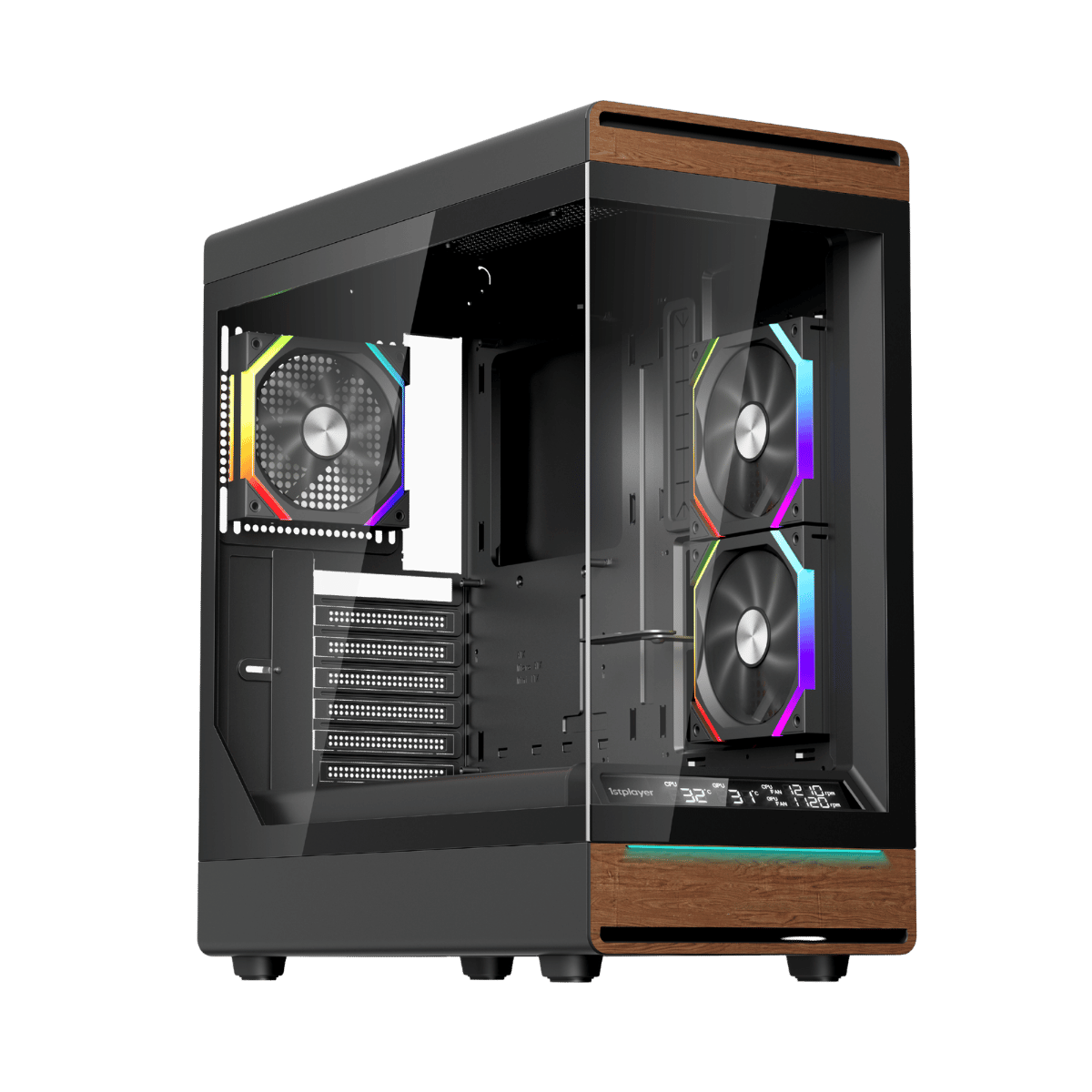

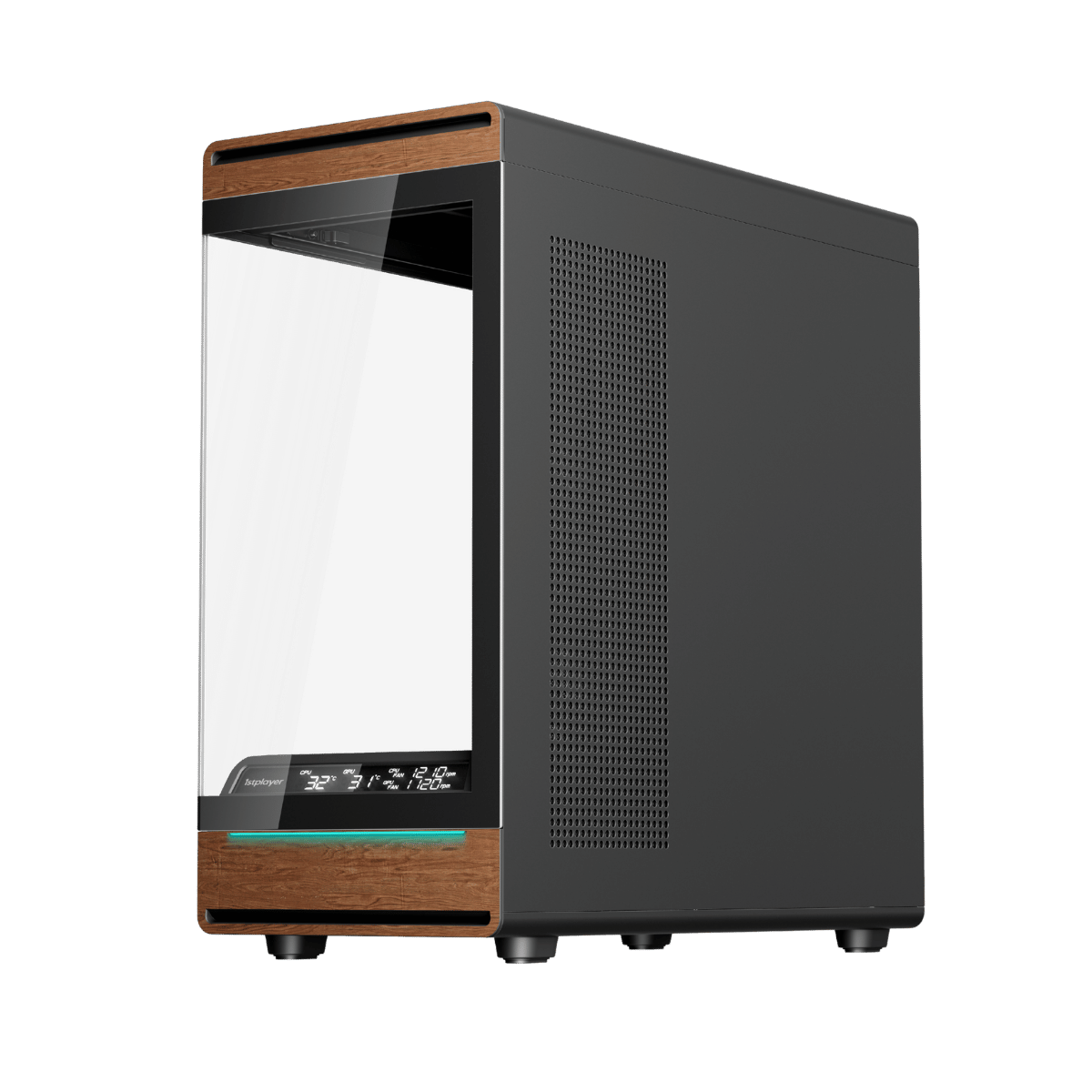

Wood-Accented Style: Wood-look trims add a warm, modern touch that elevates any desk setup

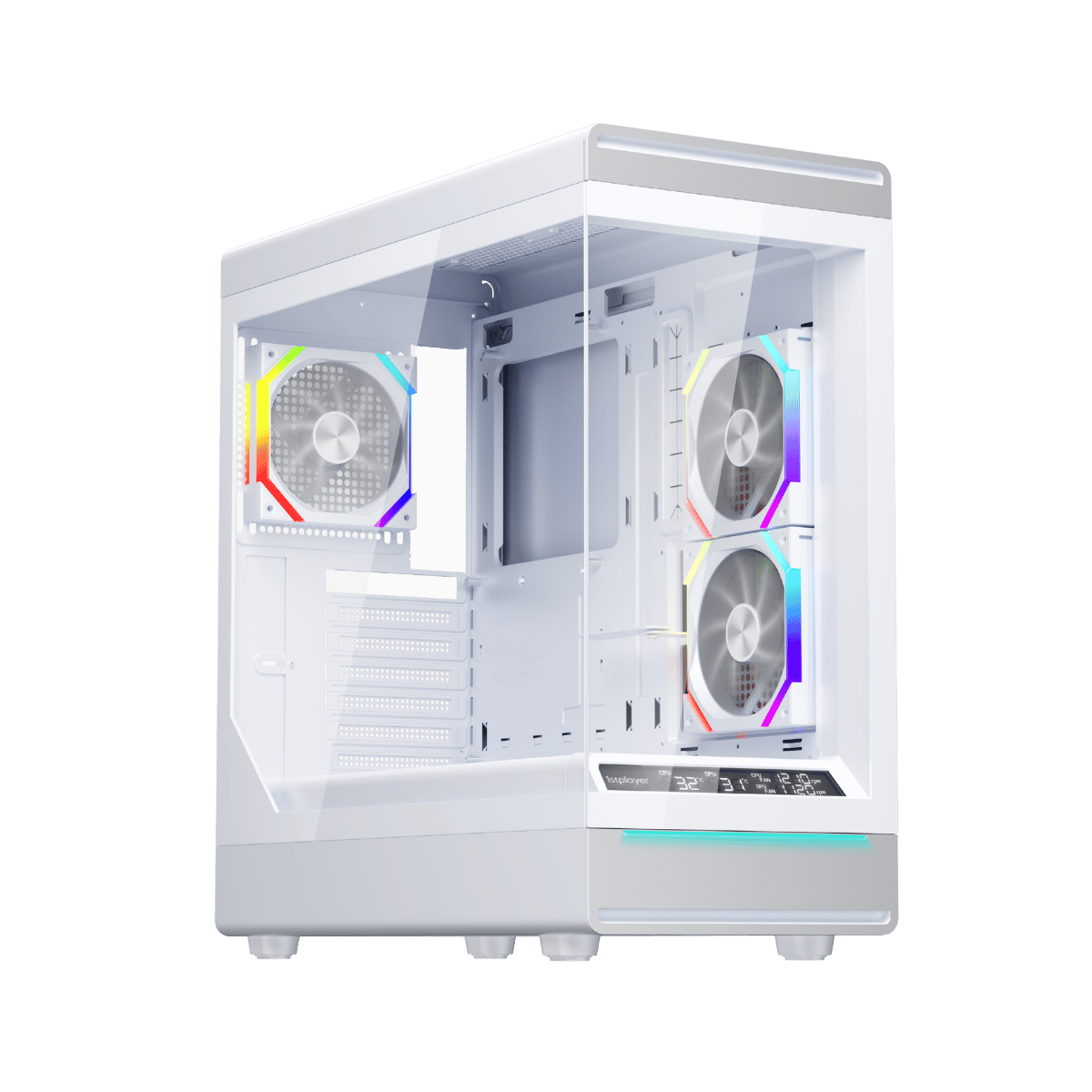

ARGB Lighting Strip: Support dynamic multi-color effects for immersive, flowing glow
Built-in GPU bracket: Prevents sag, protects PCleslot, and aligns graphics card for clean showcase

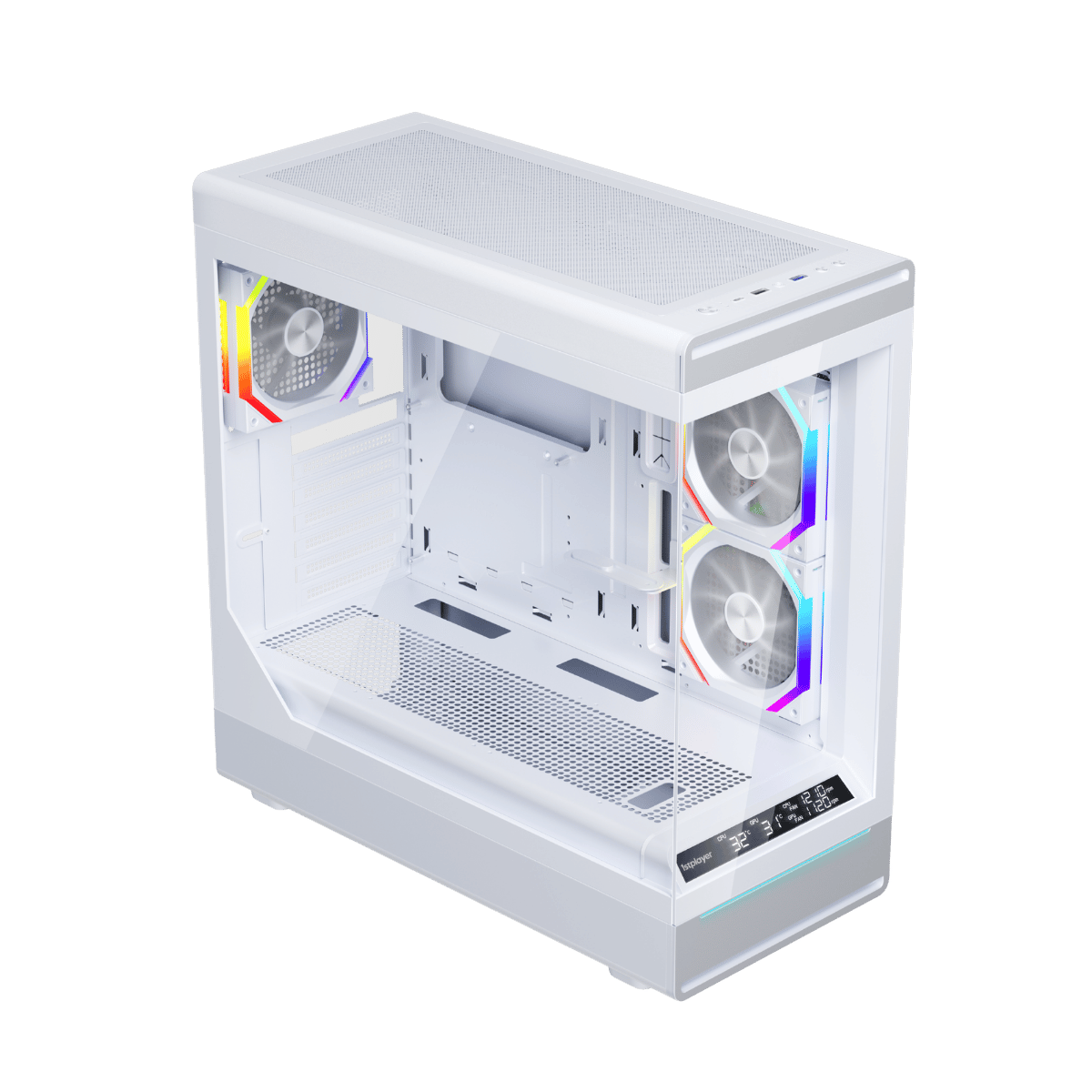

White
MODEL
WD8
STRUCTURE DIMENSIONS (L x W x H)
459 × 220 × 467 mm
PRODUCT DIMENSIONS (L x W x H)
462 × 220 × 480 mm
PACKAGE DIMENSIONS (L x W x H)
521 x 277 × 553 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC, tempered glass
FORM FACTOR
ATX / M-ATX / ITX

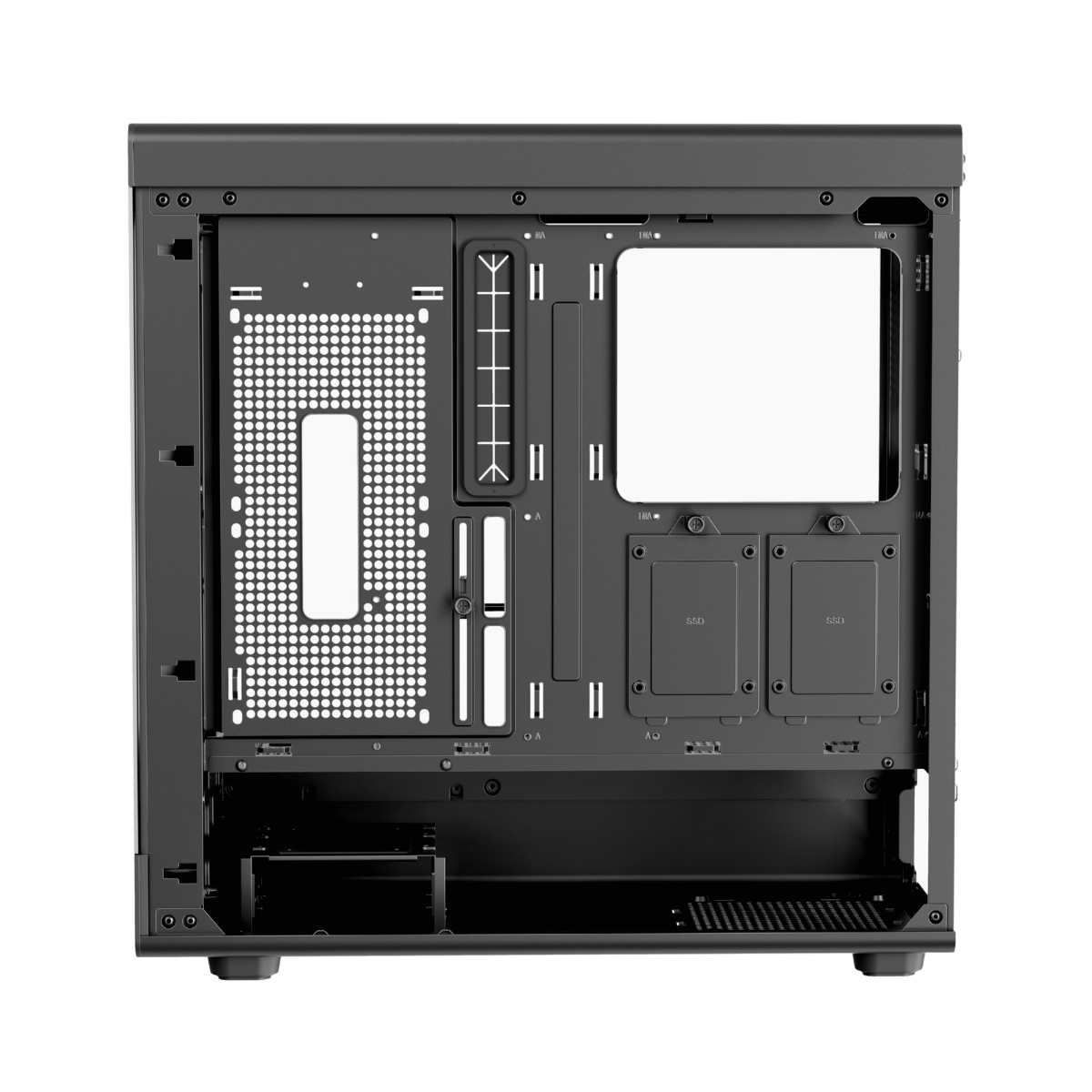

3.5" HDD: 2 + 2.5" SSD: 2 or
3.5" HDD: 1 + 2.5" SSD: 3
CPU MAX HEIGHT
174 mm
GPU MAX LENGTH
420 mm

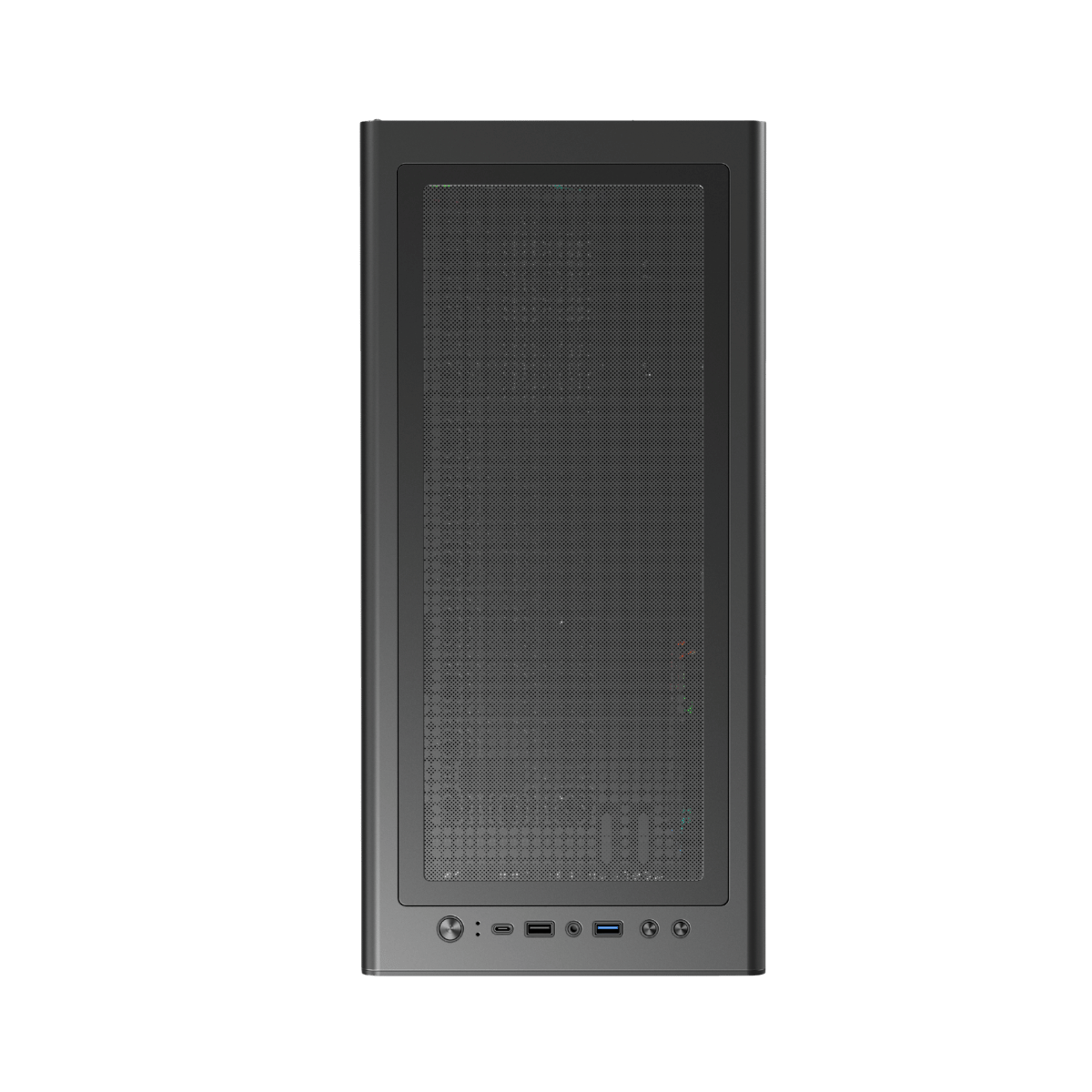

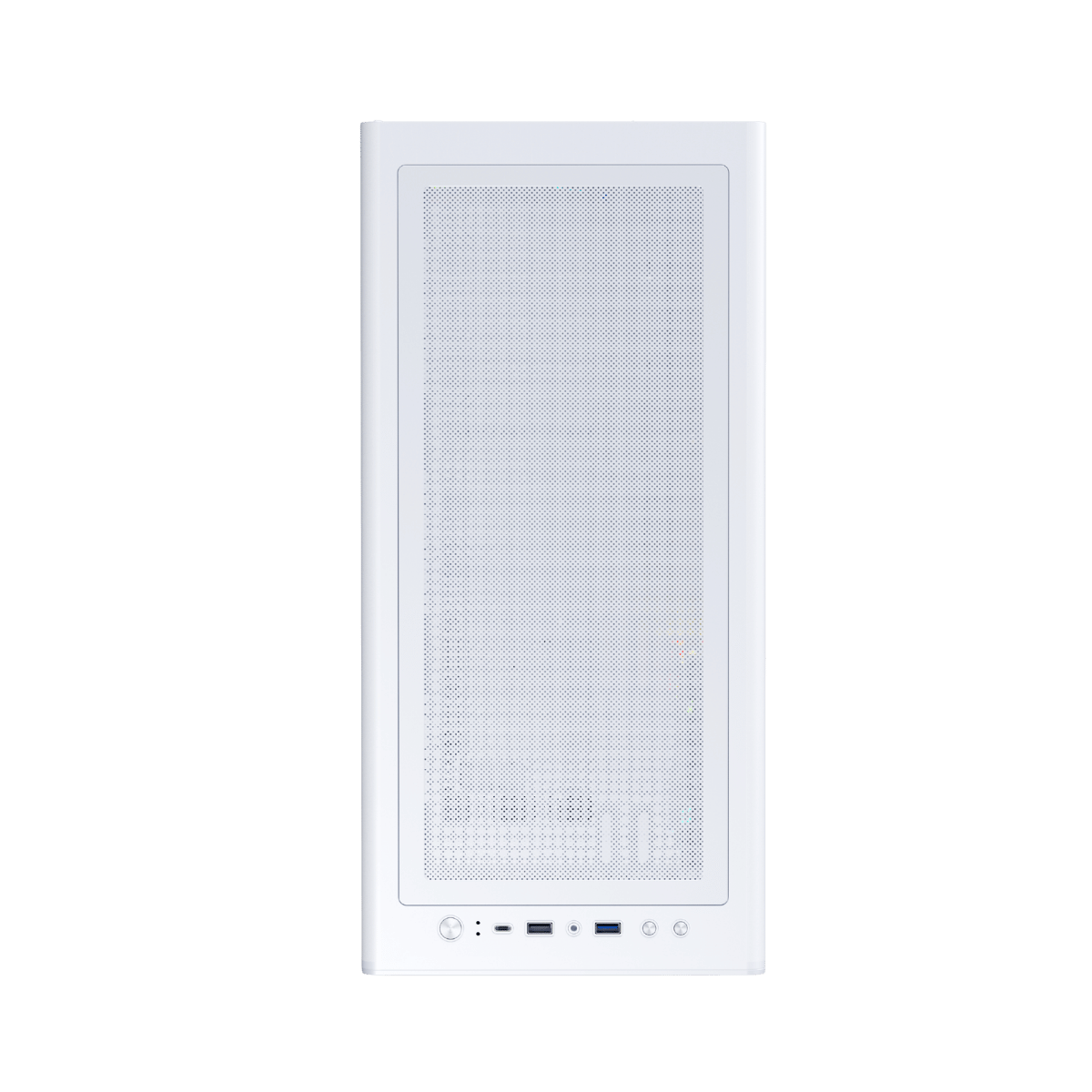

I/O PANEL
USB 3.0 x 1 +USB 1.0 x 1 + Type-C x1+ HD Audio
PCI CARD SLOT
7
FAN SUPPORT

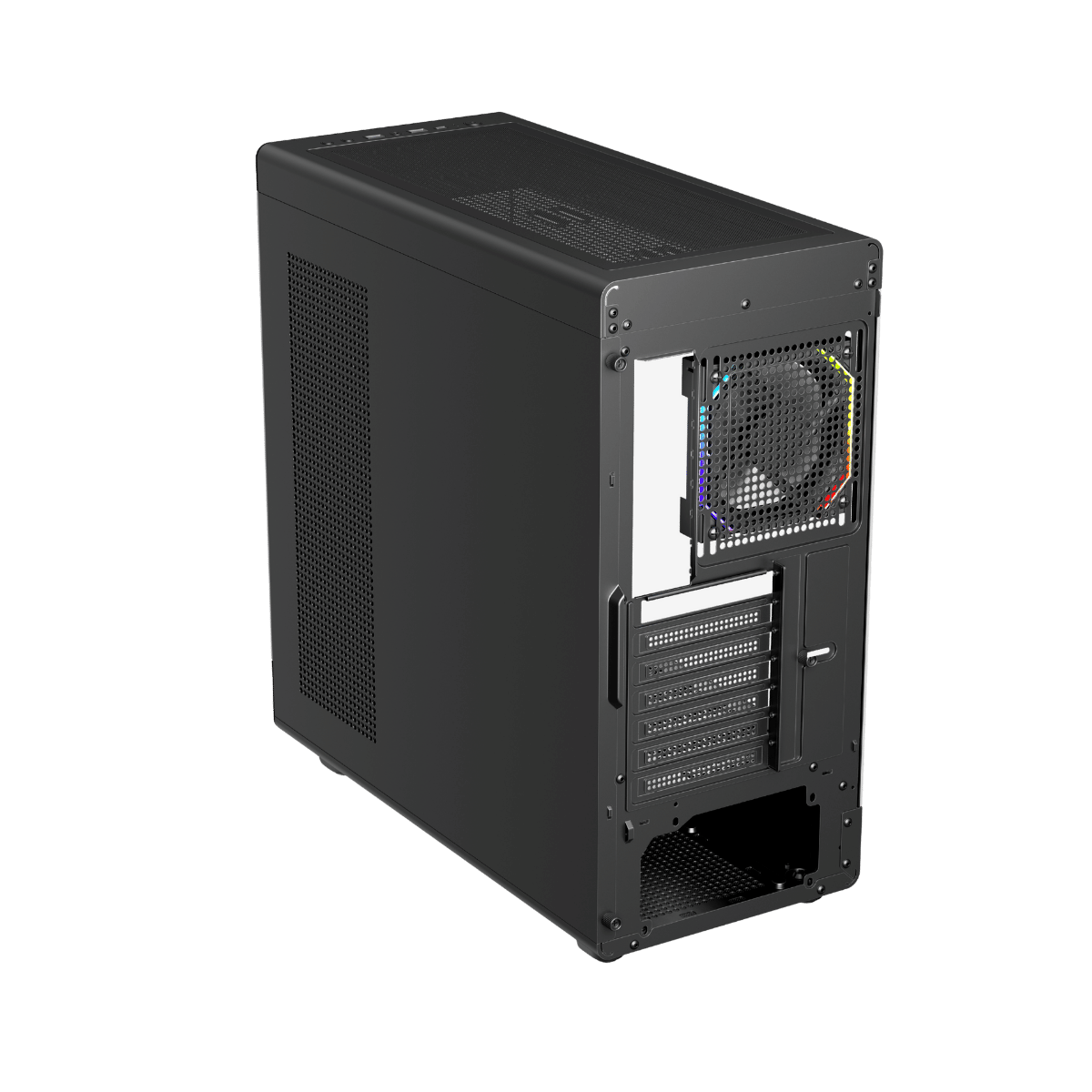

Rear: 1 x 120 mm / 1 x 140 mm
Top: 3 x120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 3 x 120 mm
LIQUID COOLING SUPPORT
Top: 360 mm, 240 mm
POWER SUPPLY SUPPORT
240 mm (ATX PSU)
WEIGHT
N.W.: 6.1 kg ± 10%
G.W.: 7.3 kg ± 10%
