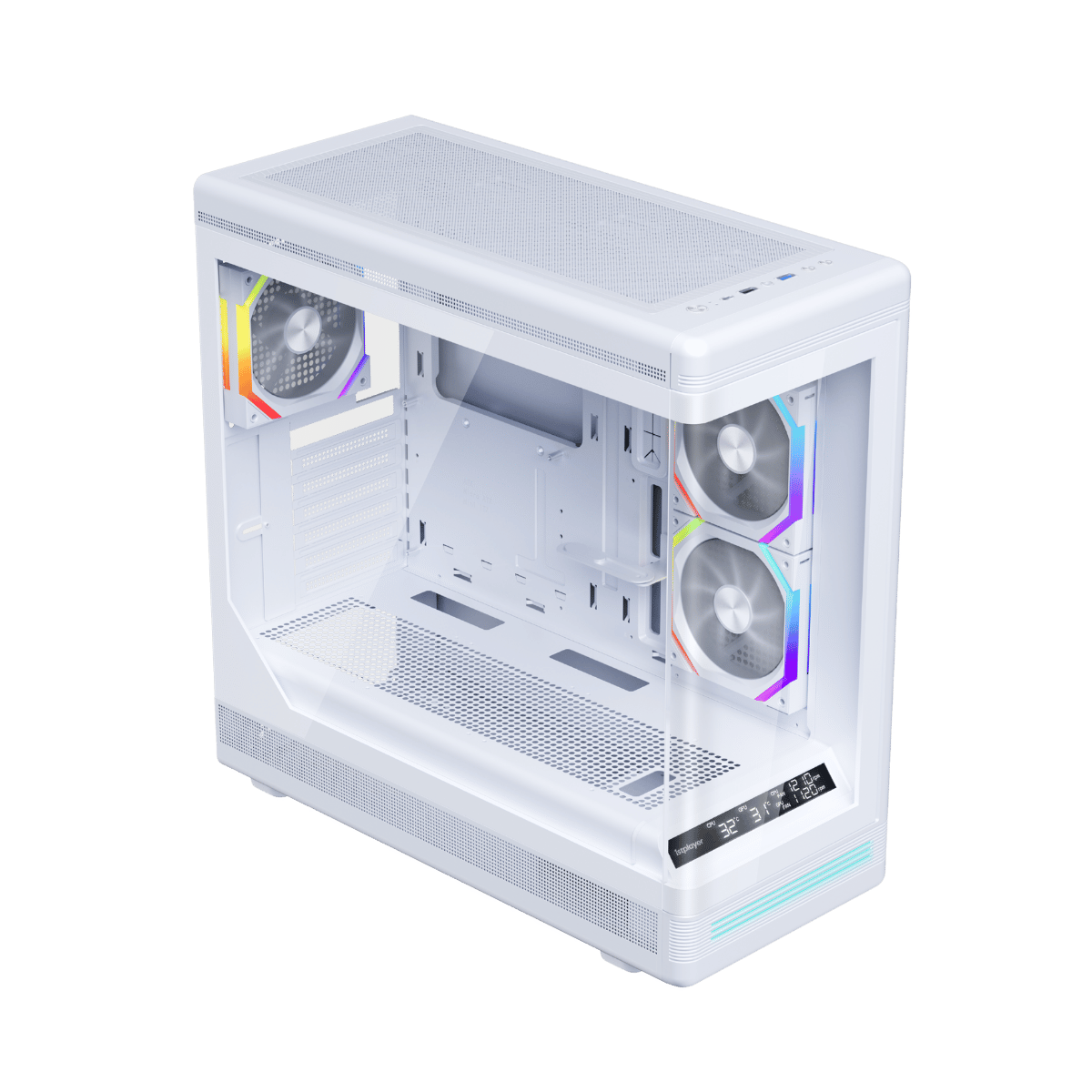

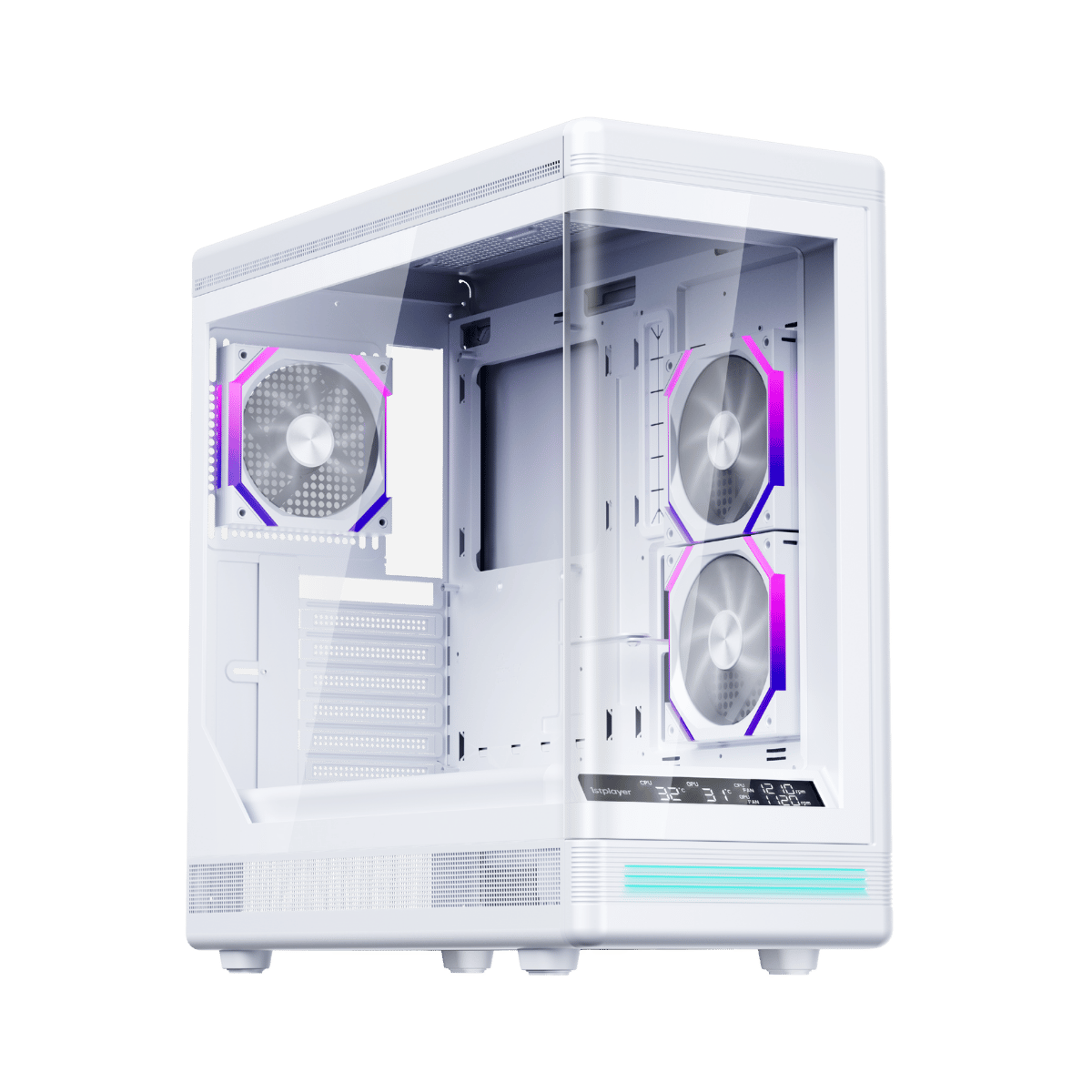

PB8

  • Supports GPU length up to 420 mm

  • Supports CPU cooler height up to 174 mm

  • Supports installing of up to 9 x 120 mm fans

  • Supports 360 mm radiator at the top

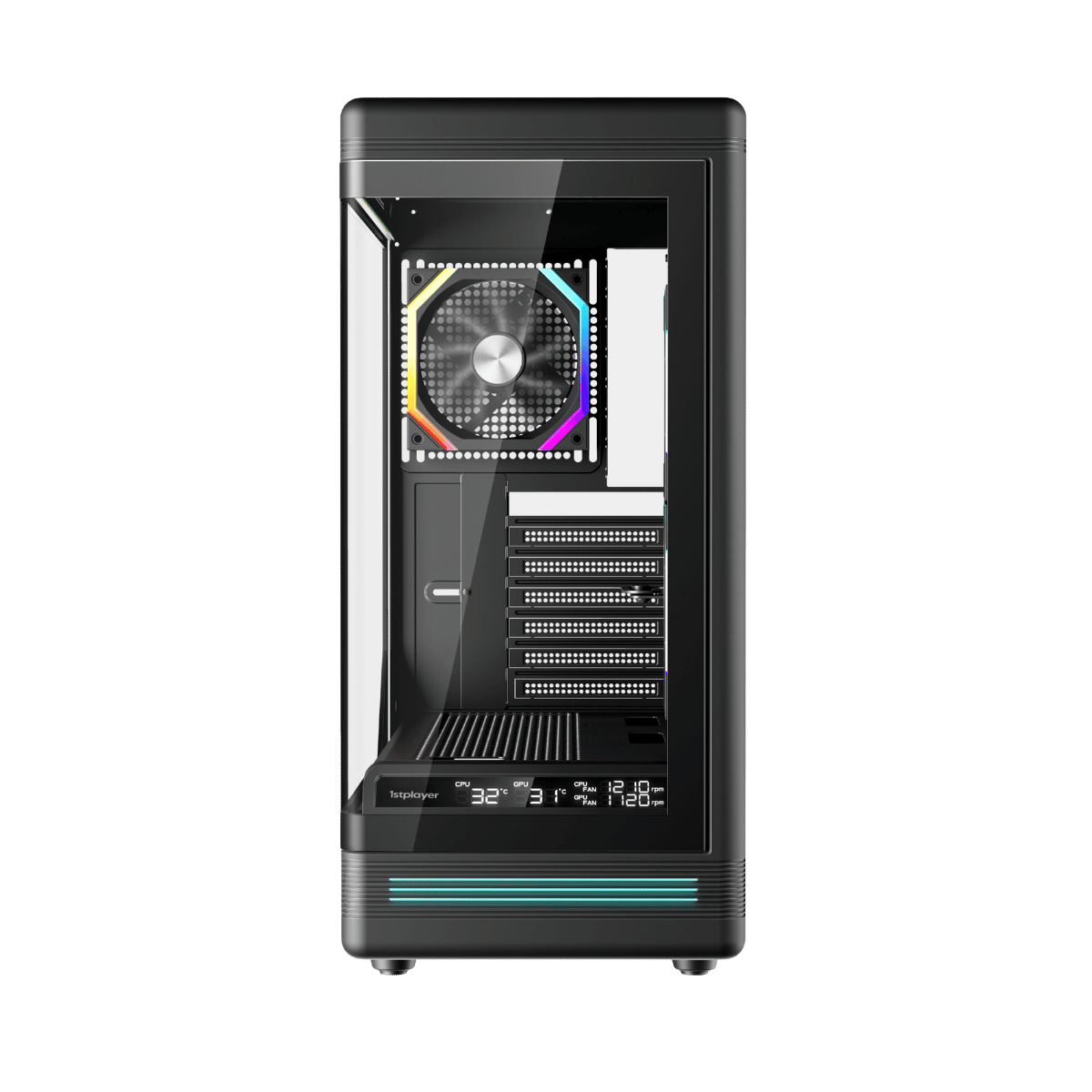

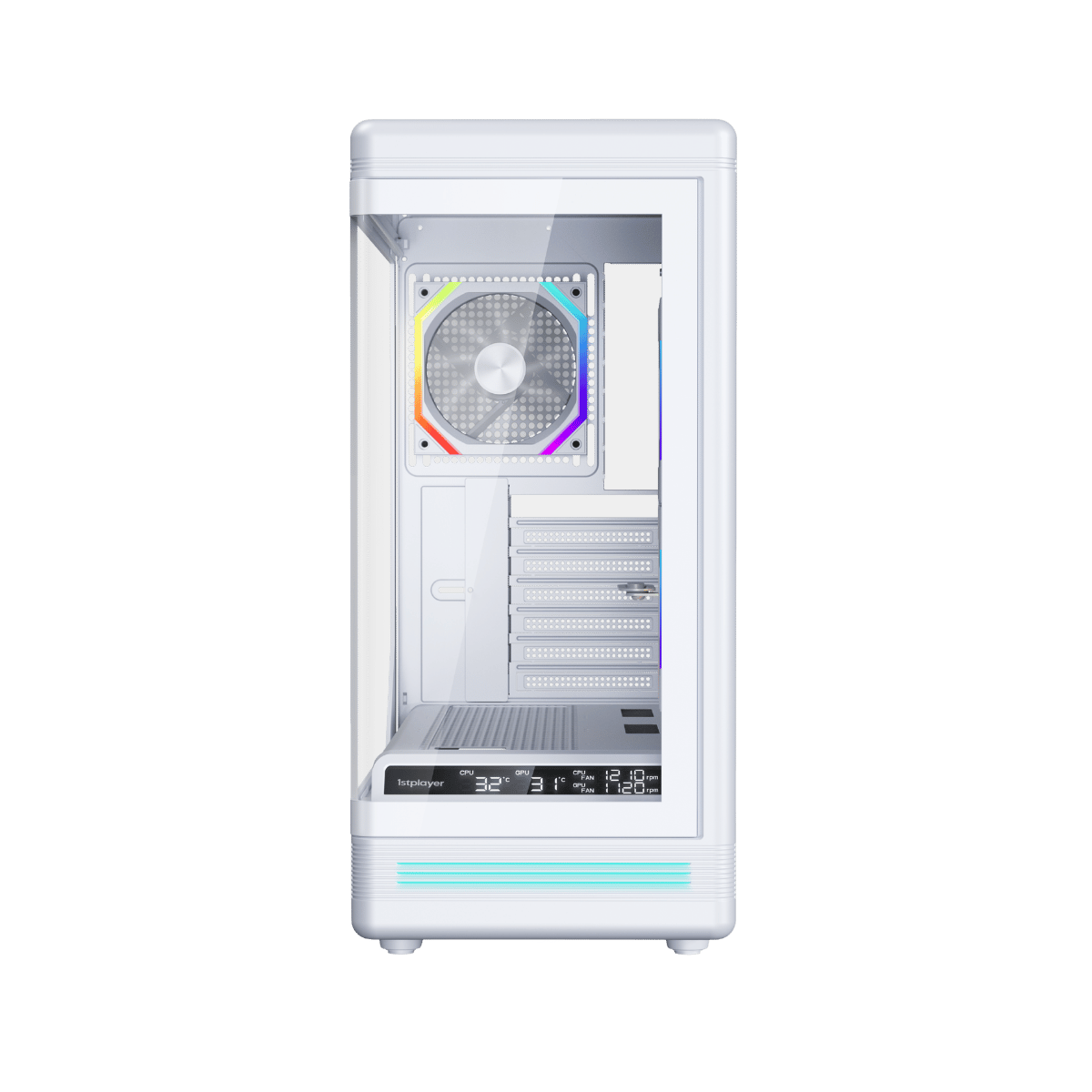

  • Integrated Monitor Screen: Real-time CPU & GPU temps plus CPU fan & GPU fan speeds (RPM) displayed simultaneously at a glance

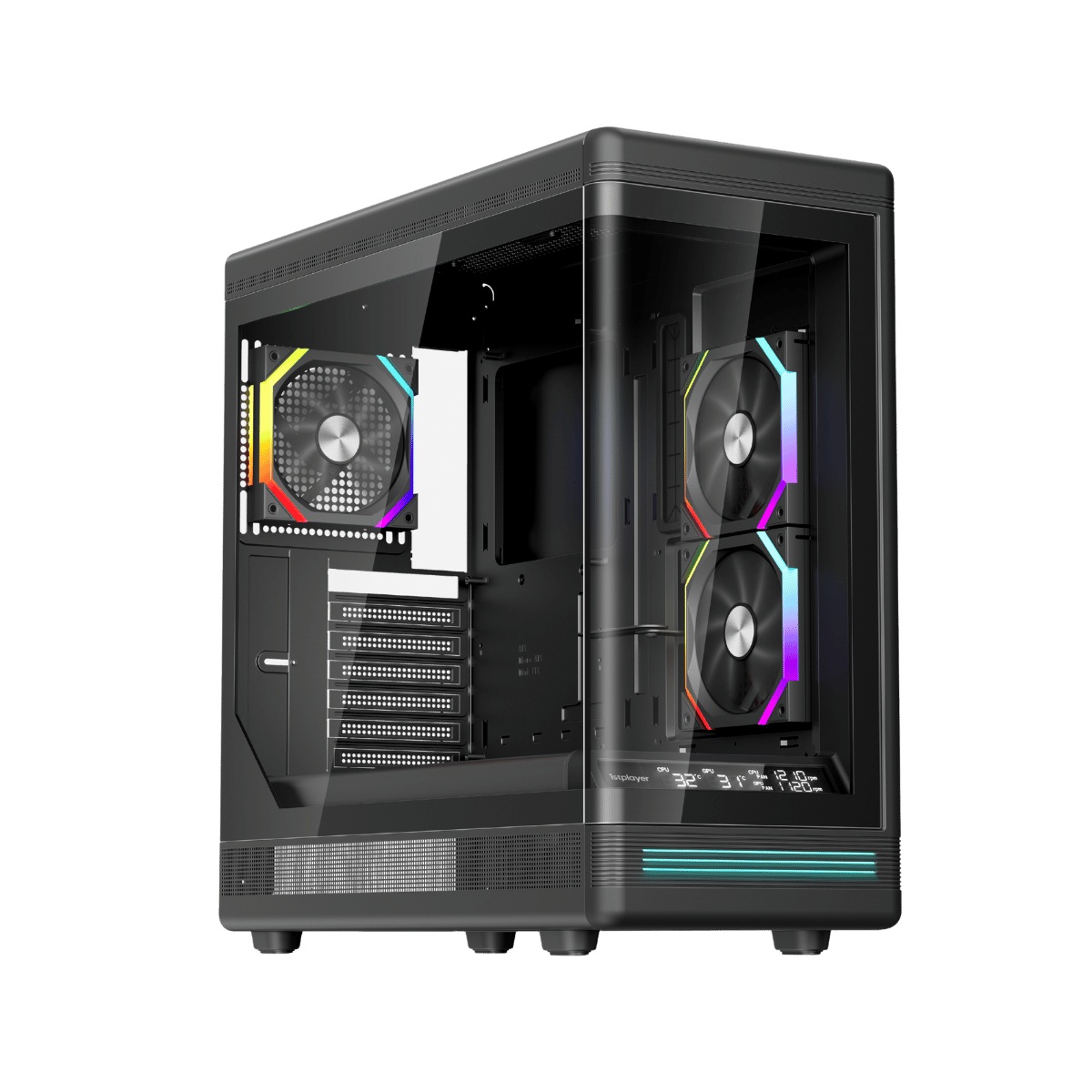

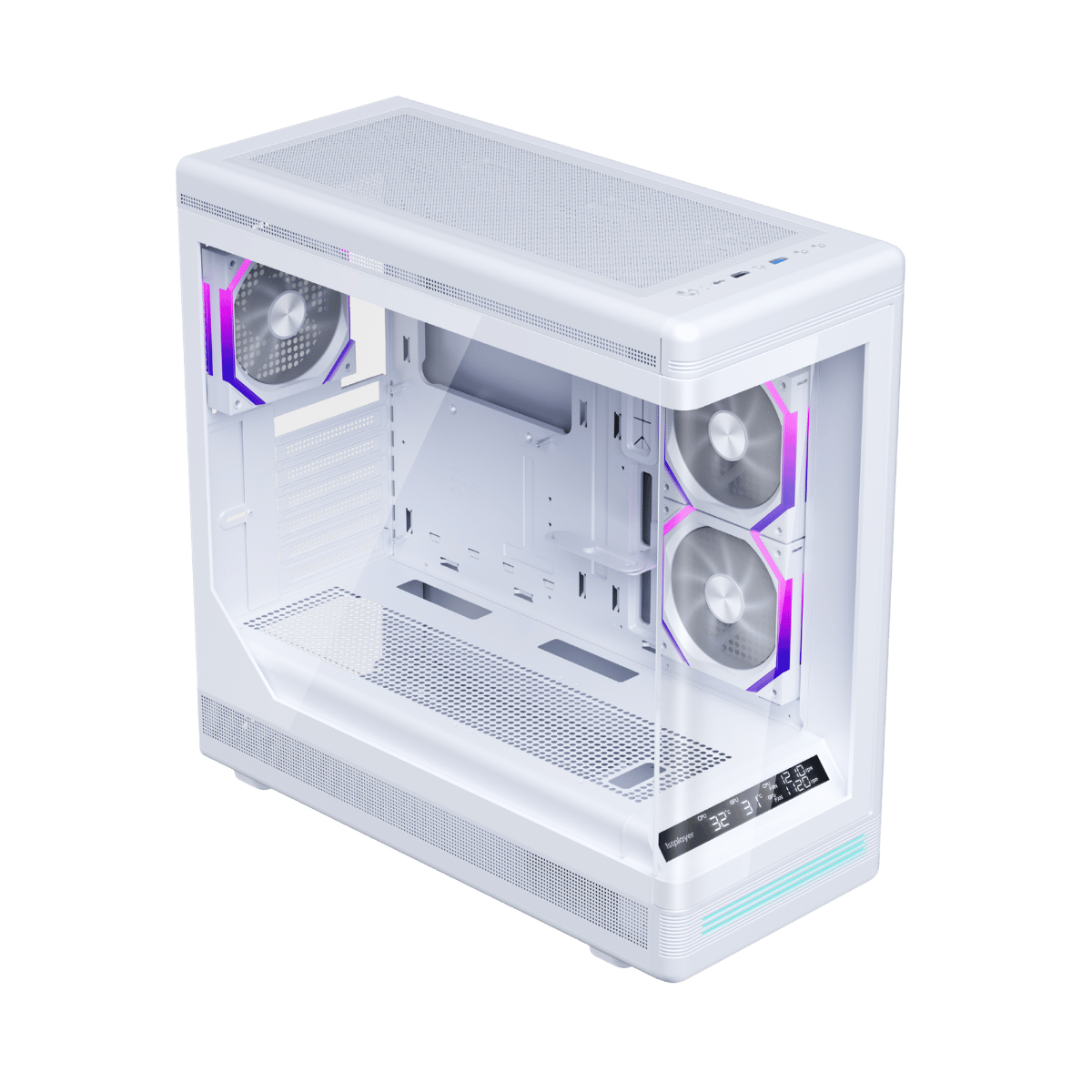

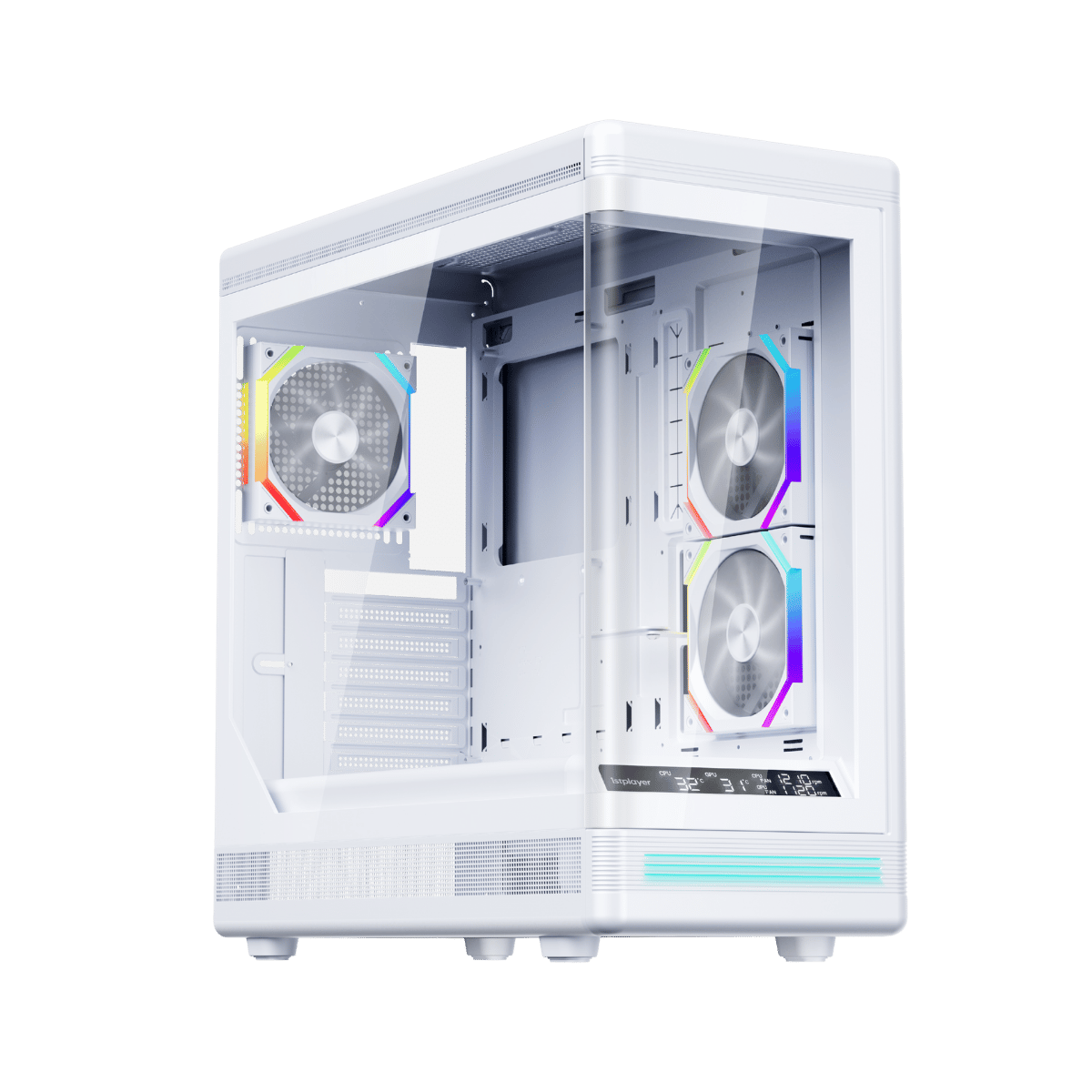

  • Rounded Edge Aesthetics: Tempered glass fusion showcases internals, while smooth rounded corners offer premium tactile feel

  • ARGB Lighting Strips: Support dynamic multi-color effects for immersive, flowing glow

  • Built-in GPU bracket: Prevents sag, protects PCleslot, and aligns graphics card for clean showcase

  • Bottom Airflow Enhancement: Bottom intake delivers cool air through PSU shroud to GPU and CPU for enhanced cooling

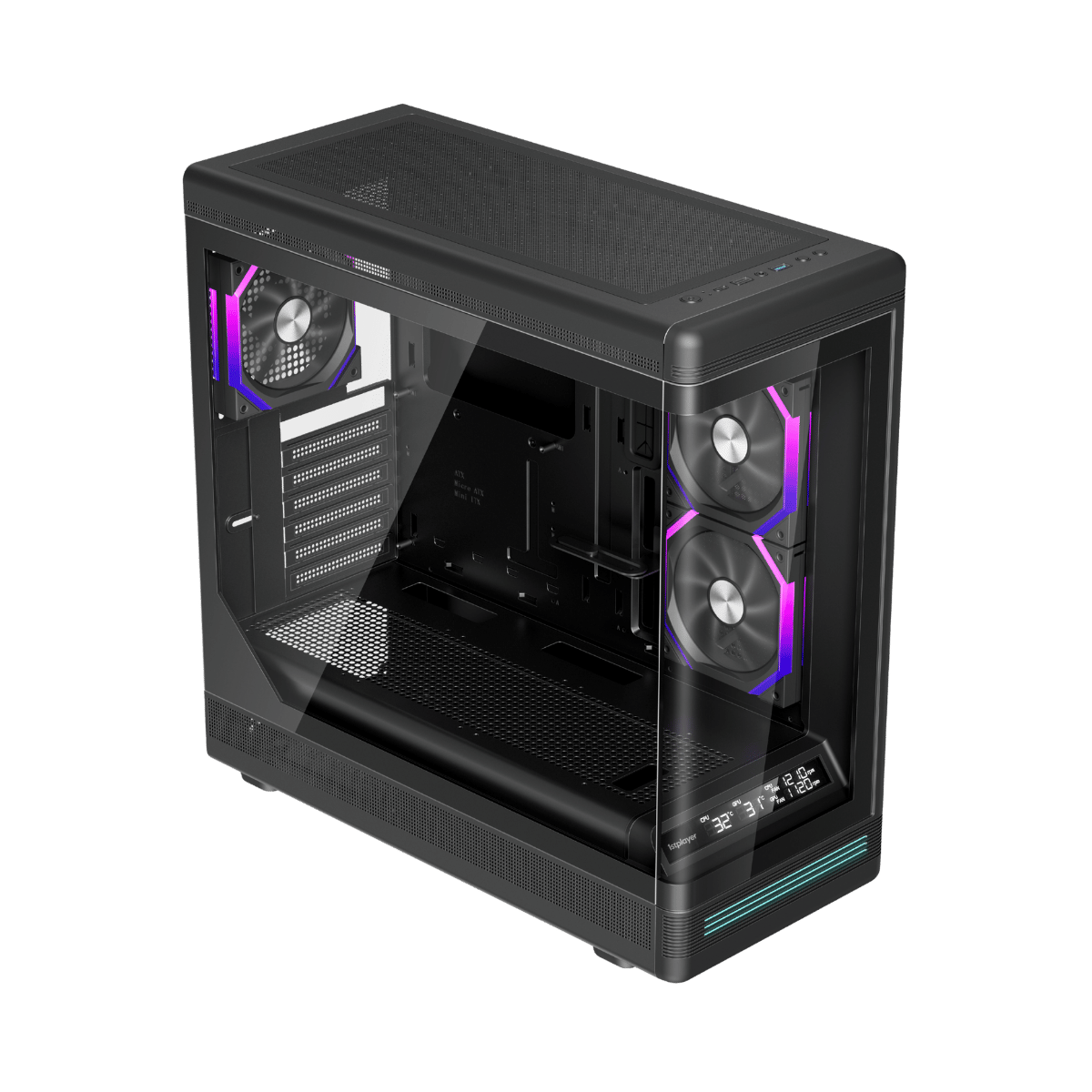

Black




MODEL

PB8

STRUCTURE DIMENSIONS (L x W x H)

459 × 220 × 467 mm

PRODUCT DIMENSIONS (L x W x H)

479 × 220 × 480 mm

PACKAGE DIMENSIONS (L x W x H)

521 x 277 × 553 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC, tempered glass

FORM FACTOR

ATX / M-ATX / ITX

EATX (unless no side fans mounted0

DRIVE BAYS

3.5" HDD: 2 + 2.5" SSD: 2 or

3.5" HDD: 1 + 2.5" SSD: 3

CPU MAX HEIGHT

174 mm

GPU MAX LENGTH

420 mm

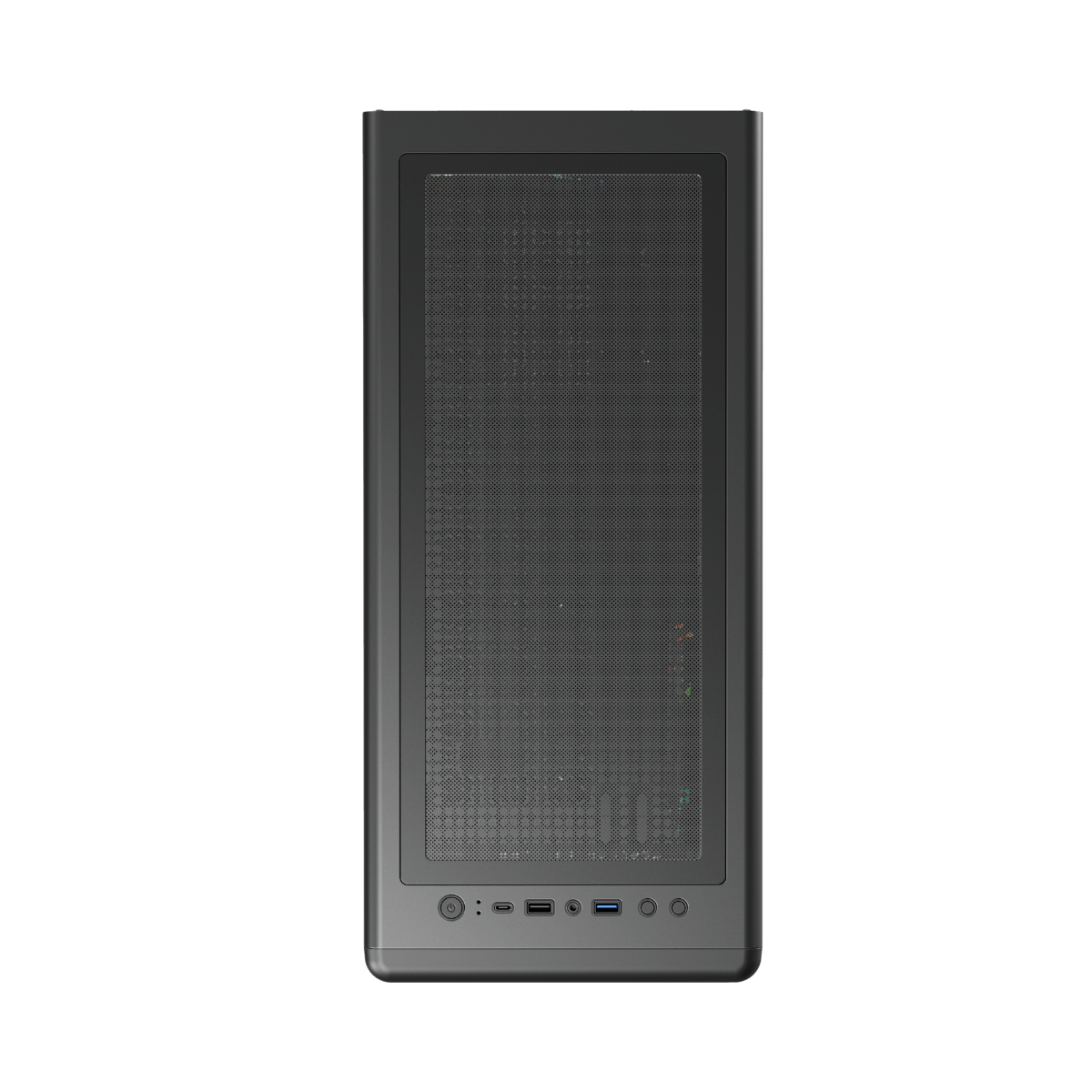

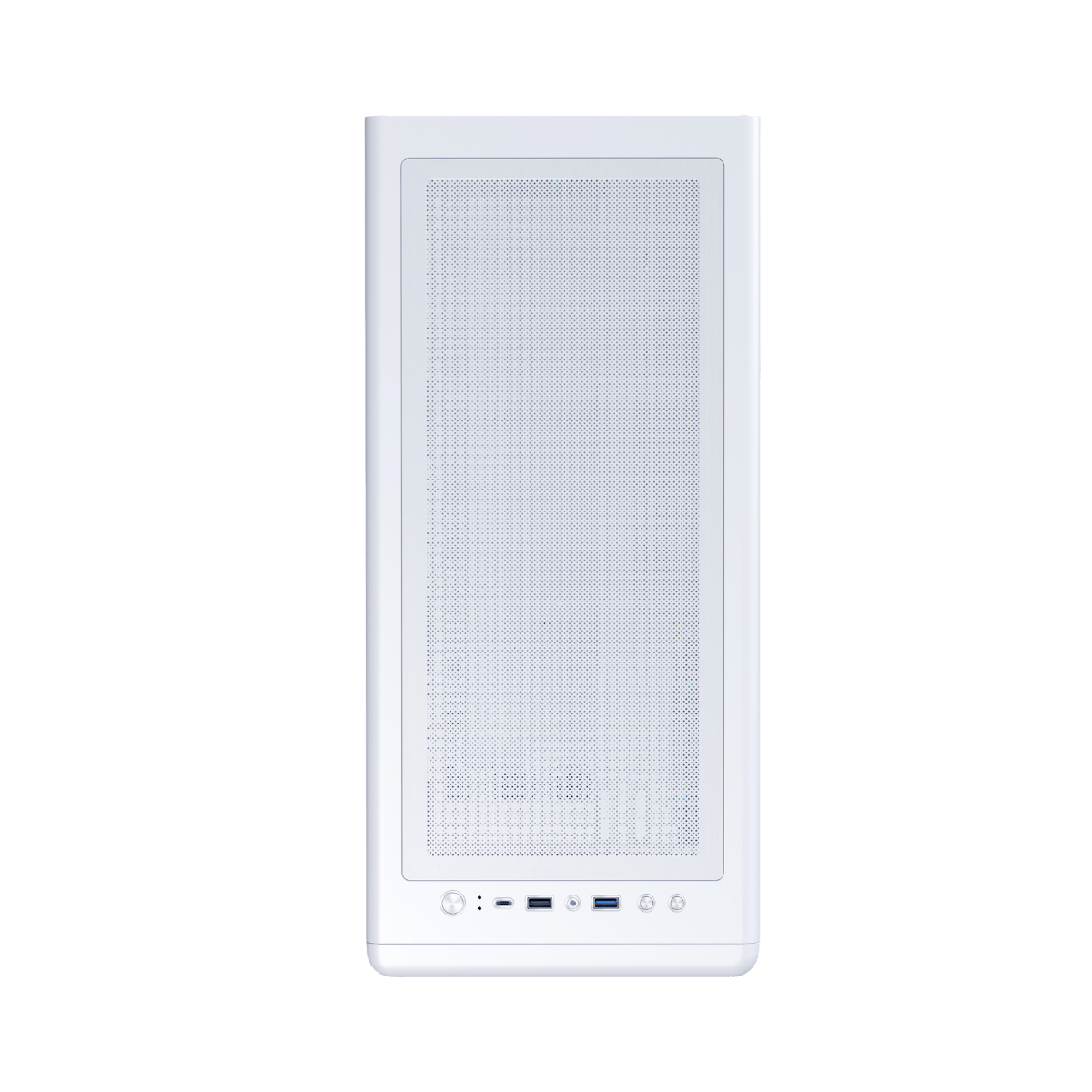

I/O PANEL

USB 3.0 x 1 +USB 1.0 x 1 + Type-C x1+ HD Audio

PCI CARD SLOT

7

FAN SUPPORT

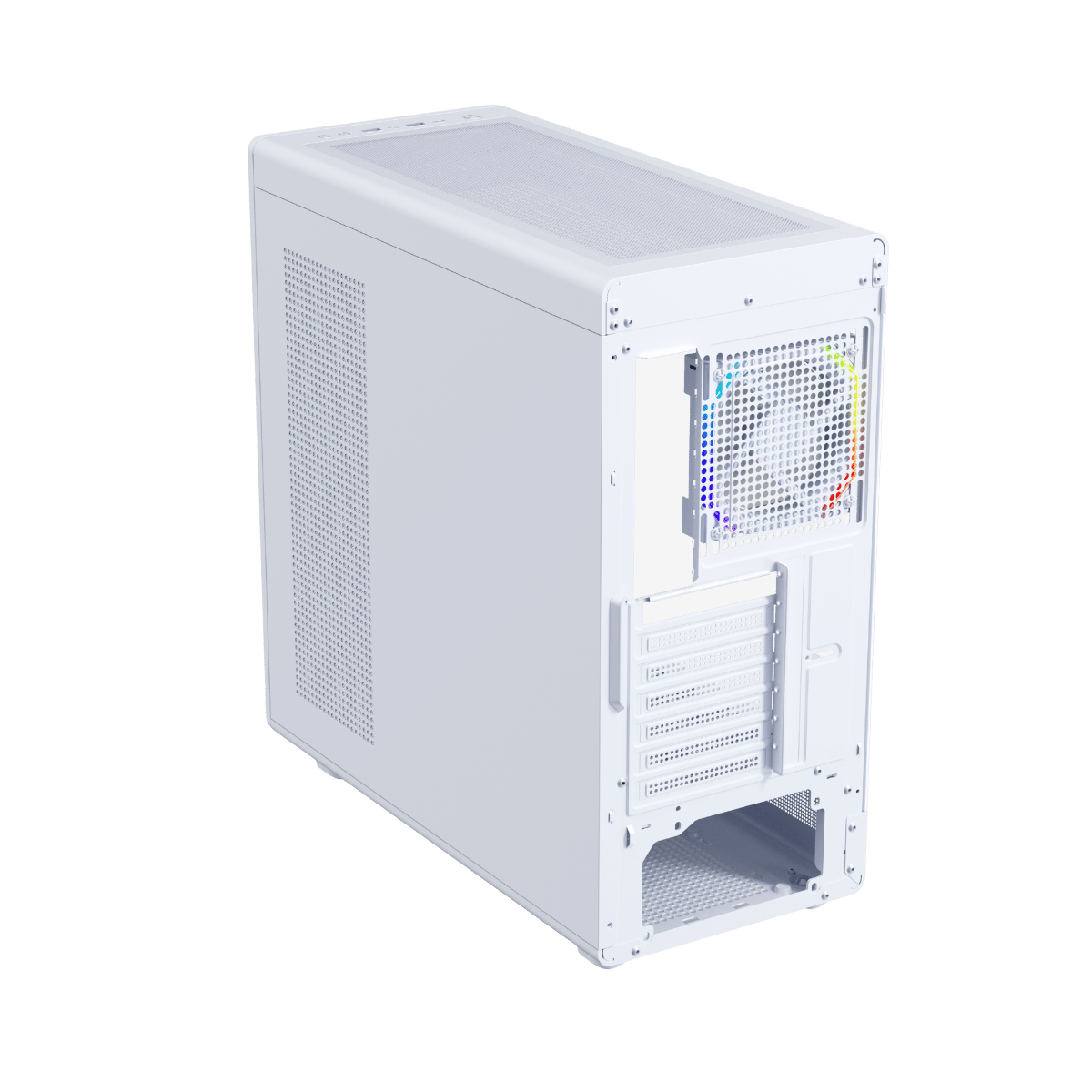

Rear: 1 x 120 mm / 1 x 140 mm

Top: 3 x120 mm / 2 x 140 mm

Side: 2 x 120 mm

Bottom: 3 x 120 mm

LIQUID COOLING SUPPORT

Top: 360 mm, 240 mm

POWER SUPPLY SUPPORT

240 mm (ATX PSU)

WEIGHT

N.W.: 6.4  kg ± 10%

G.W.: 7.5  kg ± 10%
