TS4 240 / 360

Liquid cooler

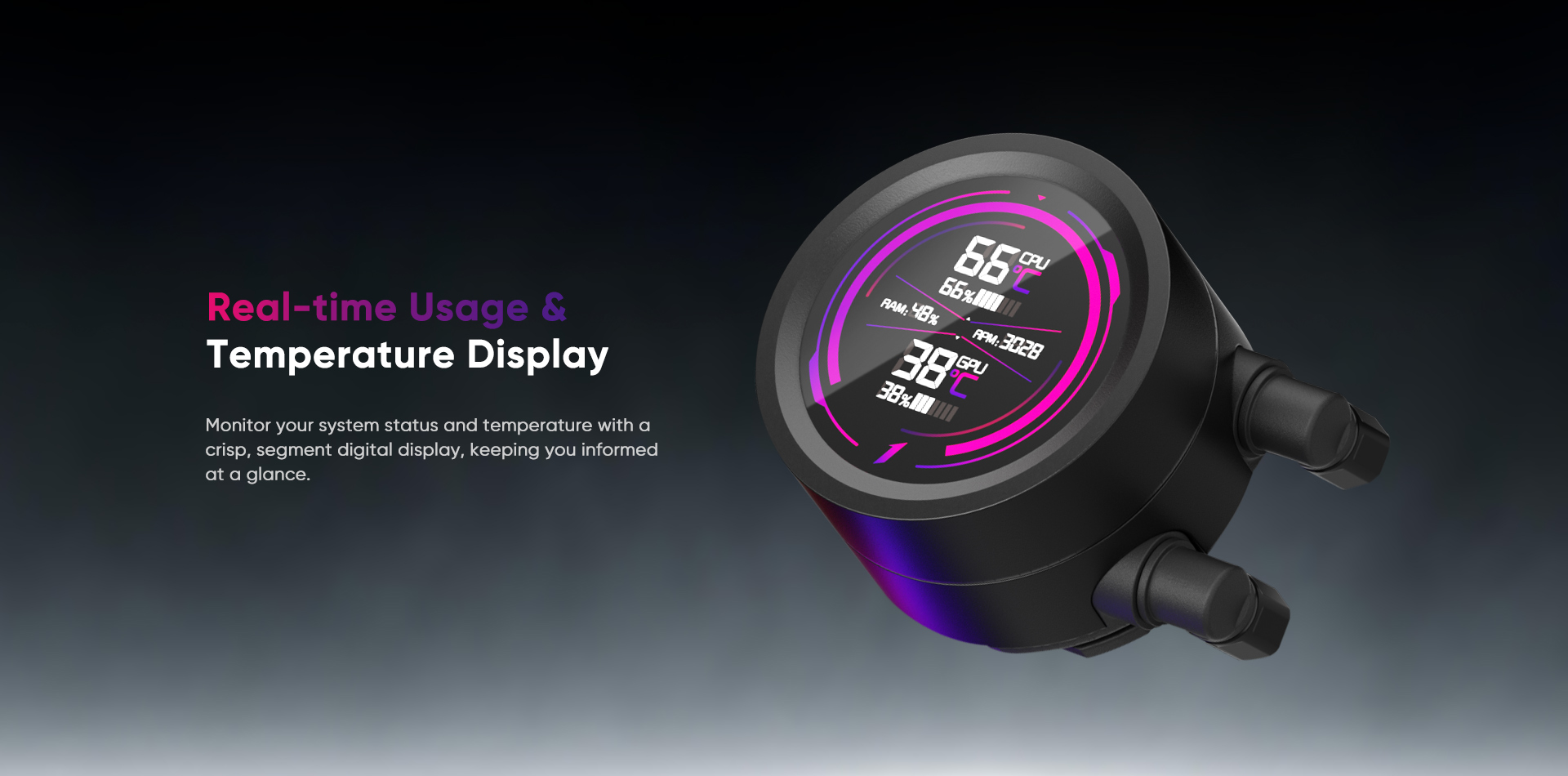

Real-time system usage and temperature display

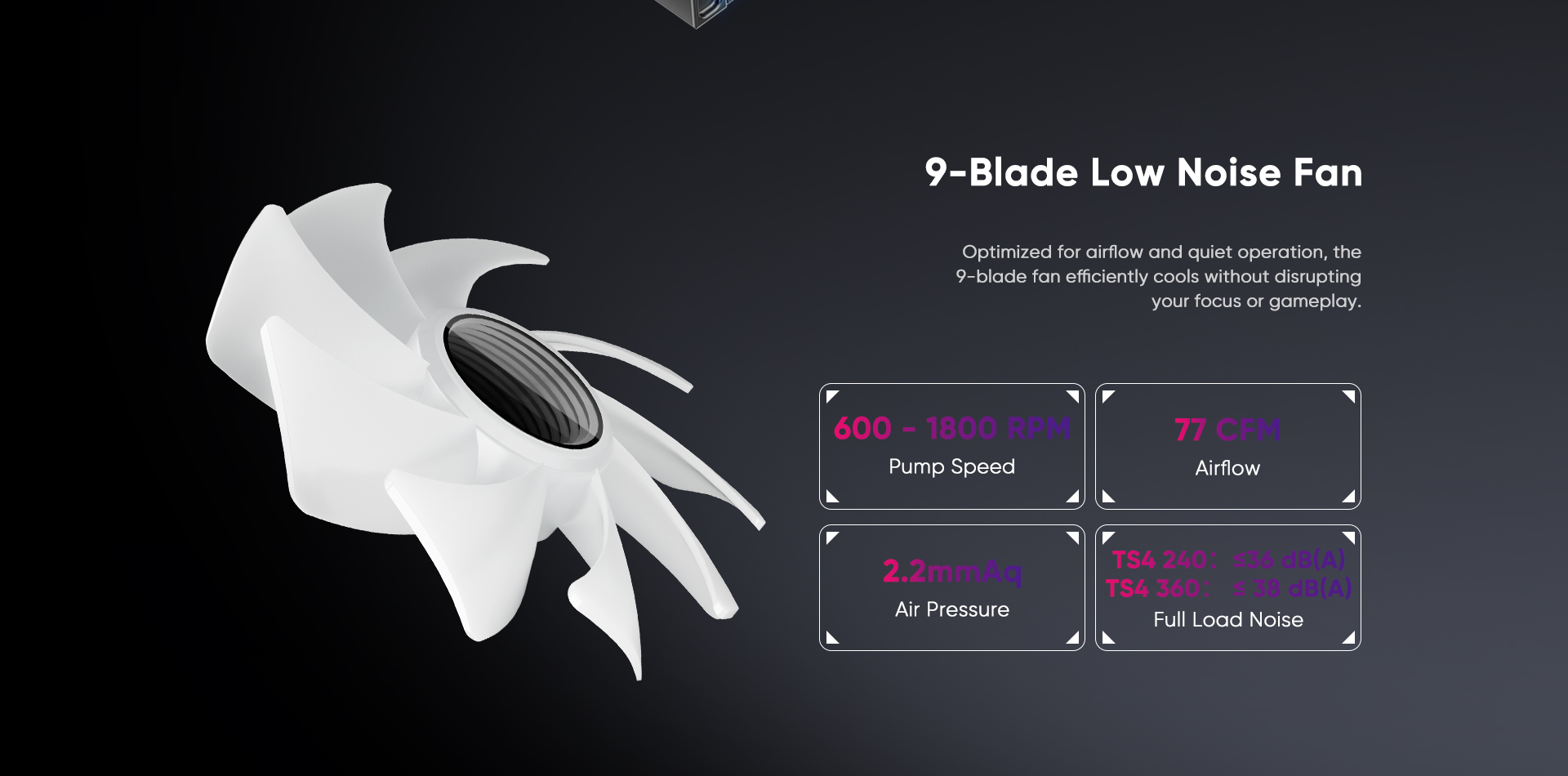

9-blade fan for low noise operation

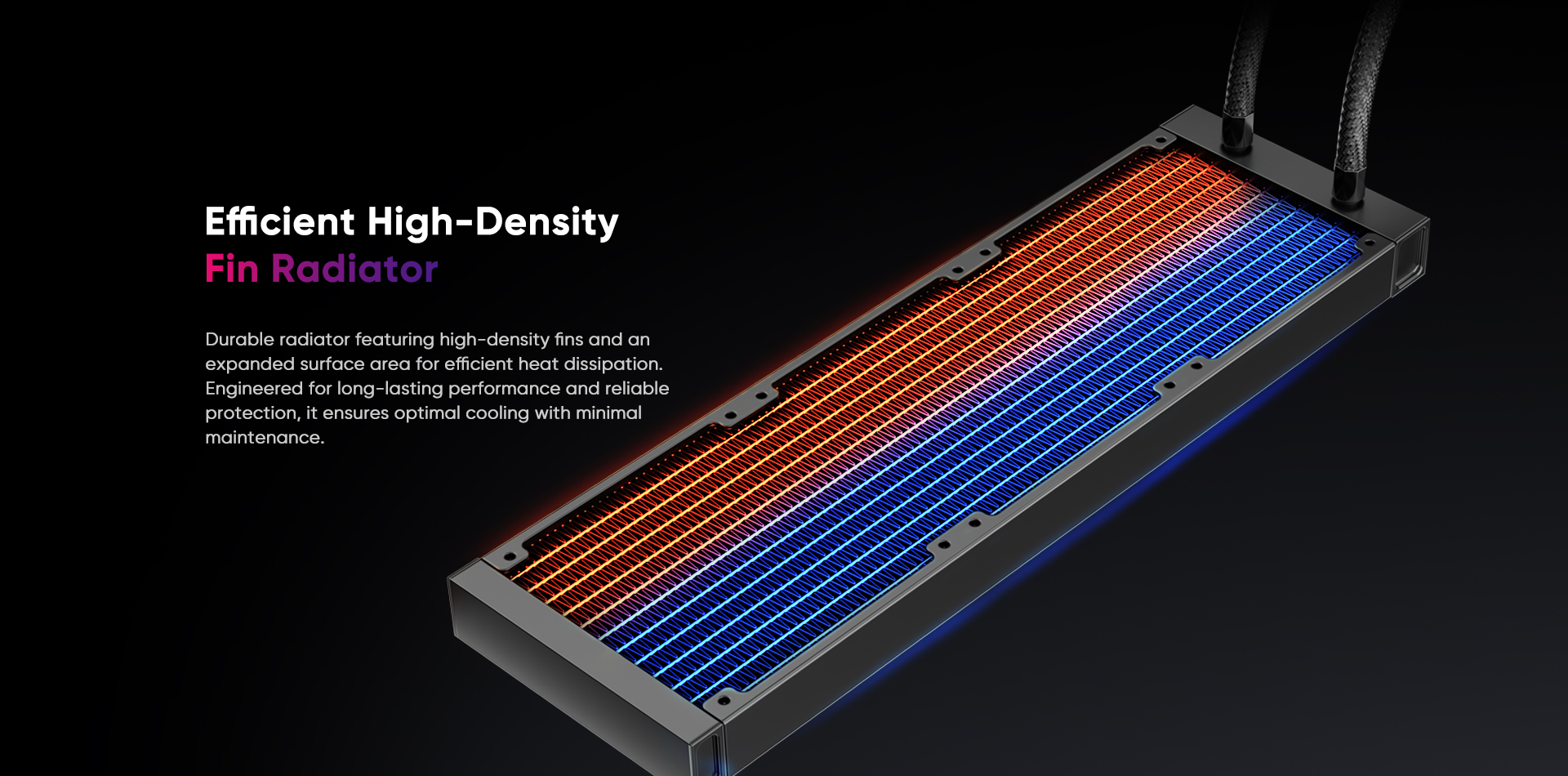

High-density fin radiator for effecient heat dissipation

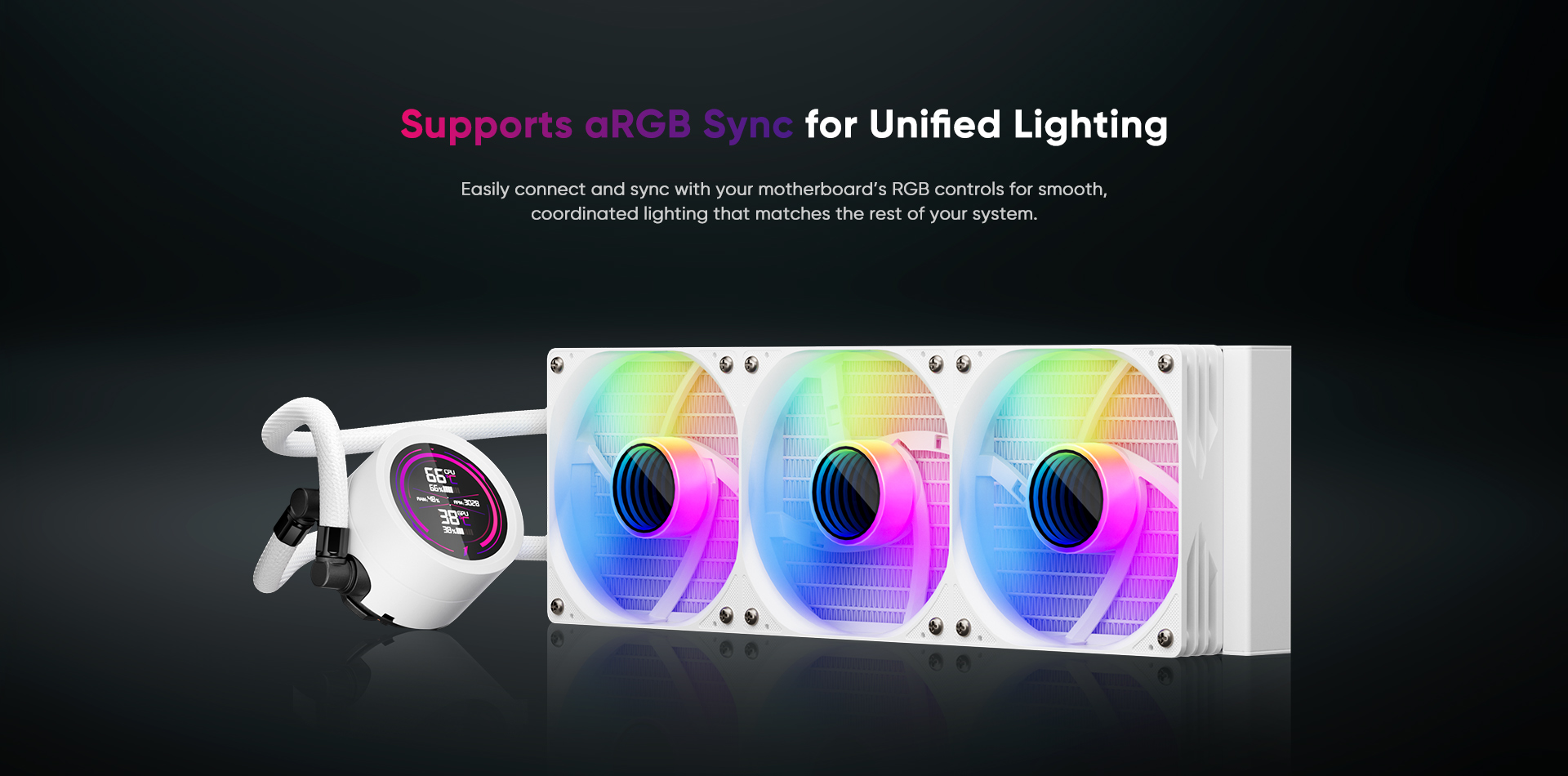

aRGB lighting that synchronizes with the motherboard

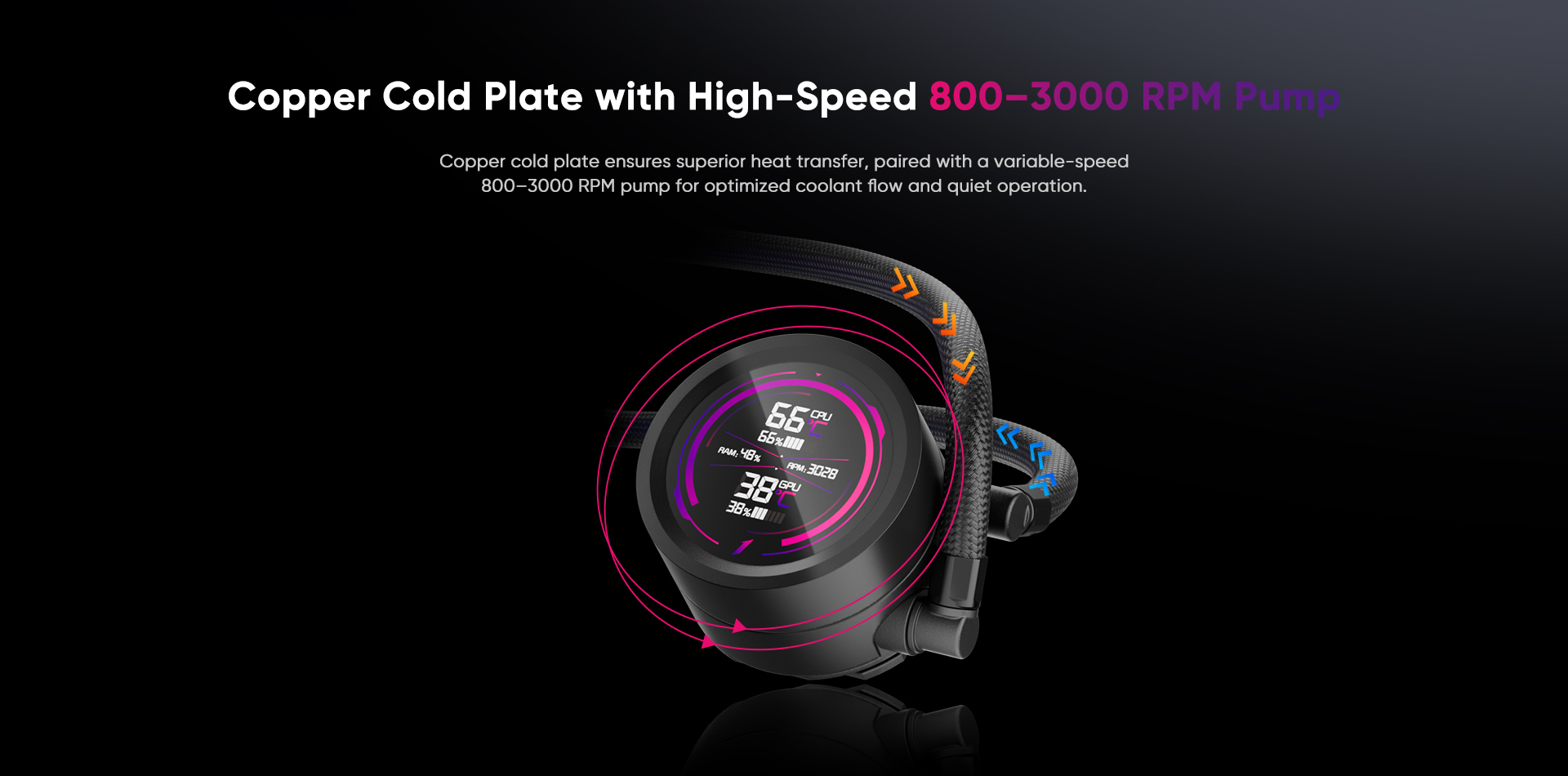

Copper endothermic cold plate for optimal heat absorption

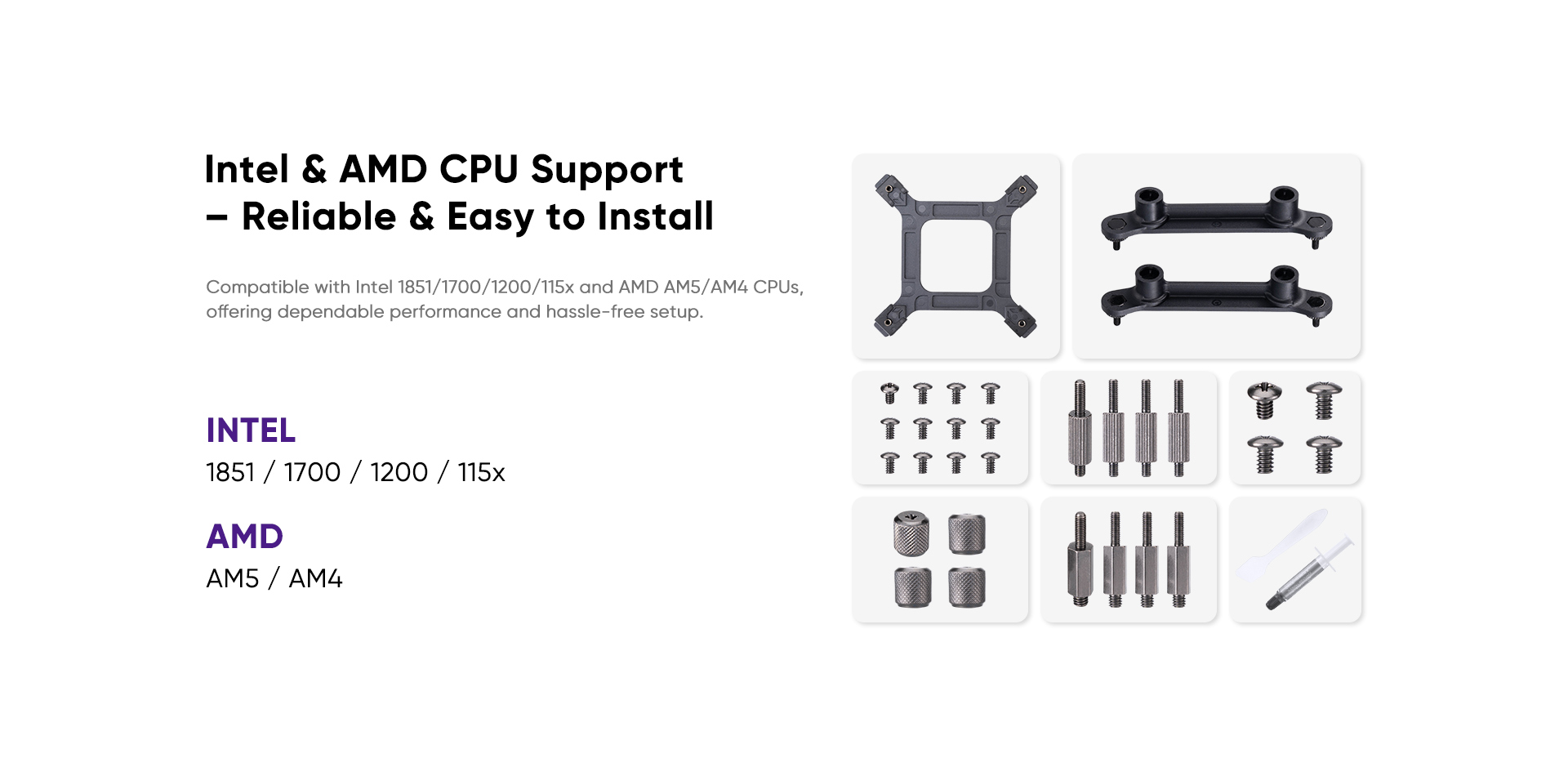

Compatible with Intel LGA 1851 / 1700 / 1200 / 115x and AMD AM5 / AM4 sockets

240 mm Black

MODEL

TS4 240 / TS4 360

SUPPORTED CPU

Intel 1851 / 1700 / 1200 / 115x

AMD AM5 / AM4

RADIATOR DIMENSIONS

277 x 120 x 27 mm (TS4 240) / 394 x 120 x 27 mm (TS4 360)

RADIATOR MATERIAL

Aluminum

TDP

250W (TS4 240) / 300W (TS4 360)

TUBE LENGTH

330mm (TS4 240) / 400mm (TS4 360)

WEIGHT

N.W.: 14.1 kg G.W.: 15.7 kg (TS4 240) N.W.: 8.8 kg G.W.: 9.9 kg (TS4 360)

WARRANTY

3 years

PUMP

DIMENSIONS

85 x 70 x 47.5 mm

SPEED

800 ± 200 - 3000 RPM ± 10%

NOISE

18 dB(A)

CONNECTOR

4 pin (PWM)

RATED VOLTAGE

12V DC

RATED CURRENT

≤0.35 A

POWER CONSUMPTION

≤ 4.2 W

Fan

QTY

2 pcs / 3 pcs

DIMENSIONS

240 x 120 x 25.4 mm / 394 × 120 × 27 mm

SPEED

800 ± 200 - 1800 RPM ± 10%

AIRFLOW

77 CFM

AIR PRESSURE

2.2 mmAq

NOISE

≤ 36 dB(A) / ≤ 38 dB(A)

CONNECTOR

4 pin (PWM)

BEARING TYPE

Hydraulic Bearing

RATED VOLTAGE

12V DC

RATED CURRENT

0.65 A ± 10% / 1 A ± 10%

POWER CONSUMPTION

7.8 W ± 10% / 12 W ± 10%

LED

TYPE

Addressable RGB LED

CONNECTOR

3-pin (ARGB)

RATED VOLTAGE

5V DC
