Support GPU length up to 310 mm
Support CPU cooler heightupto 165 mm
Supportinstalling of up to 7 x120 mm fans

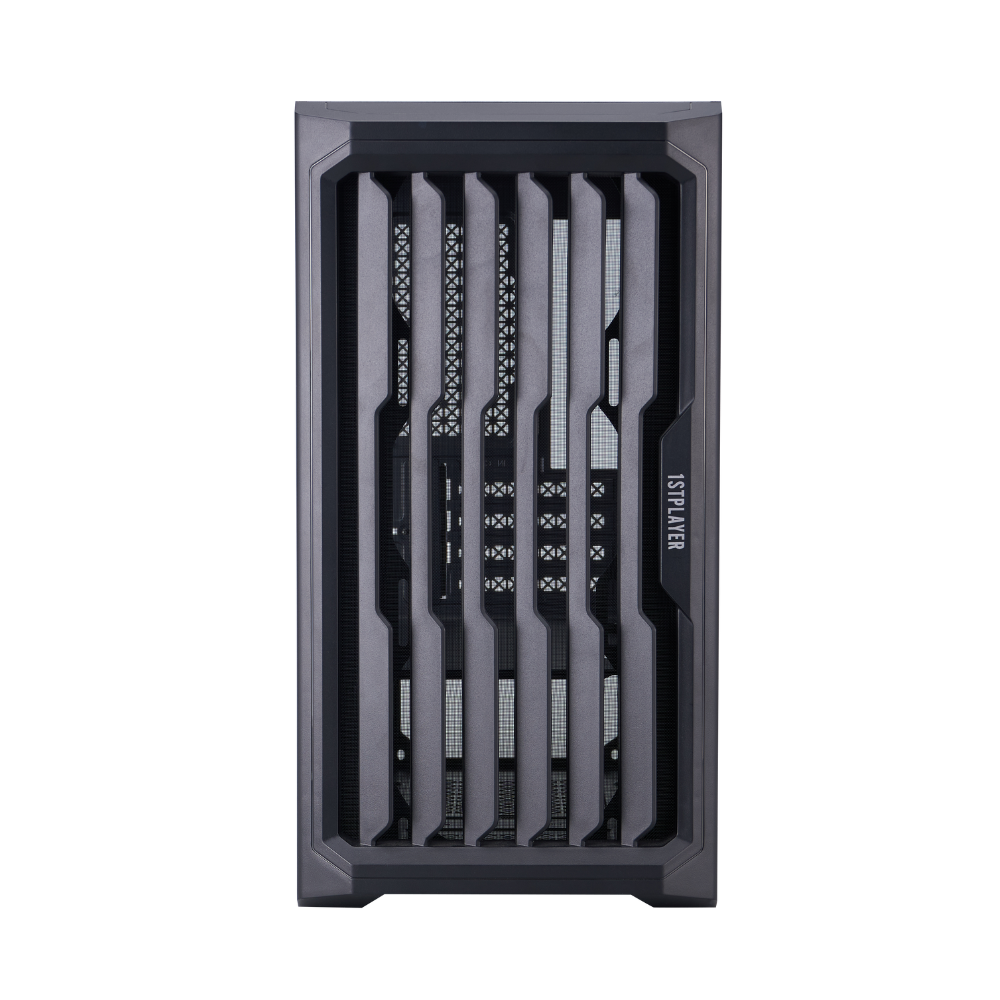

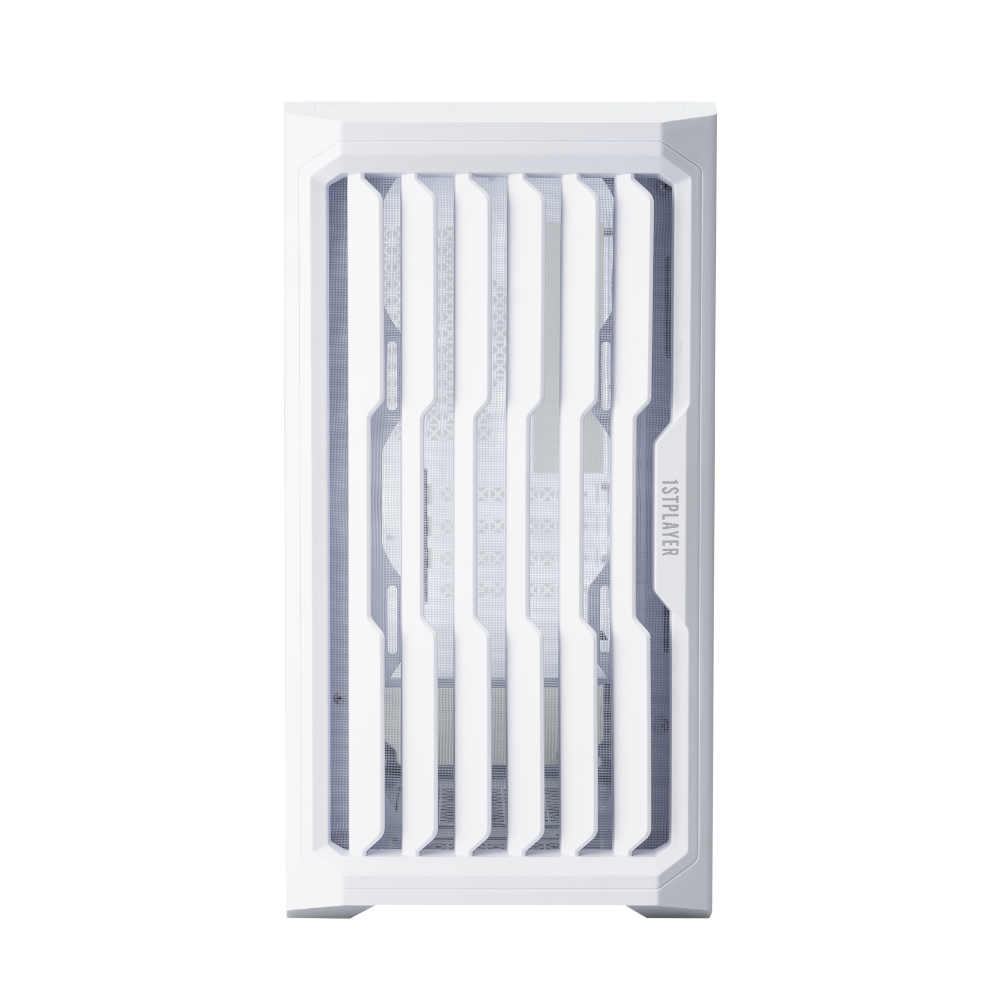

The front panel boastsvertical slats thatmaximize airflow and add a striking visual touch
White
MODEL
H2
STRUCTURE DIMENSIONS (L x W x H)
315 x 210 x 386 mm
PRODUCT DIMENSIONS (L x W x H)
360 x 210 x 400 mm
PACKAGE DIMENSIONS (L x W x H)
455 x 270 x 420 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC, tempered glass, plastic
FORM FACTOR
M-ATX / Mini-ITX
3.5" HDD: 1 + 2.5" SSD: 1
MAX CPU COOLER HEIGHT
165 mm
MAX GPU LENGTH
310 mm
USB 3.0 x 1 + USB 2.0 x 1 + HD AUDIO
PCI CARD SLOT
4
FAN SUPPORT
Front: 3 x 120 mm, Top: 2 x 120 mm
Rear: 1 x 120 mm, Bottom: 1 x 120 mm
LIQUID COOLING SUPPORT
Top: 240 mm ( Ram MAX H 40 mm)
POWER SUPPLY SUPPORT
Bottom mounted
WEIGHT
N.W.: 3.3 kg ± 10% / G.W.: 4.2kg ± 10%
