Support GPU length up to 405 mm
Support CPU cooler height up to 170 mm
Support installing of up to 11 x 120 mm fans
Support 360mm liquid cooler at top

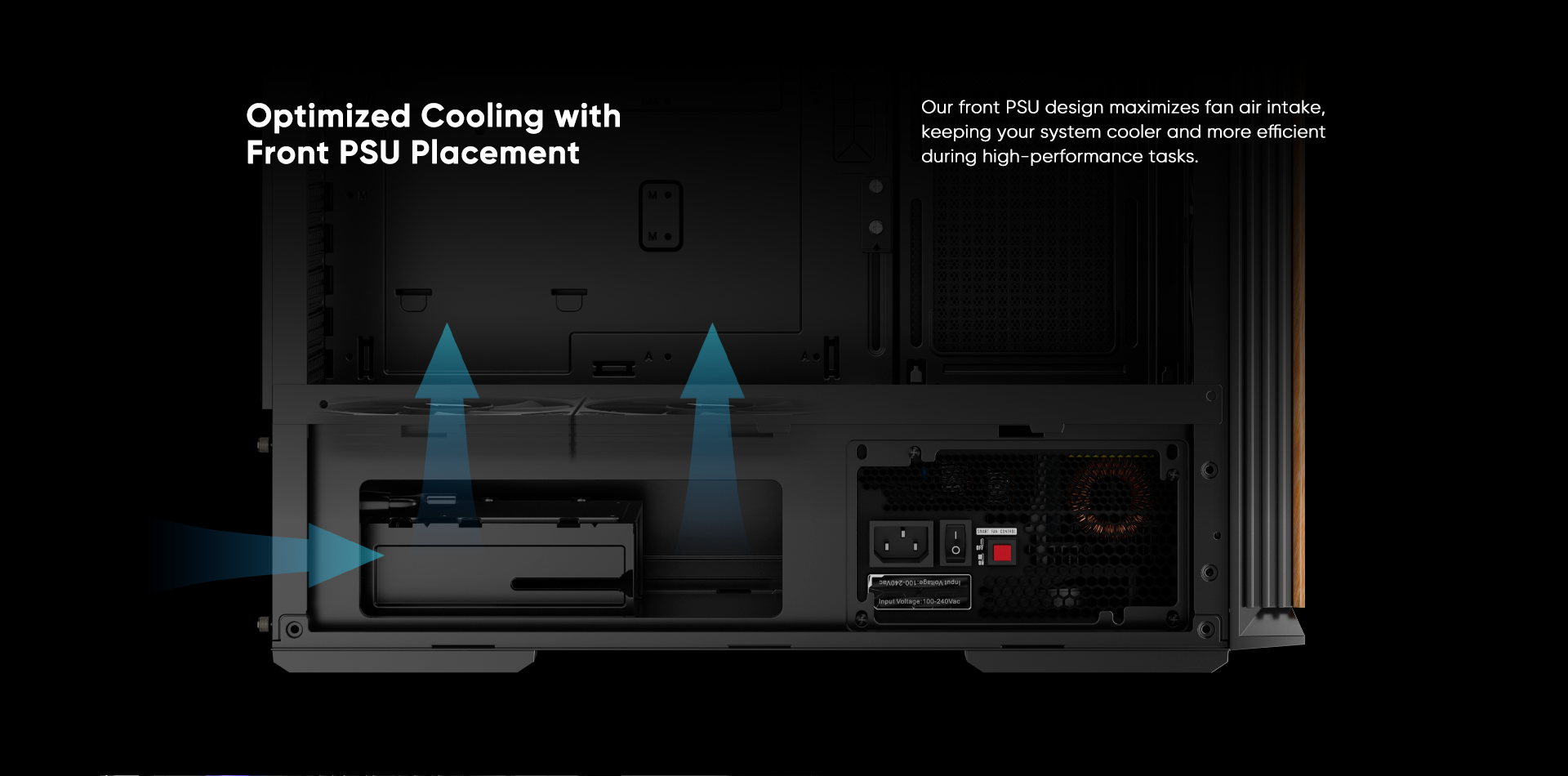

Bottom-front PSU placement allows for increased airflow beneath the fans and enhances GPU heat dissipation

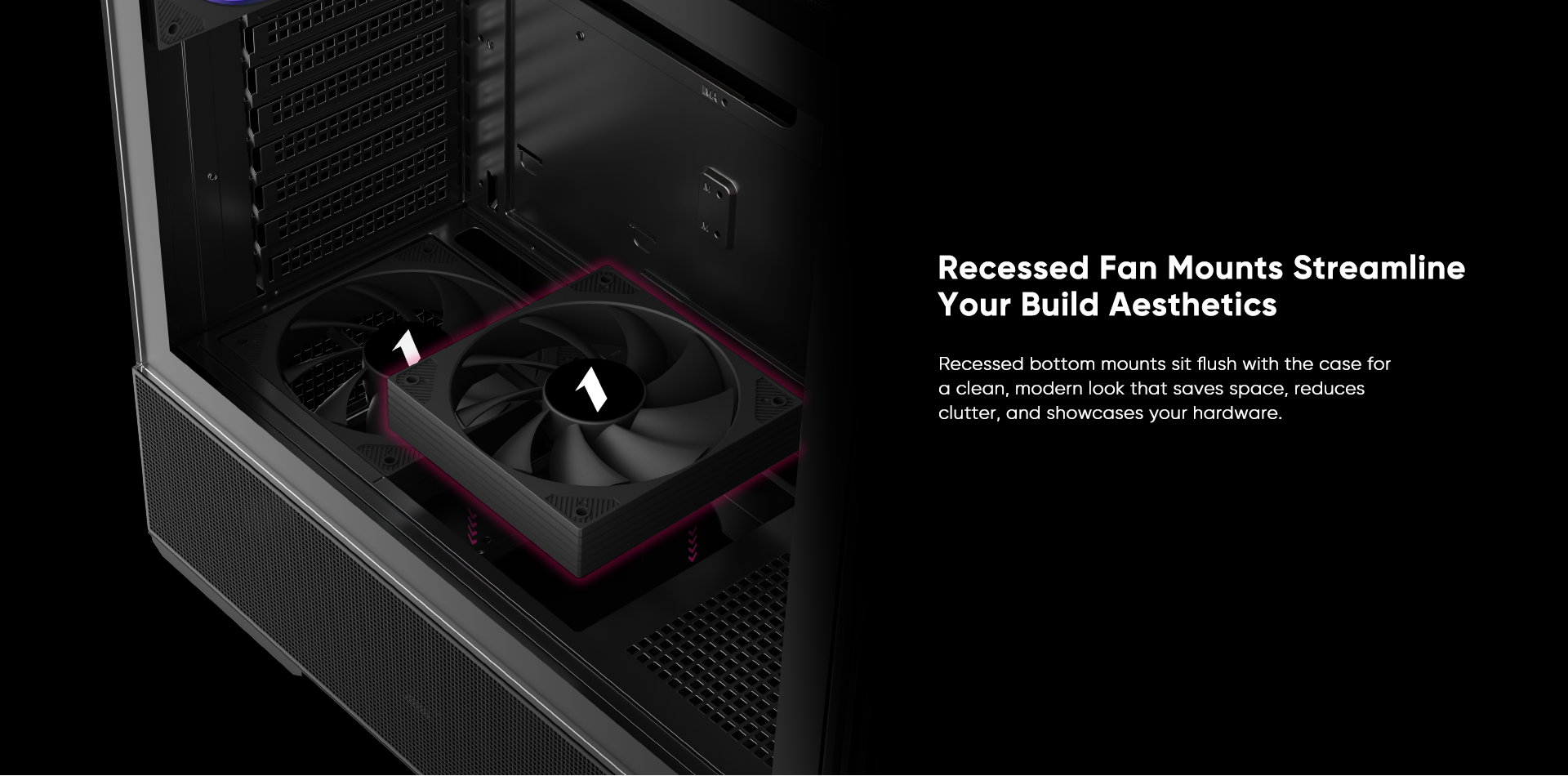

Recessed bottom fan mounts ensure installed fans sit flush with the case

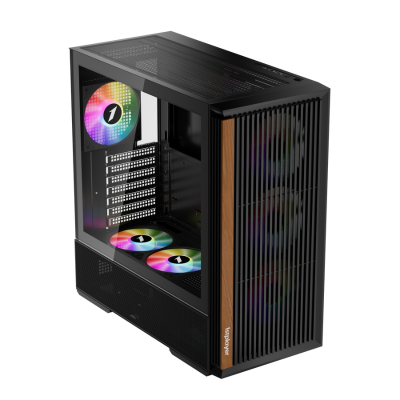

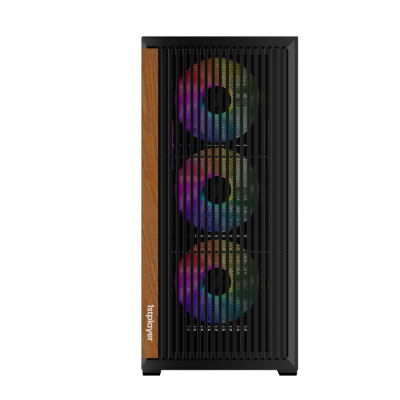

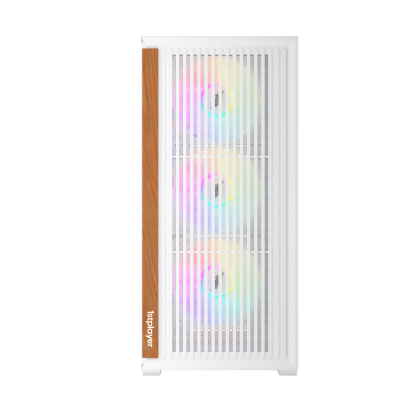

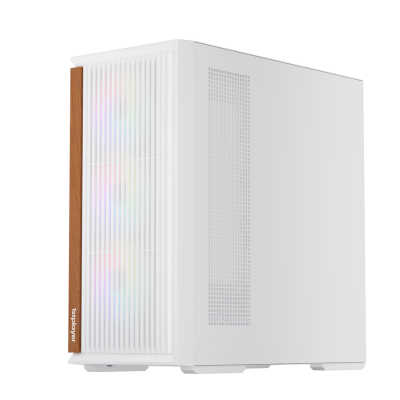

Elegant wood grain accents on the front panel add a premium, natural touch to the modern aesthetic
*Computer parts are not included. Cooling fan may vary among different countries/regions.

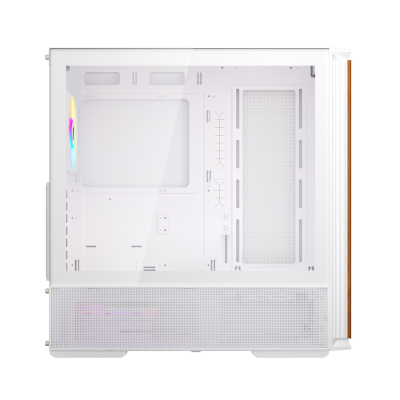

White

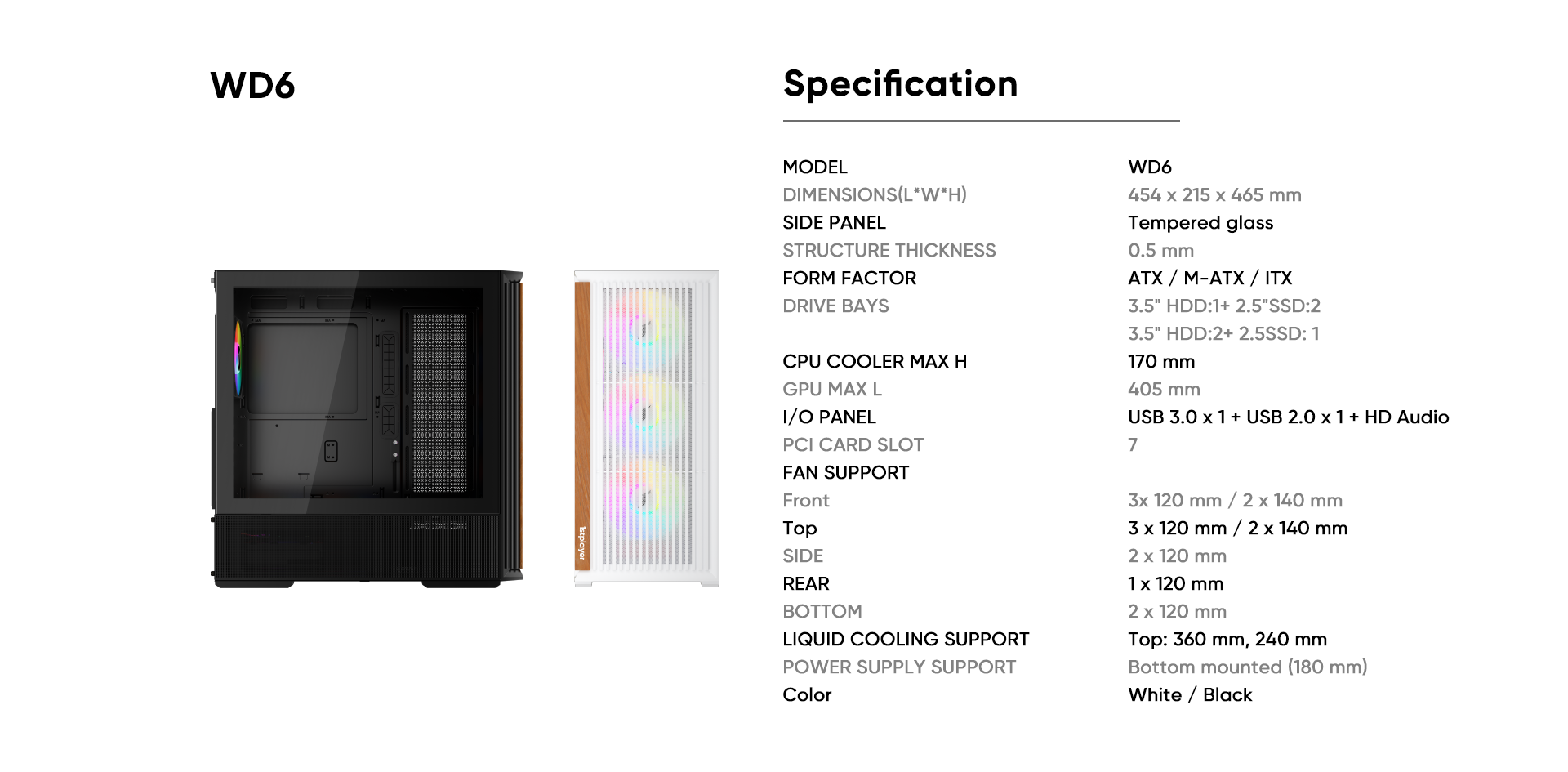

MODEL
WD7
STRUCTURE DIMENSIONS (L x W x H)
420 × 215 × 455 mm
PRODUCT DIMENSIONS (L x W x H)
454 × 215 × 465 mm
PACKAGE DIMENSIONS (L x W x H)
510 x 276 × 524 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC, tempered glass, plastic

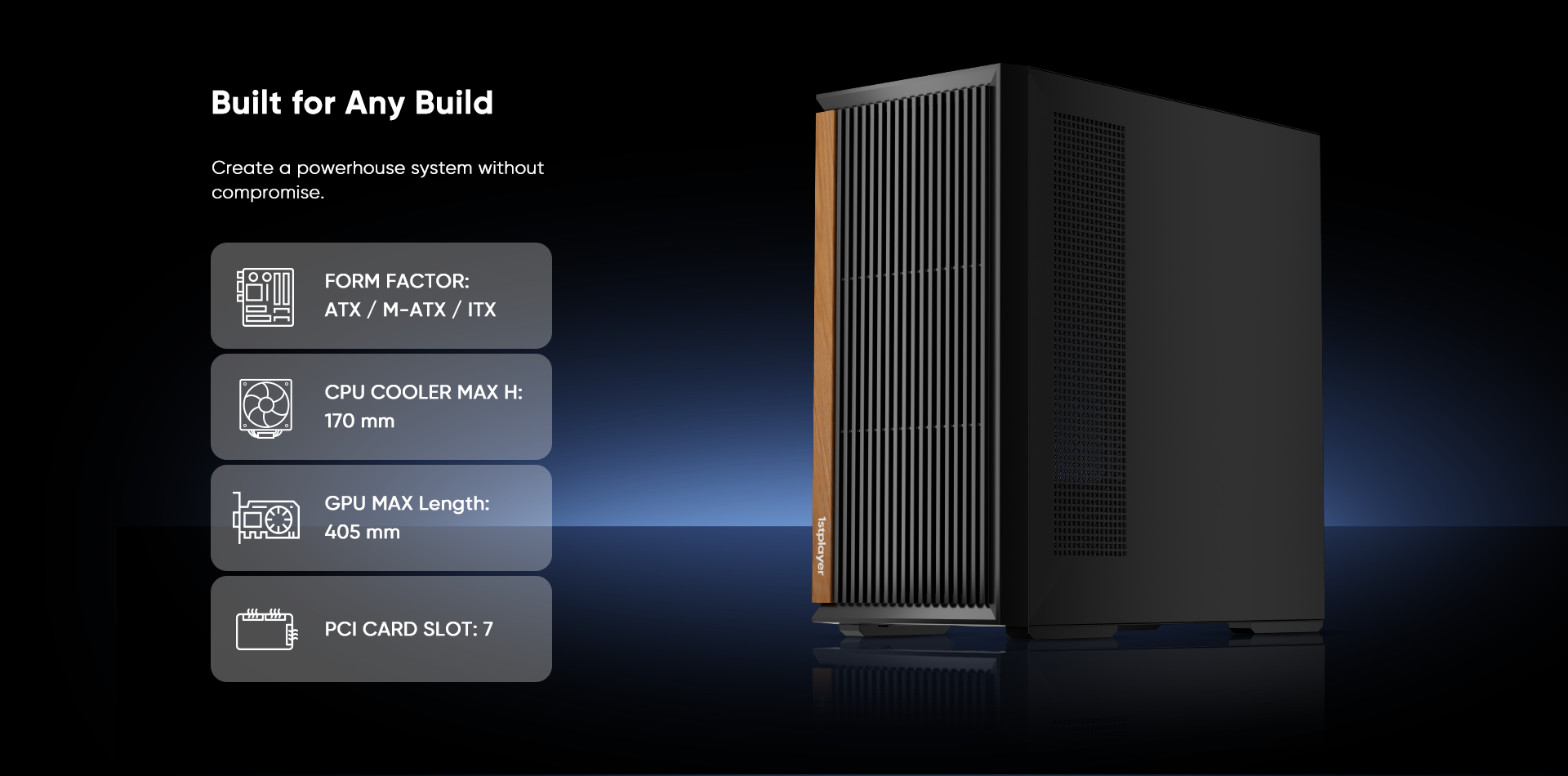

FORM FACTOR
ATX / M-ATX / ITX
3.5" HDD: 1 + 2.5" SSD: 2 or
3.5" HDD: 2 + 2.5" SSD: 1
CPU MAX HEIGHT
170 mm
GPU MAX LENGTH
405 mm

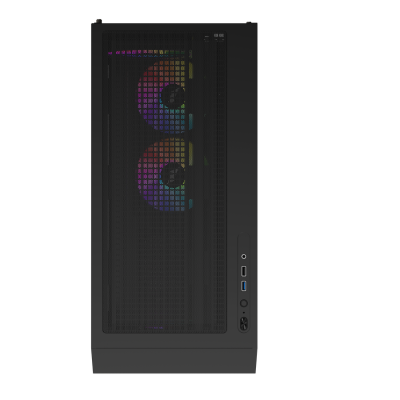

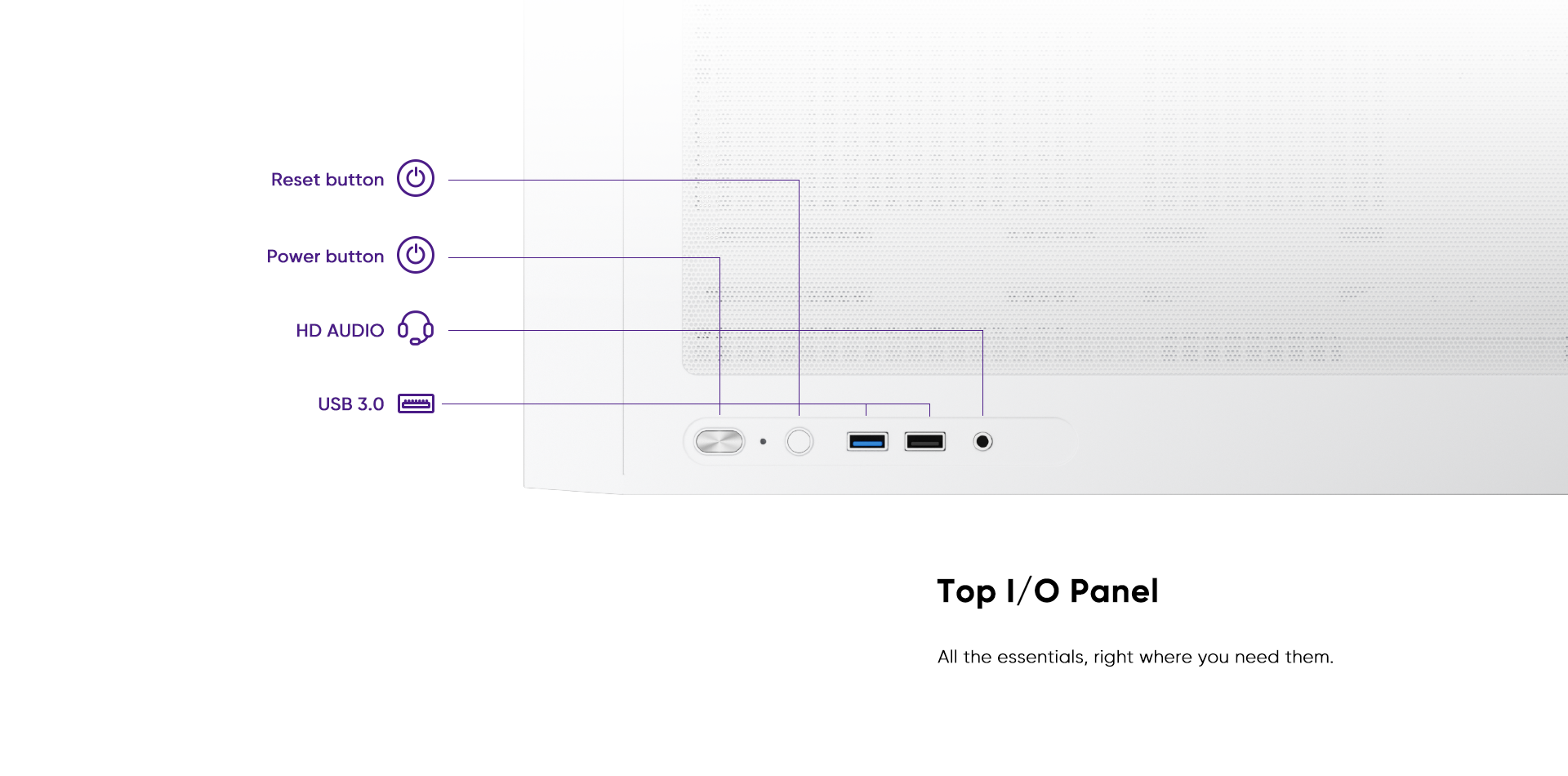

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 1 + HD Audio
PCI CARD SLOT
7

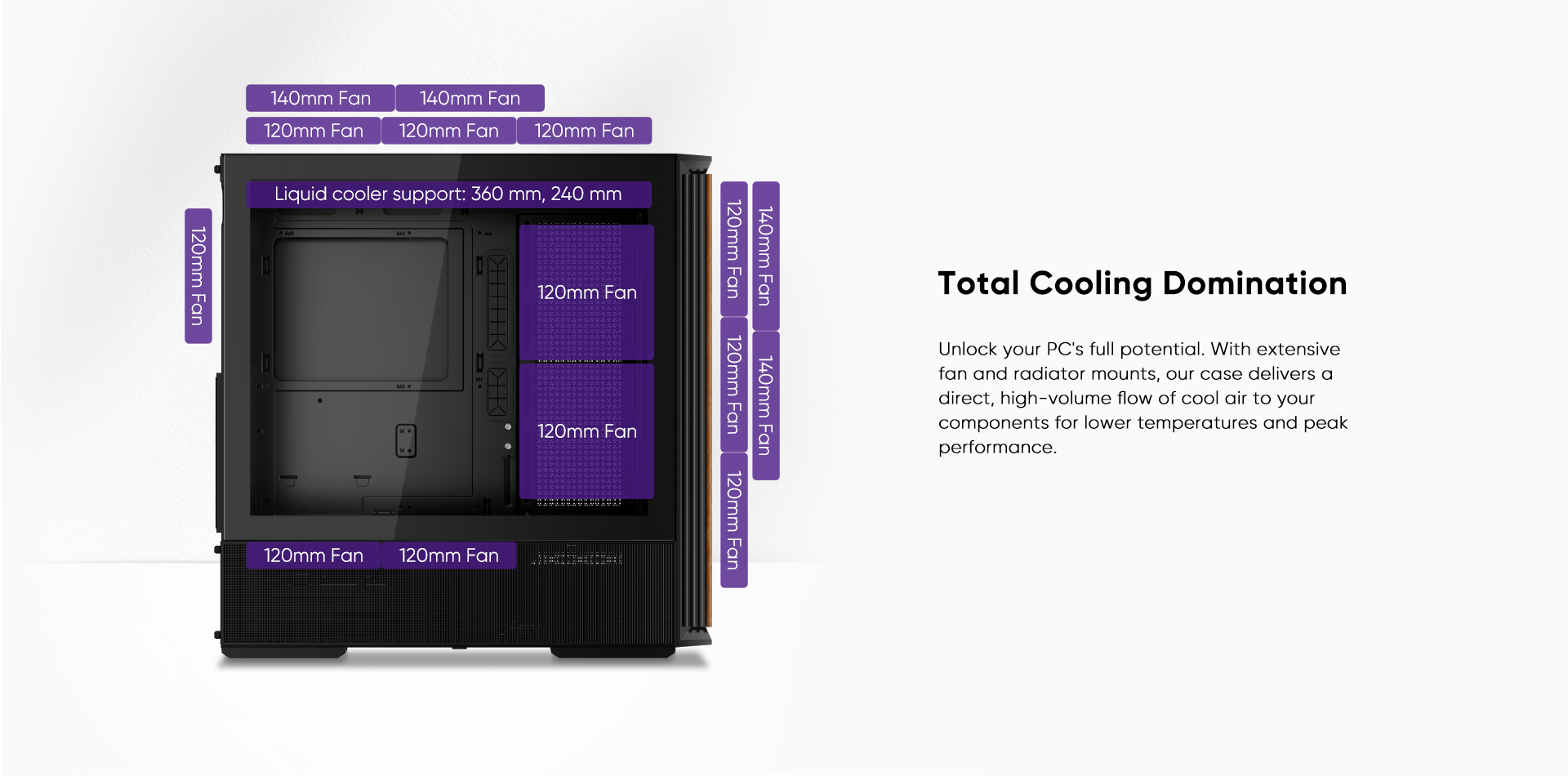

FAN SUPPORT
Front: 3 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120 mm
LIQUID COOLING SUPPORT
Front: 360 mm, 240 mm
POWER SUPPLY SUPPORT
Bottom mounted (180 mm)
WEIGHT
N.W.: 5.28 kg ± 10%
G.W.: 6.18 kg ± 10%
