Support aRGB Sync

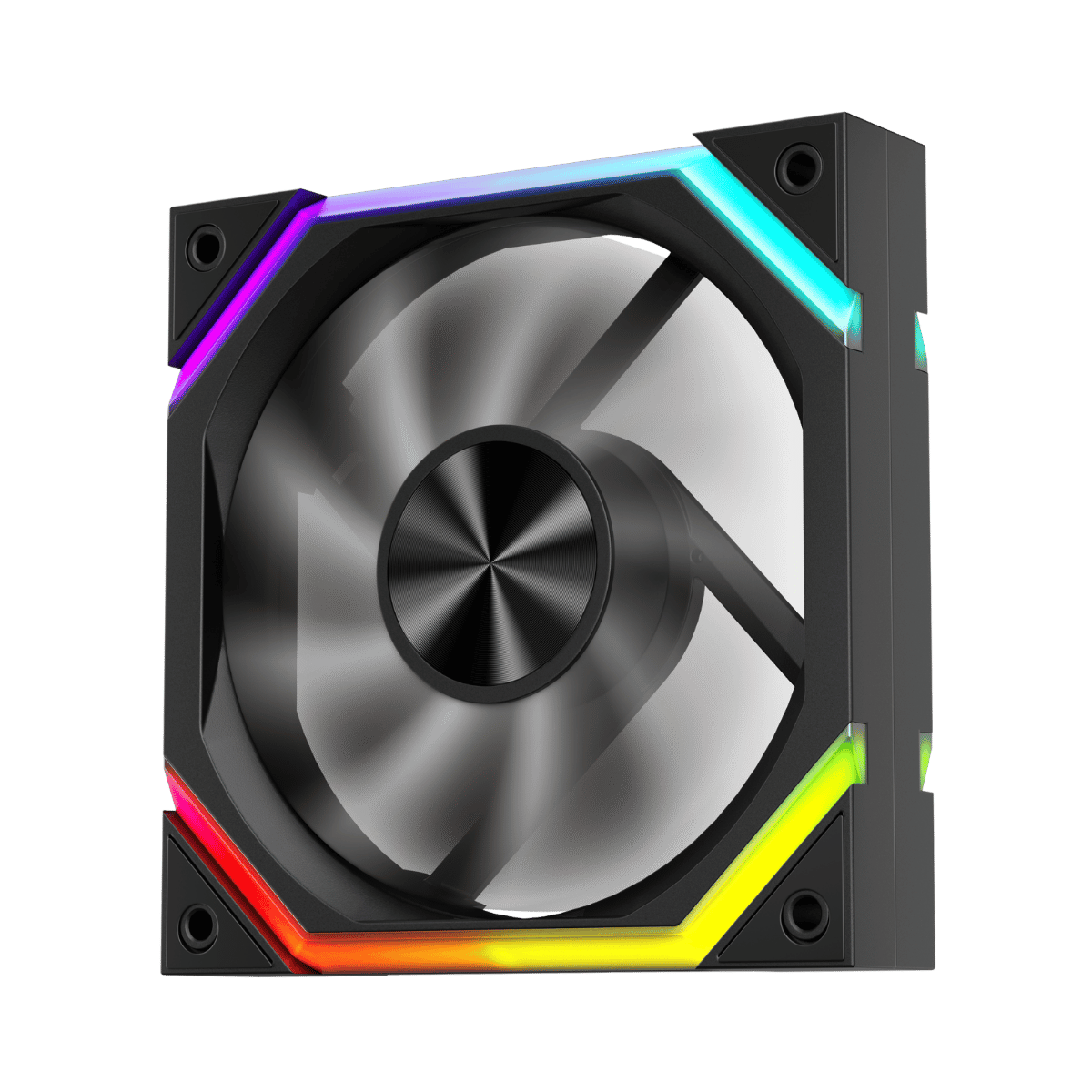

Octagon aRGB accents create a polished, dazzling rainbow glow

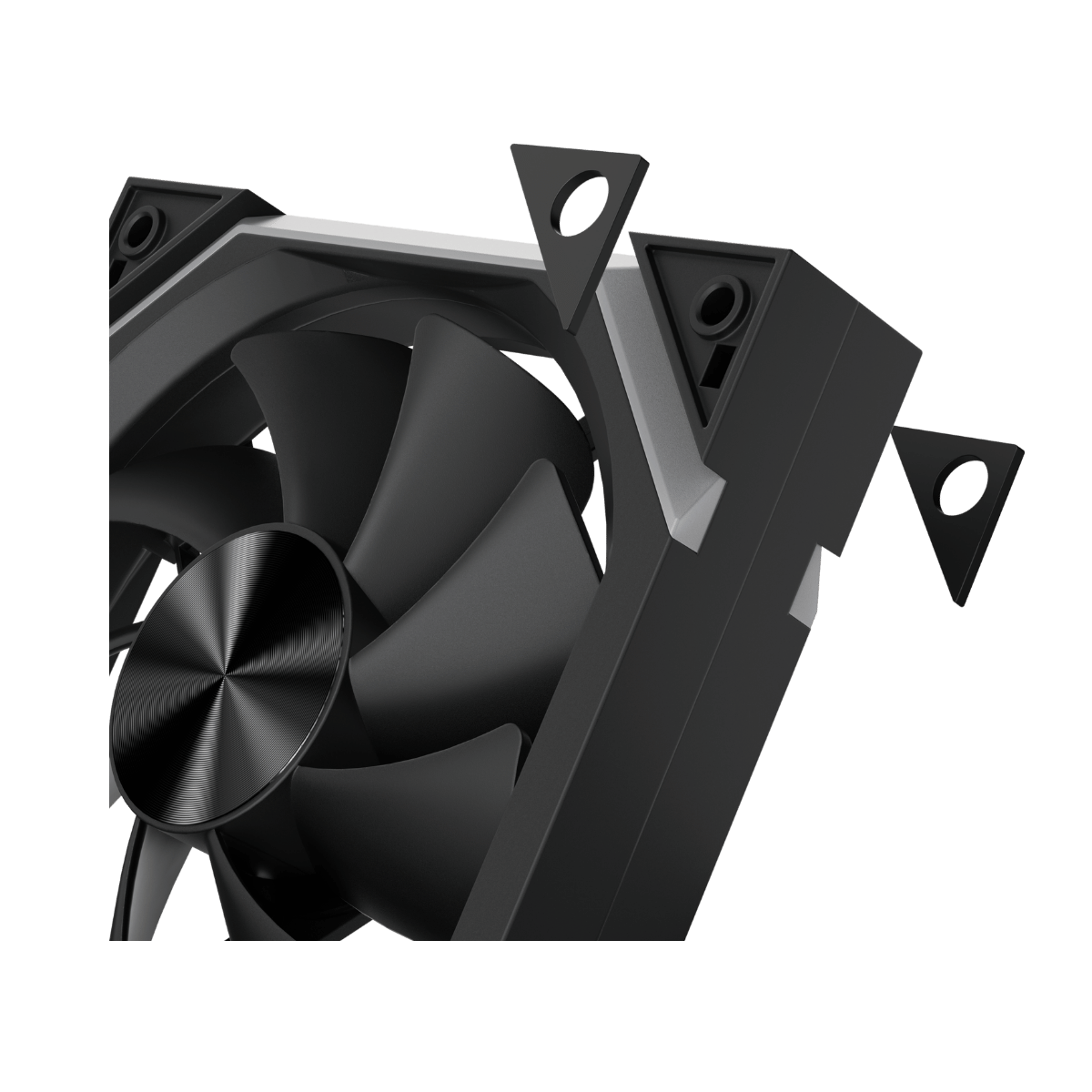

Rubber Dampeners: Corner pads absorb vibrations to reduce noise

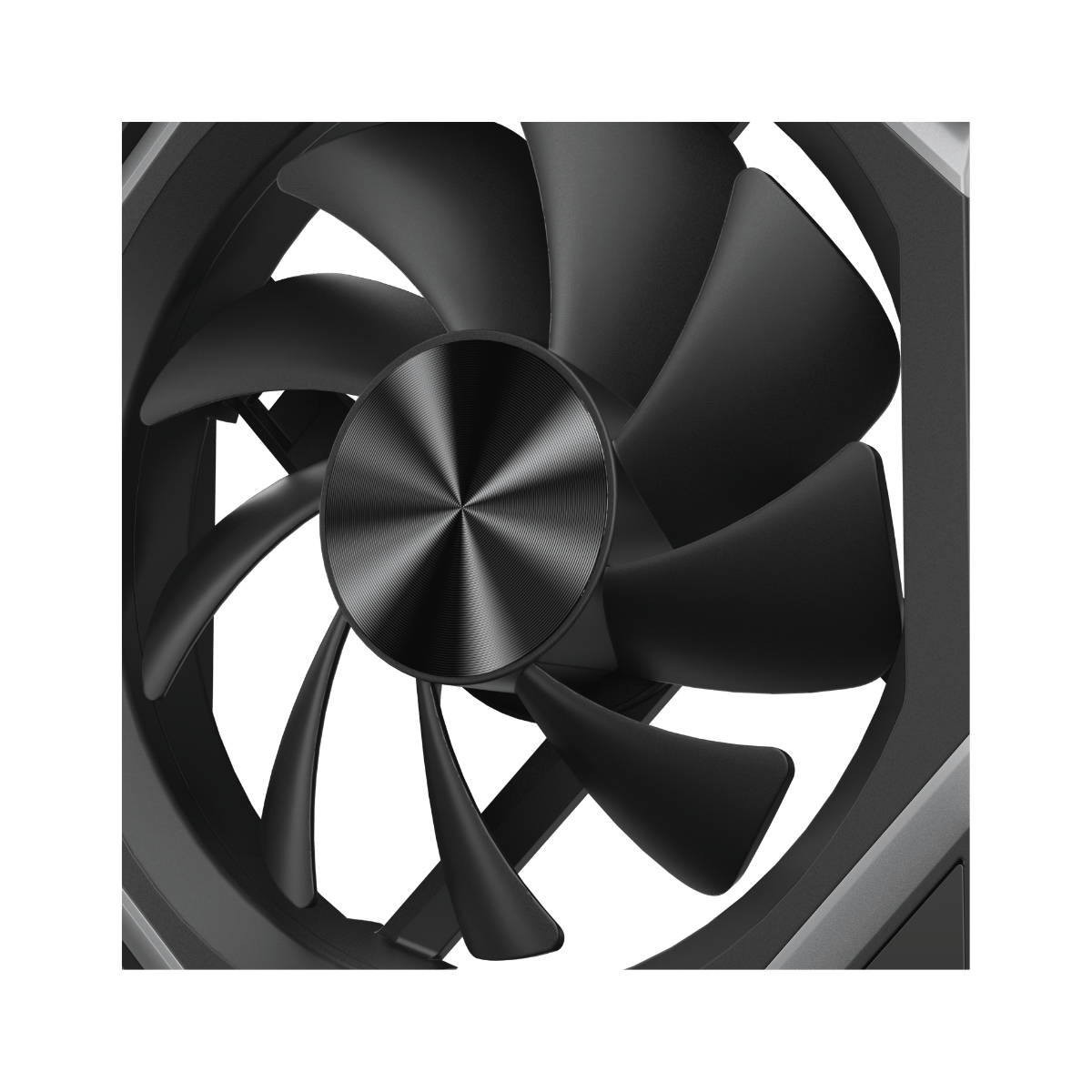

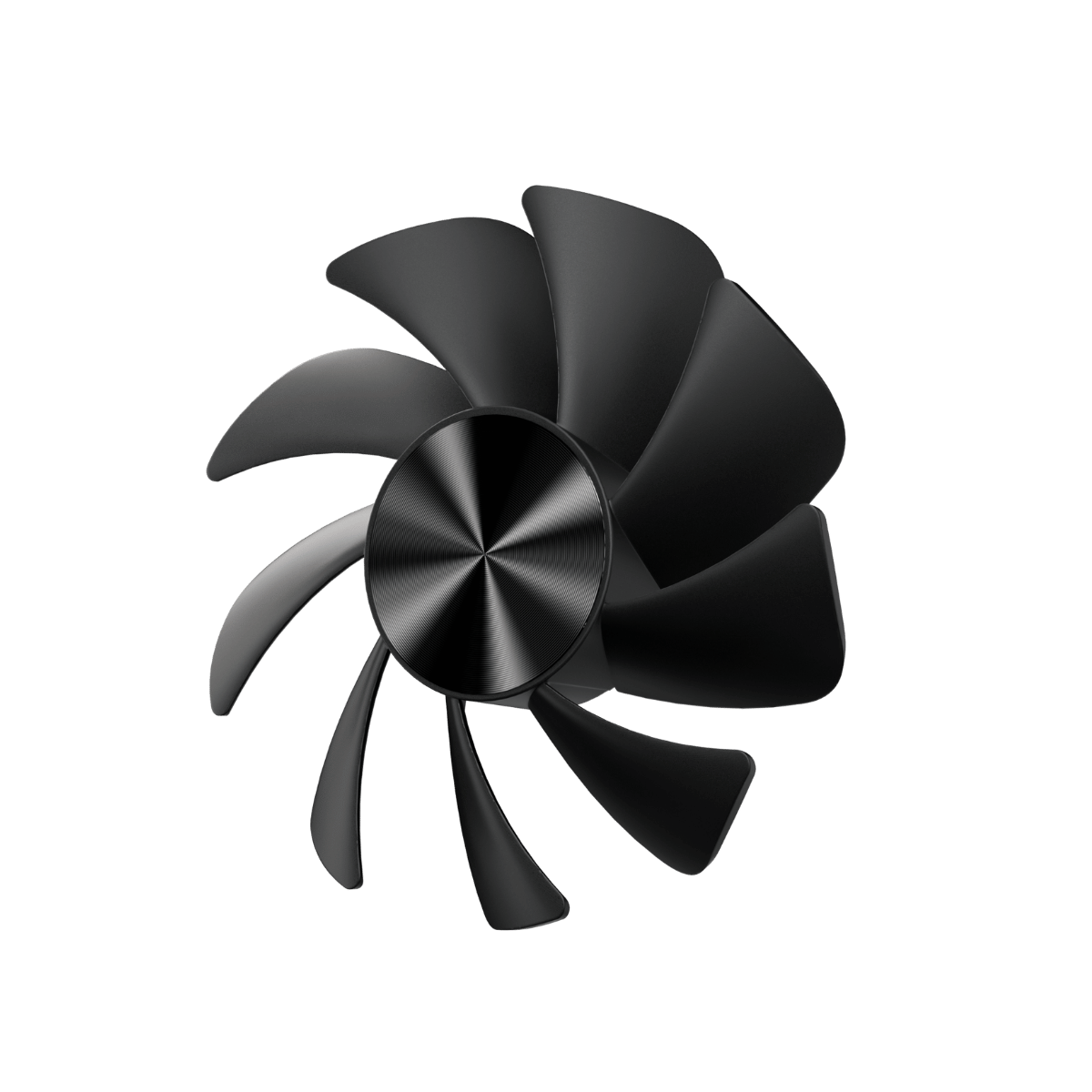

Nine-blade fan maximizes airflow volume
PWM intelligent speed control for balanced noise and performance
Durable hydraulic bearing for long-lasting, quiet operation
FH7 White
| Specification | Details |
|---|---|
| Part numbers | FH7R-BK, FH7R-WH |
| Model | FH7R |
| Connector | 4‑pin PWM + 3‑pin aRGB |
| Airflow direction | Reversed |
| Dimensions (L × W × H) | 120 × 120 × 25 mm |
| Rated voltage | 12 V DC |
| Rated current | 0.16 A |
| Rated power | 1.92 W |
| Fan blades | 9 |
| Cable length | 500 mm ± 10 mm |
| Bearing type | Hydraulic bearing |
| Max airflow | 52.84 CFM |
| Static pressure | 1.54 mm‑H₂O |
| Speed range | 800–1800 RPM ± 10% |
| Noise level | ≤ 32.4 dB(A) |
| LED type | Addressable RGB (aRGB)
|
