Support GPU length up to 390 mm
Support CPU cooler height up to 170 mm
Support installing of up to 8 x 120 mm fans
Support 360 mm, 240 mm radiator at the top
Expansive mesh base draws cool air directly beneath vital components, boosting cooling capacity
Bottom-front PSU placement allows for increased airflow beneath the fans and enhances GPU heat dissipation
Recessed bottom fan mounts keep fans flush with the case, preserving a sleek, clean aesthetic
*Computer parts are not included. Cooling fan may vary among different countries/regions.

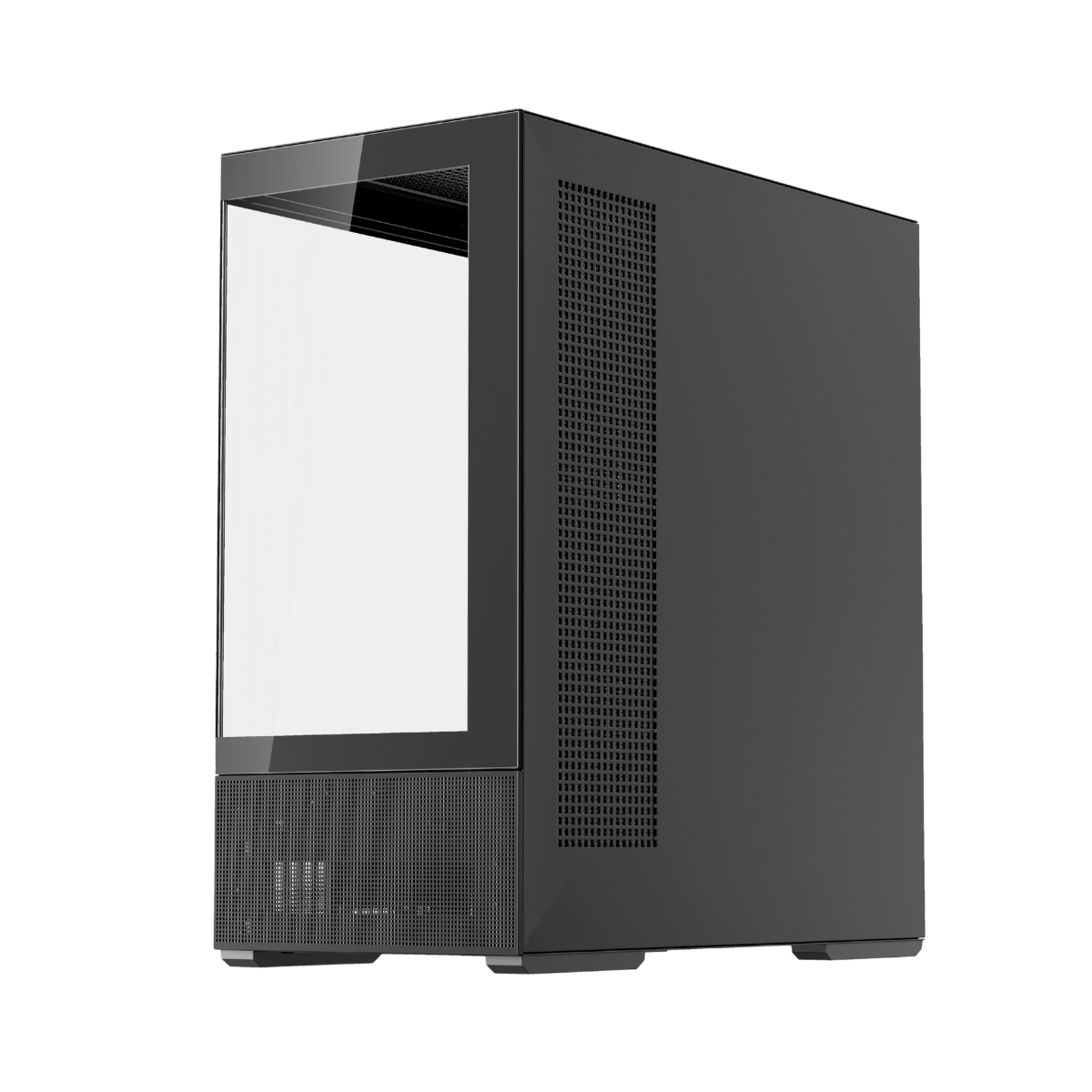

Black
MODEL
CV7
STRUCTURE DIMENSIONS (L x W x H)
420 × 215 × 455 mm
PRODUCT DIMENSIONS (L x W x H)
425 × 215 × 465 mm
PACKAGE DIMENSIONS (L x W x H)
510 x 276 × 503 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC, tempered glass, plastic
FORM FACTOR
ATX / M-ATX / ITX
3.5" HDD: 1 + 2.5" SSD: 2
CPU MAX HEIGHT
170 mm
GPU MAX LENGTH
390 mm

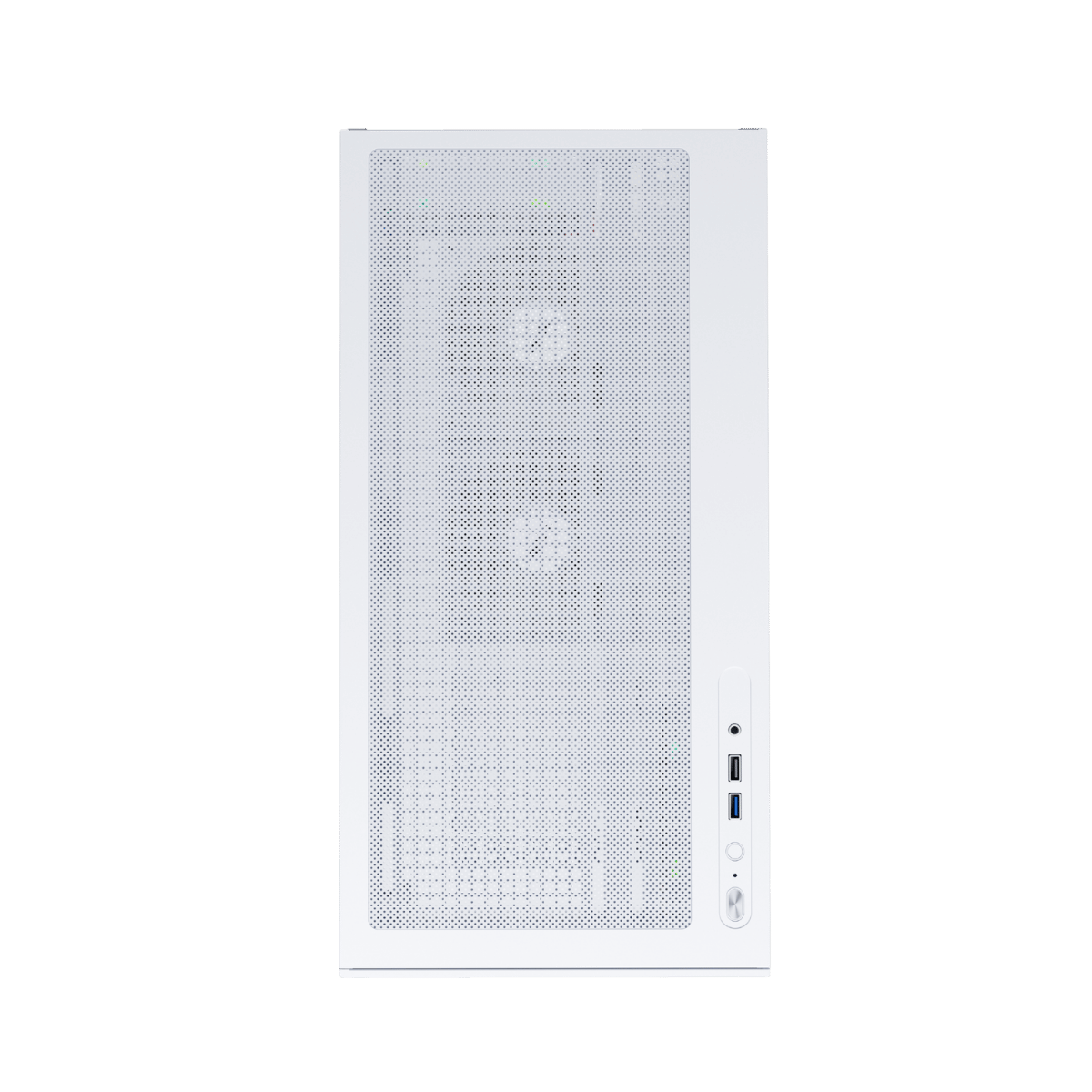

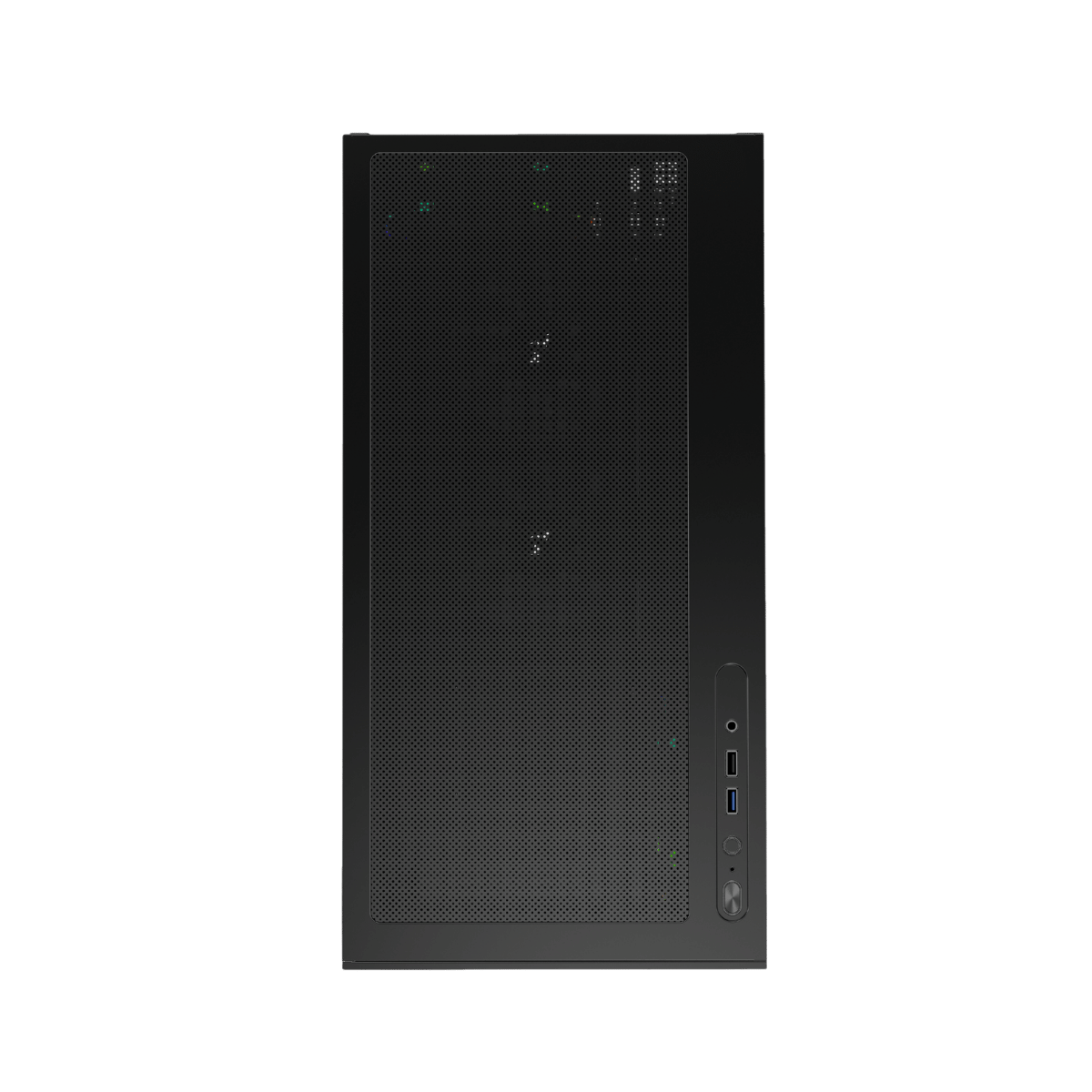

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 1 + HD Audio
PCI CARD SLOT
7
FAN SUPPORT
Side: 2 x 120 mm
Rear: 1 x 120 mm
Top: 3 x 120 mm / 2 x 140 mm
Bottom: 2 x 120 mm
LIQUID COOLING SUPPORT
Top: 360 mm, 240 mm
POWER SUPPLY SUPPORT
Non-modular PSU: 170 mm
Modular PSU: 150 mm
WEIGHT
N.W.: 5.4 kg ± 10%
G.W.: 6.5 kg ± 10%
