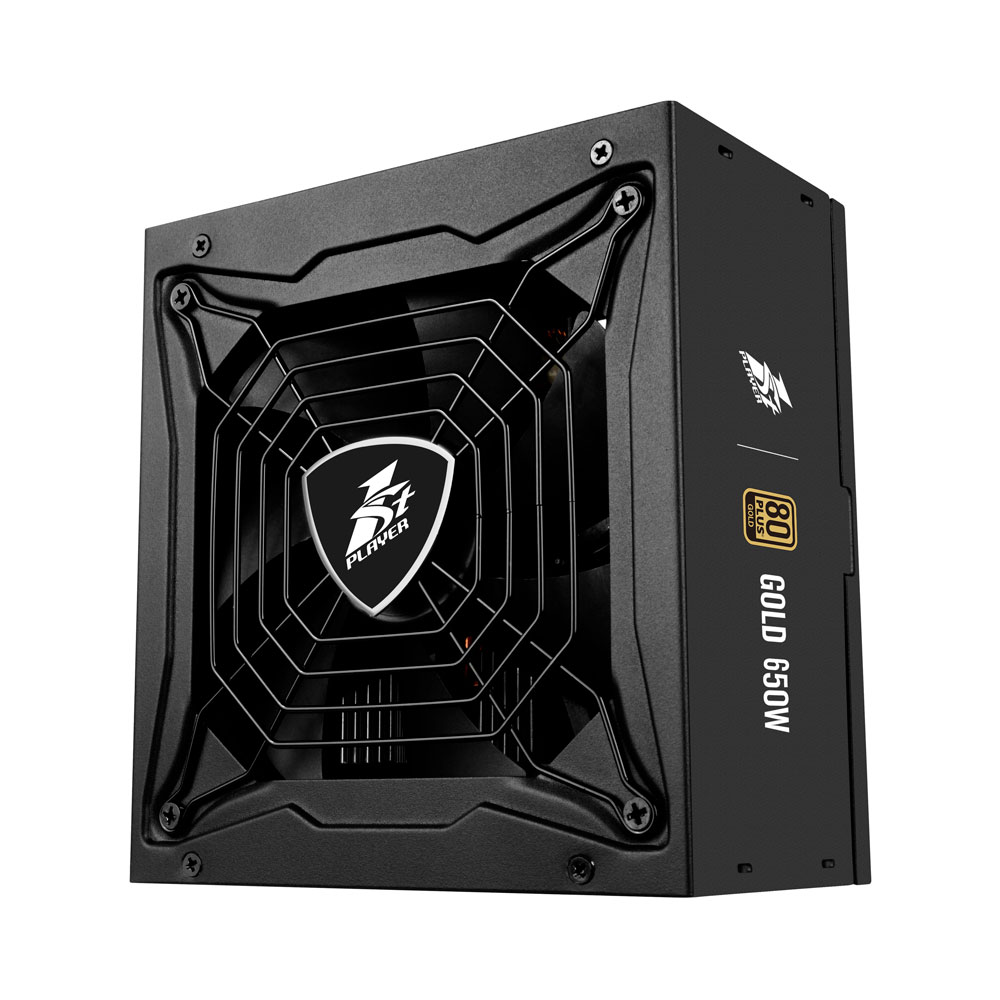

SP 650W / 750W/850W

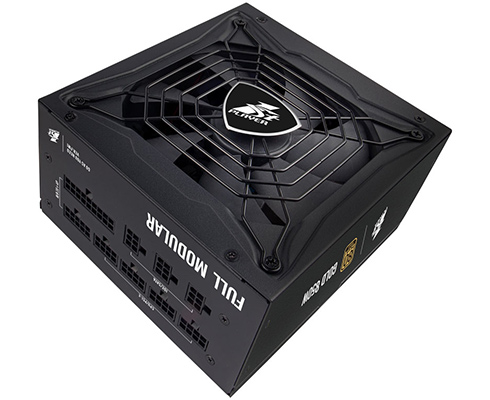

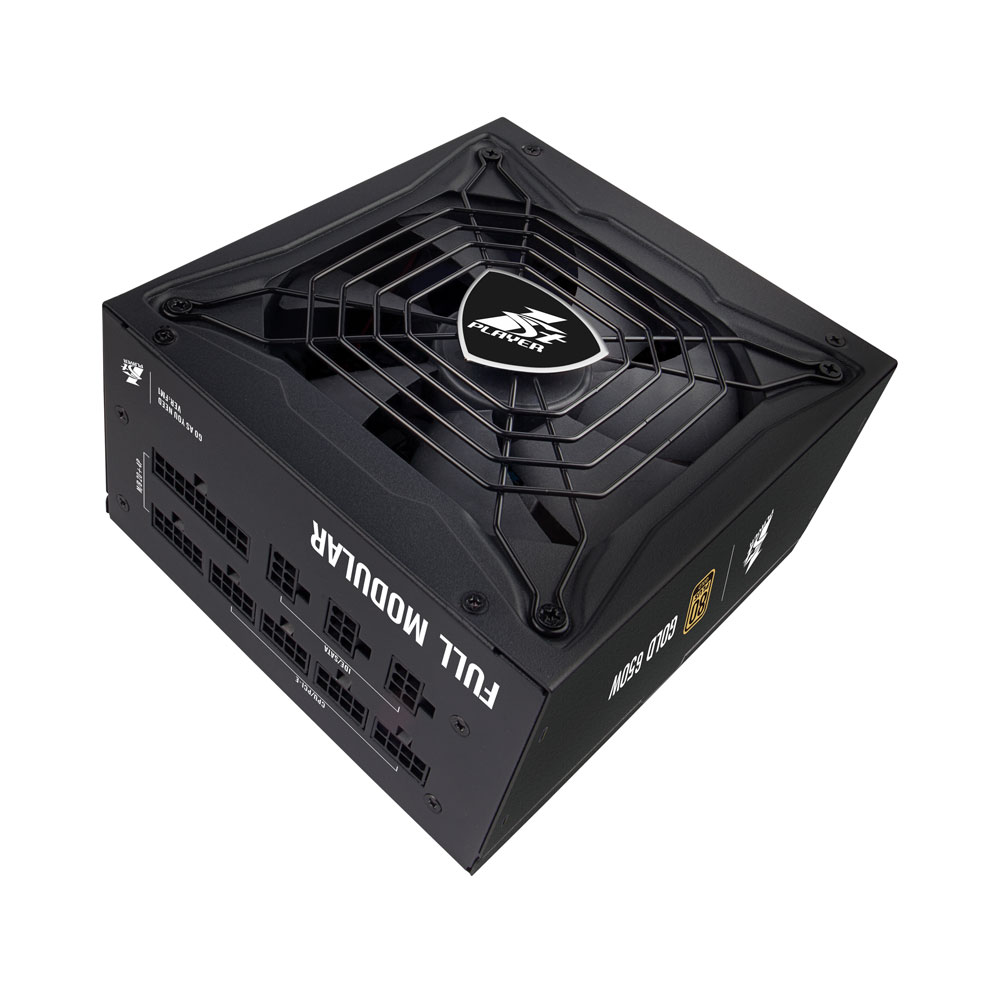

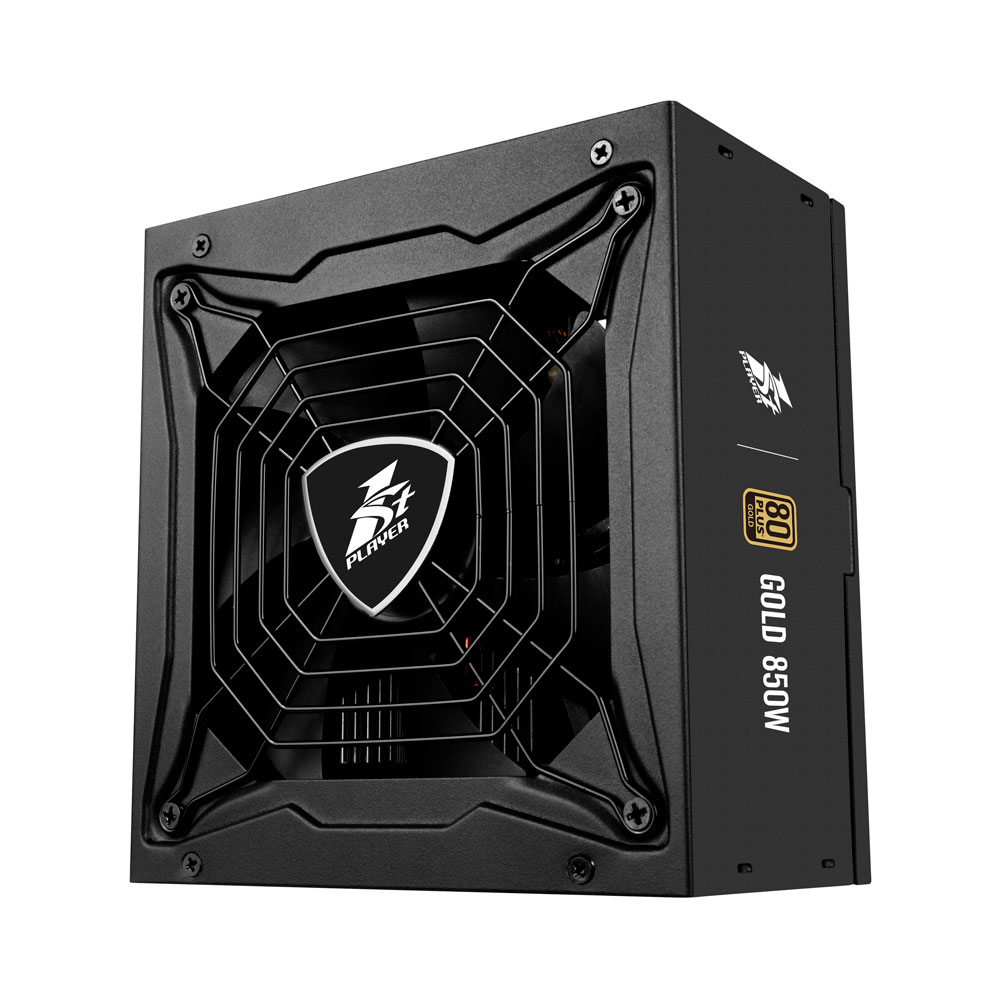

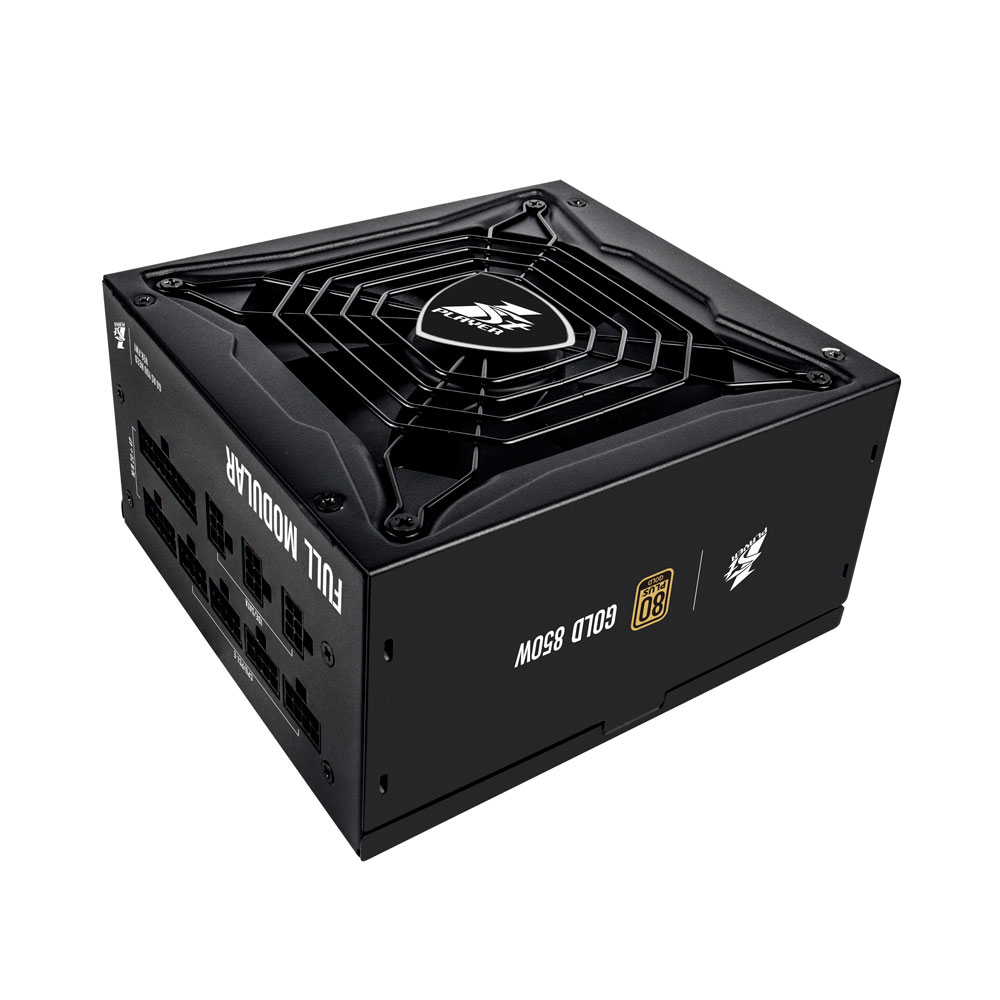

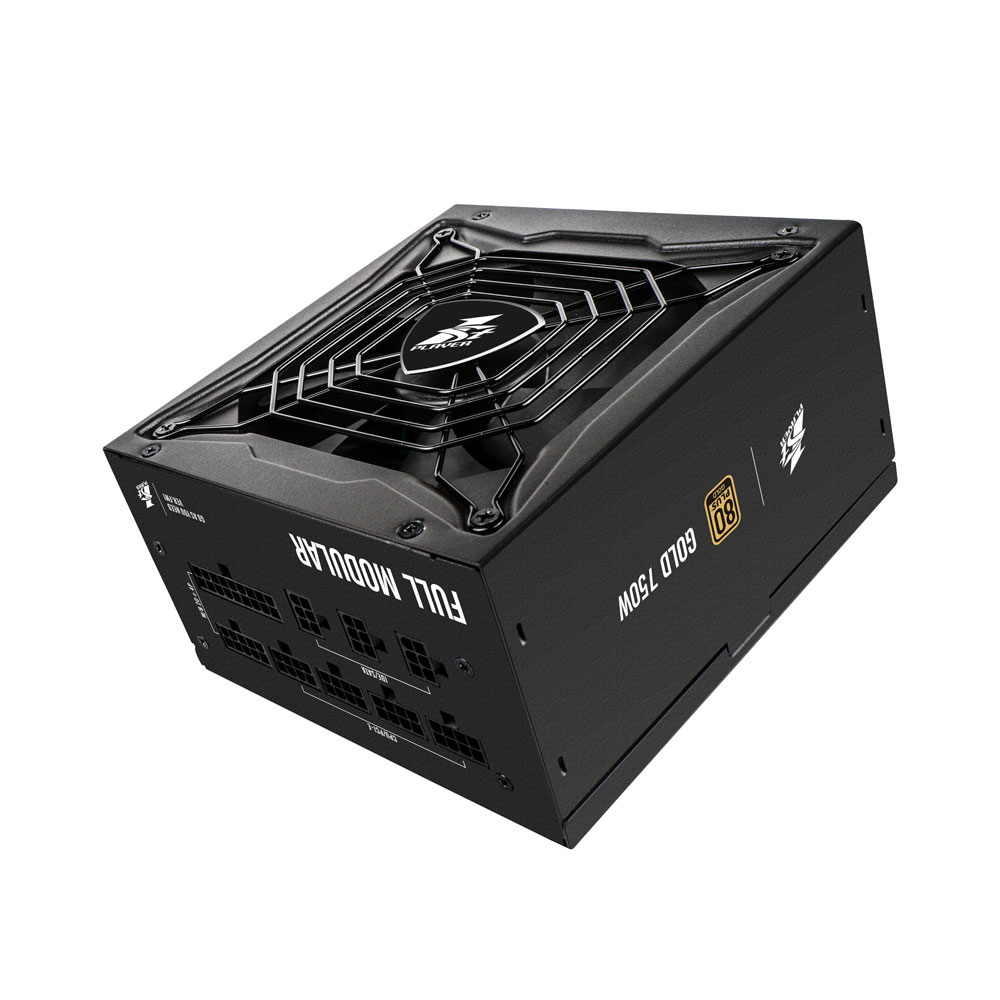

STEAMPUNK 850W Power Supply

  • 80 PLUS Gold certification for high energy efficiency

  • Over 92.4% efficiency at typical load

  • Full modular design for clutter-free cable management

  • Individual smart start/stop switch for convenient control

  • Equipped with Japanese Ruby main capacitors and massive solid capacitors for durability

  • Multi-protection features: UVP, OVP, OPP, SCP, and lightning protection

STEAMPUNK 80+ Gold Certified

Full Modular Free Cable Technology / 1% Float Voltage Output / Cooling Fan Start/Stop

Watch Video
  • Cooling Fan
    Start/Stop

  • Full Modular
    Free Cable Technology

  • Full Japanese Aluminum
    Electrolytic Capacitor

  • Solid-State
    Capacitor

  • Dual 8-Pin
    Support Overclocking

  • Full
    Voltage

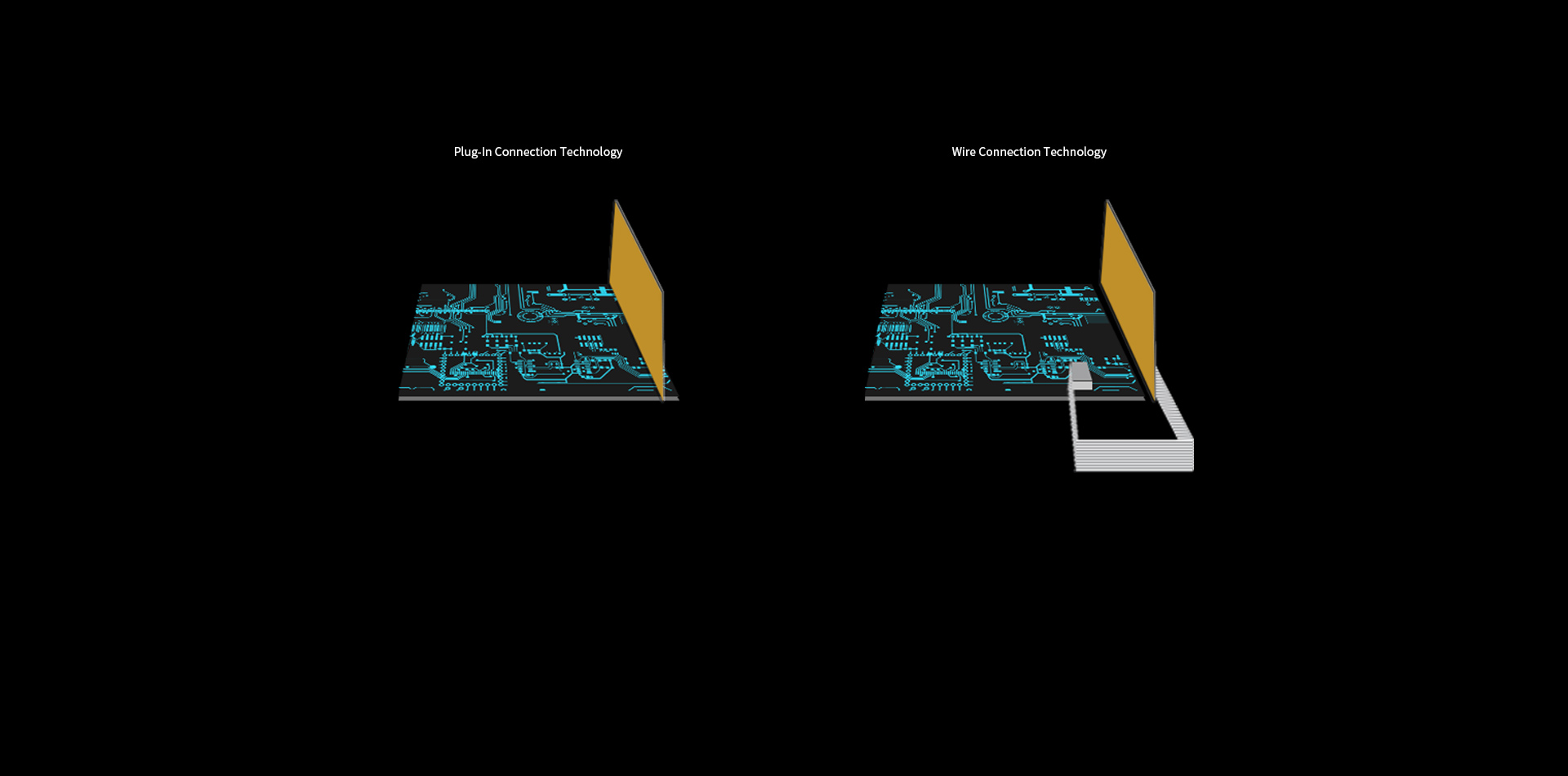

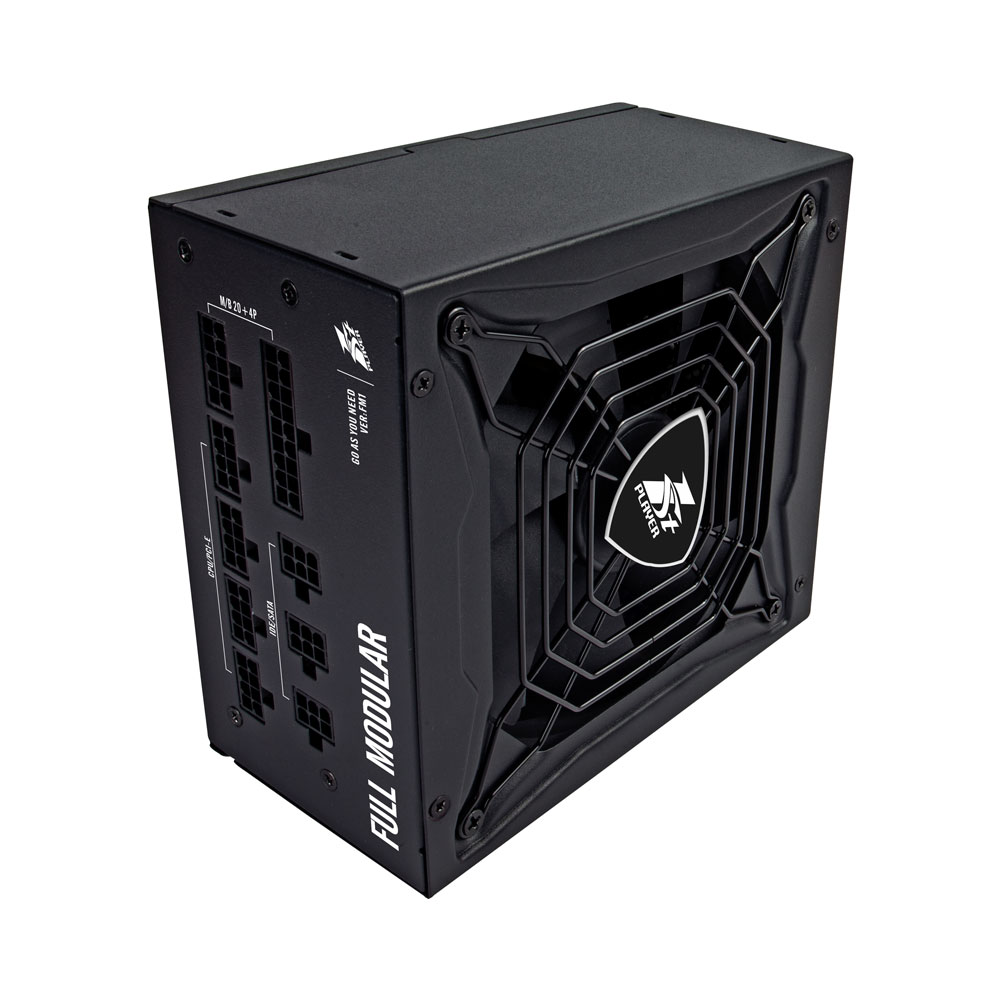

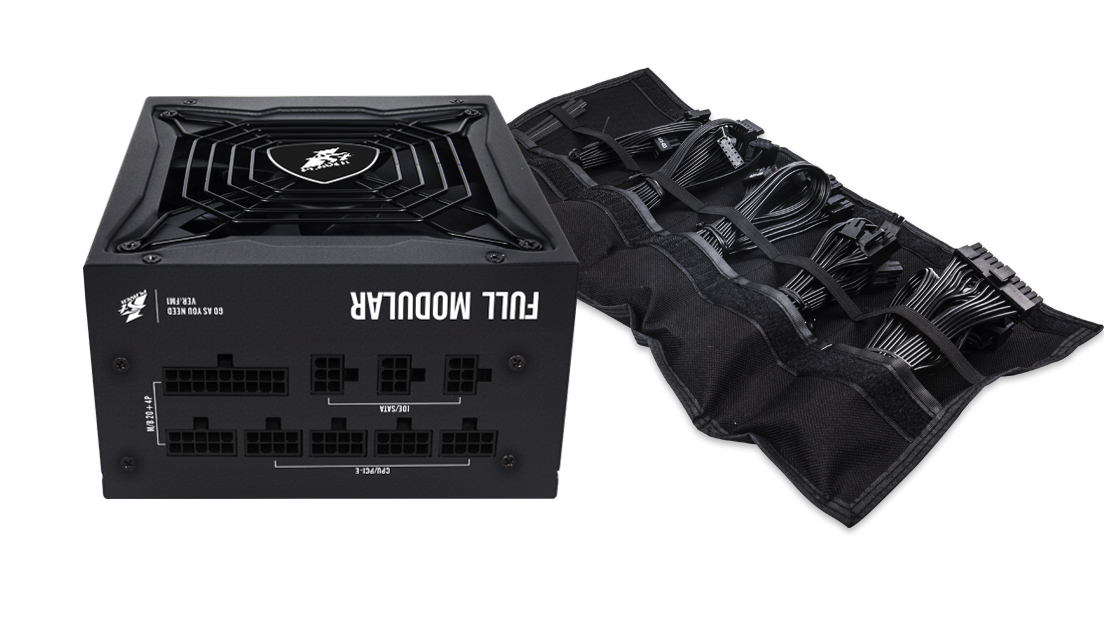

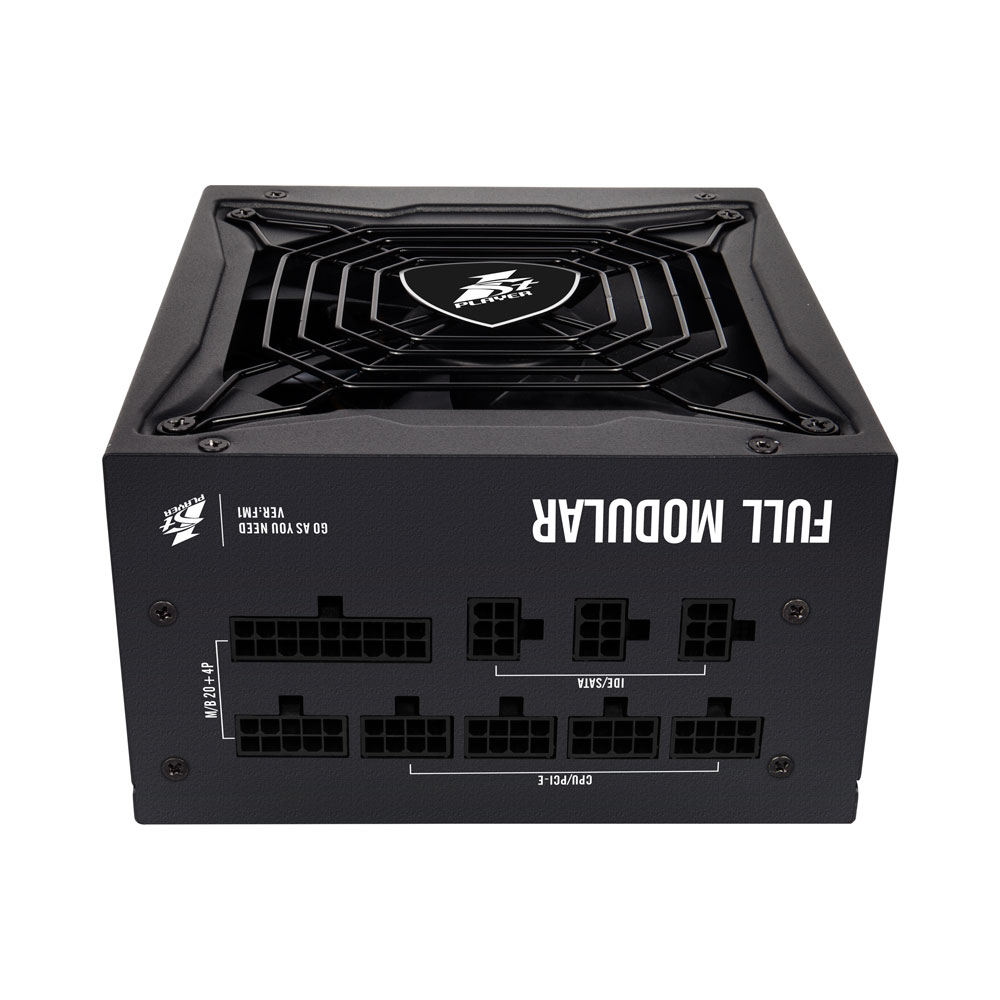

Full Modular Free Cable Technology

As we know, the module of full modular bear much electric current loading. By using “ fixed pin” and “high density copper bar”, the connection of daughter board and main PCB forms a plug in connection. It can remove the unnecessary inner cable connection and reduce the ripple, so as to provide reliable connection.

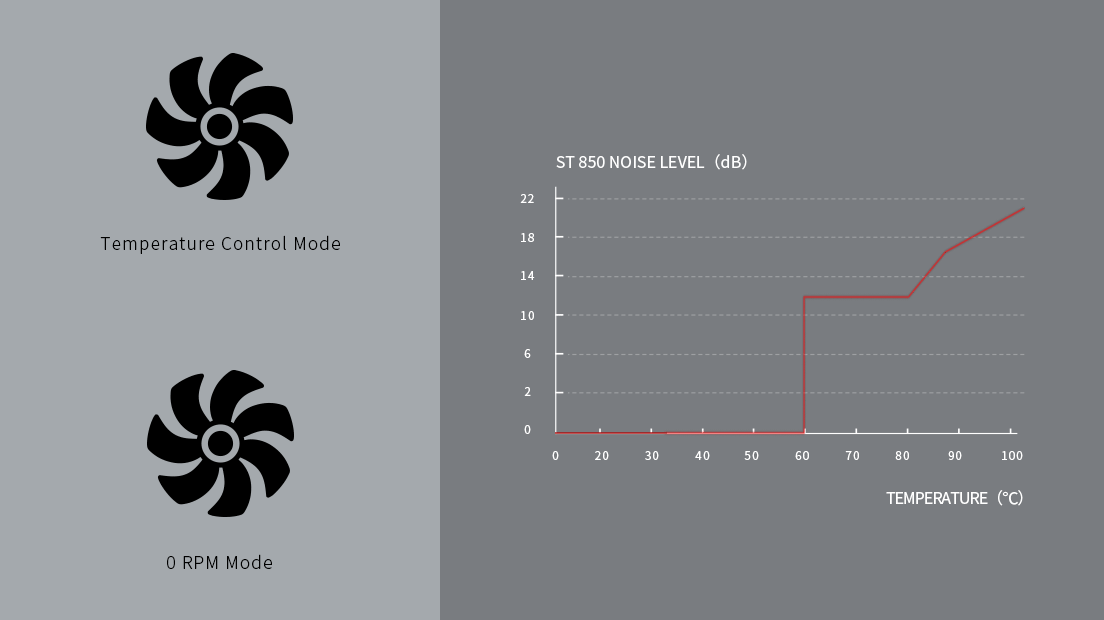

Individual Smart Start/Stop Switch

Under the 0 RPM fan mode, the smart temperature control IC monitors the inner temperature. When the temperature is with 60°, the fan stops spinning entirely until the temperature is higher than 60°. The Individual Smart Start/Stop Switch guarantees superior cooling performance and near silent operation

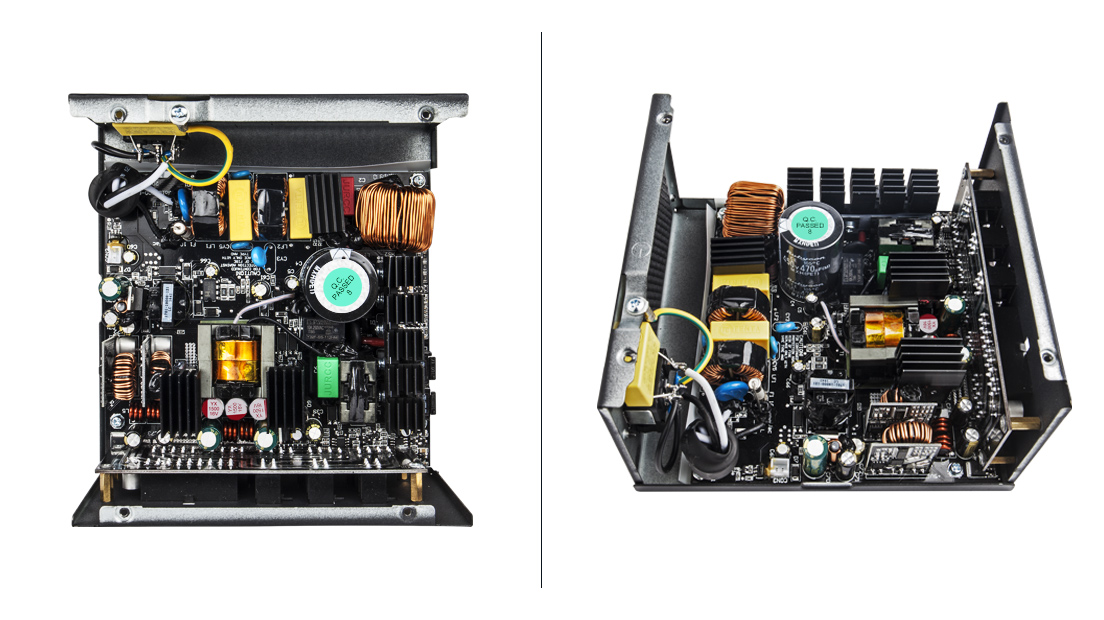

JP Ruby Main Capacitor And Massive Solid Capacitor

100% JP 105°C capacitor and massive solid capacitors ensure solid power delivery and long term reliability.

Full Modular Free Cable Technology

As we know, the module of full modular bear much electric current loading. By using “ fixed pin” and “high density cooper bar”, the connection of daughter board and main PCB forms a plug in connection. It can remove the unnecessary inner cable connection and reduce the ripple, so as to provide reliable connection.

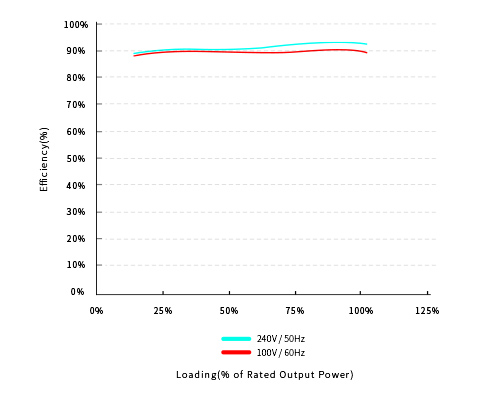

  • 80 PLUS Gold Certified

    Behold the 80+ Gold Certified, the latest STEAMPUNK 650W / 750W / 850W deliver over 92.4% efficiency at typical Loading, even higher than the platinum standard.

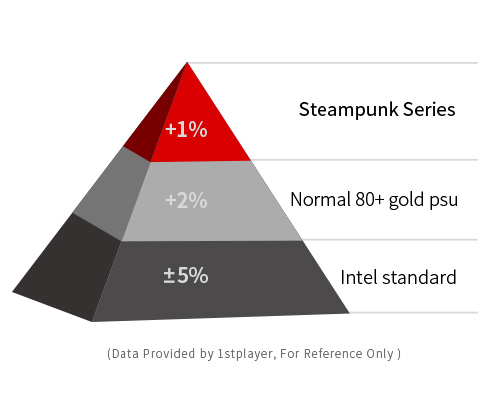

  • 1% Float Voltage Output

    The independent feedback loop ensures the float voltage output is controlled within 1% so as to deliver a stable and highly efficient performance.


  • LLC+DC-DC LLC Full Bridge Sync-Rectify

    The latest STEAMPUNK 80+ gold series provide a mature LLC+DC-DC and sync-rectify solution. Plus the 80+ certified and platinum quality, the float voltage output is controlled within 1% so as to deliver a stable and highly efficient performance.

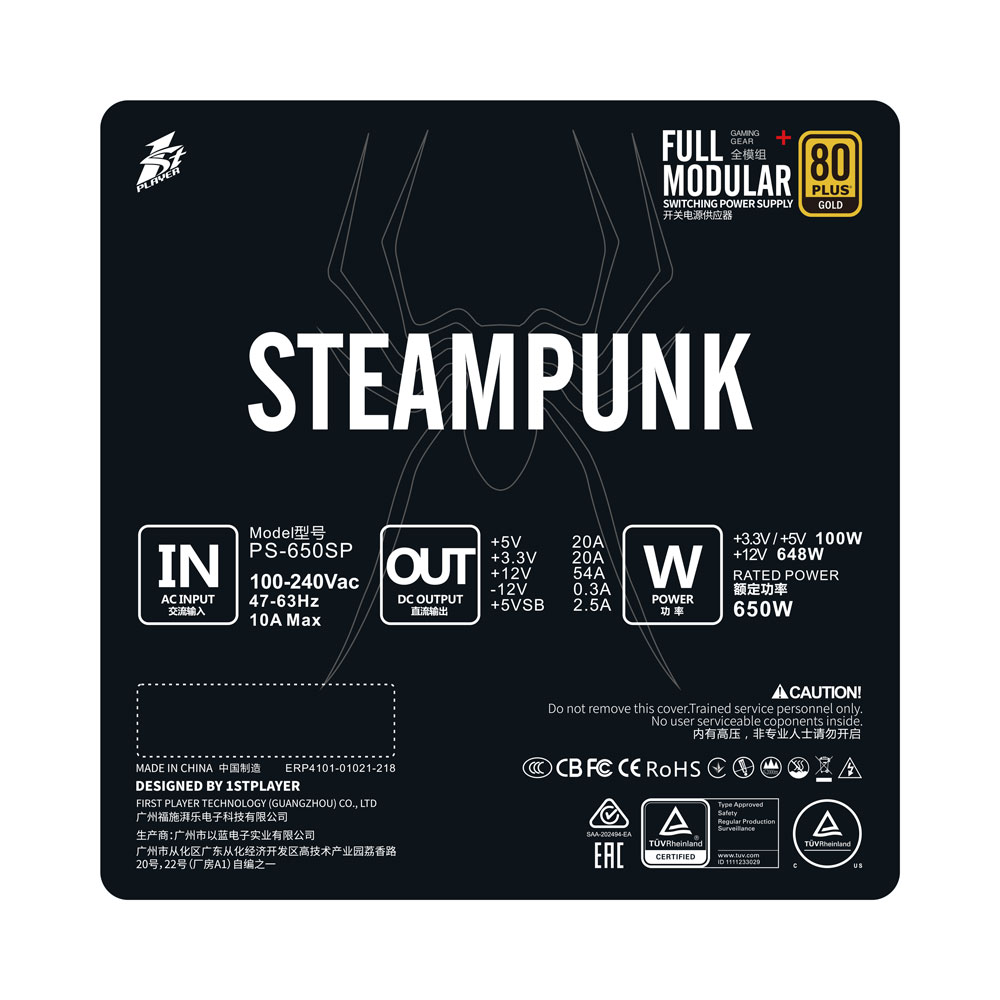

MODEL
PS-650SP / PS-750SP / PS-850SP
DIMENSIONS (L x W x H)
160 x 150 x 86 mm

MODULAR

FULL-modular

CERTIFICATIONS

80 PLUS Gold
WARRANTY
7 years
INPUT VOLTAGE
100 - 240 VAC
INPUT CURRENT
10 A MAX
EFFICIENCY
92.4% at typical loading
OUTPUT CAPACITY
650 / 750 / 850 W
INPUT FREQUENCY
50 - 60 Hz
PFC
Active PFC
NET WEIGHT
2.3 kg
GROSS WEIGHT
2.73 kg
FAN SIZE
140 mm hydraulic bearing
PROTECTIONS
UVP, OVP, OPP, SCP, Lightning protection
MTBF
100,000 hours
CIRCUIT STRUCTURE
LLC + DC-DC
REGULATORY
CE / FCC / C-Tick / ROHS / CCC / cTUVus / IEC / EAC
