Micro-ATX
· USB3.0*1+USB1.1*2+HD AUDIO
· 3.5" HDD：3 2.5" SSD：1
· Front panel&Left Side Panel:Tempered Glass
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
MODEL
X2
STRUCTURE DIMENSIONS (L x W x H)
315 x 190 x 386mm
PRODUCT DIMENSIONS (L x W x H)
326 x 195 x 398mm
PACKAGE DIMENSIONS (L x W x H)
450 x 250 x 375 mm
STRUCTURE THICKNESS
0.45 mm
MATERIALS
SPCC 0.45 mm

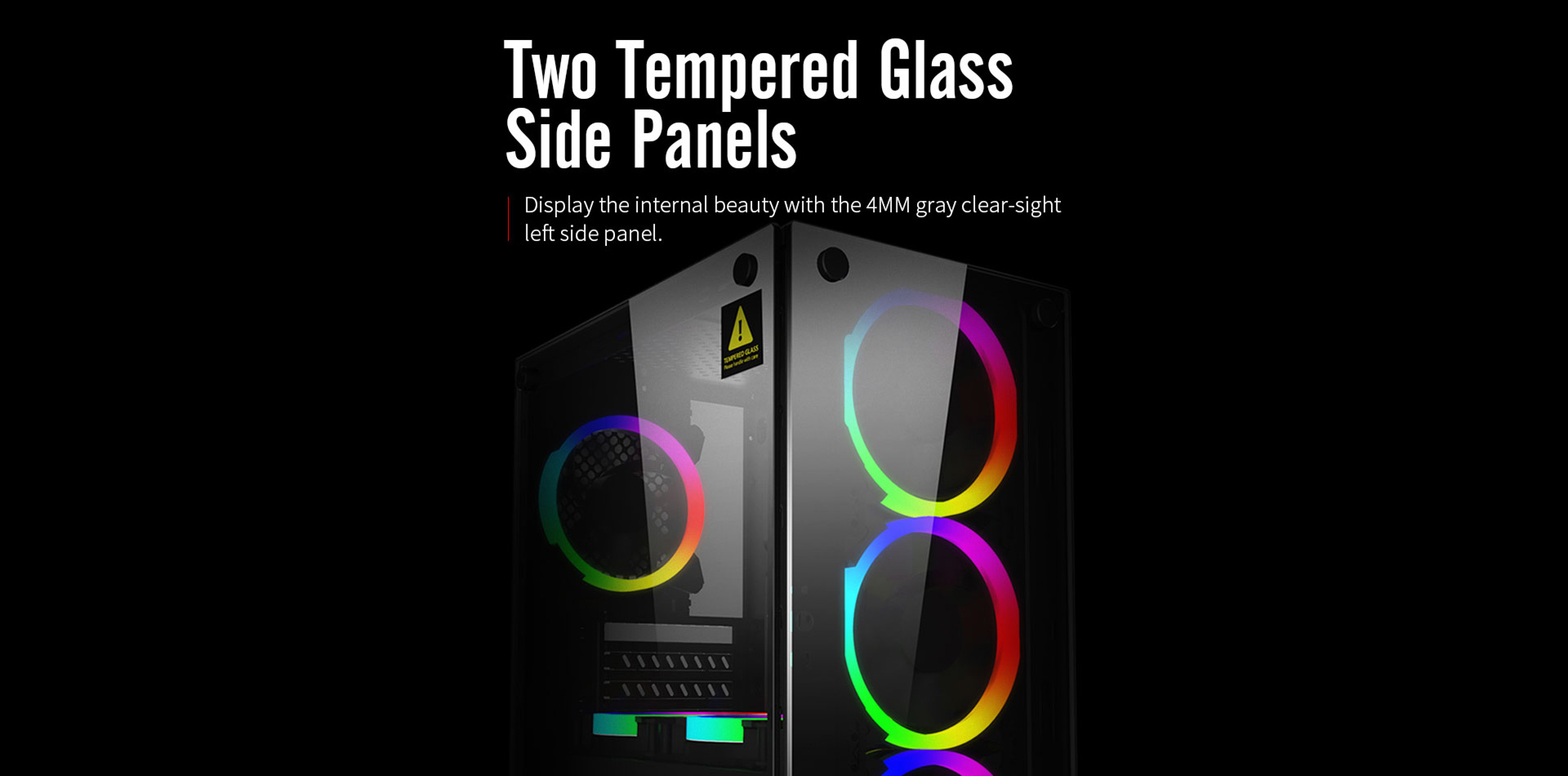

Front / Left Panel: Tempered glass
FORM FACTOR
M-ATX
5.25" CD ROM: 0
3.5" HDD: 2
2.5" SSD: 1
CPU MAX HEIGHT
170 mm
GPU MAX LENGTH
310 mm
I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO
PCI CARD SLOT
4

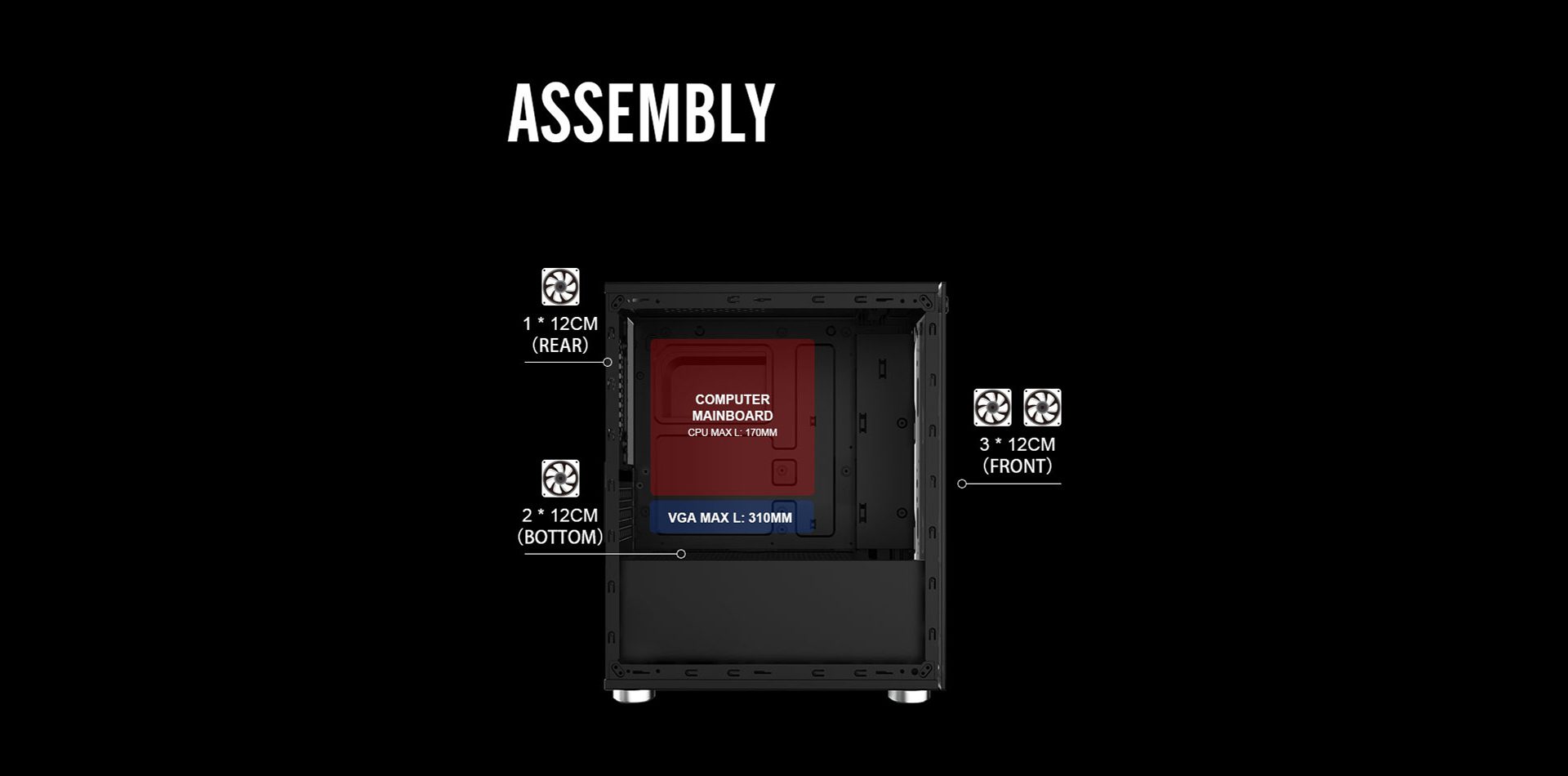

FAN SUPPORT
Front: 3 x 120 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm
LIQUID COOLING SUPPORT
N/A

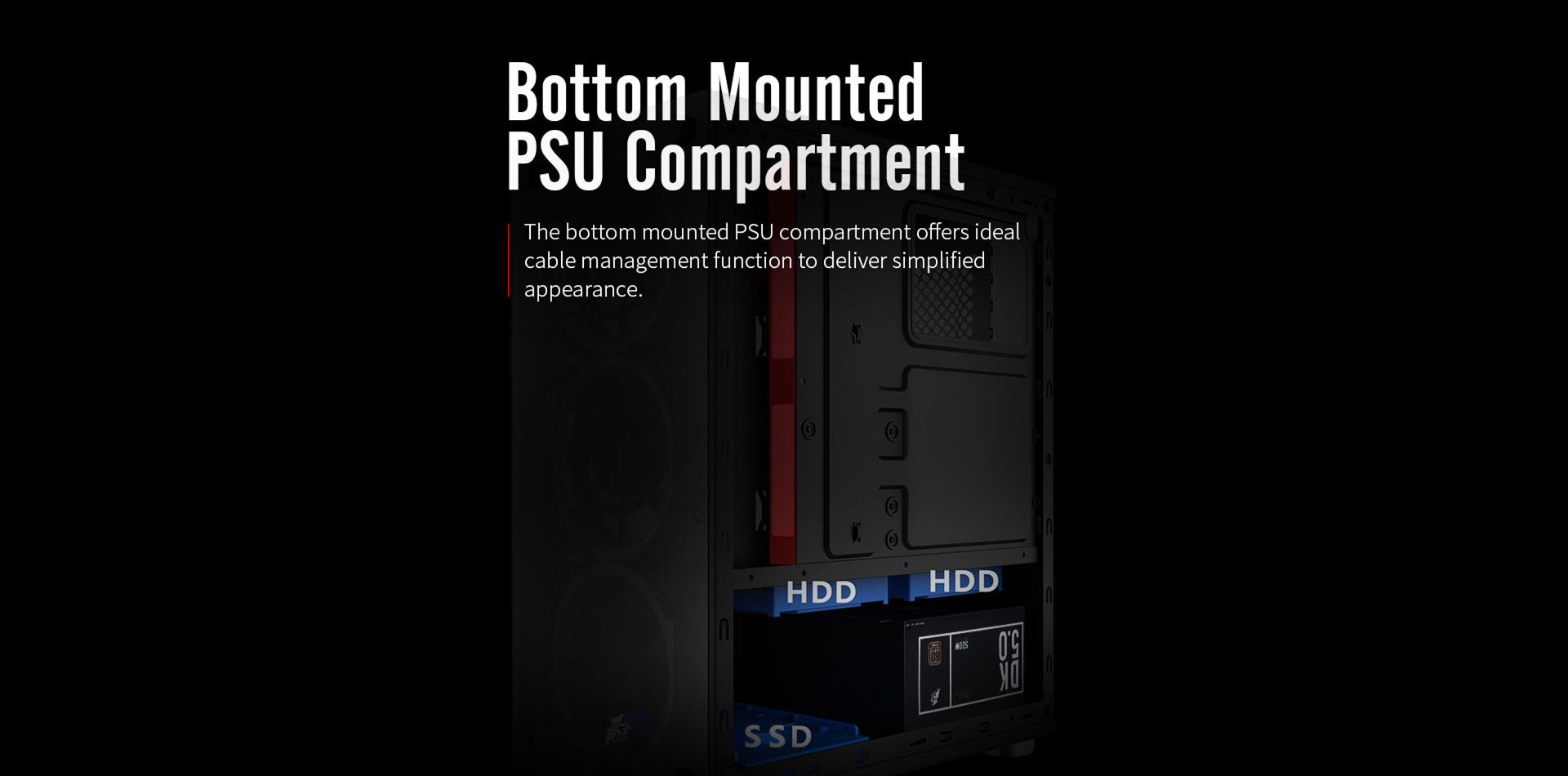

POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
3.8 kg / 8.37 lb
4.5 kg / 9.92 lb
