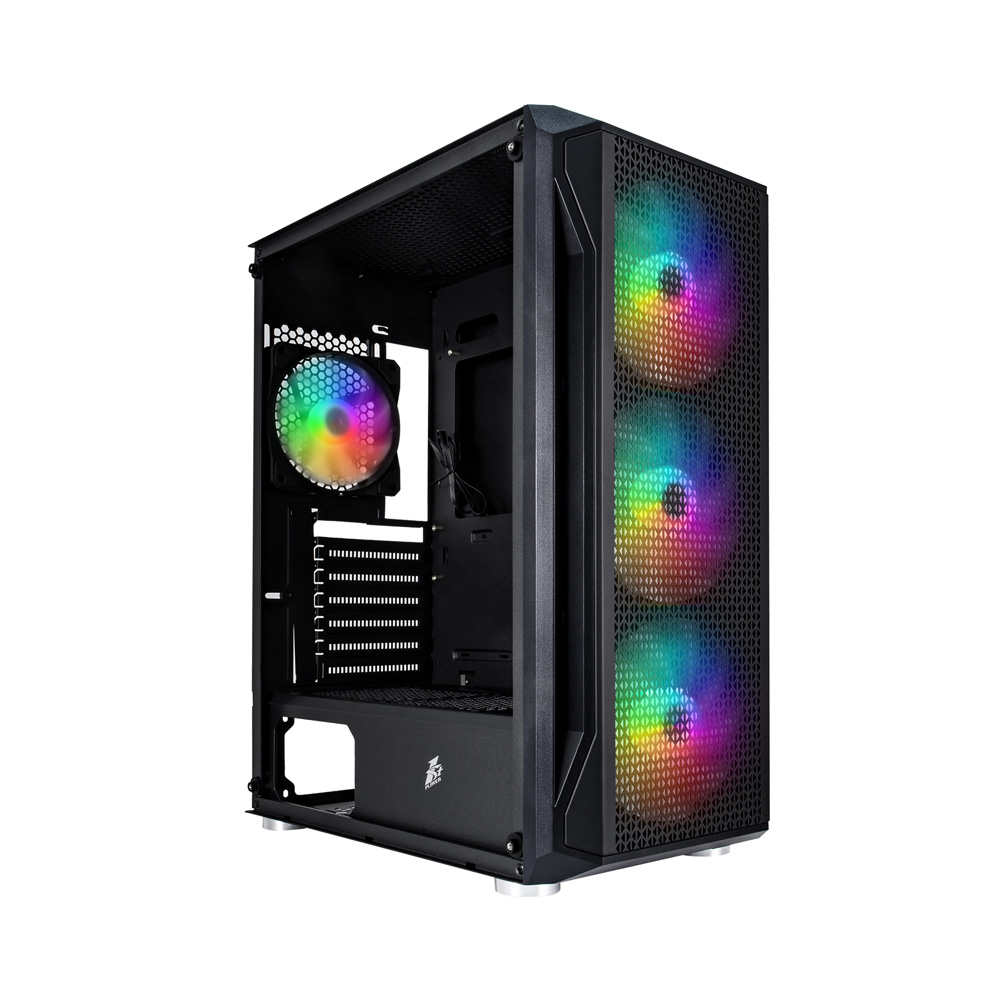

ATX
· USB3.0*1+USB2.0*2+HD AUDIO
· 3.5" HDD: 2 2.5" SSD: 3
· Left Side Panel: Tempered Glass
· CPU Max H / GPU Max L: 165MM / 320MM
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

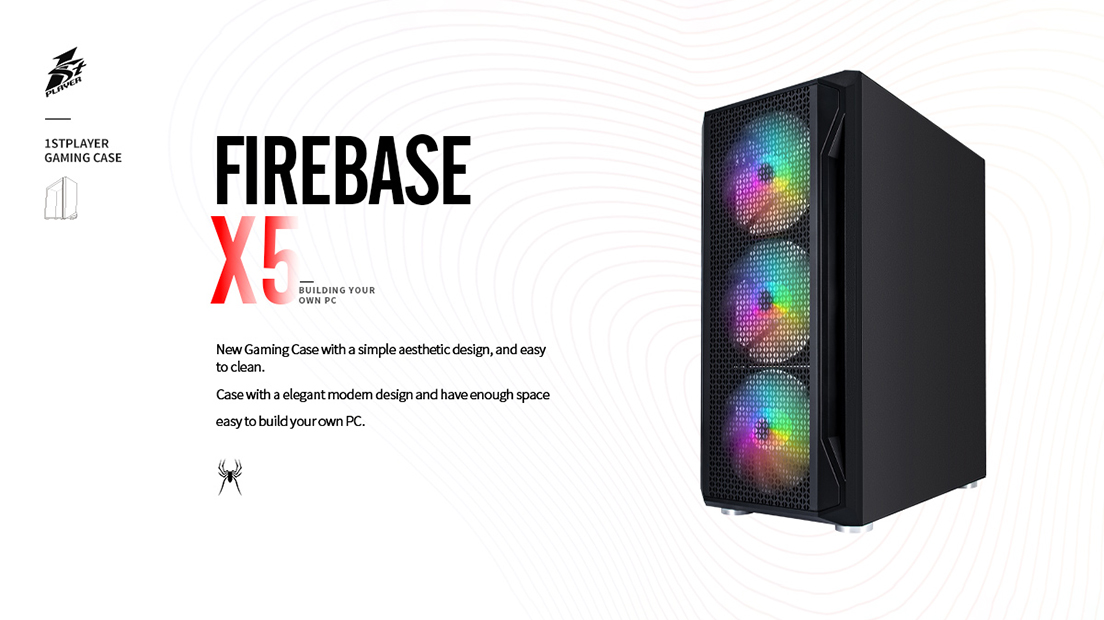

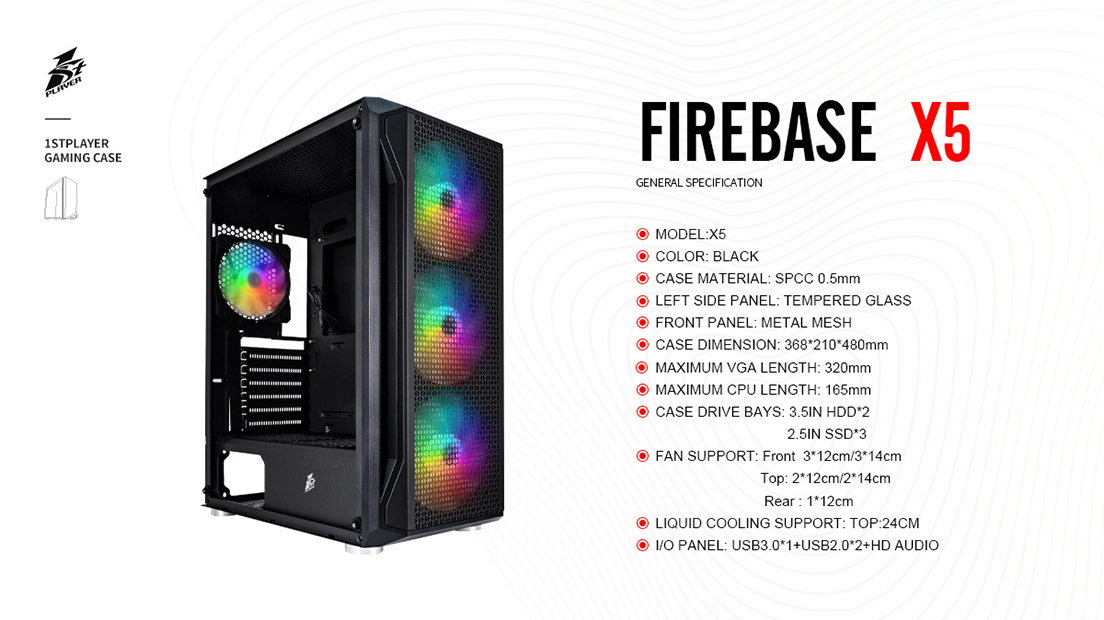

Model
X5
Structure Dimensions(L*W*H)
335*210*468MM
Product Dimensions(L*W*H)
368*210*480MM
Package Dimensions(L*W*H)
530*265*425MM
Structure Thickness
0.5MM
Materials
SPCC 0.5MM
LEFT SIDE PANEL：TEMPERED GLASS

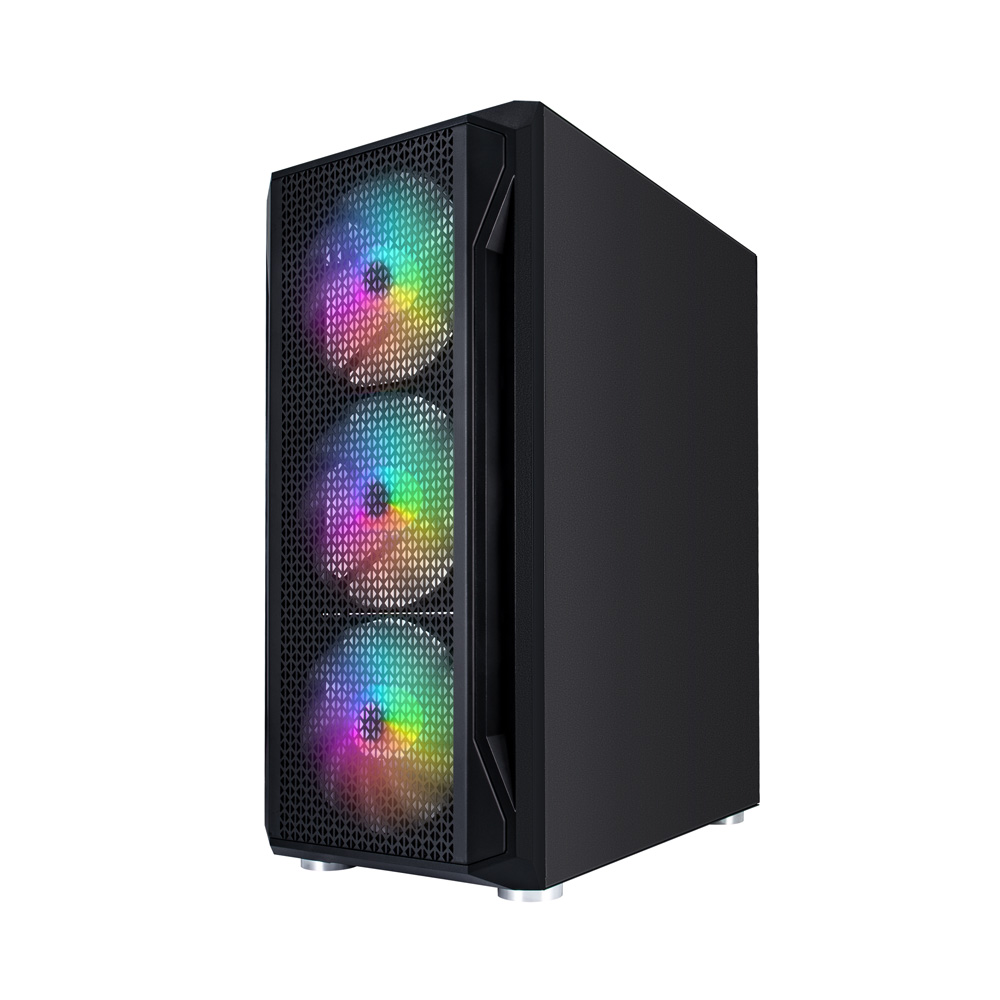

FRONT SIDE PANEL：METAL MESH

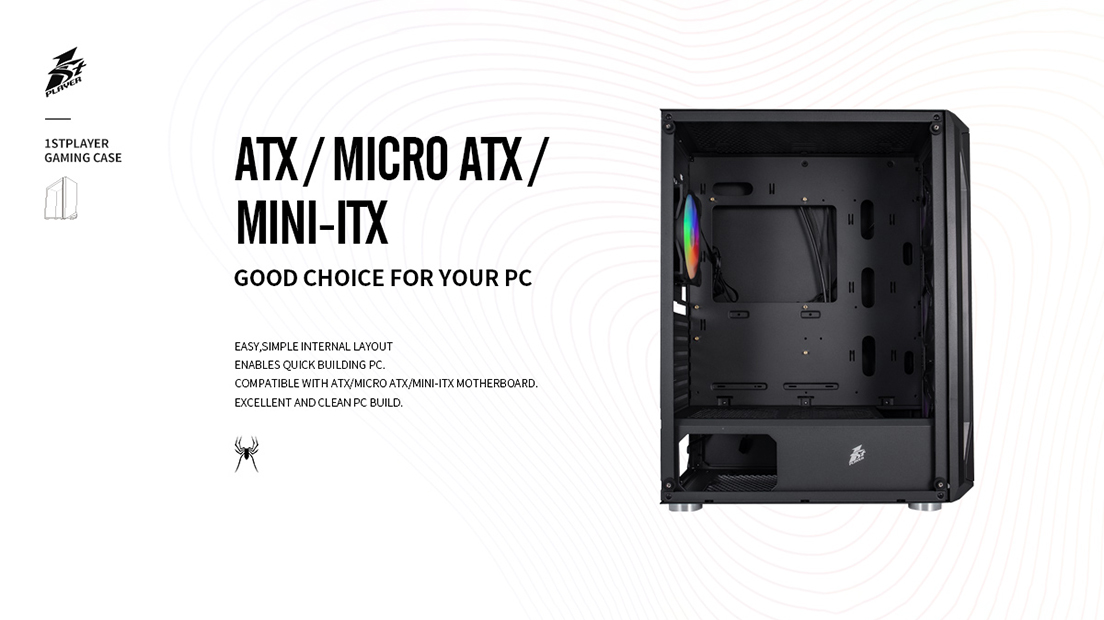

Form Factor
ATX/M-ATX
5.25""CD ROM:0
①: 3.5""HDD:2+2.5""SSD:2
②: 3.5""HDD:1+2.5""SSD:3
CPU MAX Height
165MM
VGA MAX Length
320MM

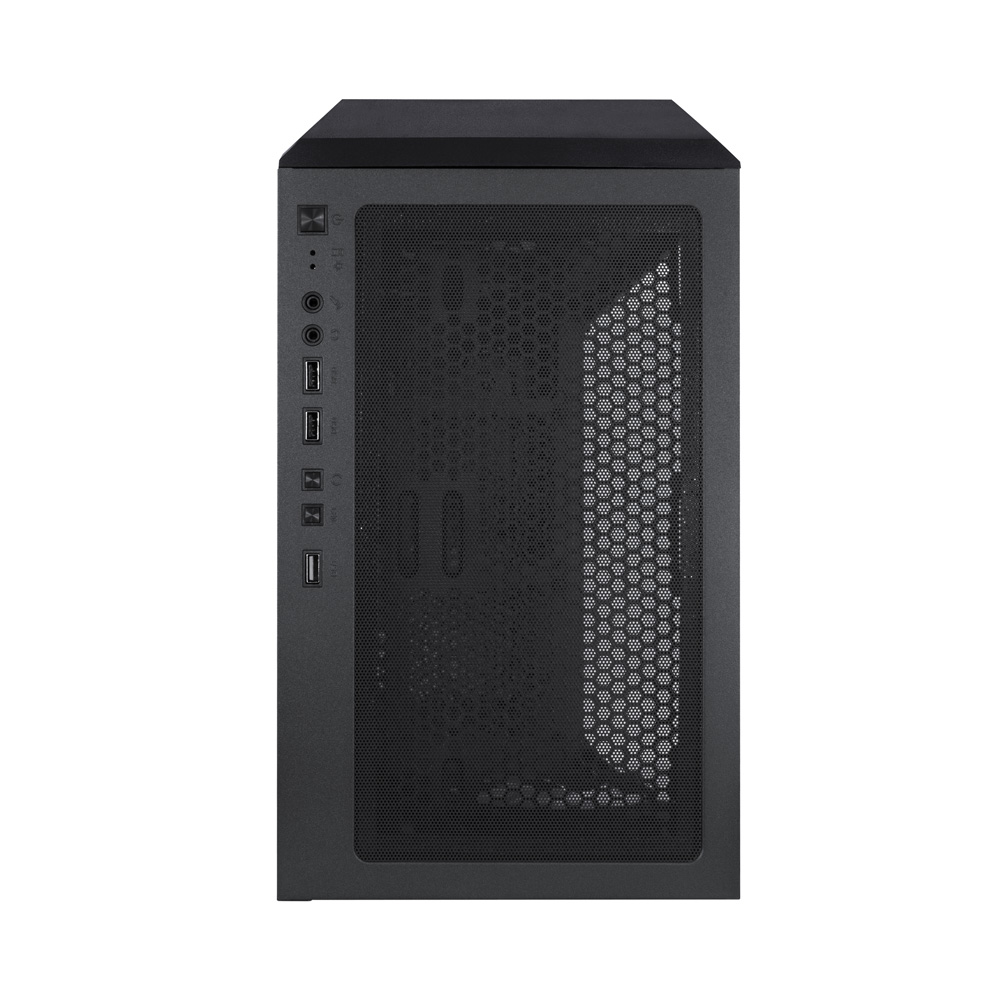

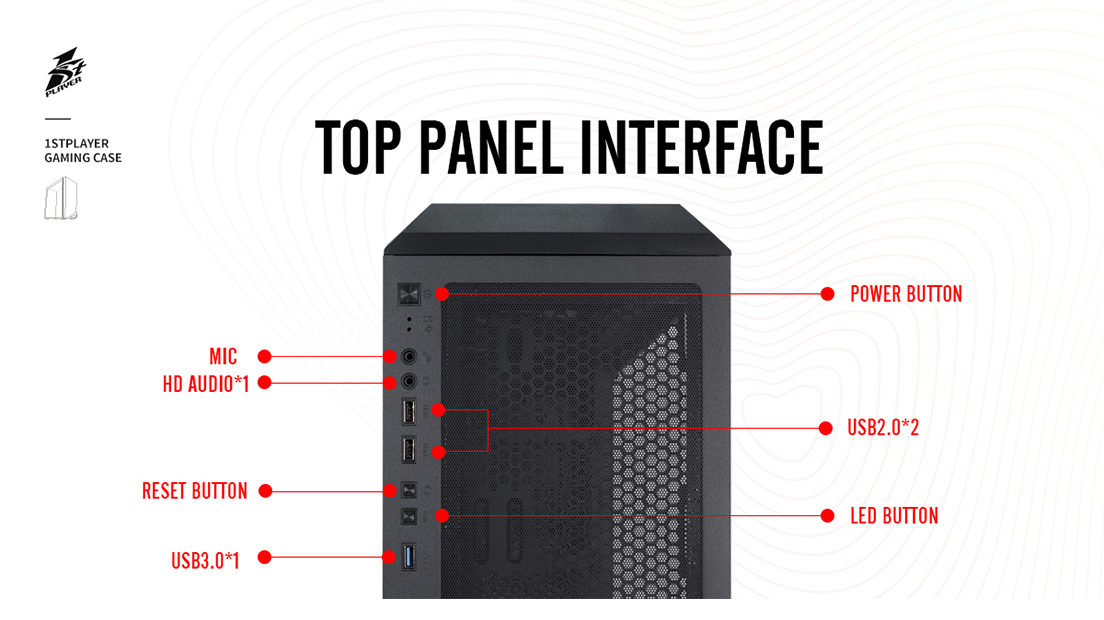

I/O Panel
USB3.0*1+USB2.0*2+HD AUDIO*1

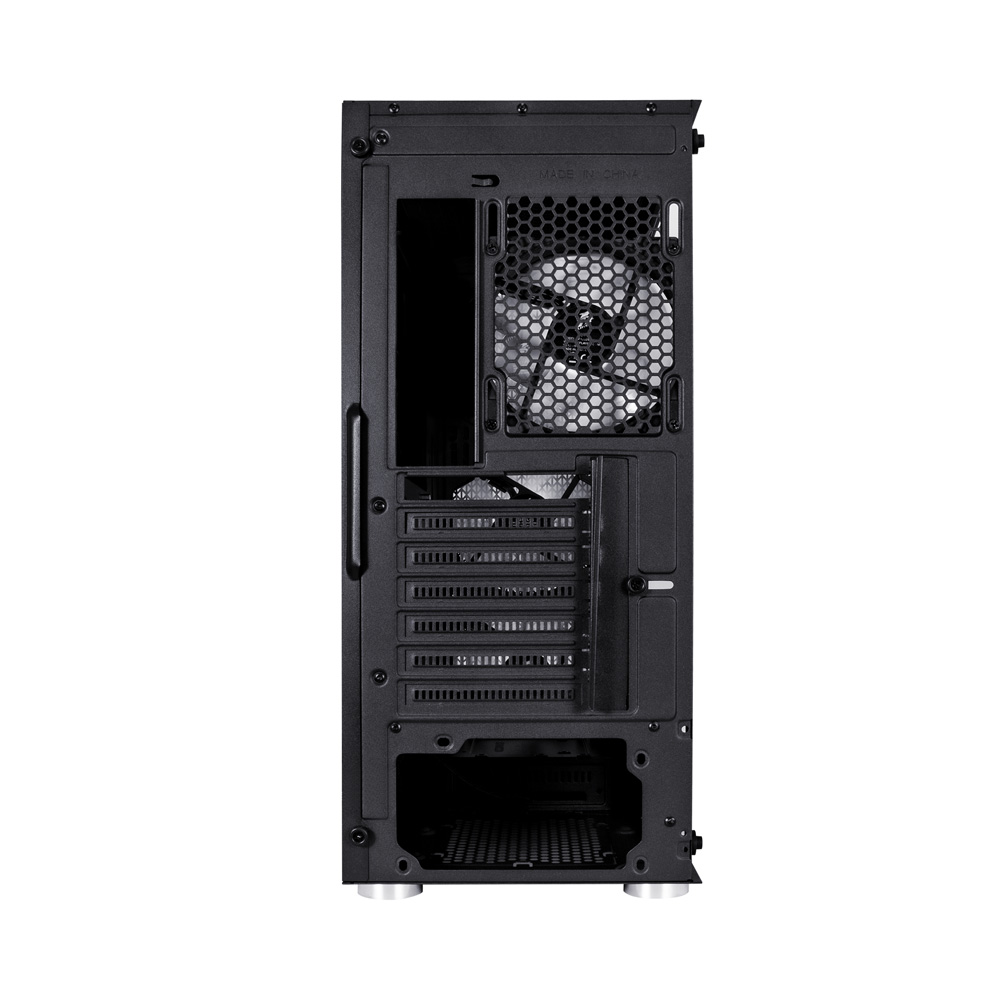

PCI Card Slot
7

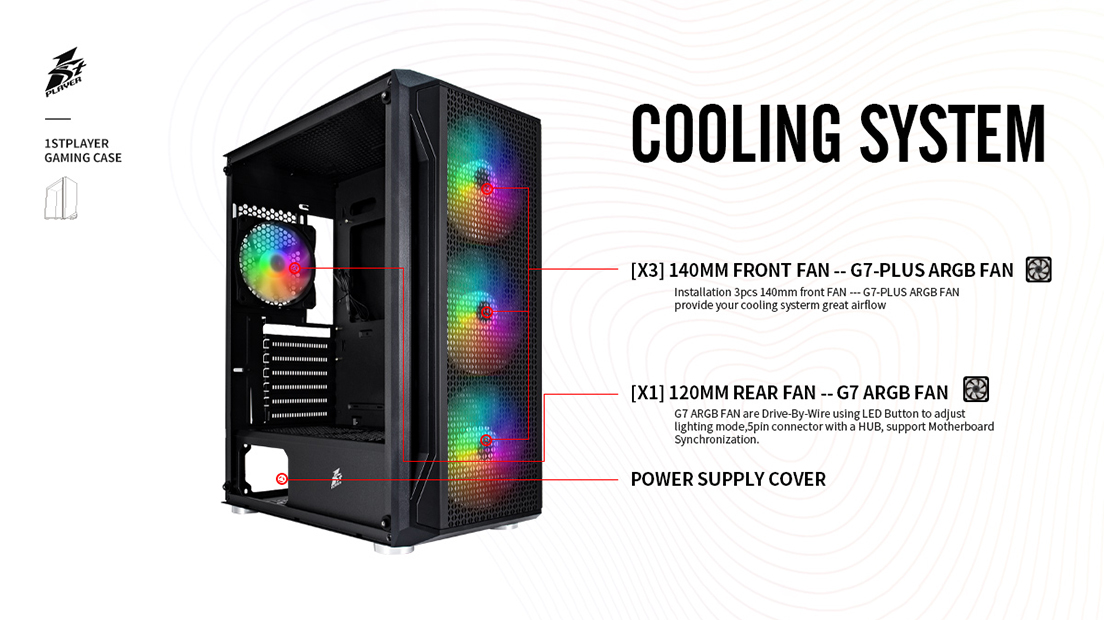

Fan Support
FRONT:3*12CM/3*14CM
TOP:2*12CM/2*14CM
REAR:1*12CM
BOTTOM: 2*12CM
Liquid Cooling Support
TOP:240MM
FRONT:360MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
5.0 KG / 11.02lb
5.6 KG / 12.34lb
