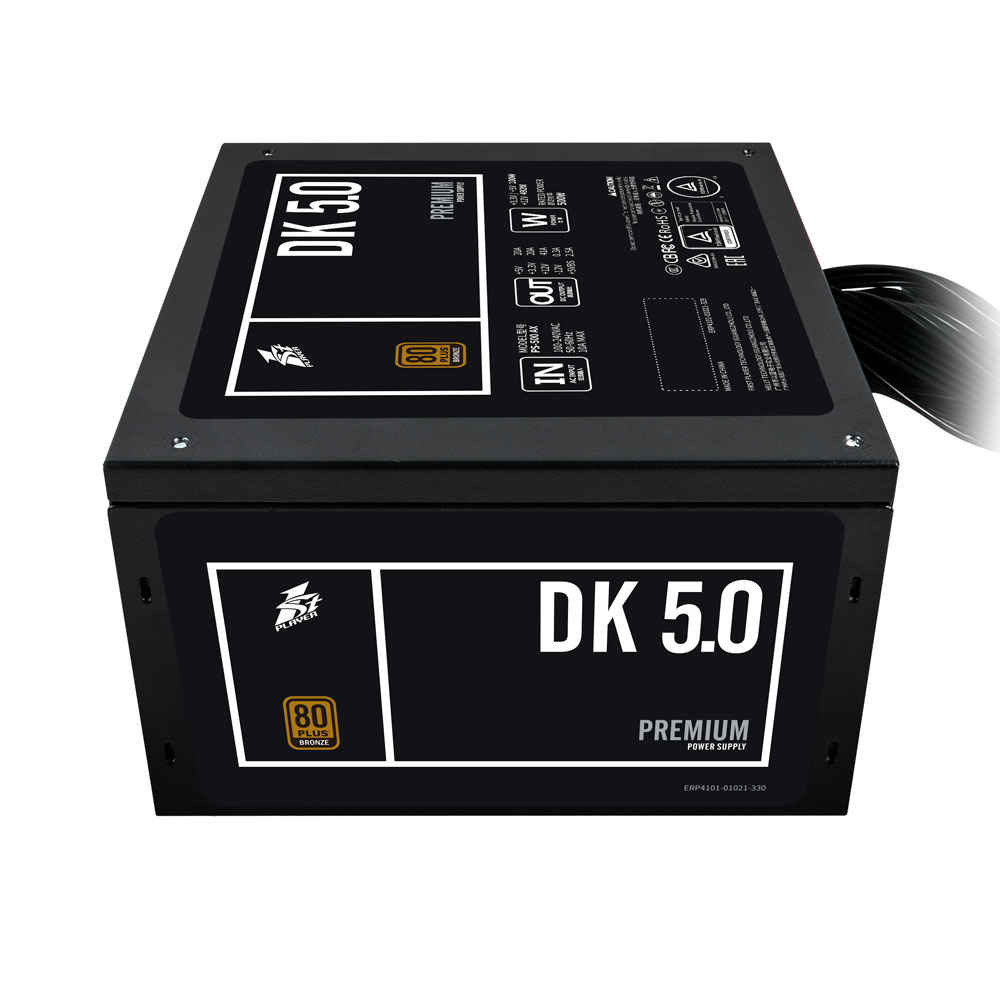

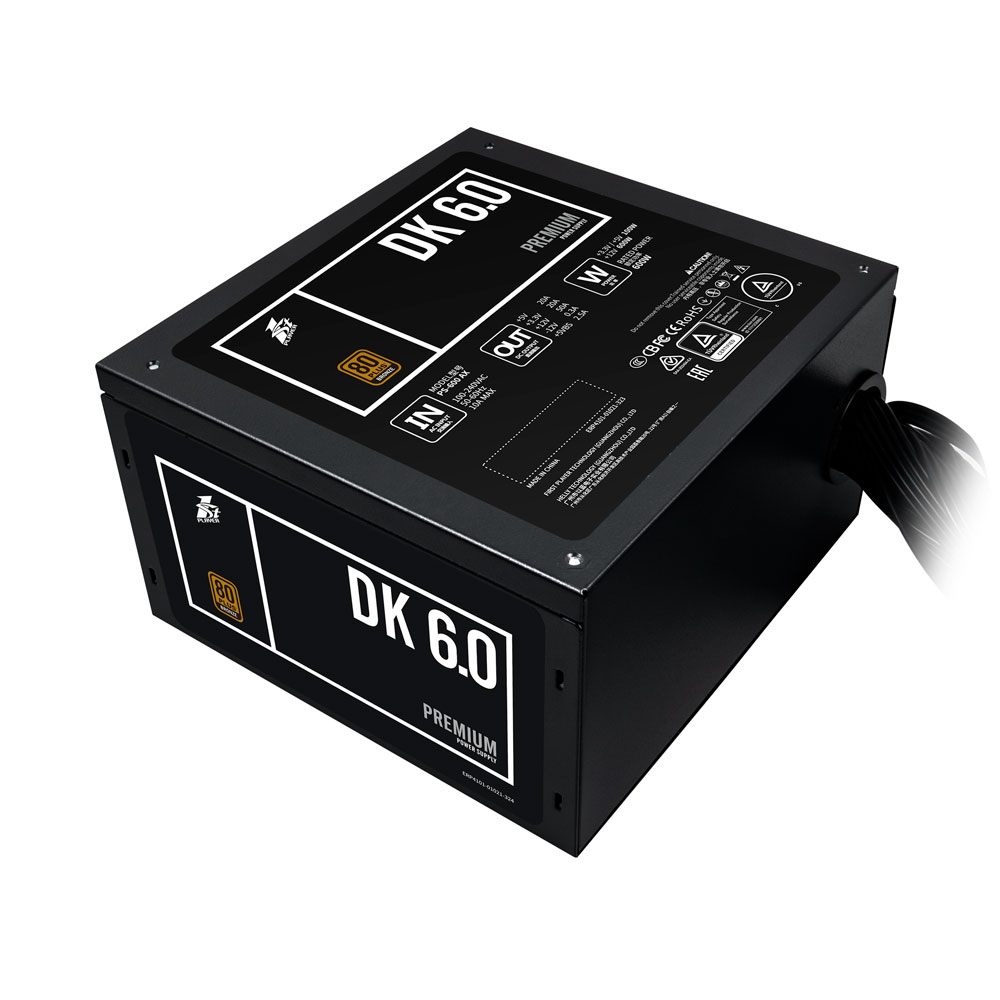

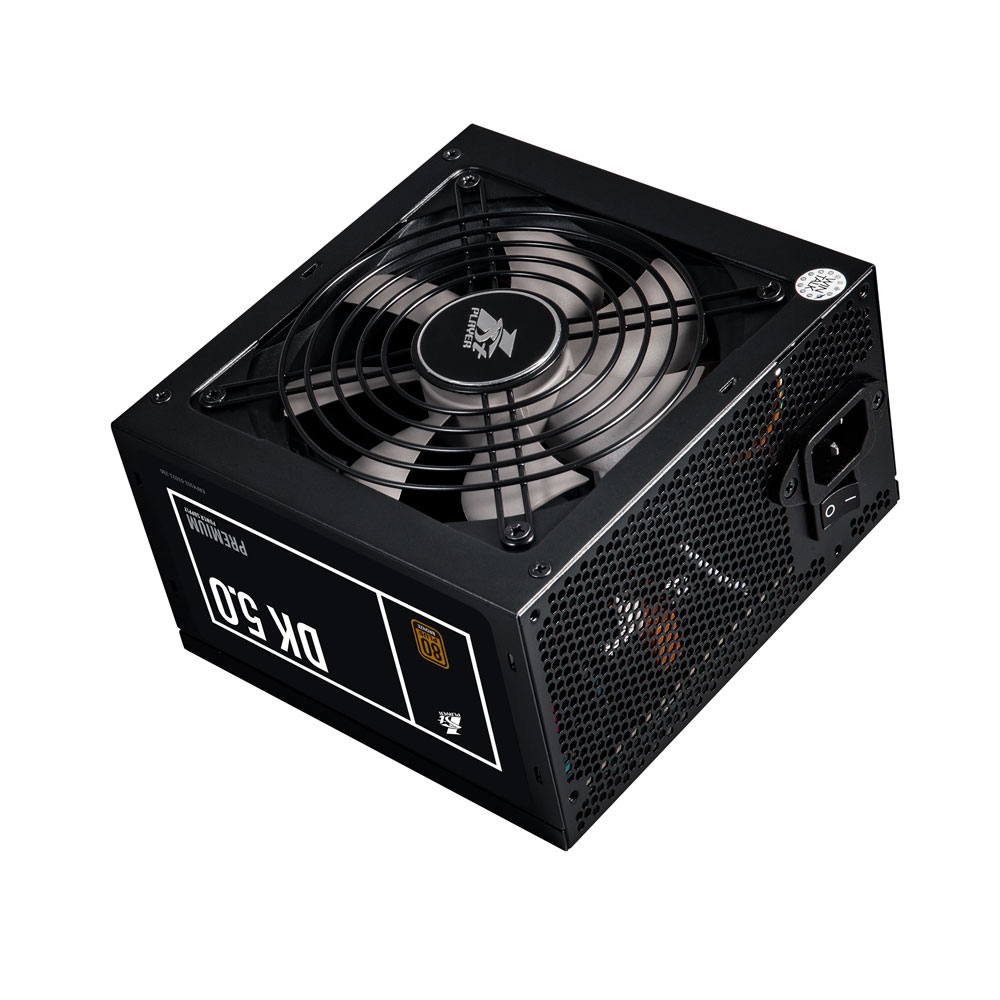

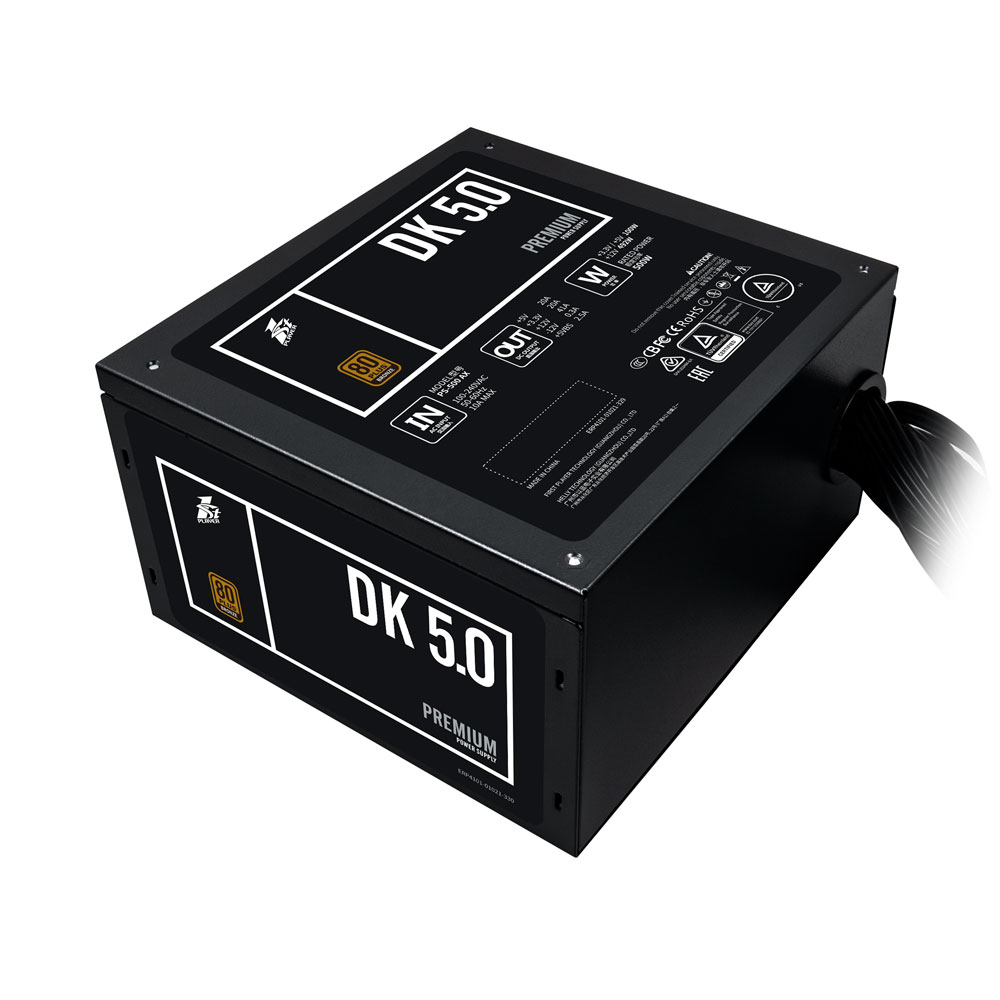

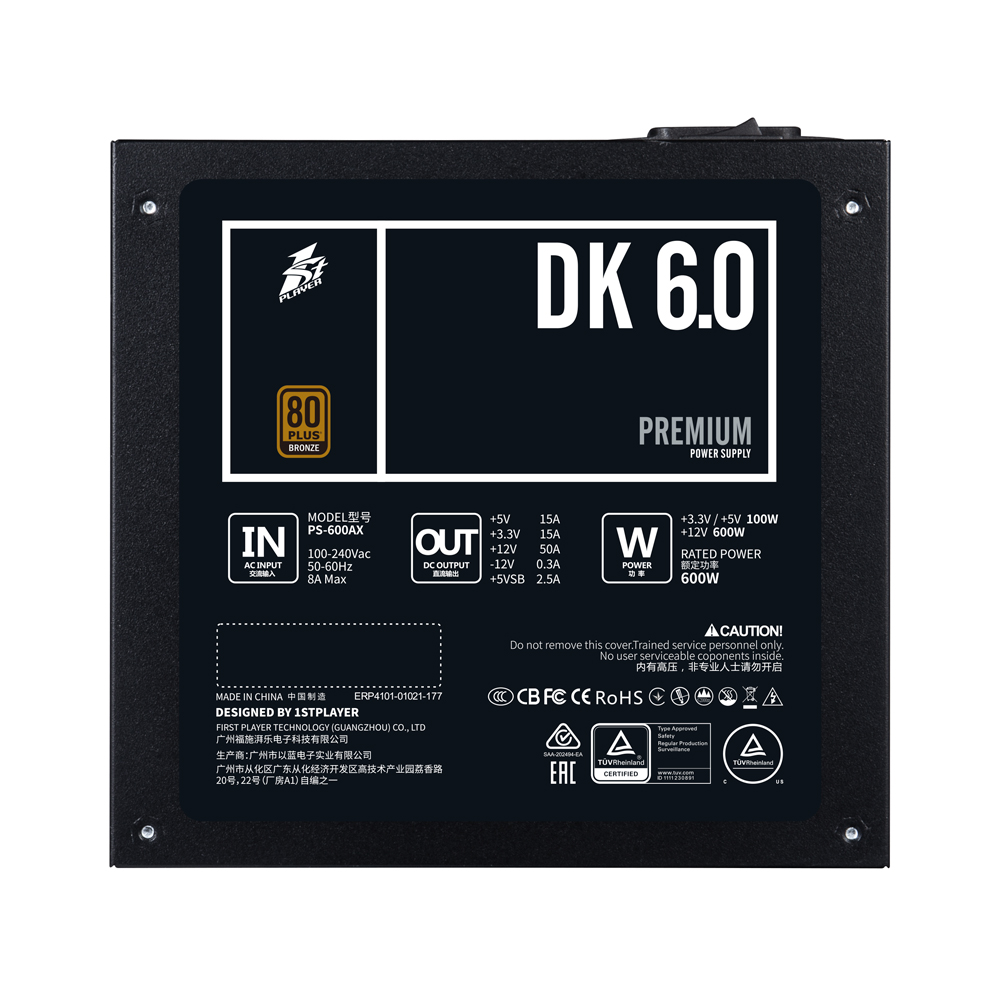

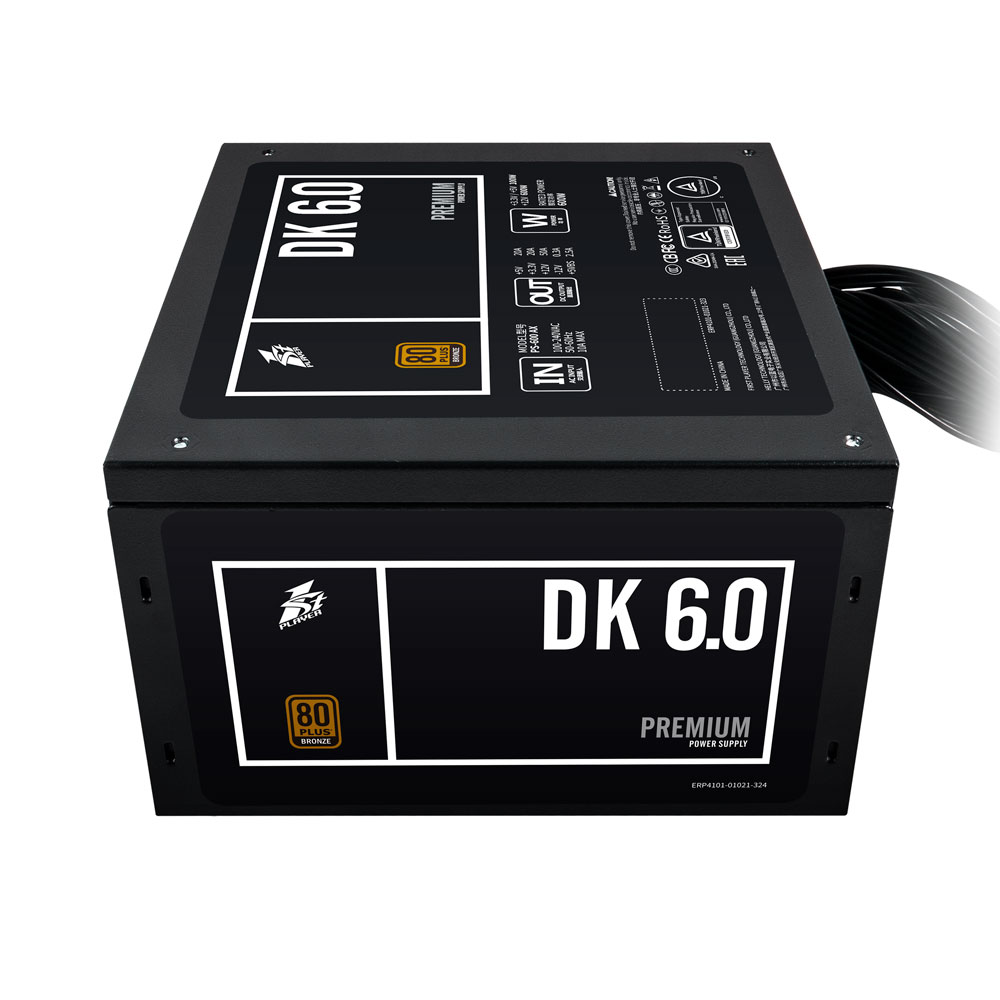

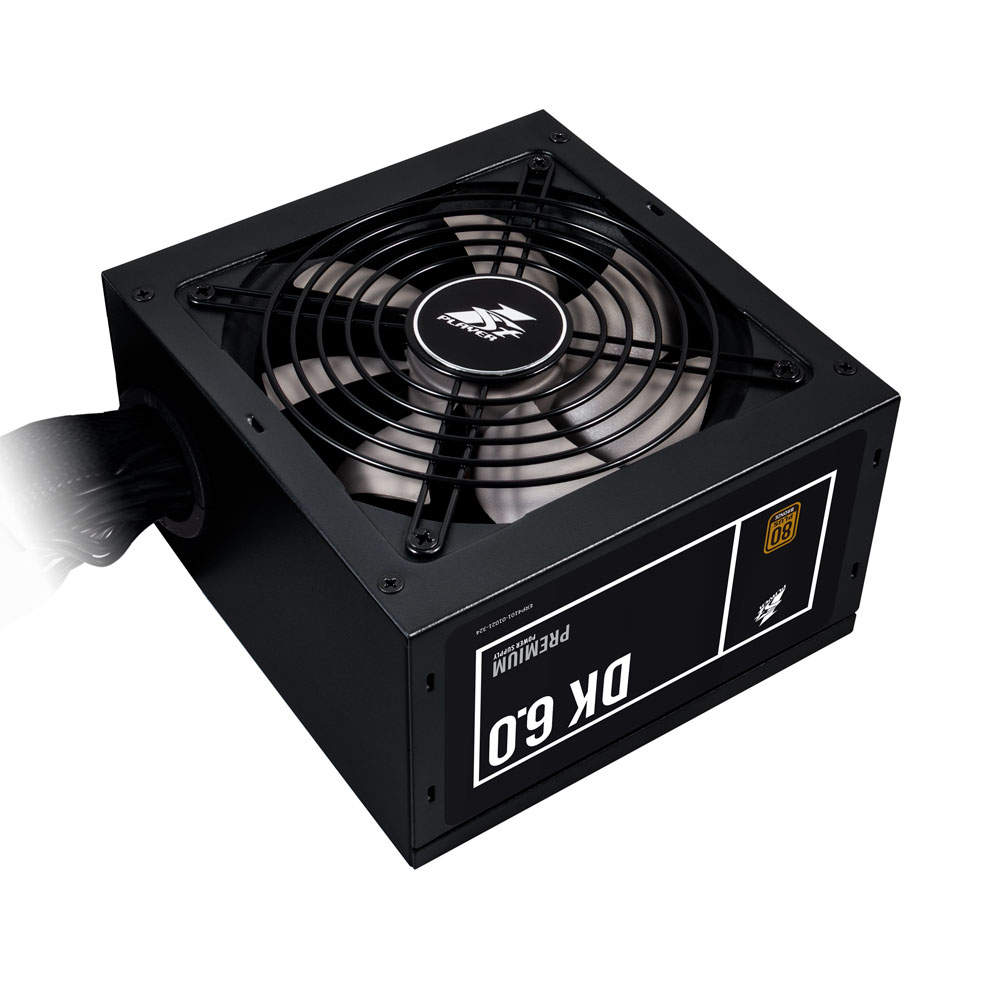

DK PREMIUM 5.0 / 6.0

1STPLAYER POWER SUPPLY

  • 500 W power output, ideal for builds that are less power-demanding

  • 80 PLUS bronze certified, 87% effeciency at typical load

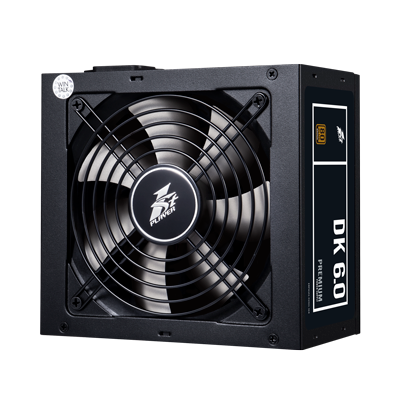

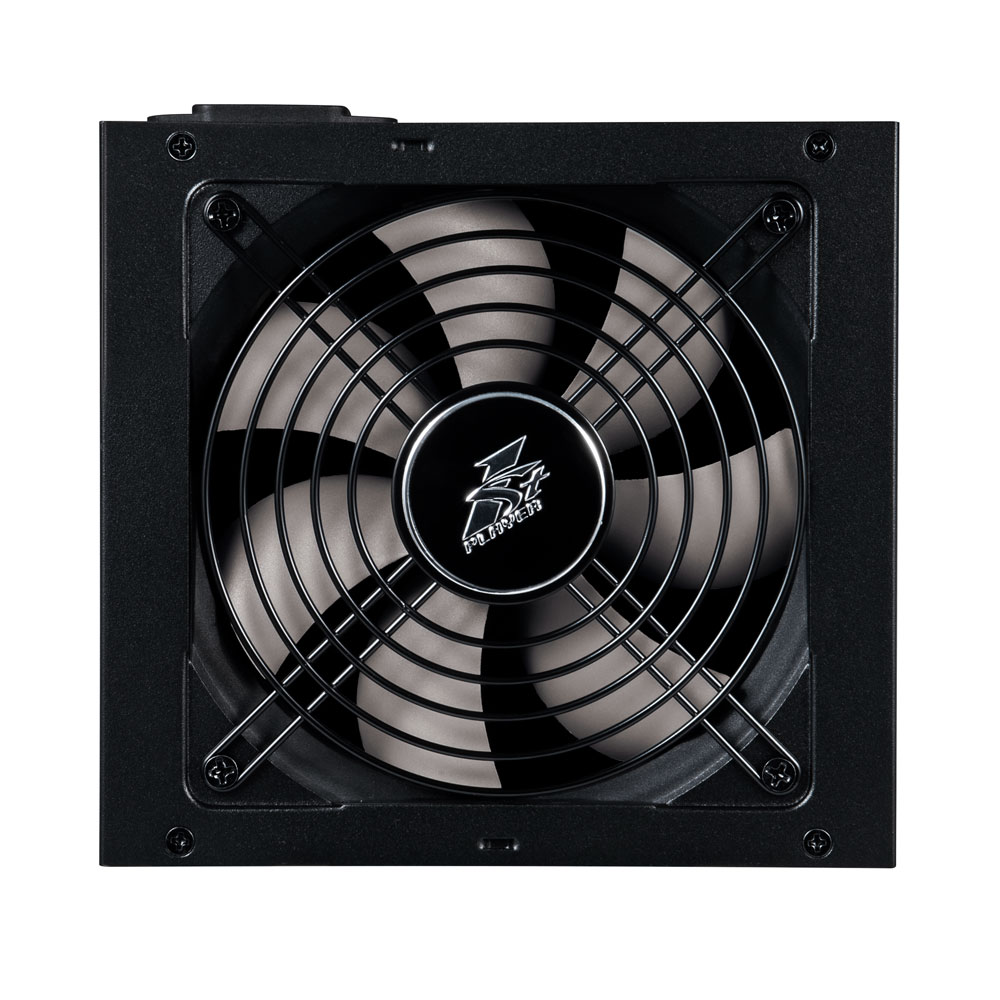

  • Silent 120mm hydraulic bearing fan ensures quiet operation and effective cooling

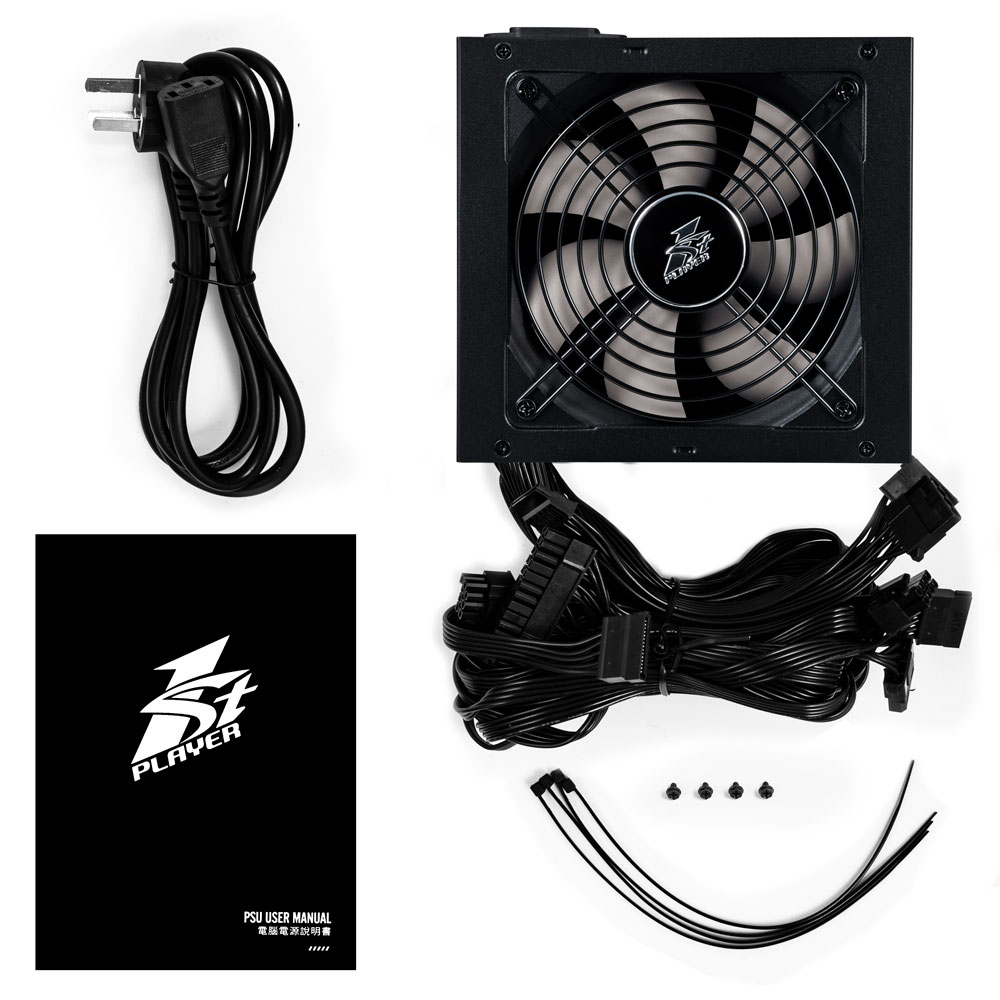

  • Flat black cables simplify cable management and improve airflow

  • Comprehensive protection: UVP, OVP, OPP, SCP and lightning protection



500W

  • +12V Load Up
    To 90% Of Total Power

  • Active PFC

  • Standby Power
    Low As 0.5W

  • 12CM
    Hydraulic Beaning Fan

  • Japanese
    Main Capacitors

  • 100V-240V
    Full Range AC Input

(Data Provided by 1STPLAYER,For Reference Only)


(Data Provided by 1STPLAYER,For Reference Only)

DK series is the latest PSU series launched by 1STPLAYER.All the DK models are armed with 80 PLUS bronze certificate, Japanese TK main capacitors,single +12V rail design and 1ST optimized rail structure, so as to realize a more powerful performance.

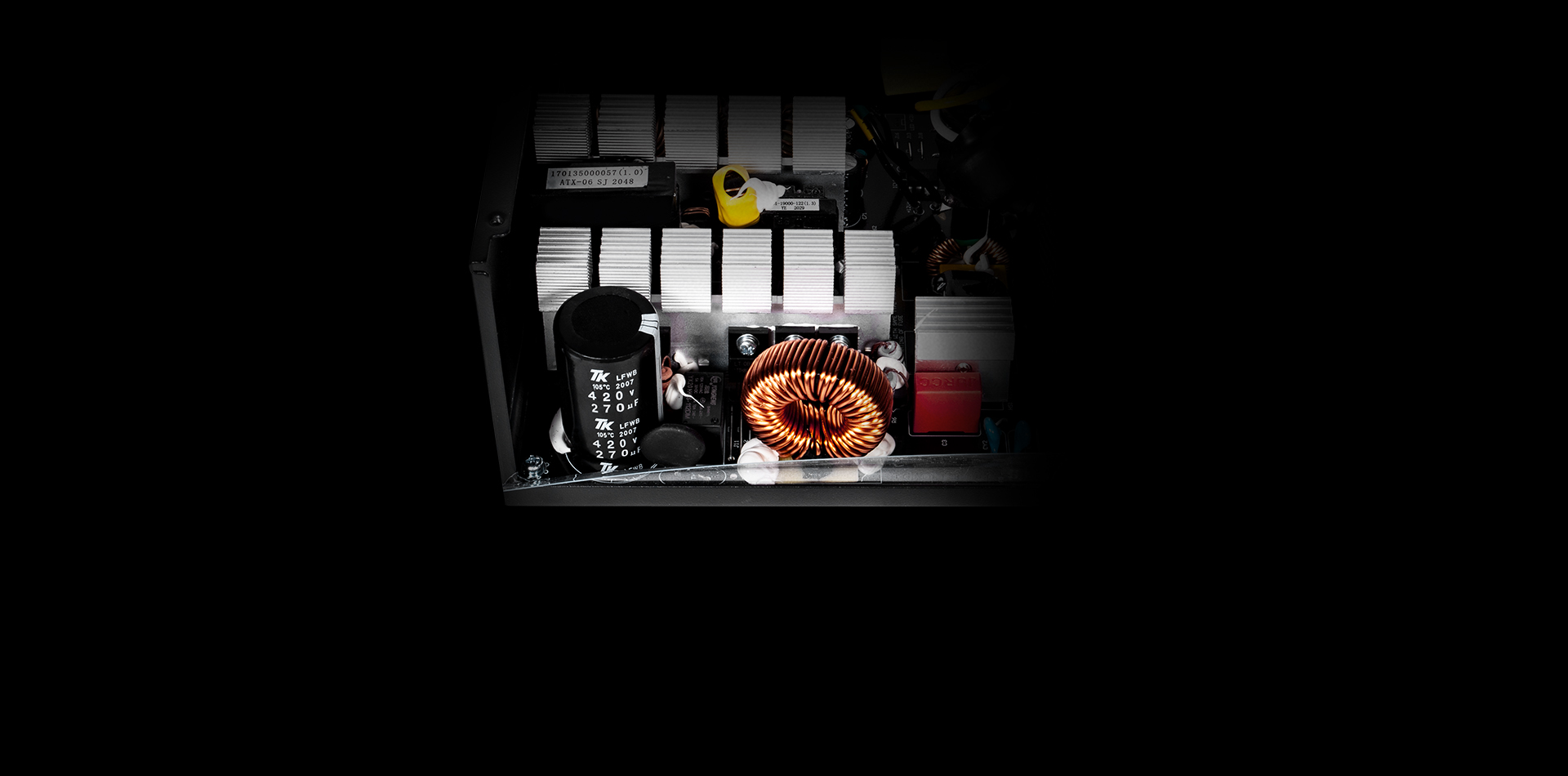

Japanese TK Main Capacitor

With the main capacitor from Toshin Kogyo Co.,Ltd, a company focus on the production of electrolytic capacitors and film capacitors, DK 5.0 delivers a reliable life expectancy and quality assurance.

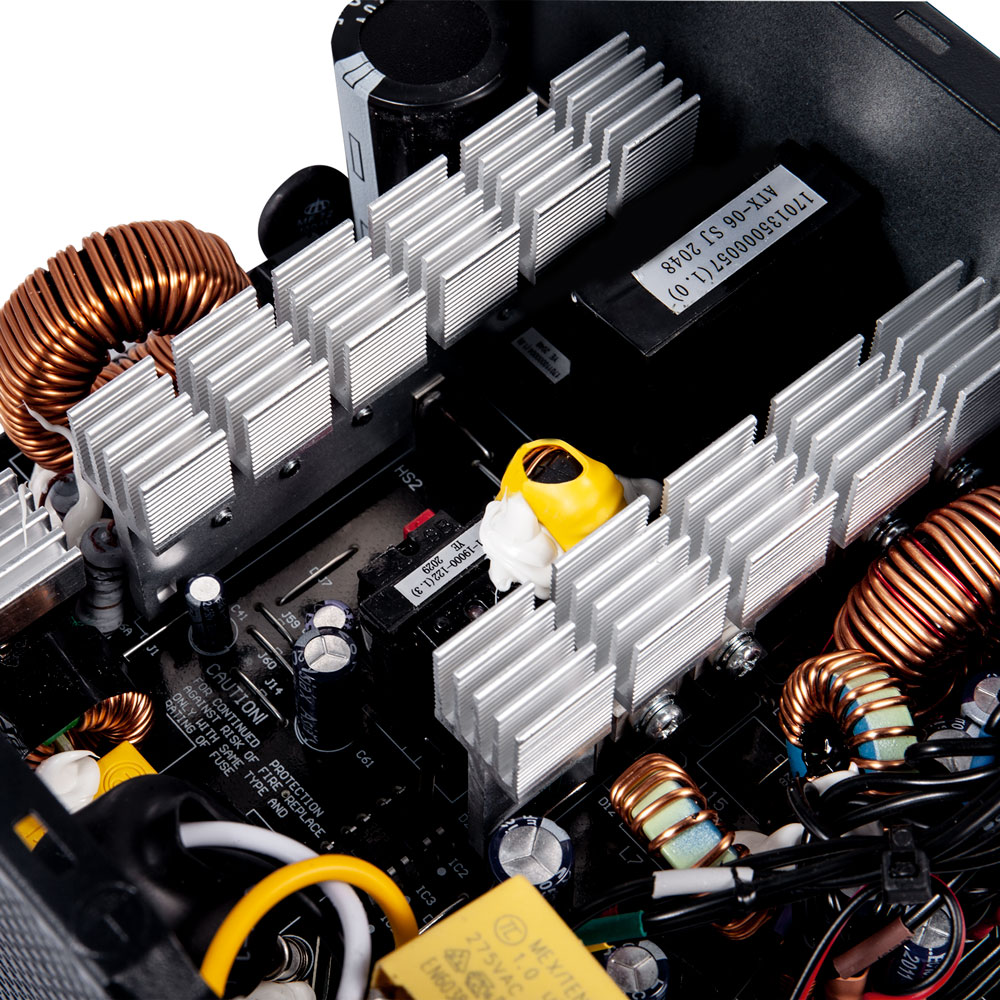

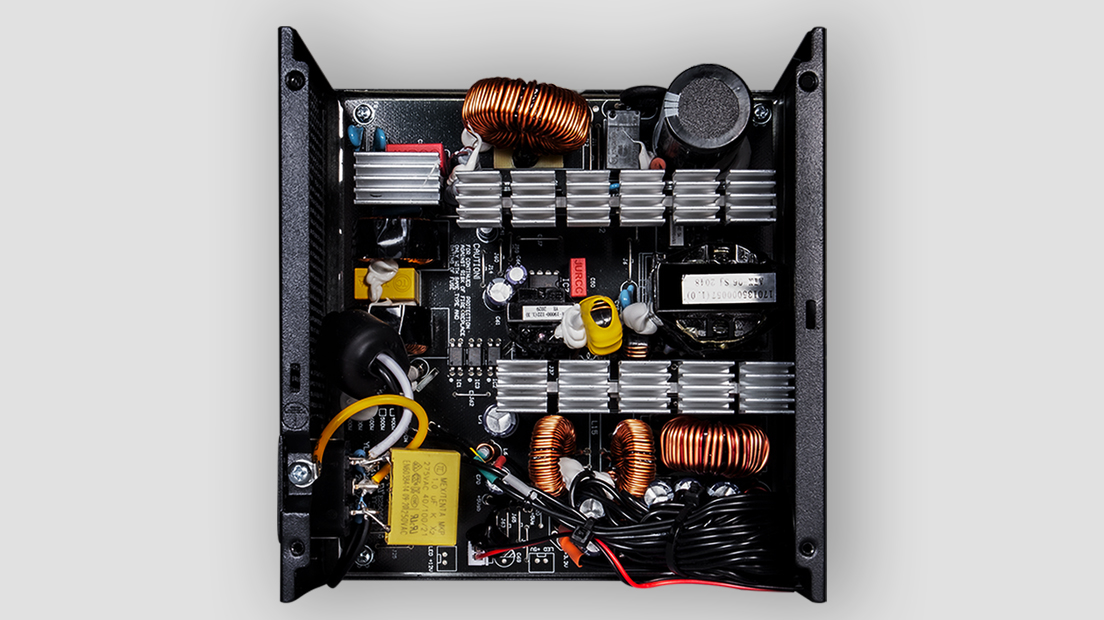

Double Forward + Active PFC

CPU decides the computing power in smartphone, PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK 5.0 ensures a supreme performance.

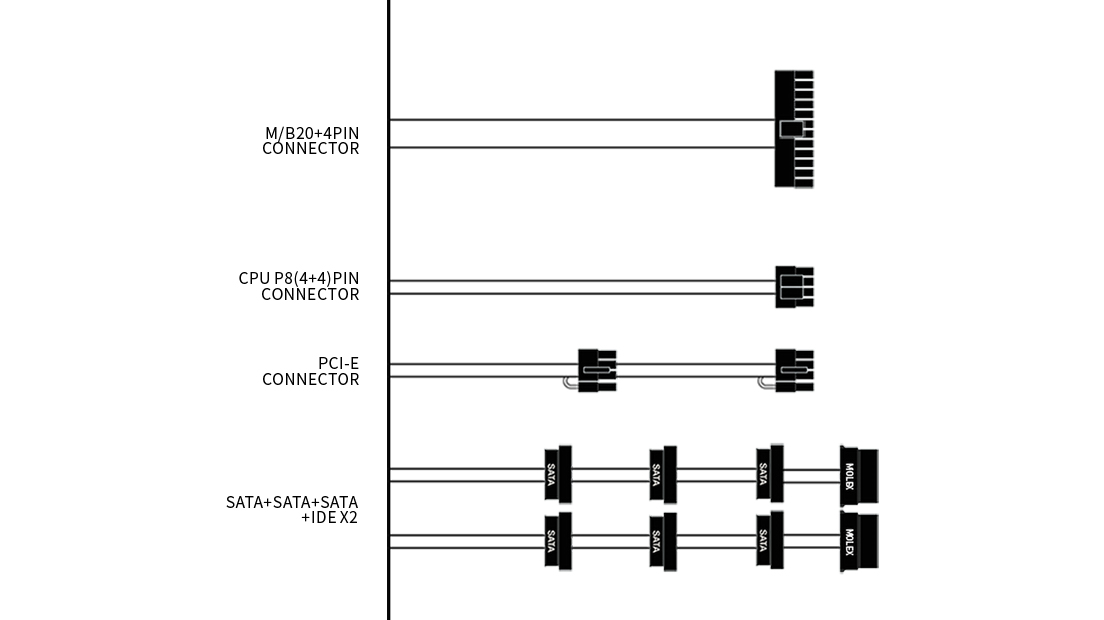

Cable

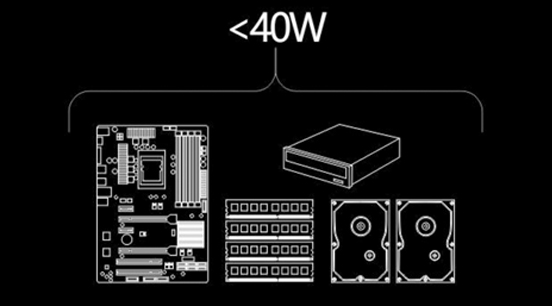

5V & 3Vsupply Power To

HDD/ ODD/ Floppy driver/Motherboard/Memory

+12V Supply Power To CPU, GPU, Cooling Fans

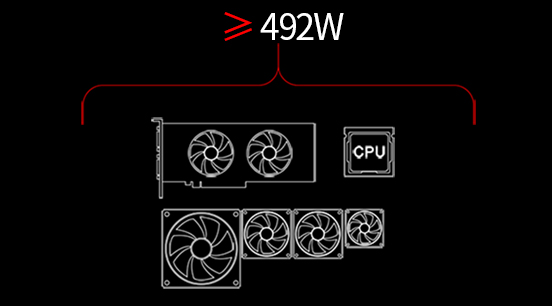

Mainstream gaming PC overall power under full load

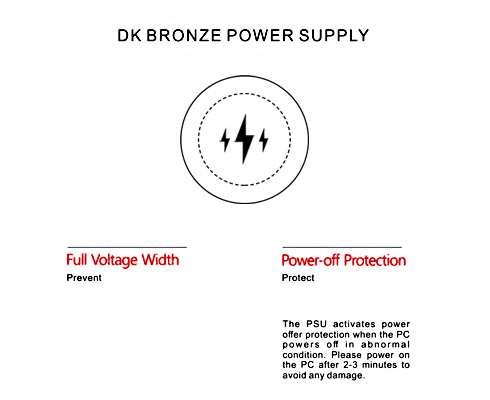

  • Full Range Voltage Power Off Protection

    Worry free of unstable voltage.

    With the full range voltage and SCP function, when the power is cut off under abnormal condition, DK 5.0 will activate the power fff protection function to protect the PSU and motherboard effectively.

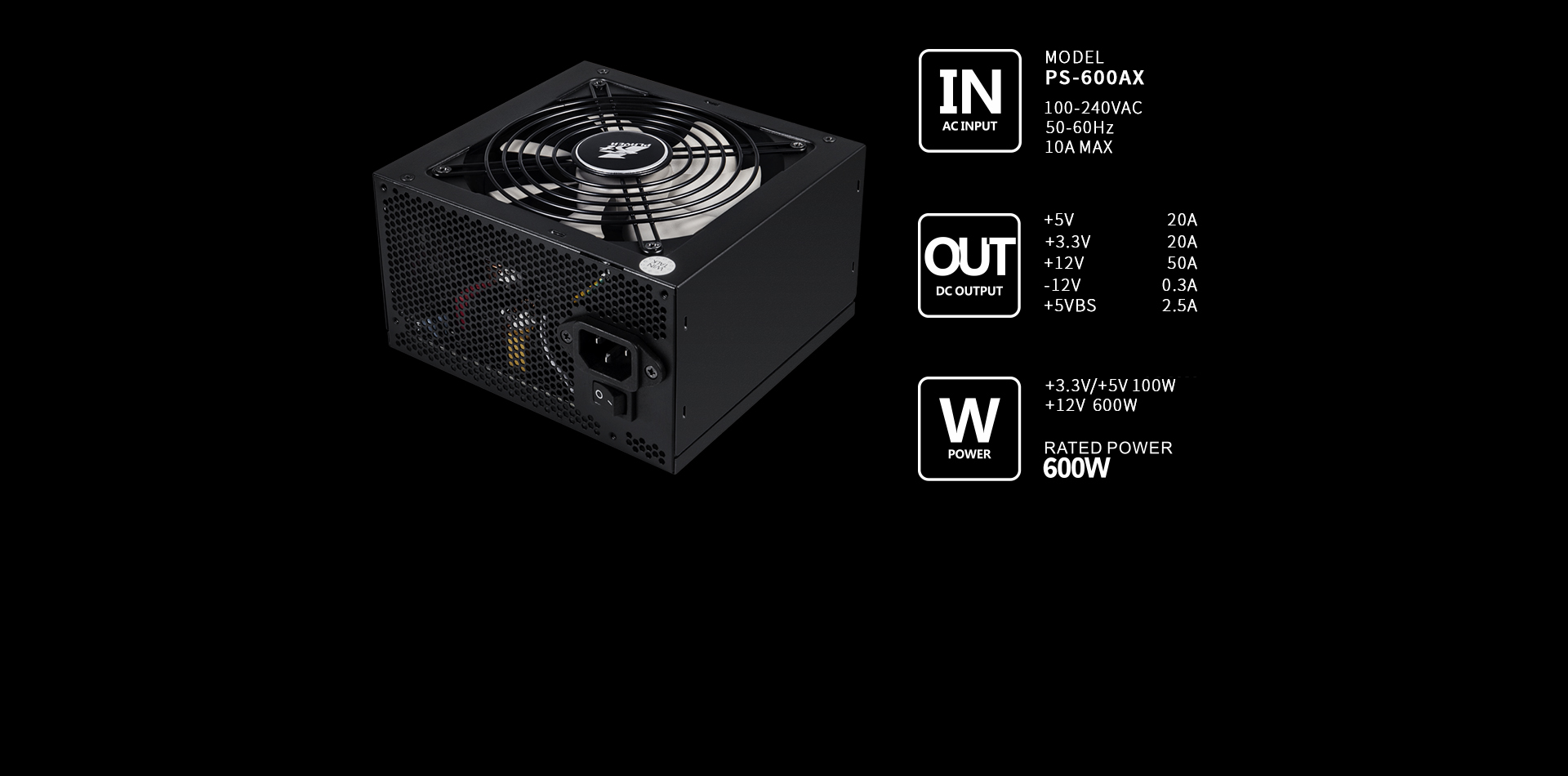

MODEL
PS-500AX / PS-600AX
DIMENSIONS(L x W x H)
140 x 150 x 86 mm

MODULAR

Non-Modular

CERTIFICATIONS

80 PLUS Bronze
WARRANTY
3 years
INPUT VOLTAGE
100 - 240 VAC
INPUT CURRENT
10 A MAX
EFFICIENCY
87% @ Typical Load
OUTPUT CAPACITY
500 / 600 W
INPUT FREQUENCY
50 - 60Hz
PFC
Active PFC
NET WEIGHT
2.2 kg
GROSS WEIGHT
2.6 kg
FAN SIZE
120 mm hydraulic bearing
PROTECTIONS
UVP, OVP, OPP, SCP, lightning protection
OPERATION TEMPERATURE
0 ~ 40℃
MTBF
100,000 hours
CIRCUIT STRUCTURE
Double forward
REGULATORY
CE / FCC / C-Tick / ROHS / CCC / cTUVus / IEC / EAC
