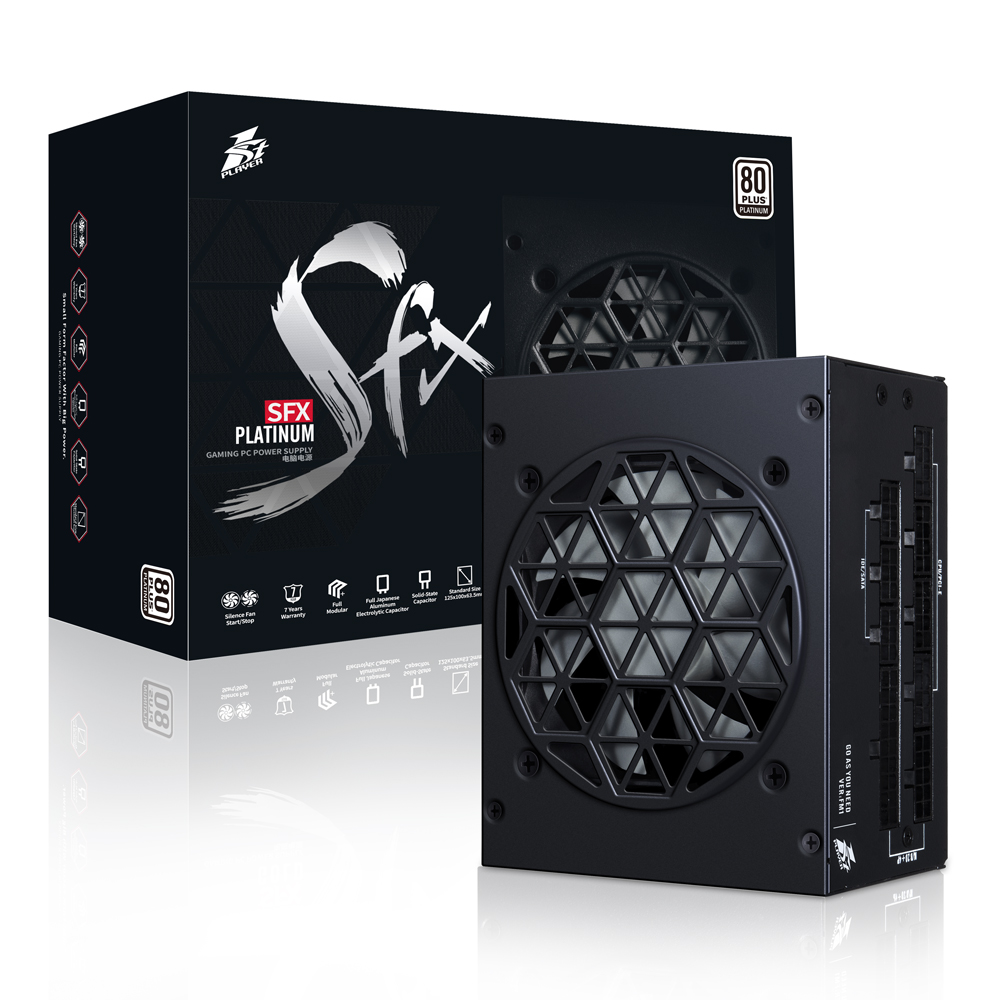

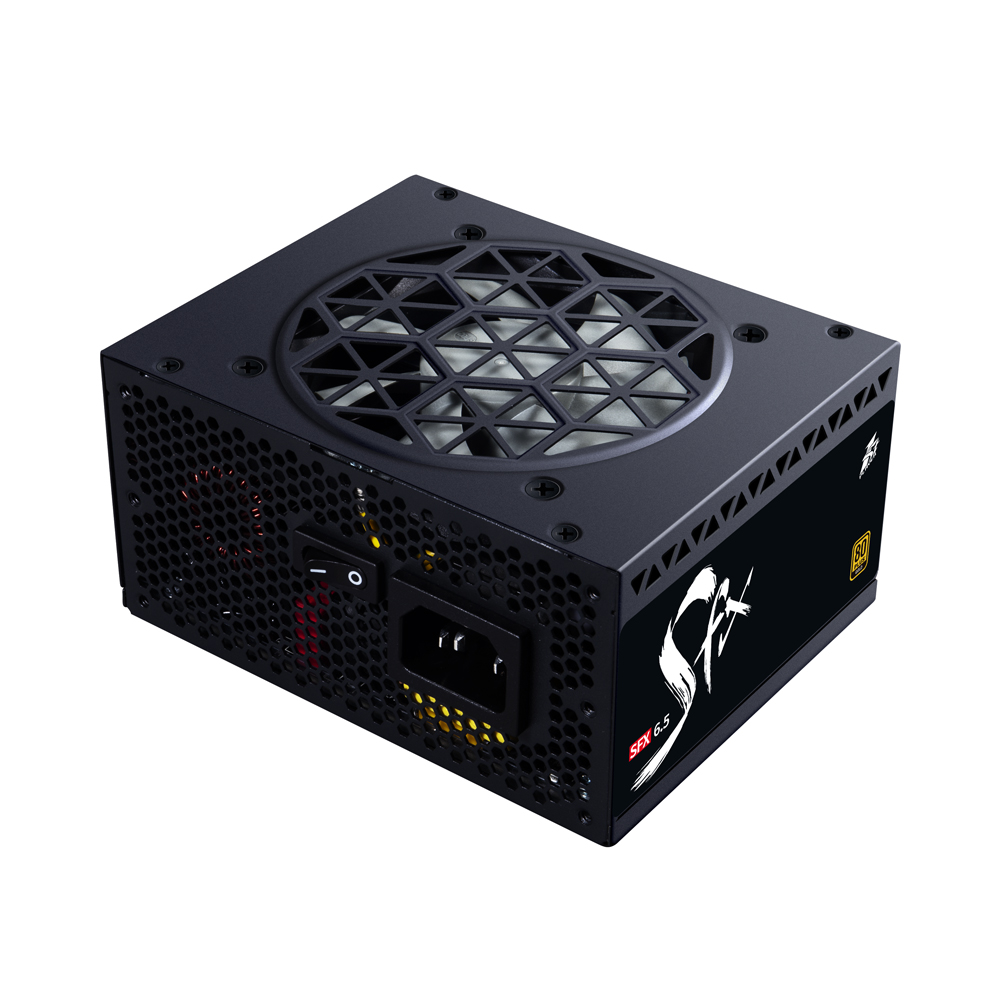

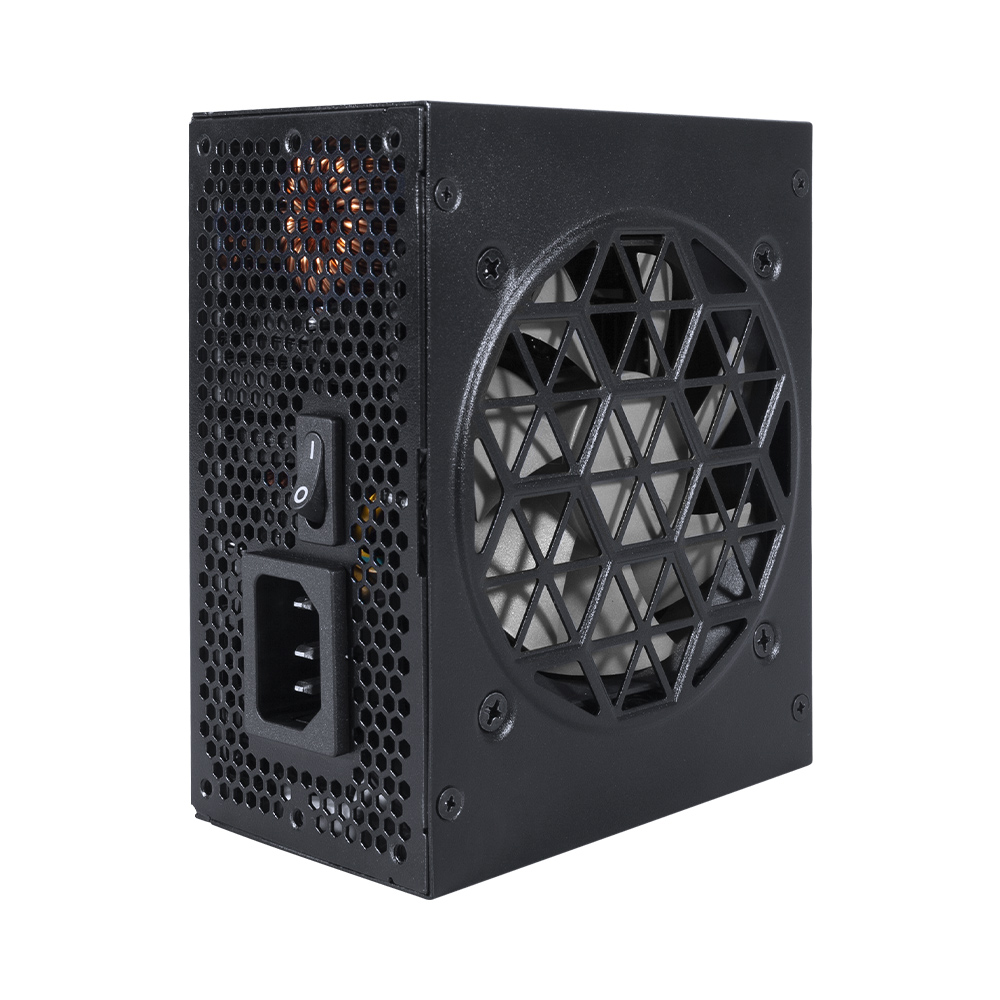

SFX 6.5 / 7.5

SFX 650W Gold Full Modular / 750W Platinum Full Modular

With the Platinum architecture developed by 1STPLAYER Labs, the 80PLUS Gold certification ensures that the mass-produced models are strictly consistent with the certified models.  Conversion efficiency of up to 92.3% at typical load (50%) under full voltage 115V (more stringent than 230V) test environment.


650W GOLD

· Cooling Fan Start/Stop

· Full Modular Free Cable Technology

· All Japanese capacitors




FULL SLAM WARRIOR from the six-dimensional radar chart, through the power, speed, skills, serve, defense, experience six dimensions to analyze the strength of the player, the pinnacle of the player edge full capacity can support the "hexagon", known as the "FULL SLAM WARRIOR".  And the power supply world also has such a Strong role, the newly listed chief player SFX Gold full-mode power supply, with the full output of six bezels, known as the SFX power supply world FULL SLAM WARRIOR.


  • 80PLUS Gold Certification

  • Fan Start/Stop Function

  • All Japanese Capacitors

  • 1ST Industrial Design

  • Full Modular

  • 7-year Warranty

Test Power Supply Excellence

The six-dimensional radar chart of the power supply world.

Efficiency

80PLUS Gold


With the Platinum architecture developed by 1STPLAYER Labs, the 80PLUS Gold certification ensures that the mass-produced models are strictly consistent with the certified models. Conversion efficiency of up to 92.3% at typical load (50%) under full voltage 115V (more stringent than 230V) test environment.


Power

Reaching the SFX power Ceiling

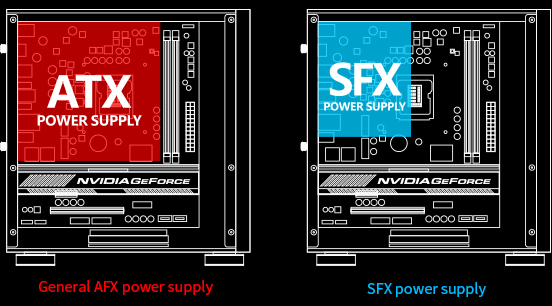

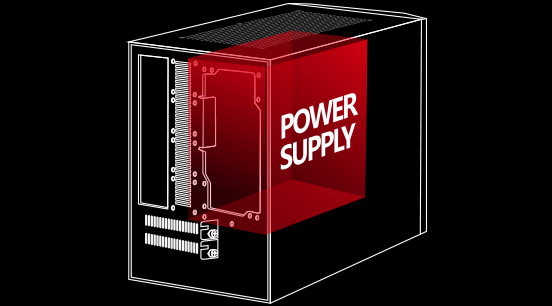

In the standard SFX (125*63.5*100mm) volume, the power supply does not have much space for stacking components. To achieve the high-power goal requires high-quality components and intelligent circuit structure, the 1STPLAYER uses the Platinum power supply using LLC + full-bridge rectifier circuit to achieve a high-power output of 650W/750W from the SFX power supply in one fell swoop.

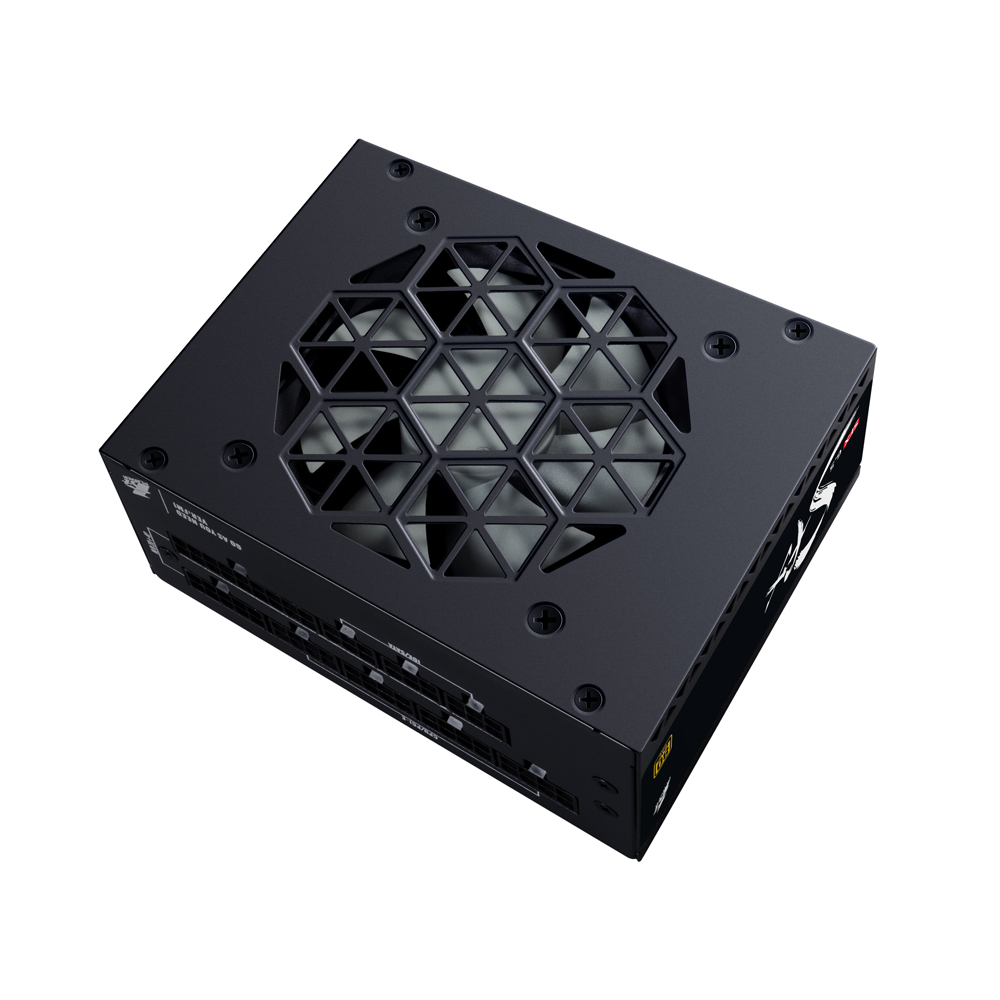

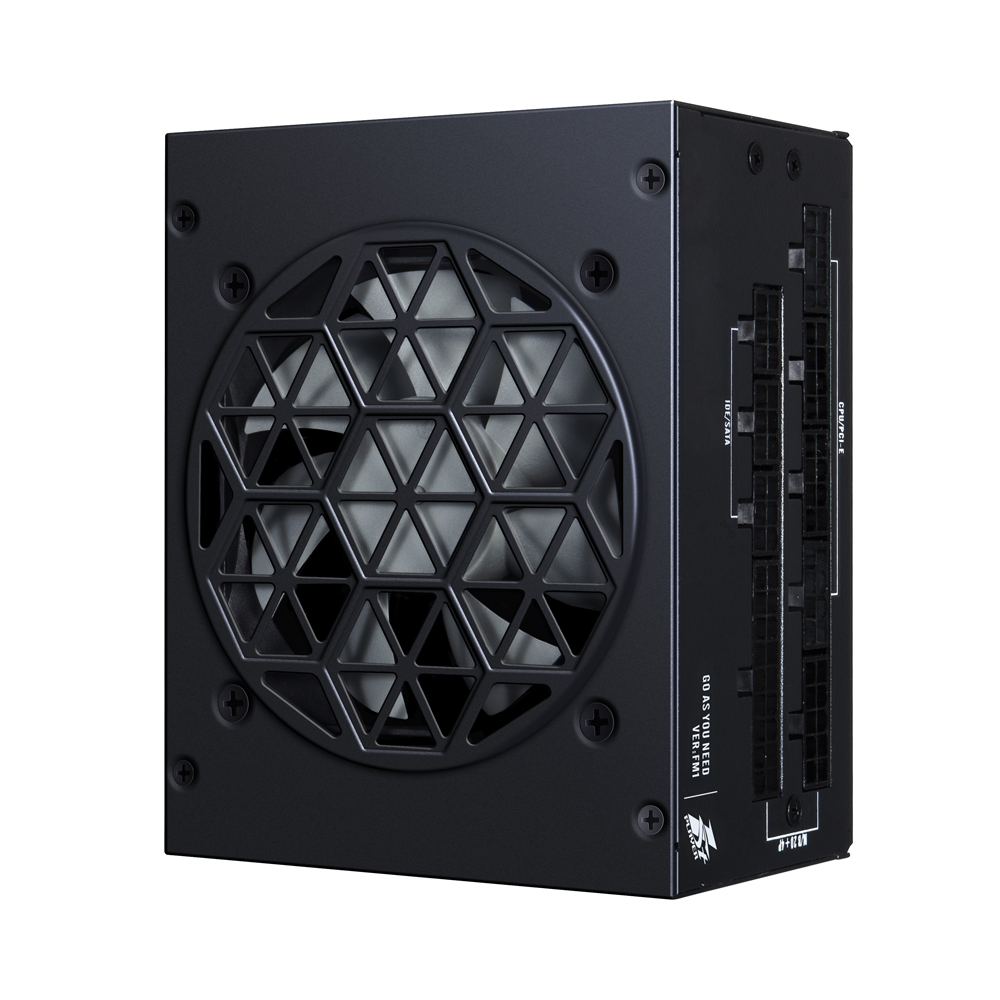

Appearance

1ST industrial design

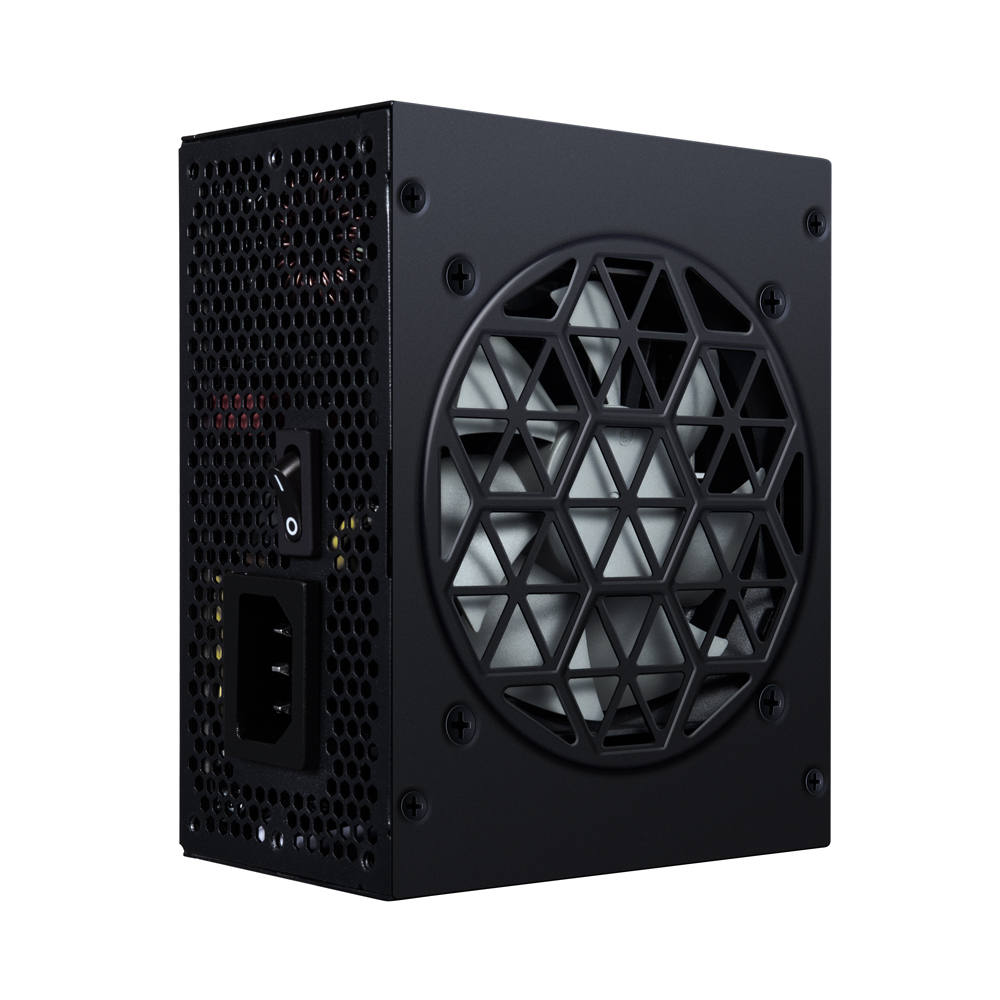

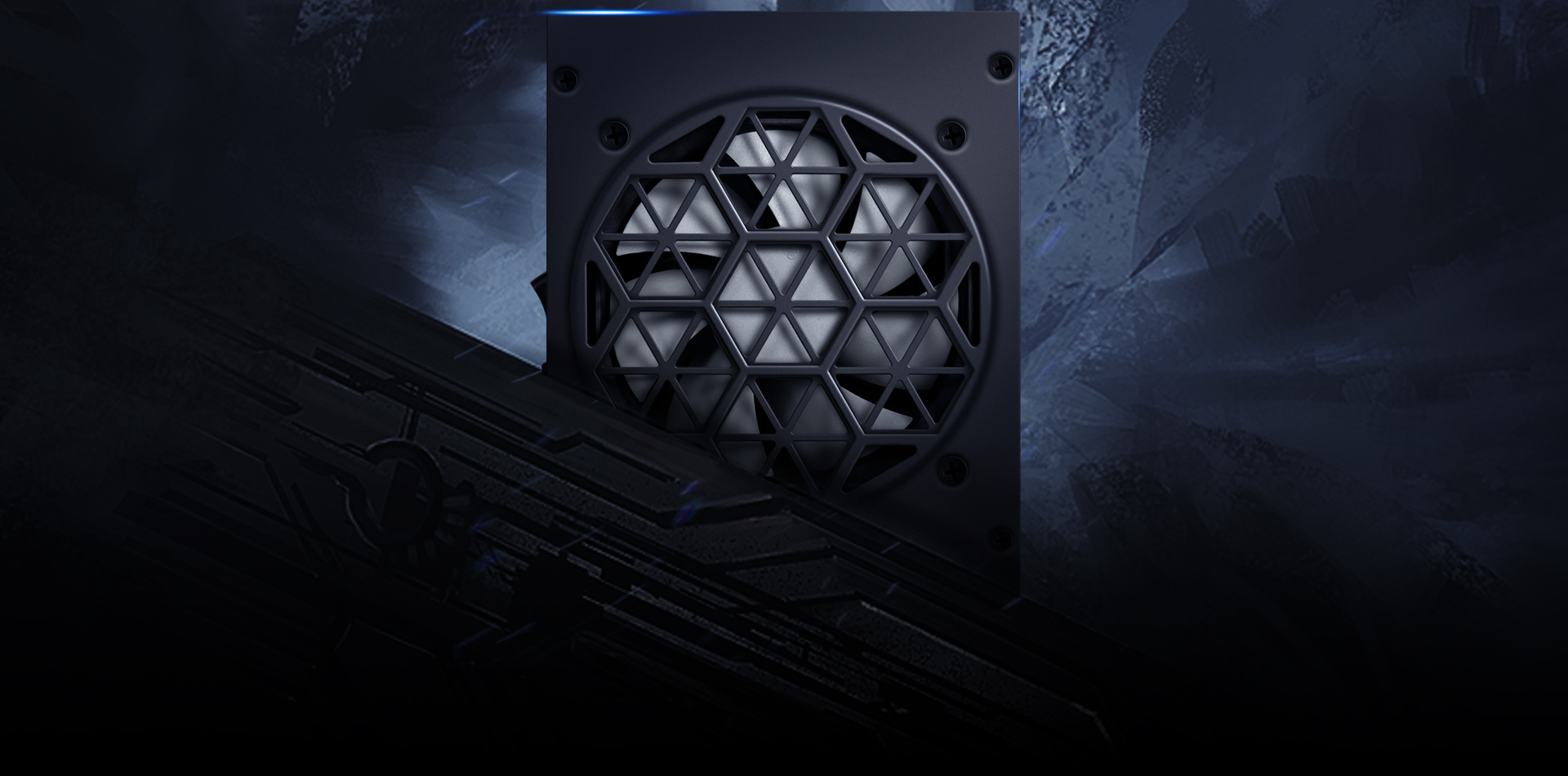

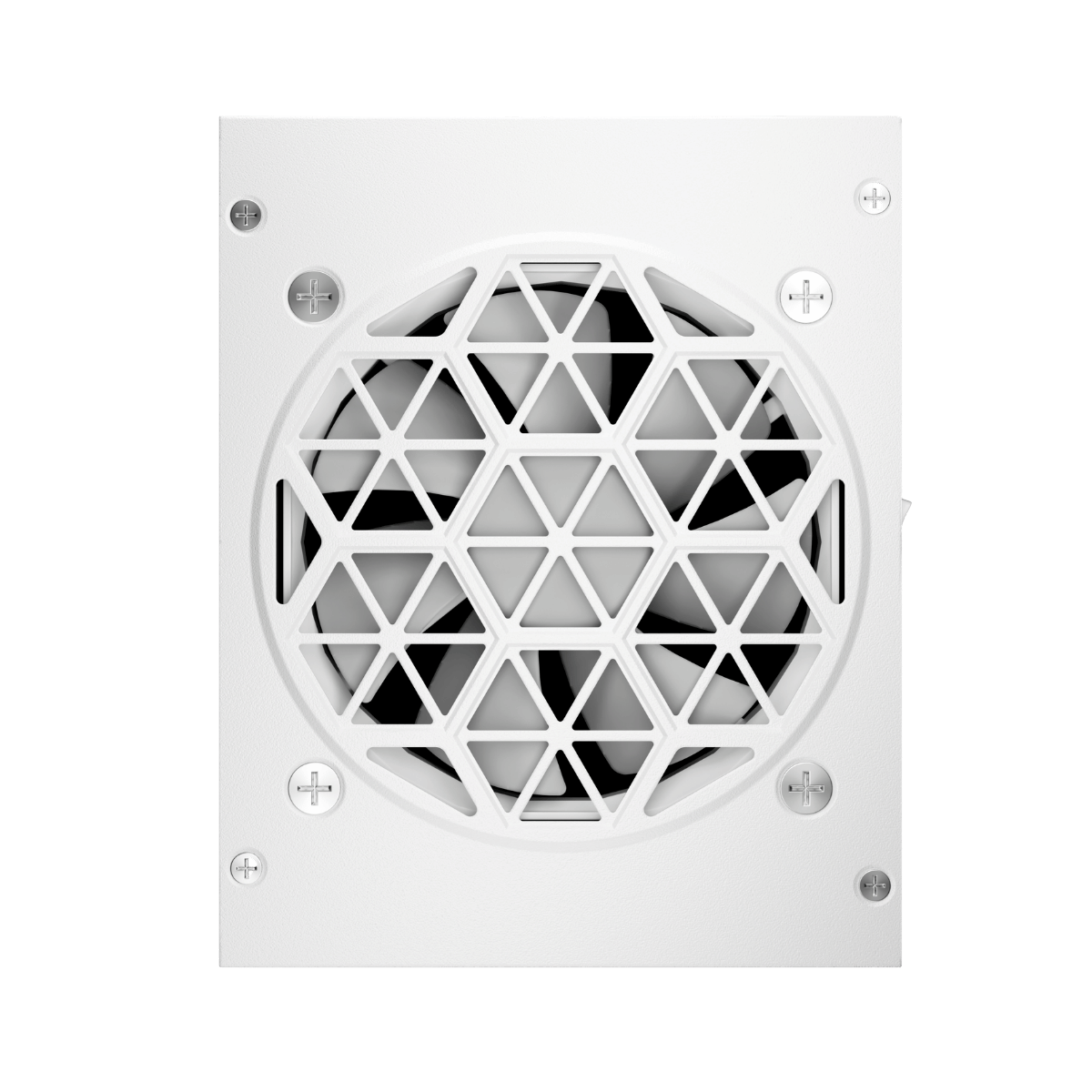

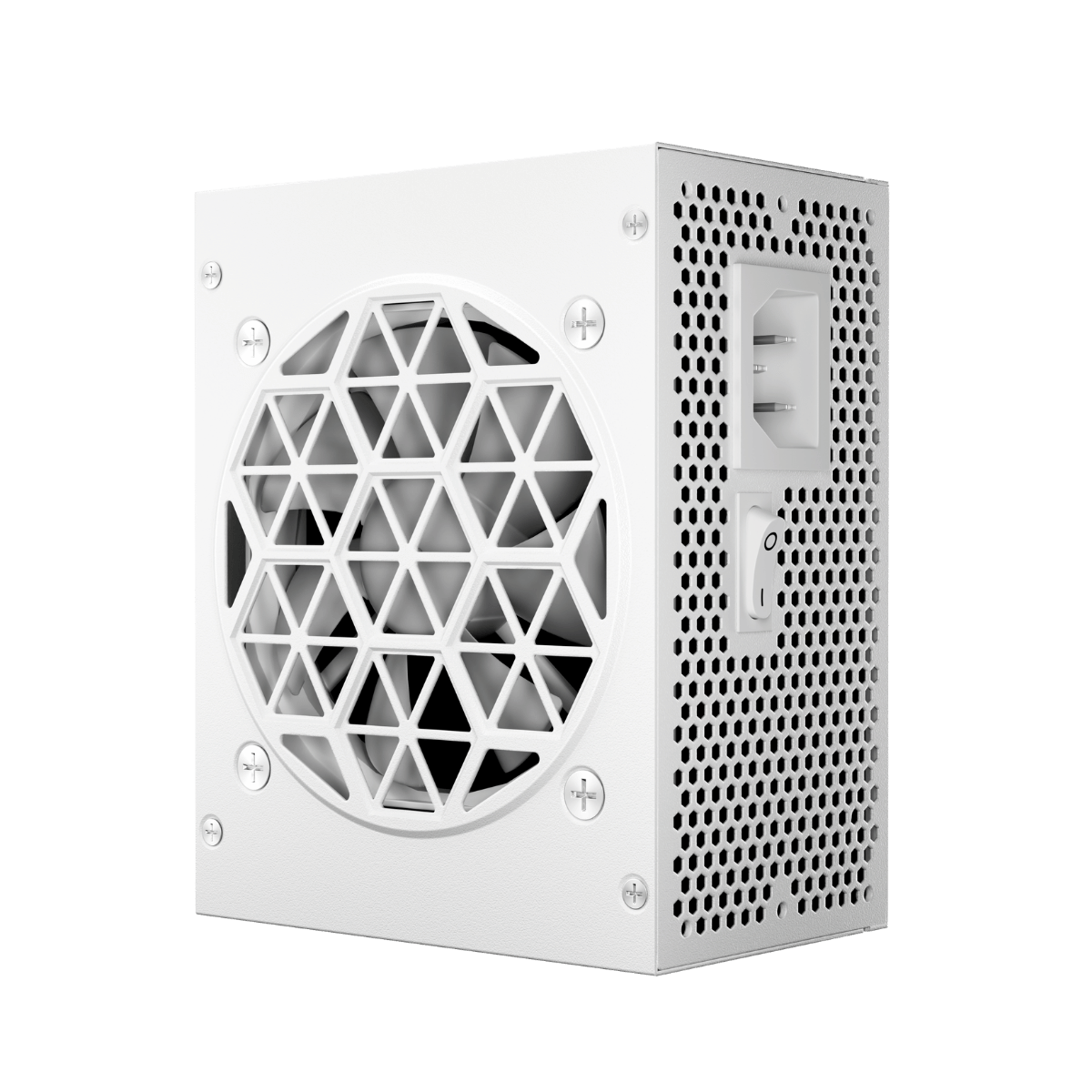

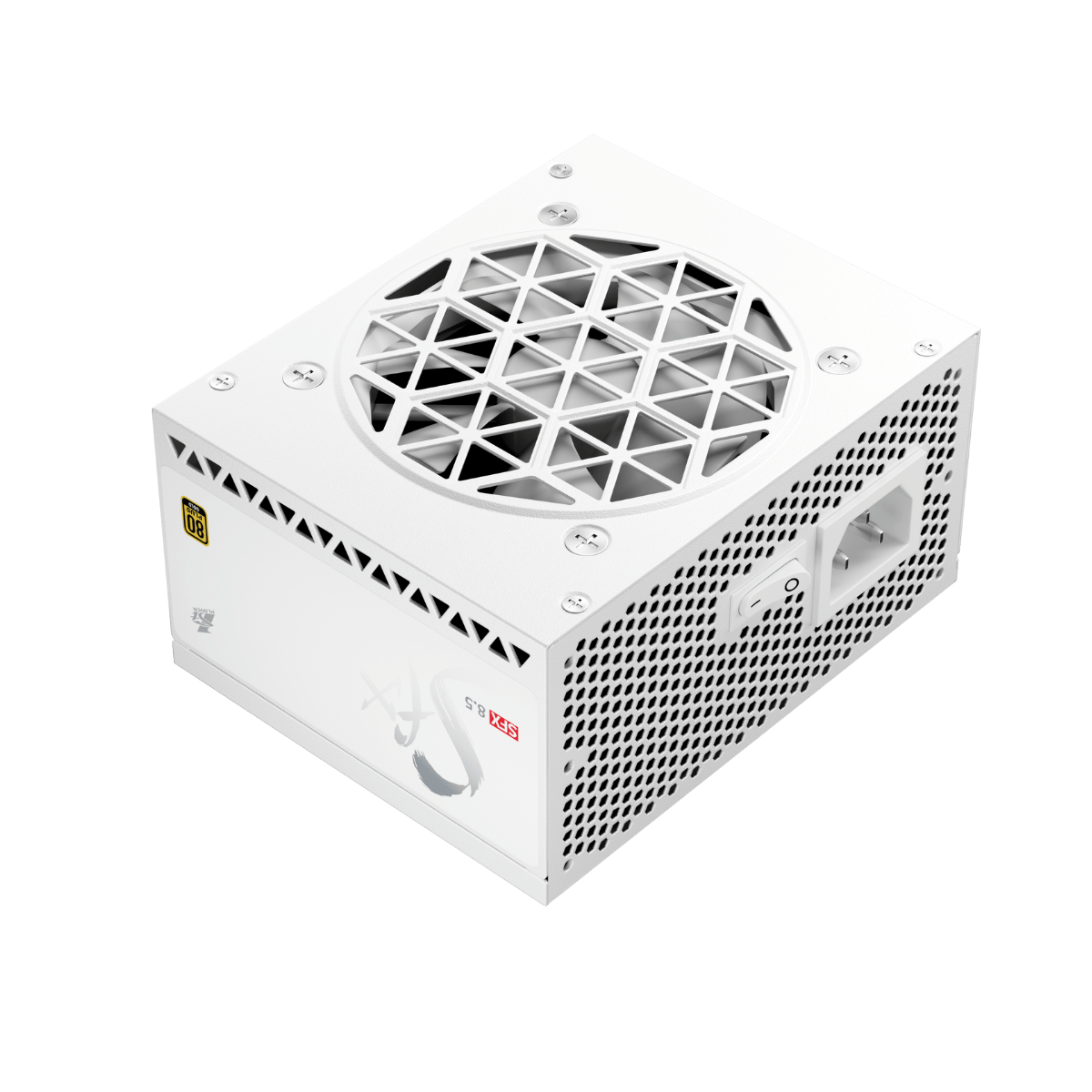

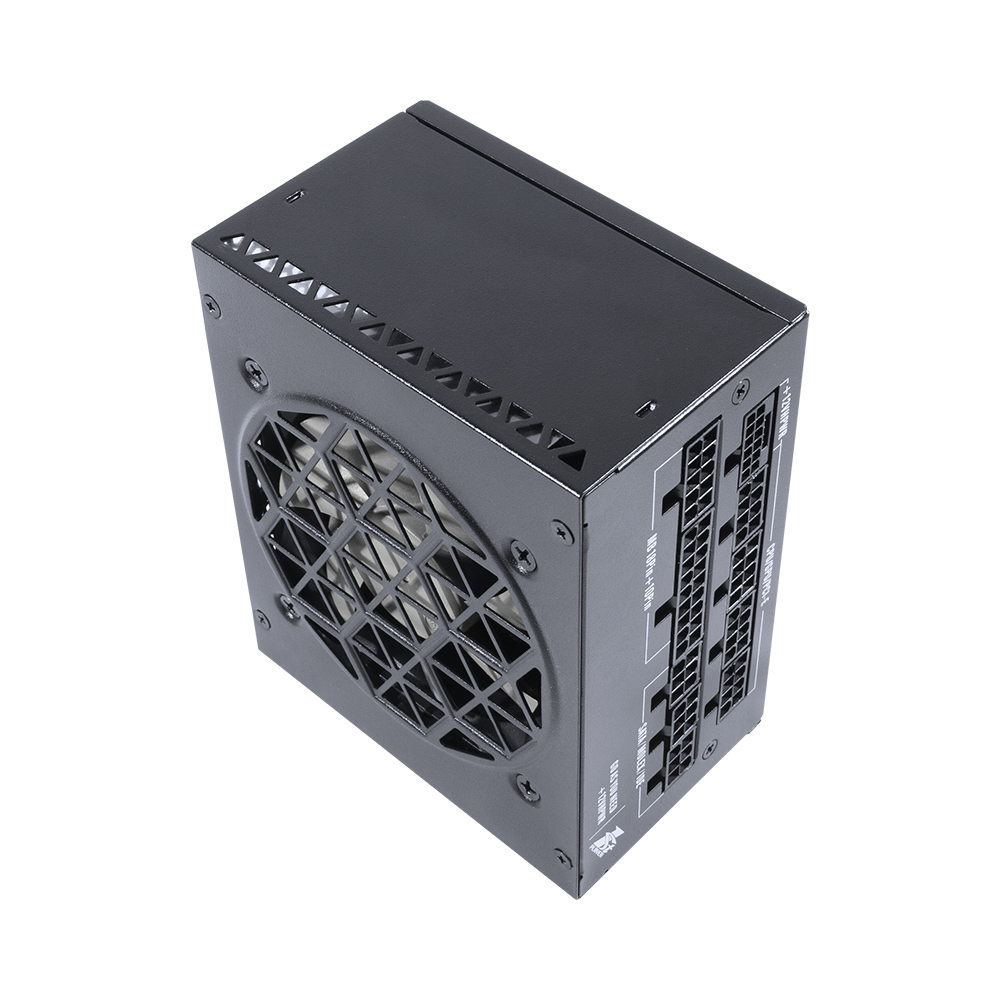

The large hexagonal heat sink on the front of the SFX power supply is responsible for the main heat dissipation, while the small triangular air vents on the side assist in the heat dissipation, with both sides working together to achieve good heat dissipation.

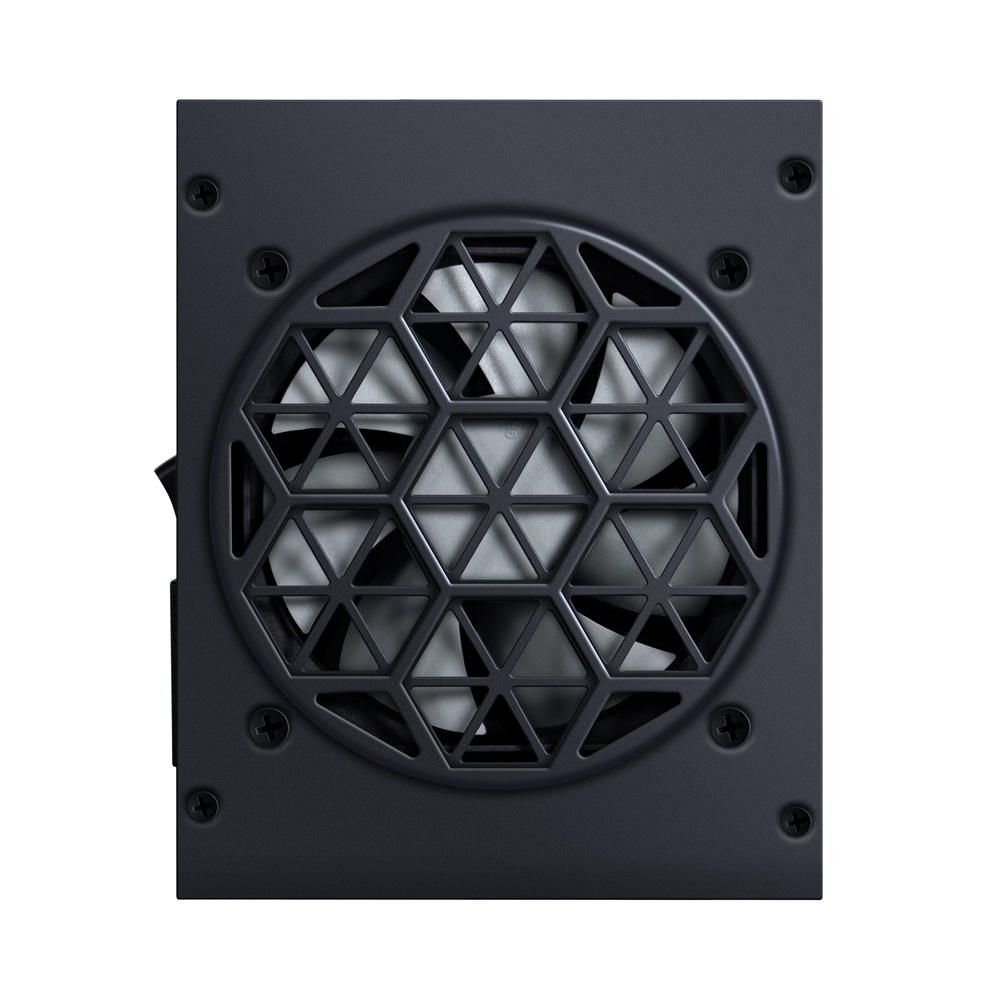

The dark green fan blade with gray metallic bezel is designed by 1ST to achieve a bold combination of performance and aesthetics, forming a "compact and sturdy" industrial style impression.


Noise

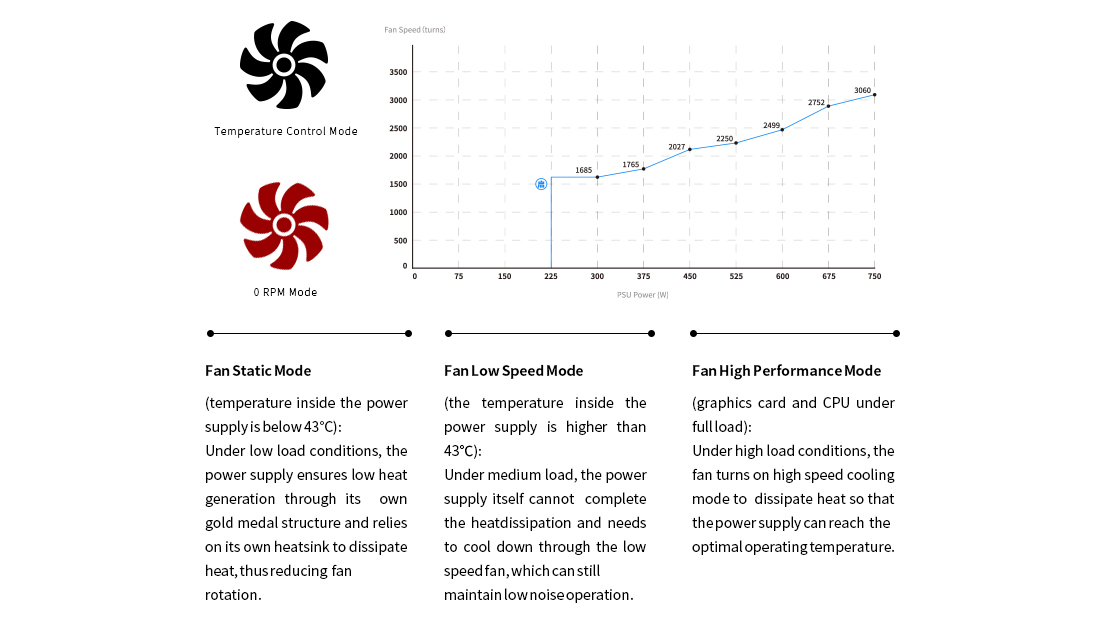

Fan start/stop function


The fan has three cooling modes to achieve the ideal balance of performance, silence and cooling of the power supply.


Materials

All Japanese capacitors

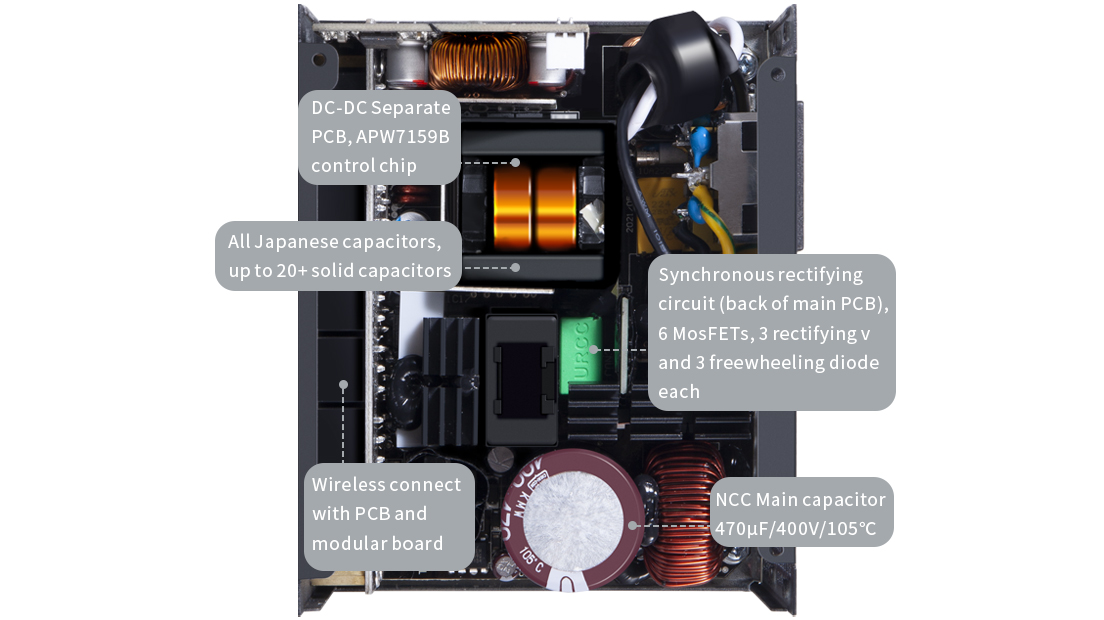

The 1STPLAYER SFX power supply uses  Rubycon, NCC, Nichicon, and other Japanese electrolytic capacitors, high-capacity main capacitors and solid-state capacitors. At the same time, in order to ensure the best cooling performance, the SFX power supply also uses YUE 8020 high performance cooling fans with a maximum speed of 3300 RPM, high quality MOSFOT tubes and high purity aluminum heat sinks and other cooling components.

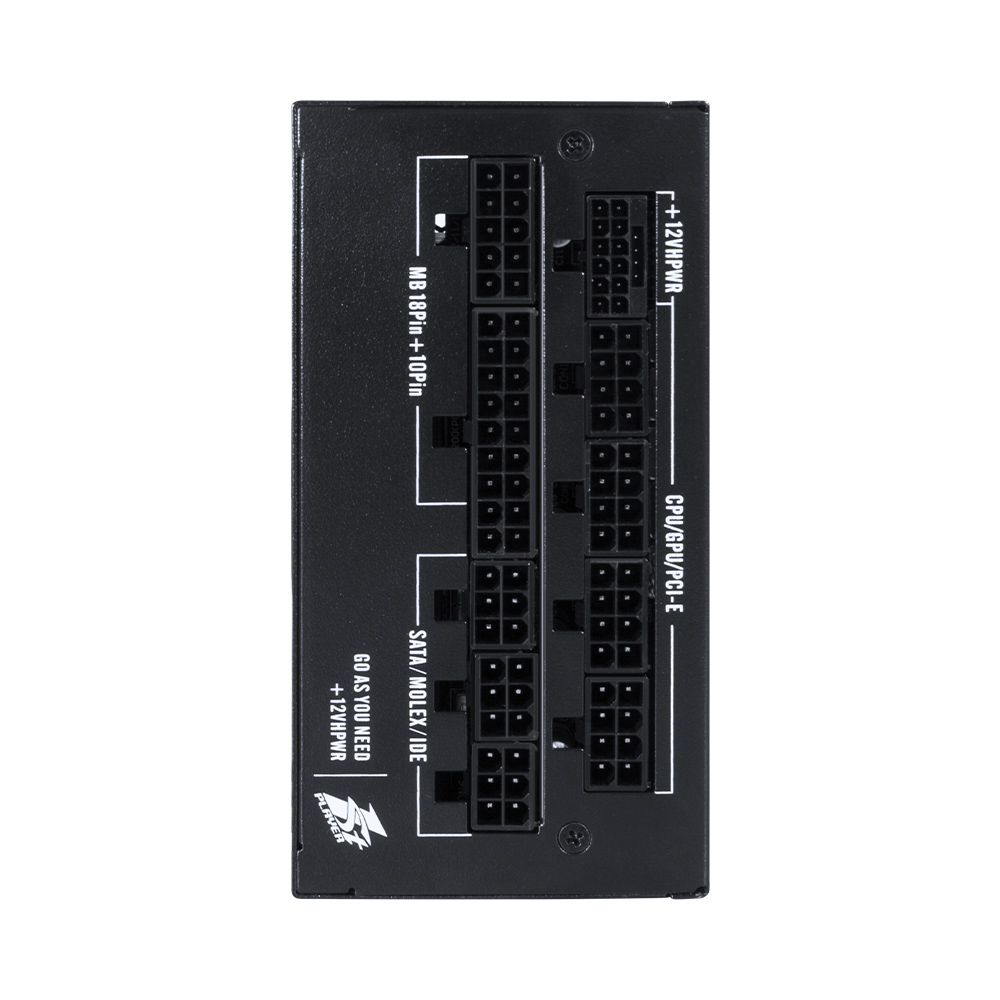

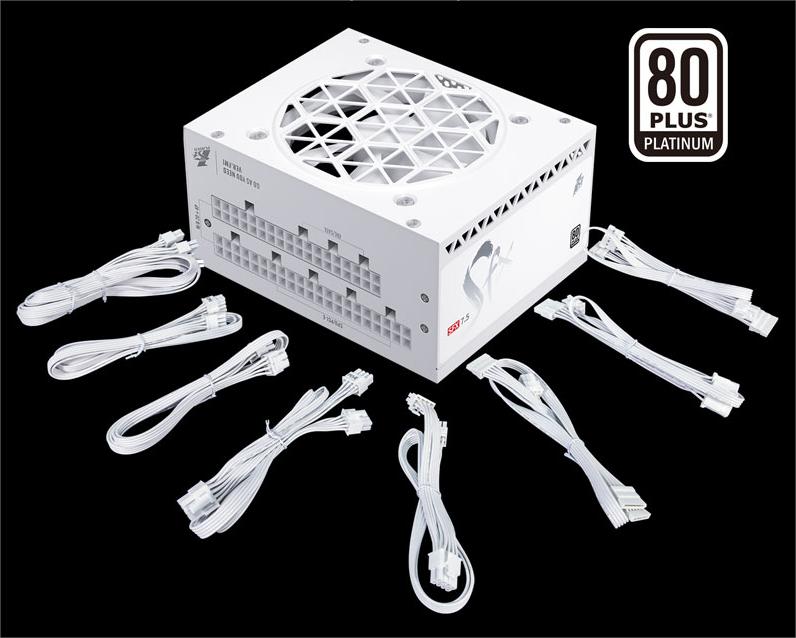

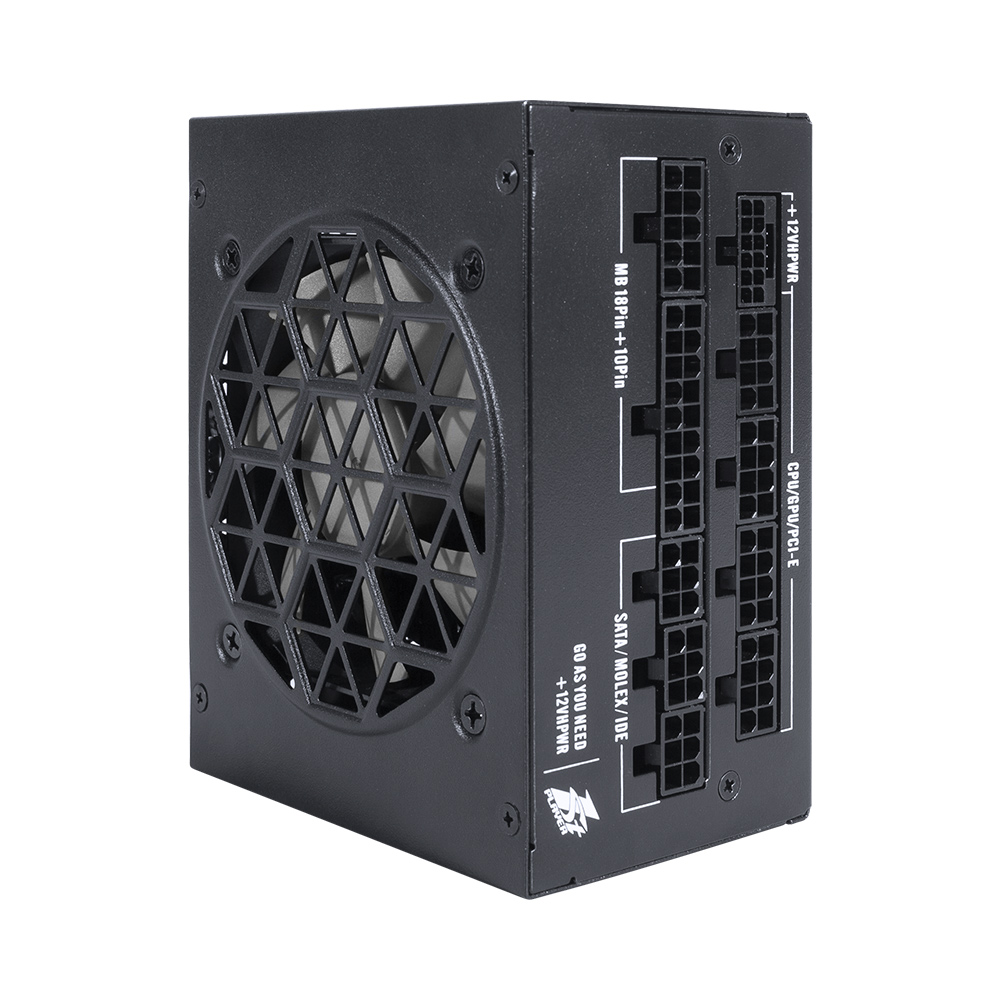

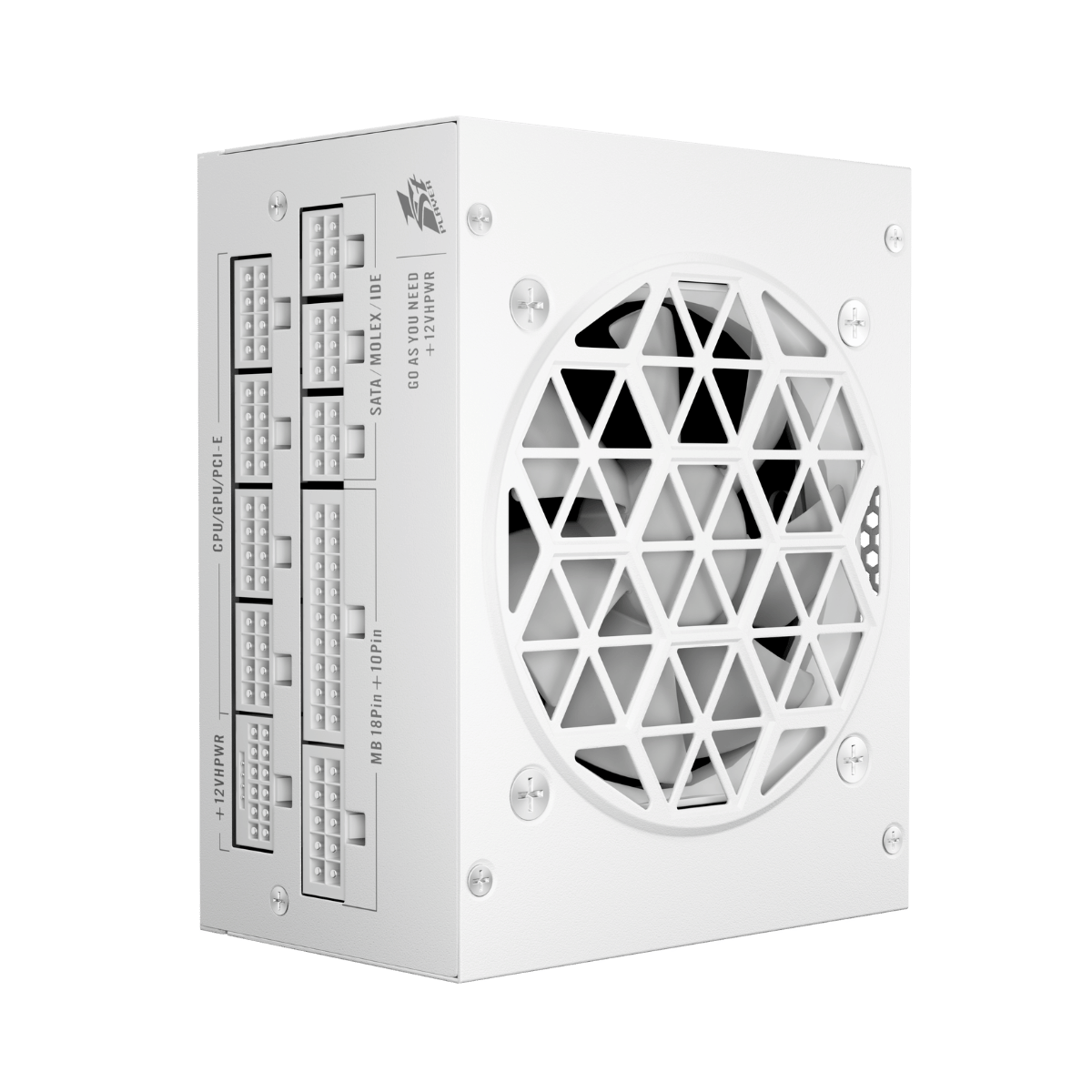

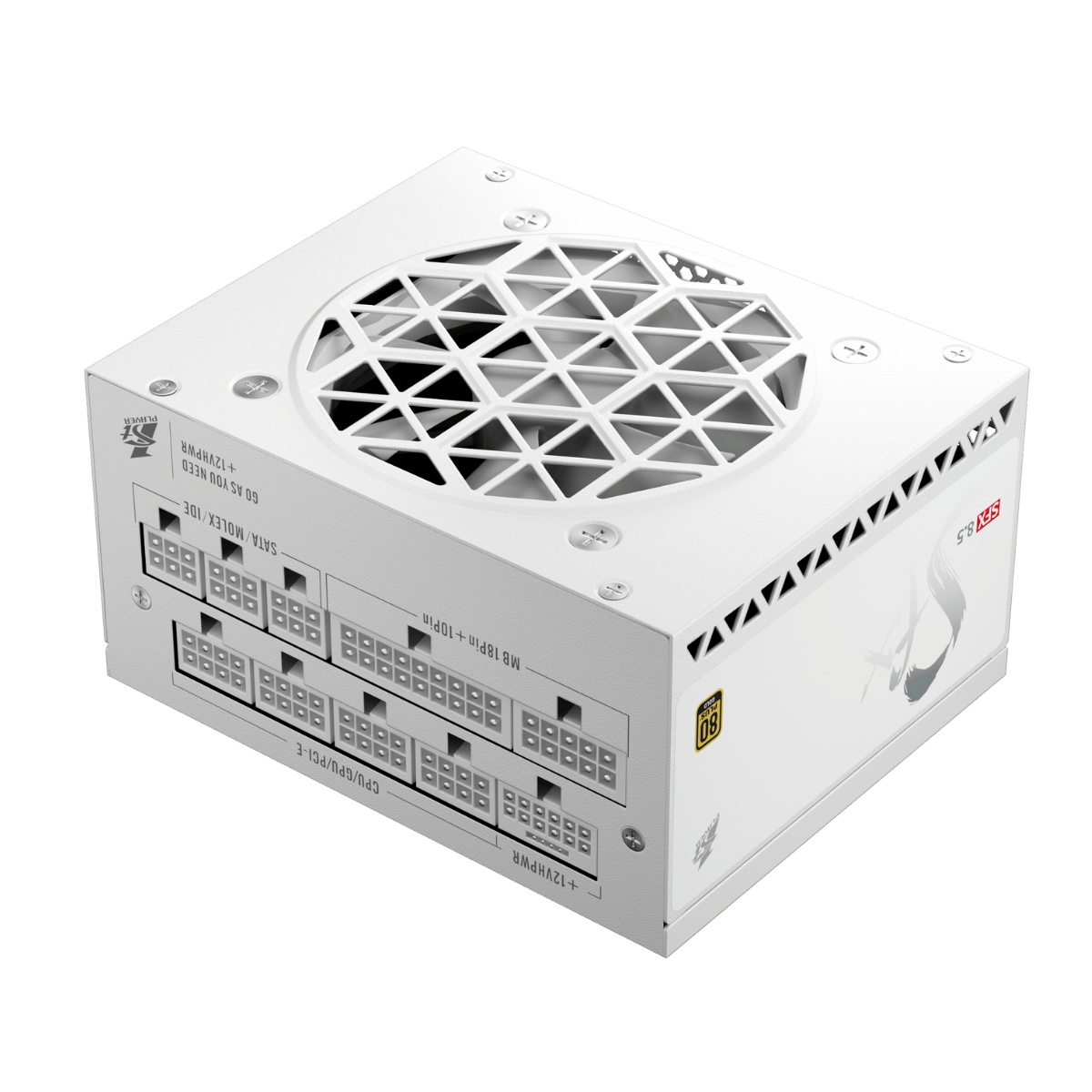

Cables

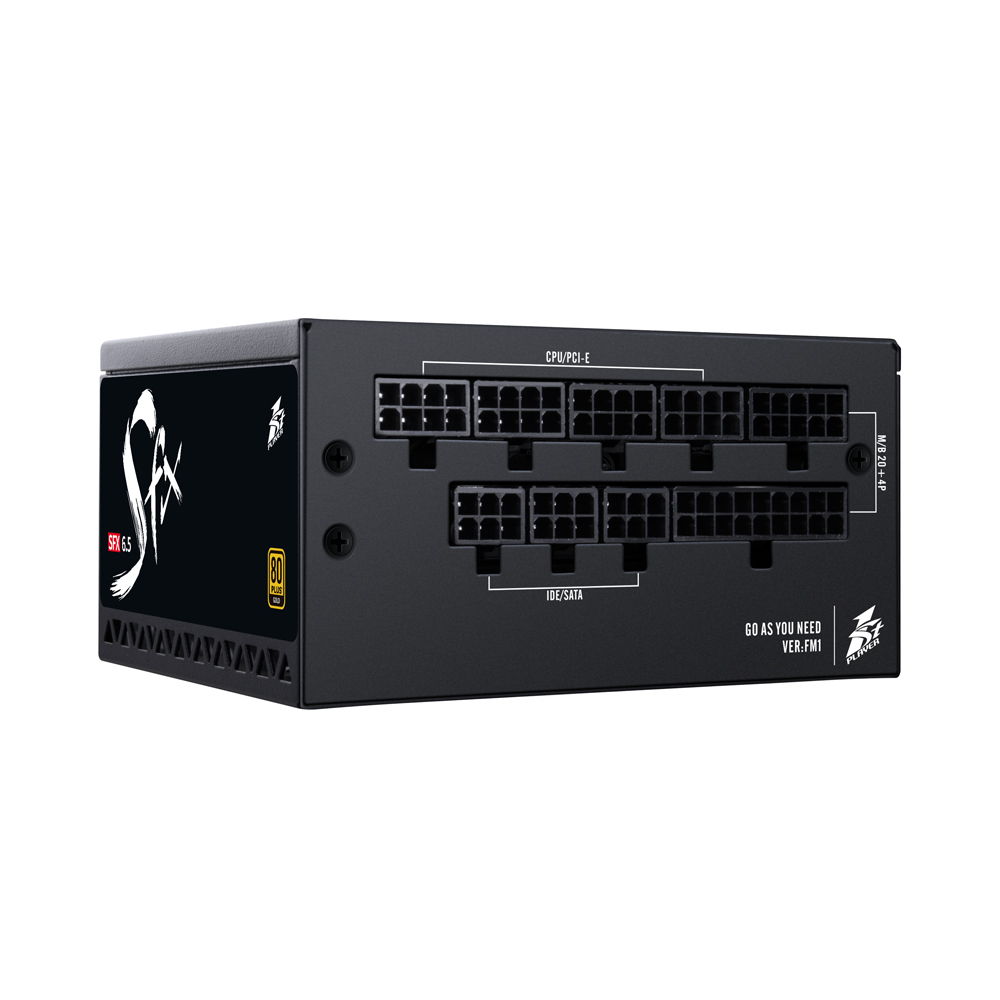

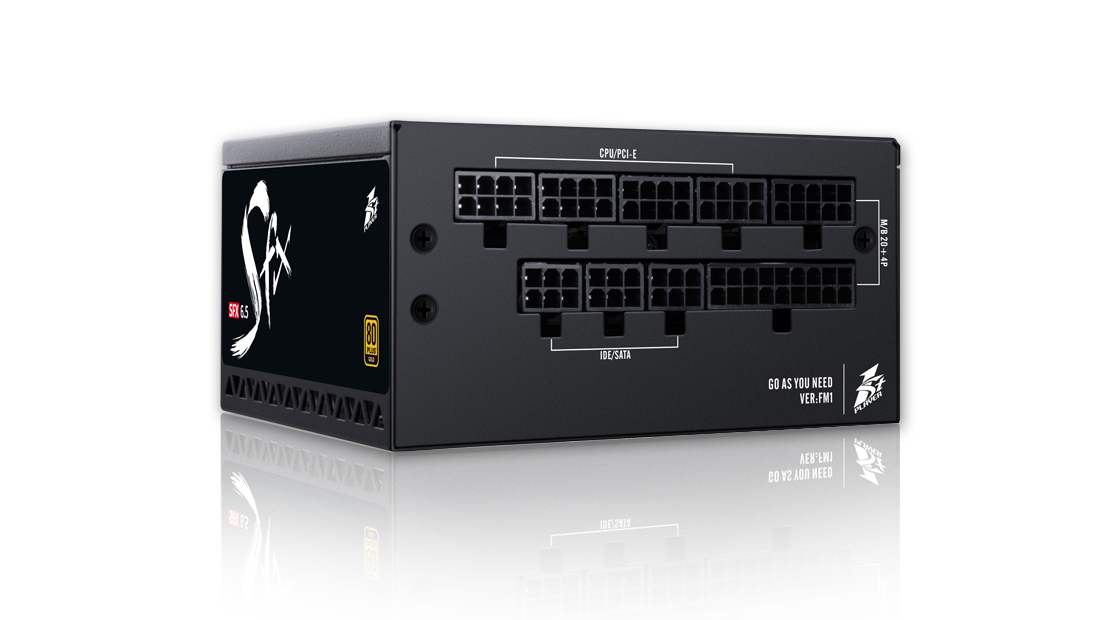

Full modular

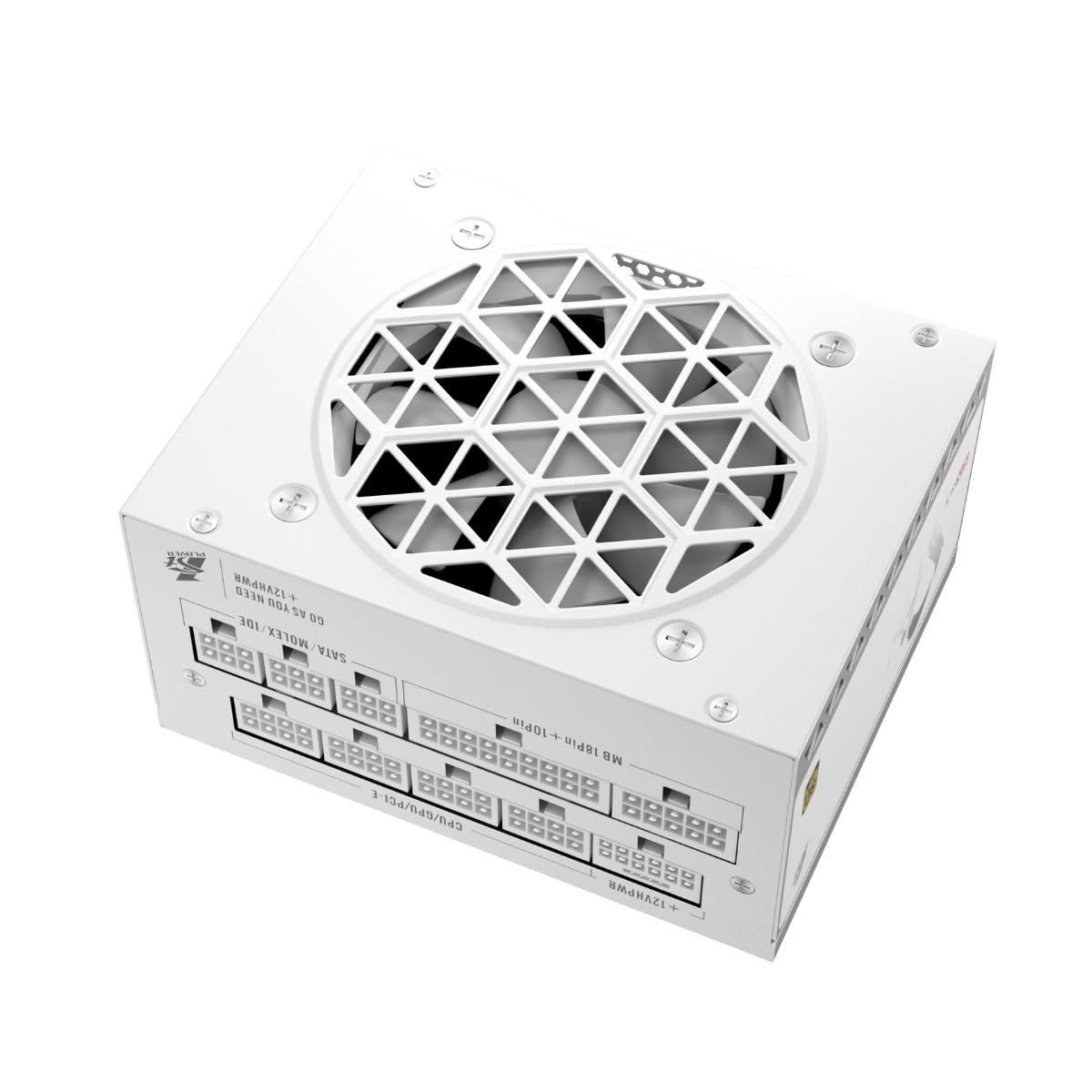

All wires are modular and pluggable, and the length of the wires are adapted to the length of most ITX cases, with flat black wires and black cases.


FULL SLAM WARRIOR Ready

Daemon is born - Platinum Structure Super Power Fight

Giveaway Notice

Tri-tropical Poison

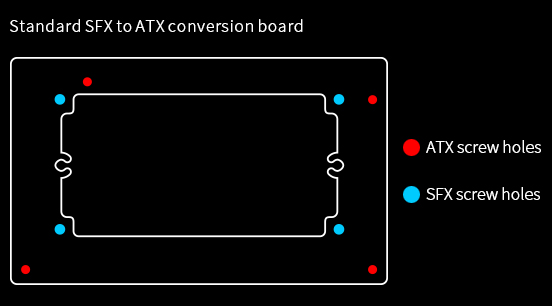

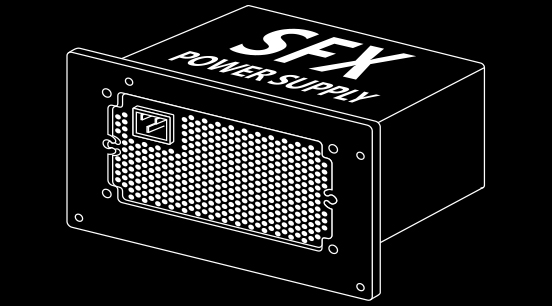

With the official adapter plate, SFX power supplies can be installed in ATX cases, and gamers can also choose to install 1STPLAYER's custom colored extension cables (more than a dozen colorways have been released) to achieve a diverse and cool mod solution. 1STPLAYER has released a colorful modular cable to match, so stay tuned.


Giveaway Notice

Tri-tropical Poison

With the official adapter plate, SFX power supplies can be installed in ATX cases, and gamers can also choose to install 1STPLAYER's custom colored extension cables (more than a dozen colorways have been released) to achieve a diverse and cool mod solution. 1STPLAYER has released a colorful modular cable to match, so stay tuned.


Giveaway Notice

Tri-tropical Poison

With the official adapter plate, SFX power supplies can be installed in ATX cases, and gamers can also choose to install 1STPLAYER's custom colored extension cables (more than a dozen colorways have been released) to achieve a diverse and cool mod solution. 1STPLAYER has released a colorful modular cable to match, so stay tuned.


Giveaway Notice

Tri-tropical Poison

With the official adapter plate, SFX power supplies can be installed in ATX cases, and gamers can also choose to install 1STPLAYER's custom colored extension cables (more than a dozen colorways have been released) to achieve a diverse and cool mod solution. 1STPLAYER has released a colorful modular cable to match, so stay tuned.

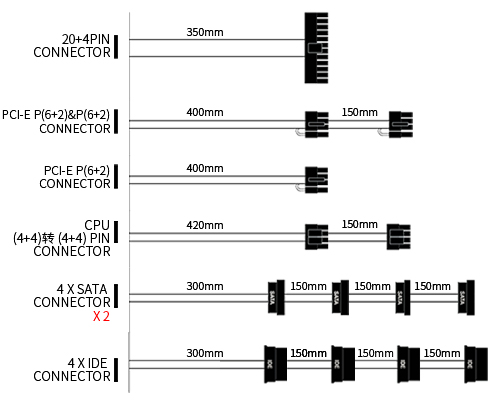

  • Modular Wire List

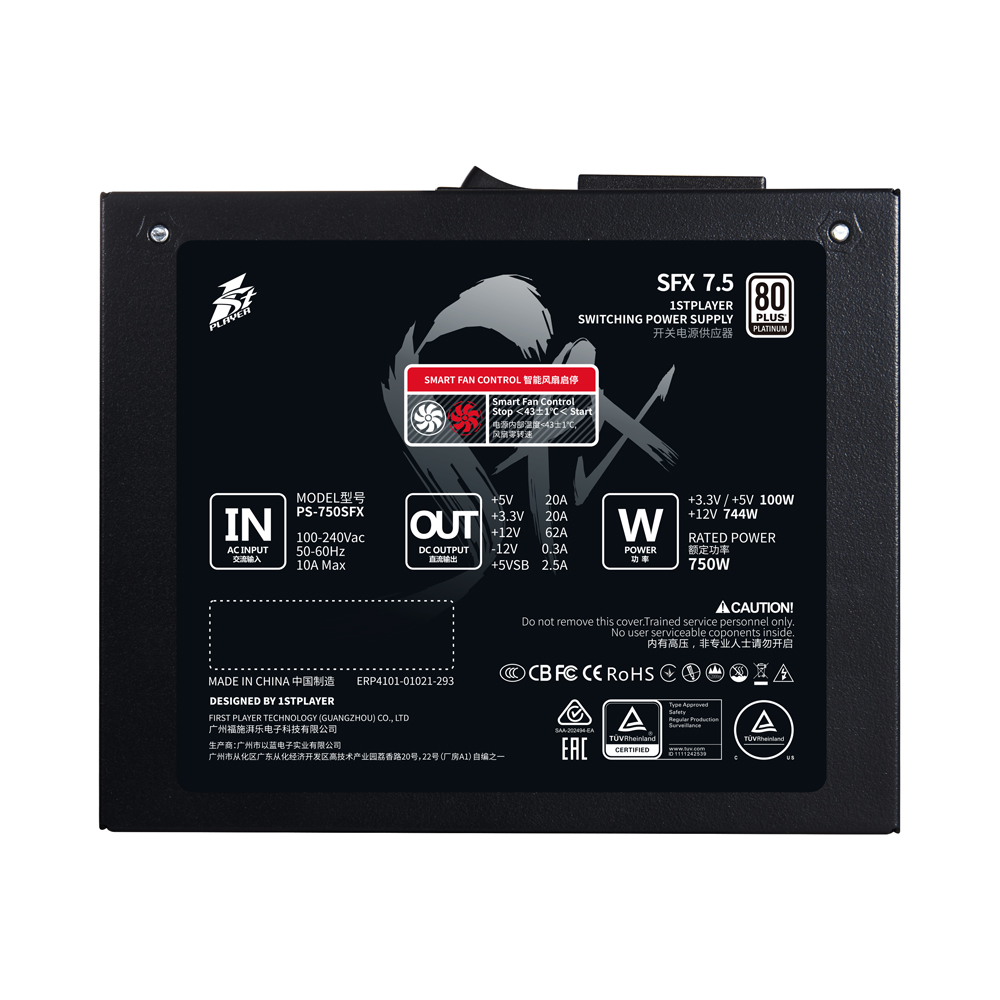

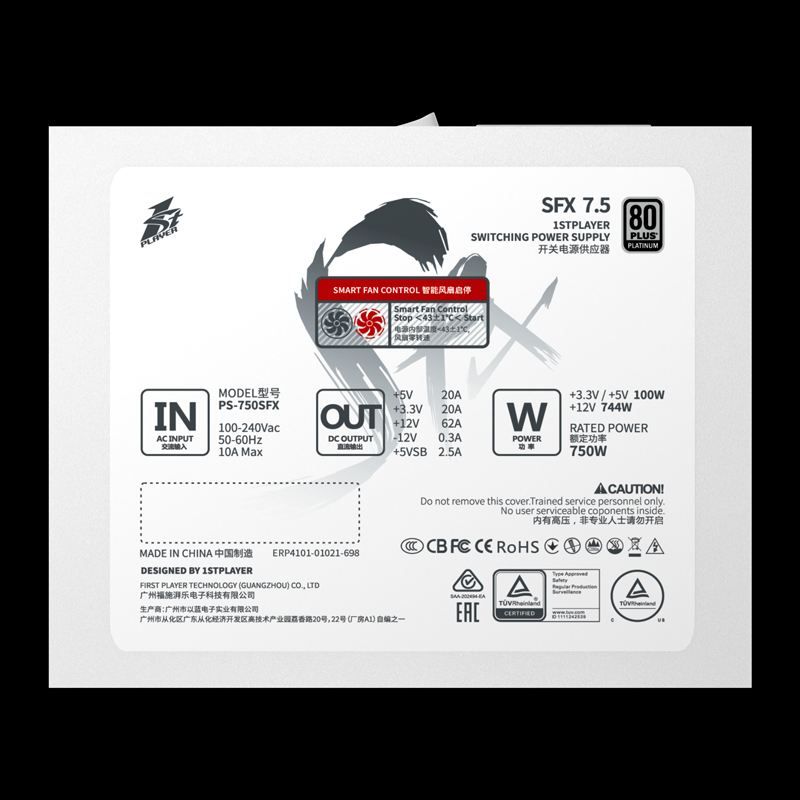

Model
PS-650SFX/PS-750SFX
Dimensions(L*W*H)
120*100*63.5 MM

Modular

650/750 Full-Modular

Certifications

650 GOLD / 750 Platinum
Warranty
7 years
Input Voltage
100-240 VAC
Input Current
10A MAX
Efficiency
650SFX 80 PLUS GOLD / 750SFX 80 PLUS Platinum
Output Capacity
650W / 750 W
Input Frequency
50-60Hz
PFC
Active PFC
Net Weight
1.6kg
Gross Weight
1.8kg
Fan Size
80MM Hydraulic Bearing
Protections
UVP, OVP, OPP, SCP, Lightning Protection
Operation Temperature
0~40℃
MTBF
100,000 hours
Circuit Structure
Double Forward
Regulatory
CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC
