X3-M

1STPLAYER Gaming Case

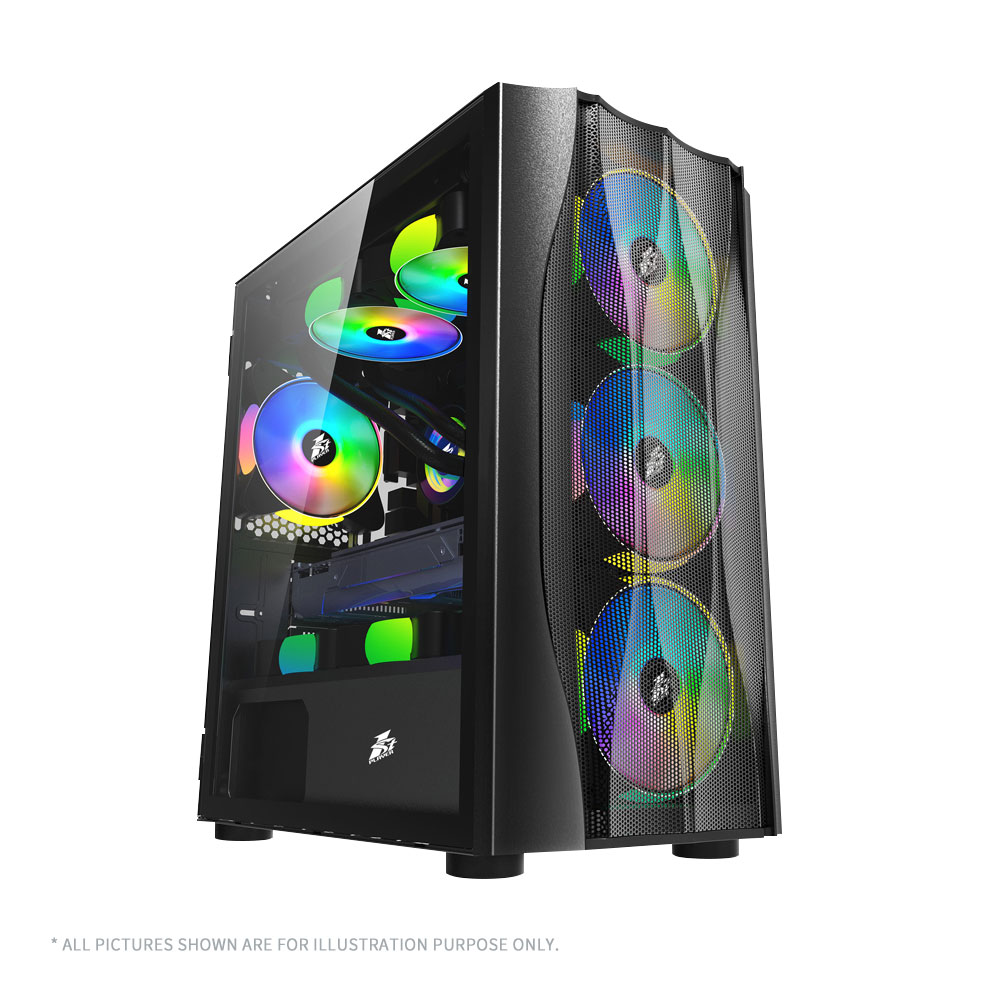

· X3-M (Black)

· USB2.0*2+USB3.0*1+HD AUDIO*1

· LIQUID COOLING SUPPORT 24CM

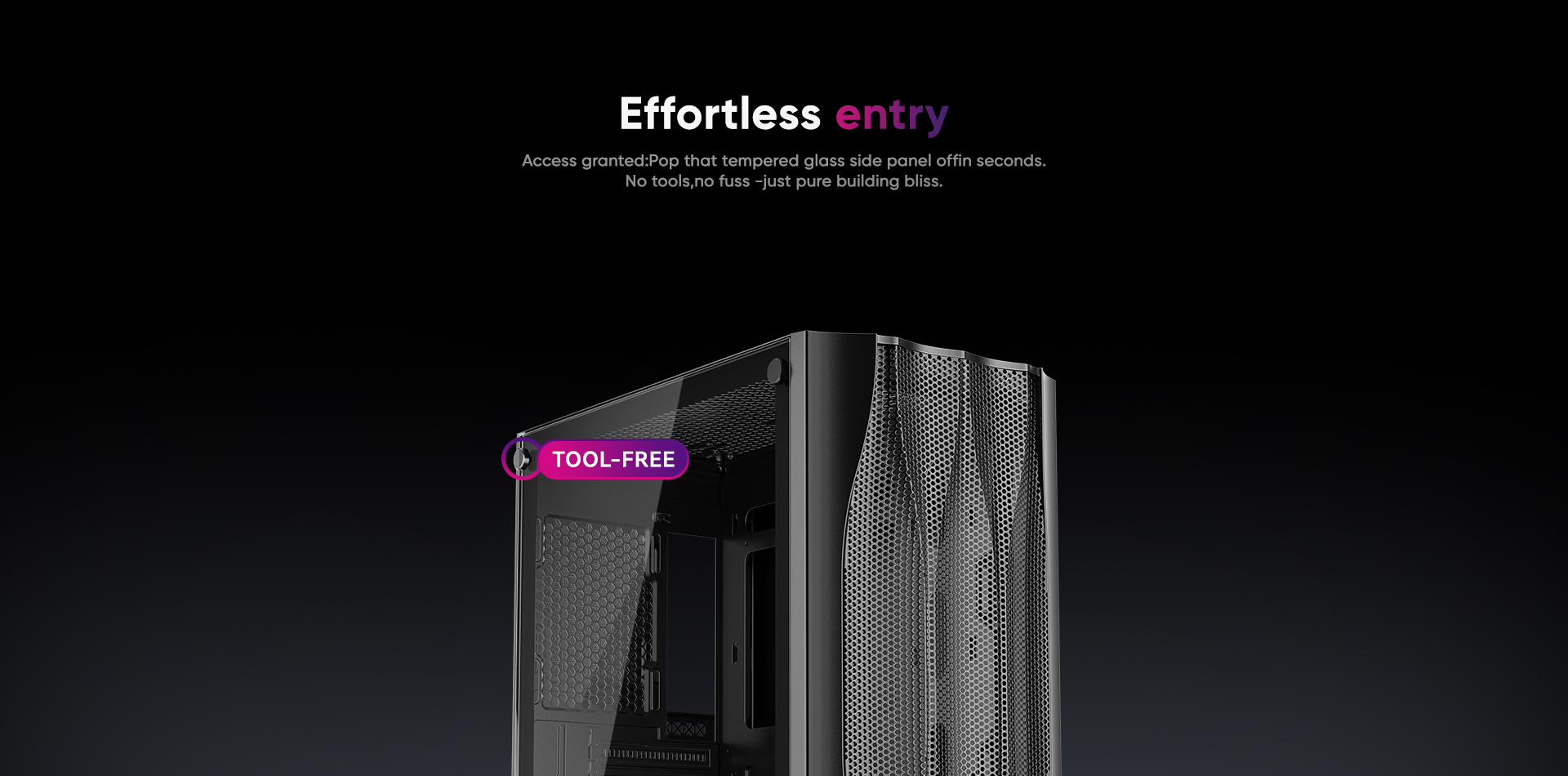

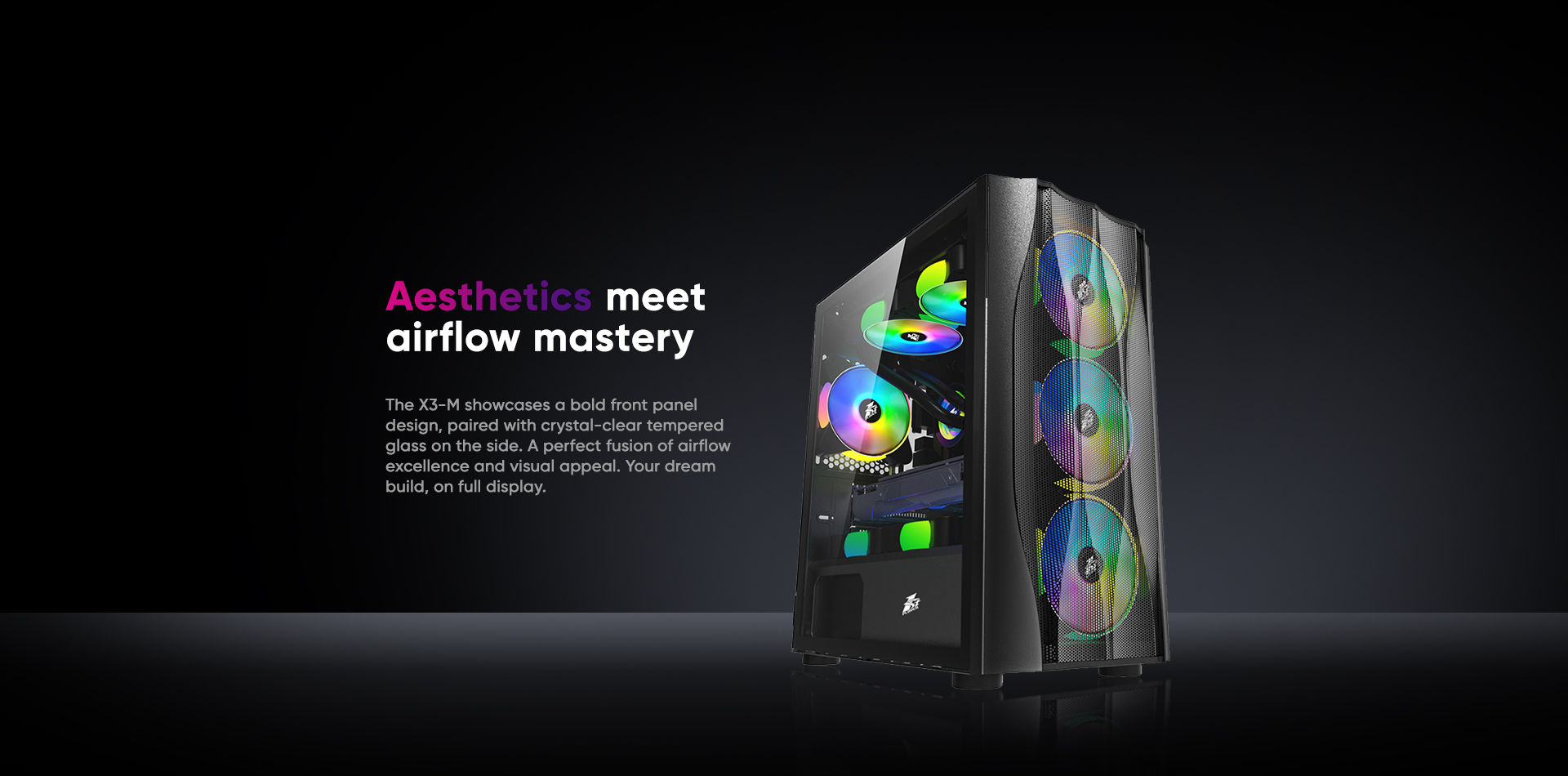

· LEFT SIDE PANEL: TEMPERED GLASS




X3-M

1STPLAYER Gaming Case

Watch Video

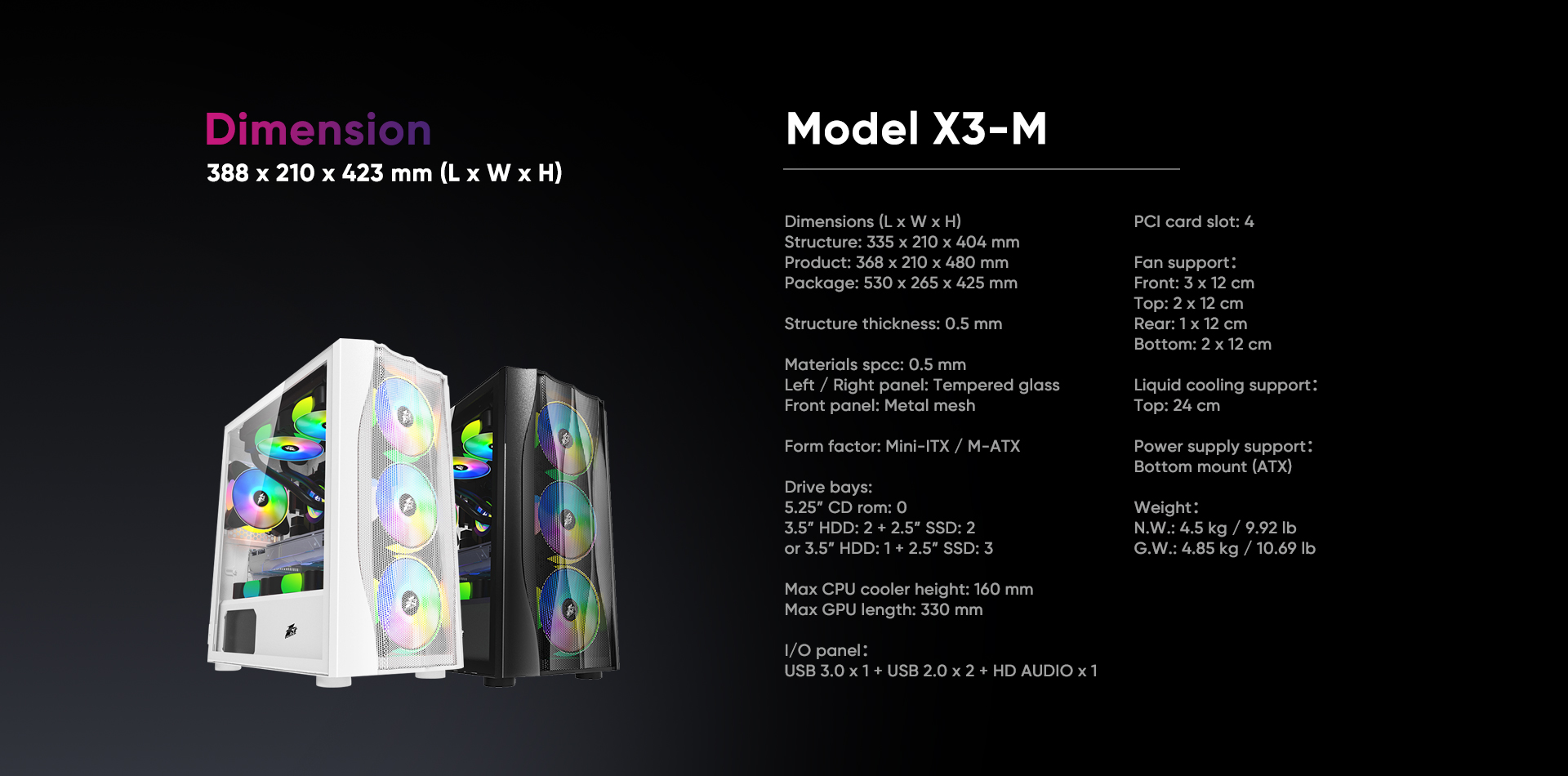

Model

X3-M

Structure Dimensions(L*W*H)

335*210*404MM

Product Dimensions(L*W*H)

388*210*423MM

Package Dimensions(L*W*H)

470*265*445MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM

L&R side panel: Tempered Glass

Front side panel: Metal Mesh

Form Factor

M-ATX/ITX

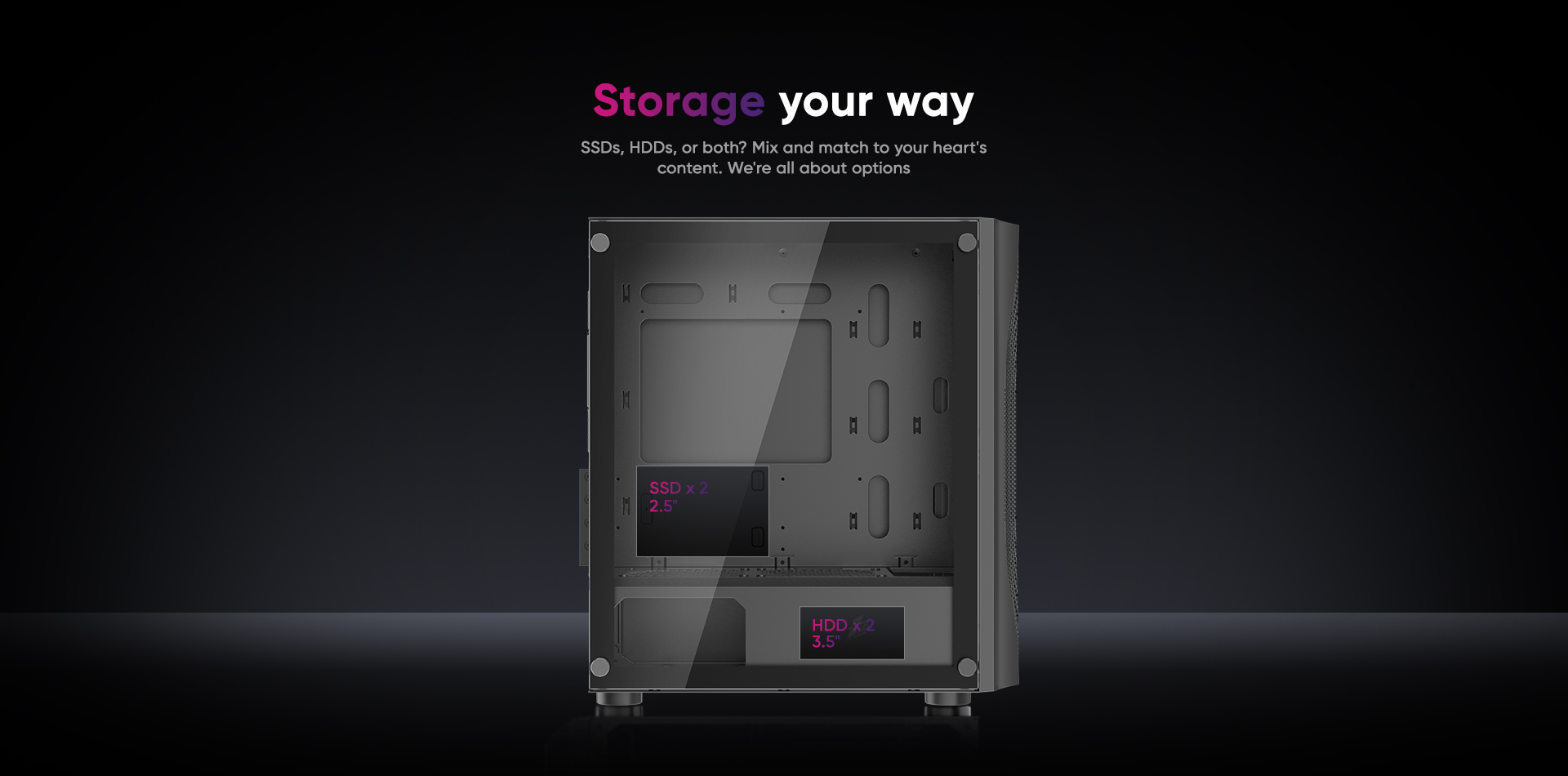

Drive Bays

5.25""CD ROM: 0

①3.5"" HDD: 2+2.5"" SSD: 2

②3.5"" HDD: 1+2.5"" SSD: 3

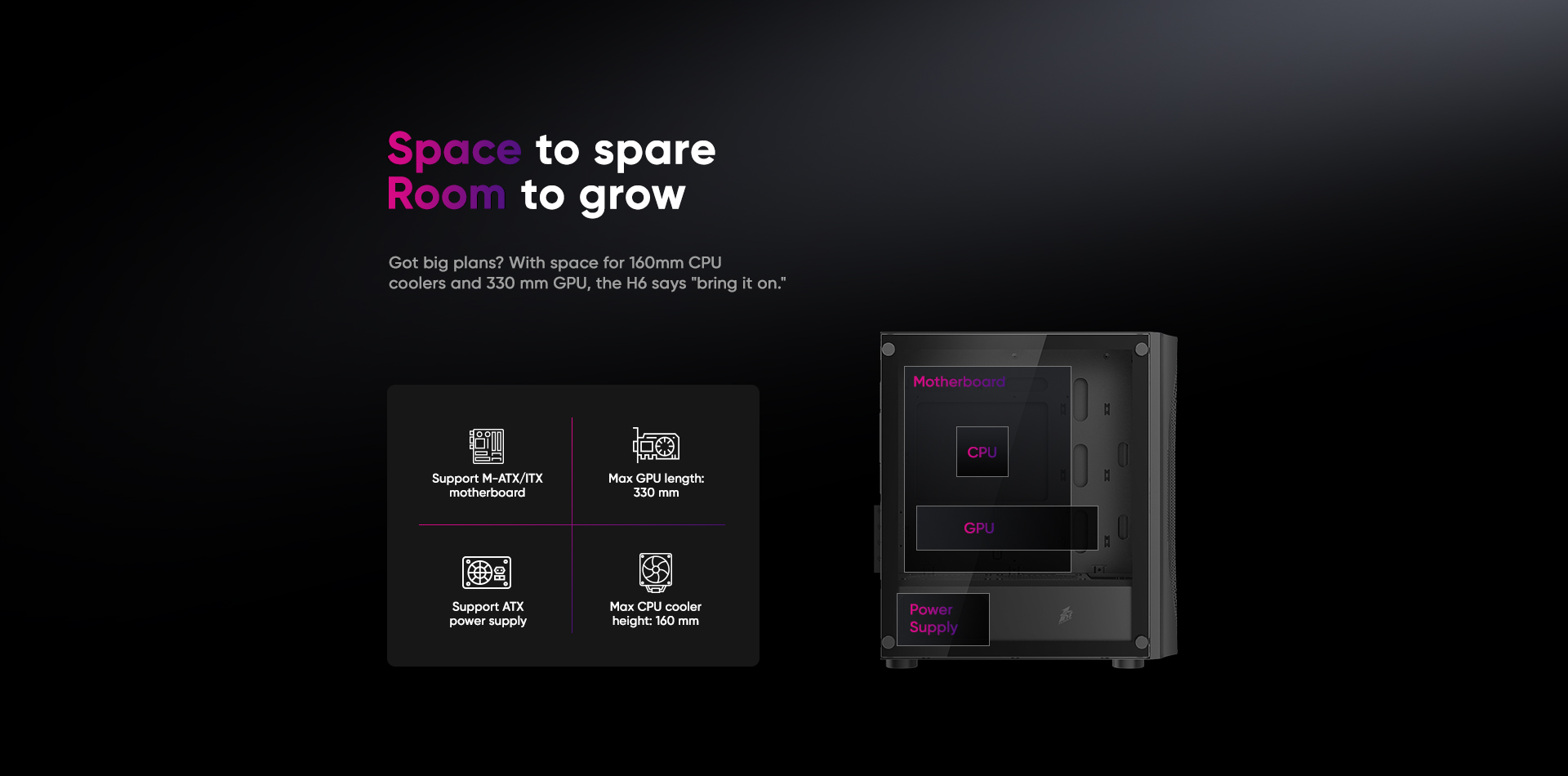

CPU MAX Height

160MM

VGA MAX Length

330MM

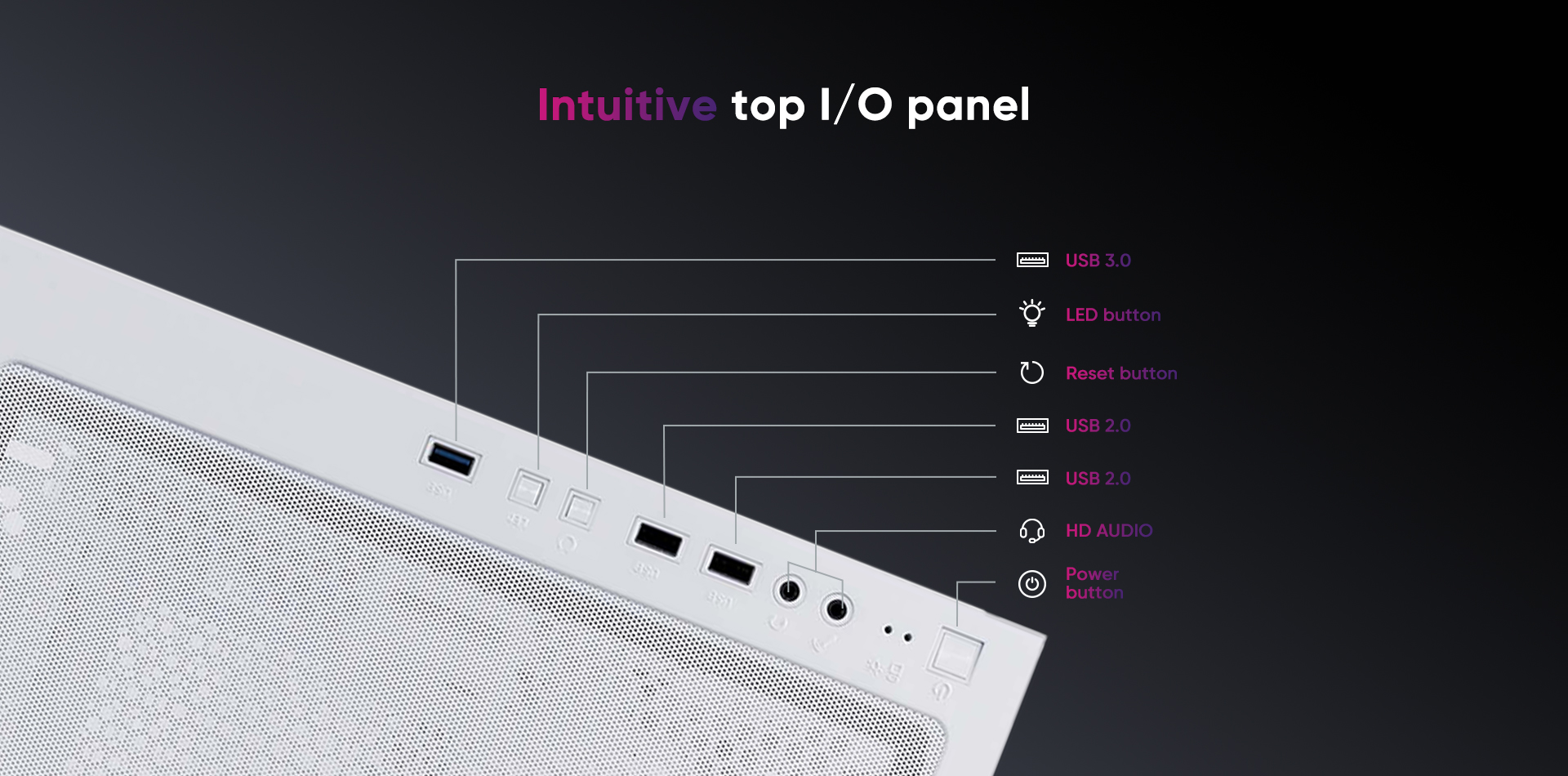

I/O Panel

HD AUDIO+USB3.0*1+USB2.0*2

PCI Card Slot

4

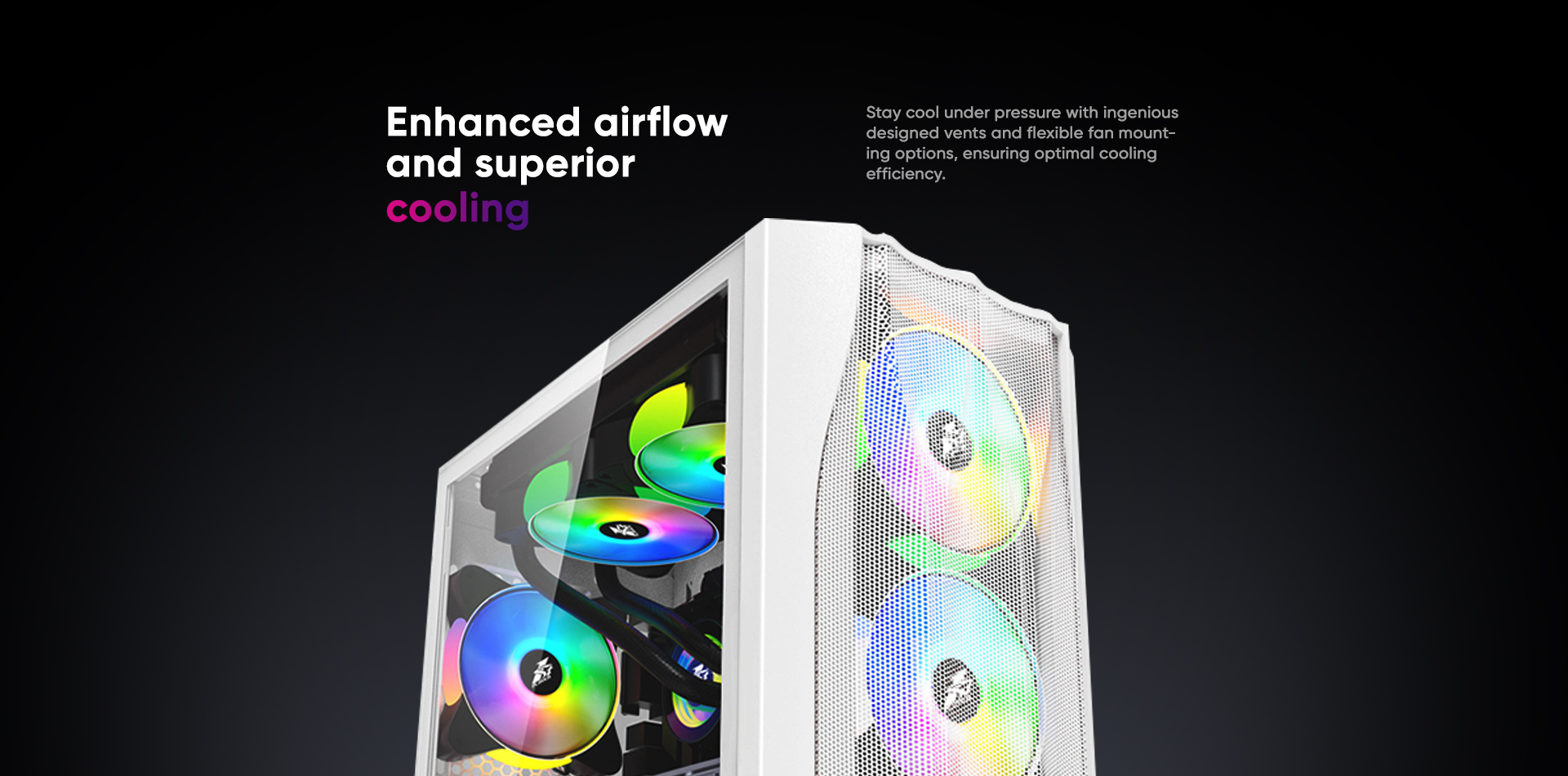

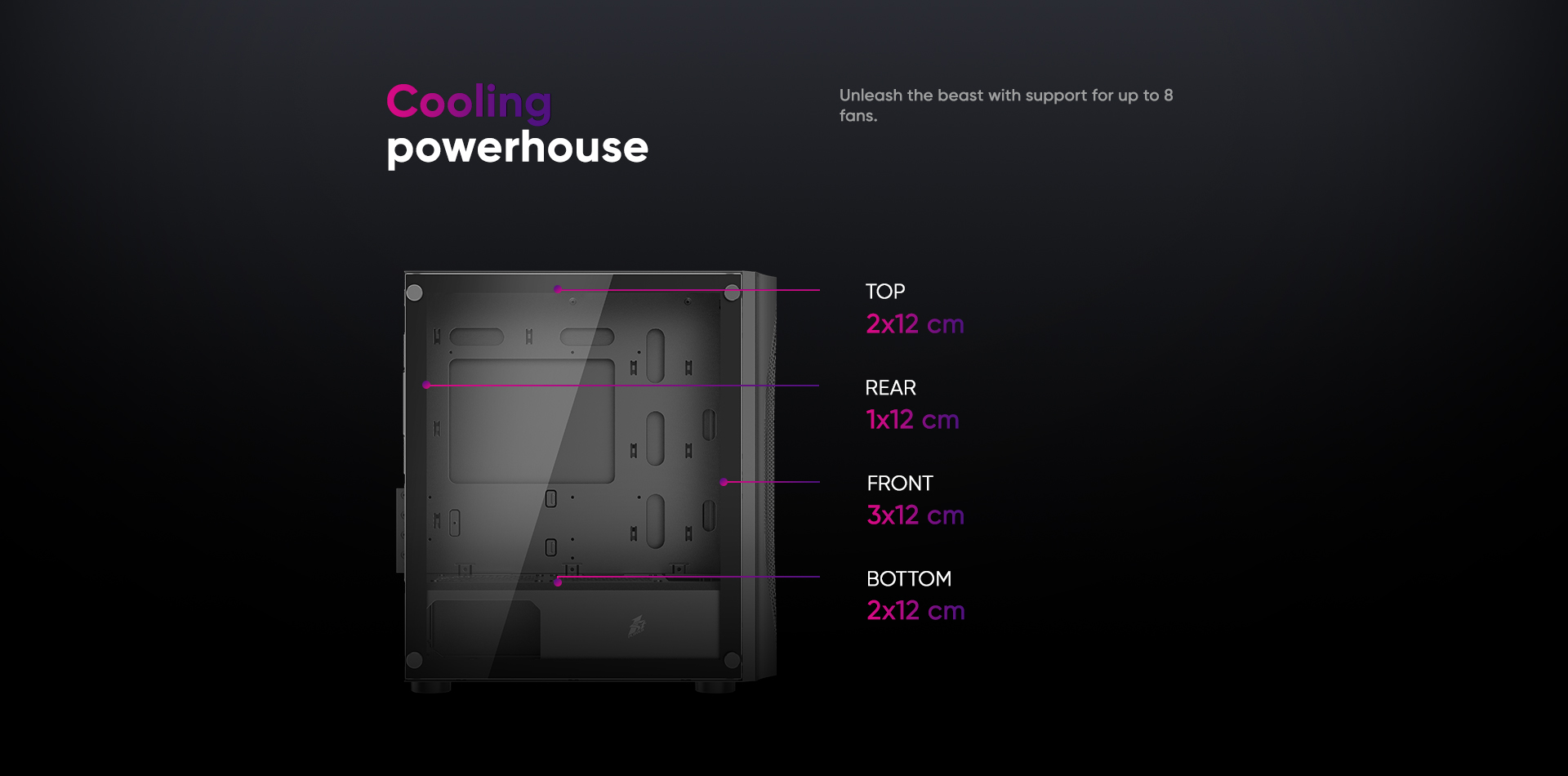

Fan Support

FRONT: 3*120 MM

REAR: 1*120 MM

TOP: 2*120MM

BOTTOM: 2*120MM

Liquid Cooling Support

TOP: 240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

4.5KG / 9.92lbs

Gross Weight

4.85KG / 10.69lbs
