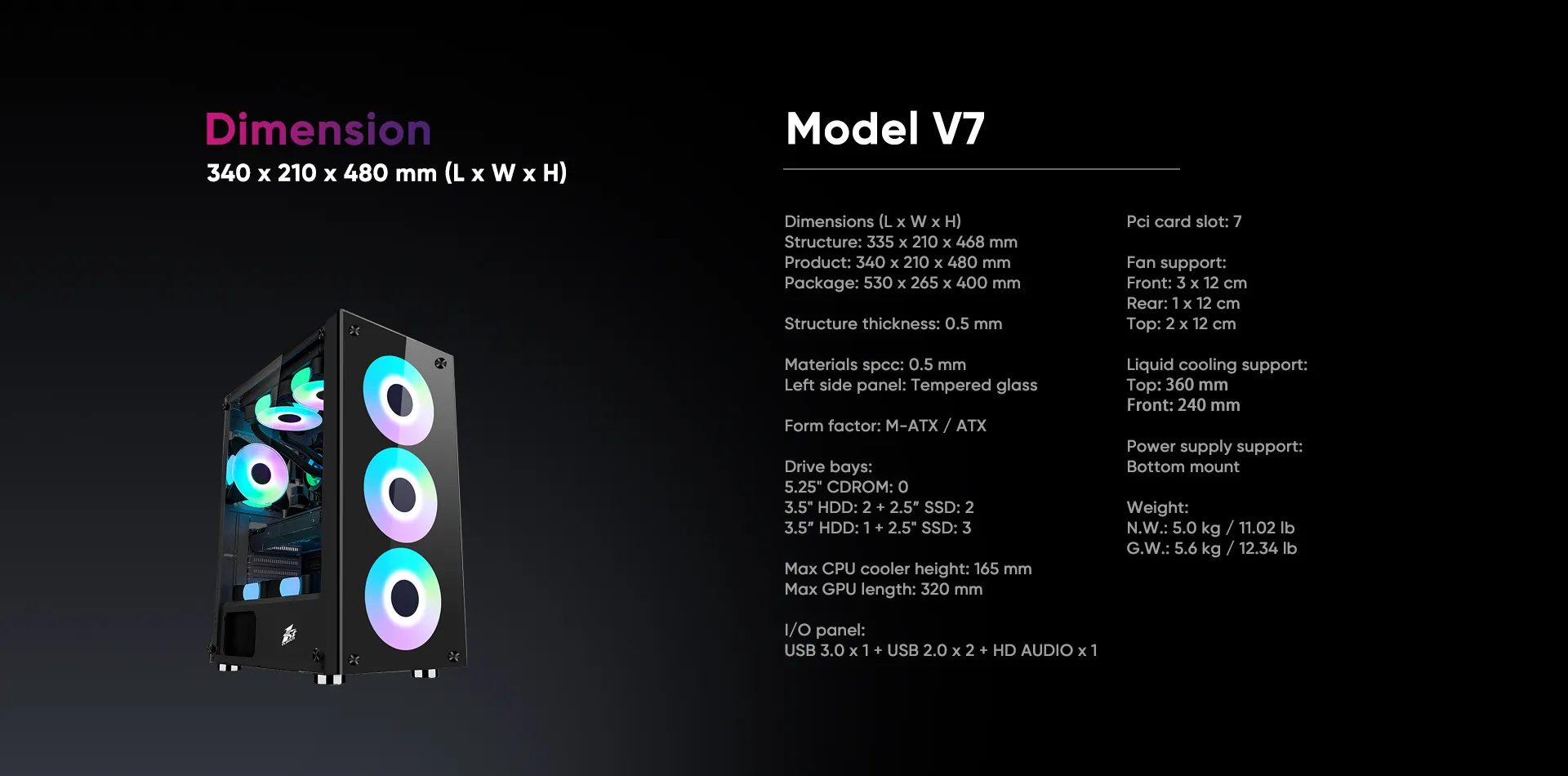

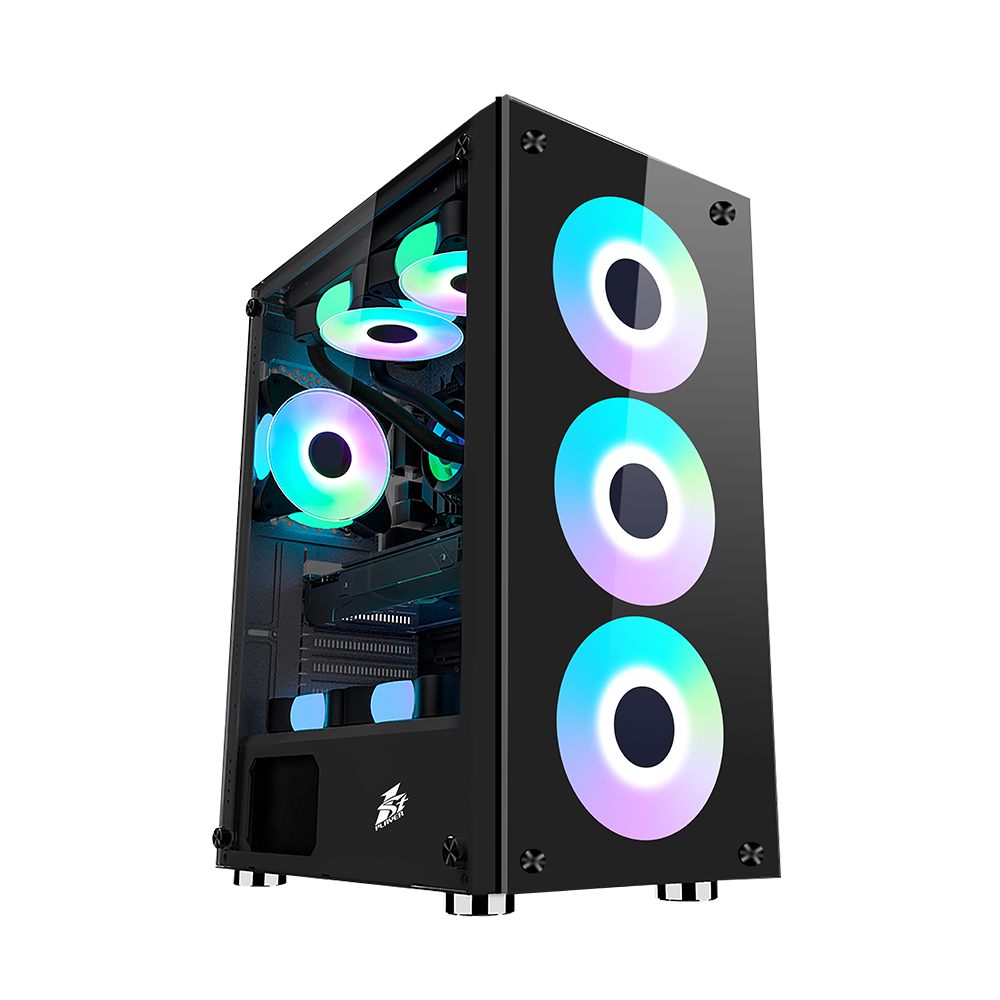

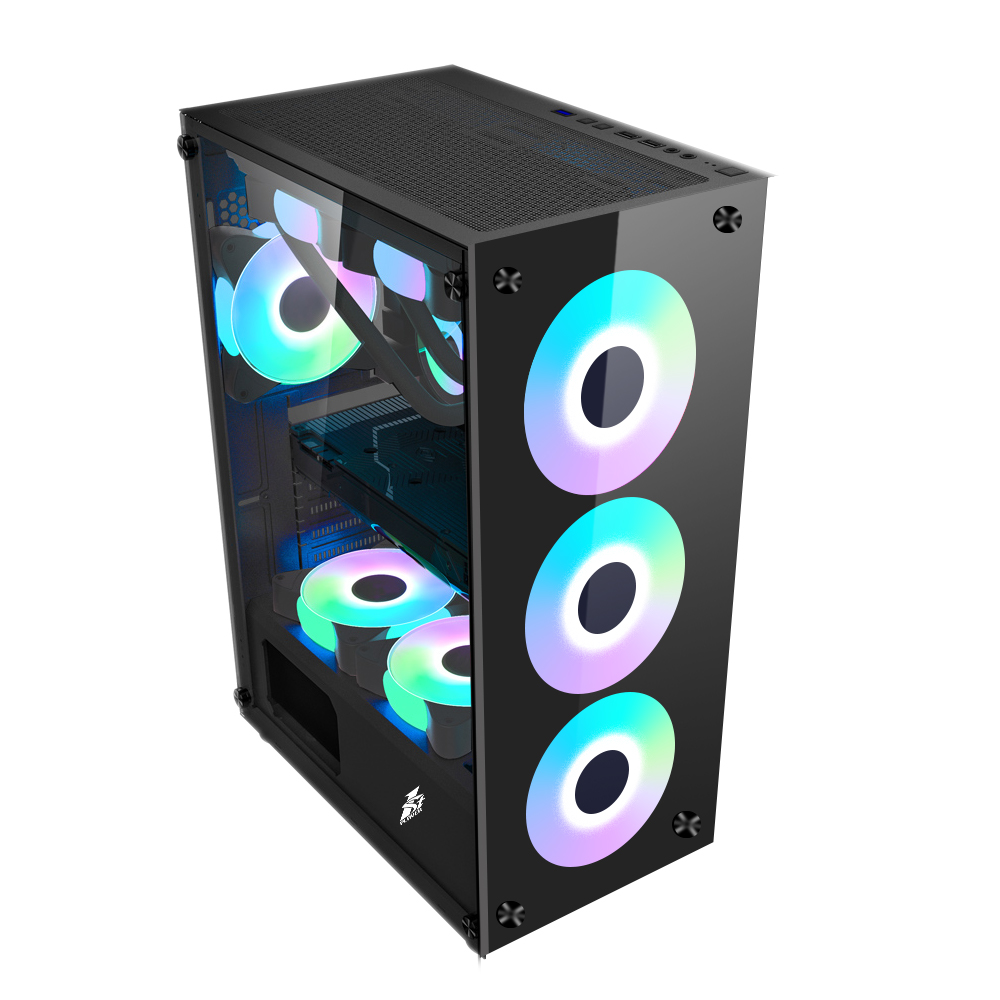

V7

DIMENSIONS(L*W*H)

STRUCTURE: 335*210*468MM

PRODUCT: 340*210*480MM

PACKAGE: 530*265*400MM

*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

Model

Structure Dimensions(L*W*H)

335*210*468MM

Product Dimensions(L*W*H)

340*210*480MM

Package Dimensions(L*W*H)

530*265*400MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM

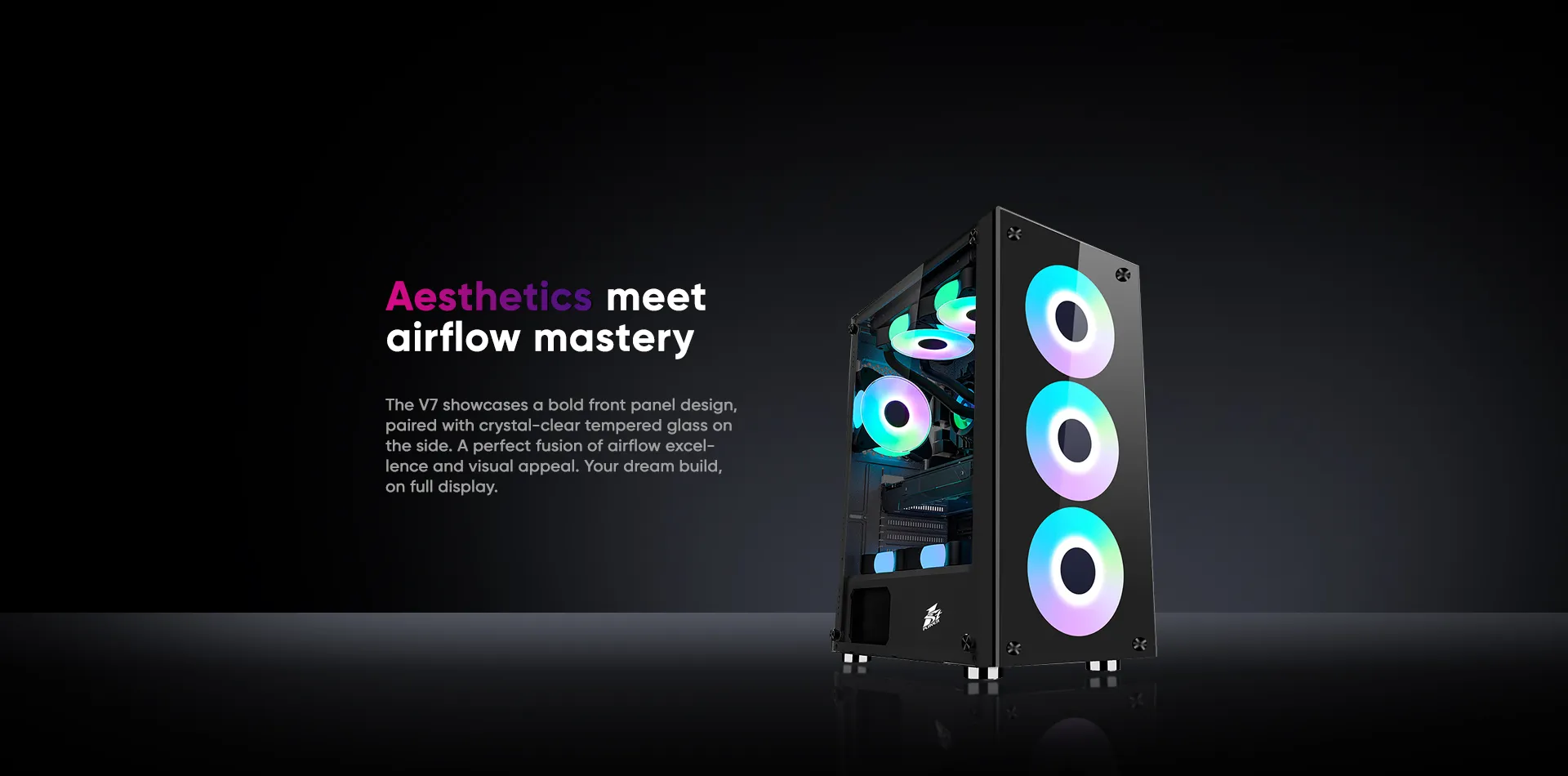

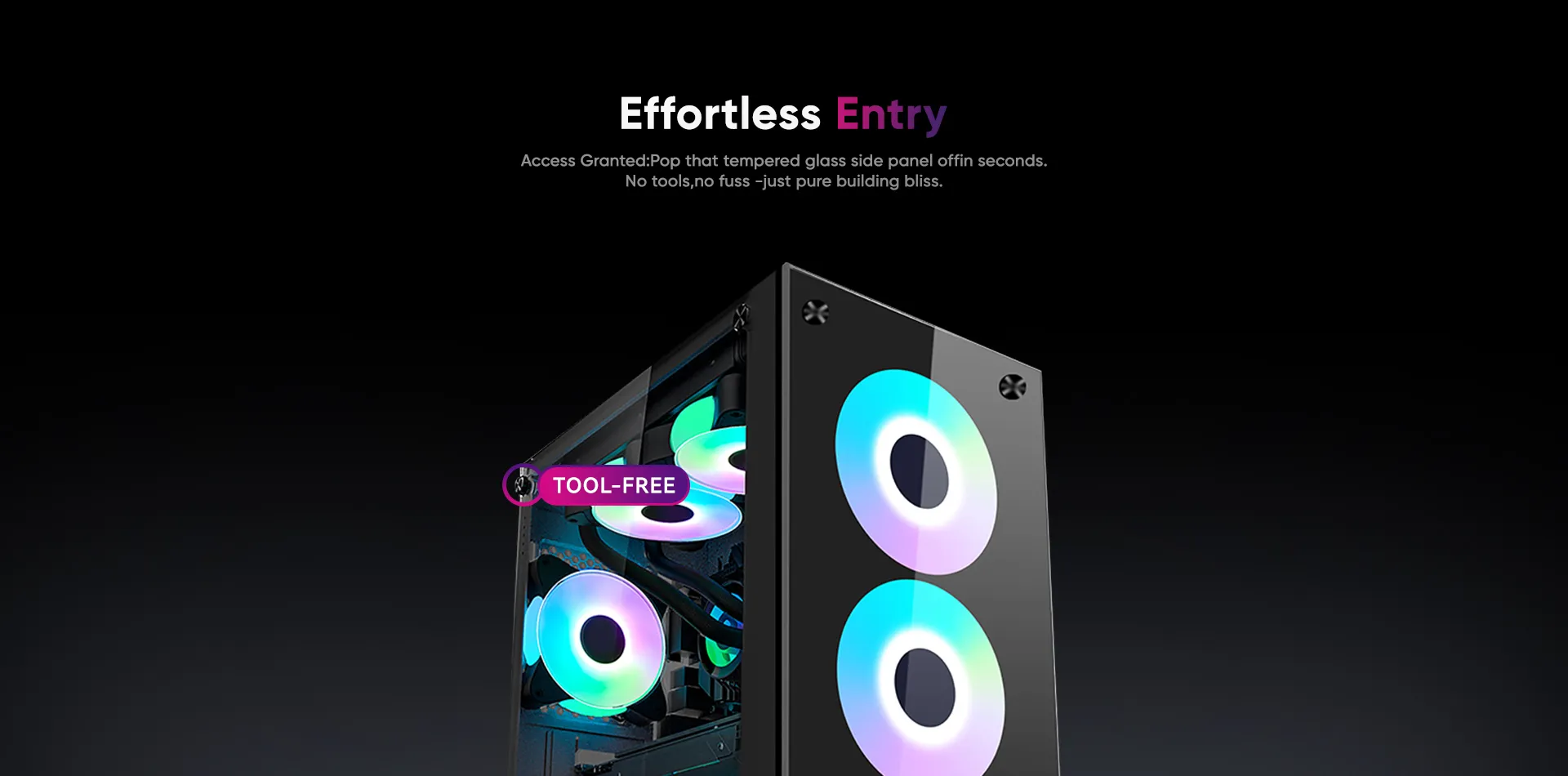

FRONT&LEFT SIDE PANEL: TEMPERED GLASS

Form Factor

ATX/M-ATX

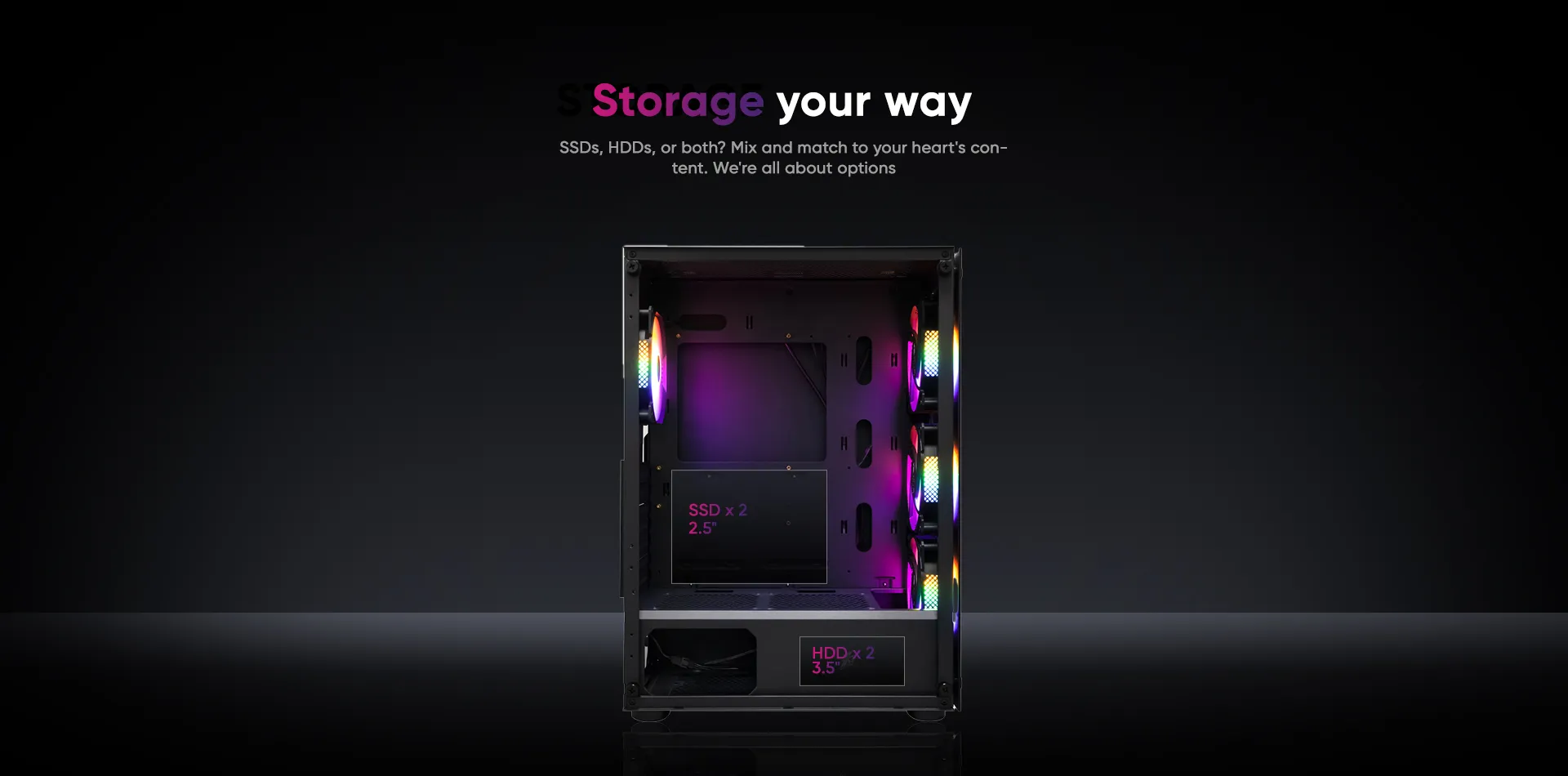

Drive Bays

5.25"CD ROM: 0

3.5"HDD: 2+2.5"SSD: 2

3.5"HDD: 1+2.5"SSD: 3

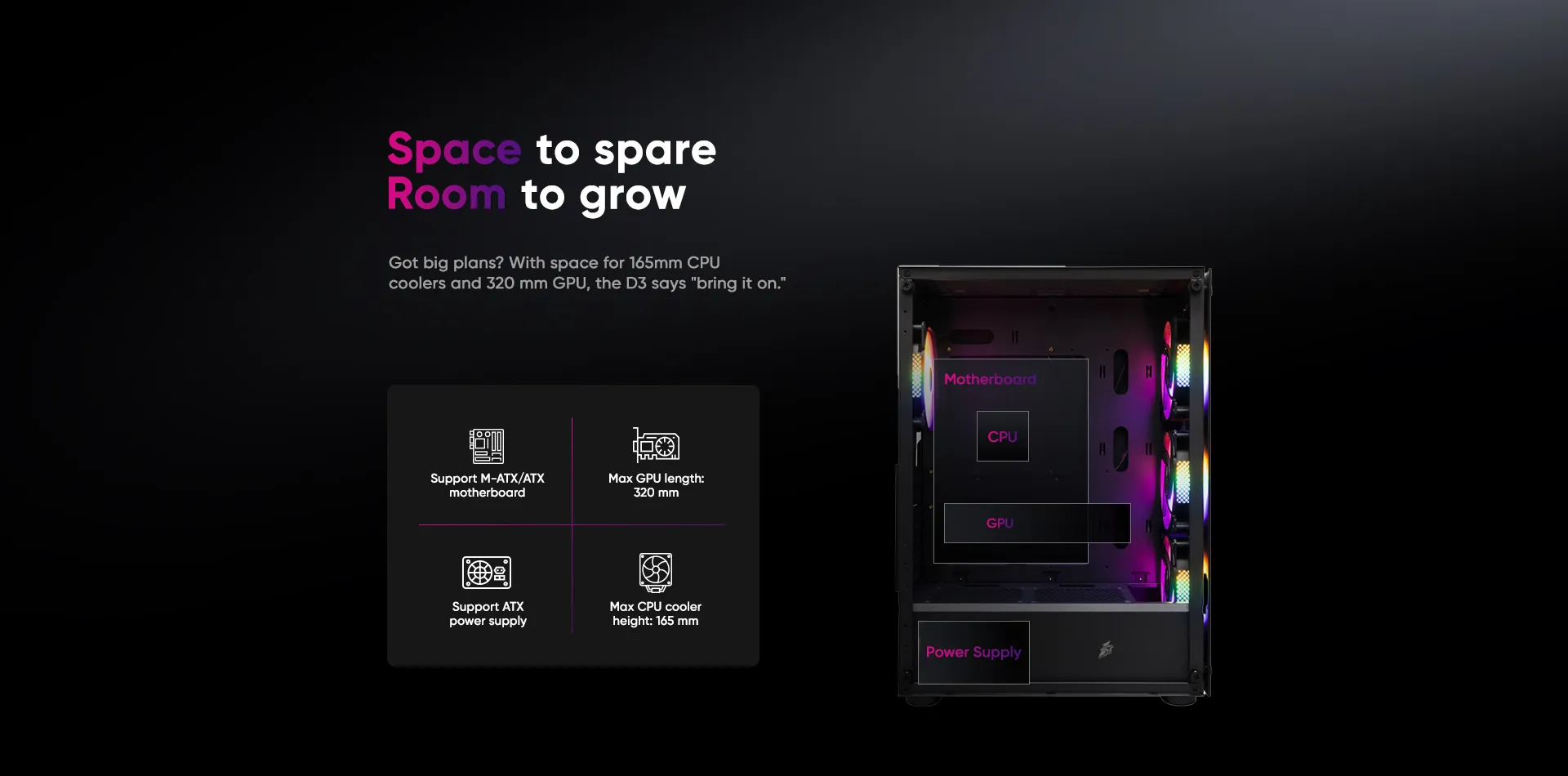

CPU MAX Height

165MM

VGA MAX Length

320MM

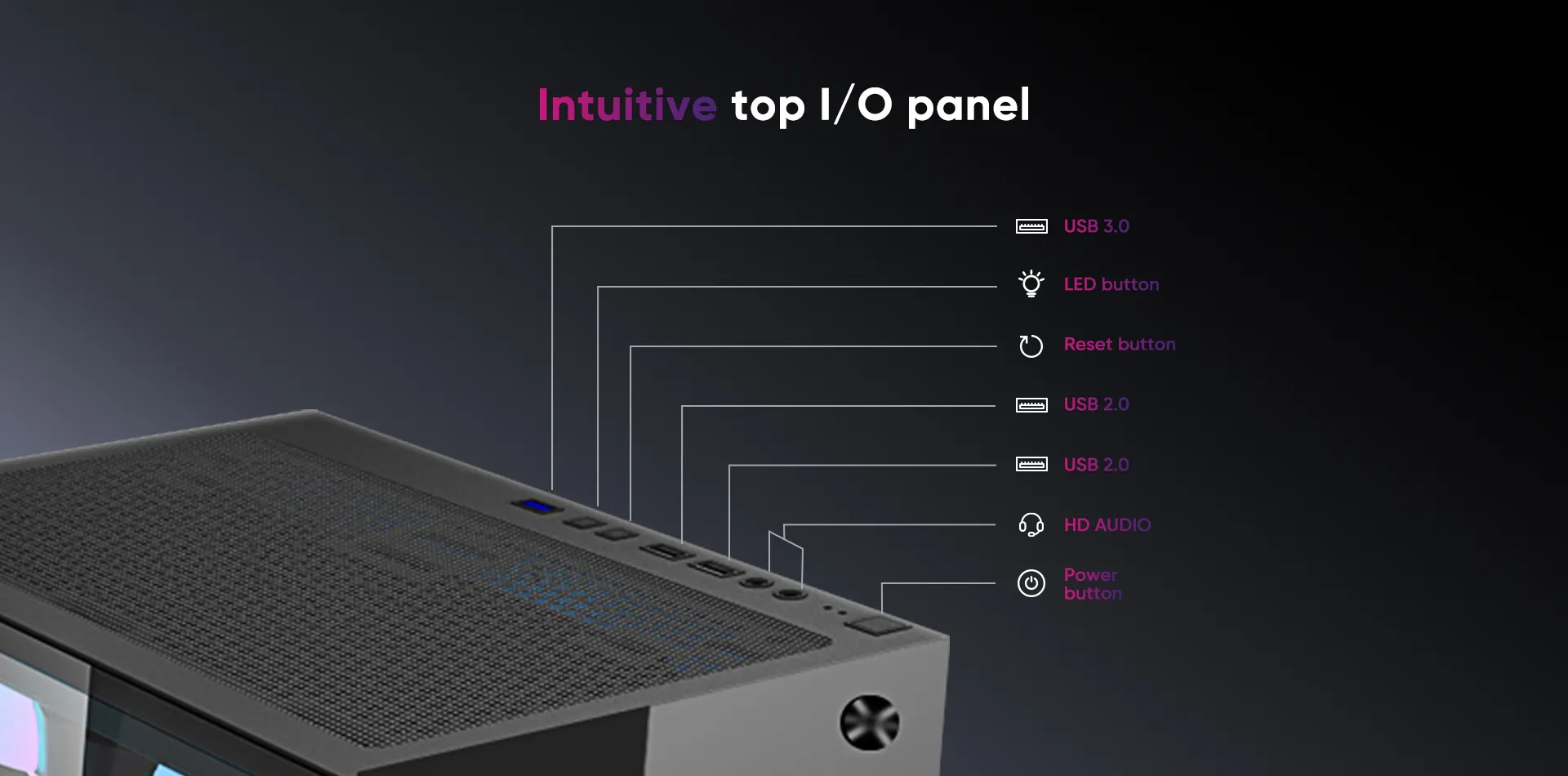

I/O Panel

USB3.0+USB2.0*2+HD AUDIO

PCI Card Slot

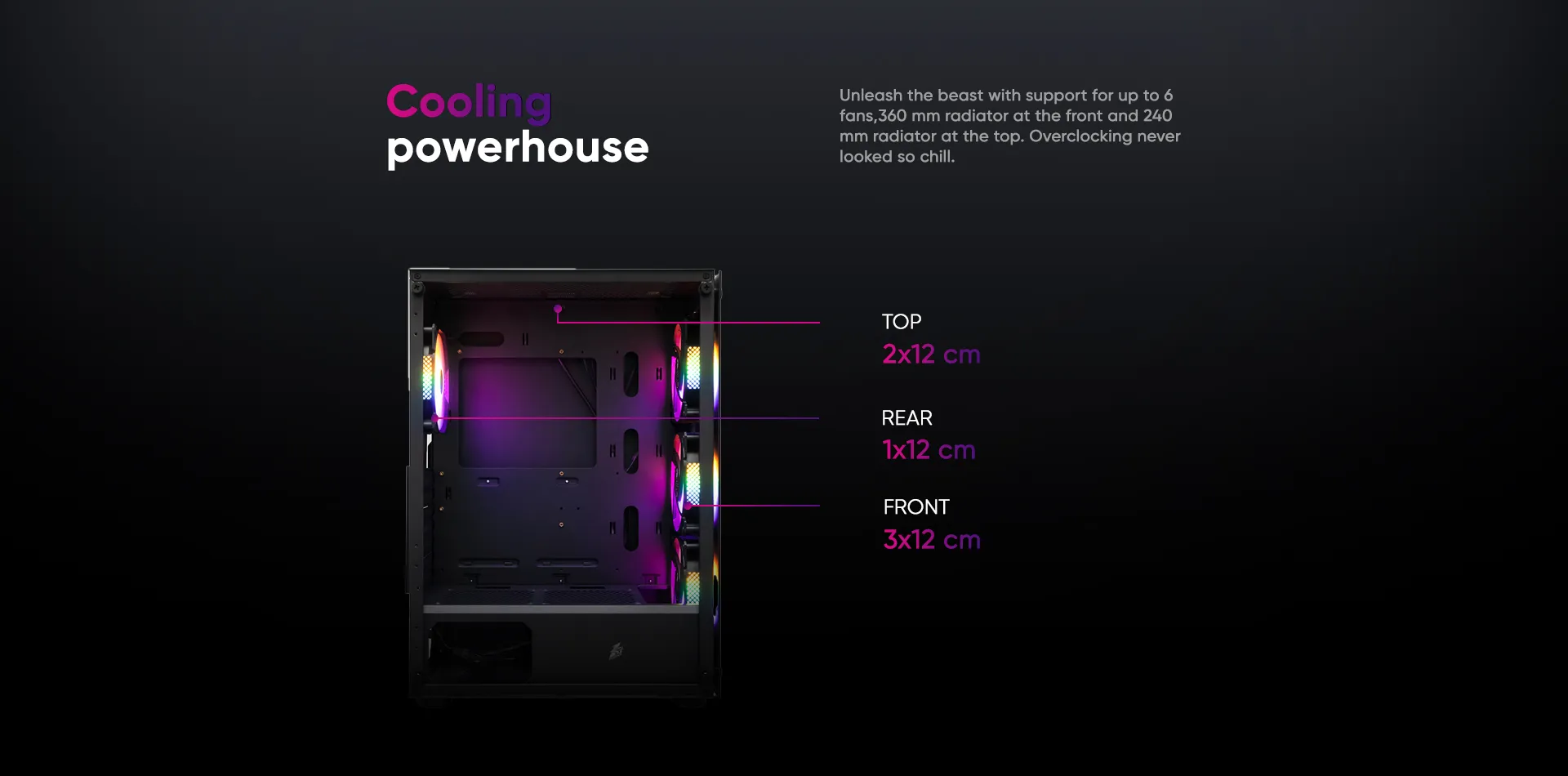

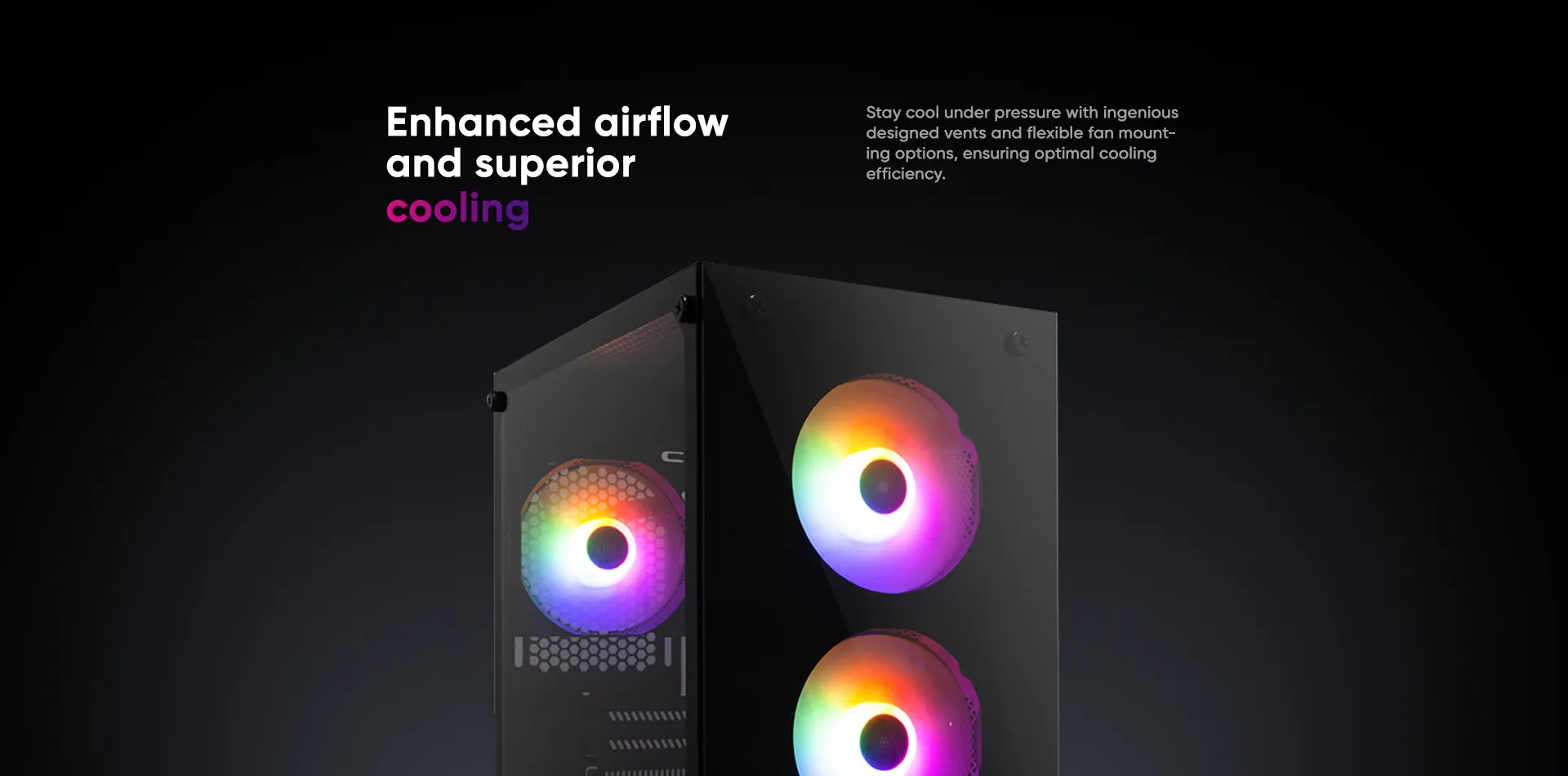

Fan Support

FRONT: 3*12CM

REAR: 1*12CM

TOP: 2*12CM

Liquid Cooling Support

FRONT: 360 MM

TOP: 240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

5.0KG / 11.02lb

Gross Weight

5.6KG / 12.34lb
