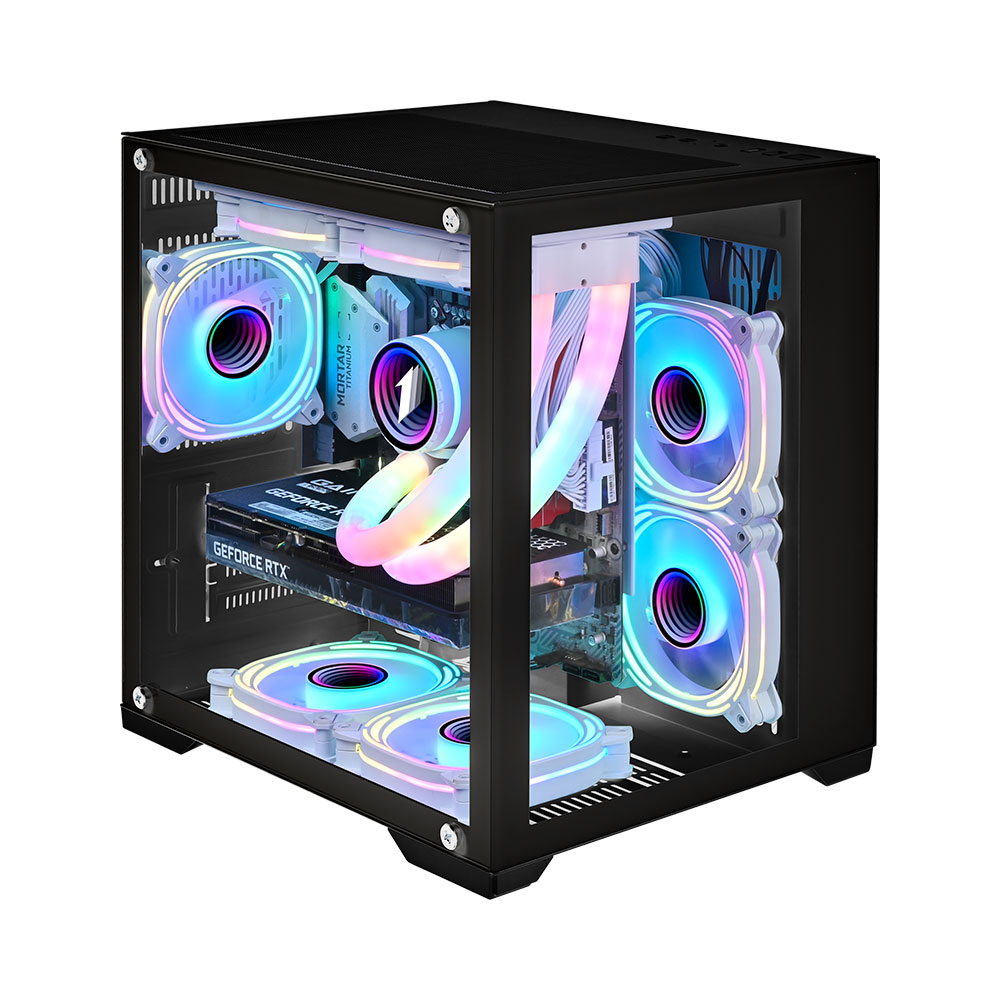

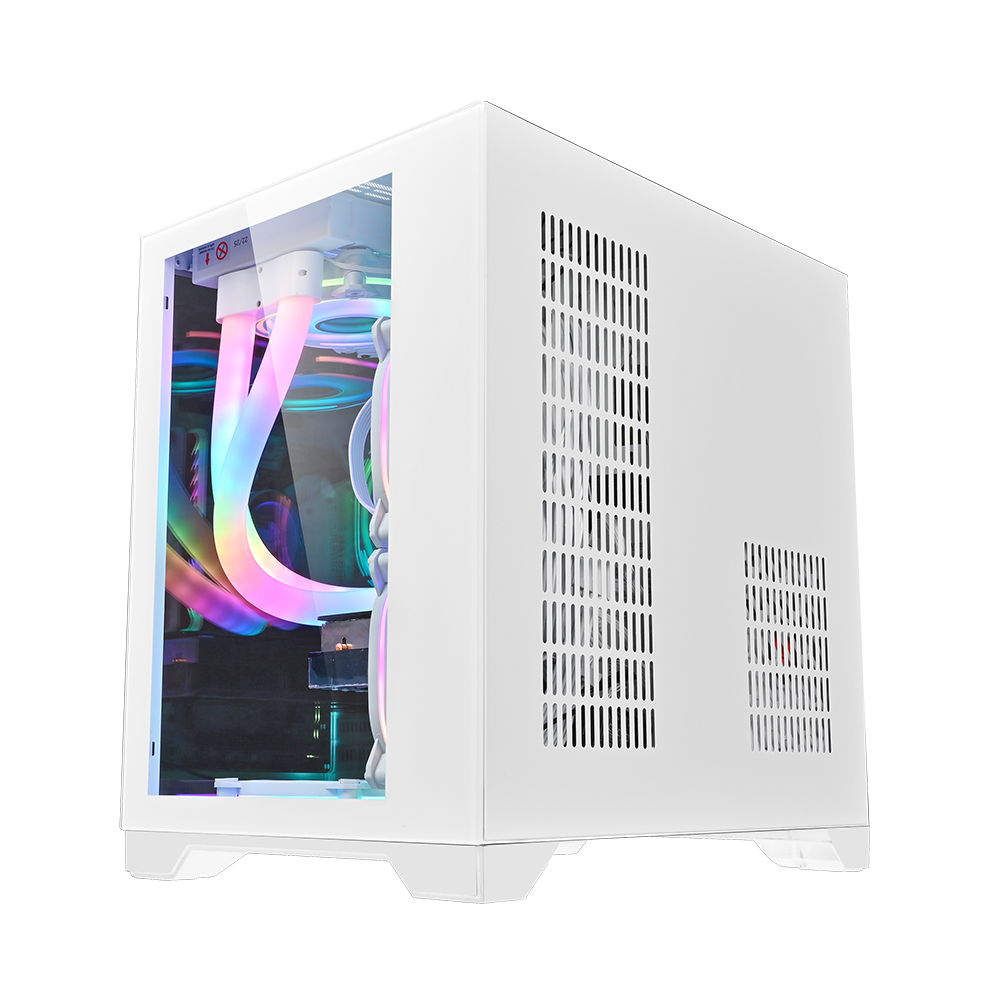

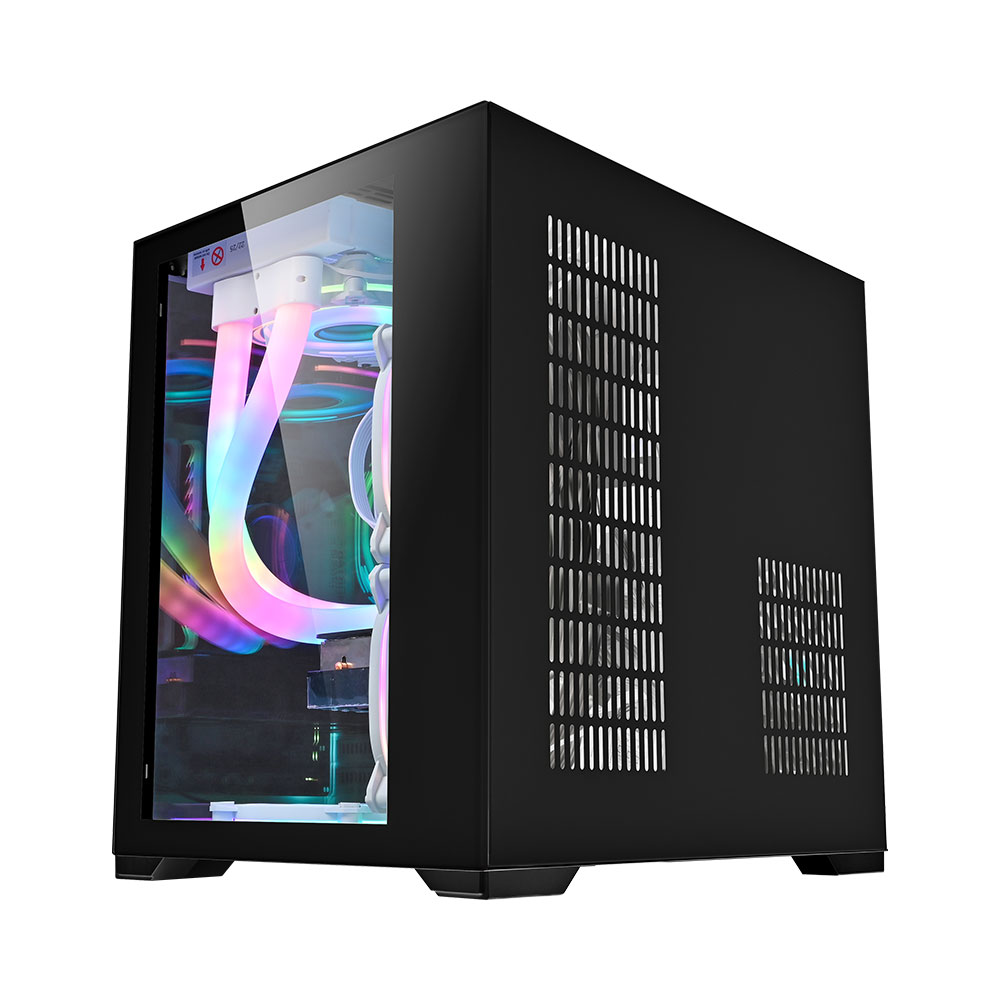

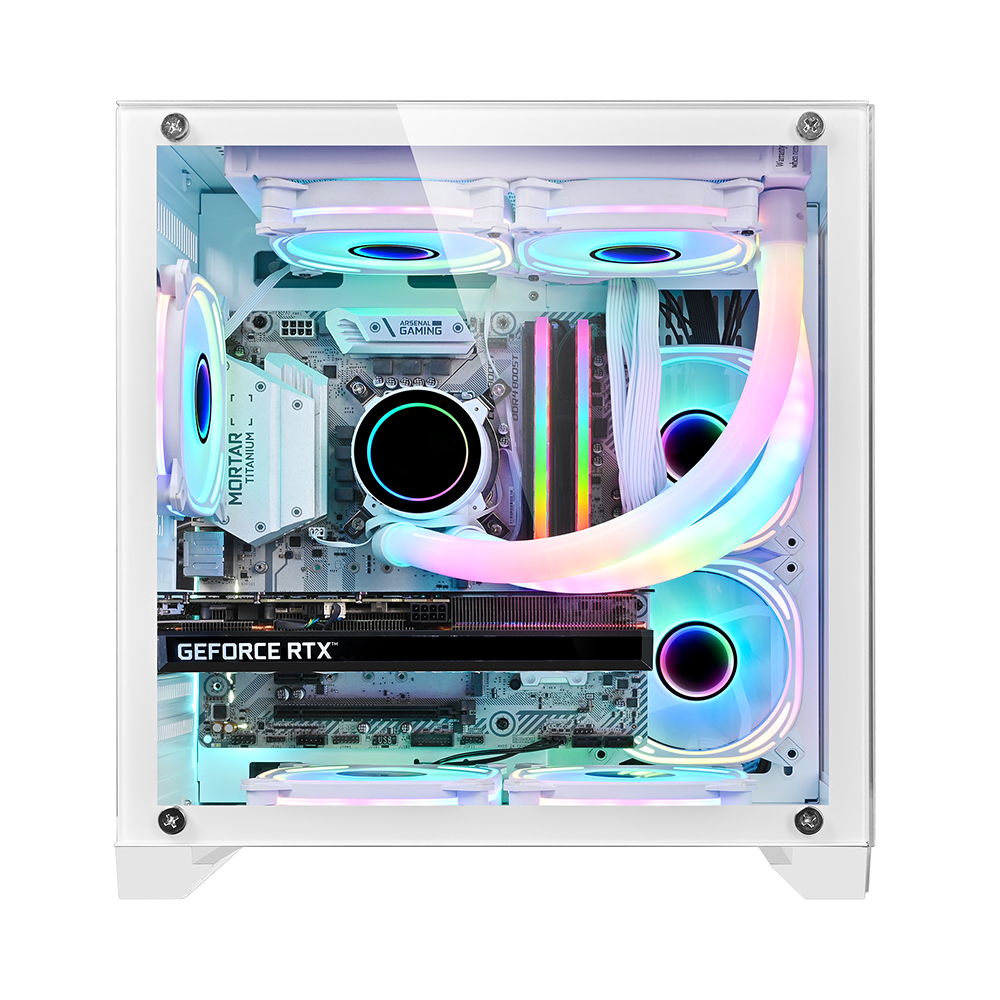

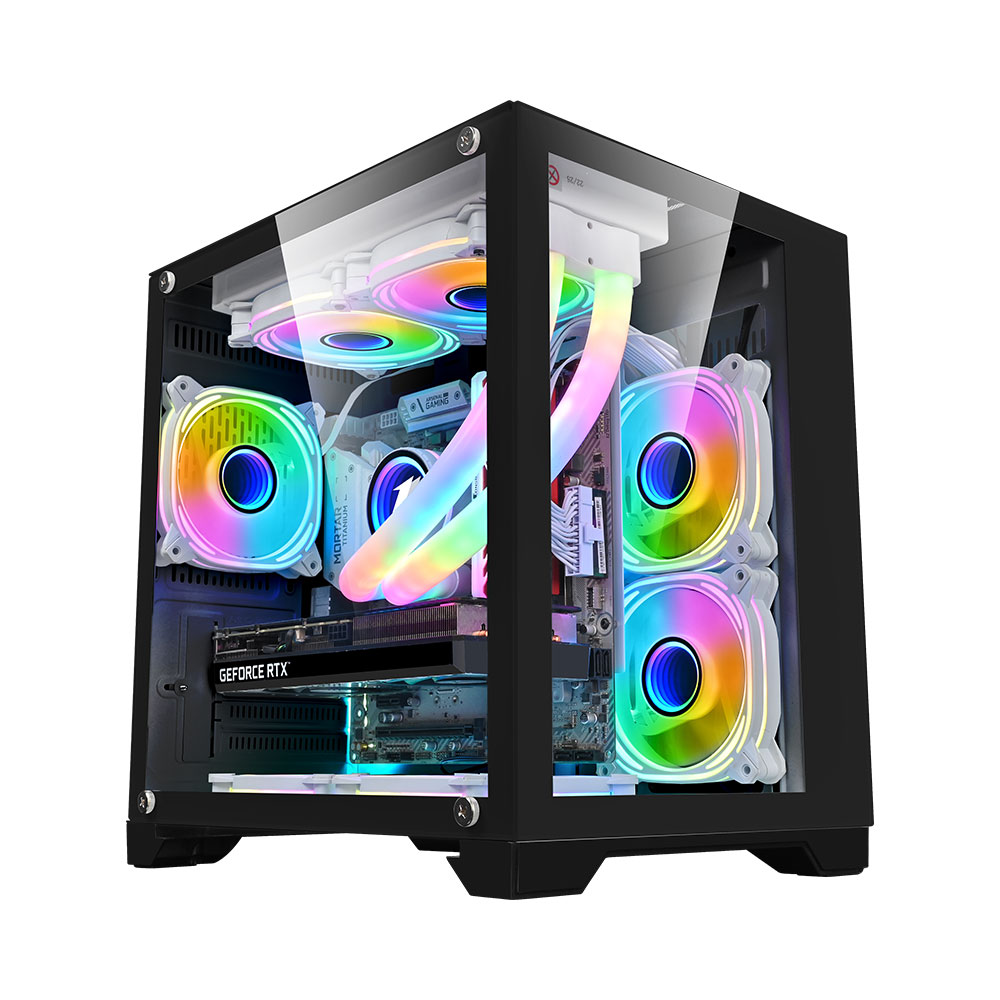

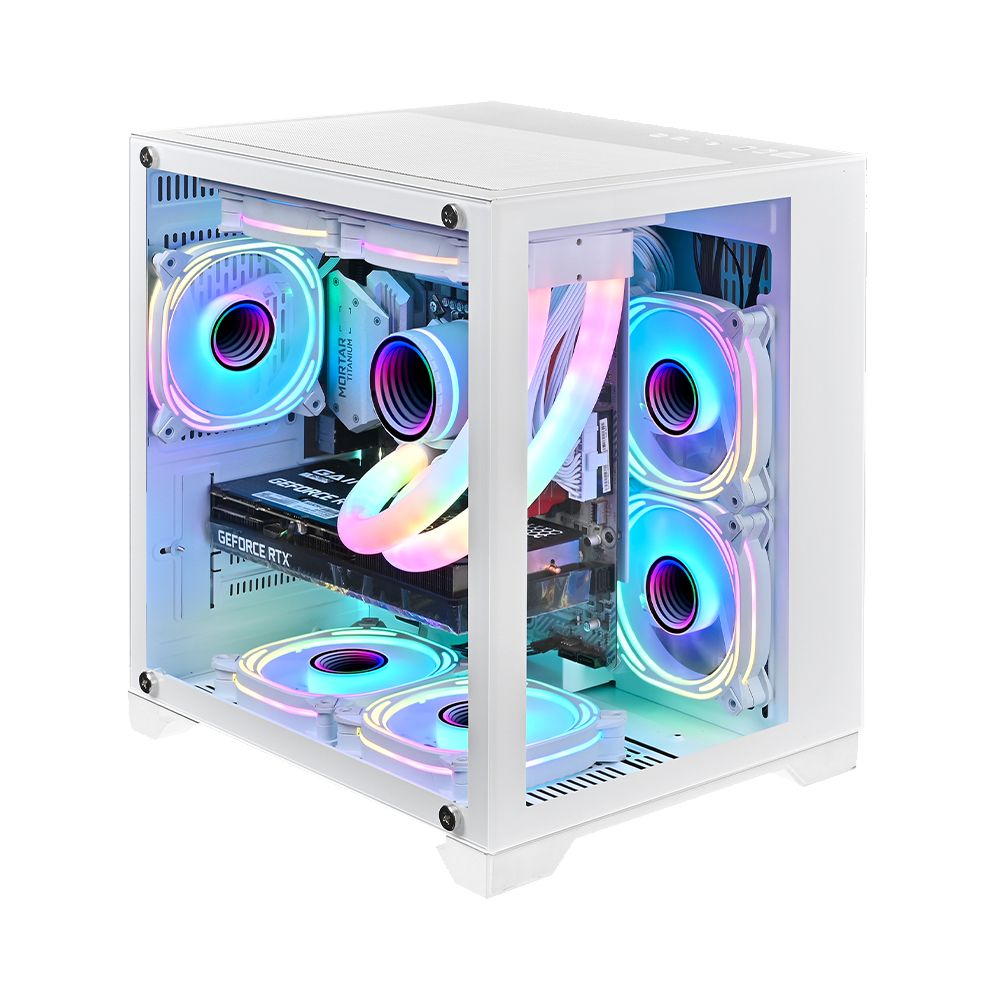

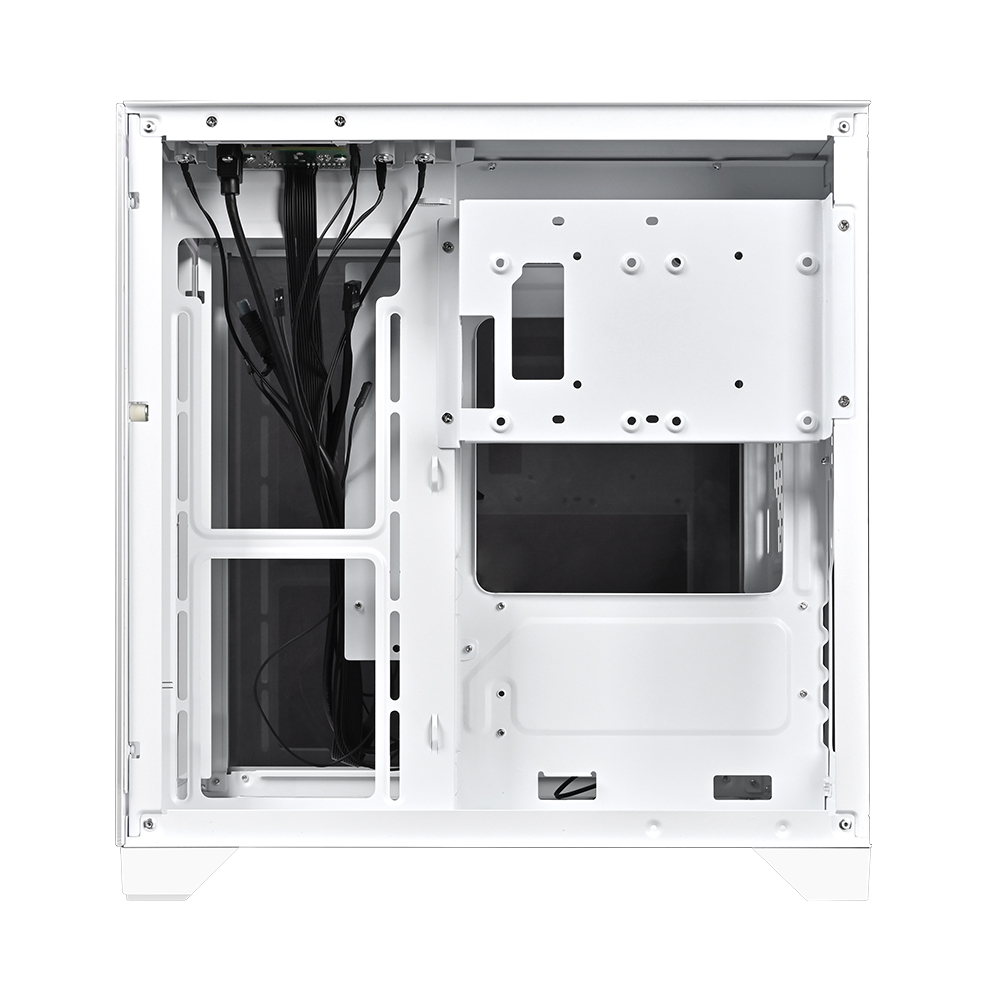

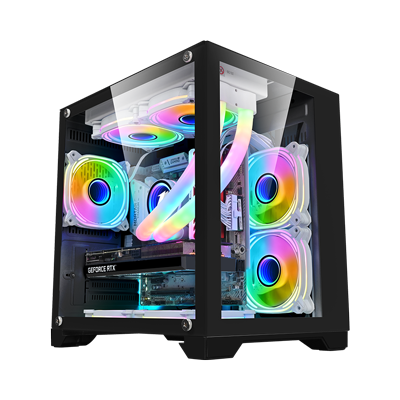

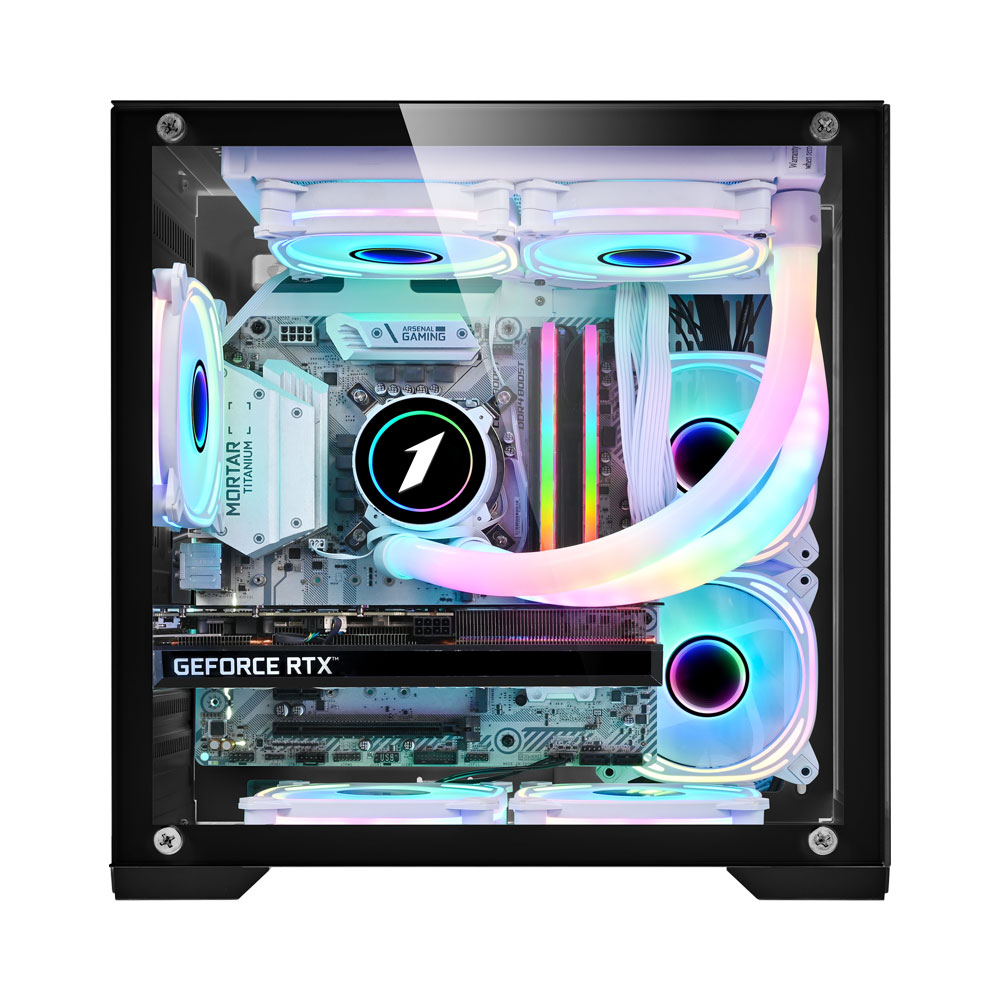

MV5

PC GAMING CASE

SUPPORT 12CM FAN 7PCS
DOUBLE-SIDED TEMPERED GLASS

*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries












Model

MV5

Structure Dimensions(L*W*H)

345*277*350MM

Product Dimensions(L*W*H)

360*282*377MM

Package Dimensions(L*W*H)

435*340*425MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM

F&L SIDE PANEL：TEMPERED GLASS

Form Factor

M-ATX/ITX

Drive Bays

5.25" CD ROM: 0

3.5" HDD: 1+2.5" SSD: 2

CPU MAX Height

157MM

VGA MAX Length

330MM

I/O Panel

USB3.0*2+HD AUDIO

PCI Card Slot

Fan Support

ON THE LEFT OF THE FRONT SIDE: 2*12CM

TOP: 2*12CM

REAR: 1*12CM

BOTTOM: 2*12CM

Liquid Cooling Support

TOP: 24CM

Power Supply Support

BOTTOM MOUNT

Net Weight

N.W.: 4.2KG

Gross Weight

G.W.: 5.0KG
