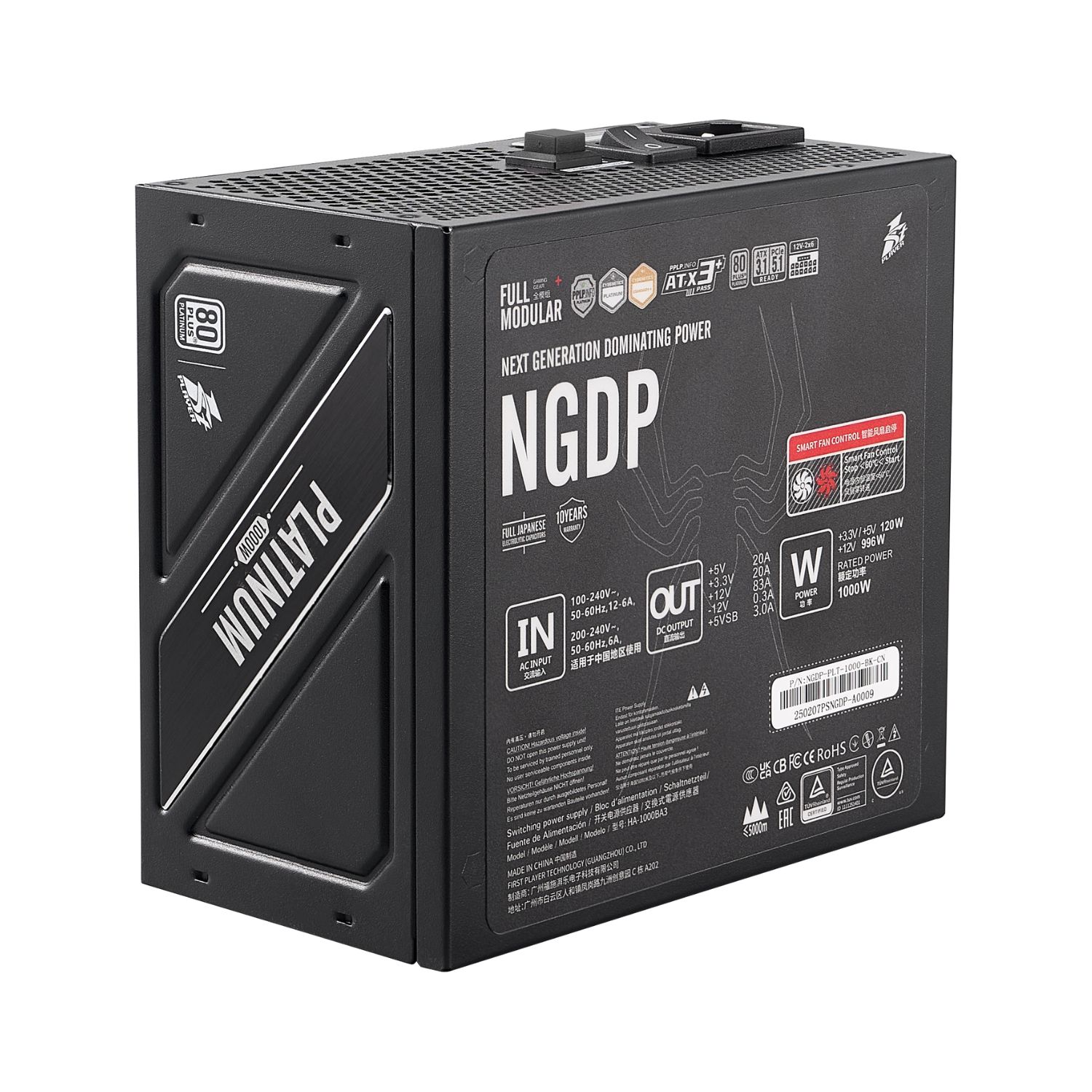

NGDP ATX 3.0 PLATINUM

POWER SUPPLY 1000W / 1300W

PC POWER SUPPLY

PLATINUM

FULL-MODULAR

MES ID CHECK

CYBENETICS ATX3.0 PASS

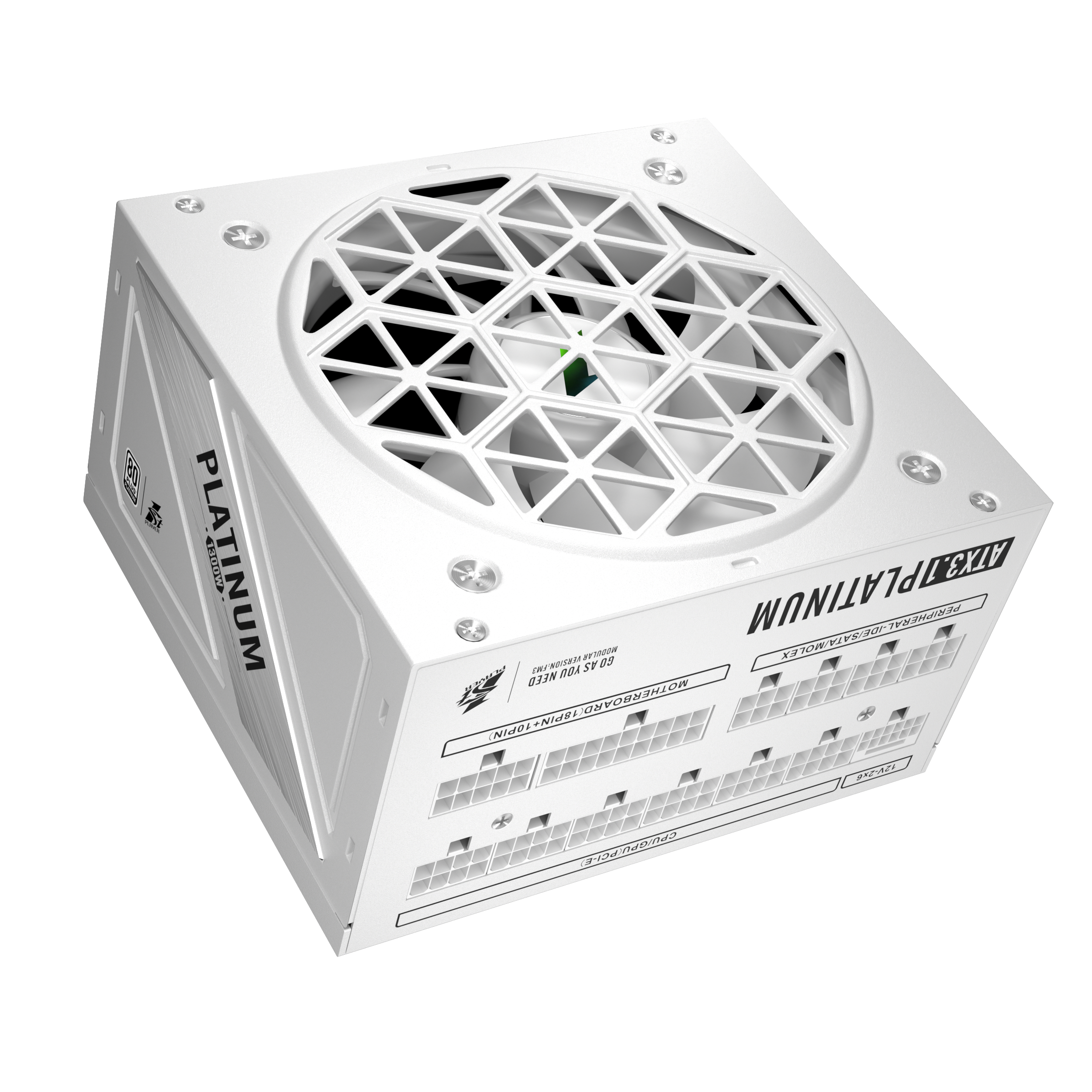

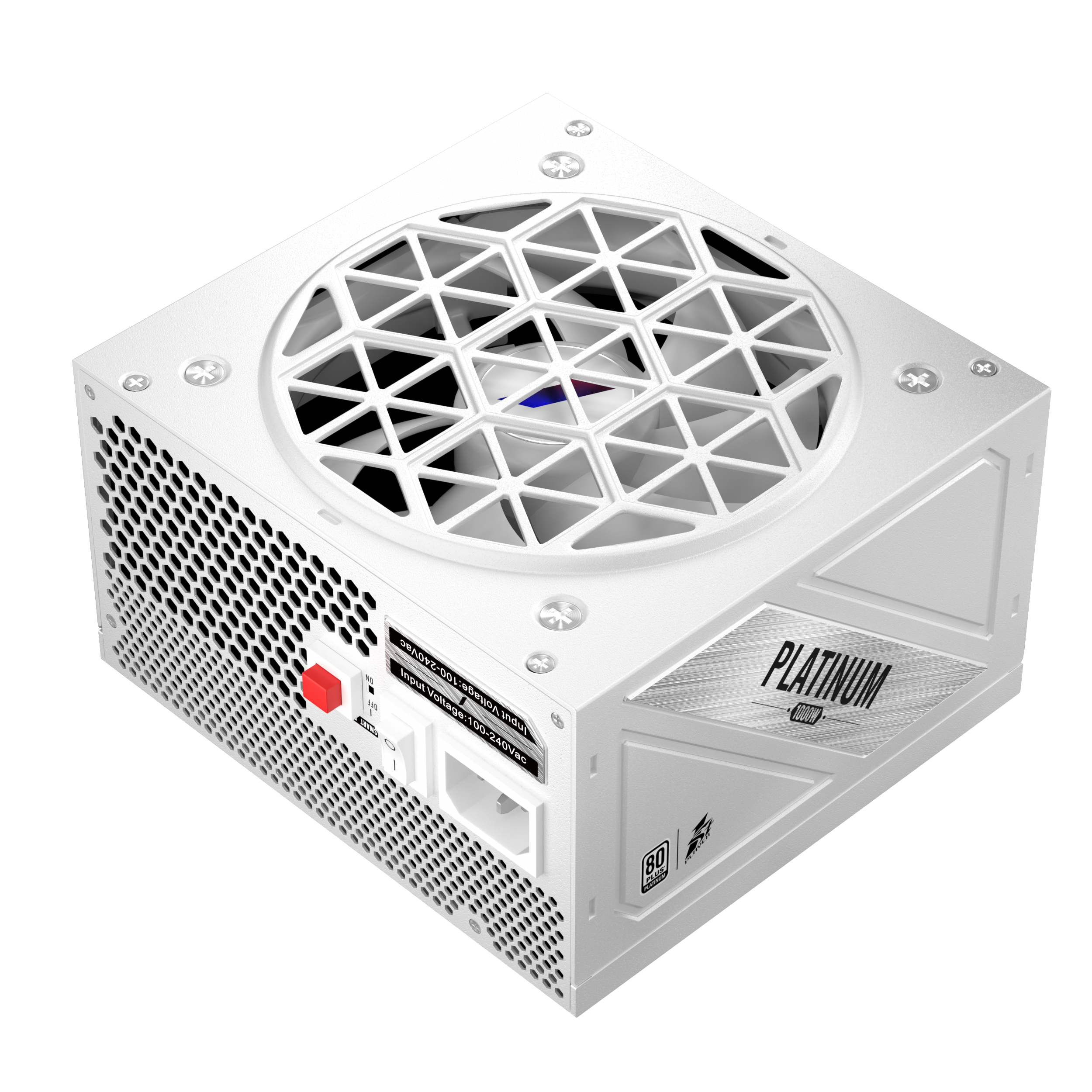

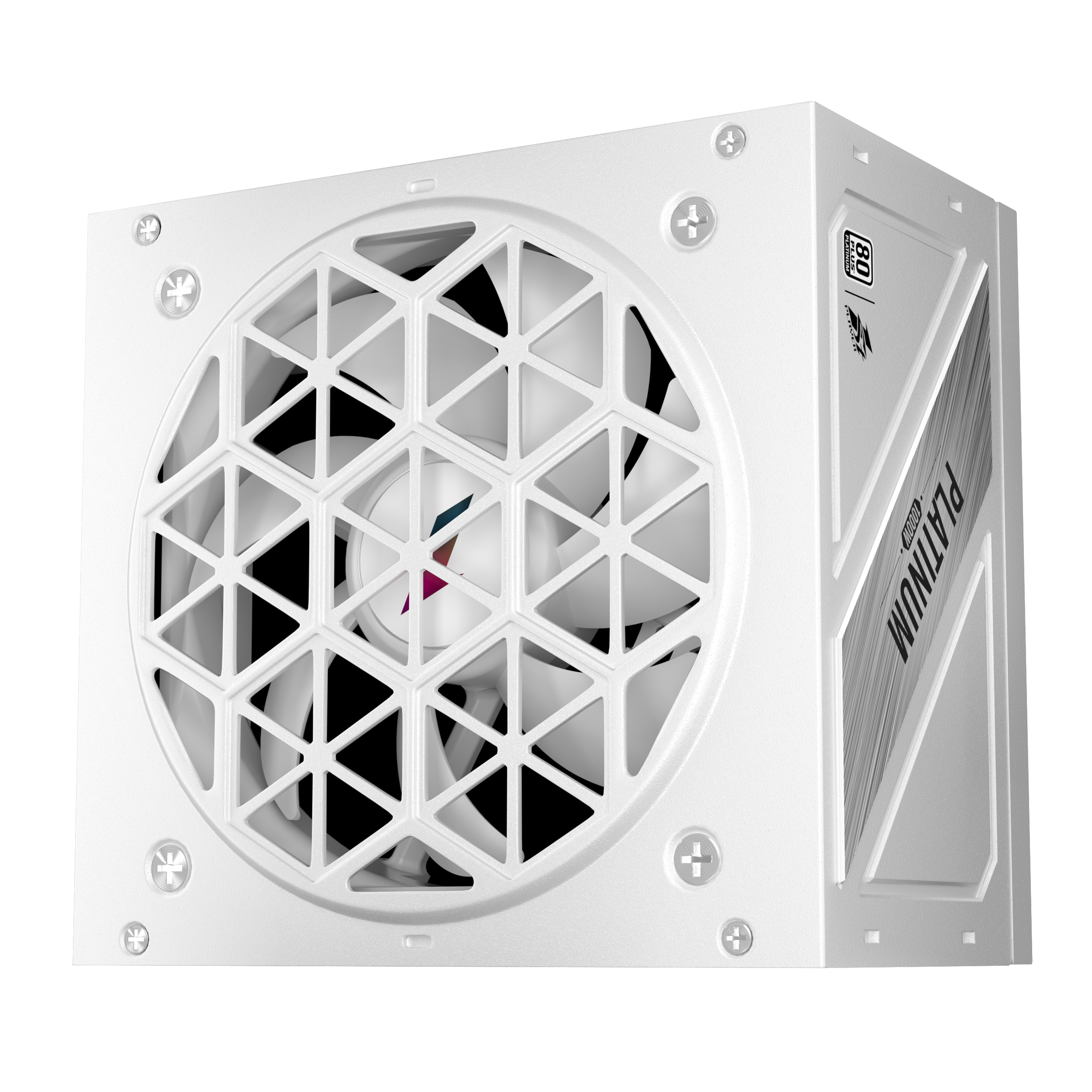

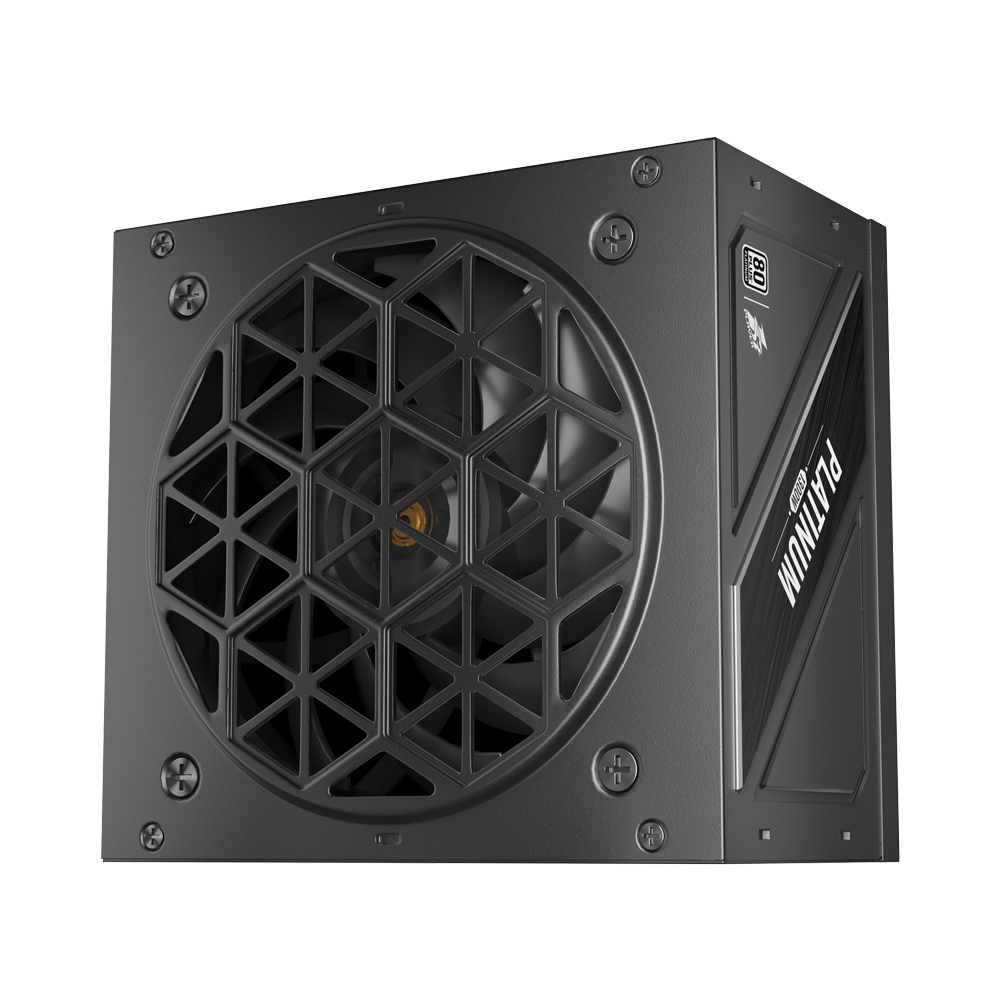

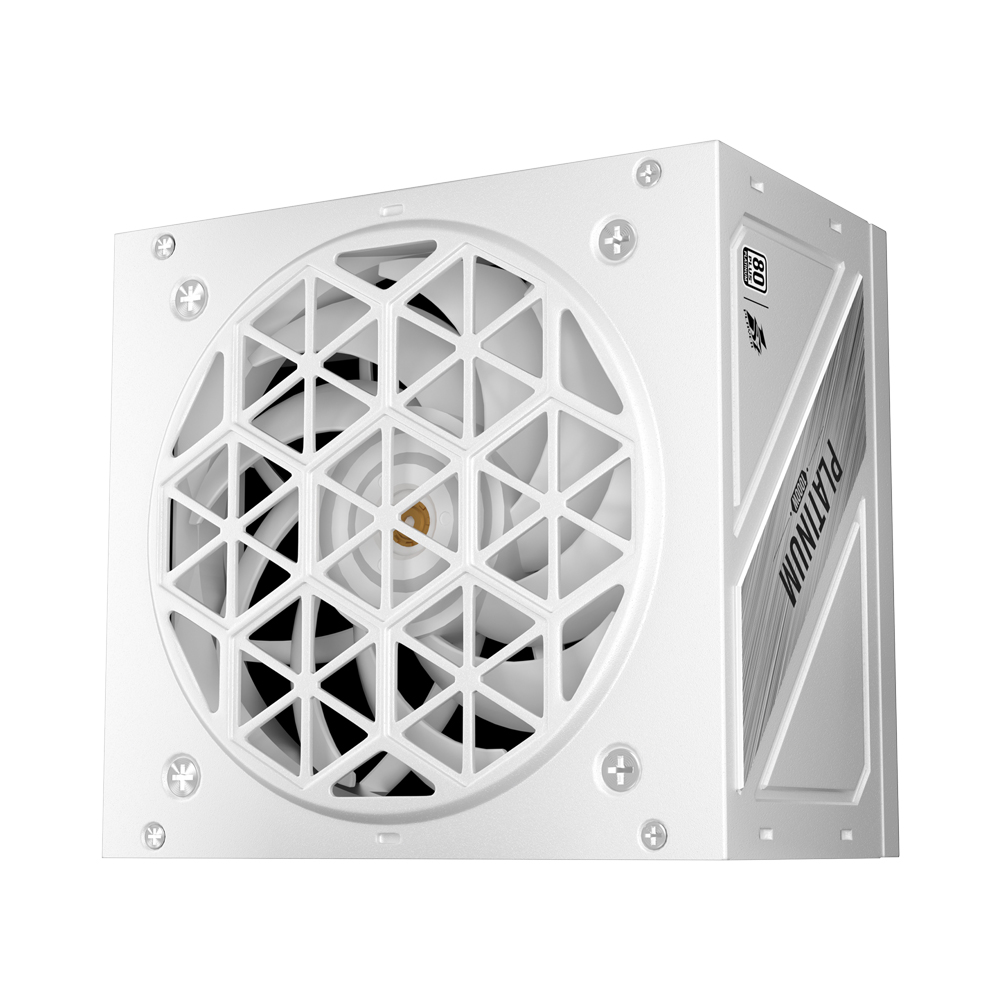

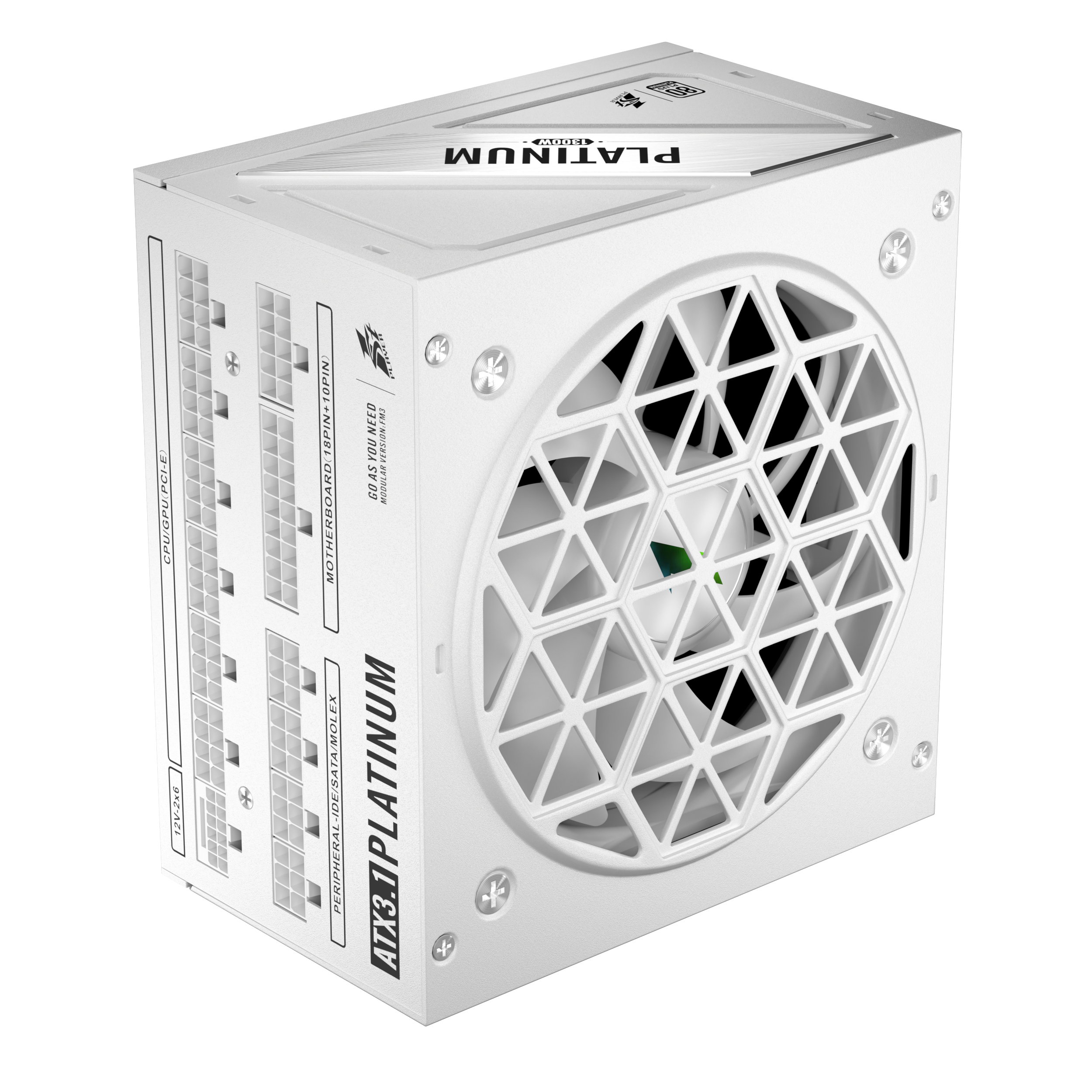

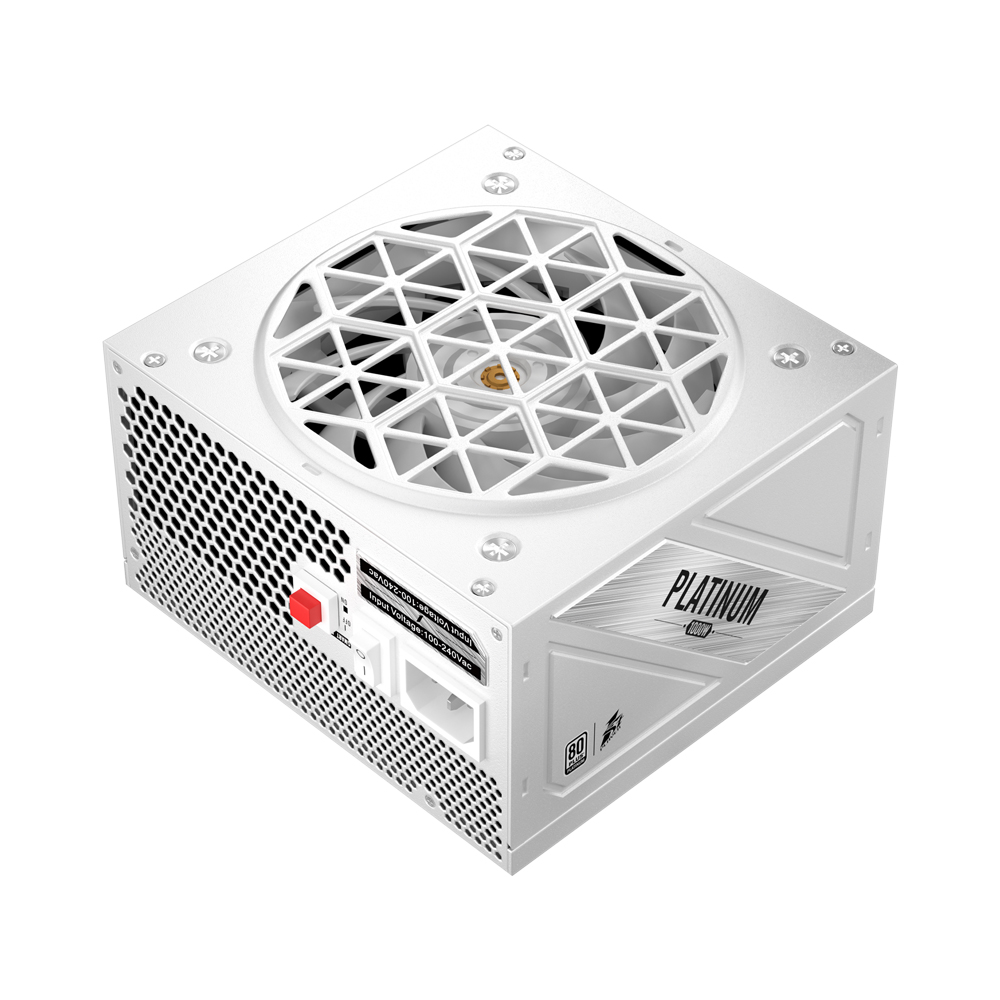

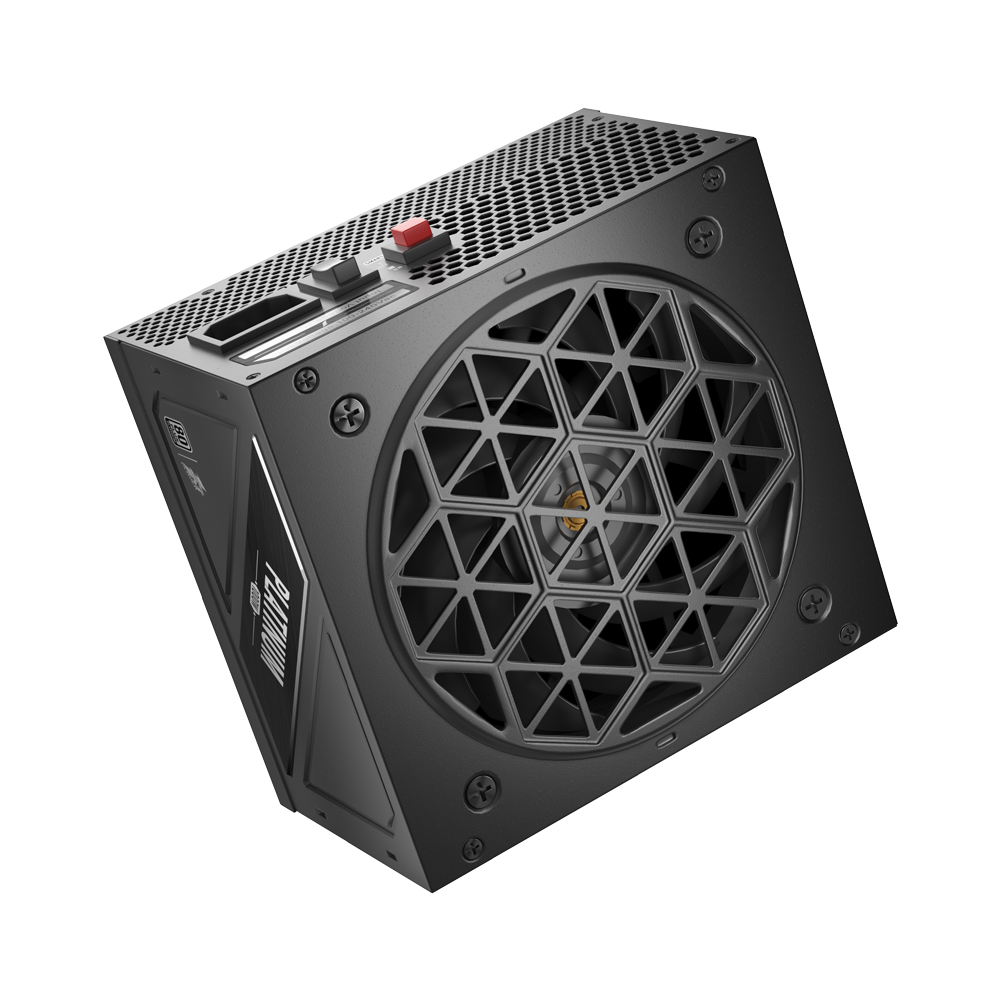

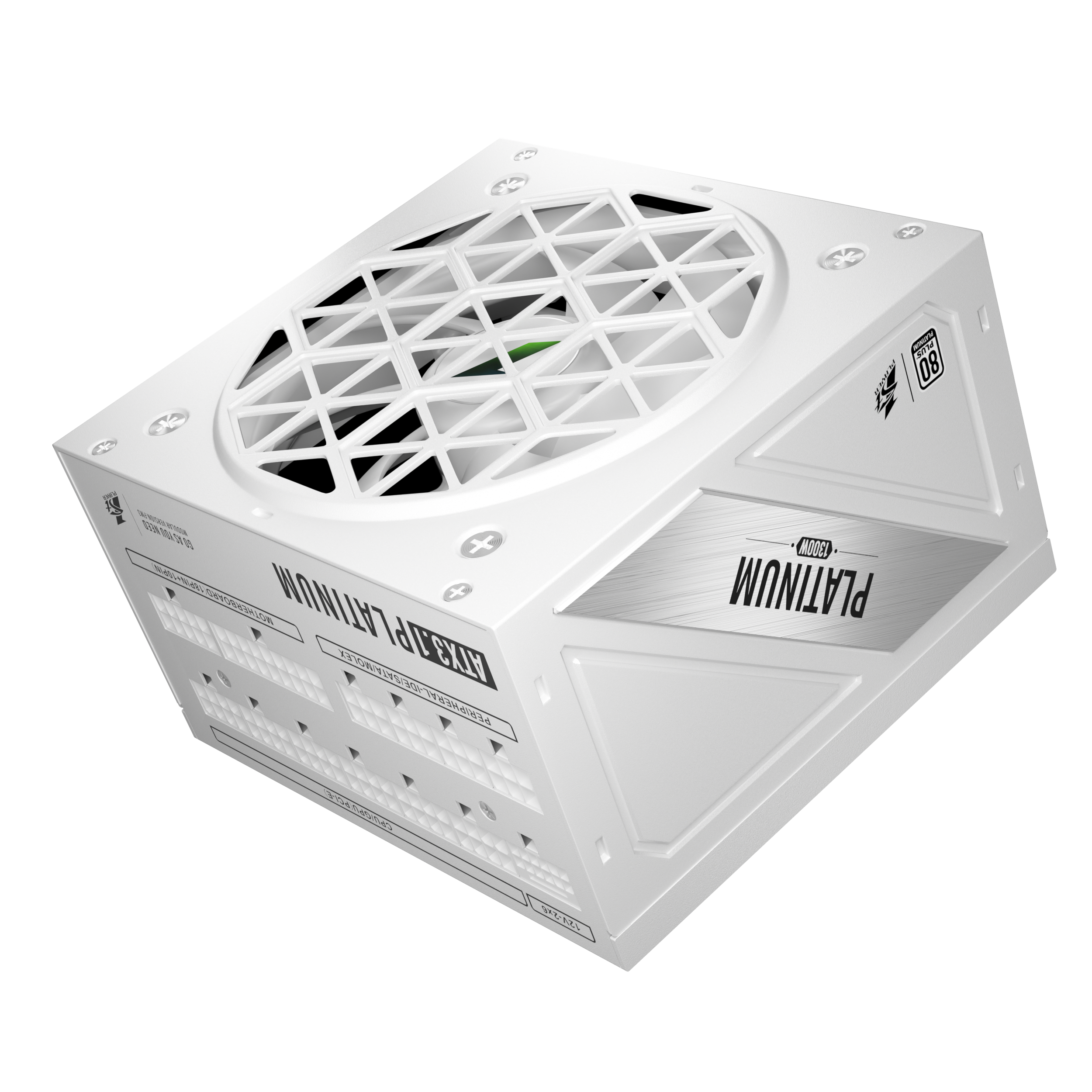

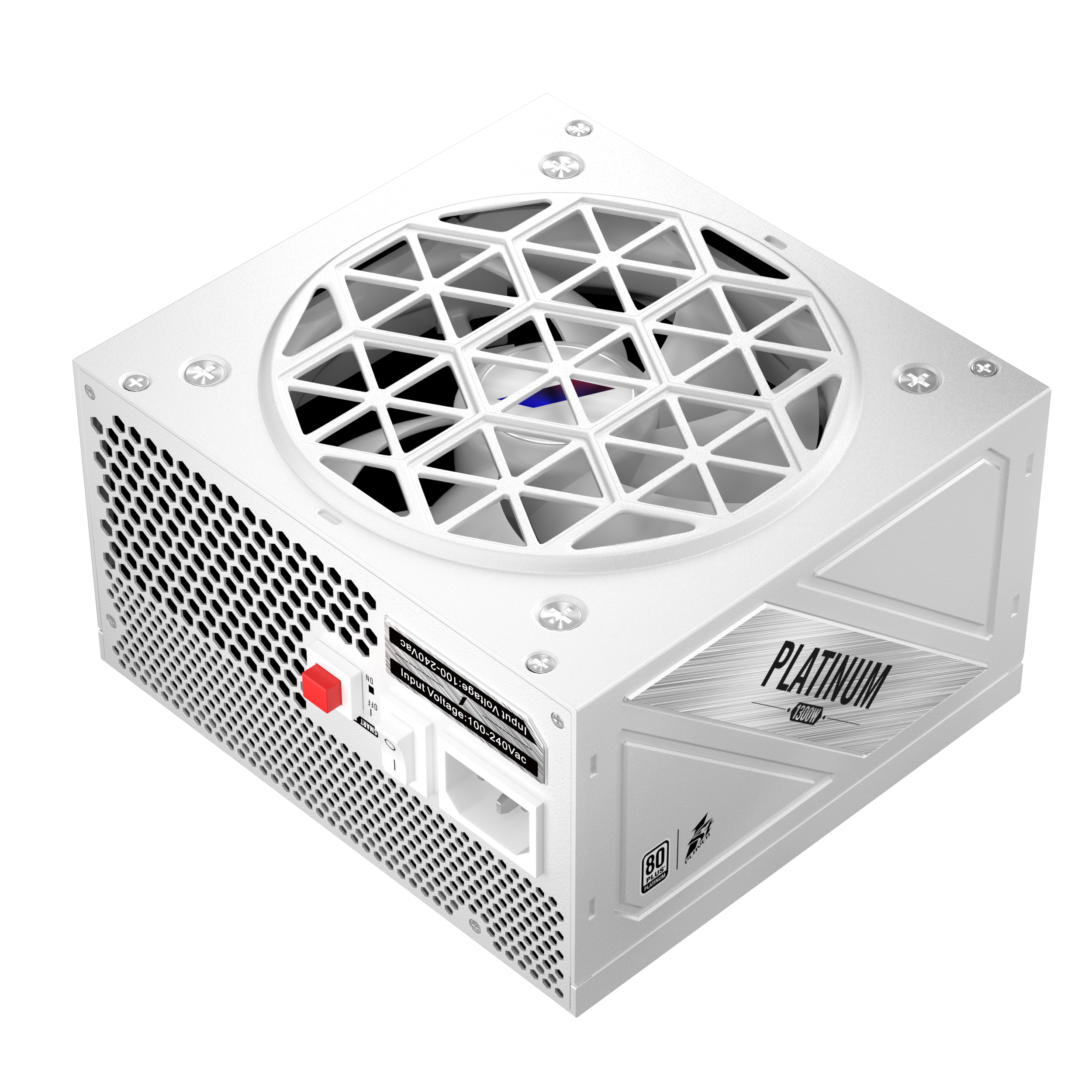

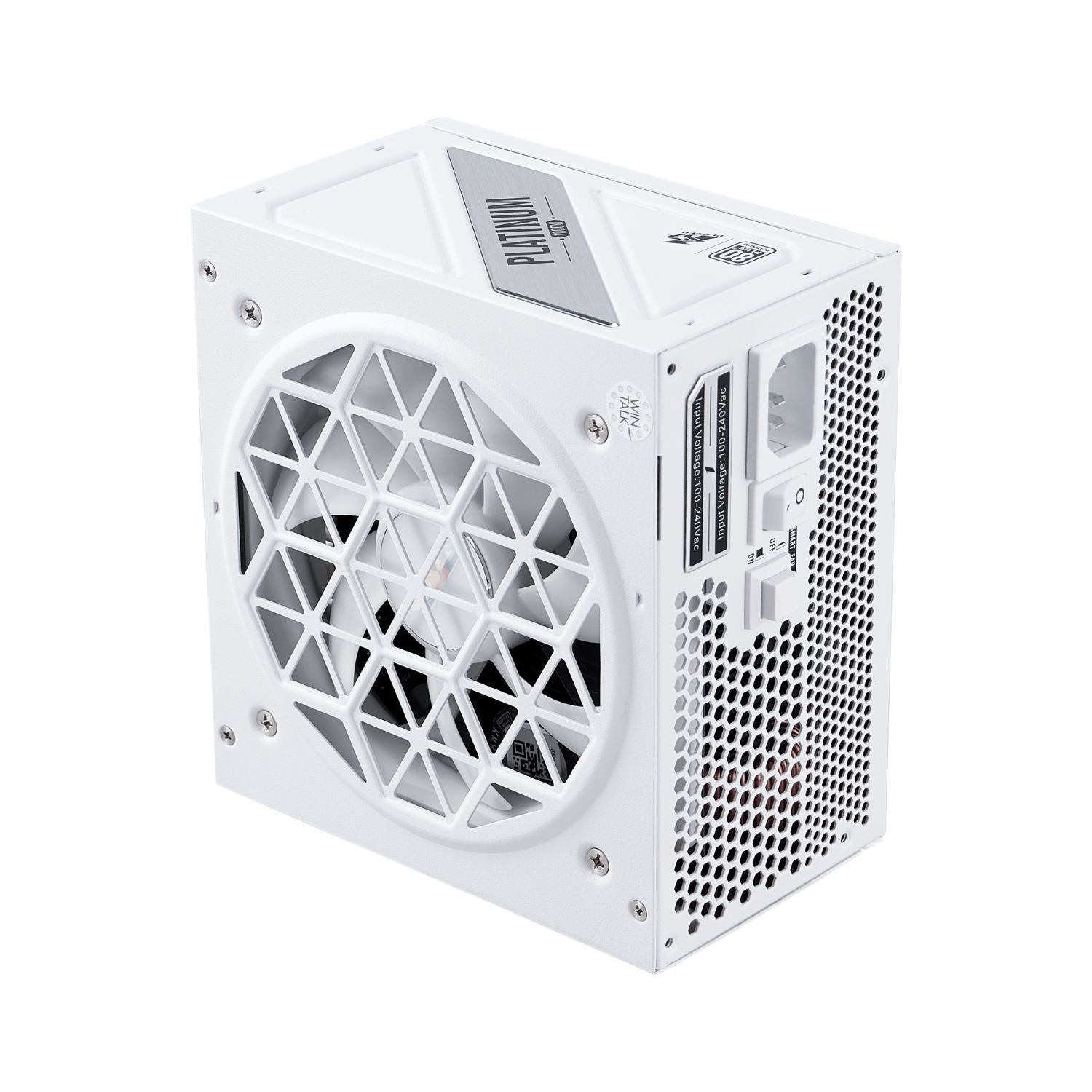

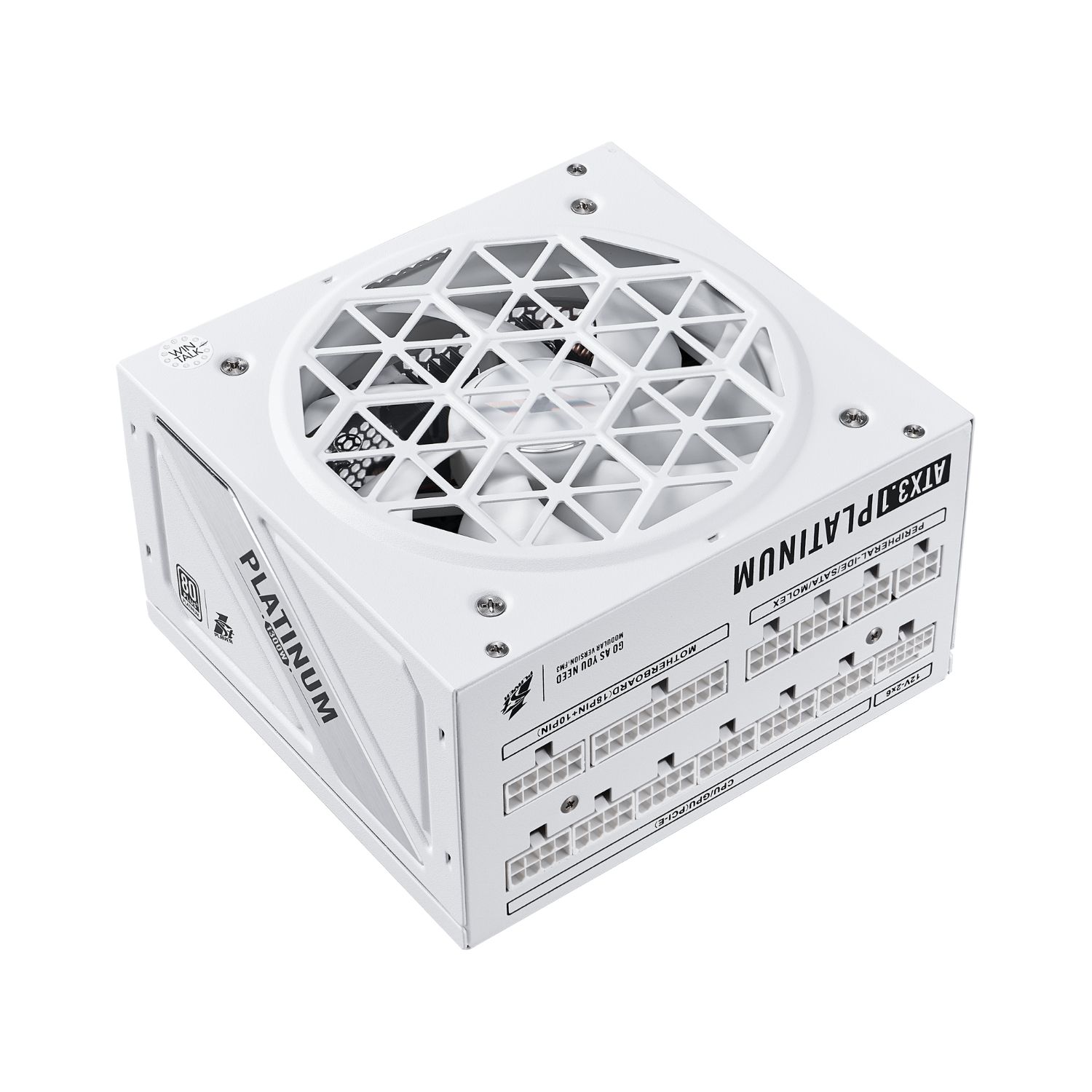

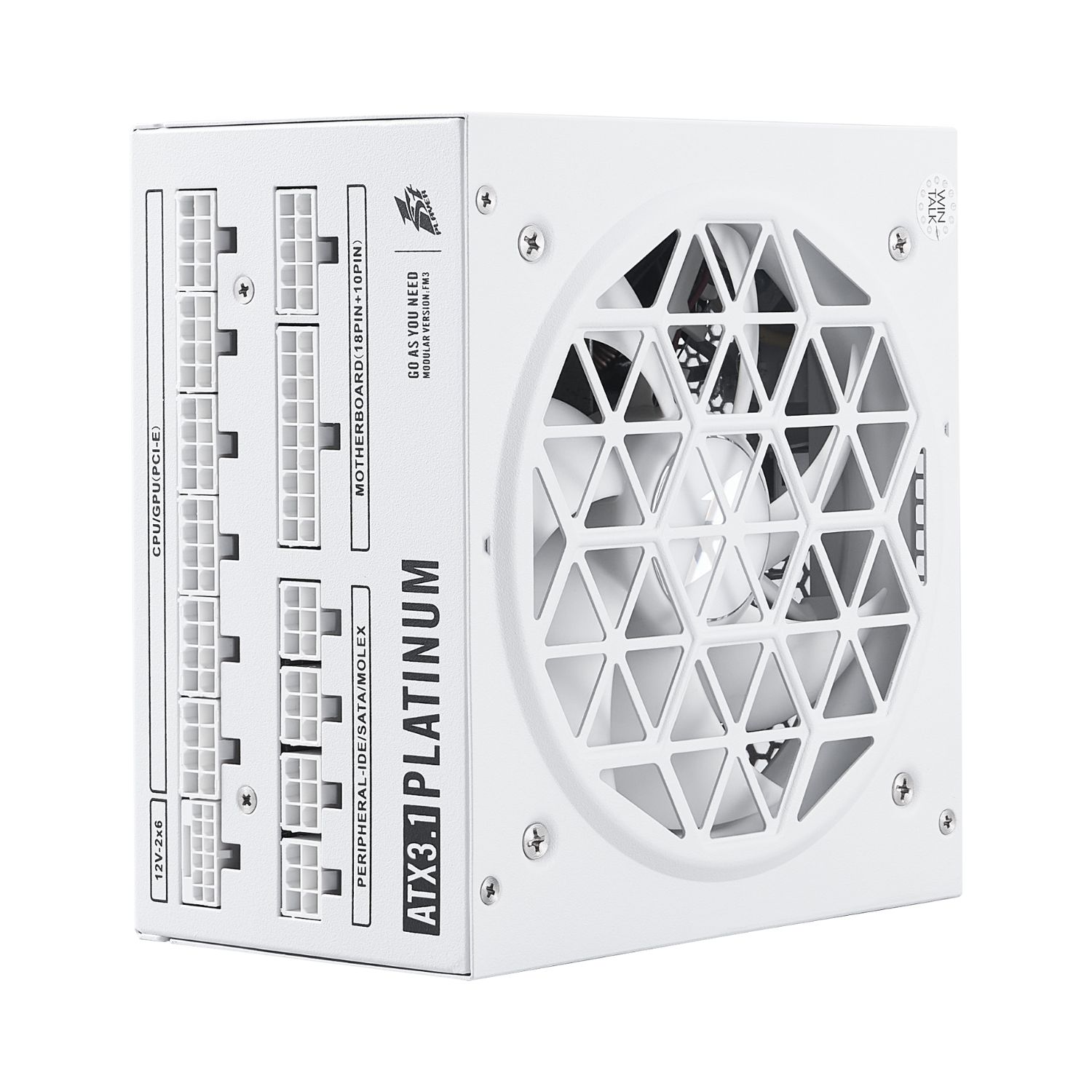

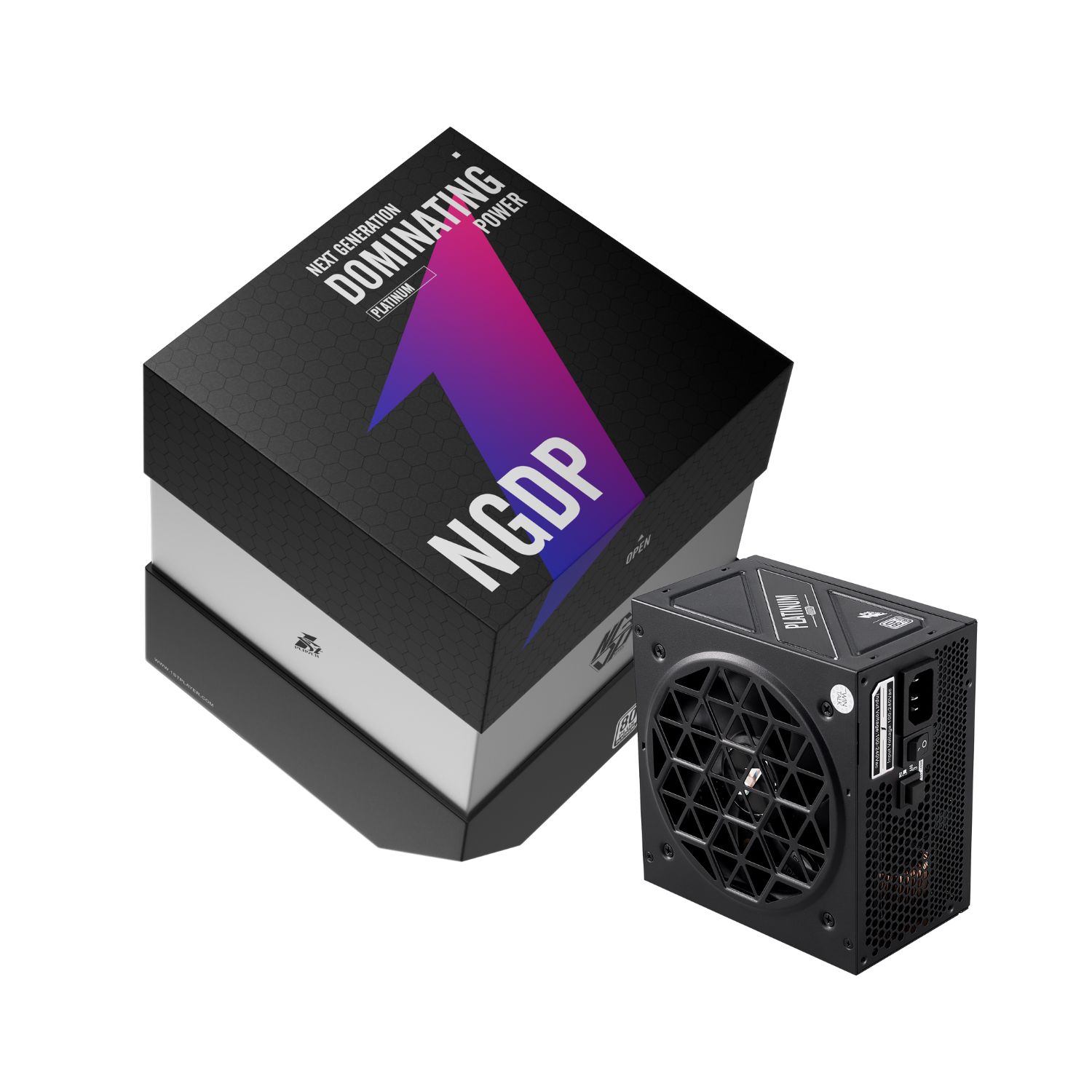

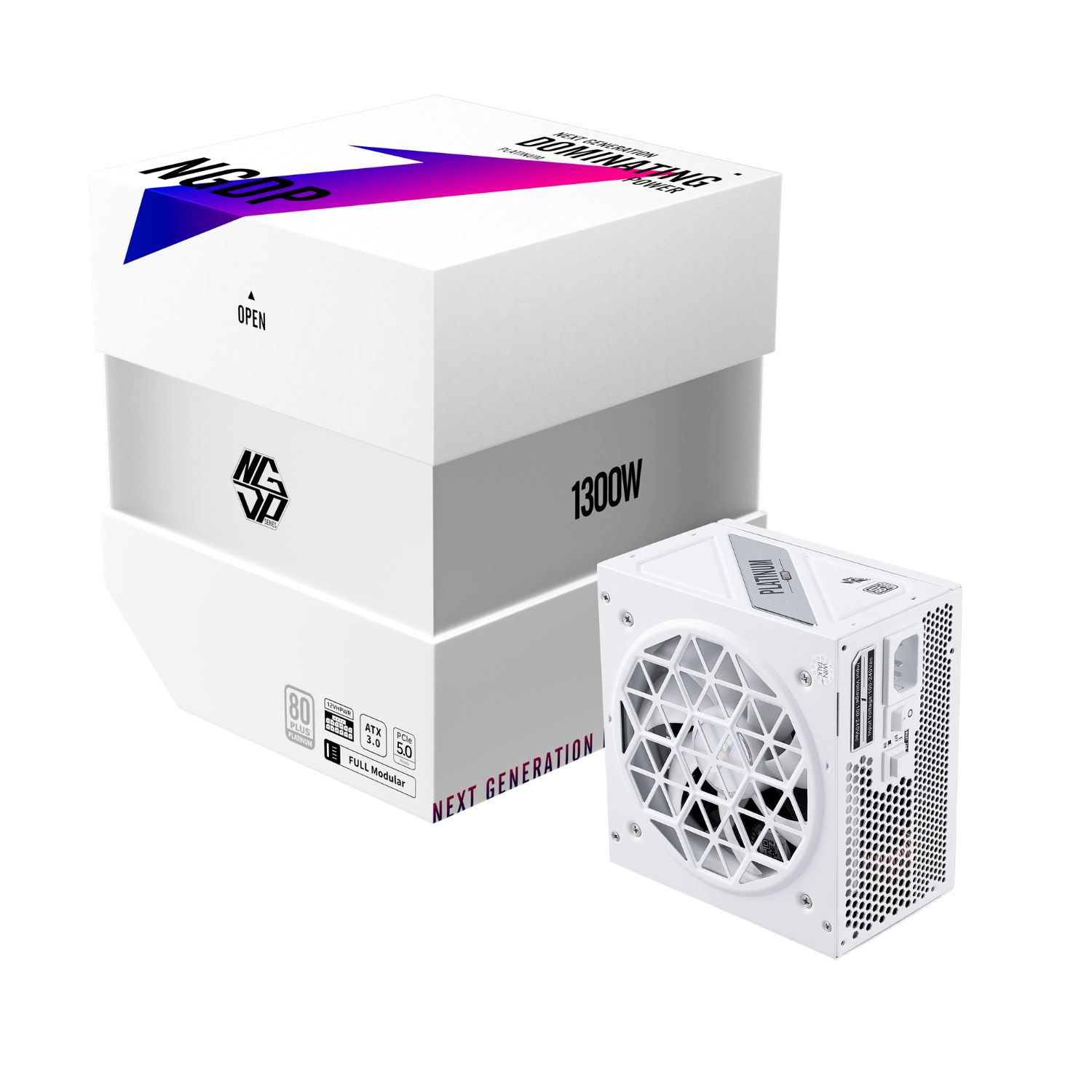

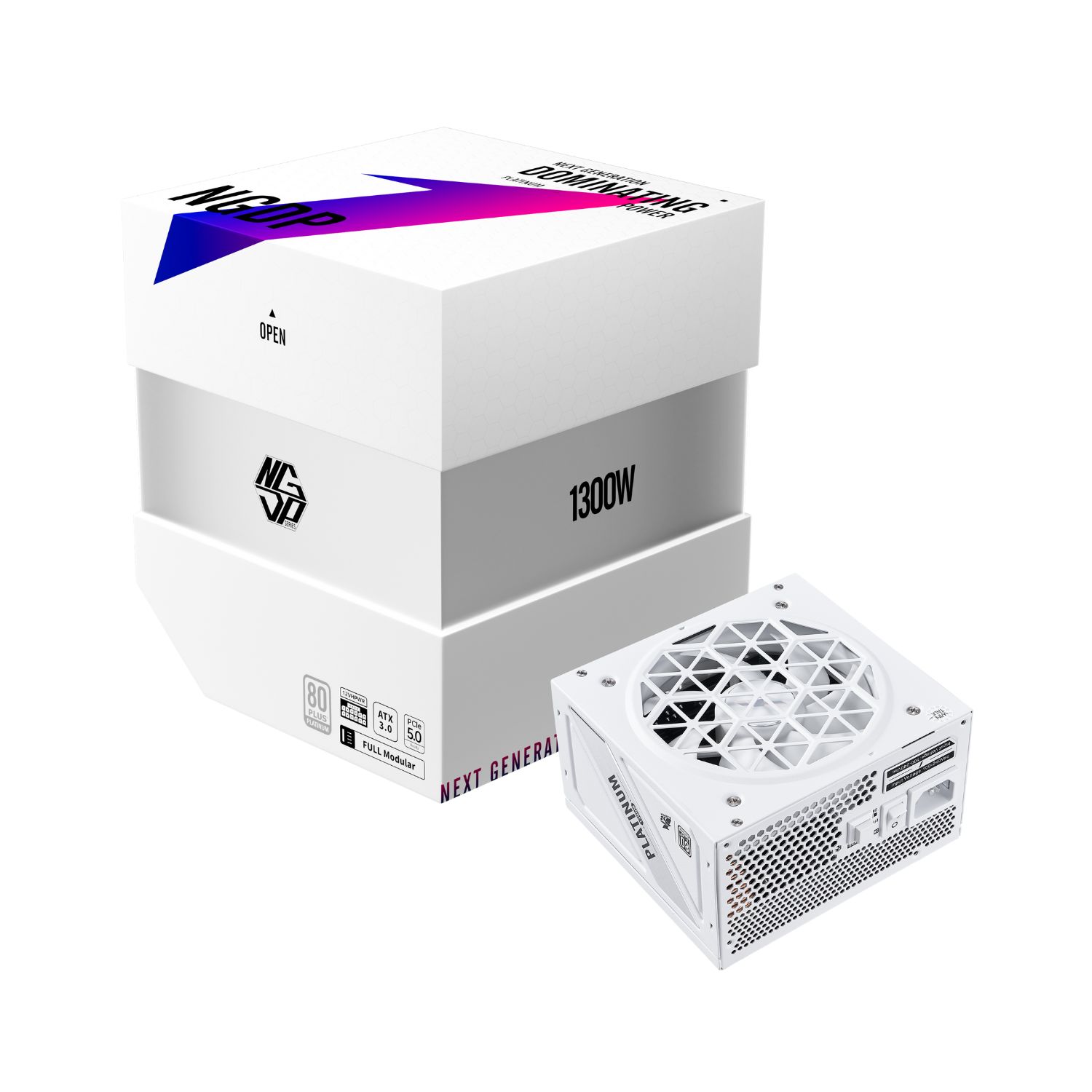

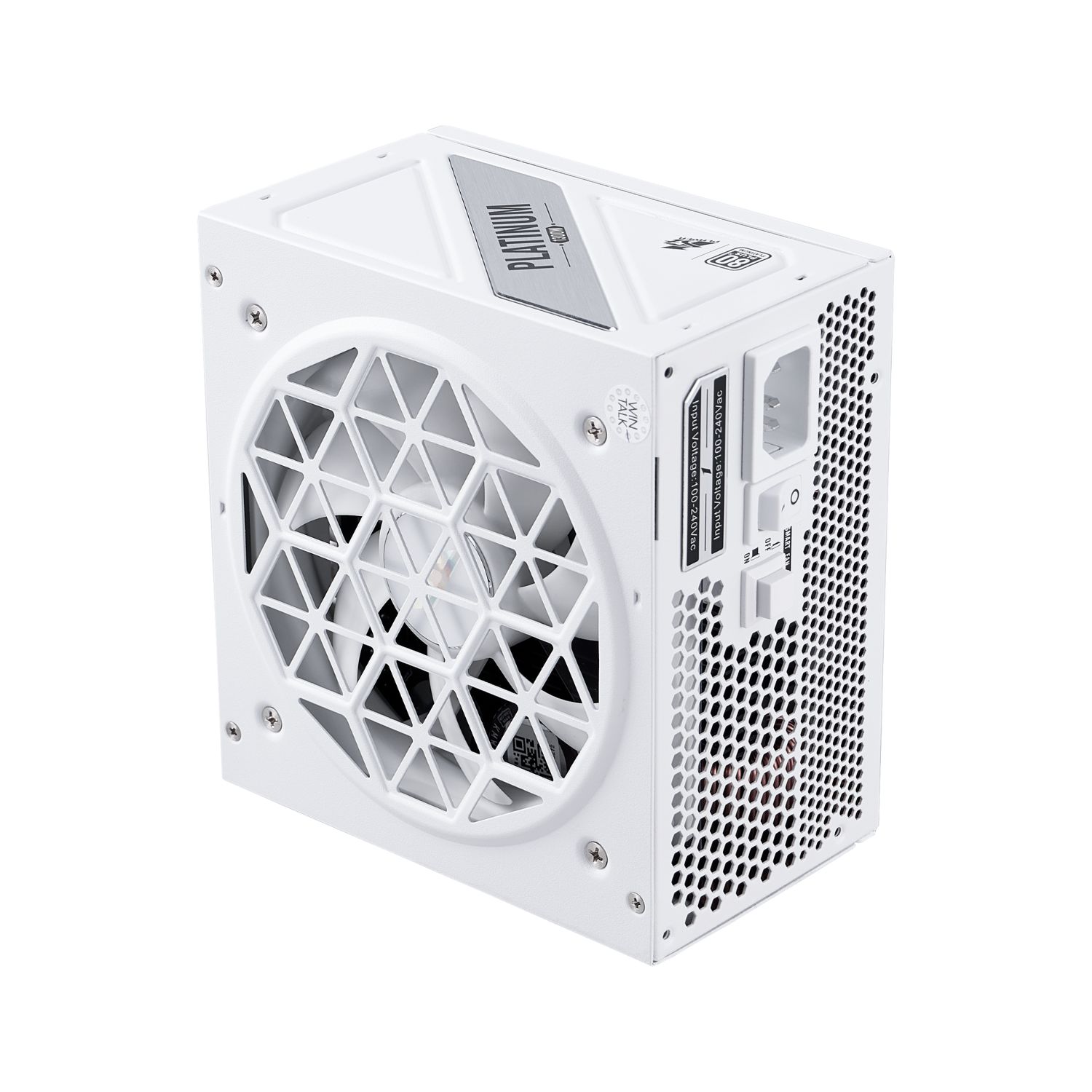

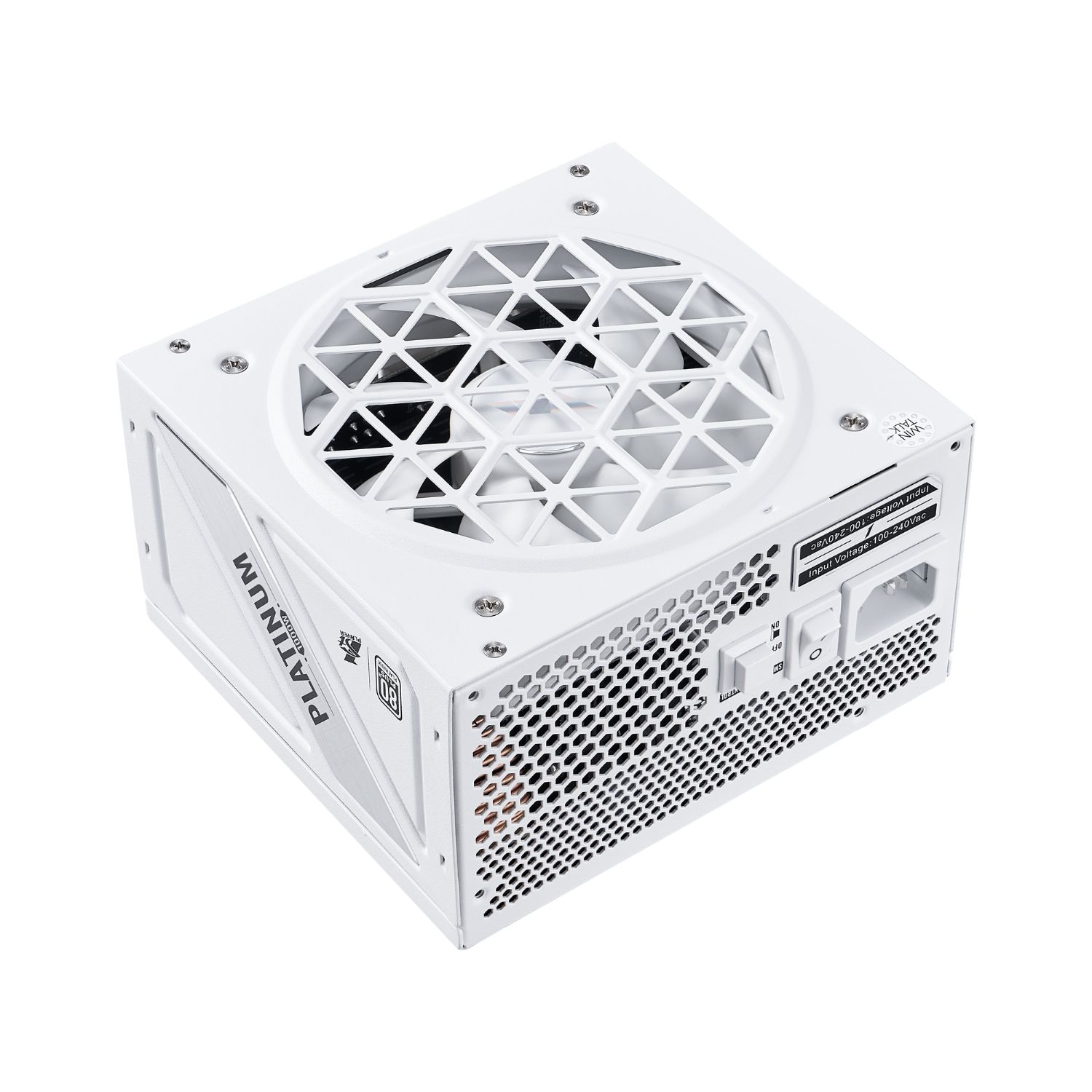

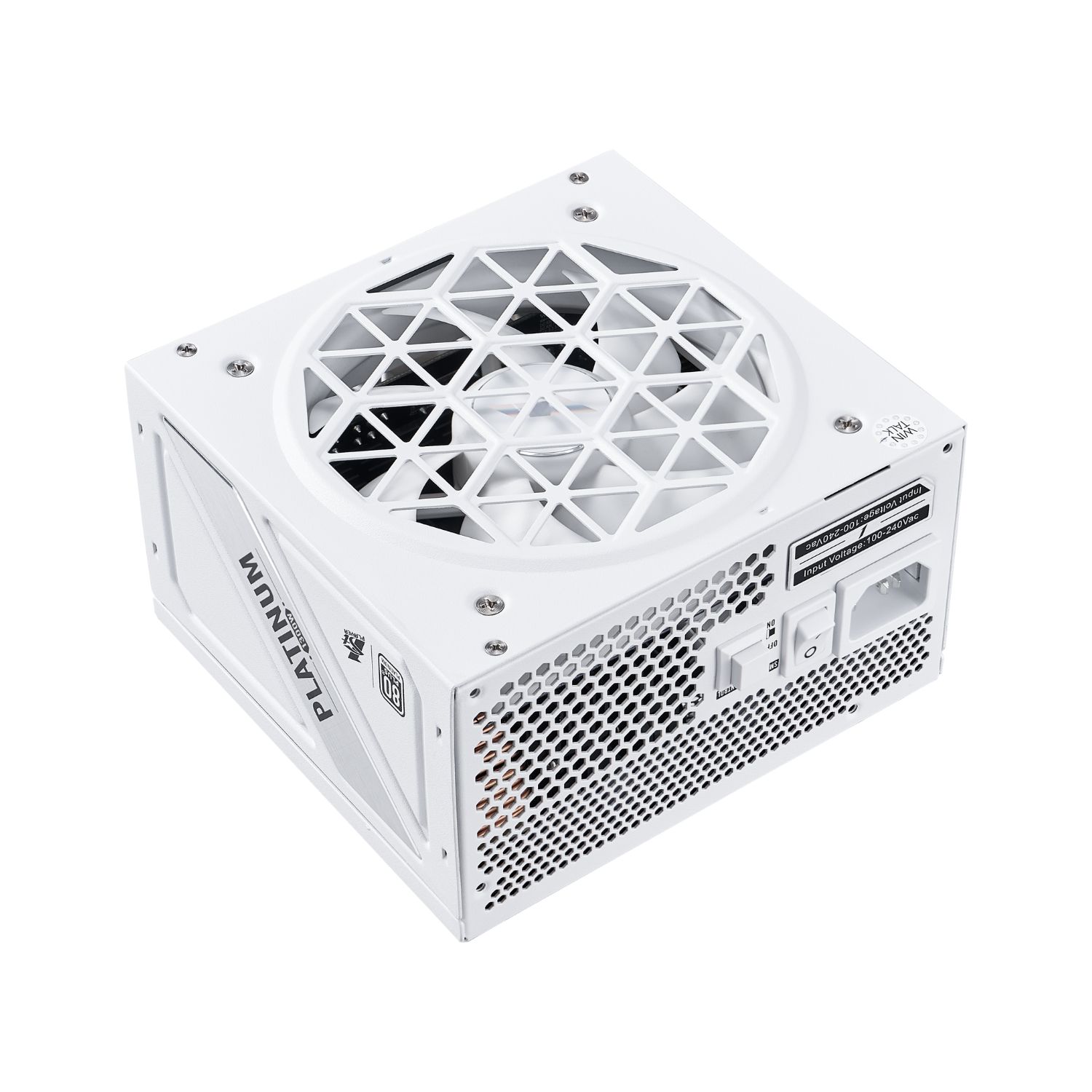

NGDP 1000W White

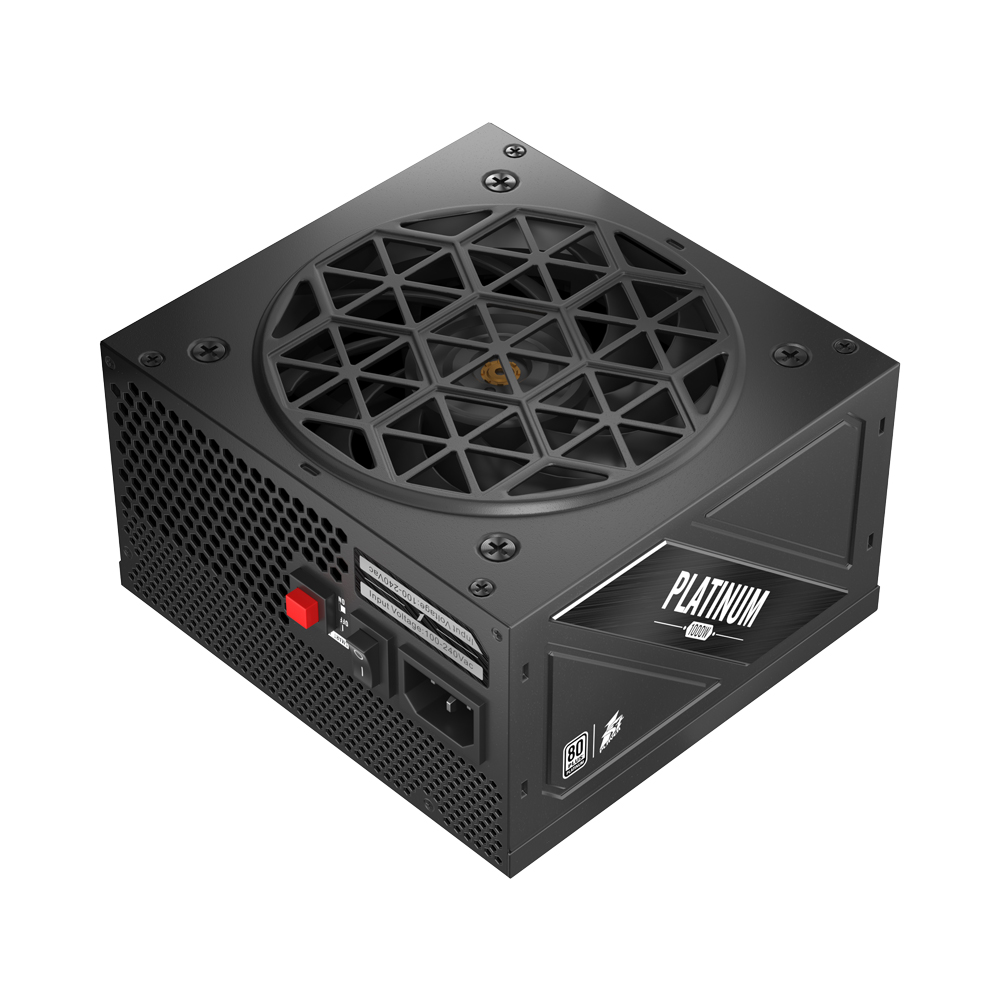

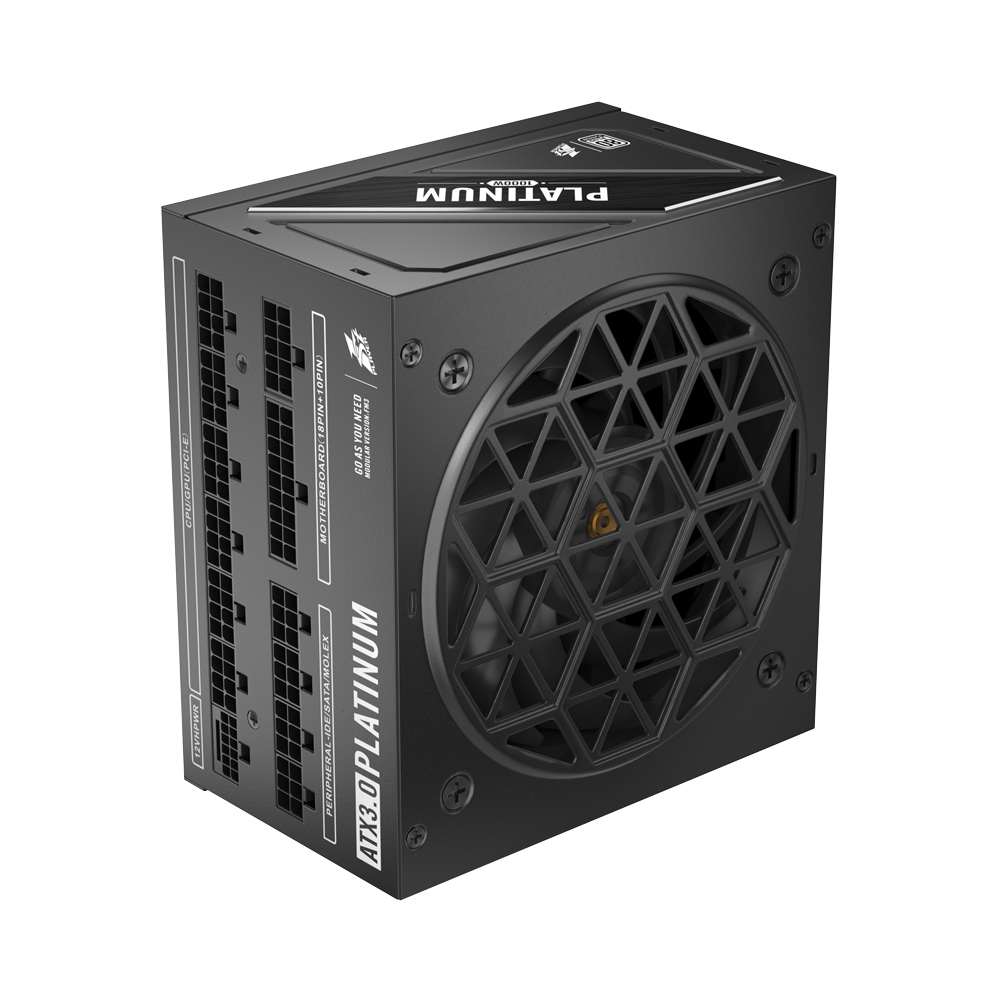

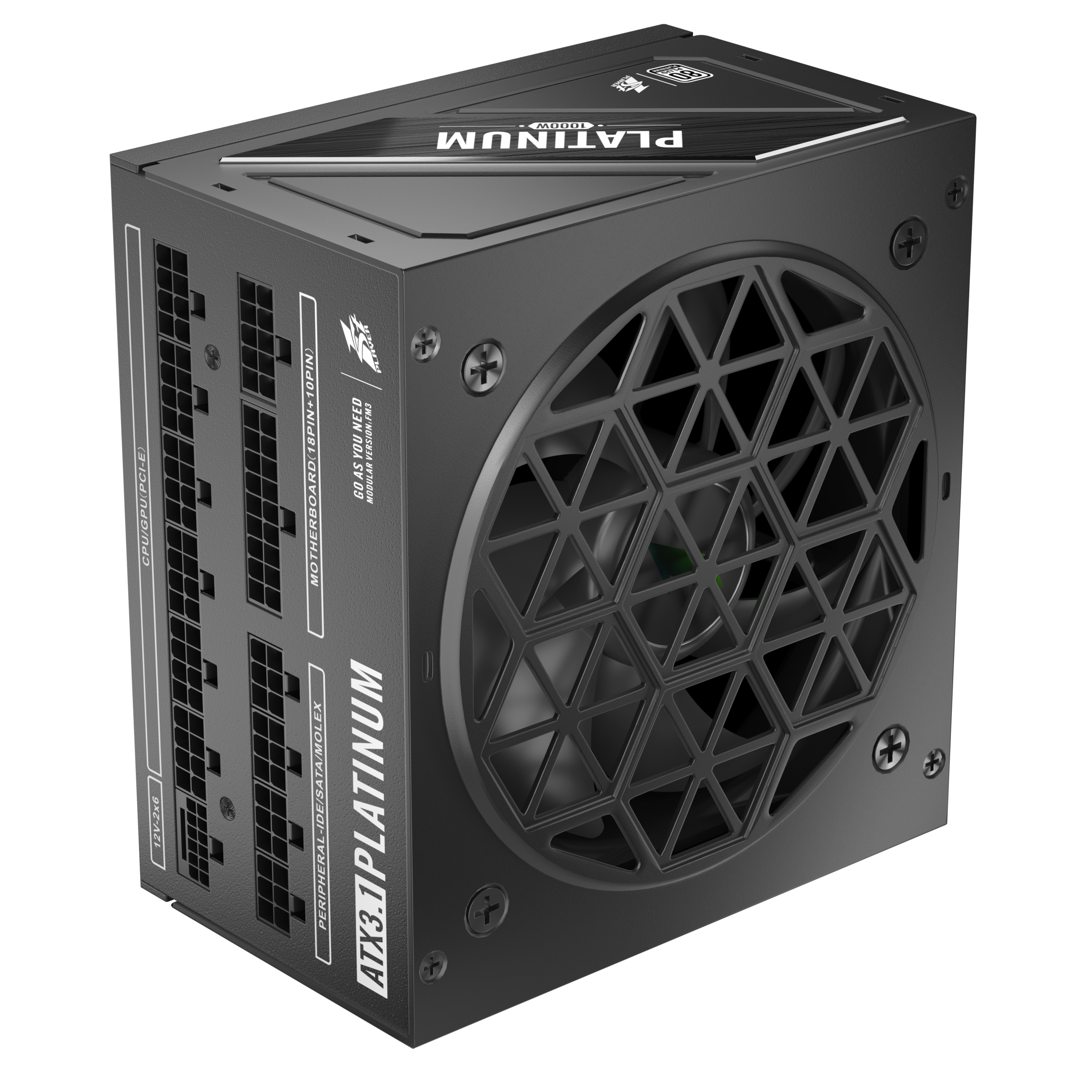

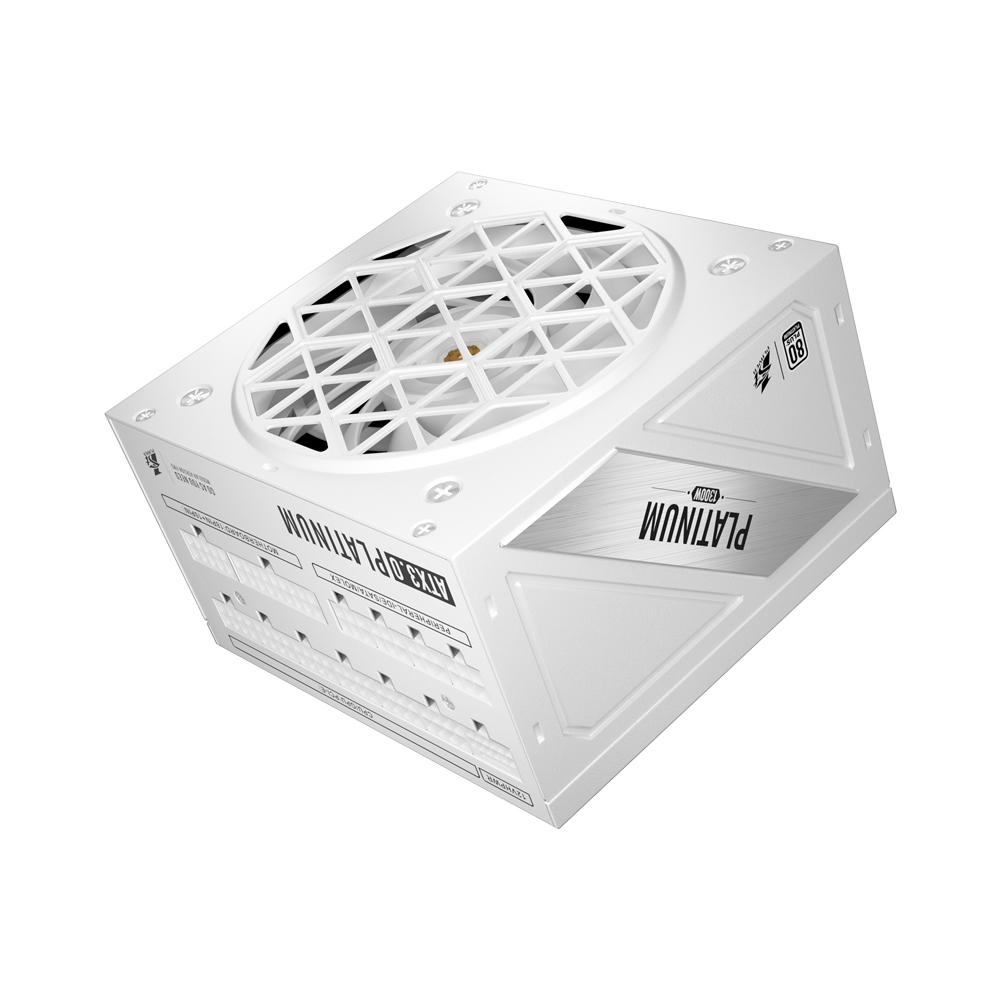

NGDP 1000W/1300W

Watch Video

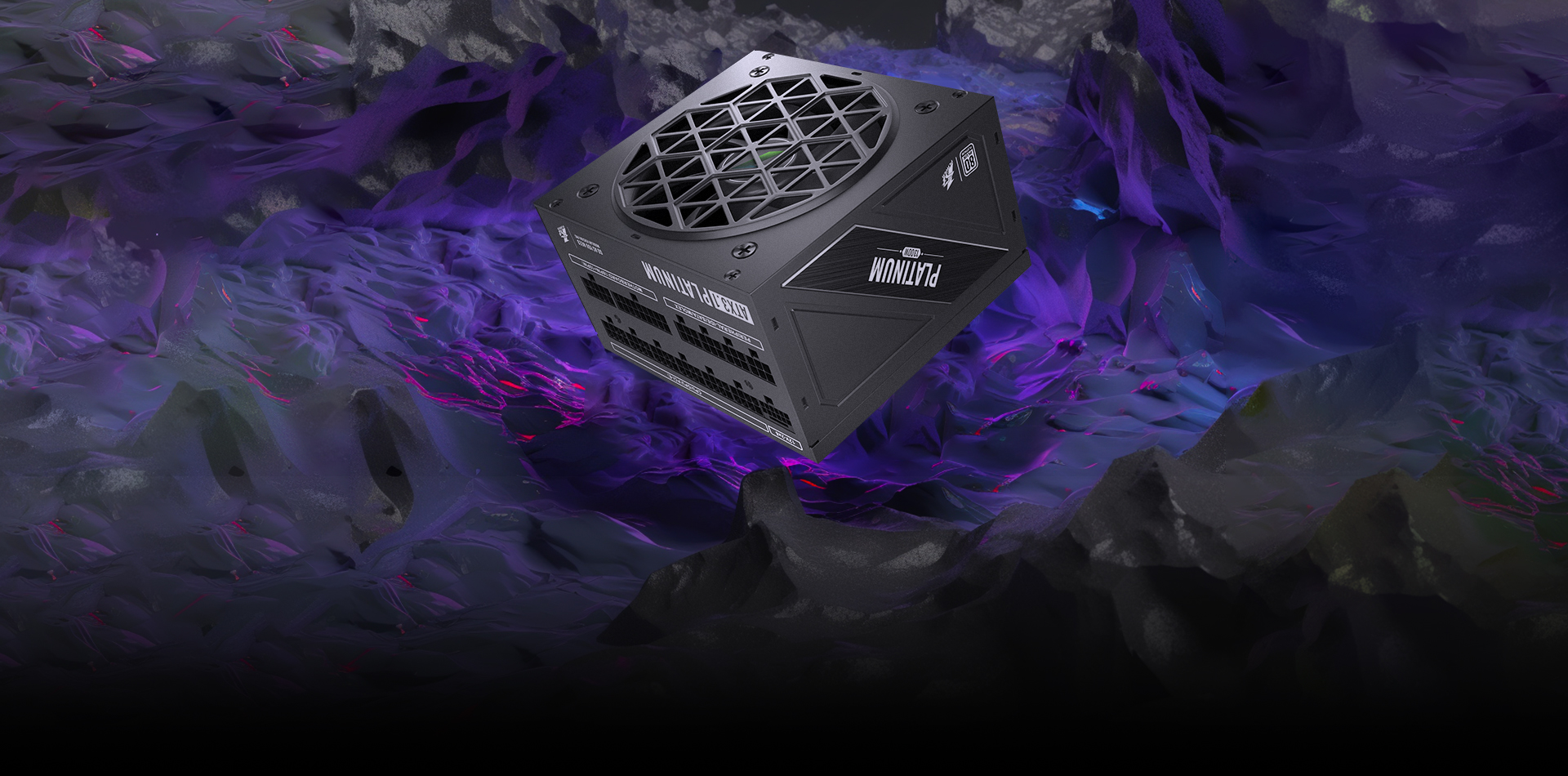

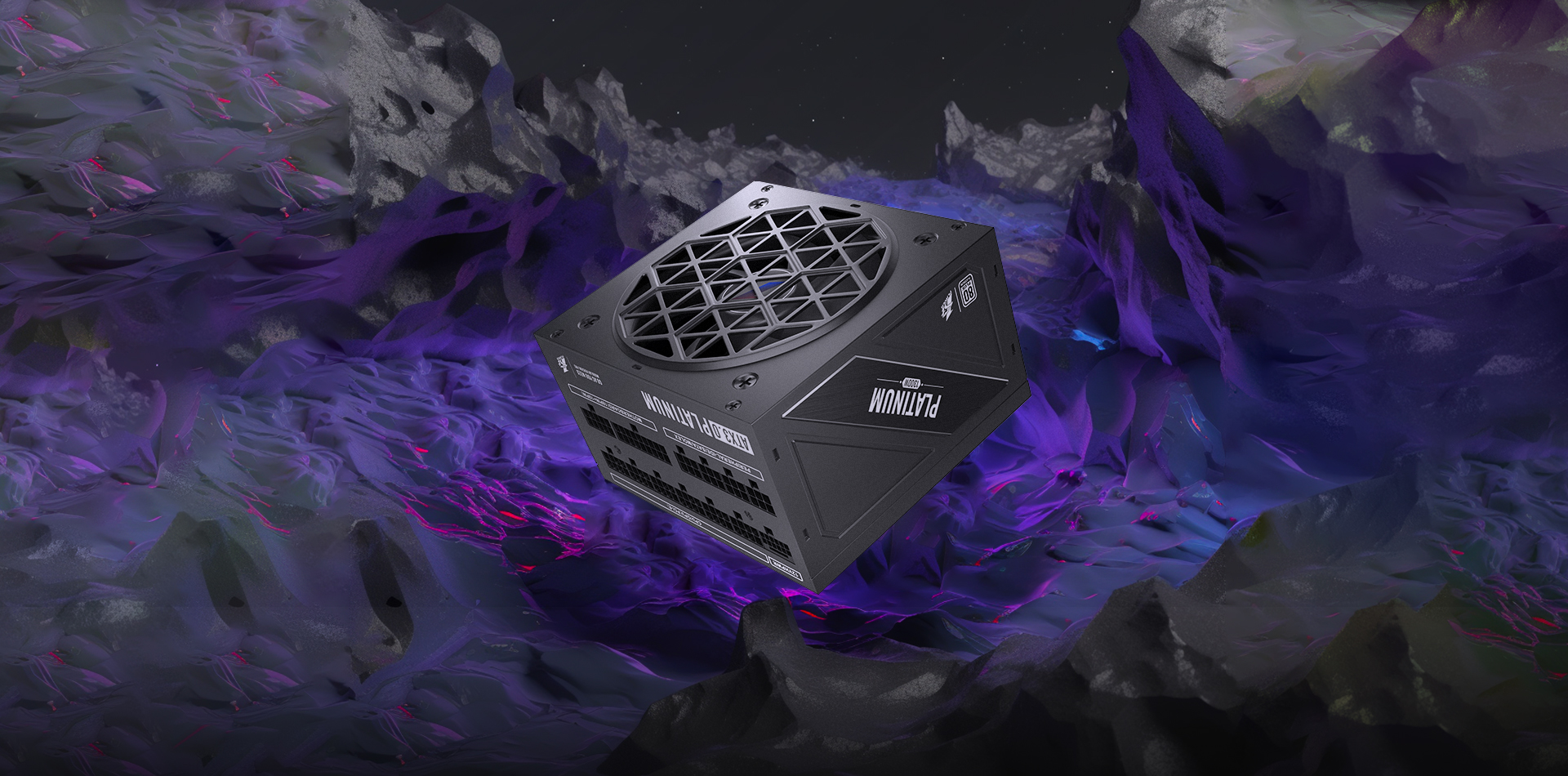

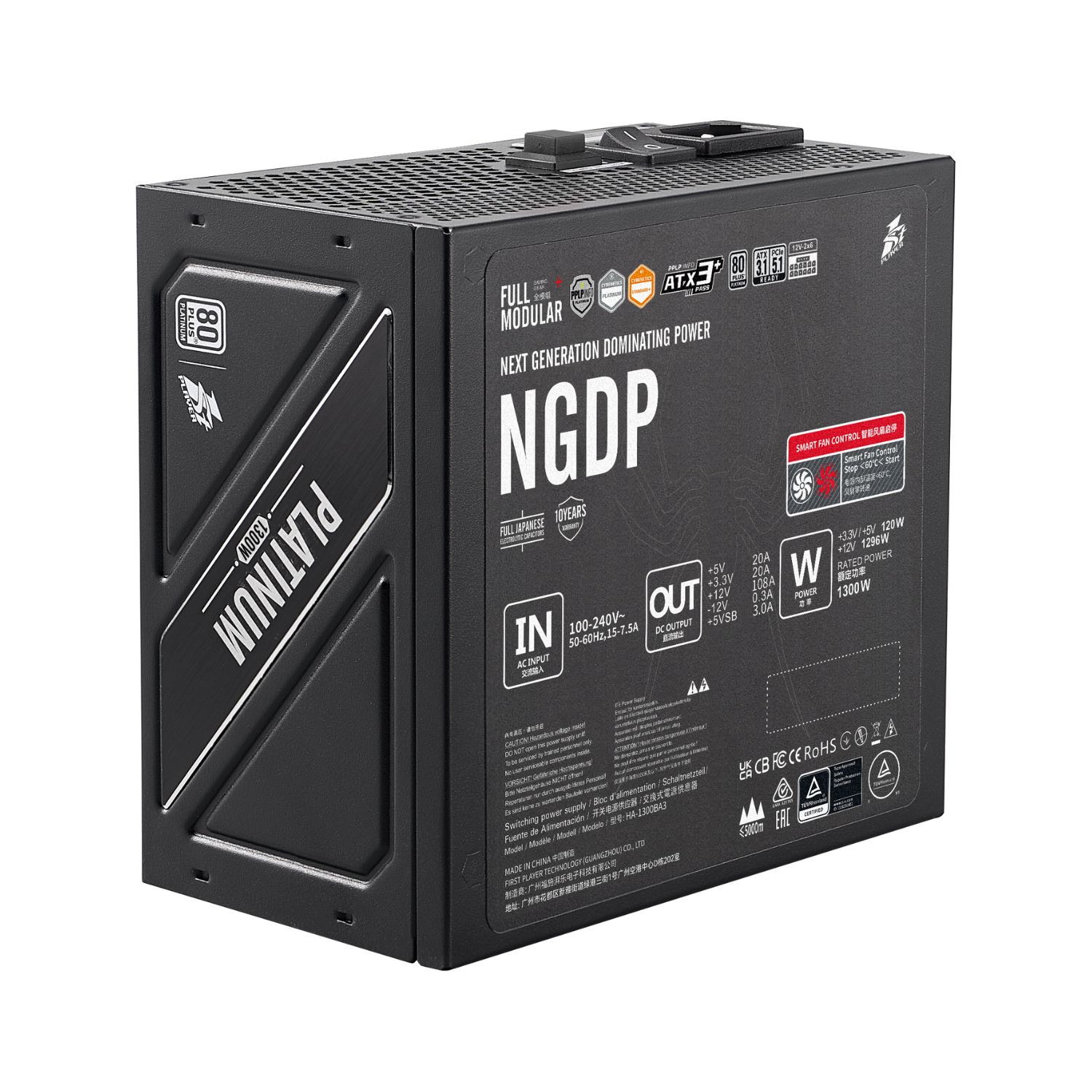

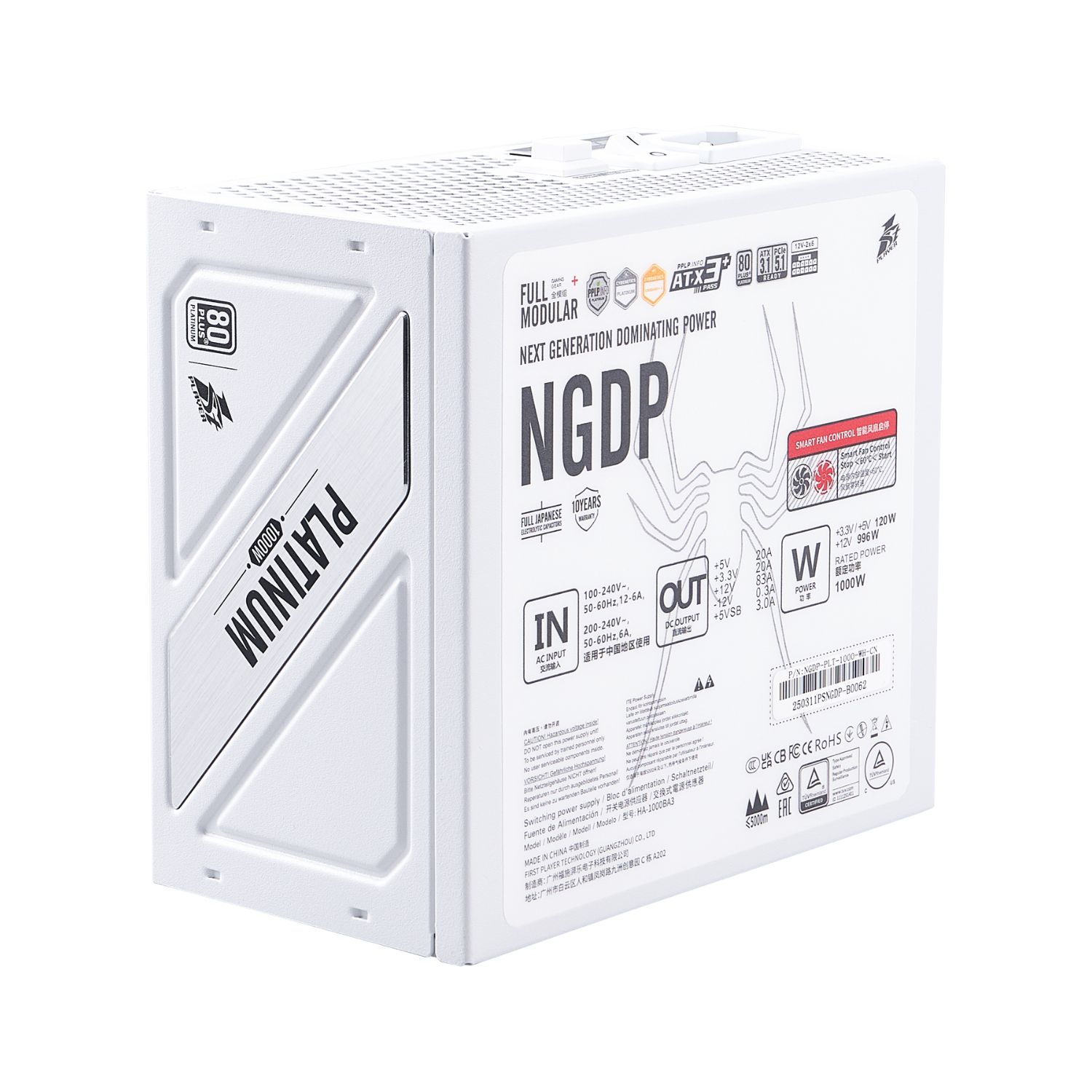

Next Generation Dominating Power

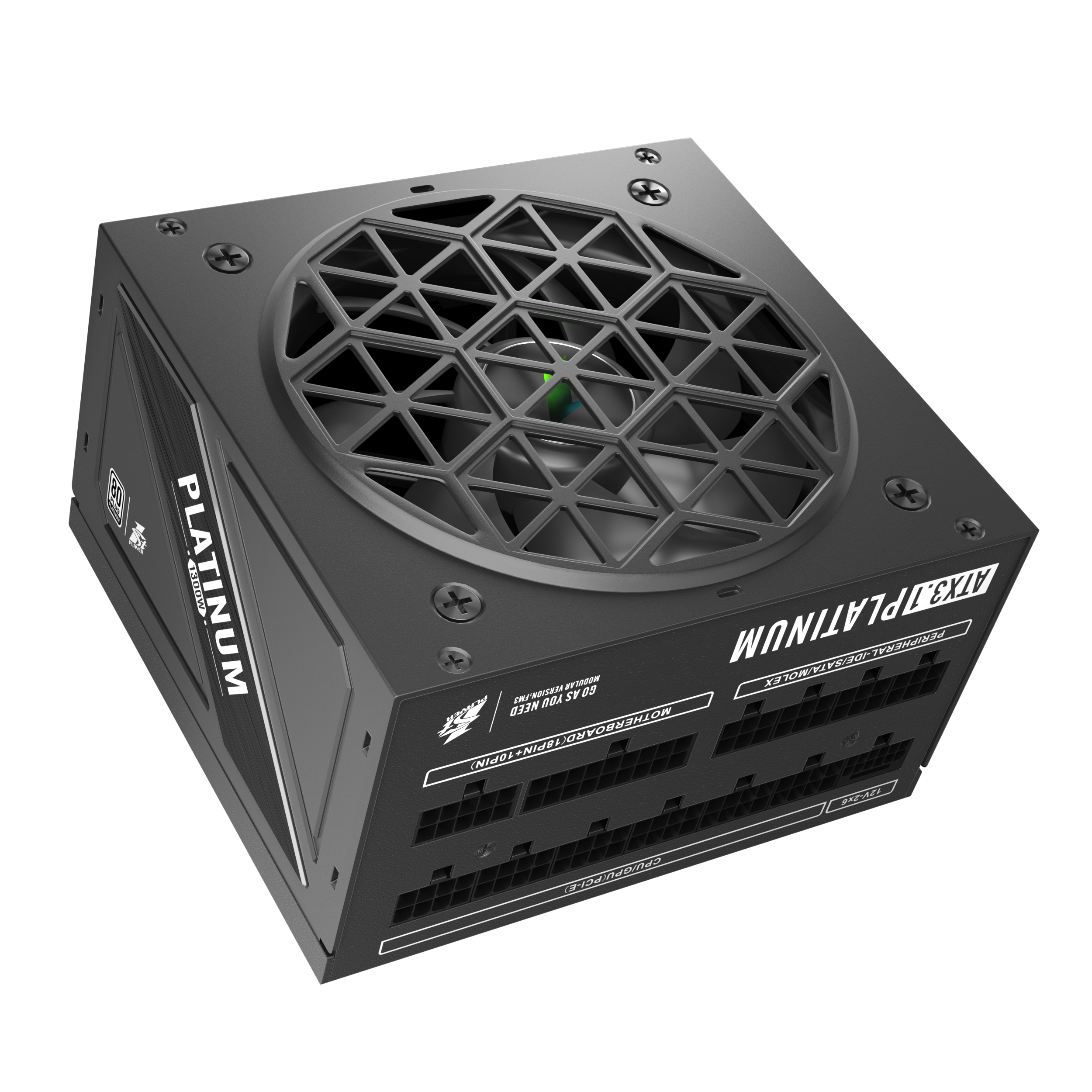

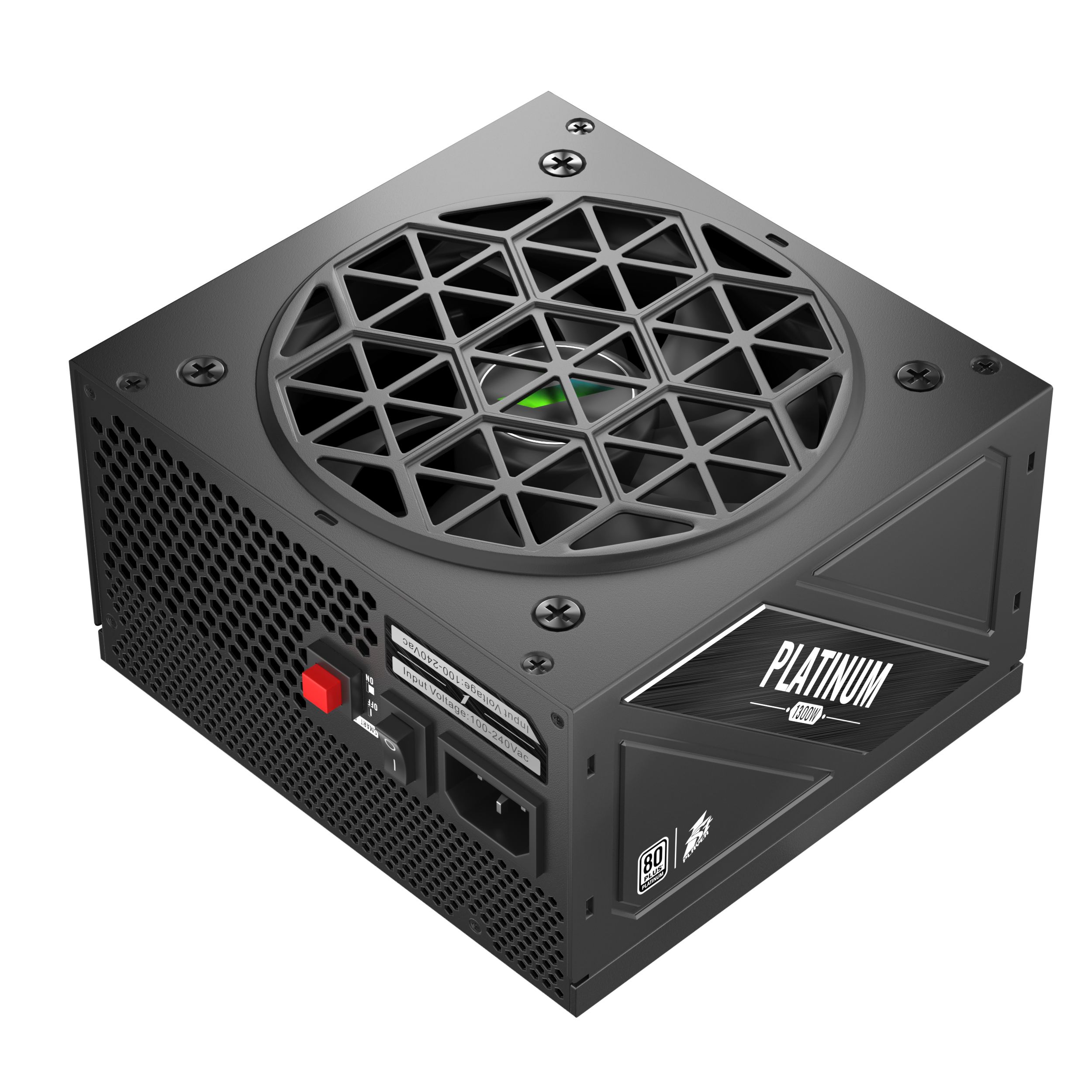

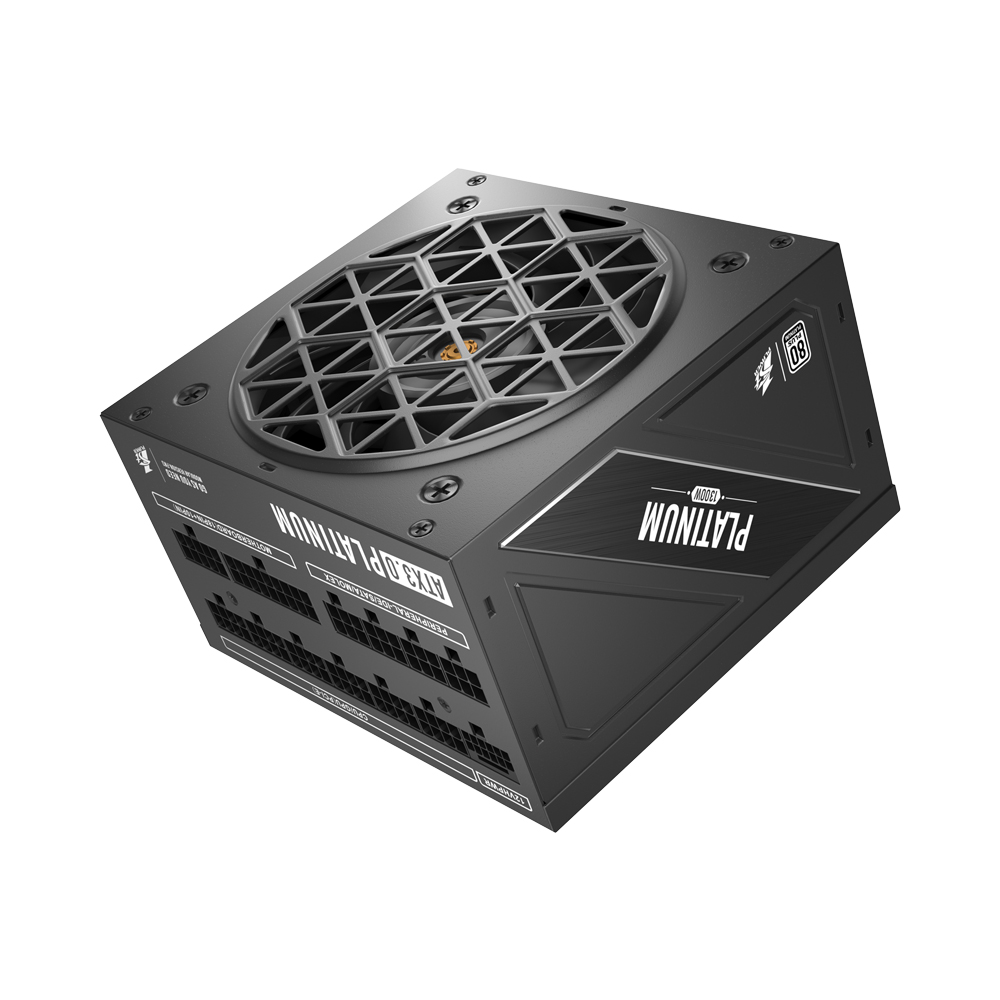

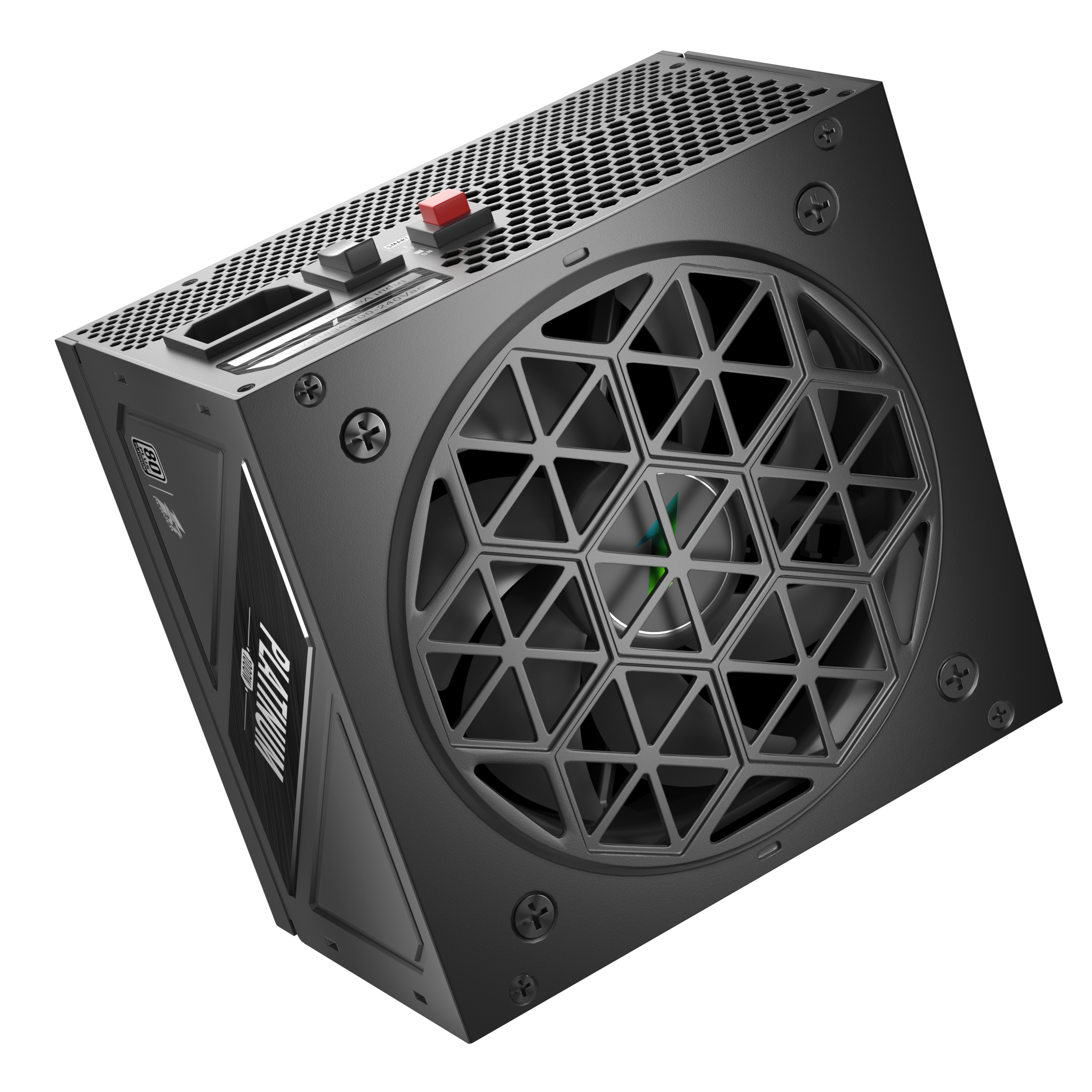

NGDP 1000W/1300W

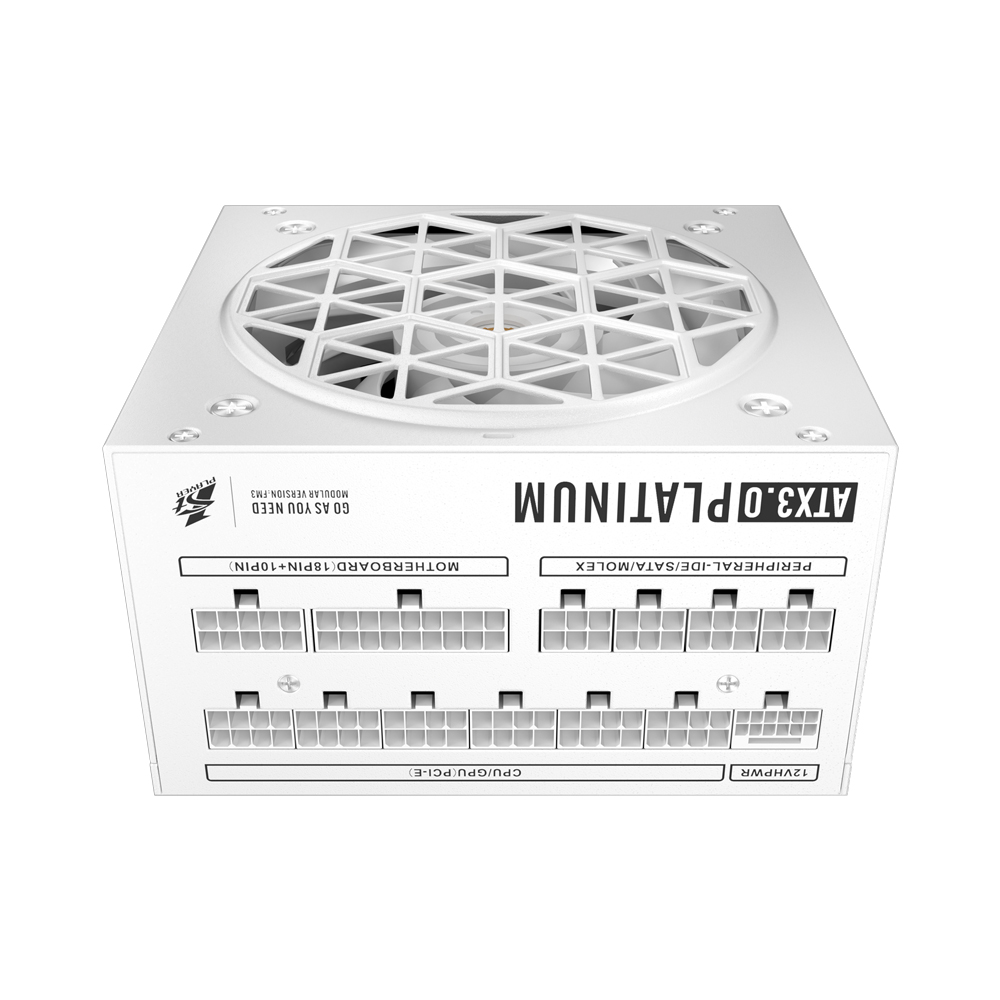

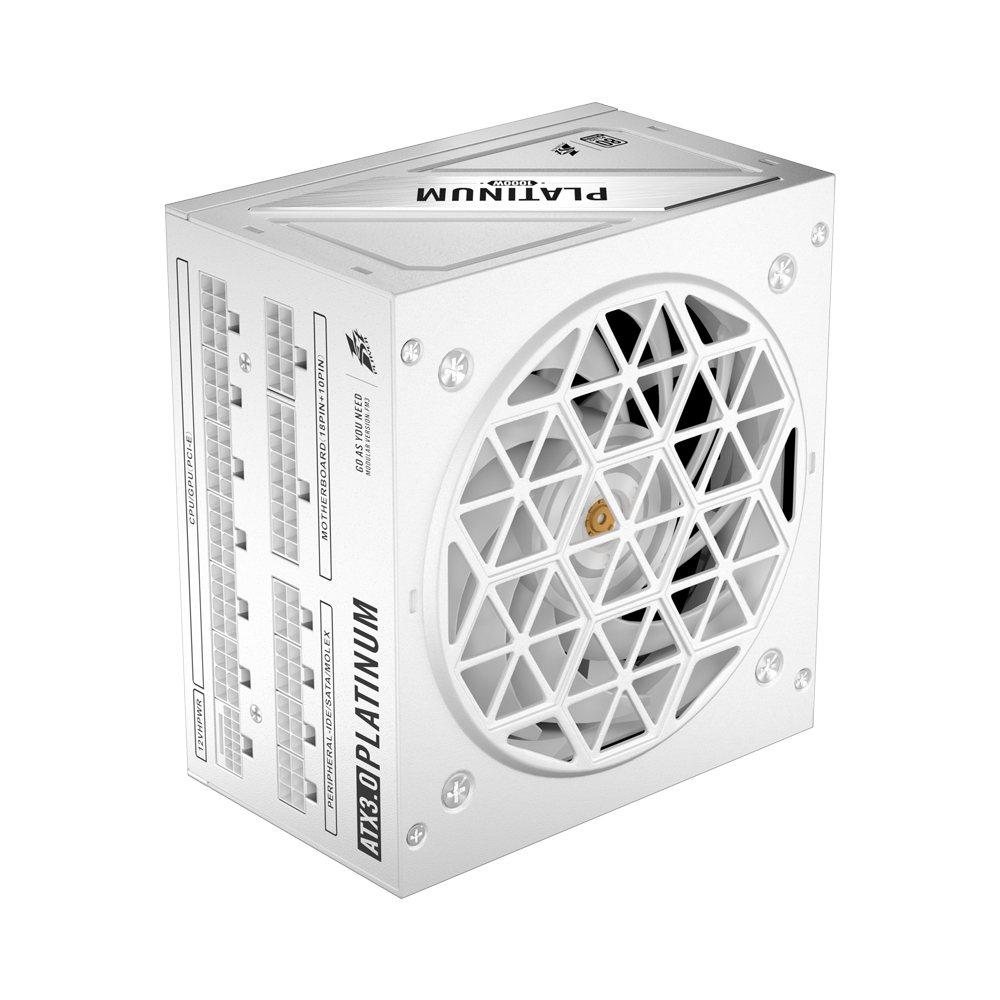

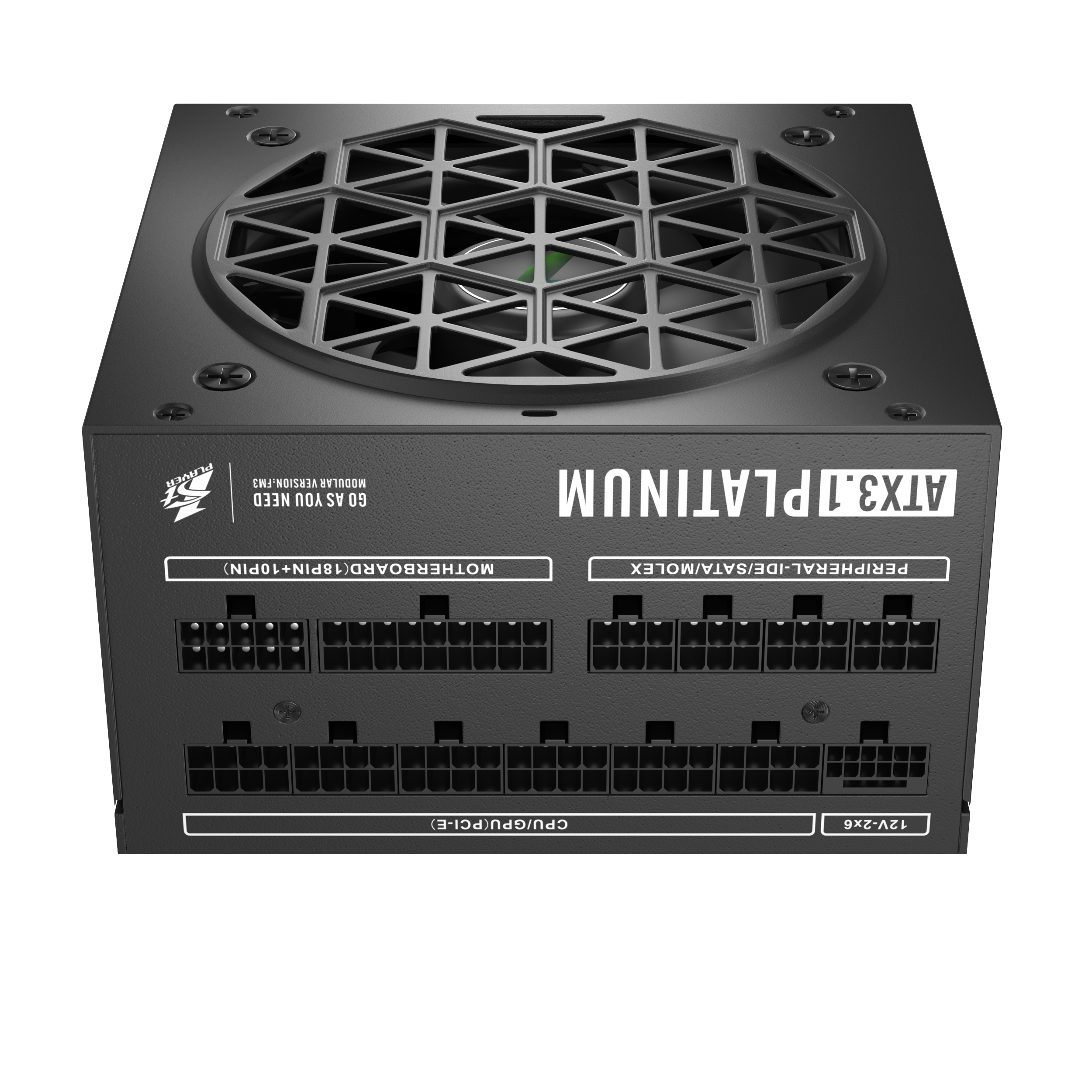

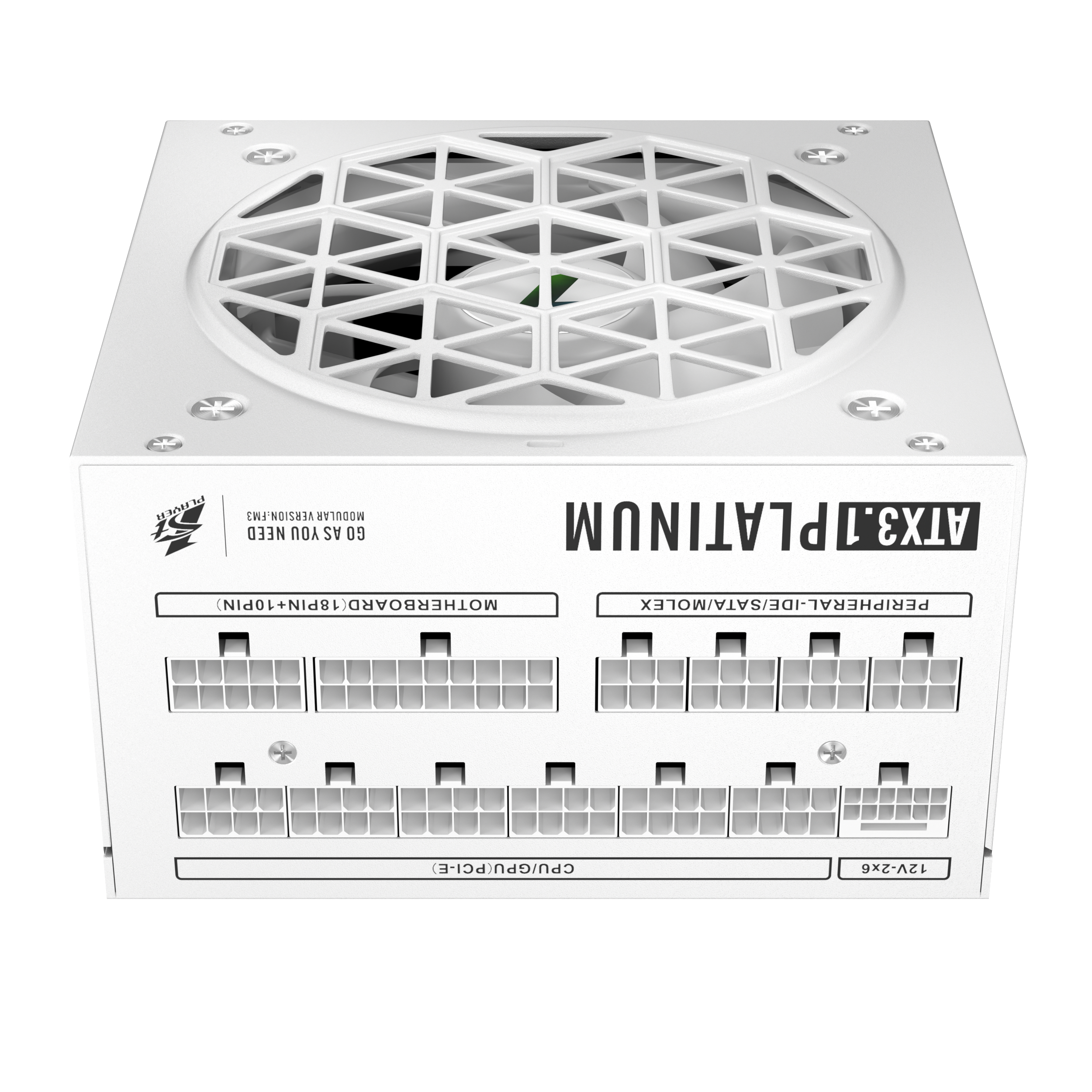

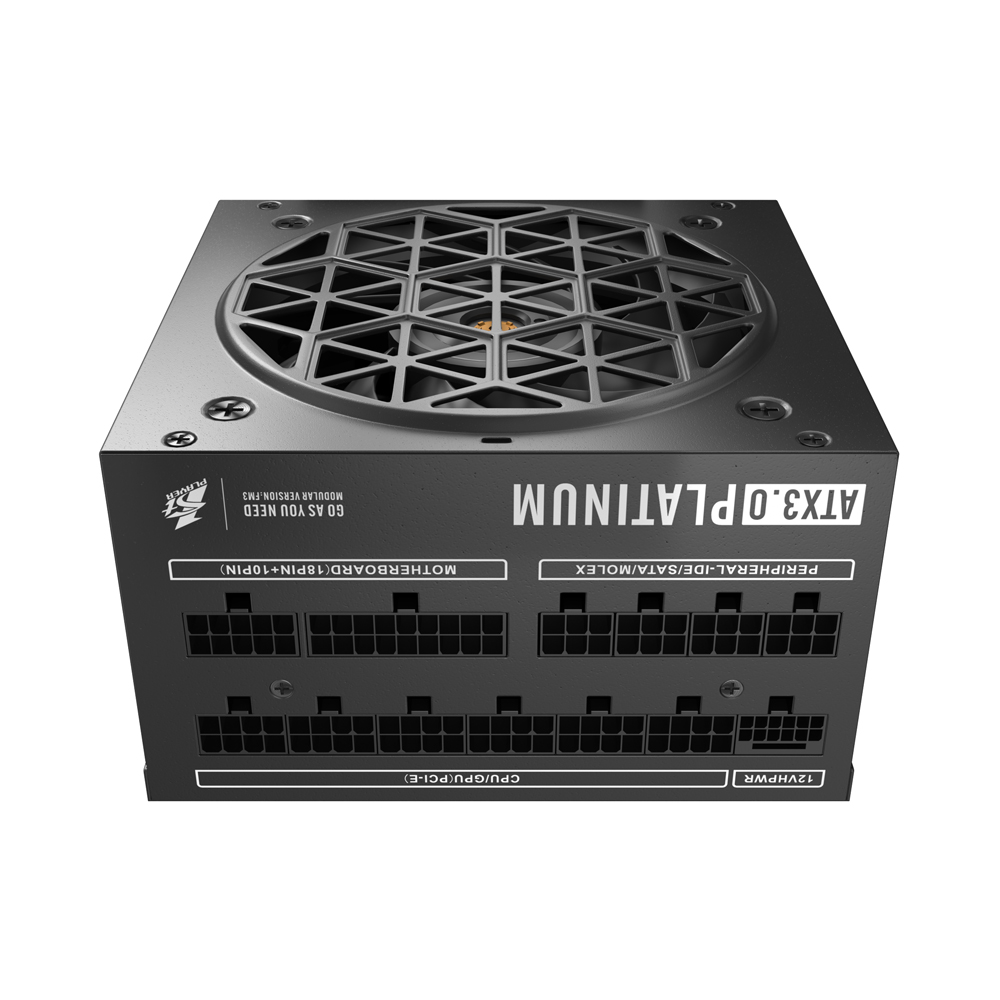

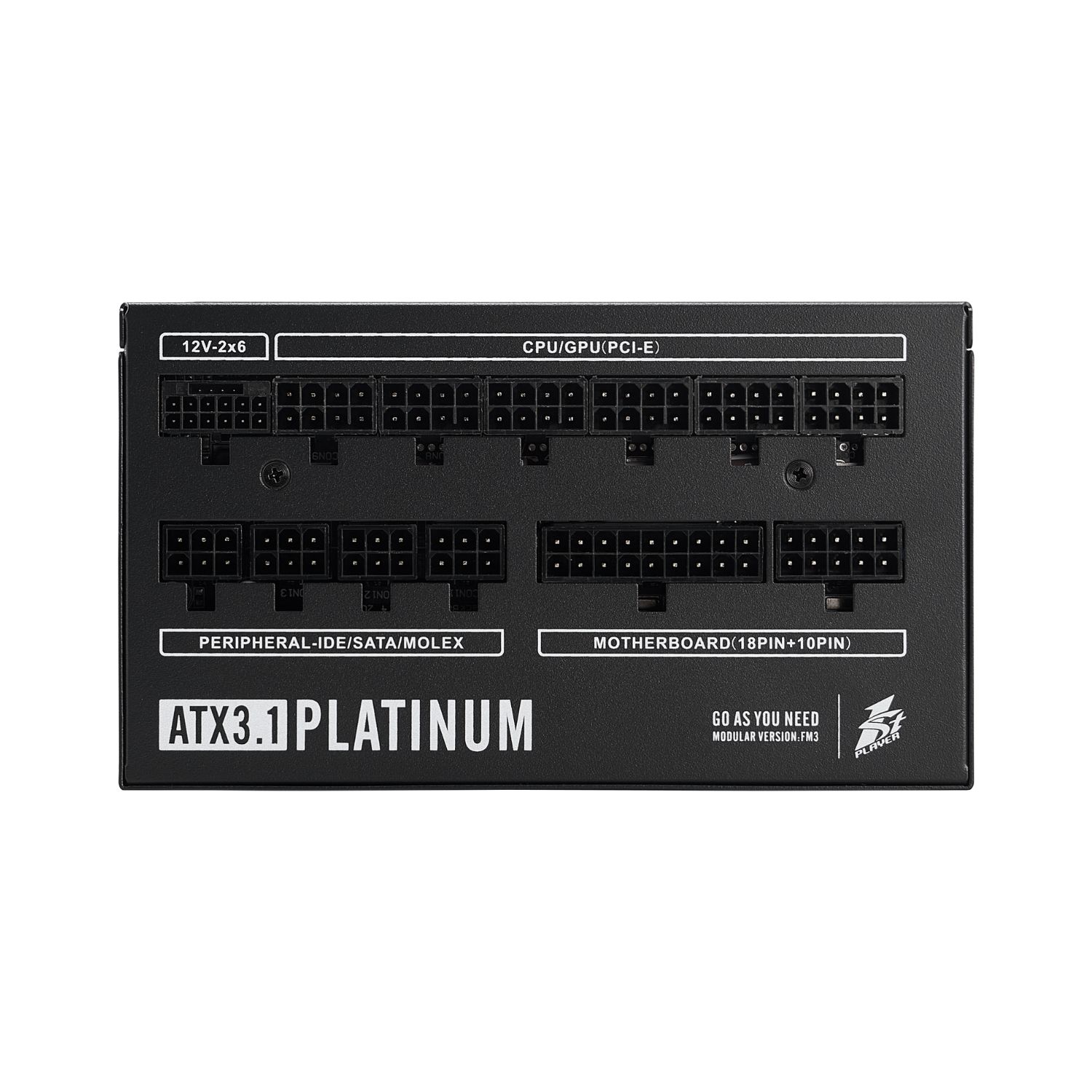

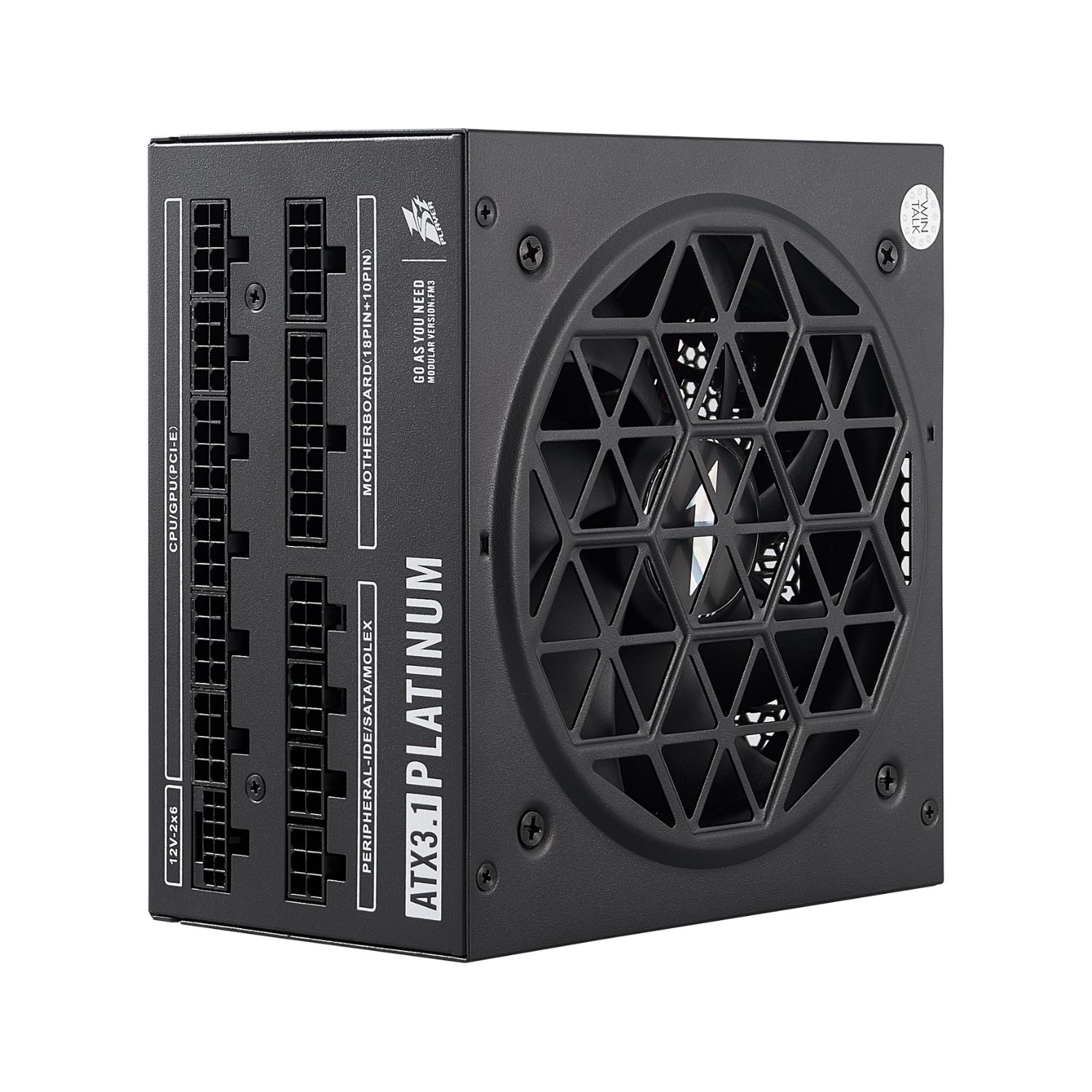

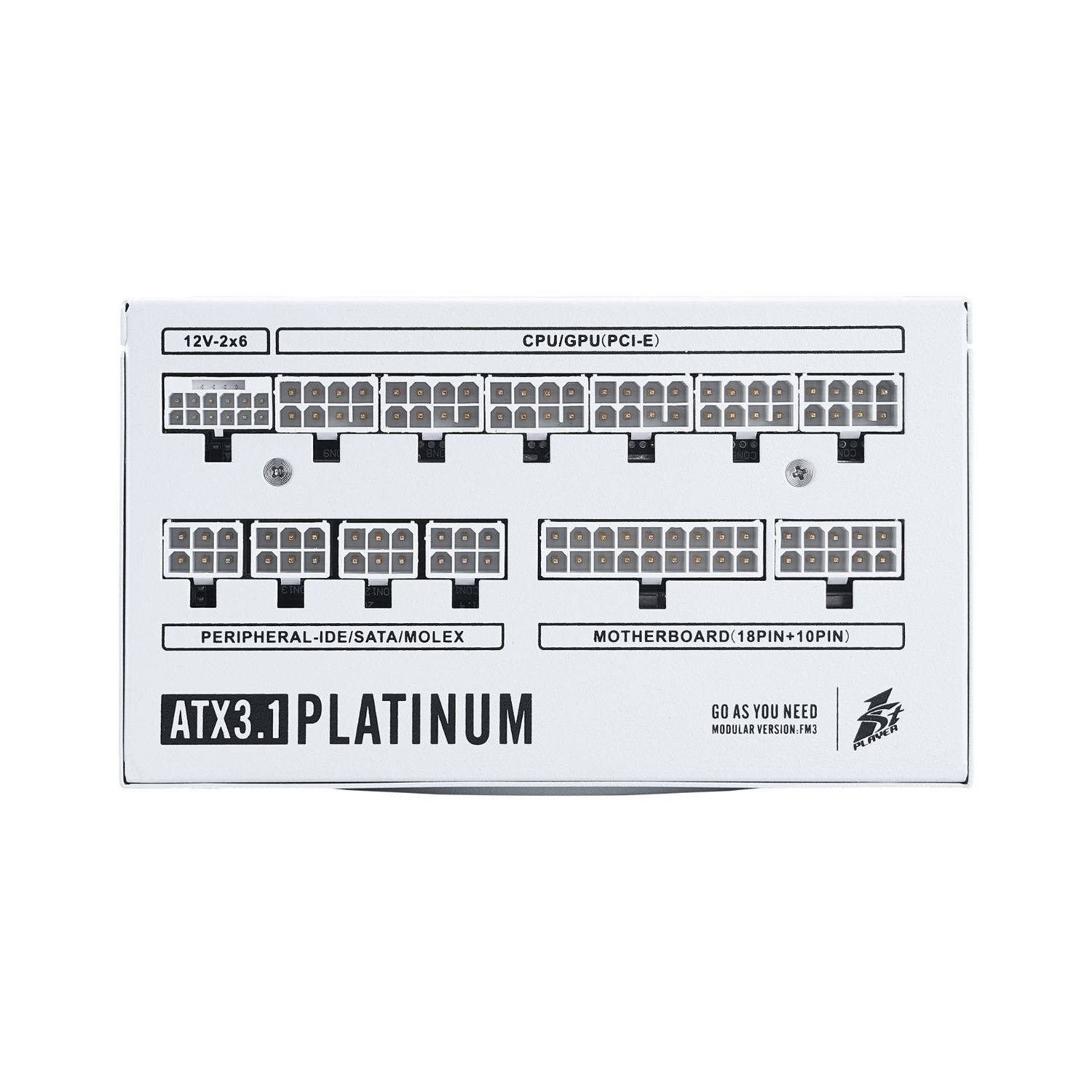

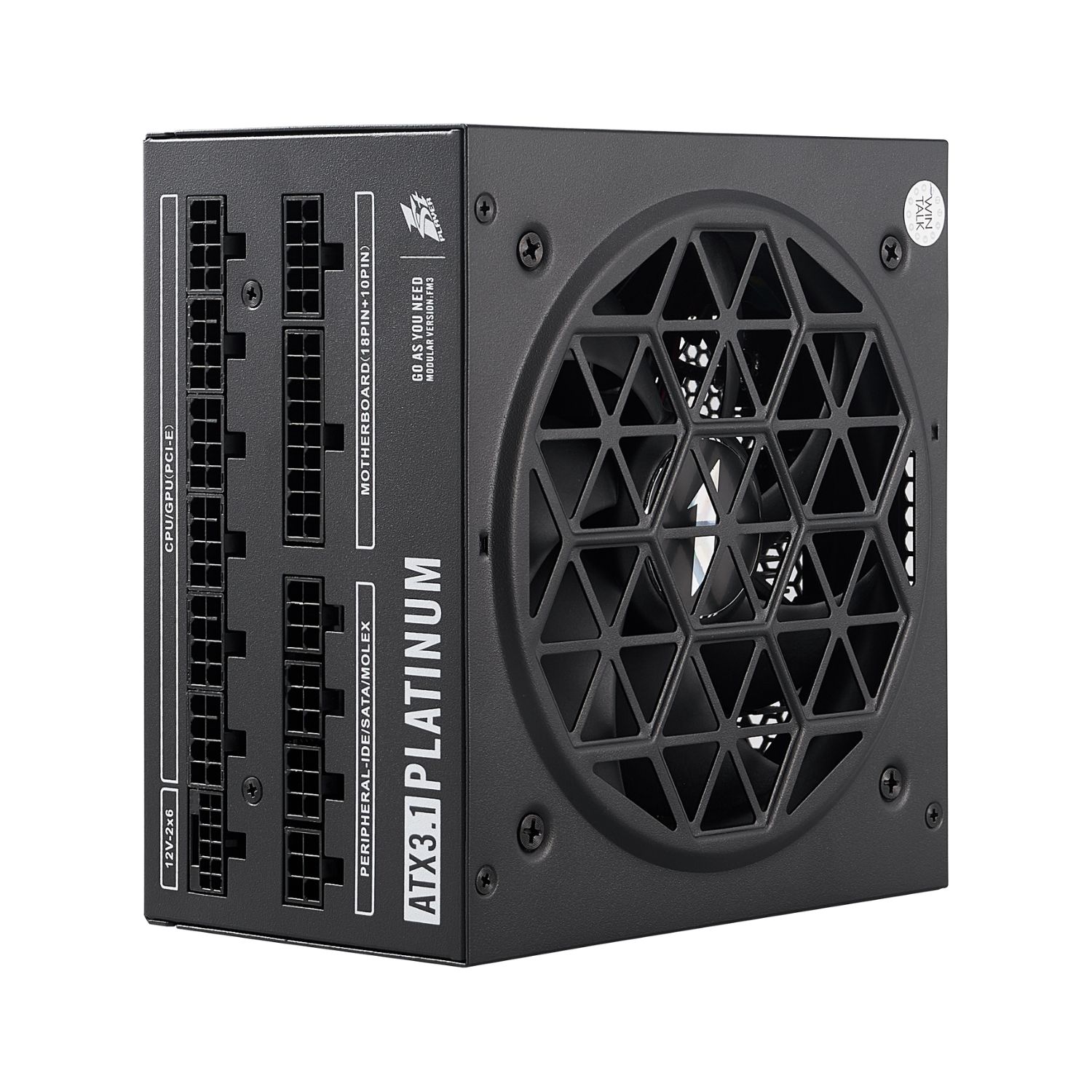

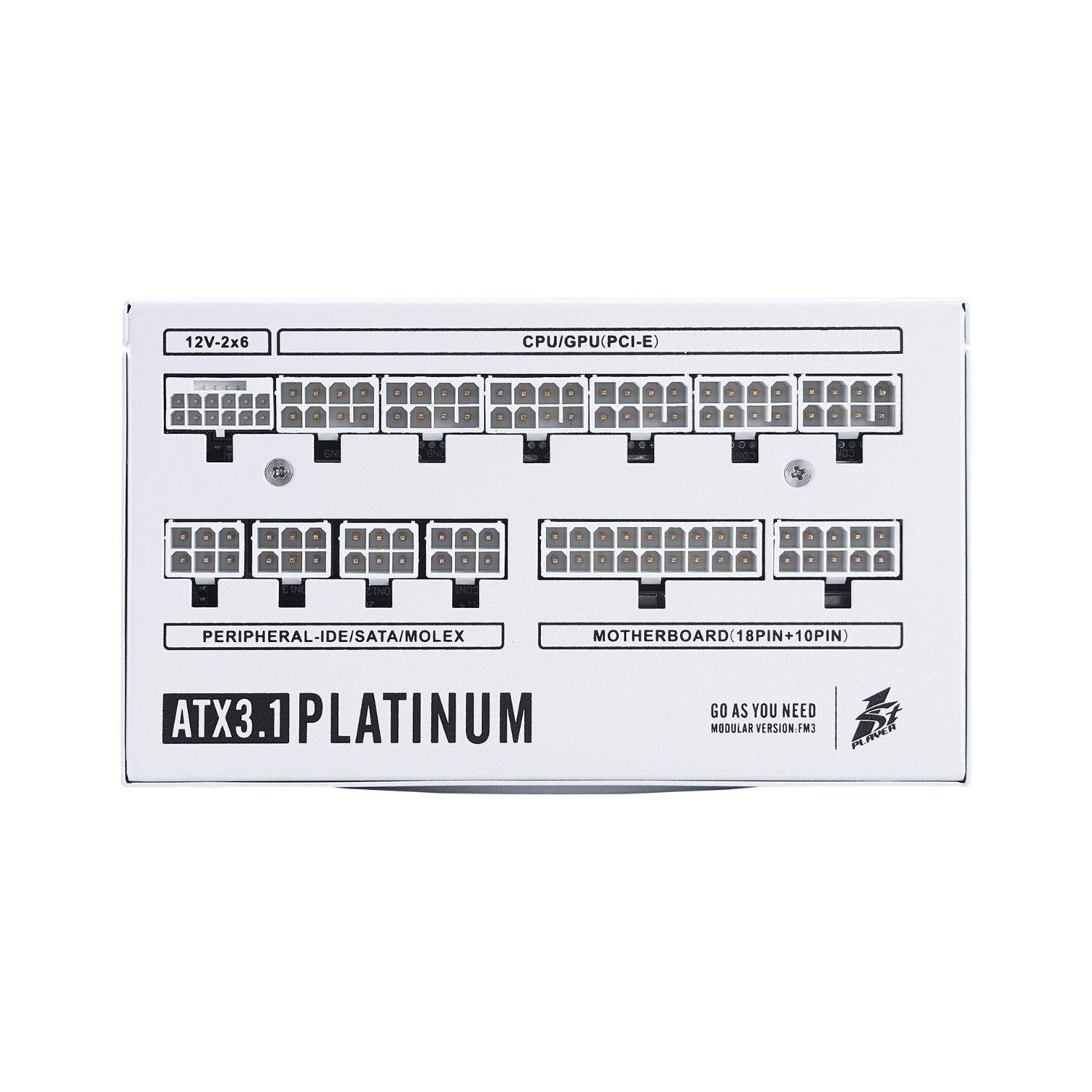

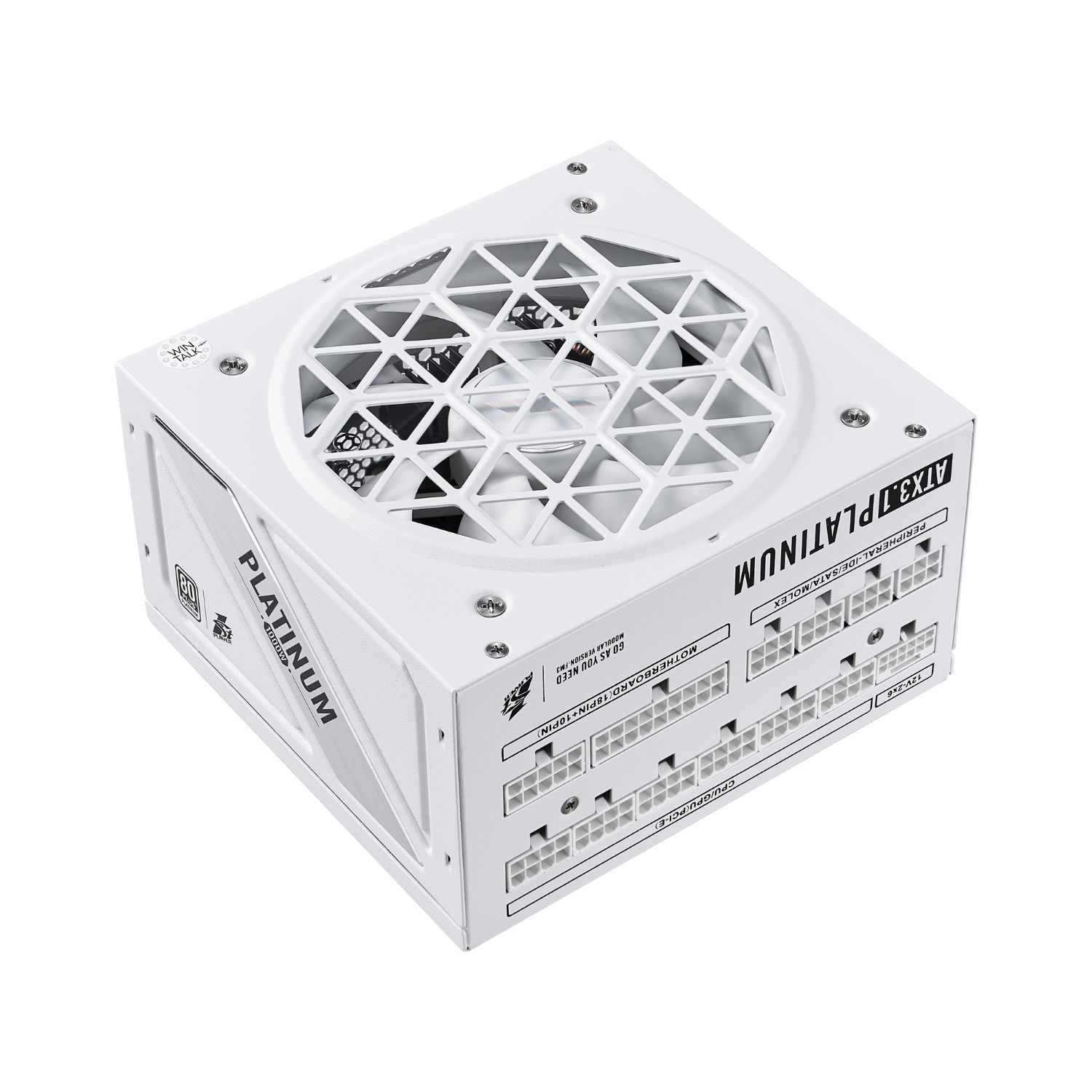

Fully Modular PSU

Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.

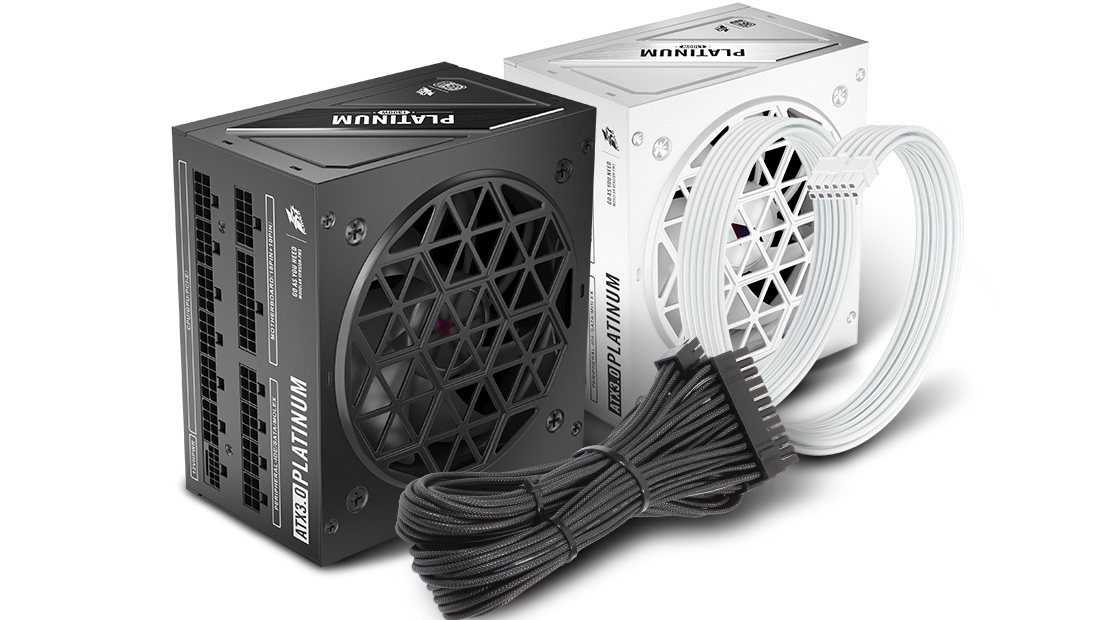

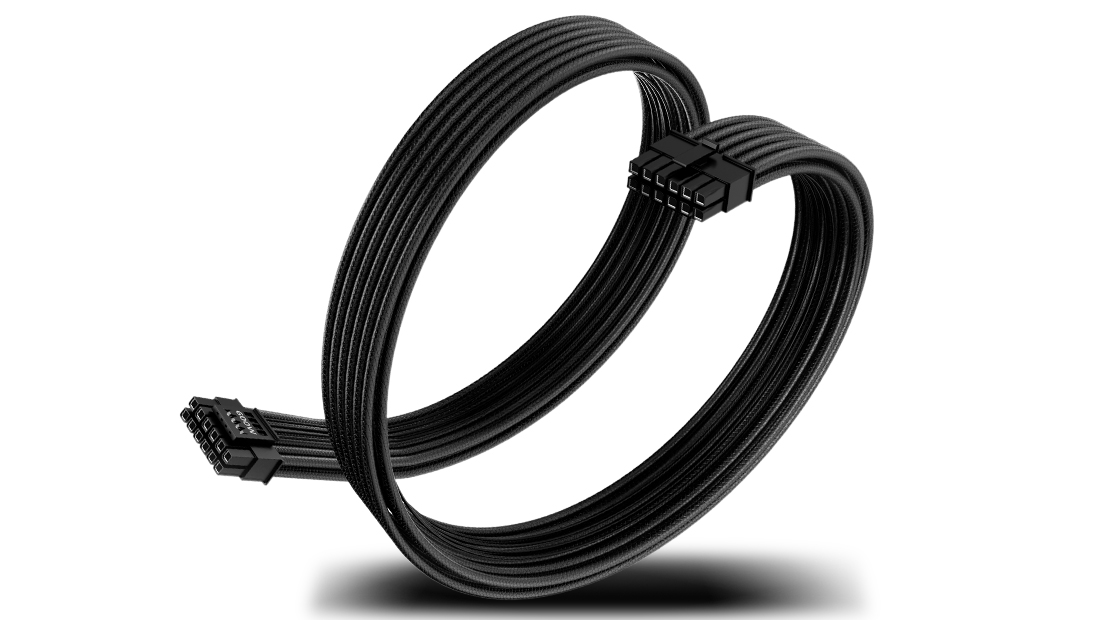

Embossed Cables

Customized embossed cable set, beautiful and soft, in line with UL safety certification. 12V uses 16AWG high specification wire diameter.

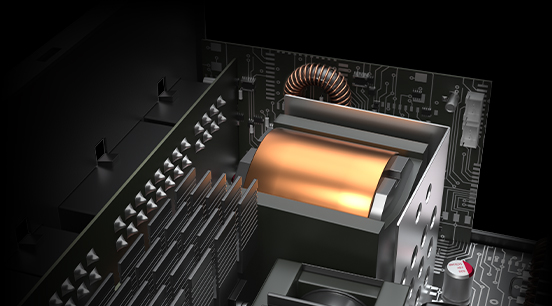

DC-DC Structure

Stable and Safe Output,LLC Full-Bridge resonant DC-DC ,12V synchronous rectification.

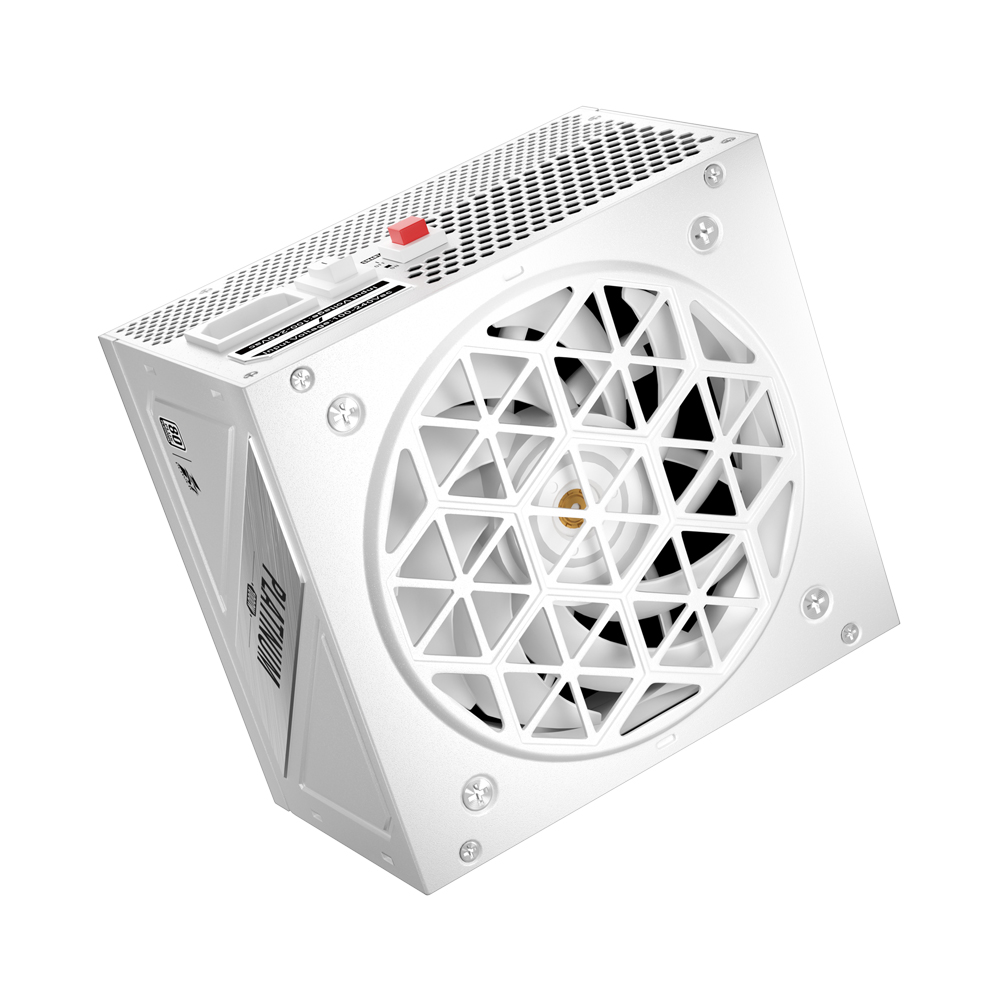

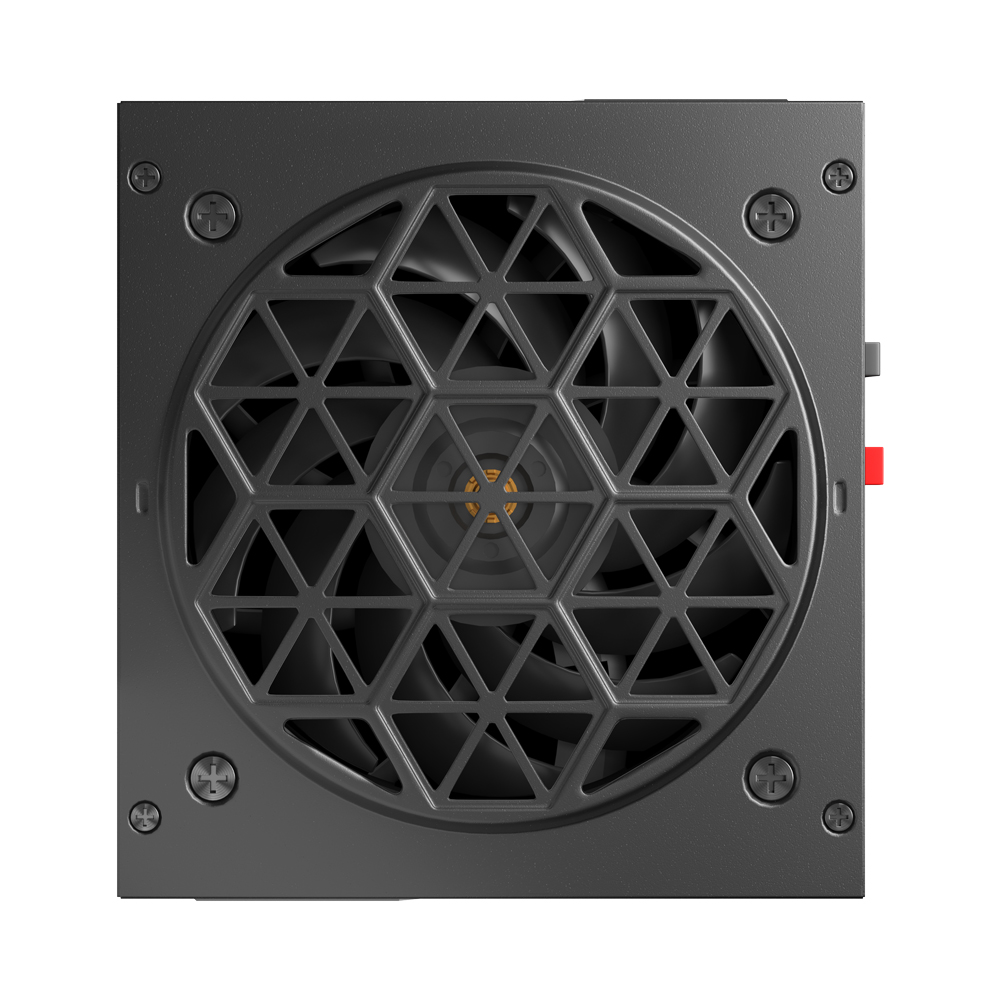

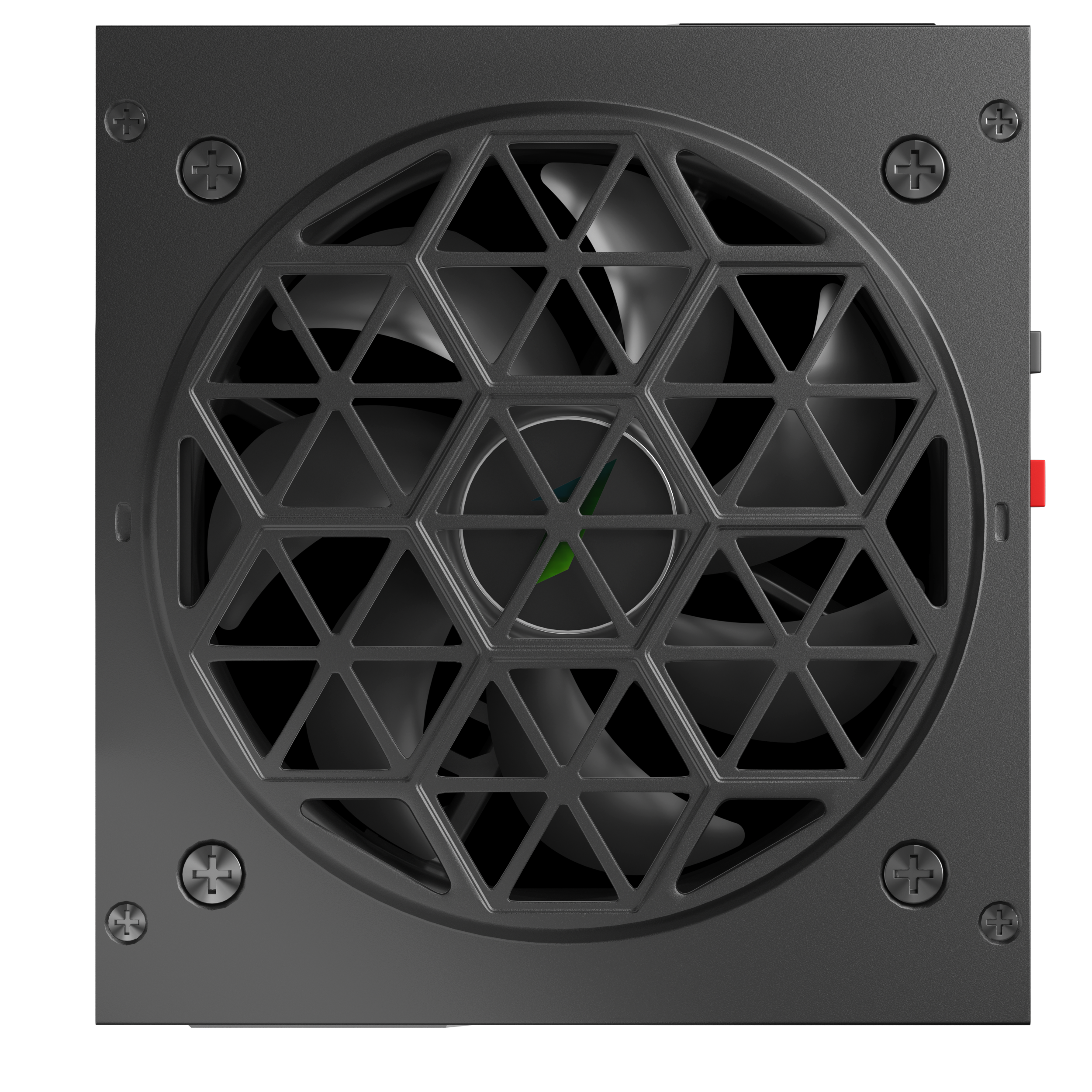

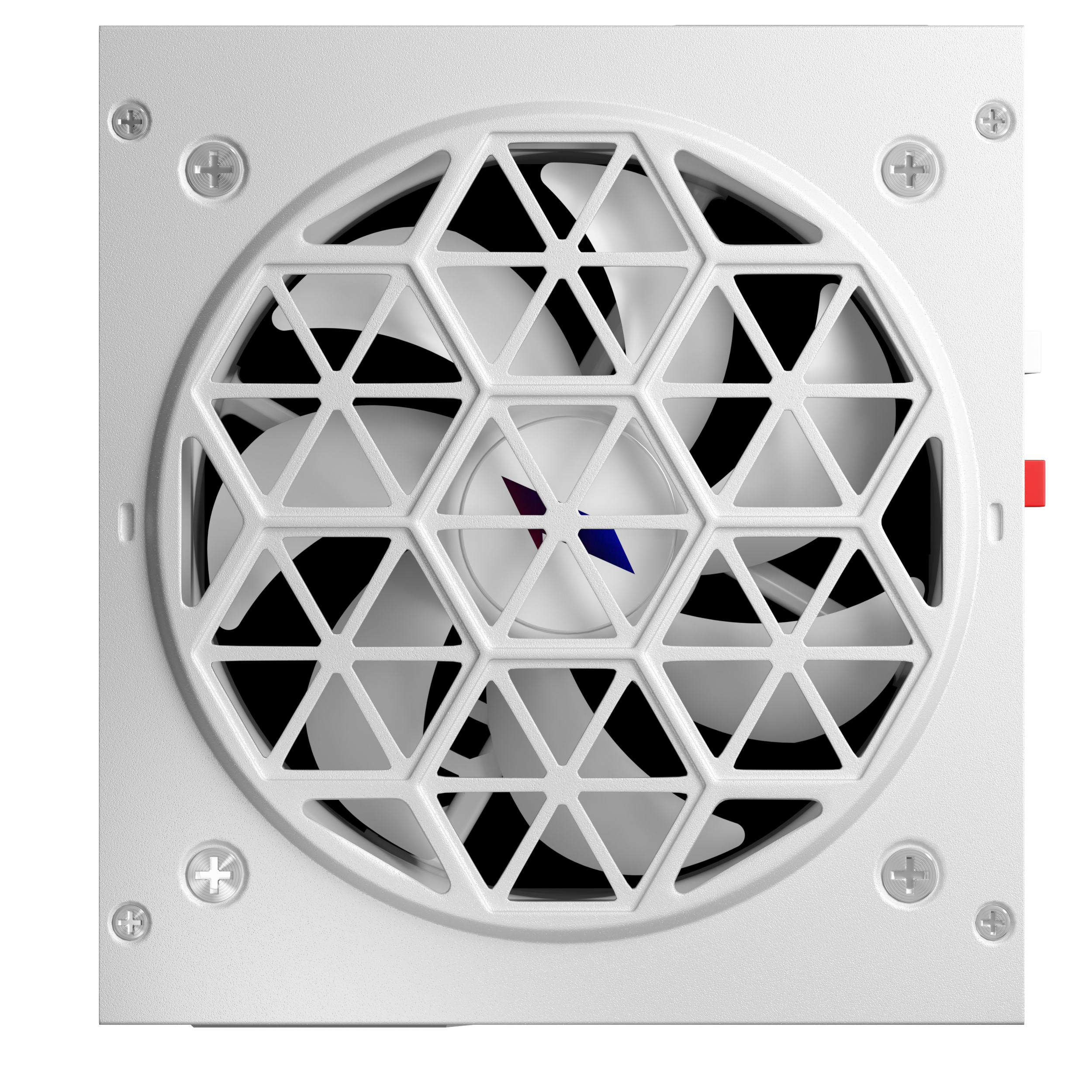

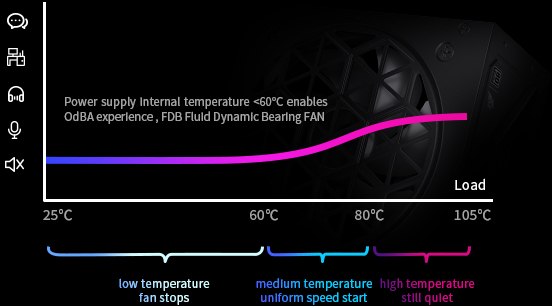

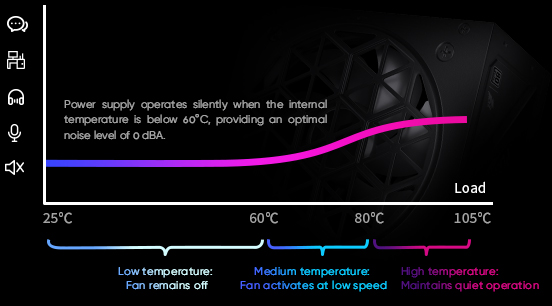

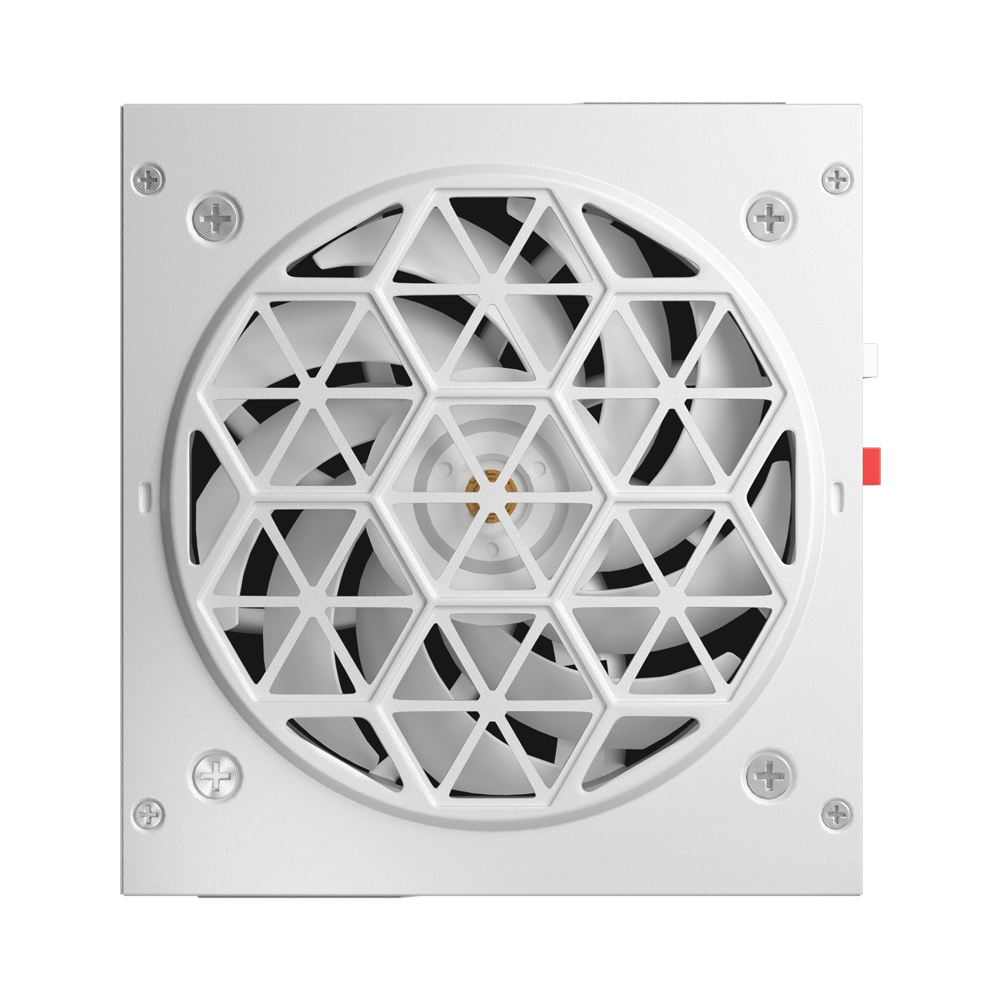

SILENT

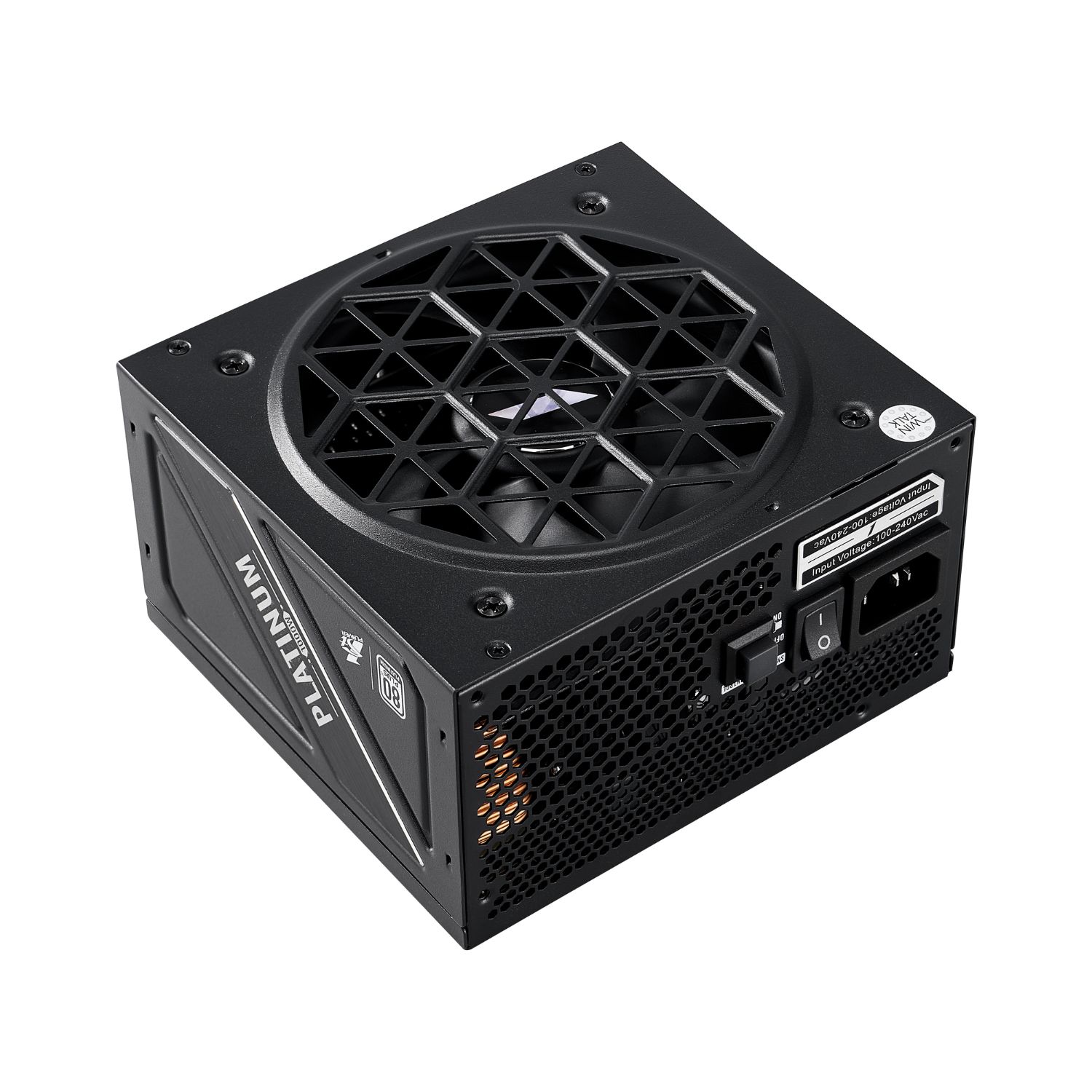

NGDP Series PSU combine a 120mm fluid dynamic bearing fan with Zero RPM mode support for long-lasting fan performance and near-silent operation when the fan switches off at low and medium loads – only spinning as fast as it needs to.

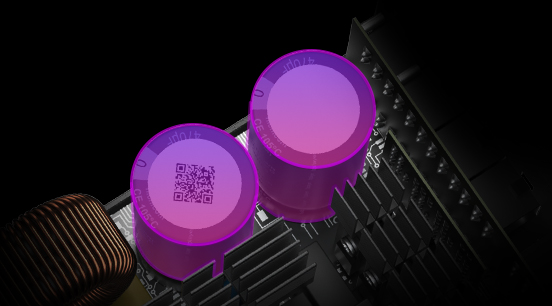

105°C-Rated Capapcitors

Built with 100% Industrial-grade, 105°C-rated Japanese capacitors for unwavering power and reliability.

10W Or 2% Of Max-Rated Capacity are Higher Than 70% Efficiency

Above 60% is required for 10W or 2% of max-rated capacity and above 70% is a recommendationIntel's ATX v3.0 PSU Standard

  • ATX 3.0 Standard & PCIe 5.0

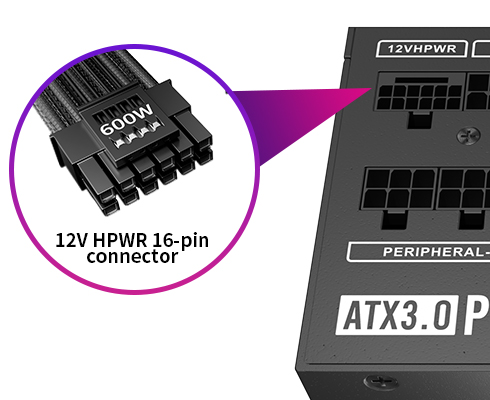

    Comes with a 12VHPWR 16pin connector to provide up to 600W for power hungry Graphics card.The power supply can sustain up to 2x total power excursion and 3x GPU power excursion, fully ready for future high performing components.

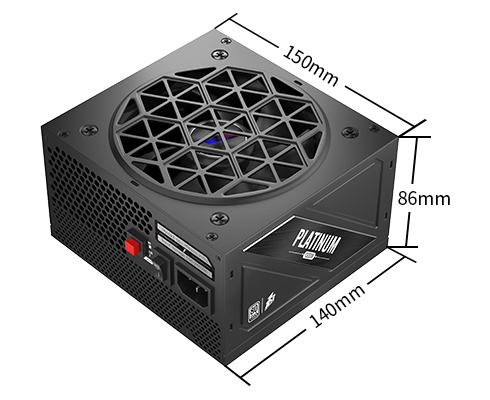

  • Small Physique

    Small Physique means it is compatible with most of the cases on the market and provides more flexible system design options.

  • 80 Plus Platinum Certified

    Fully Power supply 1000W/1300W with 80 Plus platinum certified, with 93% or higher efficiency under typical loads.

Model
HA-1000BA3/HA-1300BA3
Dimensions(L*W*H)
140*150*86MM

Modular

FULL-Modular

Certifications

80 PLUS PLATINUM
Warranty
10 years

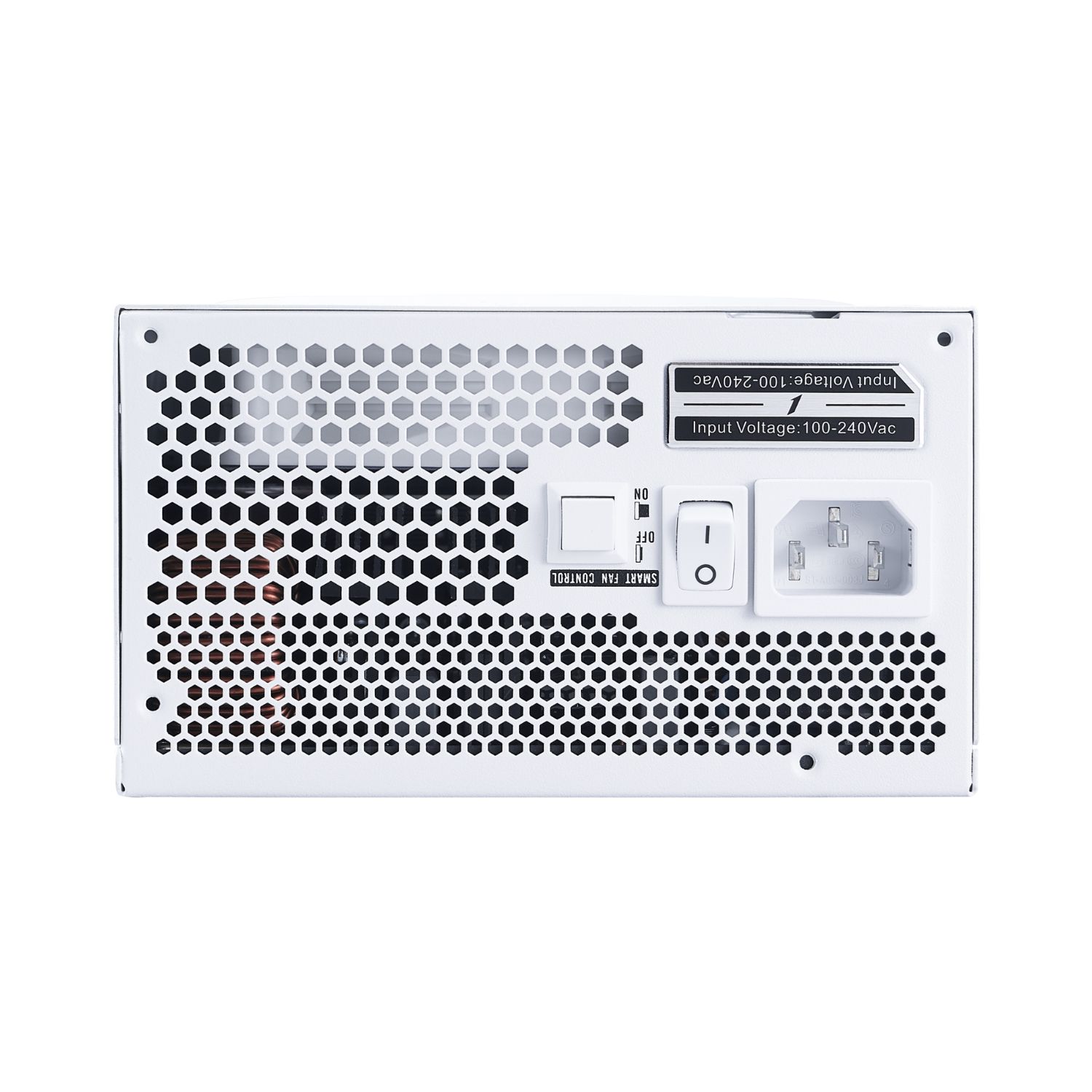

Input Voltage
100-240Vac
Input Current
15-7.5A
Efficiency
91.01% at full load(1000W)/ 90.62 % at full load(1300W) (Date from 80  PLUS Verifification and  Testing Report)
Output Capacity
1000W/1300 W
Input Frequency
50-60Hz
PFC
Active PFC

Fan size

120MM FDB
Protections
UVP,OVP,OPP, SCP,OCP,OTP
Protection Temperature
0-40℃
MTBF
100,000hours
Circuit Structure
LLC+DC-DC
Regulatory
CE/FCC/C-Tik/ROHS/CCC/cTUVus/IEC/EAC
