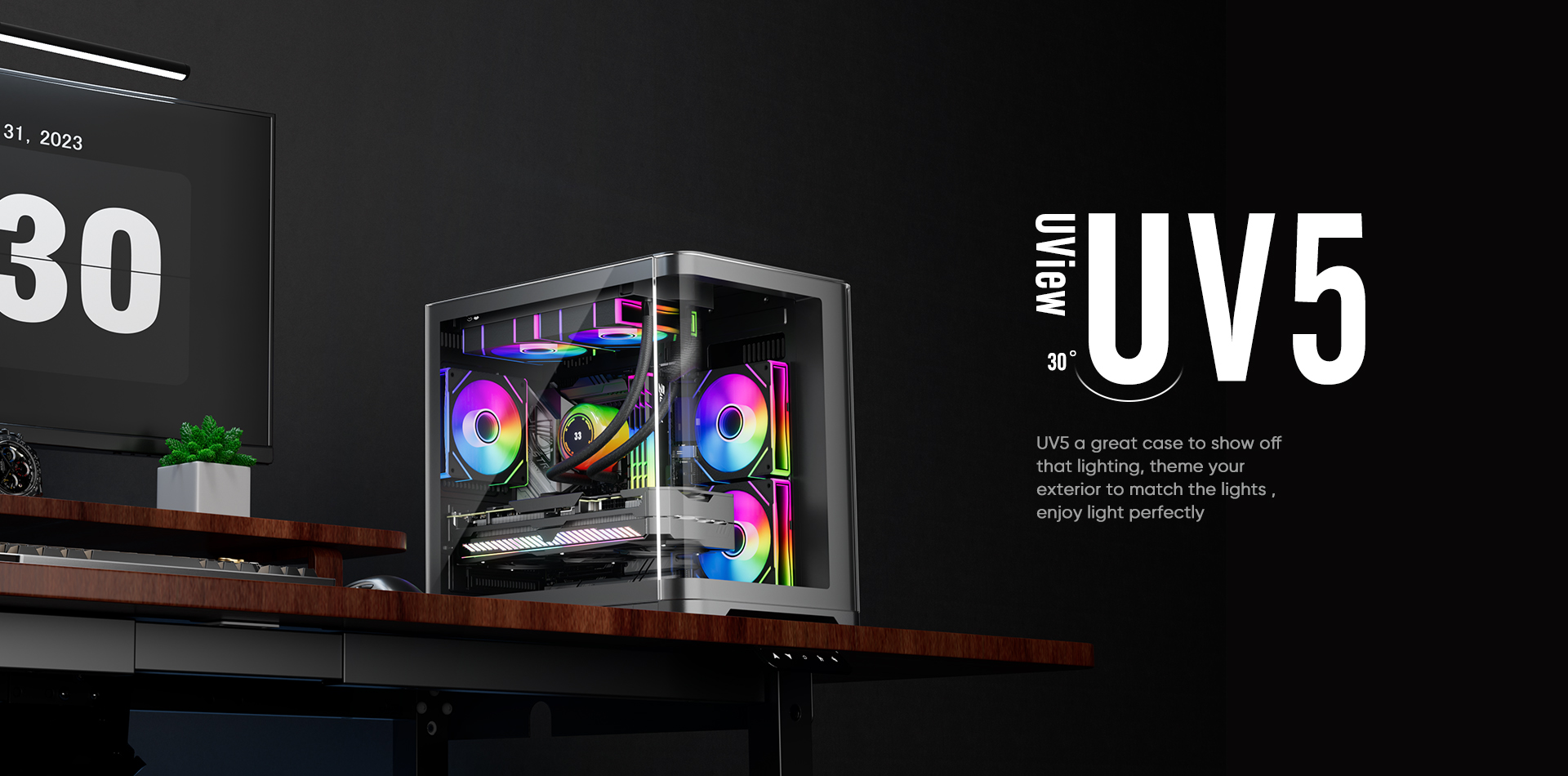

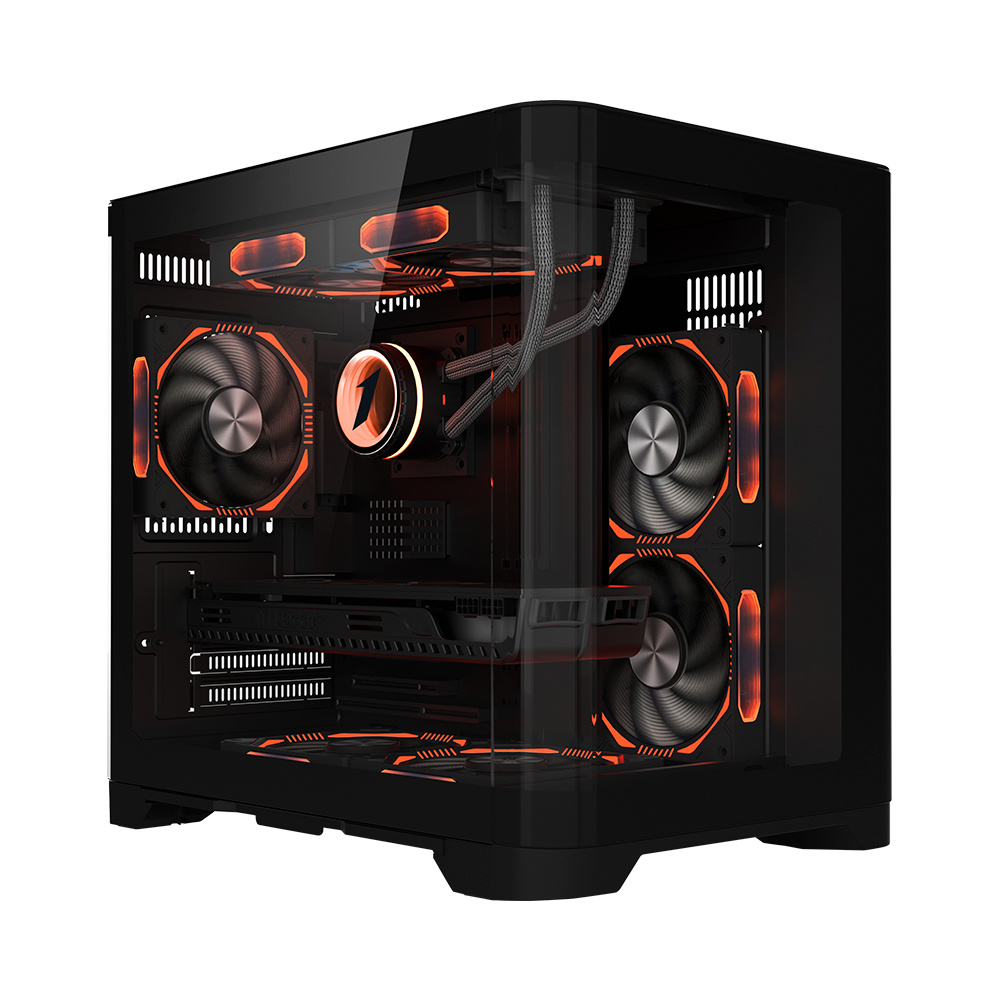

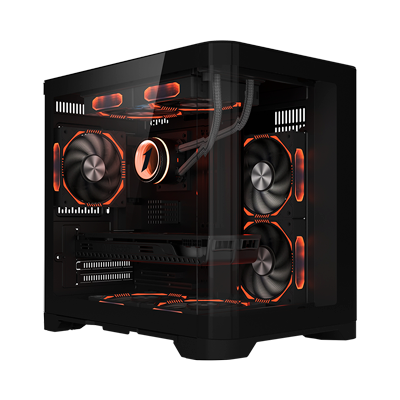

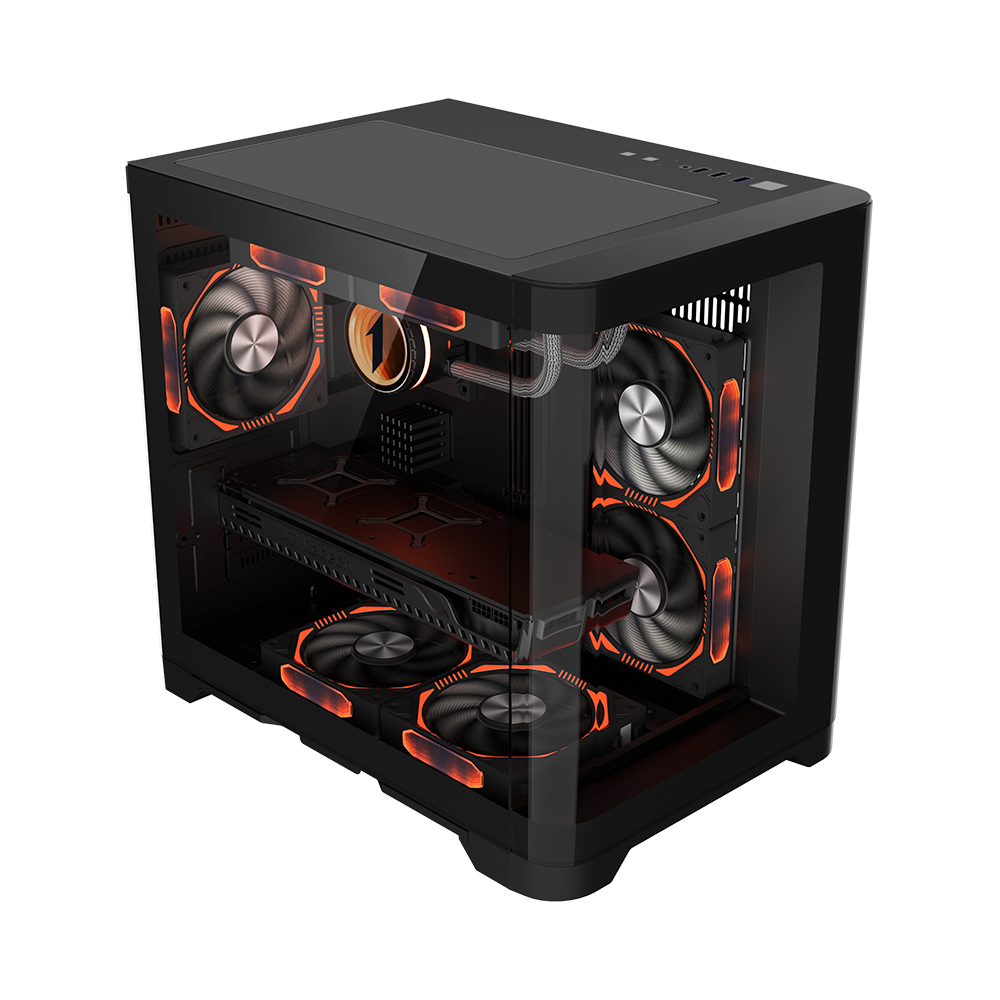

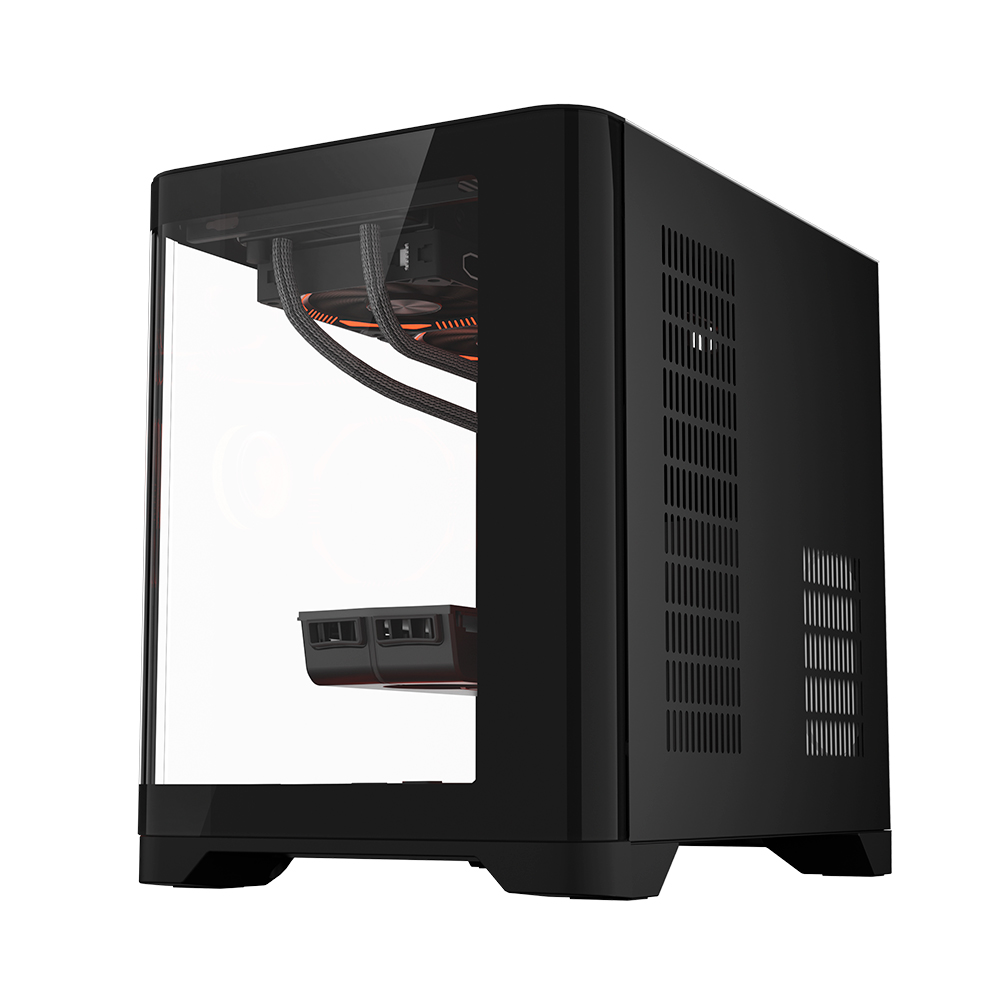

UV5 (Black)

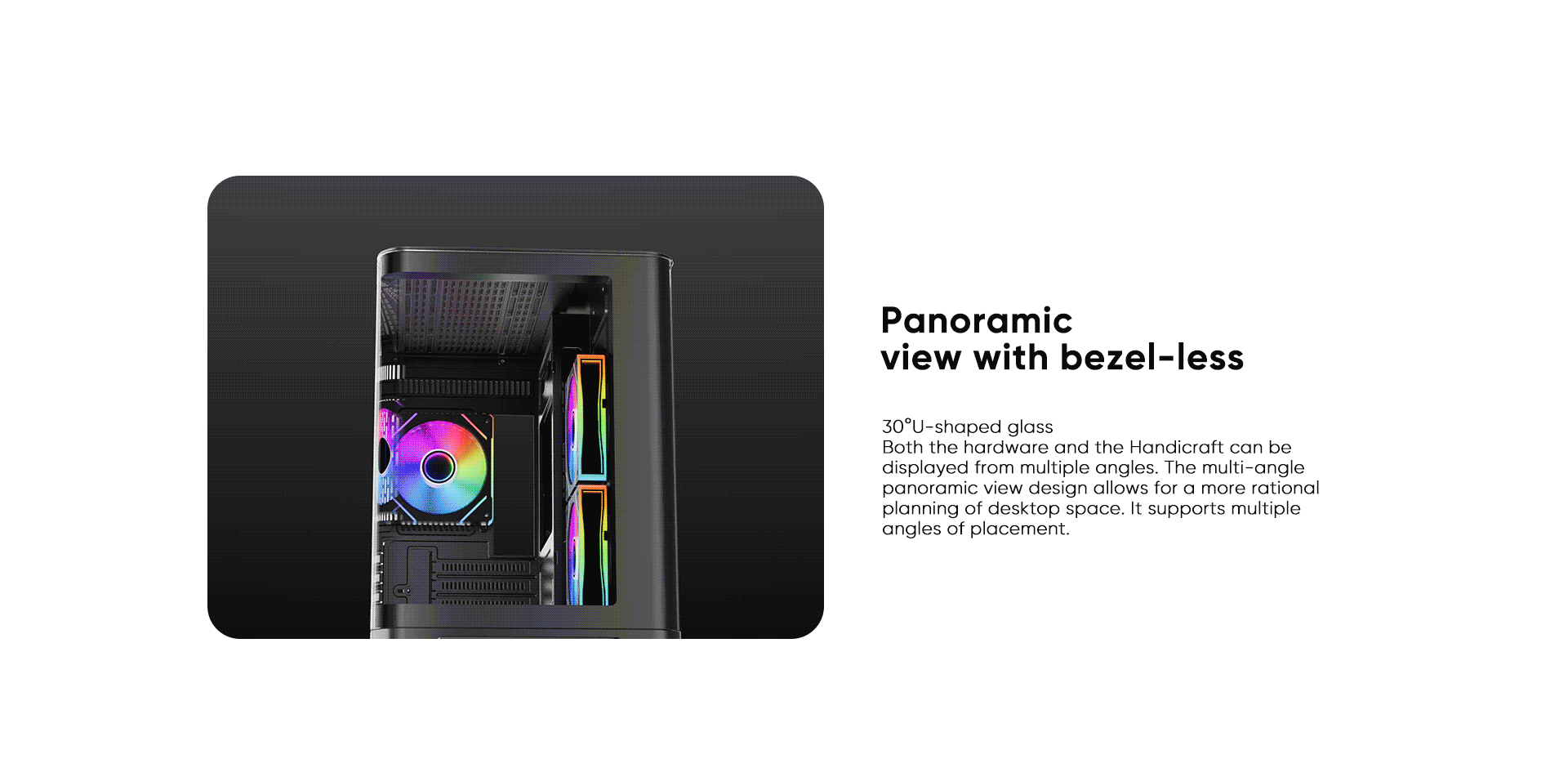

U-shaped glass
Support 240 cooling
Support 12cm fan 7PCS
*Computer parts are not included /
Cooling fan may distinctively from diferent regions/countries

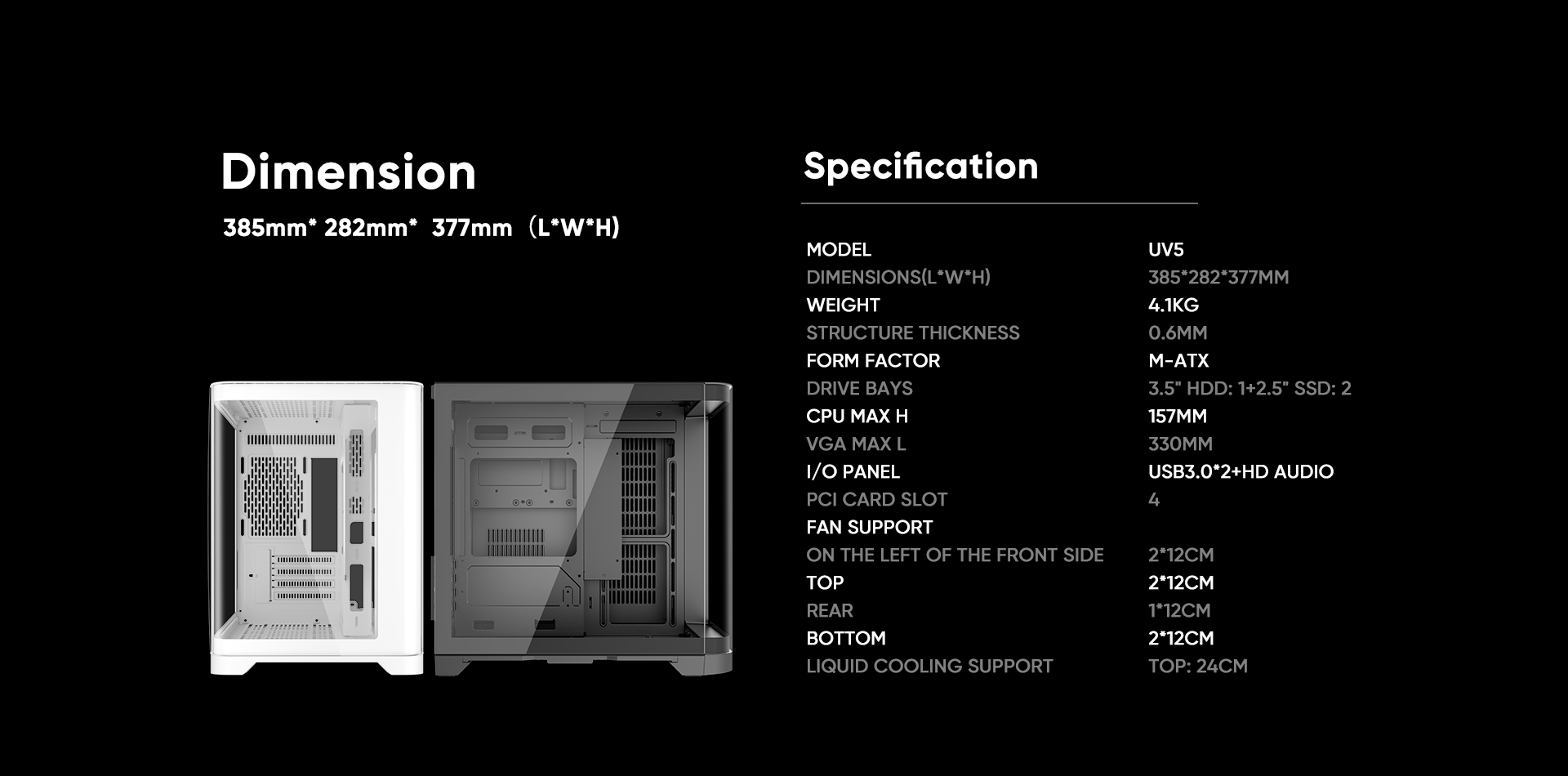

Model
UV5
Structure Dimensions(L*W*H)
345*280*350MM
Product Dimensions(L*W*H)
385*280*377MM
Package Dimensions(L*W*H)
435*340*460MM

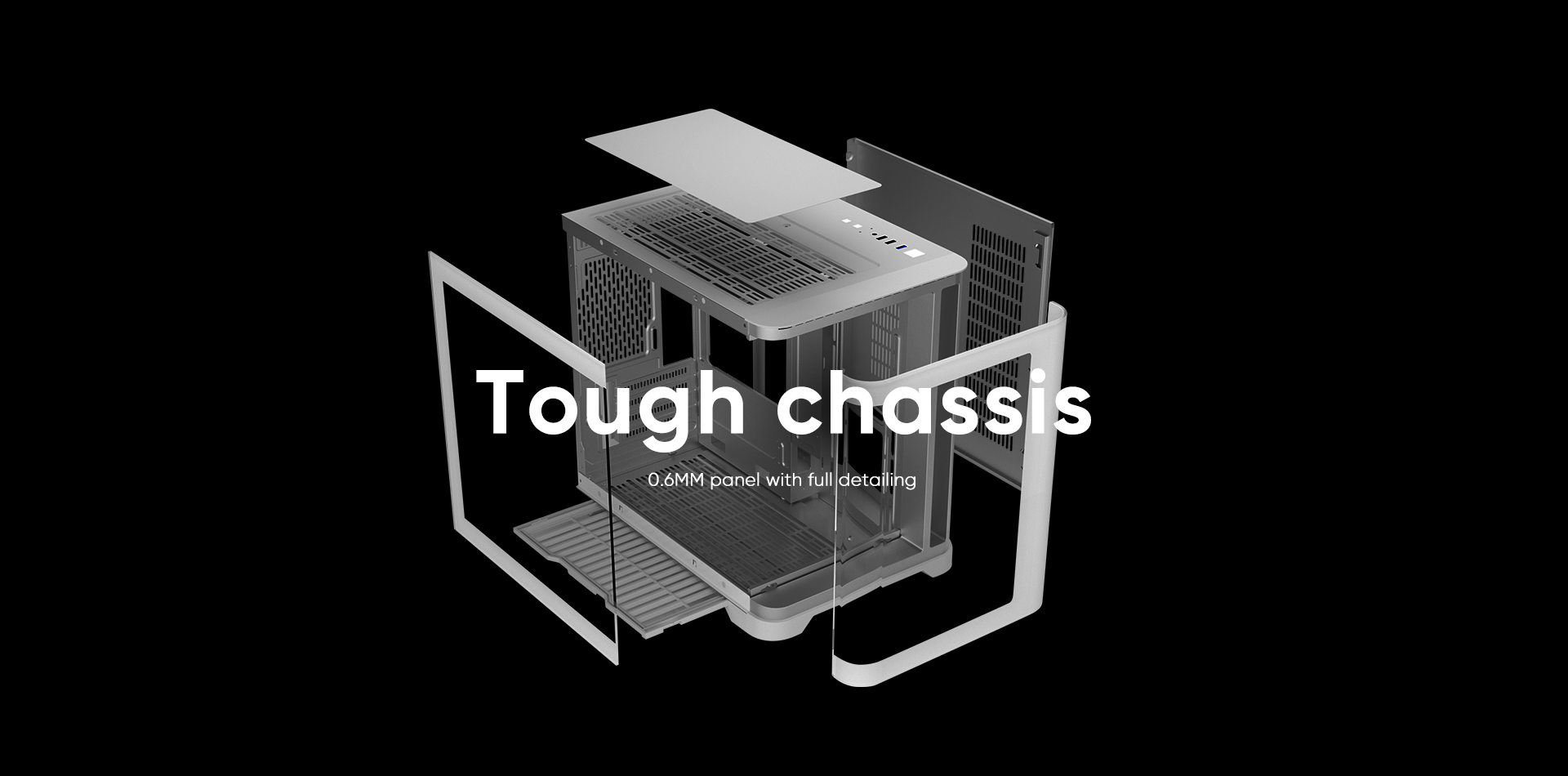

Structure Thickness
0.6MM
Materials
SPCC 0.6MM
F&L SIDE PANEL: TEMPERED GLASS
Form Factor
M-ATX/ITX
5.25" CD ROM: 0

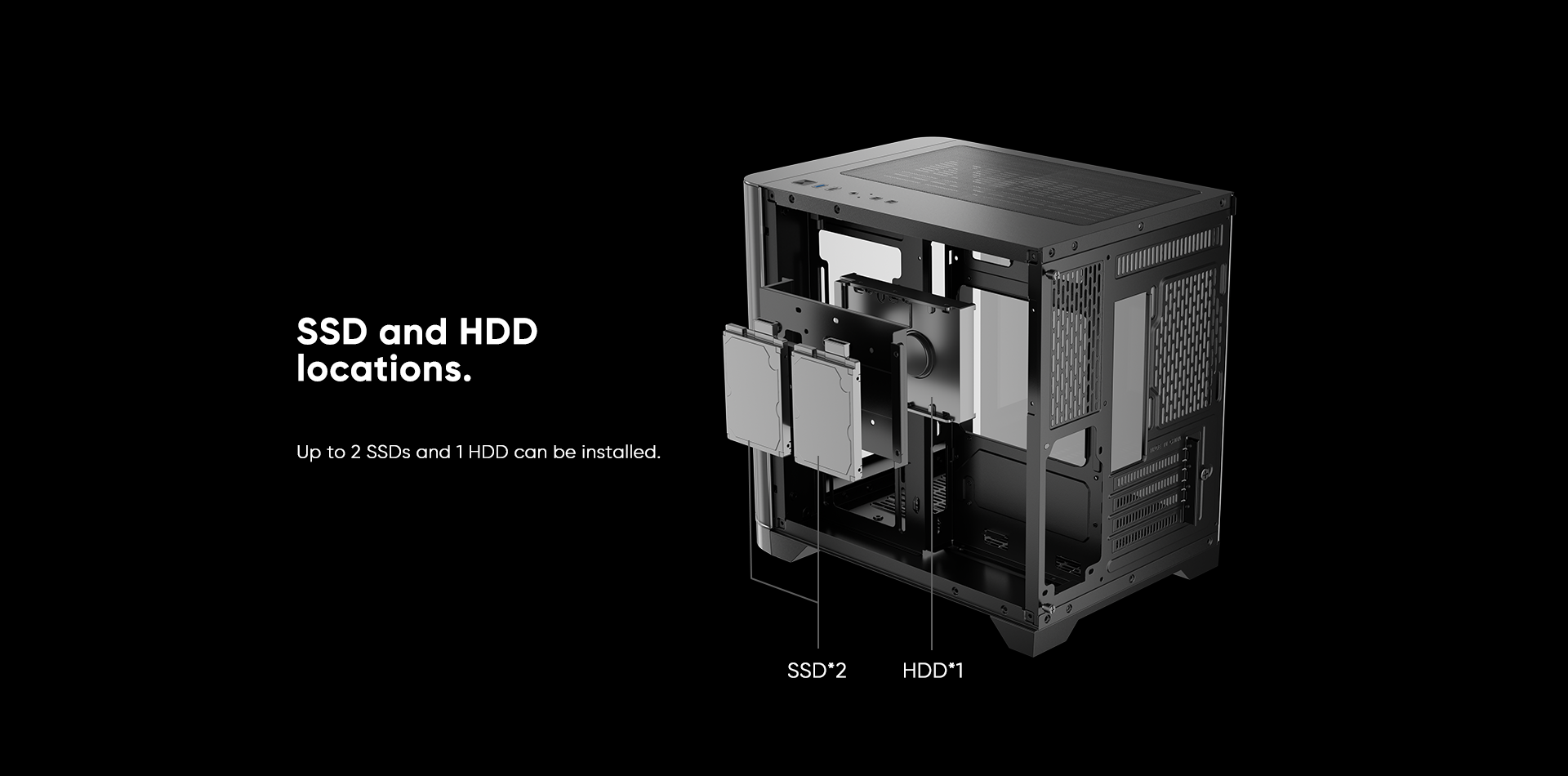

①3.5" HDD: 1+2.5" SSD: 2
②3.5" HDD: 0+2.5" SSD: 3

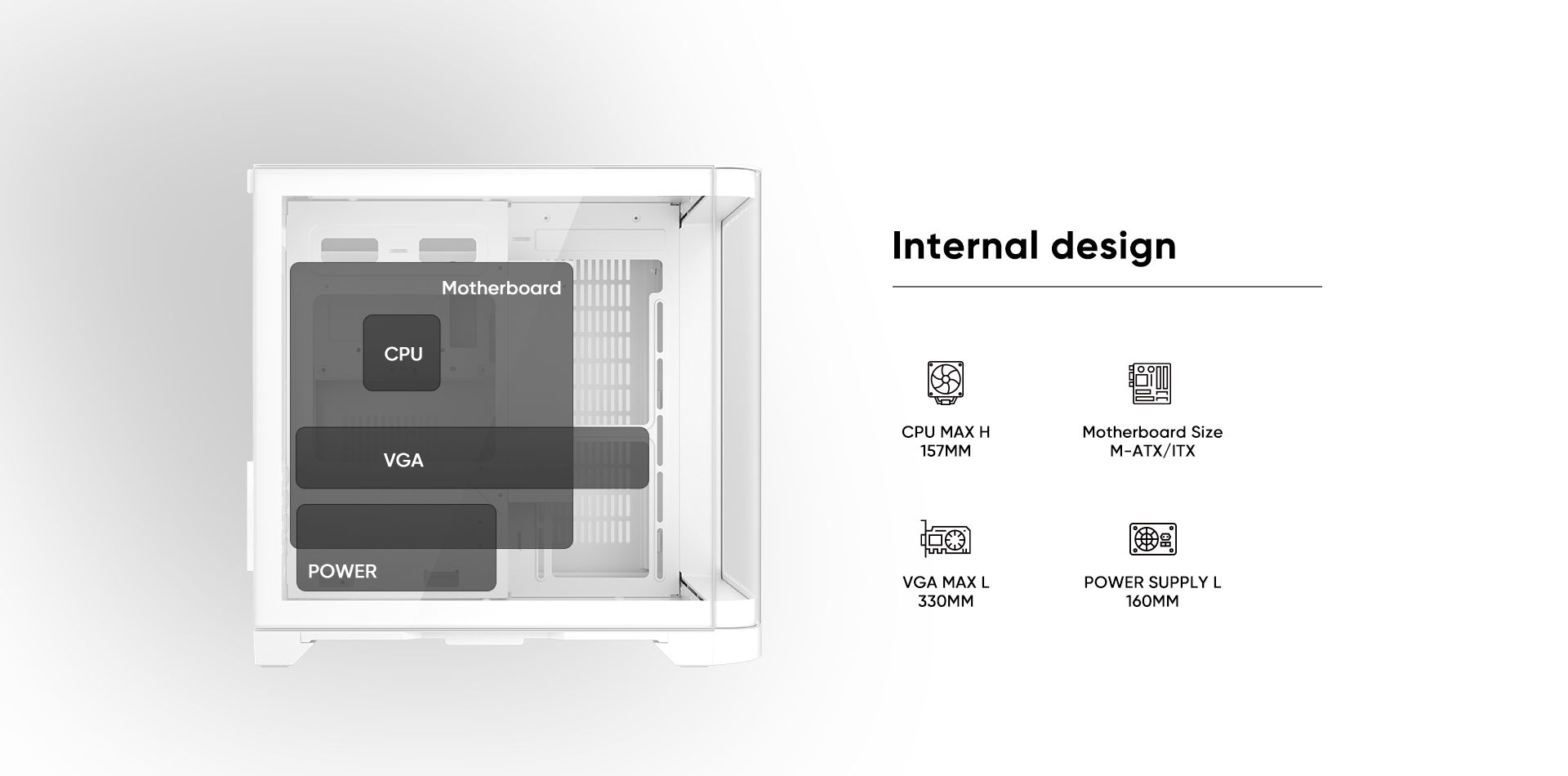

CPU MAX Height
157MM
VGA MAX Length
330MM

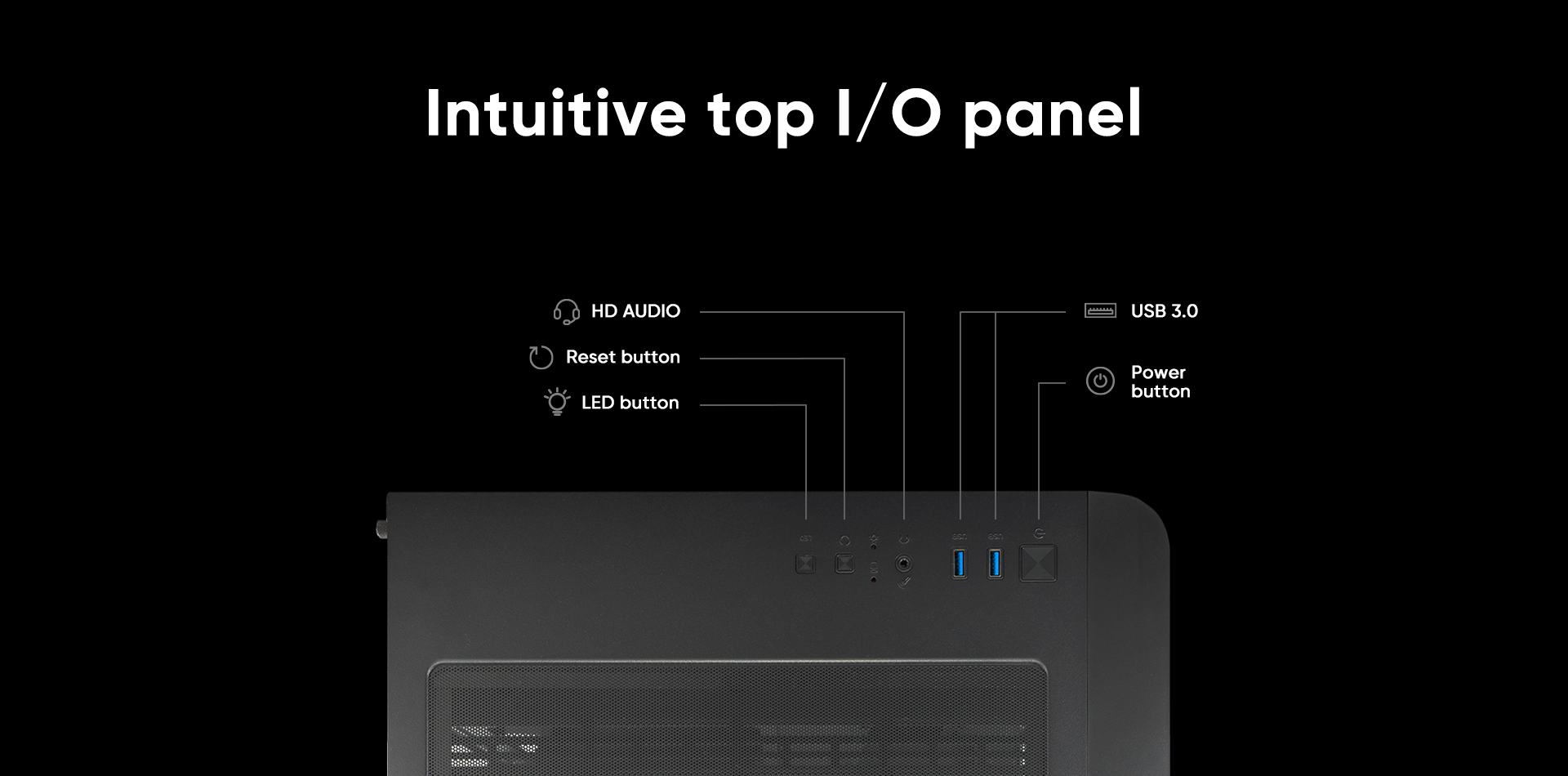

I/O Panel

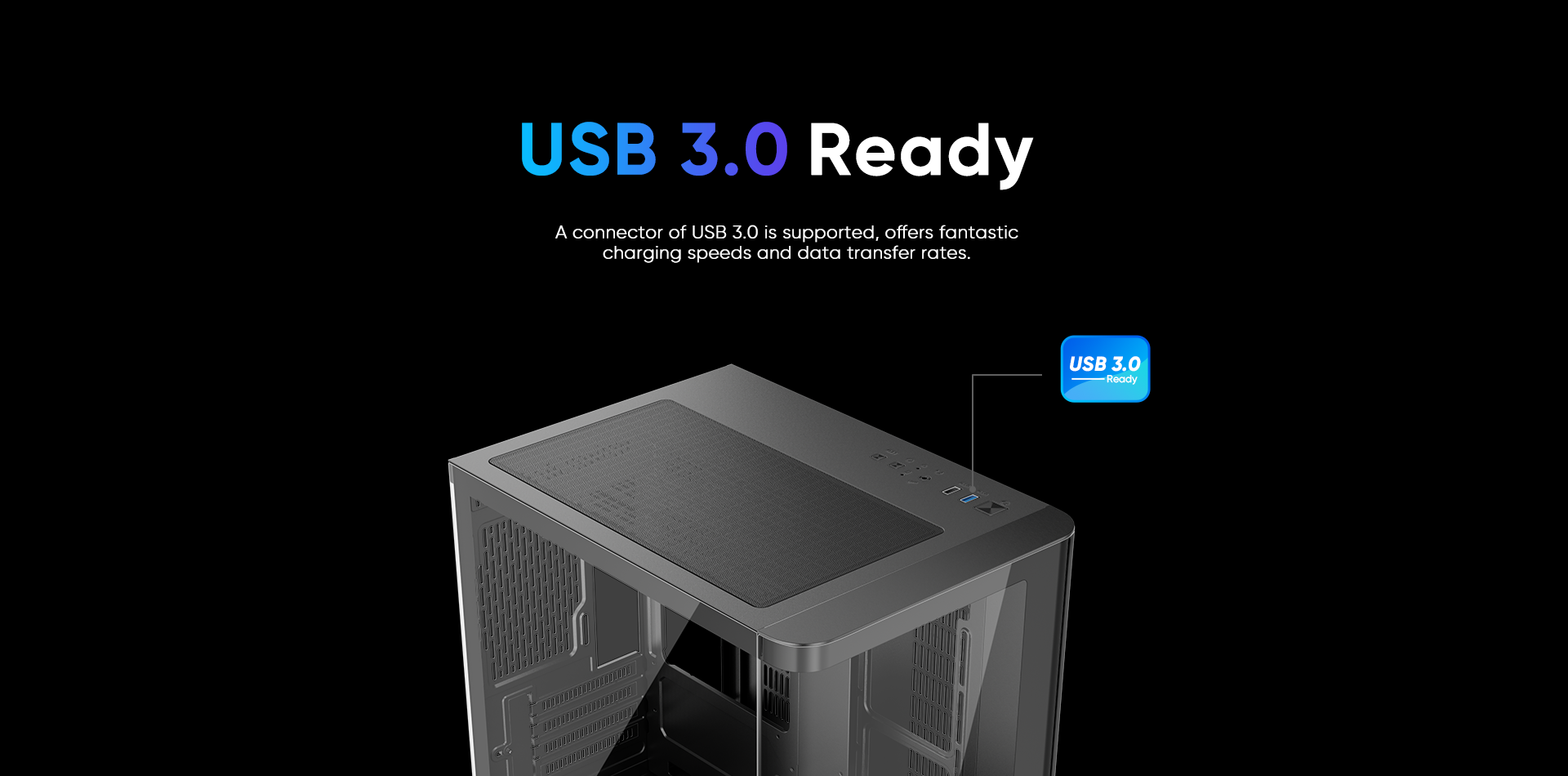

USB3.0*2+HD AUDIO
PCI Card Slot
4

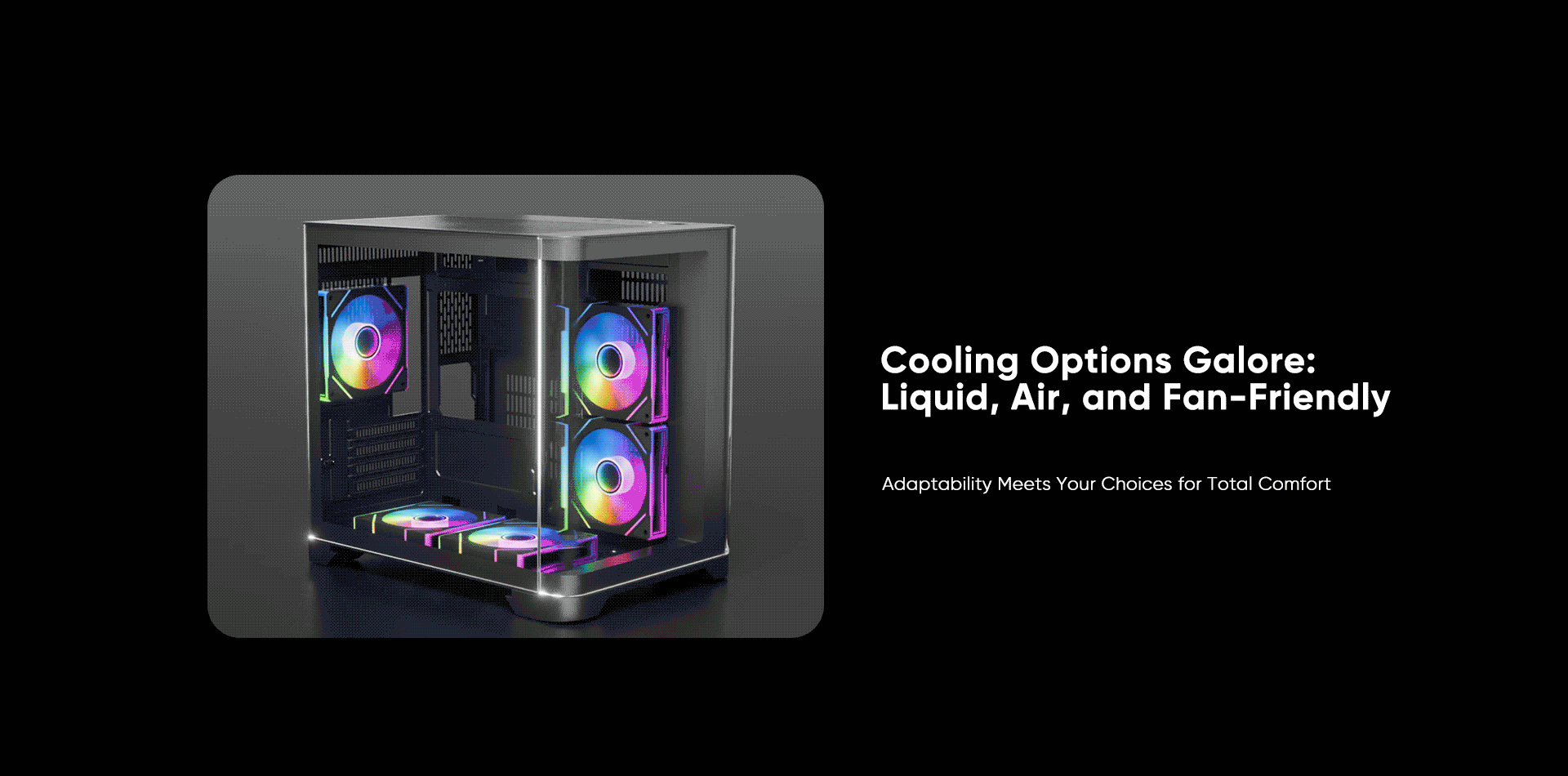

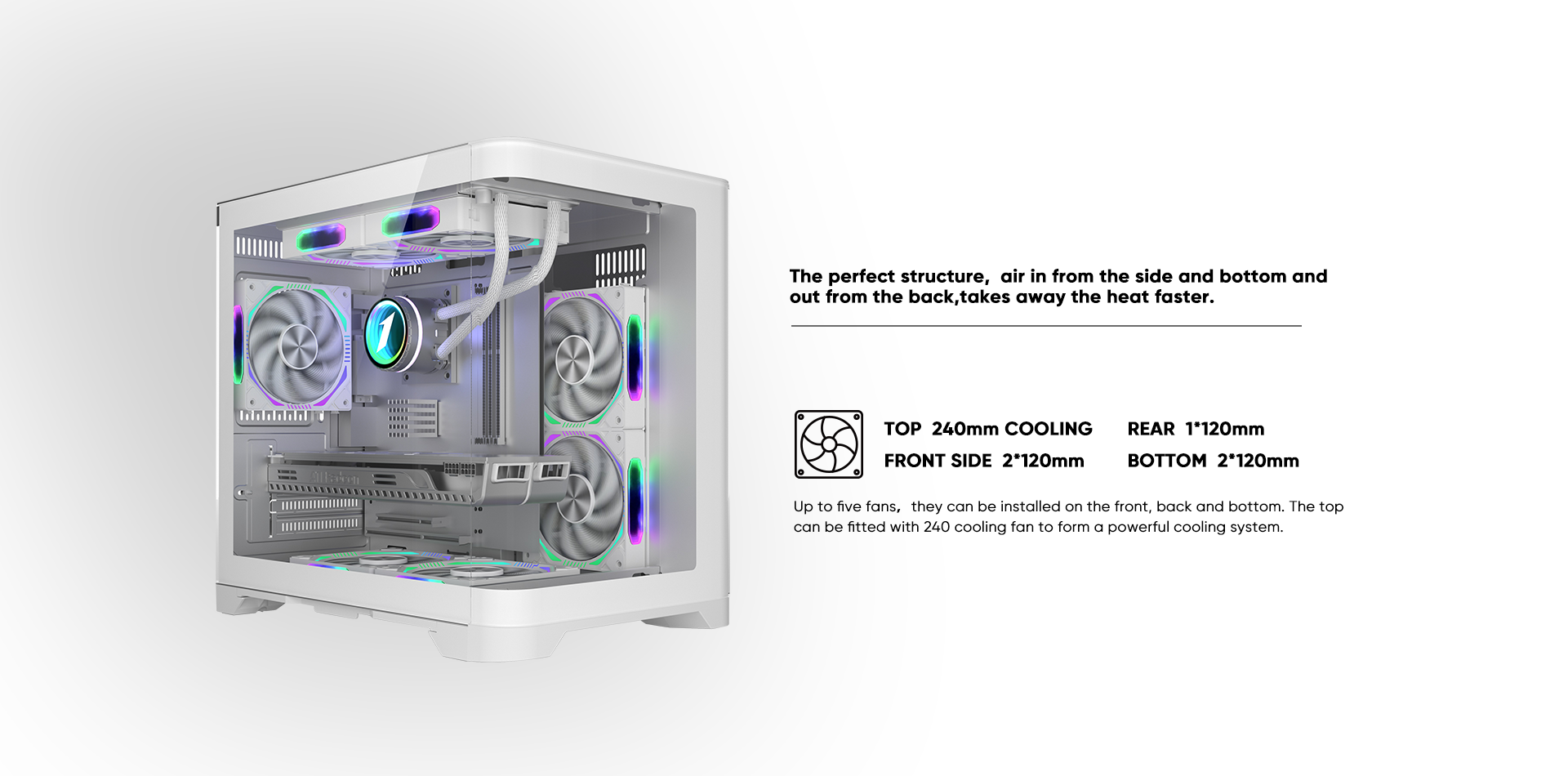

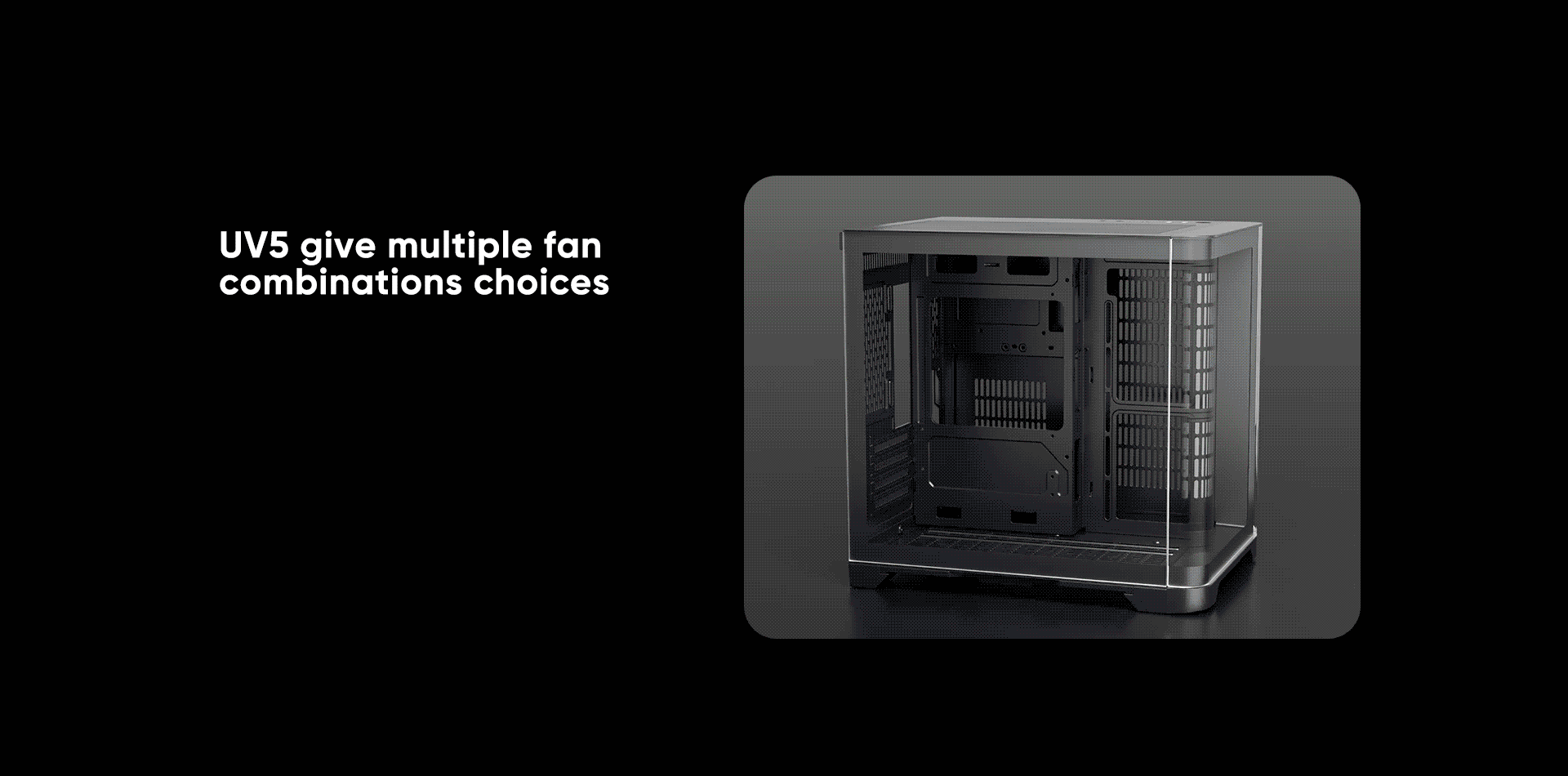

Fan Support
FRONT SIDE: 2*12CM
TOP: 2*12CM
REAR: 1*12CM
BOTTOM: 2*12CM

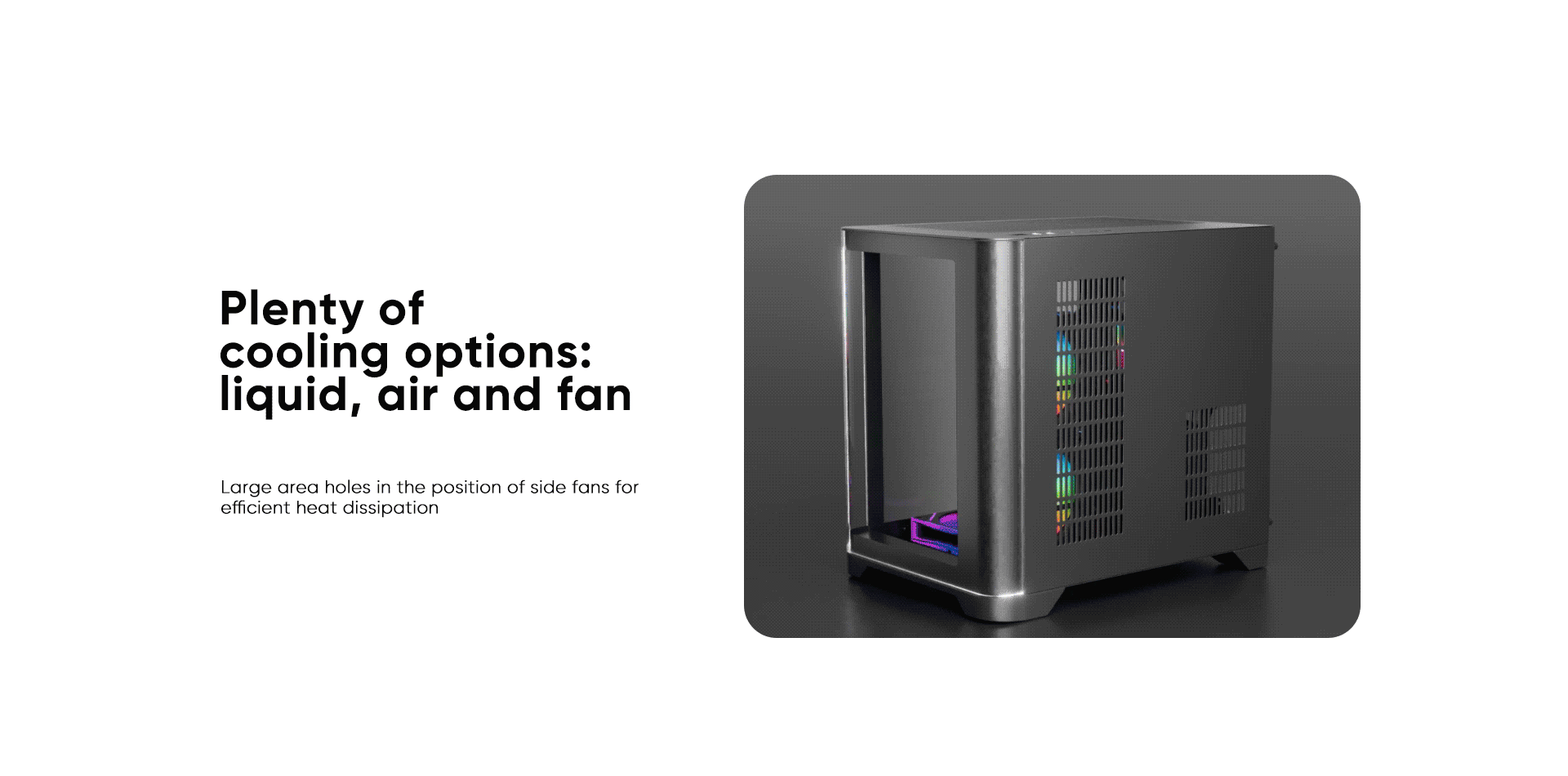

Liquid Cooling Support
TOP: 24CM
Power Supply Support
BOTTOM MOUNT
Weight
N.W.: 4.73KG
G.W.: 5.97KG
