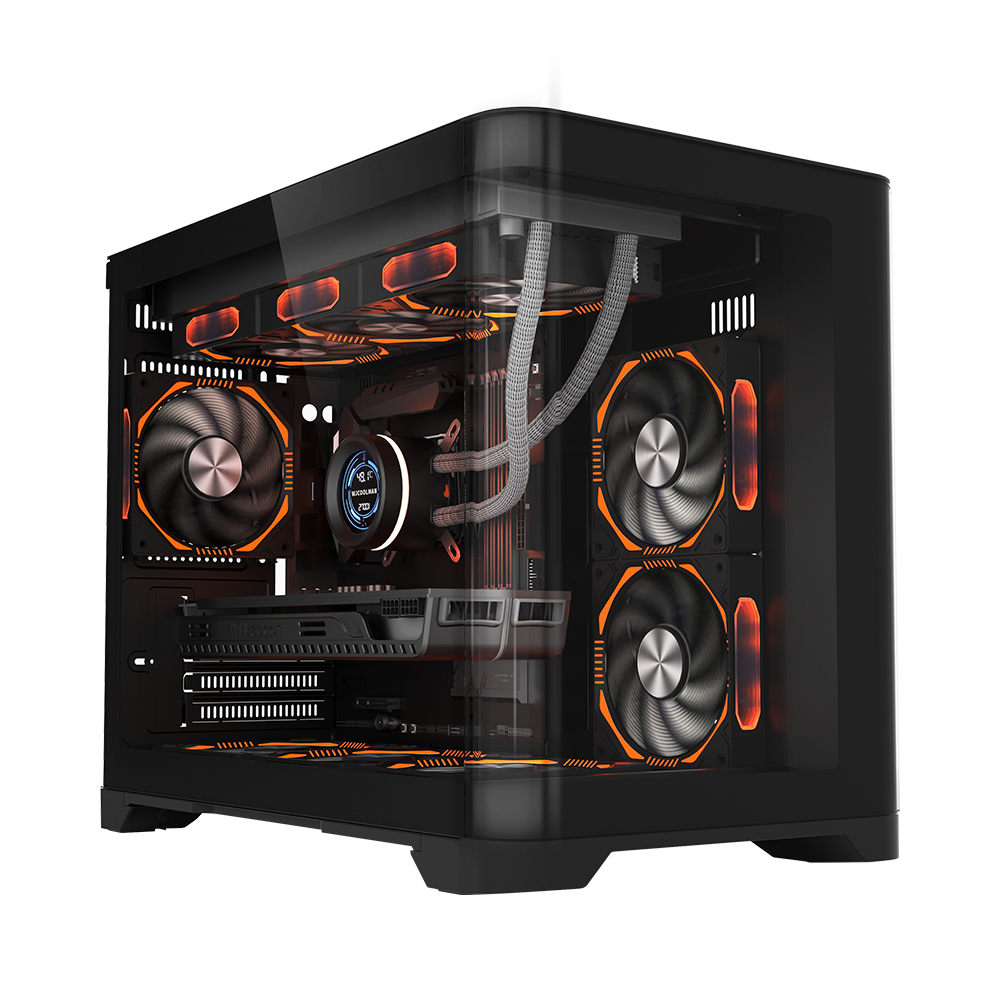

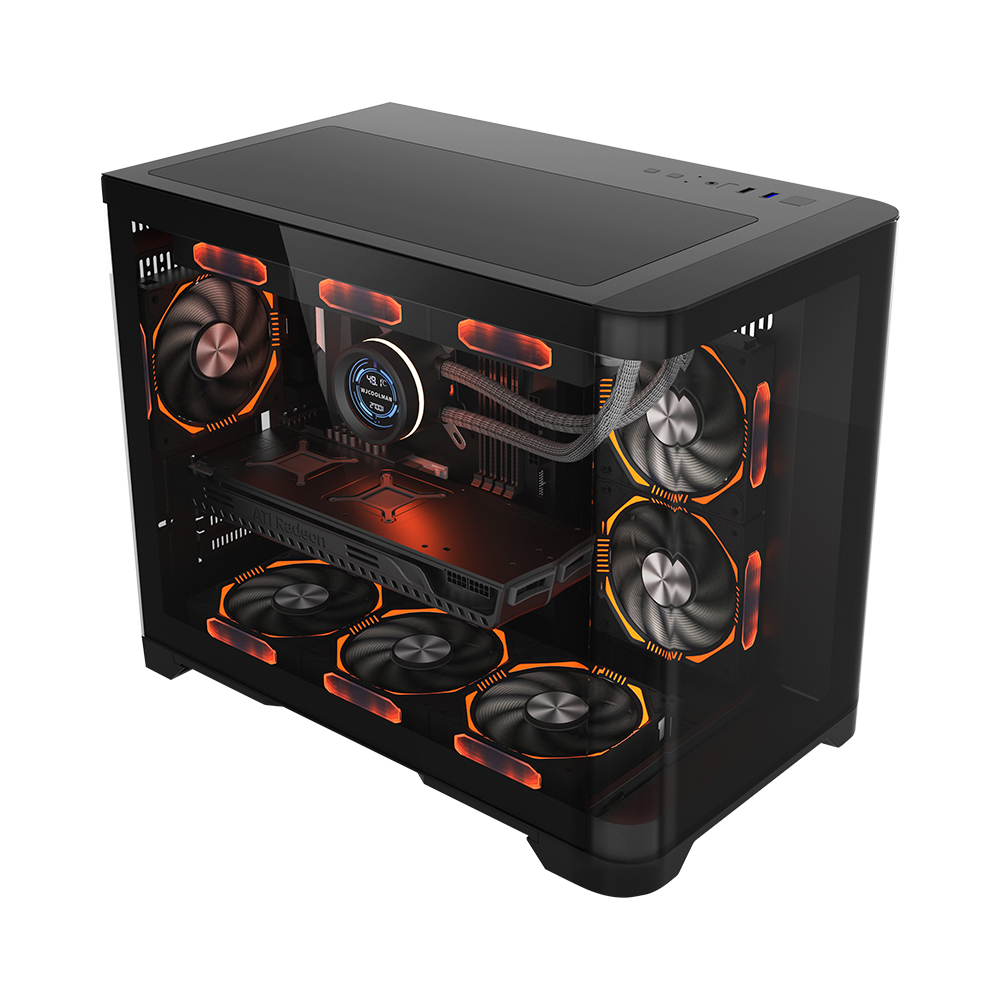

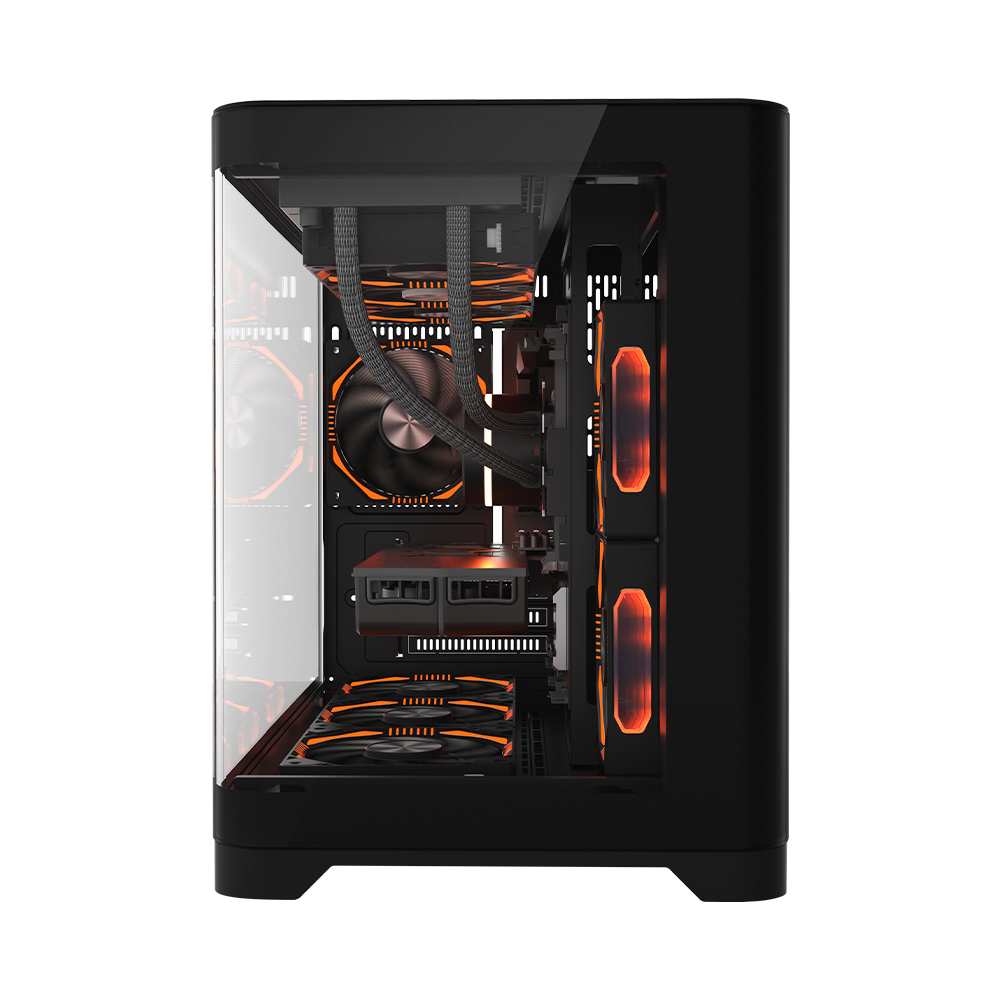

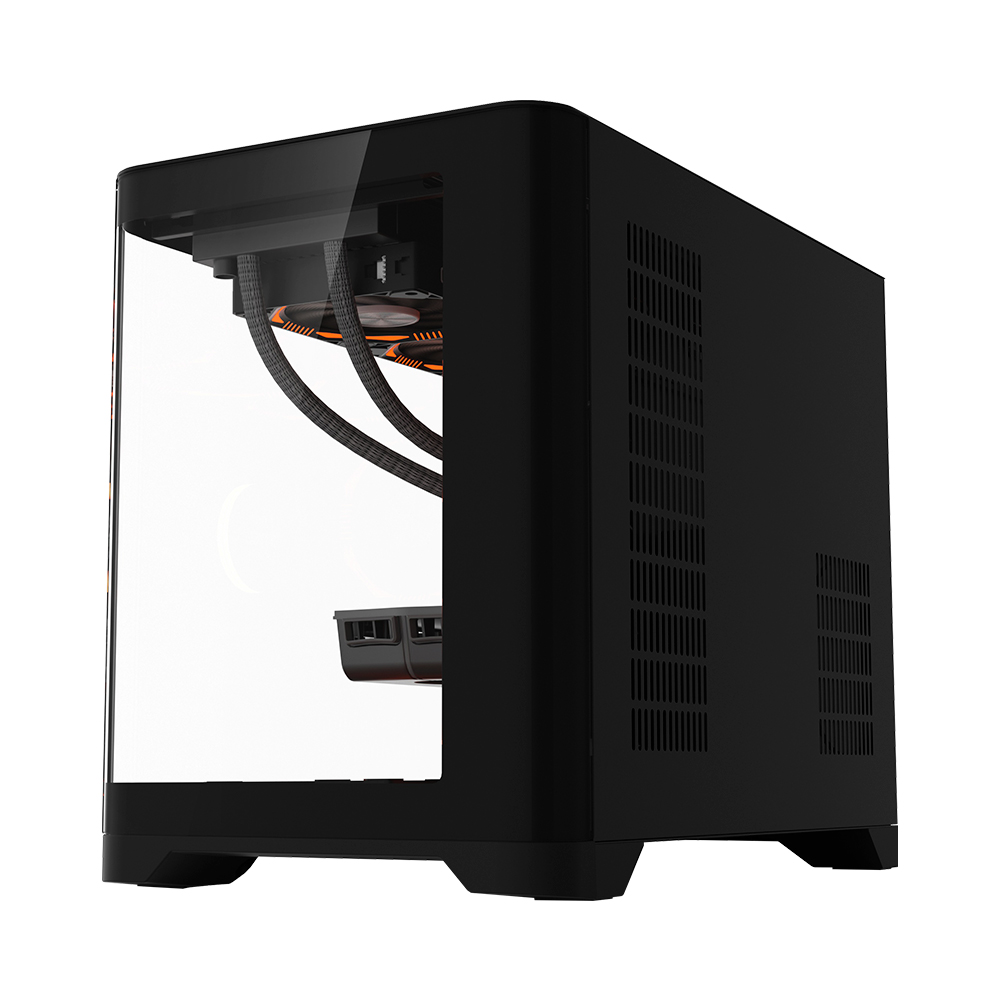

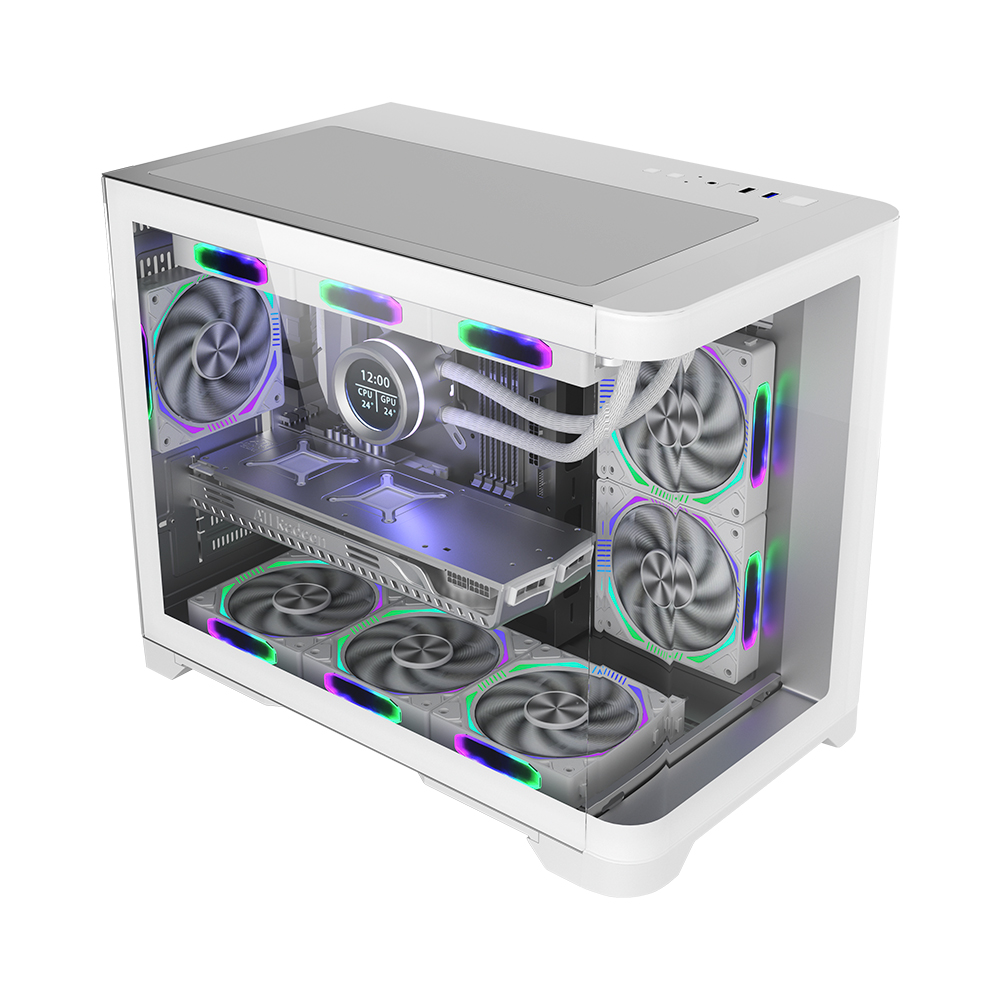

UV6 (Black)

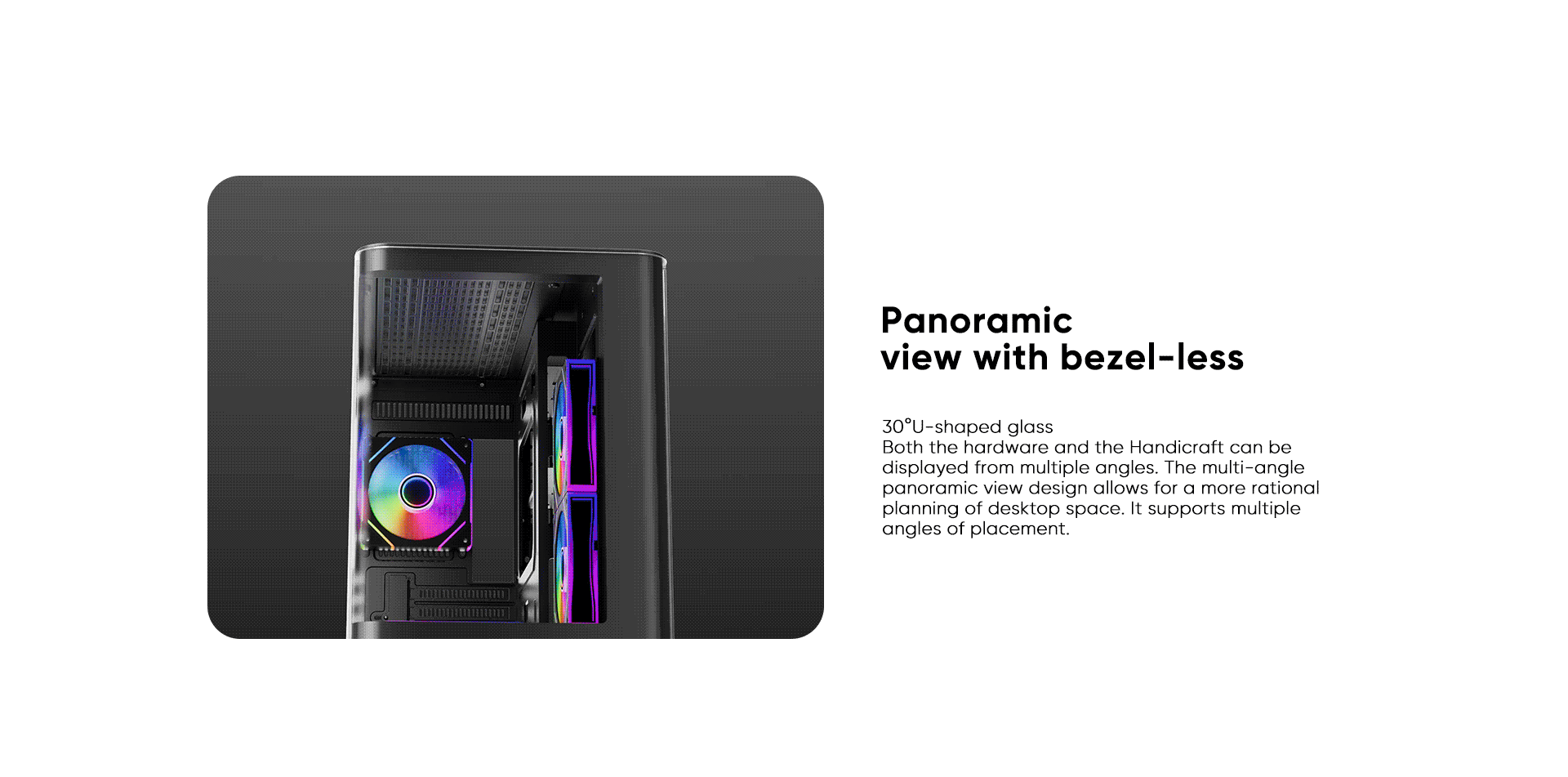

U-shaped glass

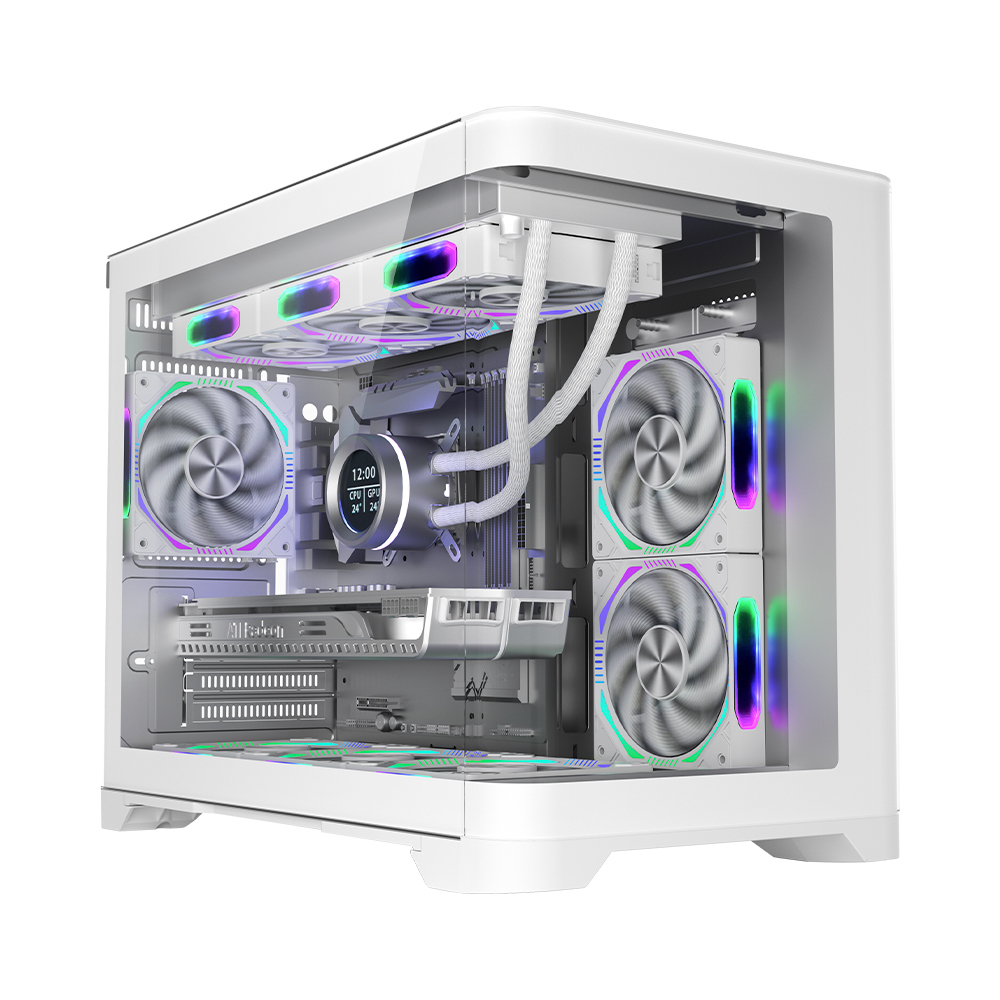

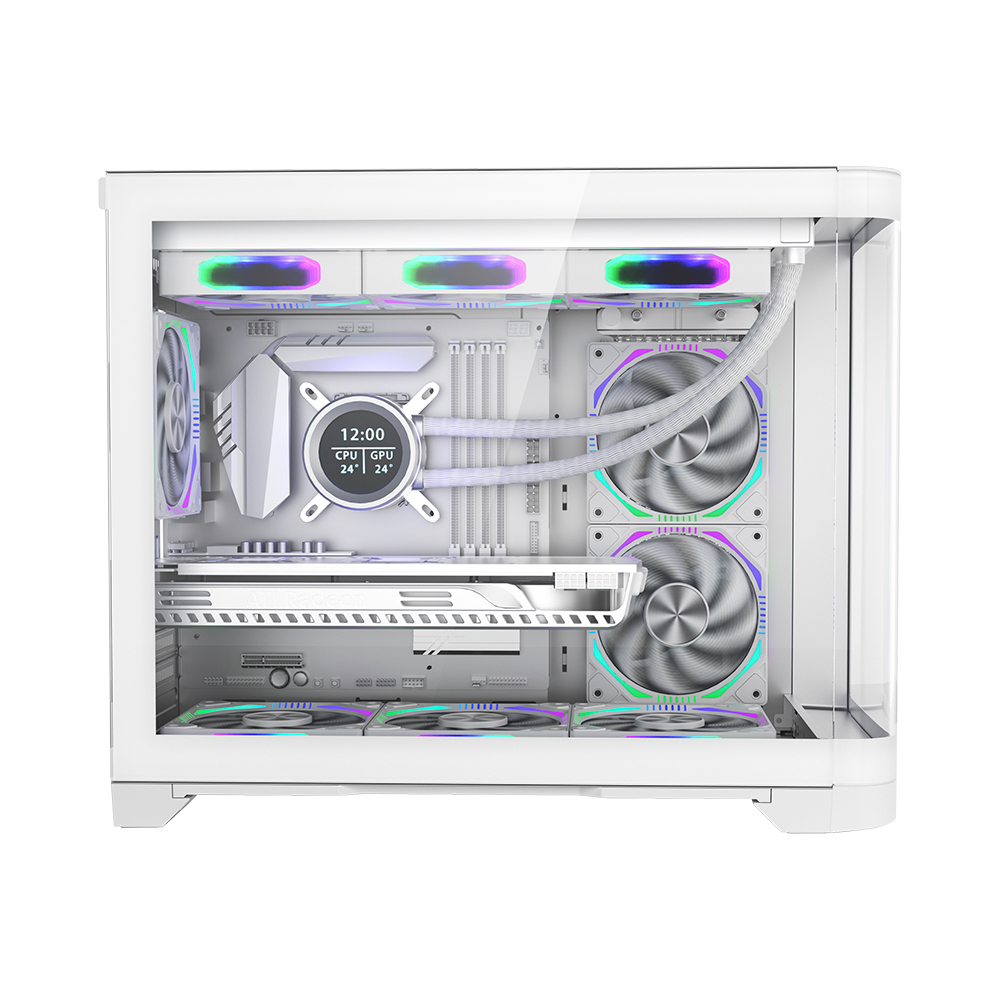

Support 360 cooling
Support 12cm fan 9PCS
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

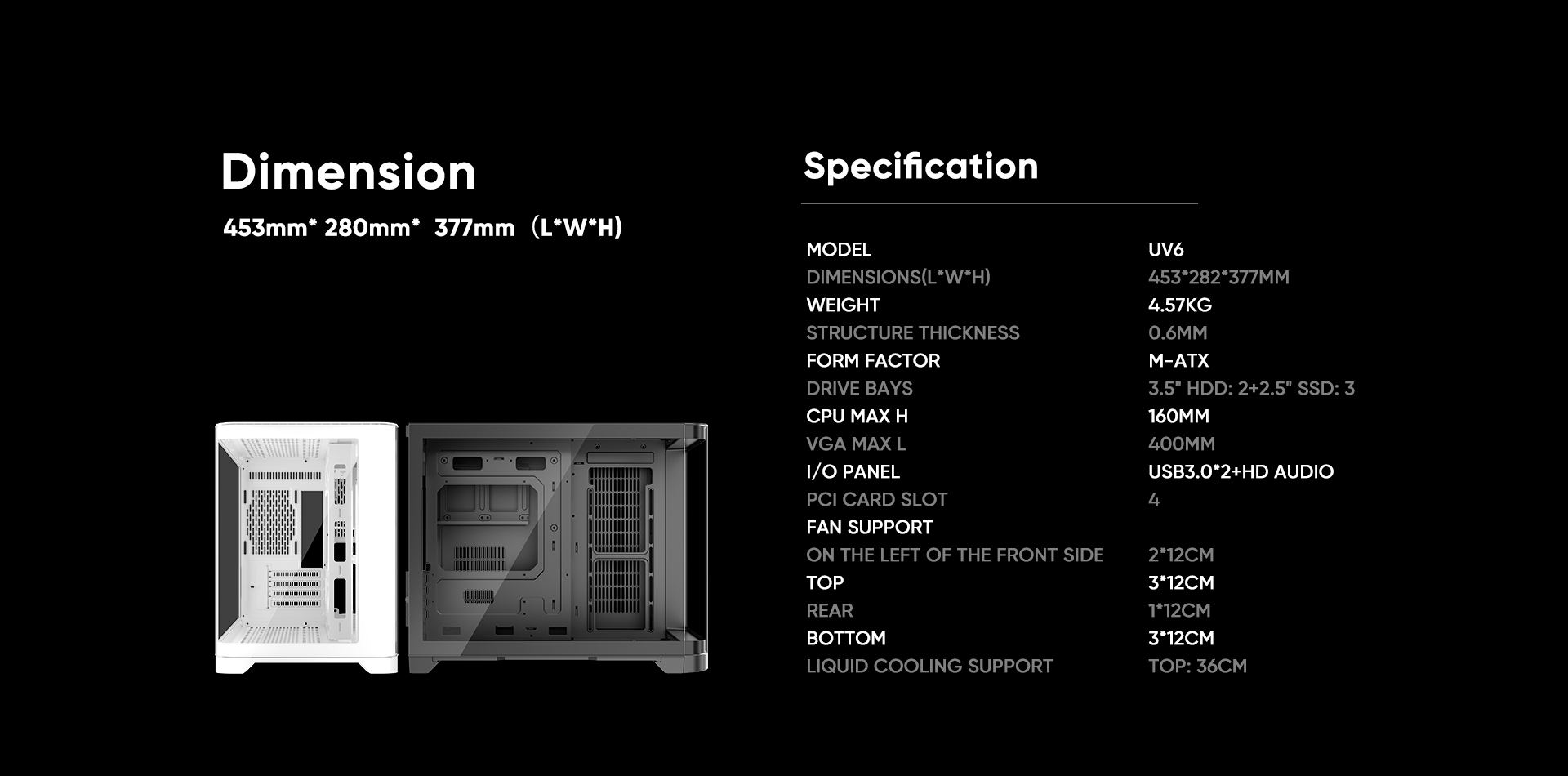

Model
UV6

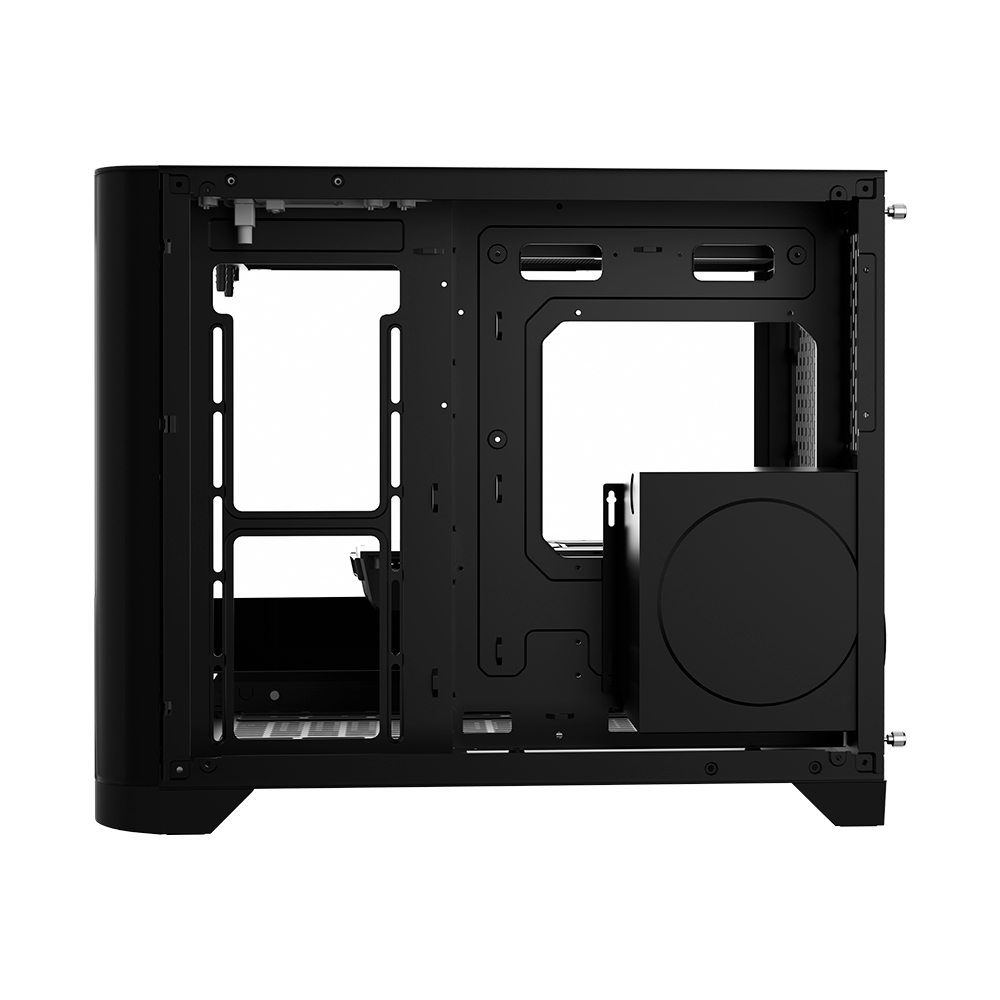

Structure Dimensions(L*W*H)
412*280*350MM
Product Dimensions(L*W*H)
453*280*377MM
Package Dimensions(L*W*H)
435*340*525MM

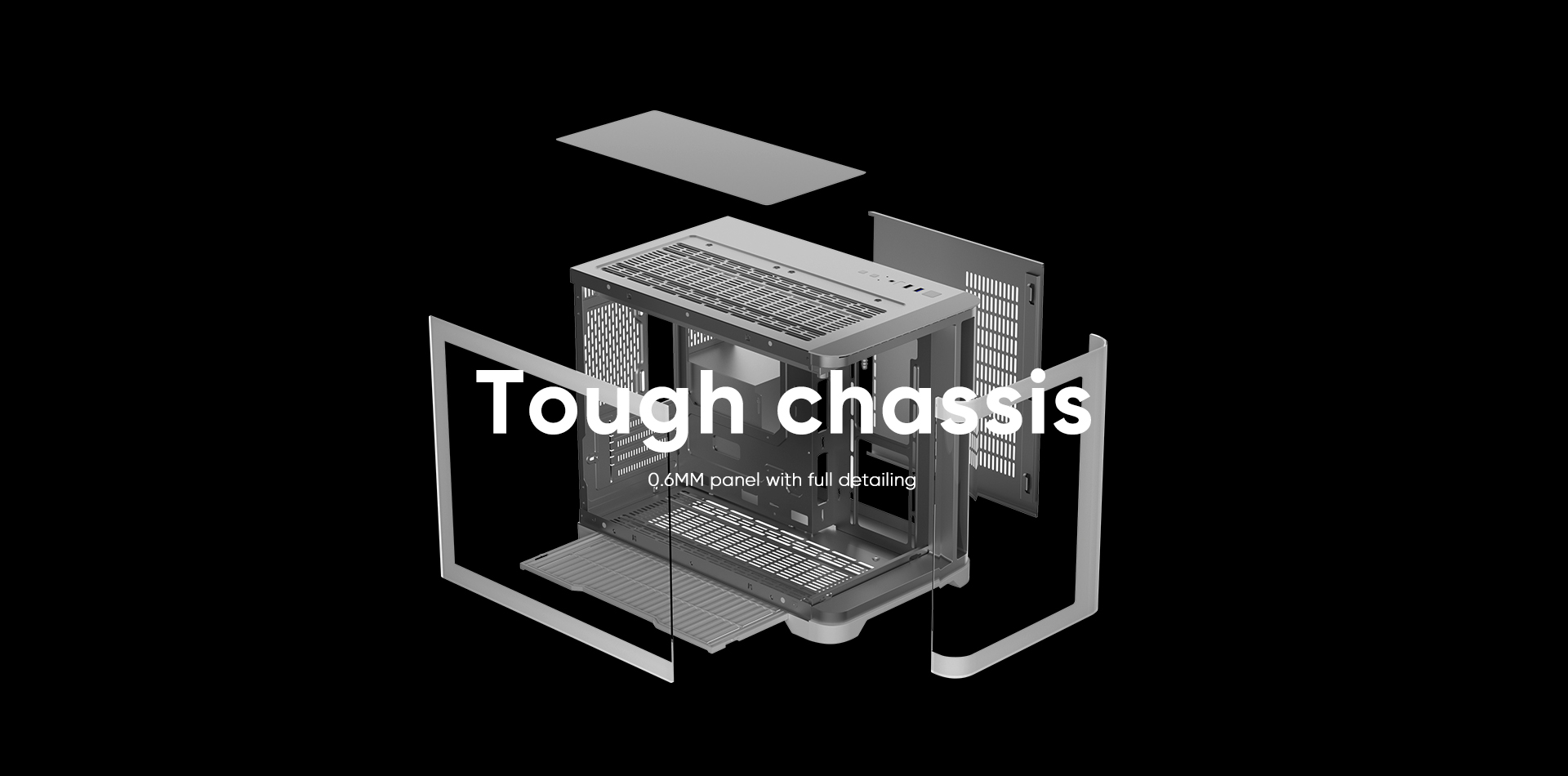

Structure Thickness
0.6MM

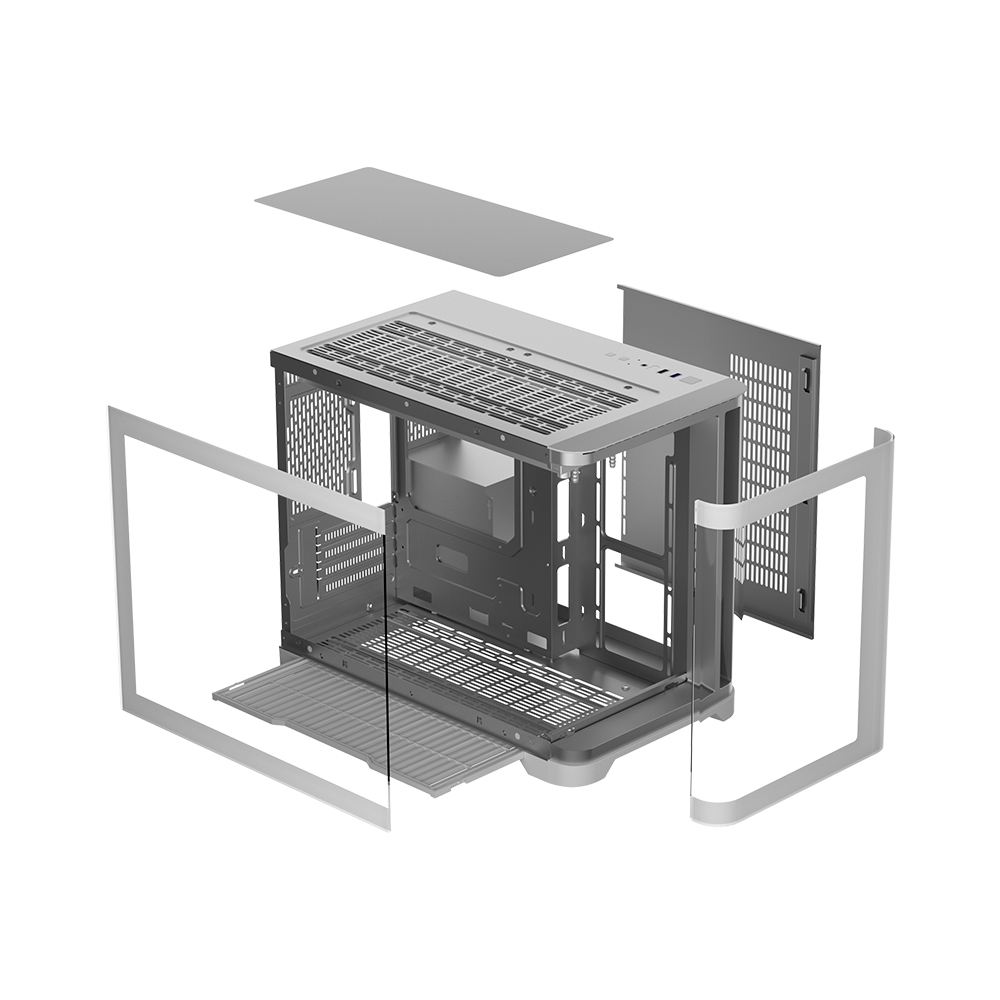

Materials
SPCC 0.6MM
F&L SIDE PANEL: TEMPERED GLASS
Form Factor
M-ATX/ITX
5.25" CD ROM: 0

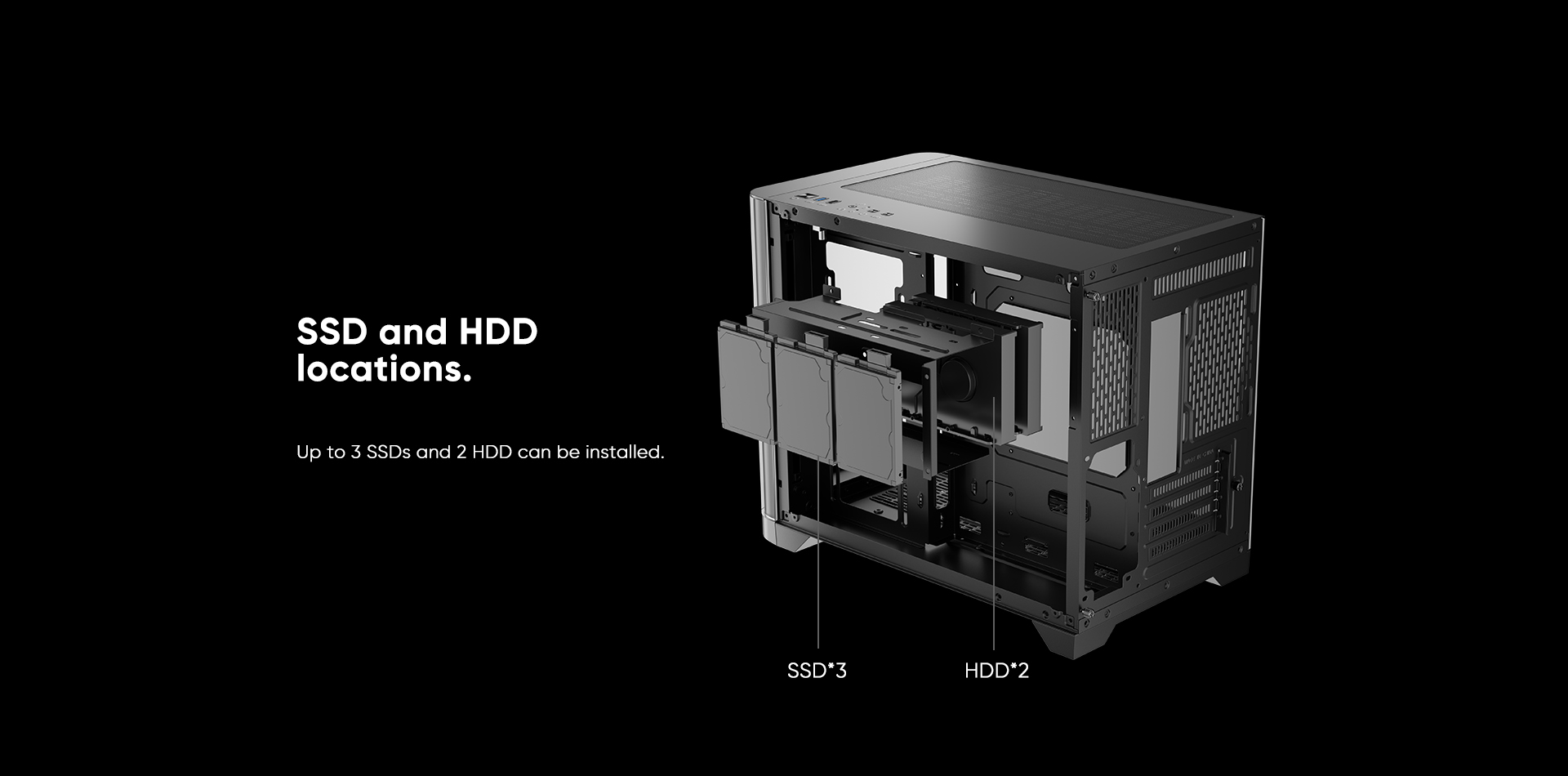

3.5" HDD: 2+2.5" SSD: 3

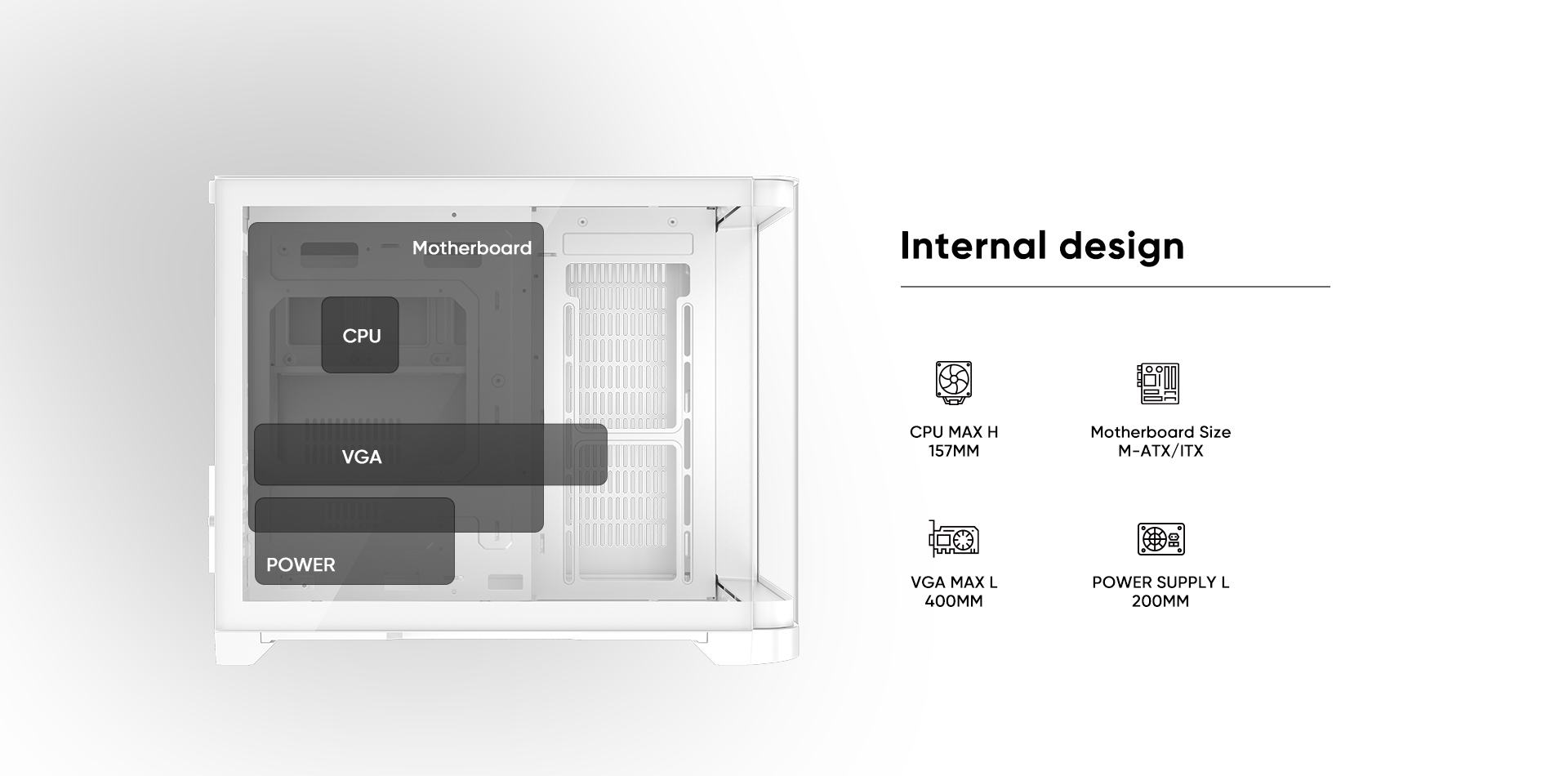

CPU MAX Height
157MM
VGA MAX Length
400MM

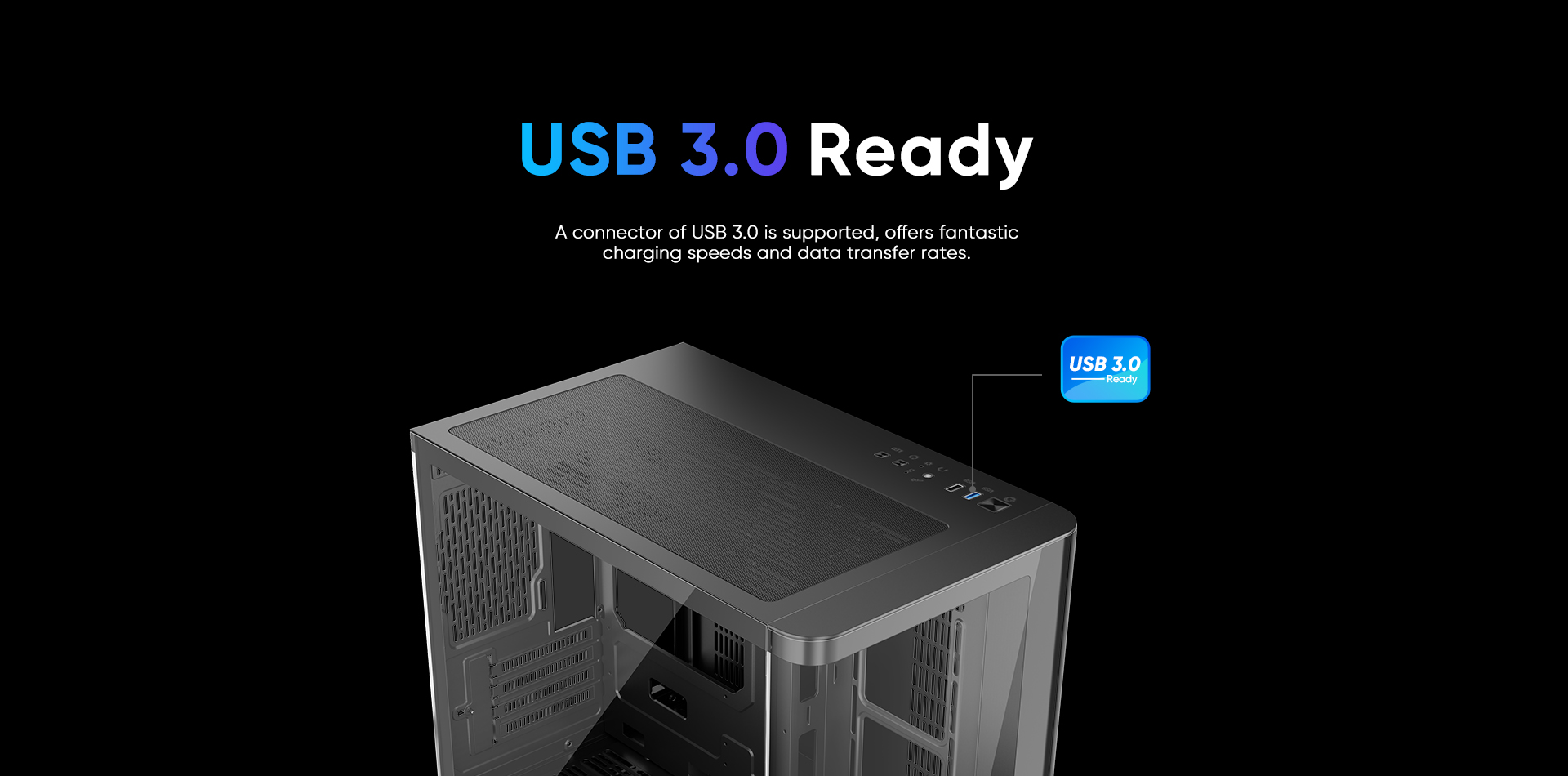

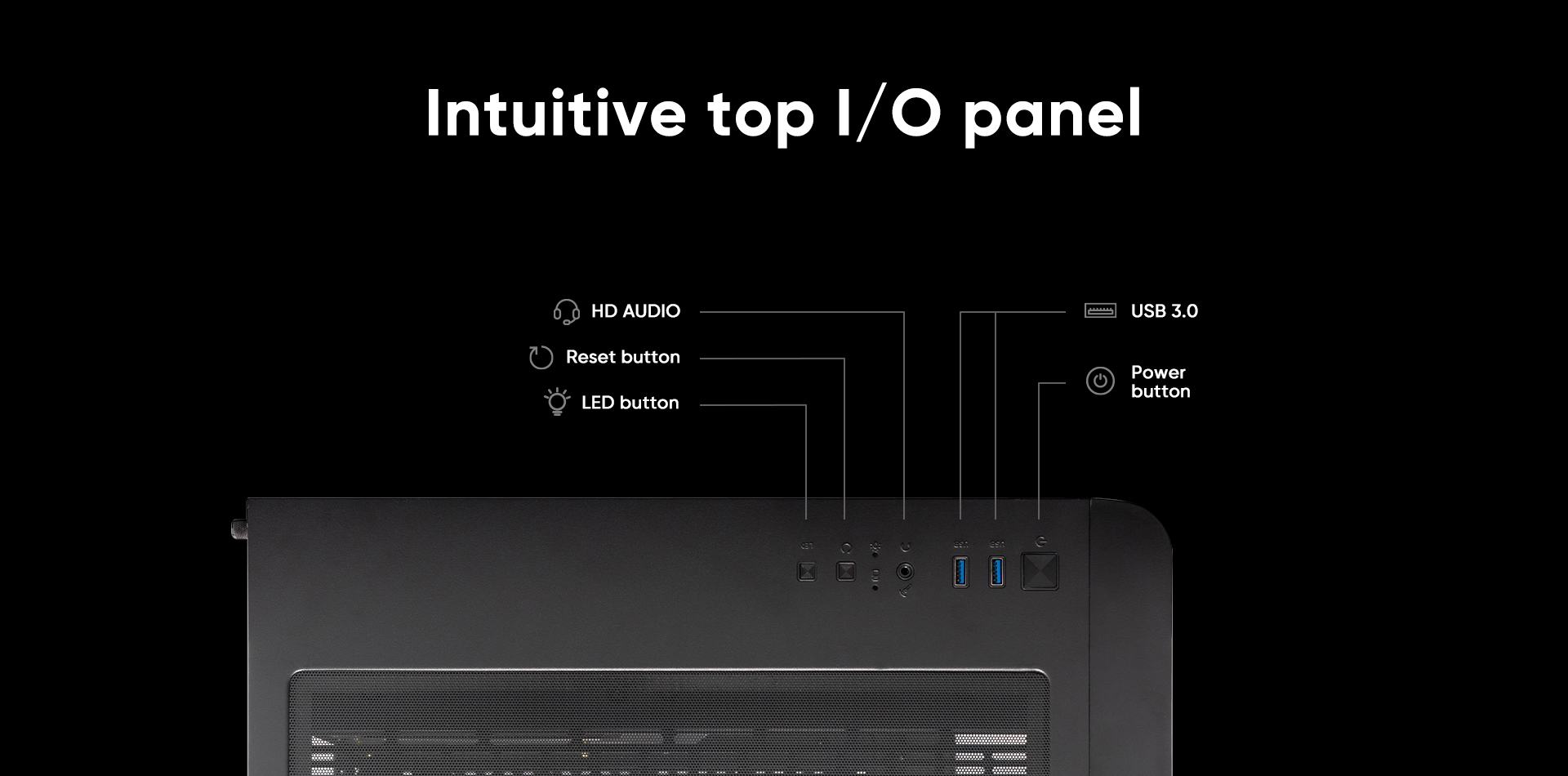

I/O Panel
USB3.0*2+HD AUDIO
PCI Card Slot
4

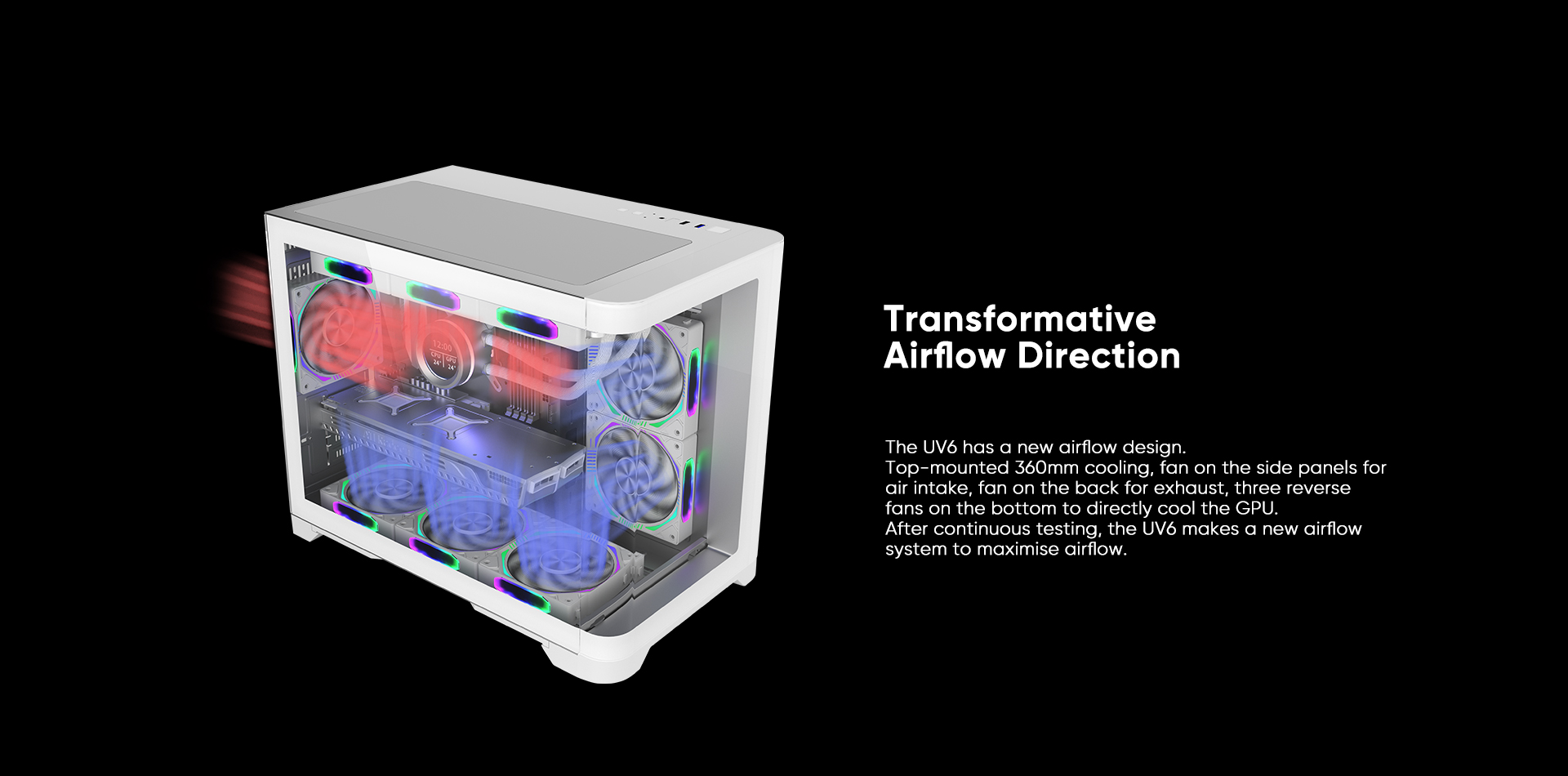

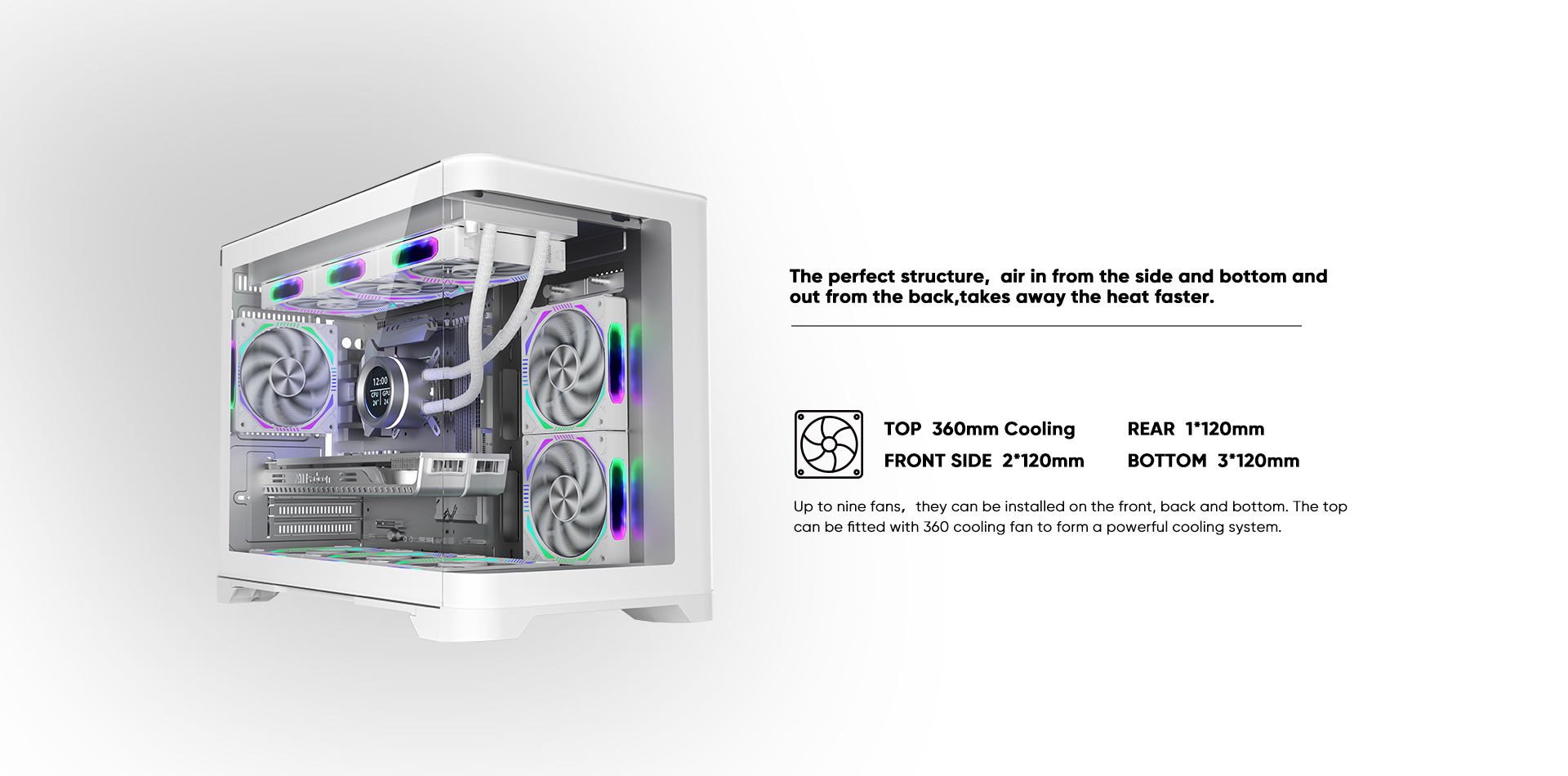

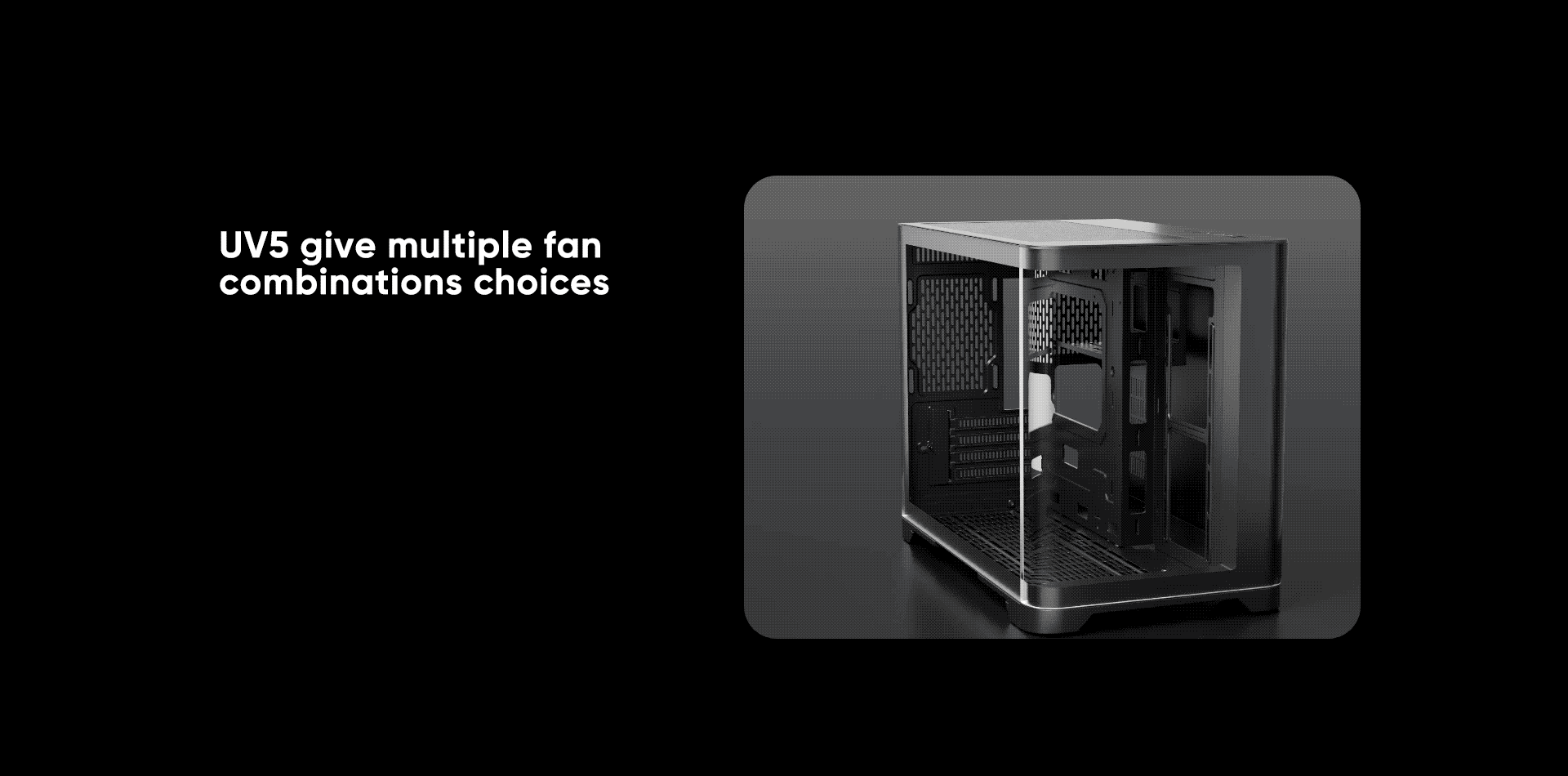

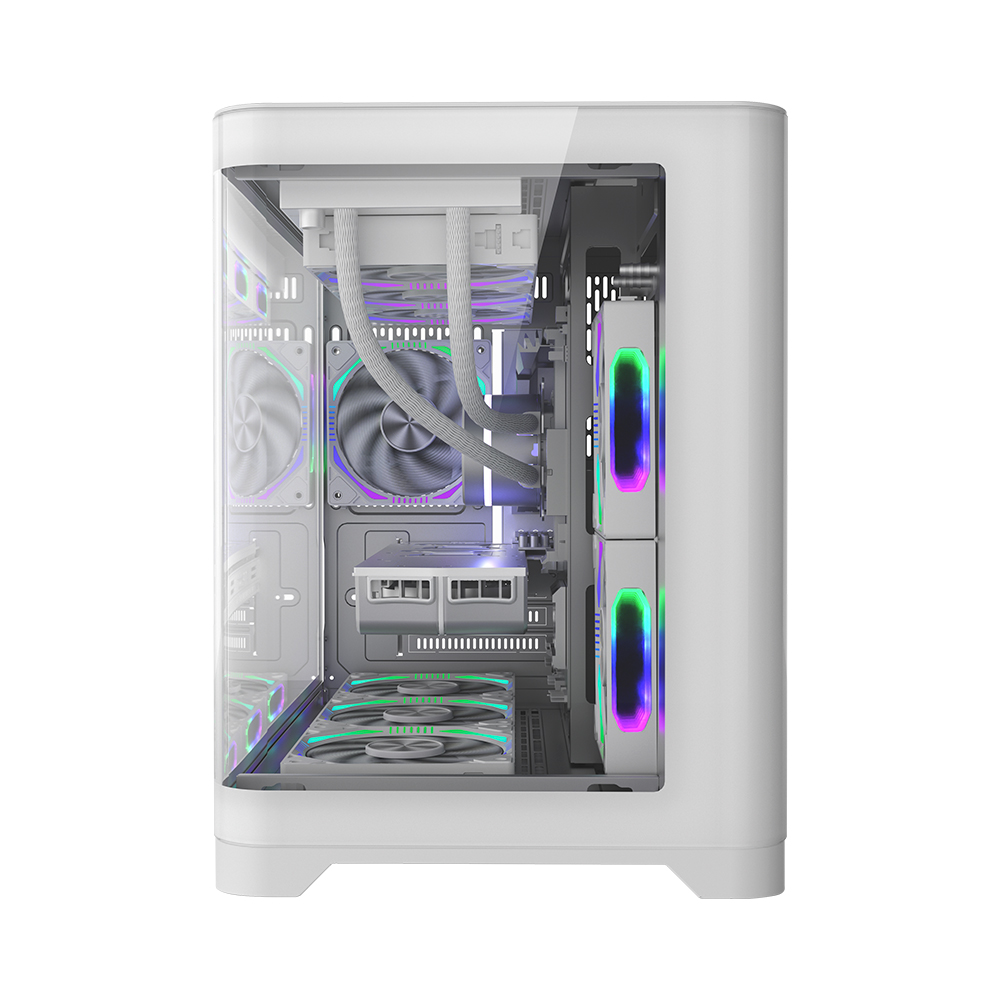

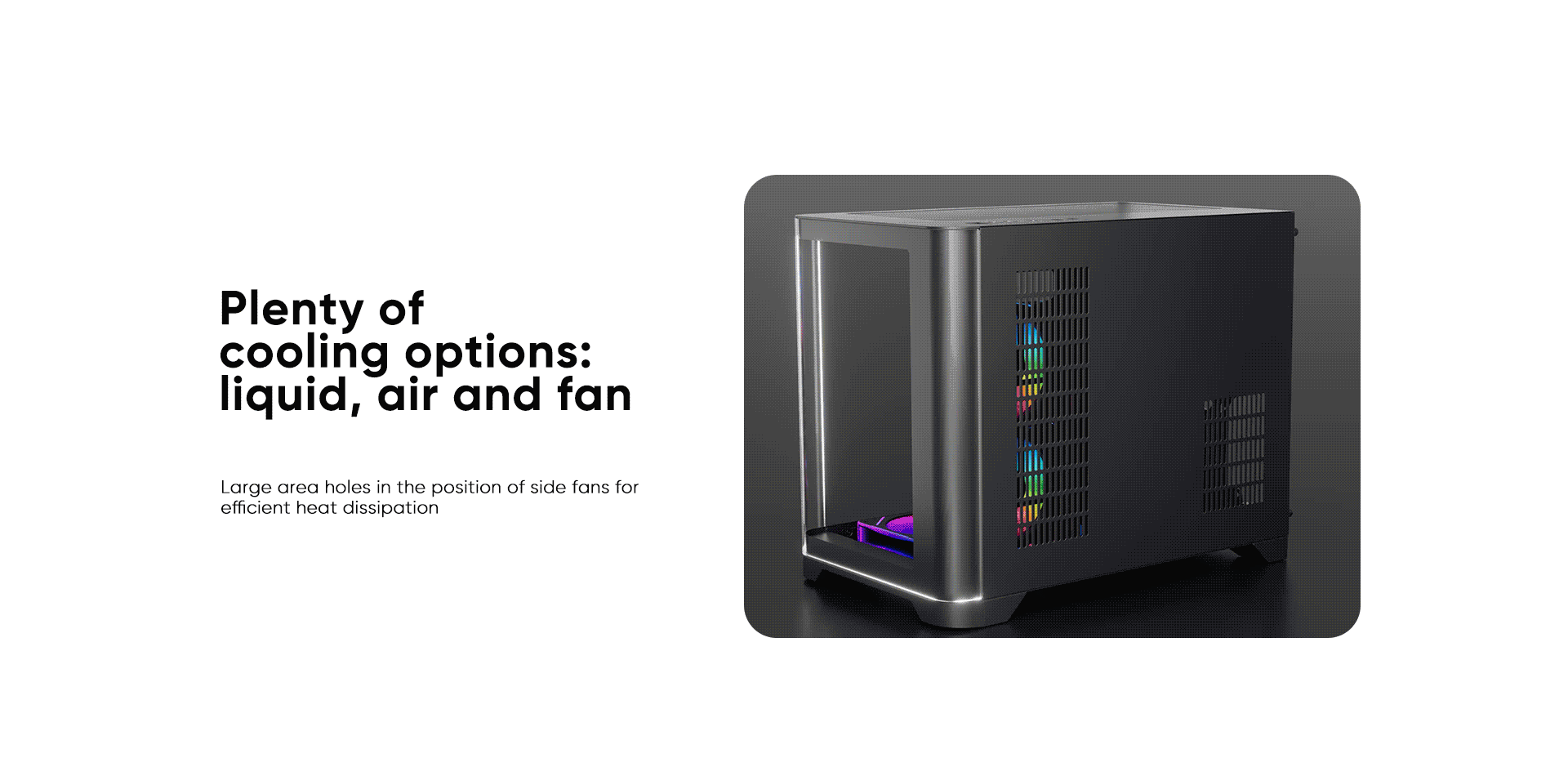

Fan Support
FRONT SIDE: 2*12CM
TOP: 3*12CM
REAR: 1*12CM
BOTTOM: 3*12CM
Liquid Cooling Support
TOP: 36CM
Power Supply Support
BOTTOM MOUNT
Weight
N.W.: 5.48KG
G.W.: 6.85KG
