· USB3.0*1+USB2.0*1+HD AUDIO
· 3.5" HDD：1 2.5" SSD：1

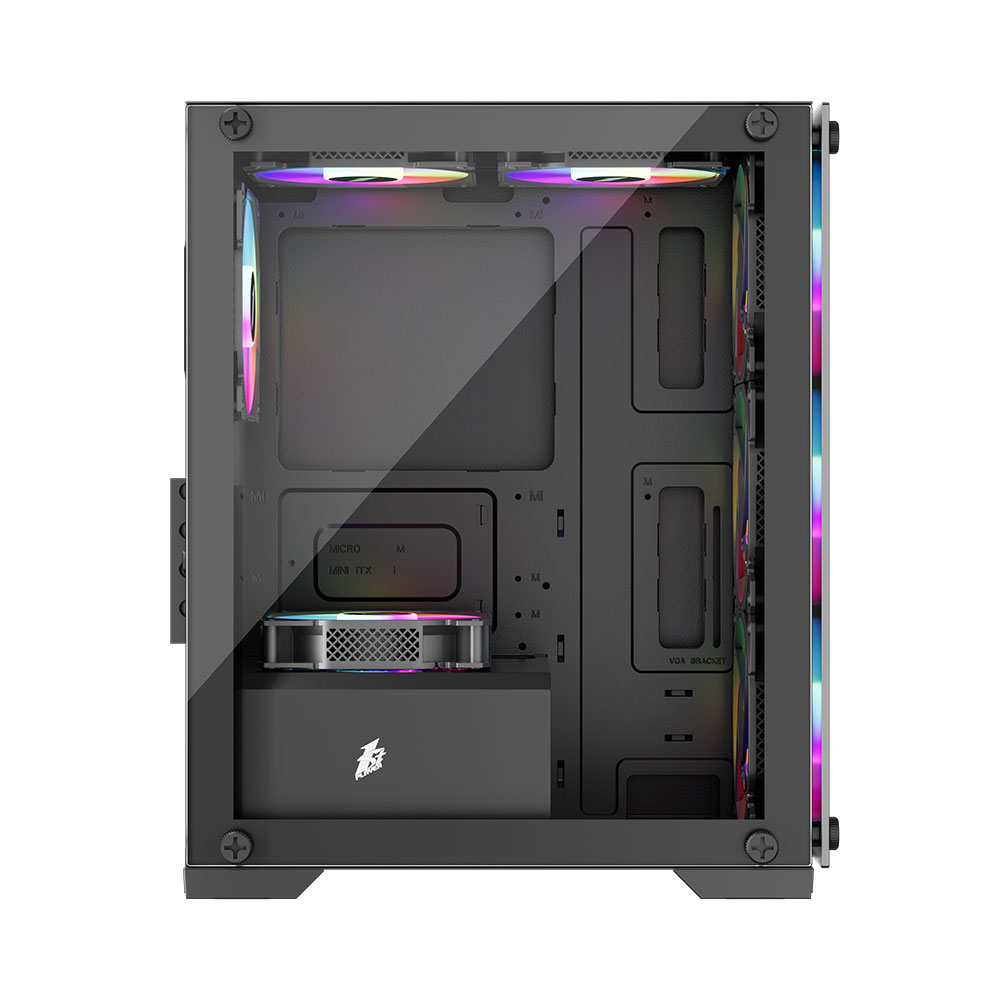

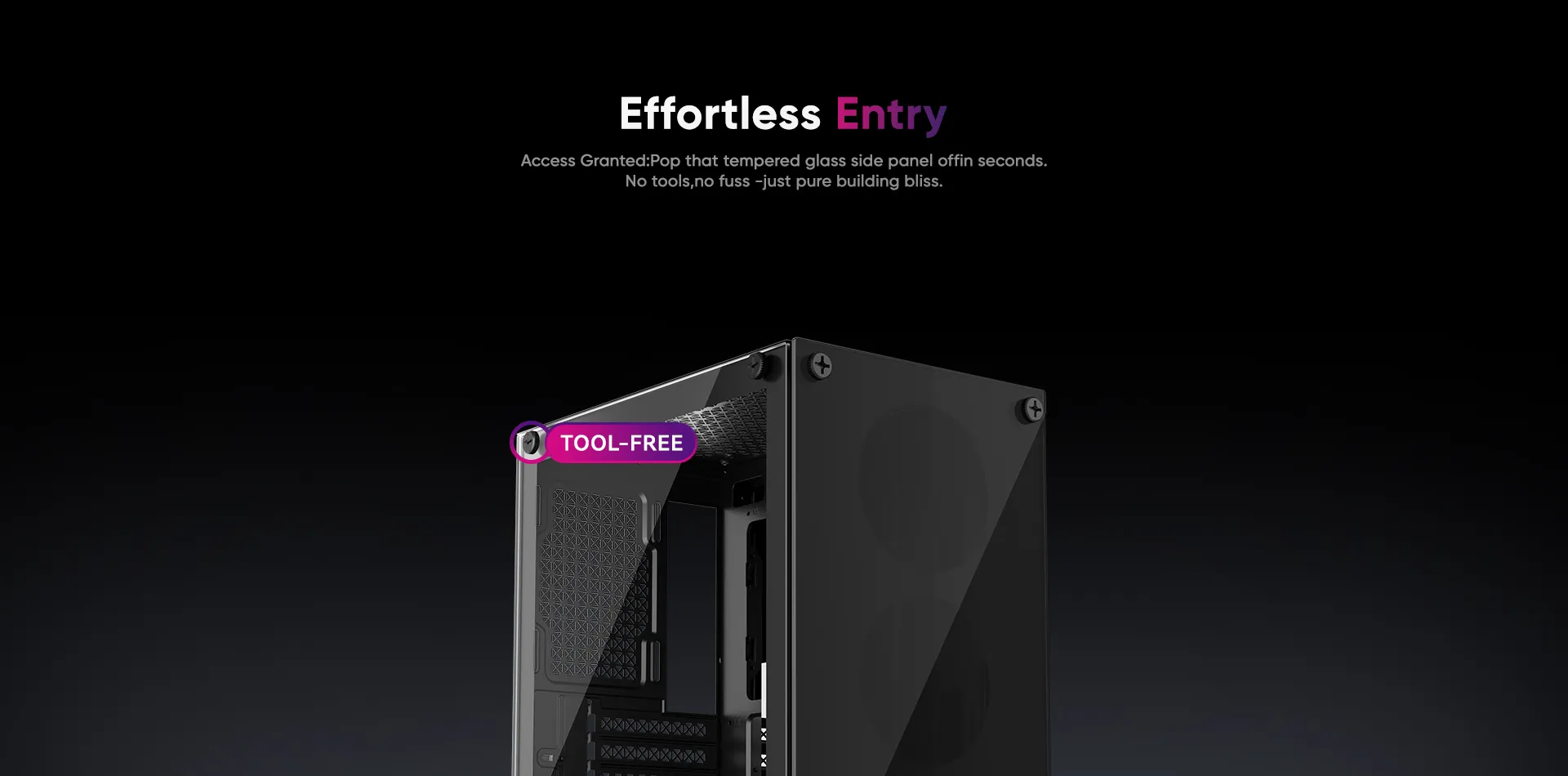

· Front panel&Left Side Panel:Tempered Glass
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

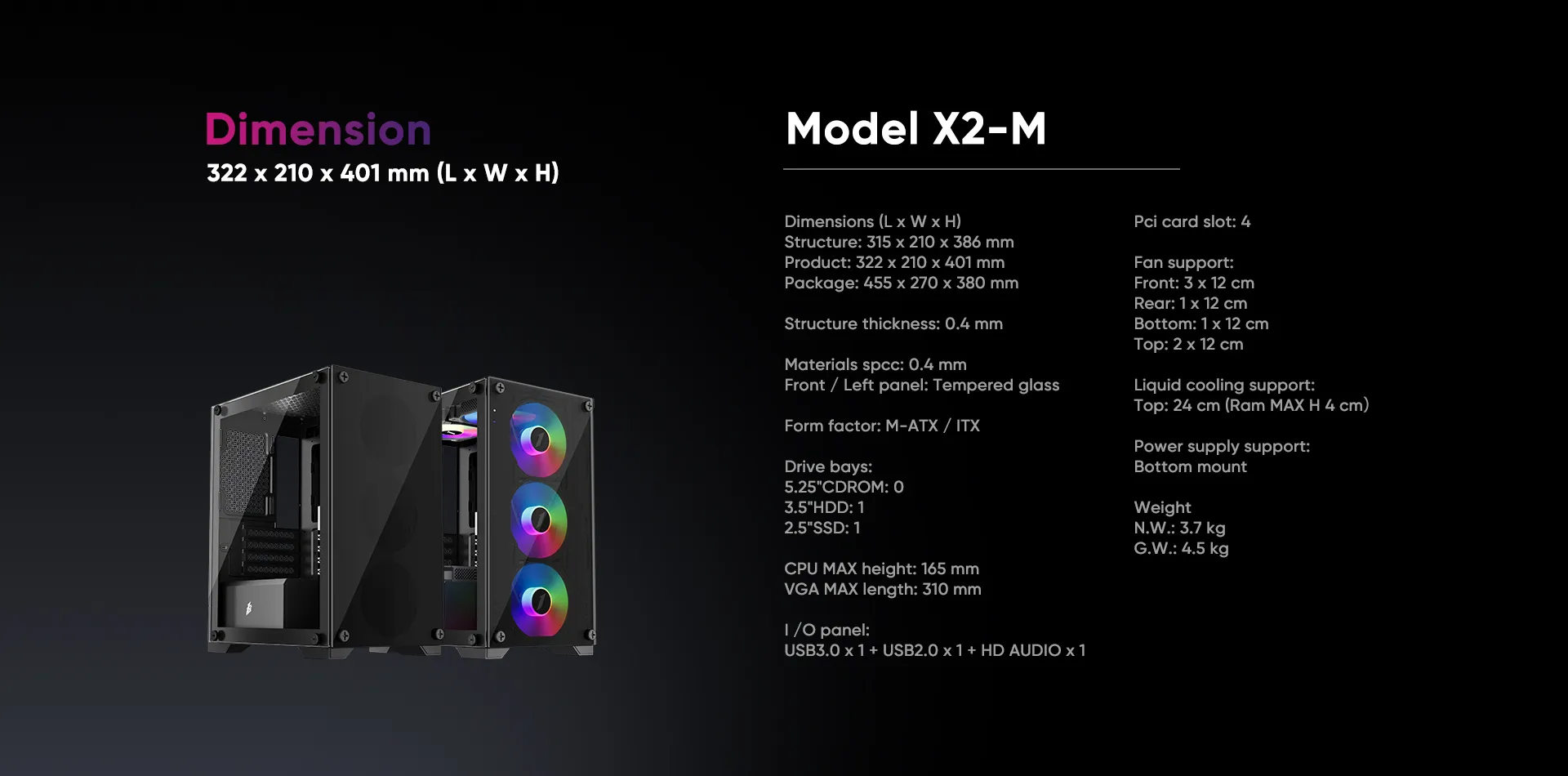

Model
X2-M
Structure Dimensions(L*W*H)
315*210*386MM
Product Dimensions(L*W*H)
322*210*401MM
Package Dimensions(L*W*H)
Structure Thickness
0.4MM
Materials
SPCC 0.4MM
F&L SIDE PANEL:TEMPERED GLASS
Form Factor
M-ATX

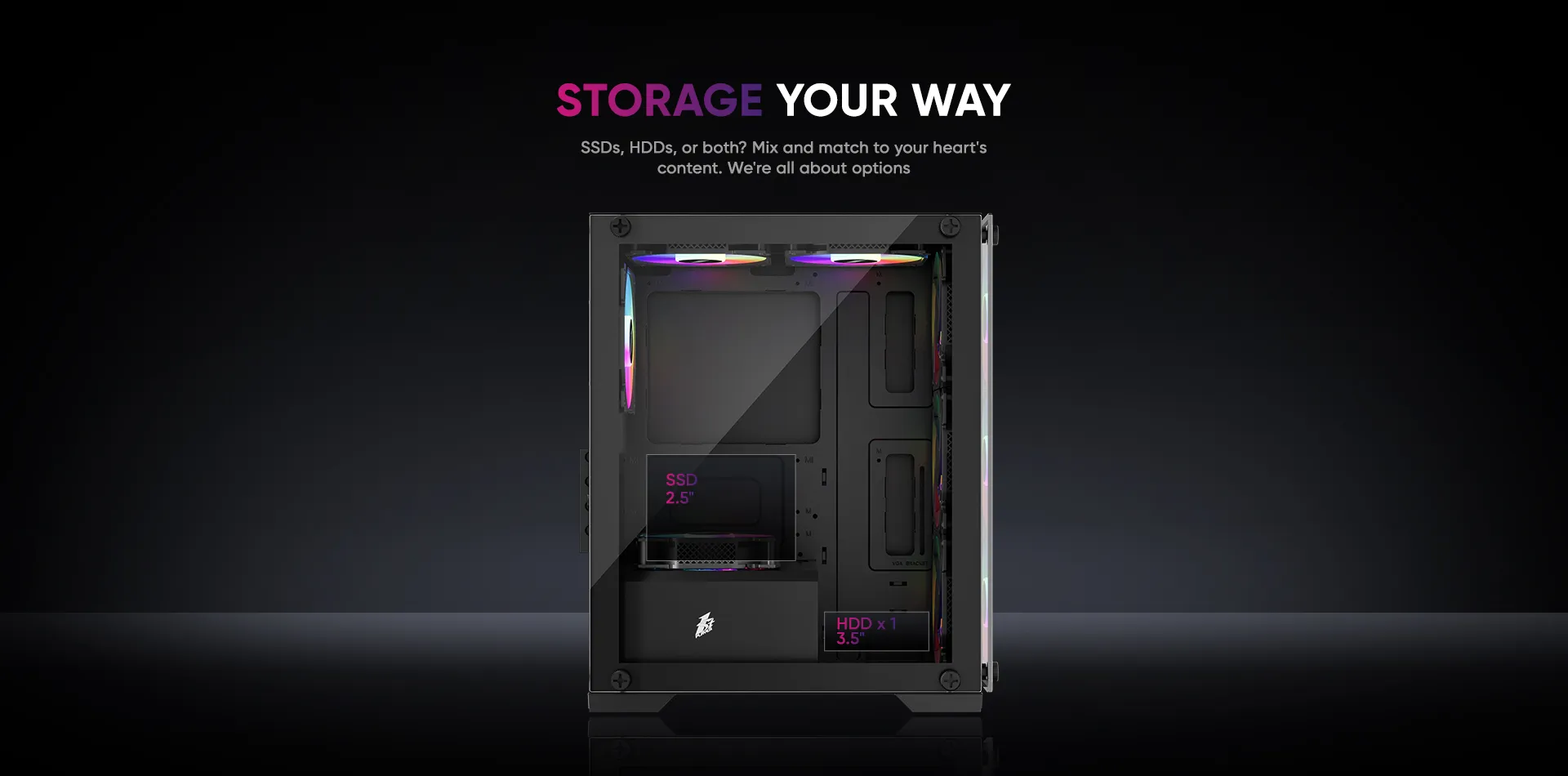

5.25" CD ROM: 0
3.5" HDD: 1+2.5" SSD: 1

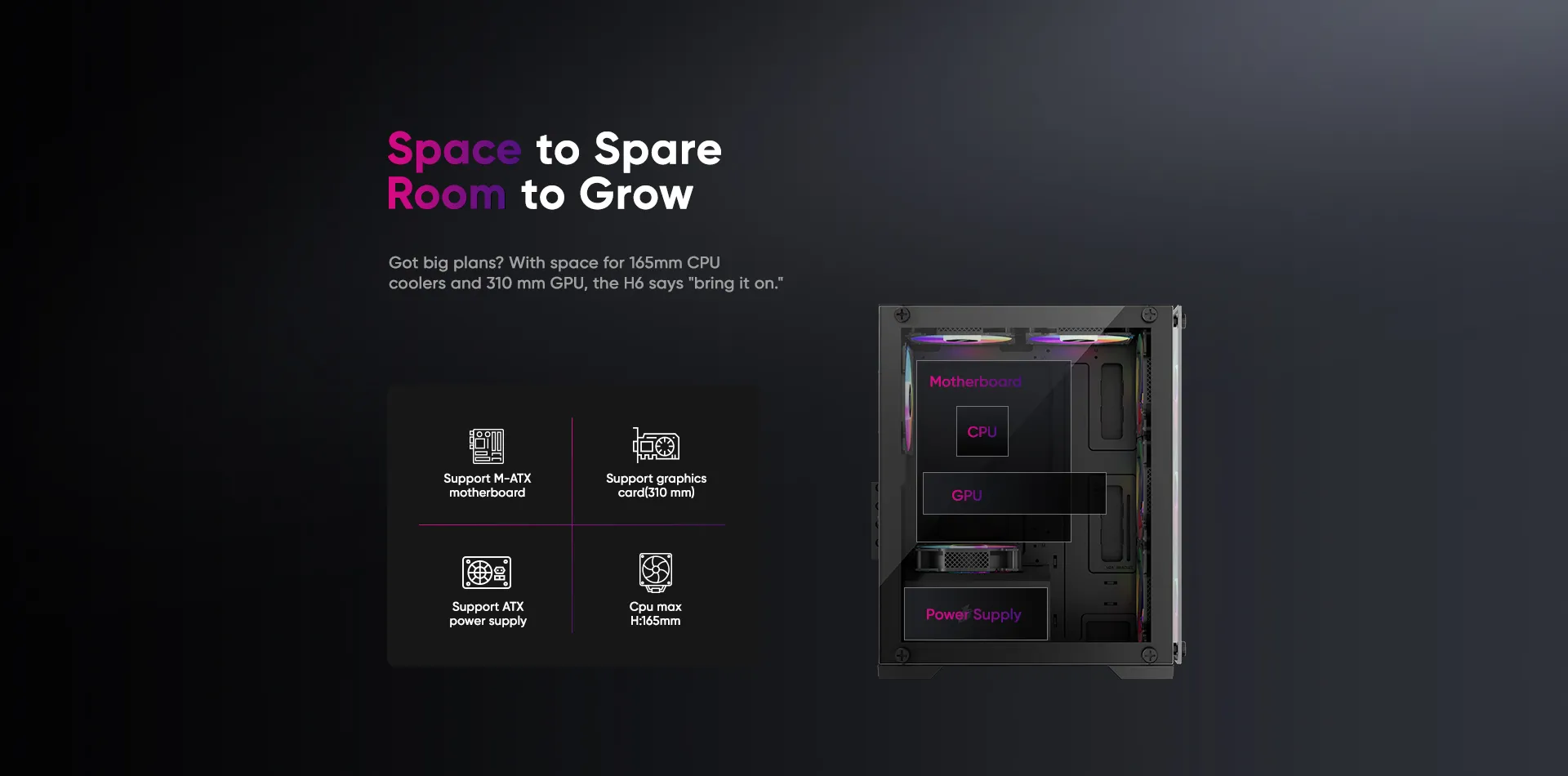

CPU MAX Height
165MM
VGA MAX Length
310MM

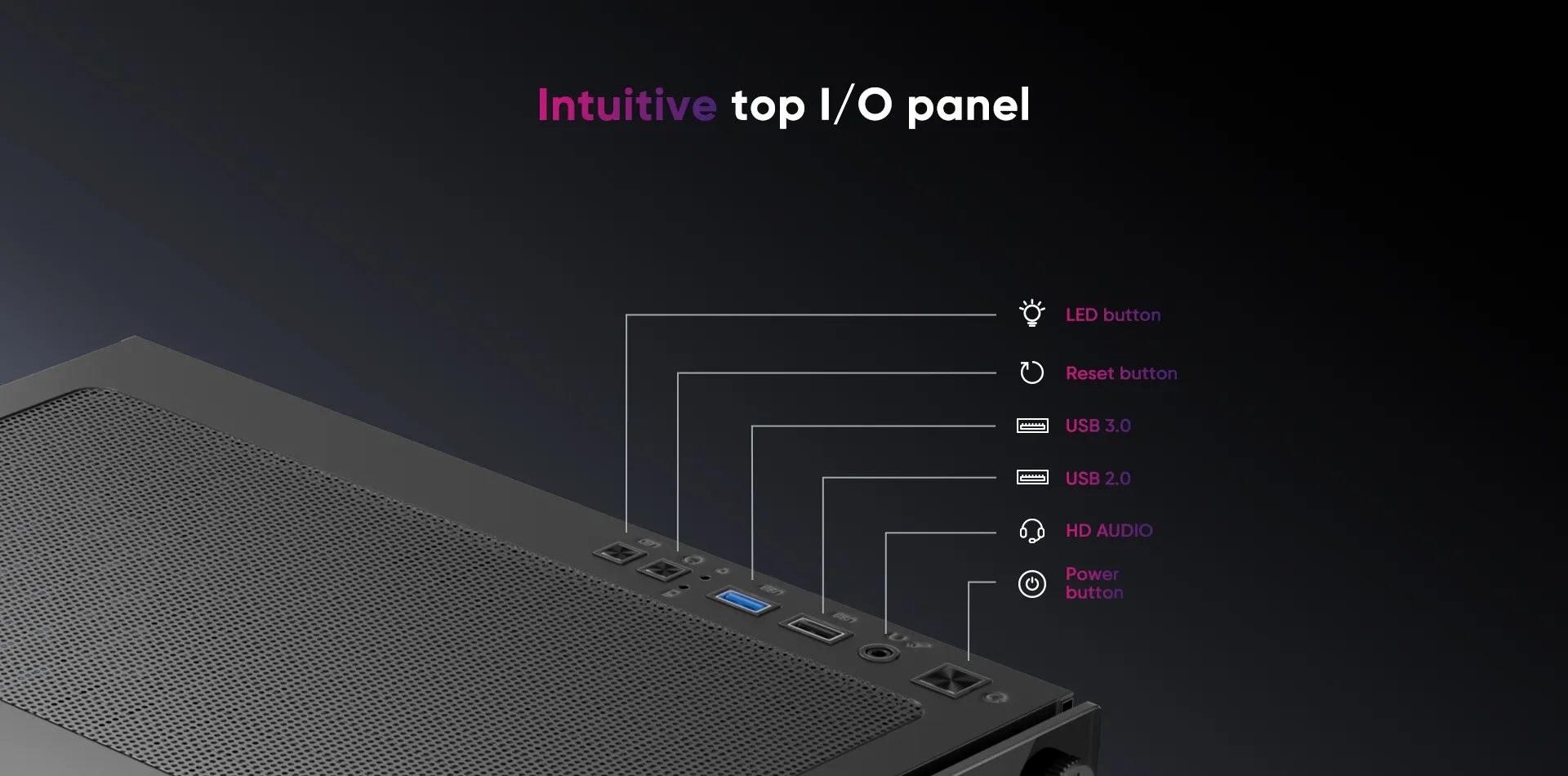

I/O Panel
USB3.0*1+USB2.0*1+HD AUDIO

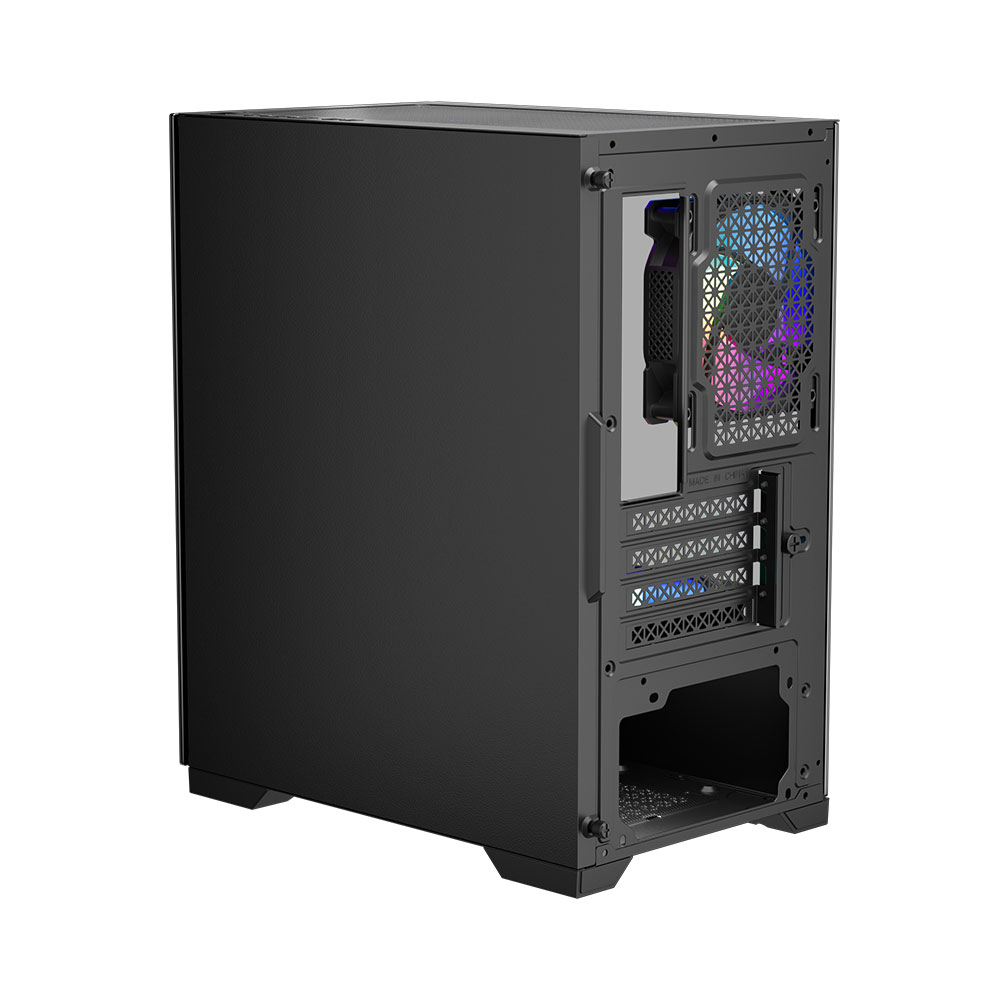

PCI Card Slot
4

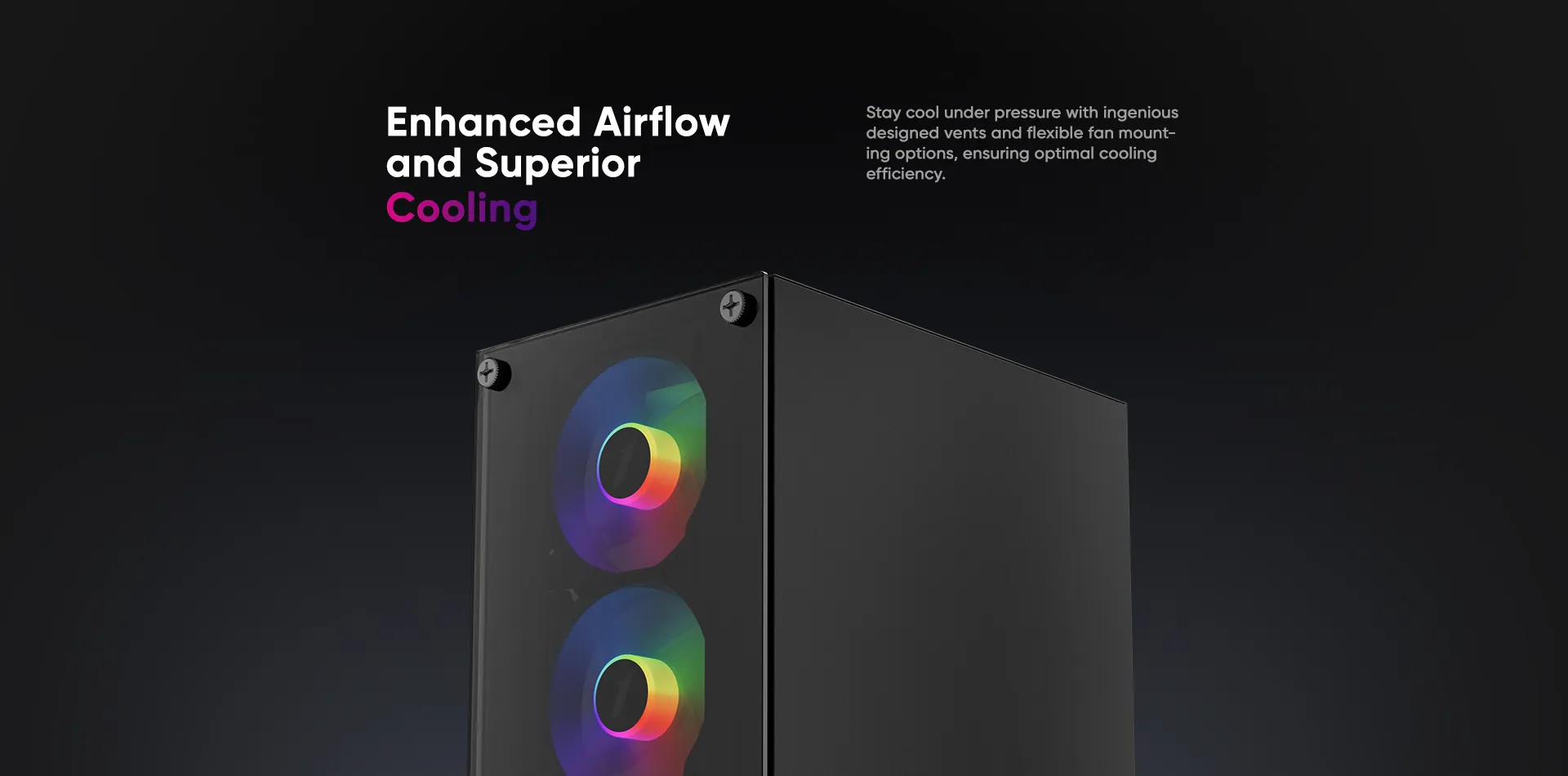

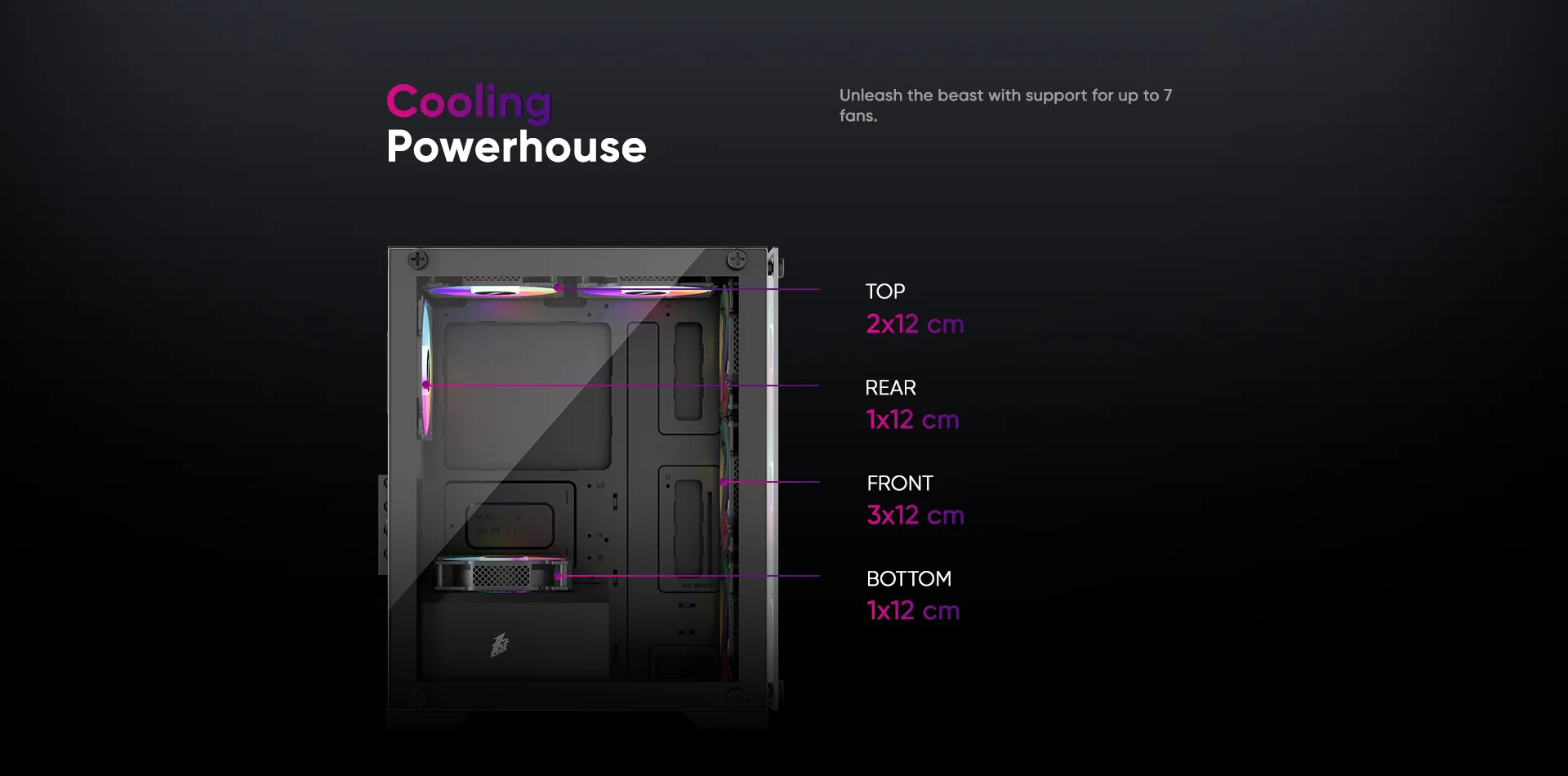

Fan Support
FRONT : 3*12CM
REAR : 1*12CM
TOP : 2*12CM
BOTTOM : 1*12CM
Liquid Cooling Support
TOP: 24CM（RAM MAX H 40MM）
Power Supply Support
BOTTOM MOUNT
Net Weight
N.W.: KG
G.W.: KG
