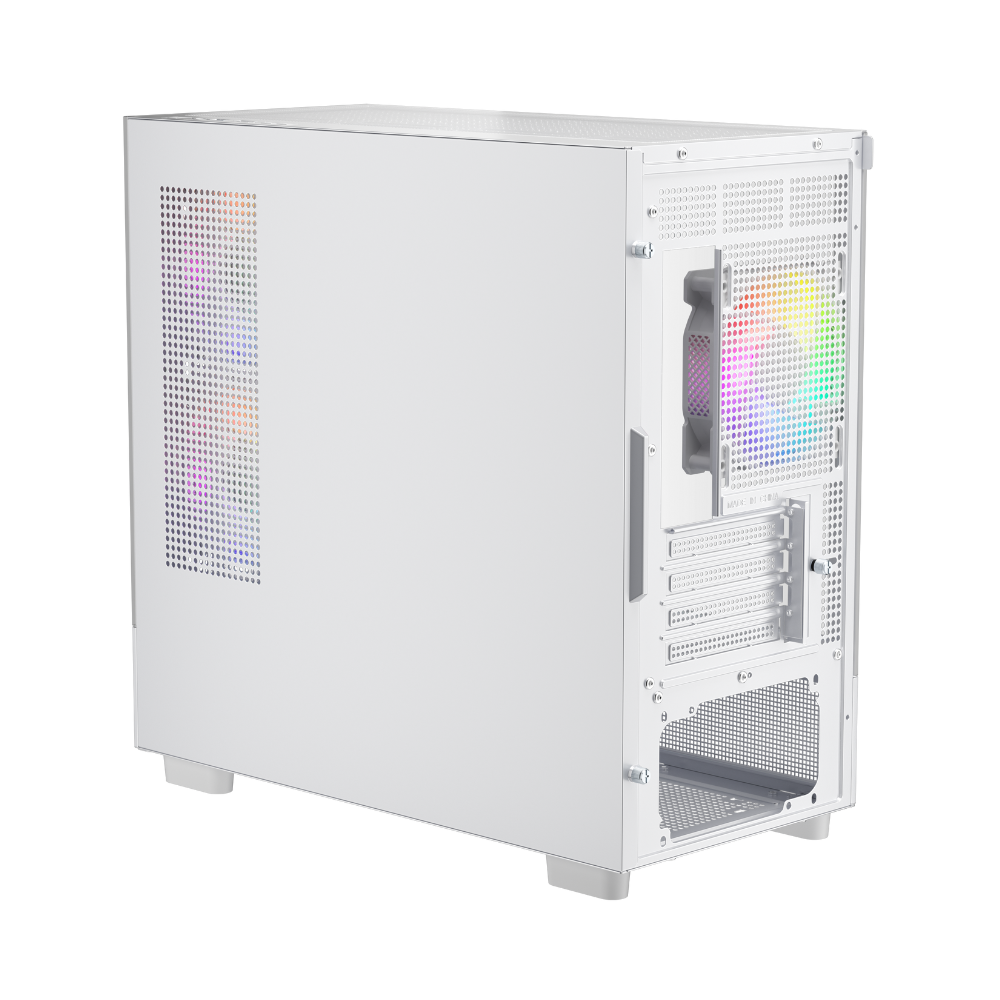

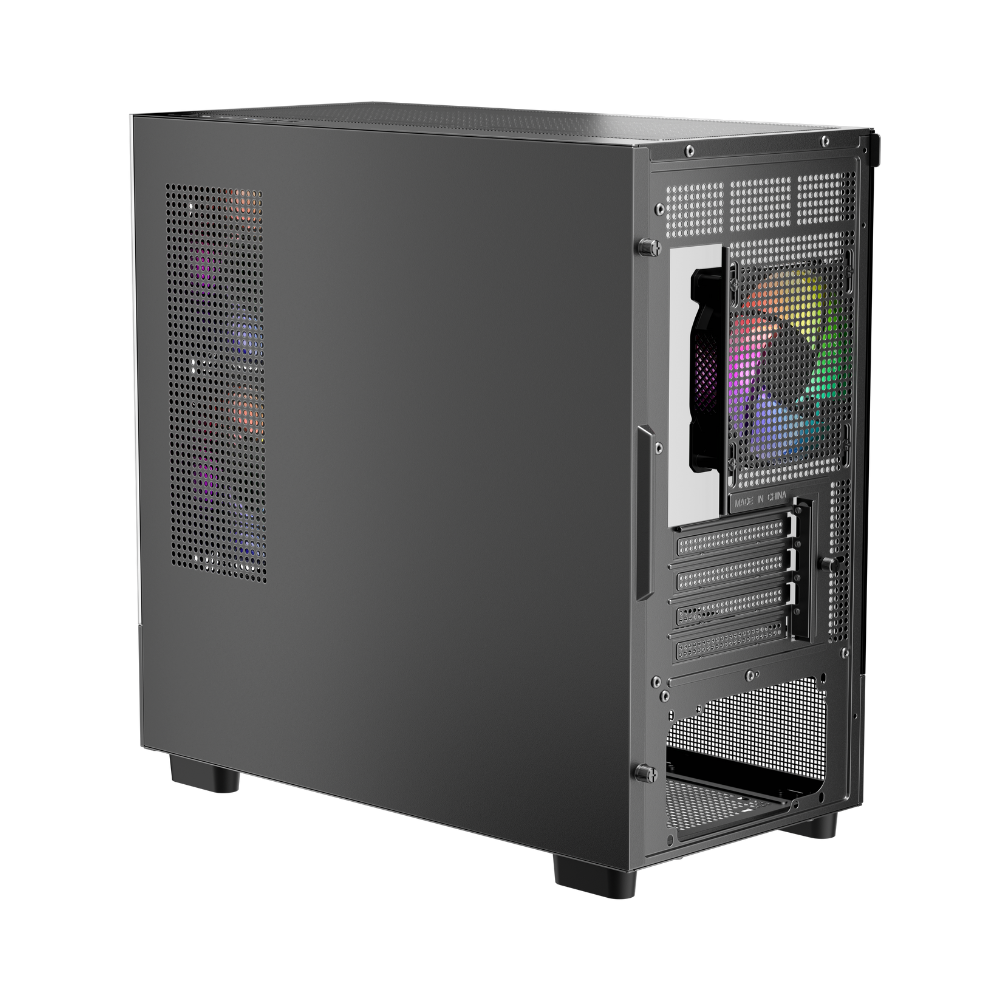

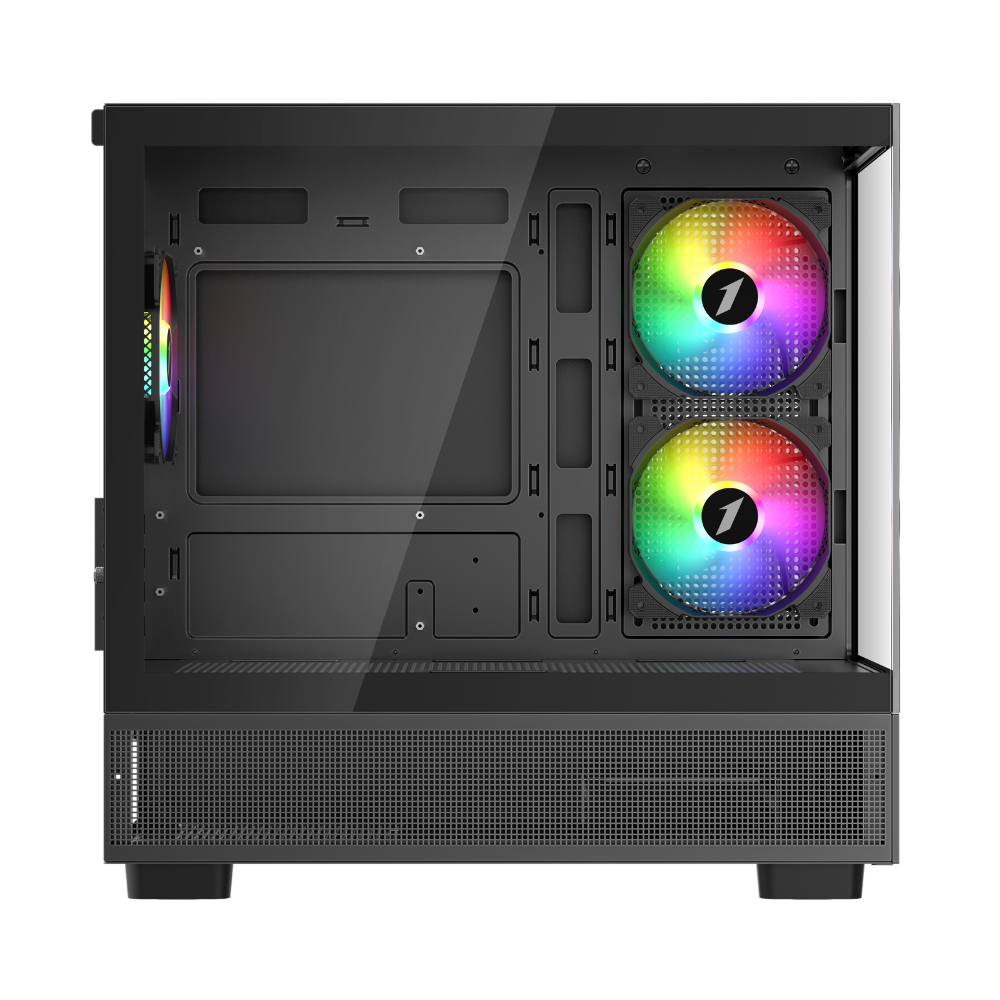

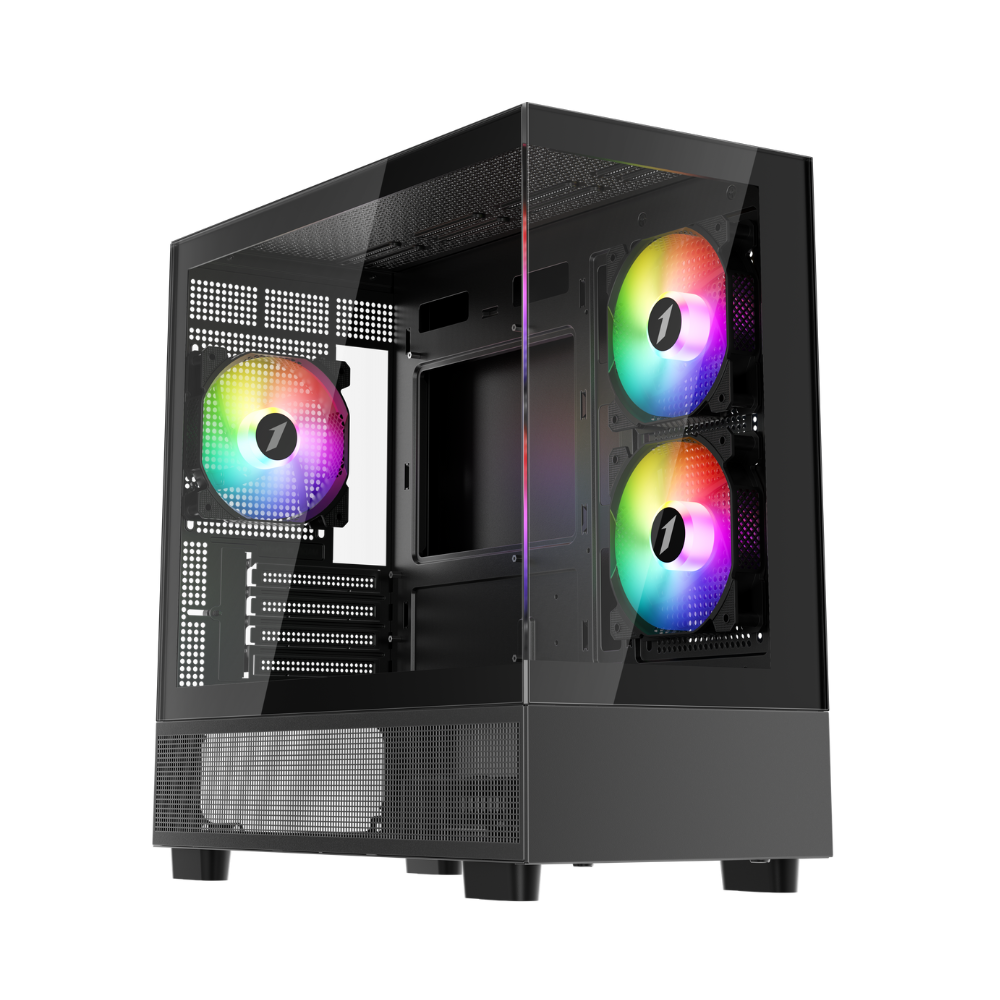

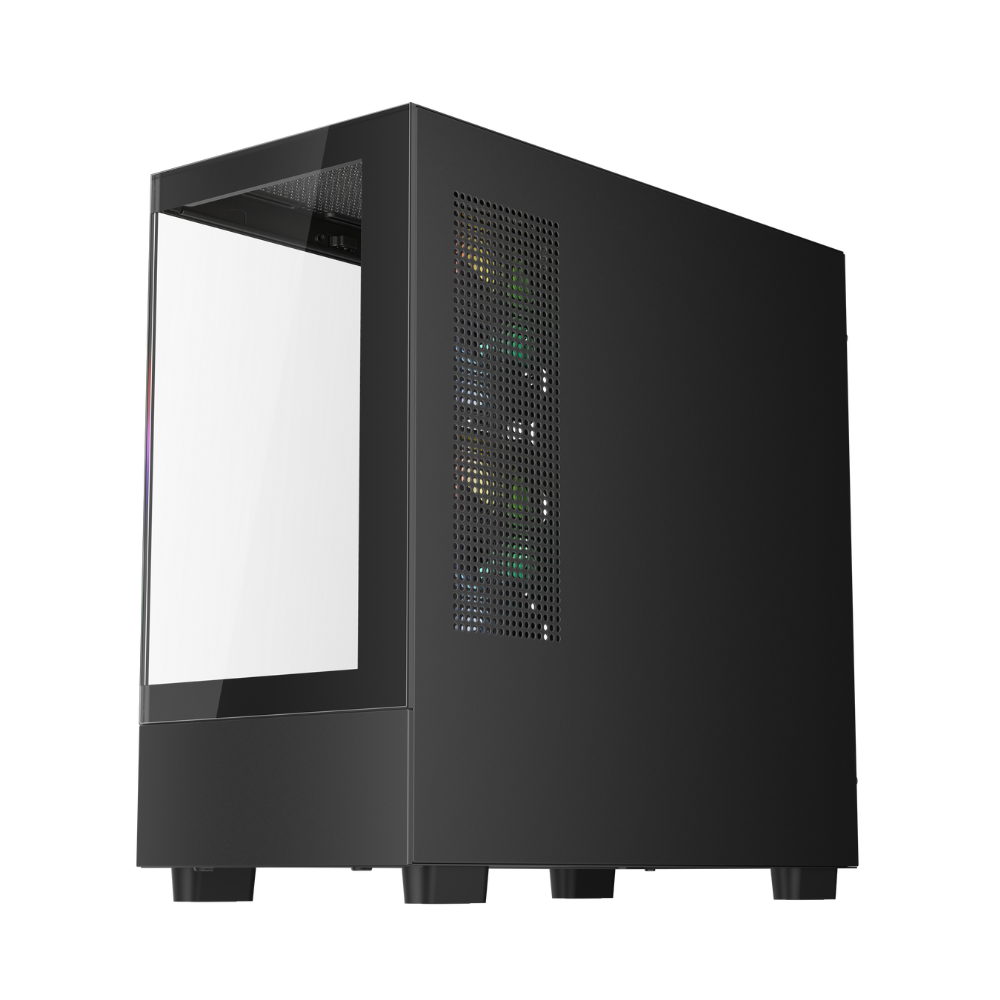

Mi5 black

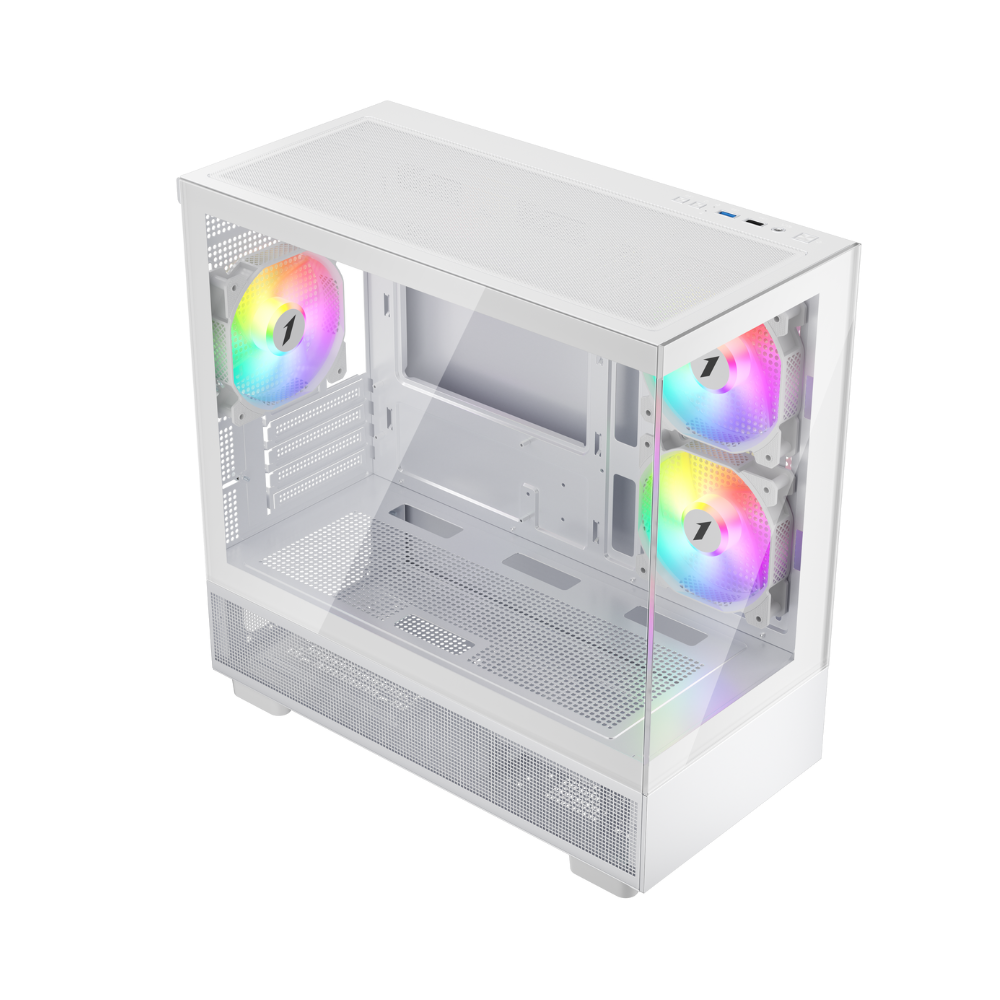

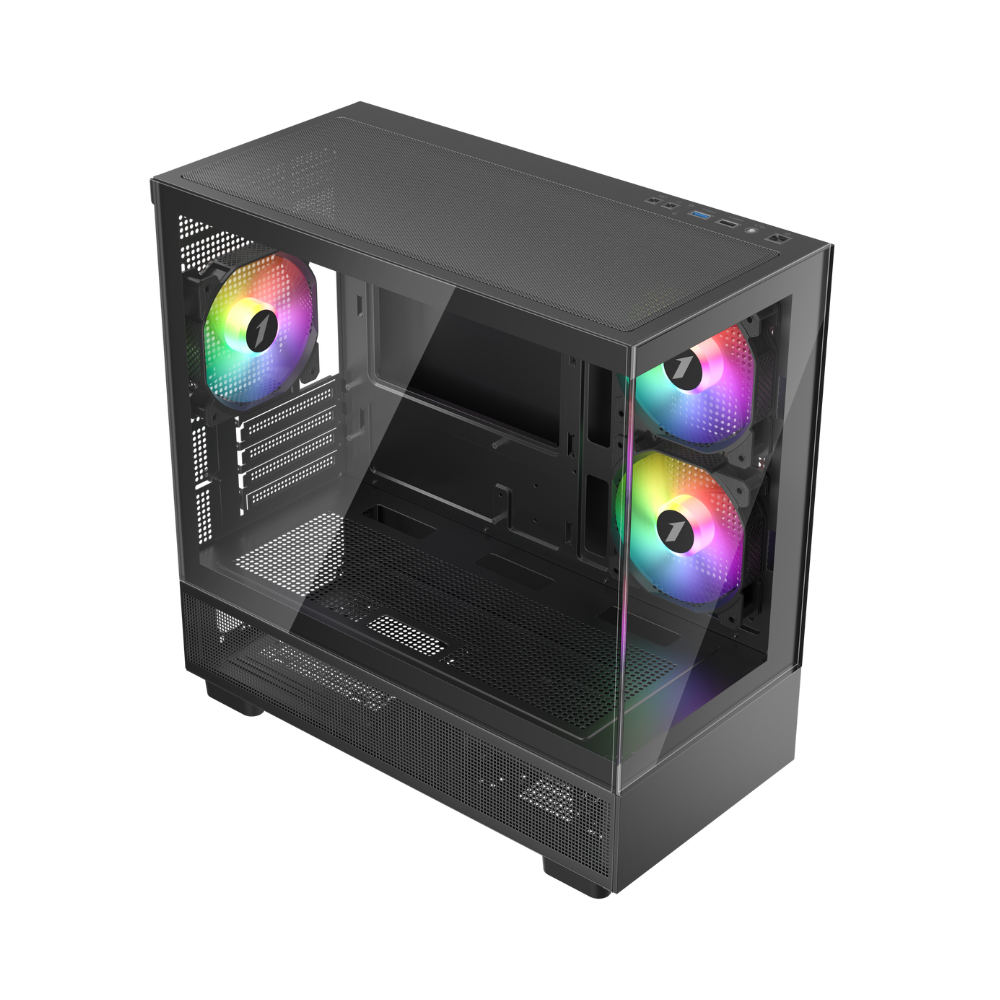

Double-sided tempered glass

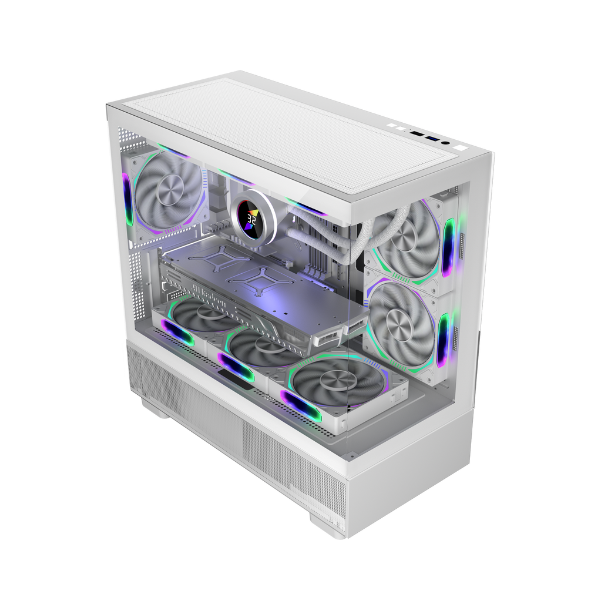

Support 360 cooling
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

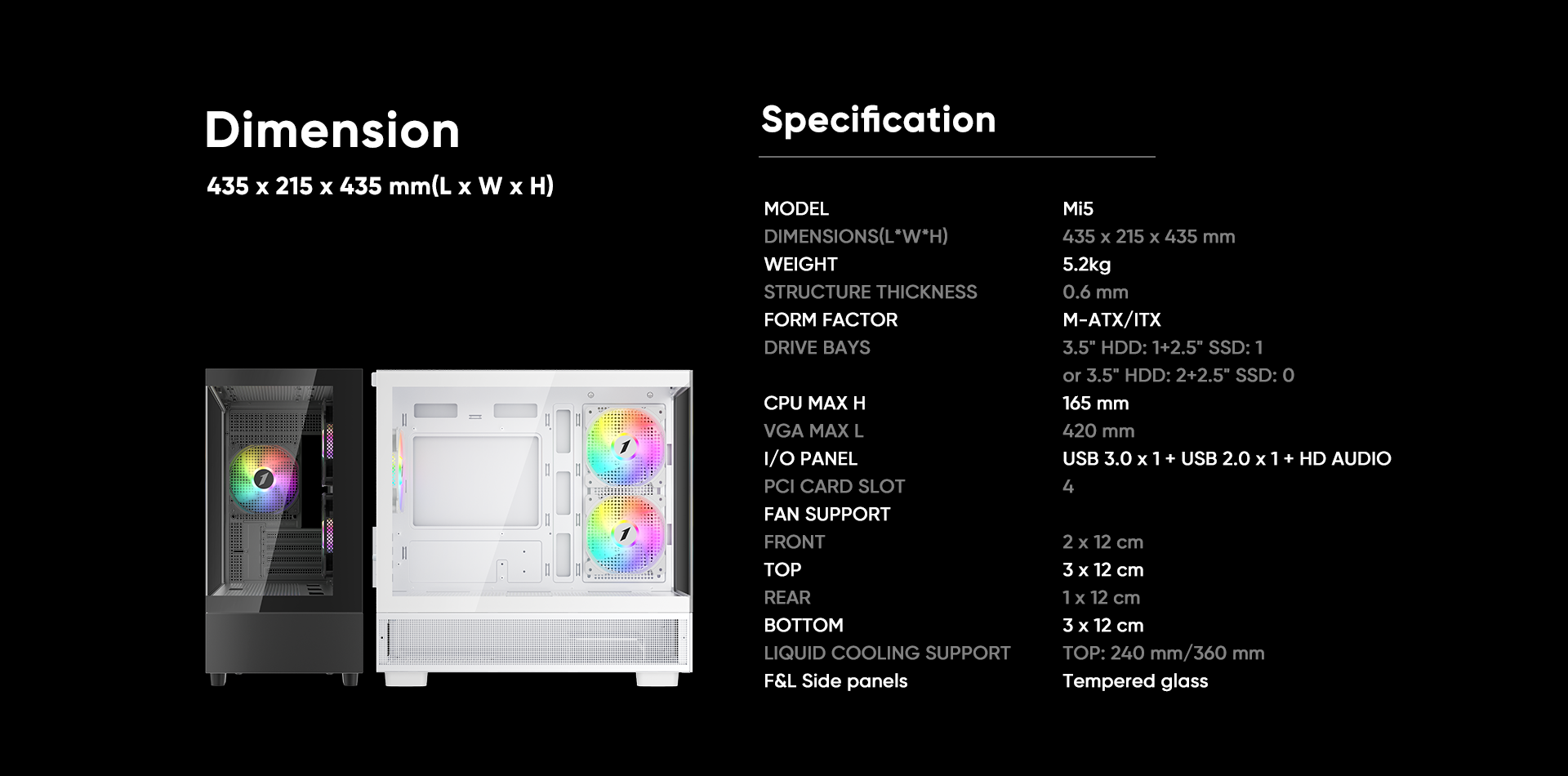

Model
Mi5
Structure Dimensions(L*W*H)
435*215*415MM
Product Dimensions(L*W*H)
435*215*435MM
Package Dimensions(L*W*H)
485*270*500MM
Structure Thickness
0.6 MM
Materials
SPCC 0.6MM
F&L SIDE PANEL: TEMPERED GLASS
Form Factor
M-ATX/ITX
5.25" CD ROM: 0
3.5" HDD: 1+2.5" SSD: 1
3.5" HDD: 2+2.5" SSD: 0

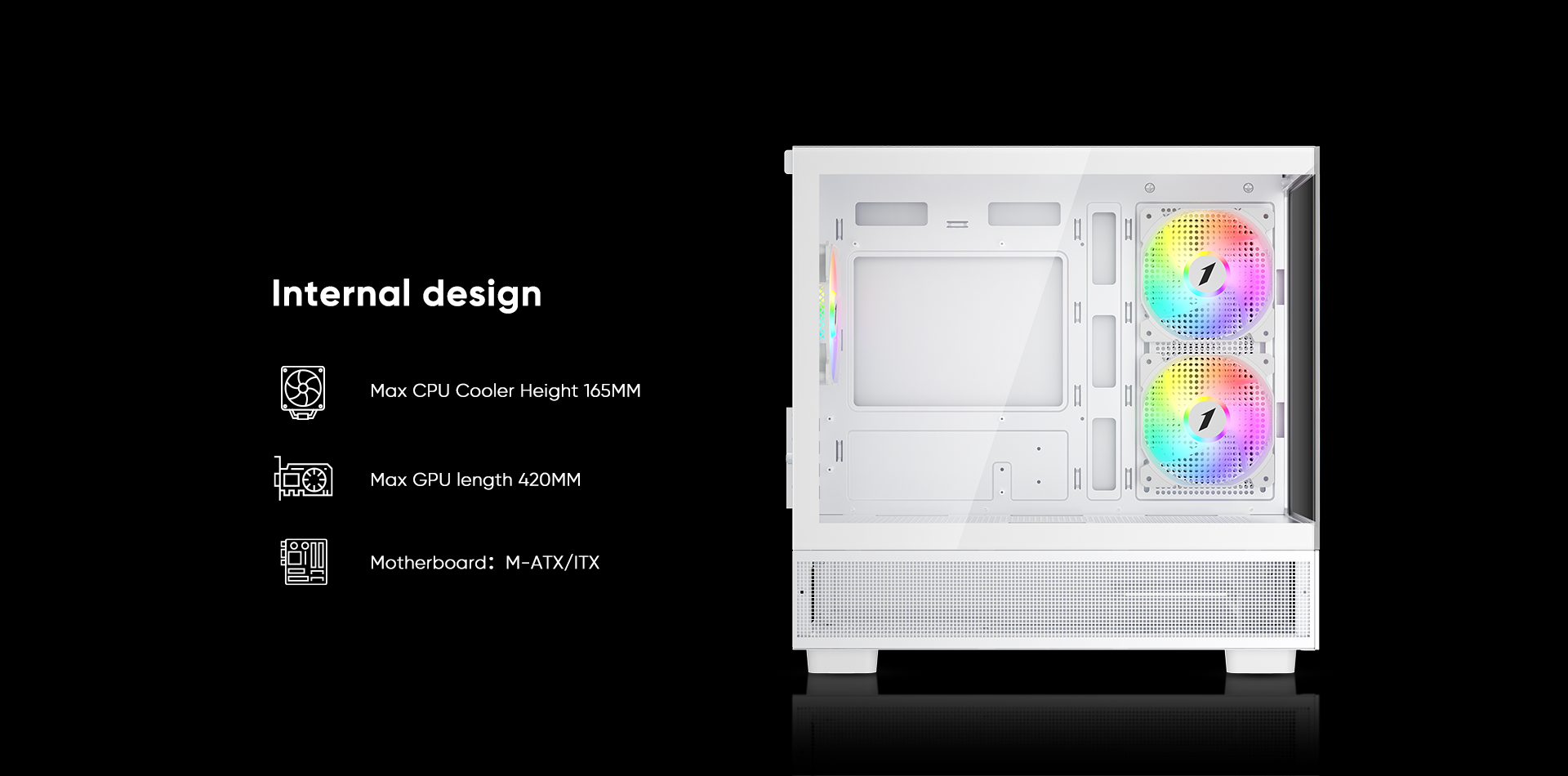

CPU MAX Height
165MM
VGA MAX Length
420MM
I/O Panel
USB3.0*1+USB2.0*1+HD AUDIO
PCI Card Slot
4

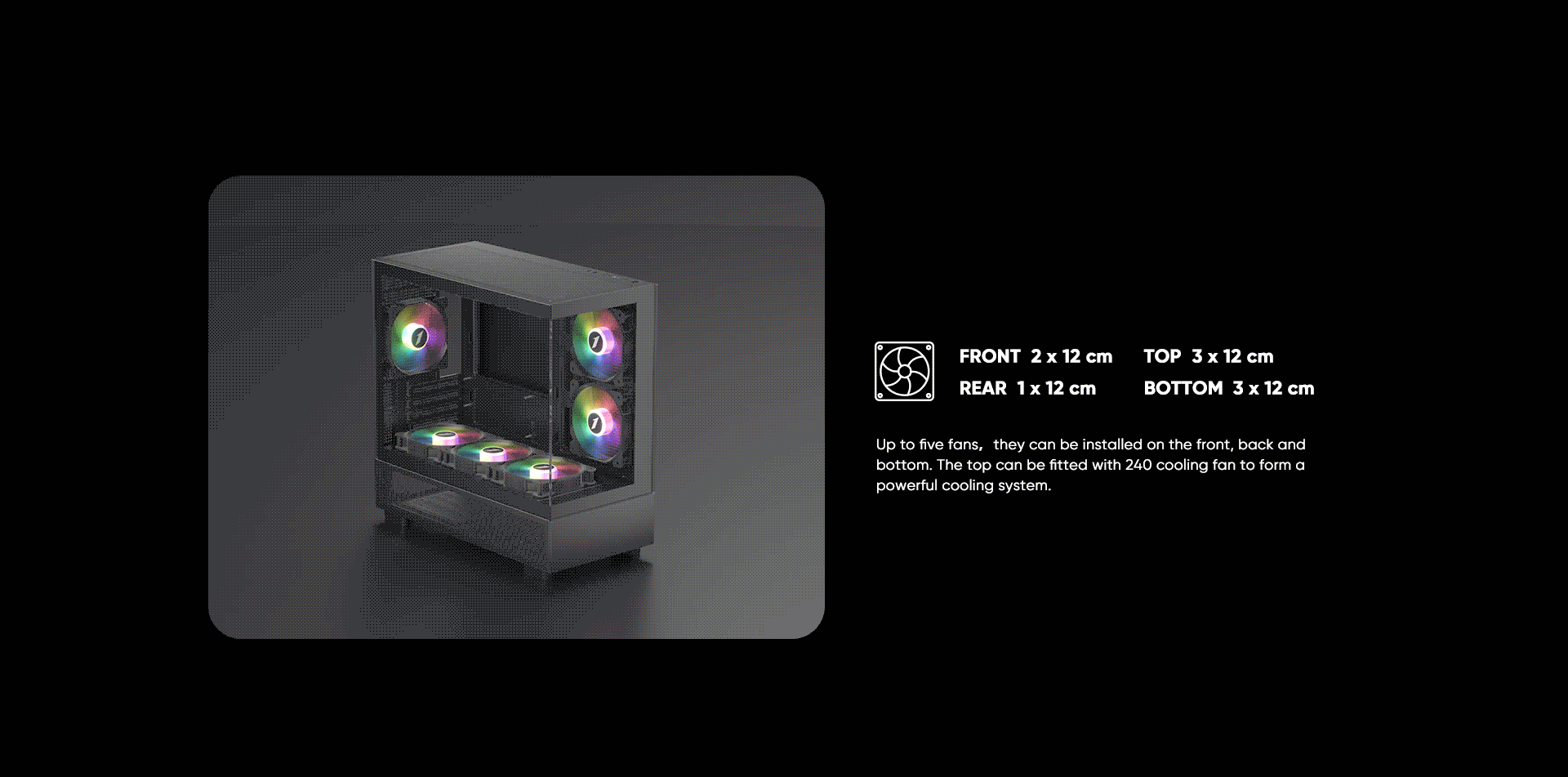

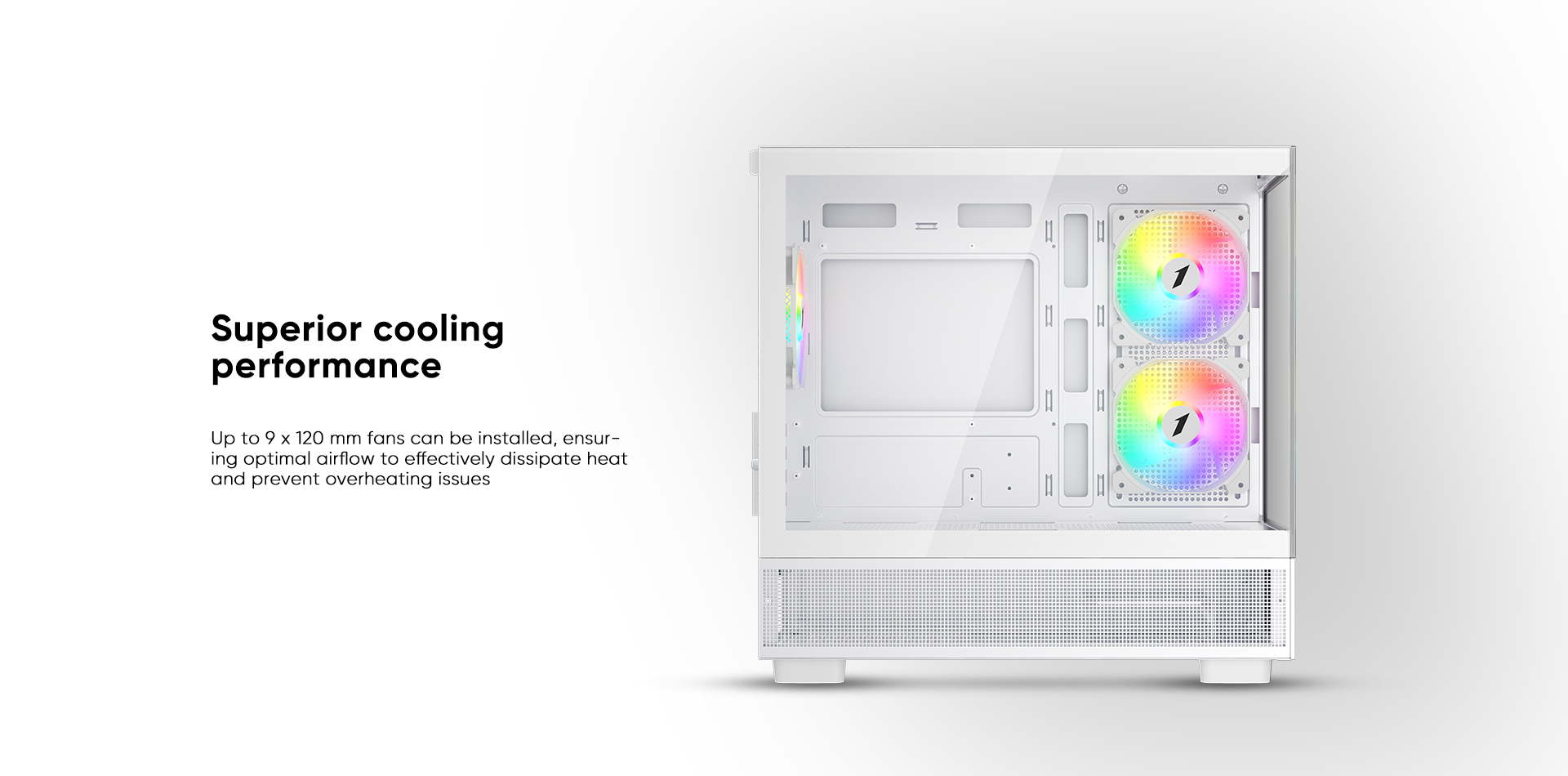

Fan Support

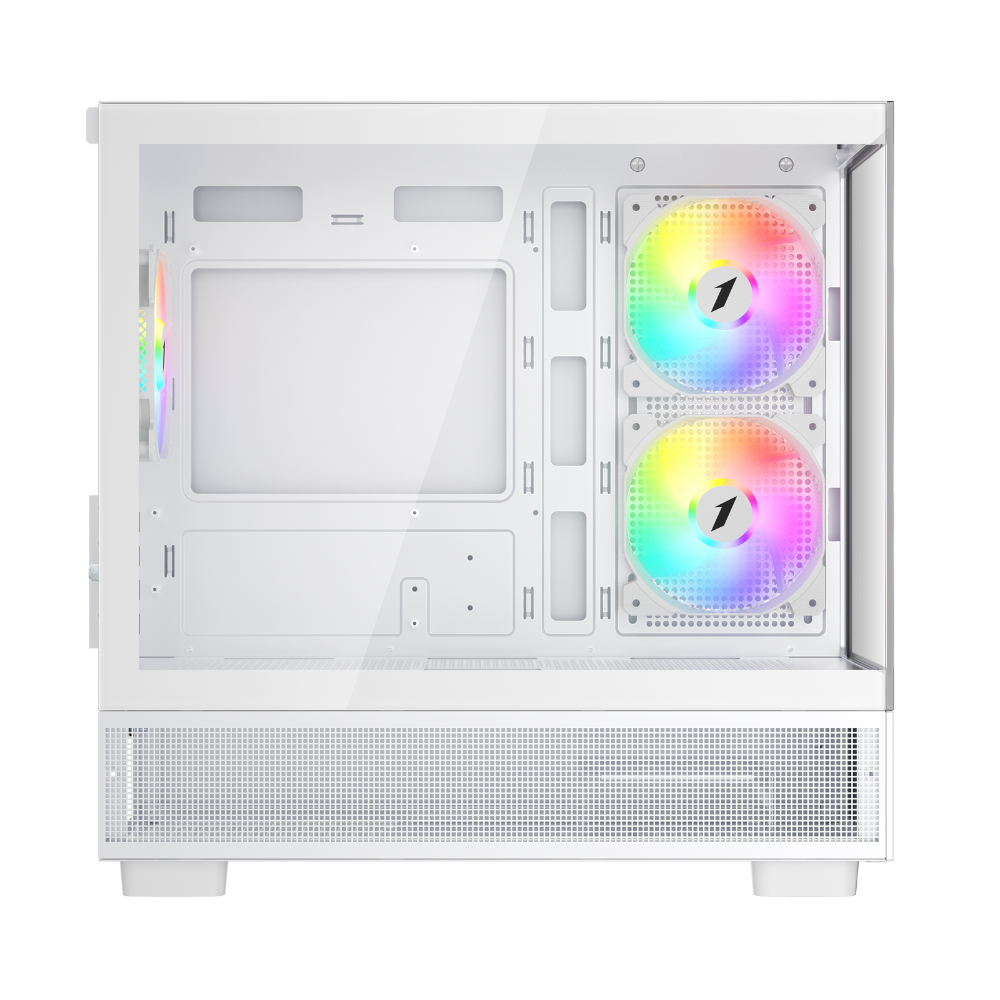

FRONT SIDE: 2*12CM
TOP: 3*12CM
REAR: 1*12CM
BOTTOM：3*12CM
Liquid Cooling Support
TOP: 24CM/36CM

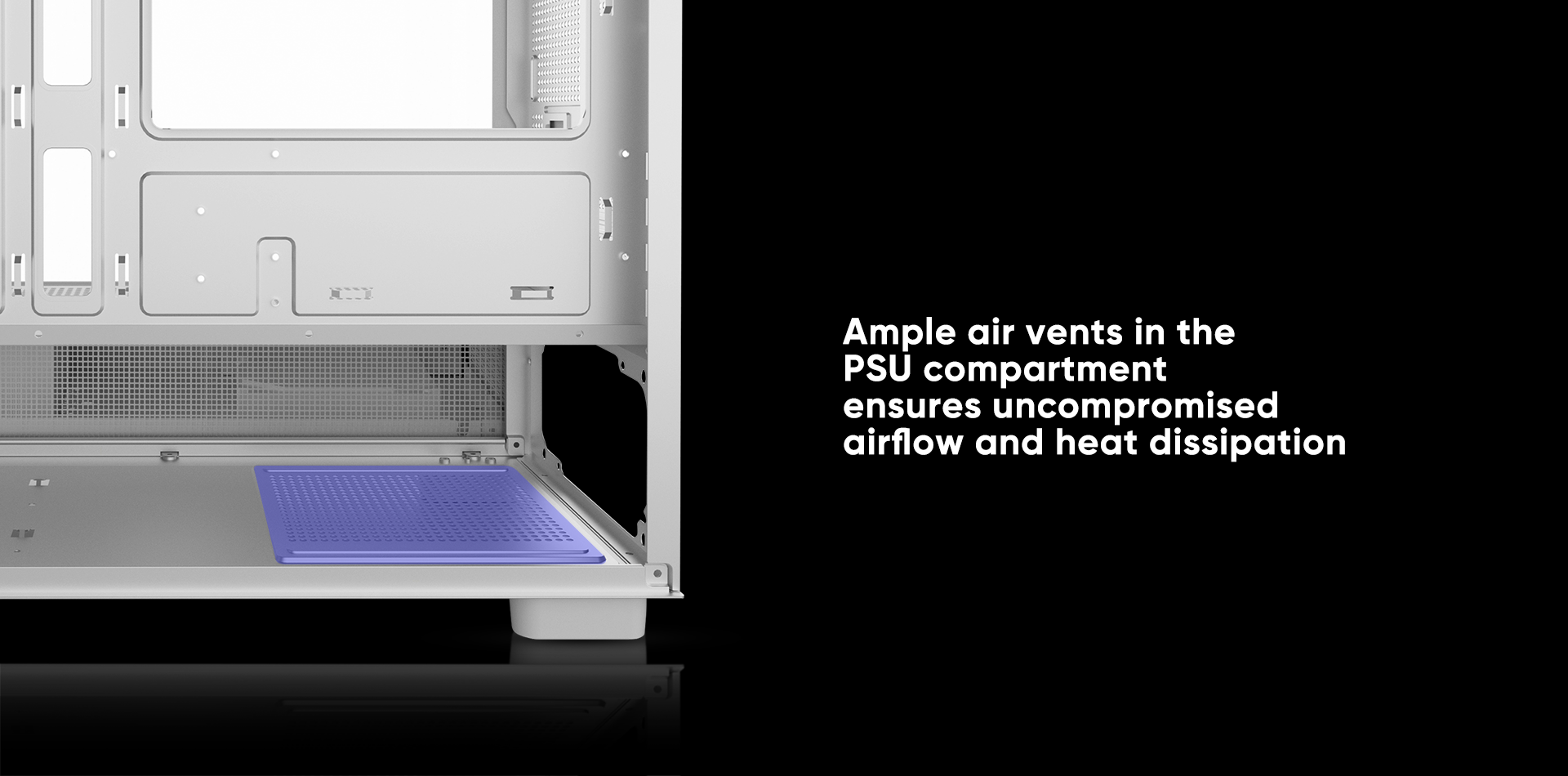

Power Supply Support
BOTTOM MOUNT
Weight
N.W.: 5.2 KG
G.W.: 6.3KG
