DX

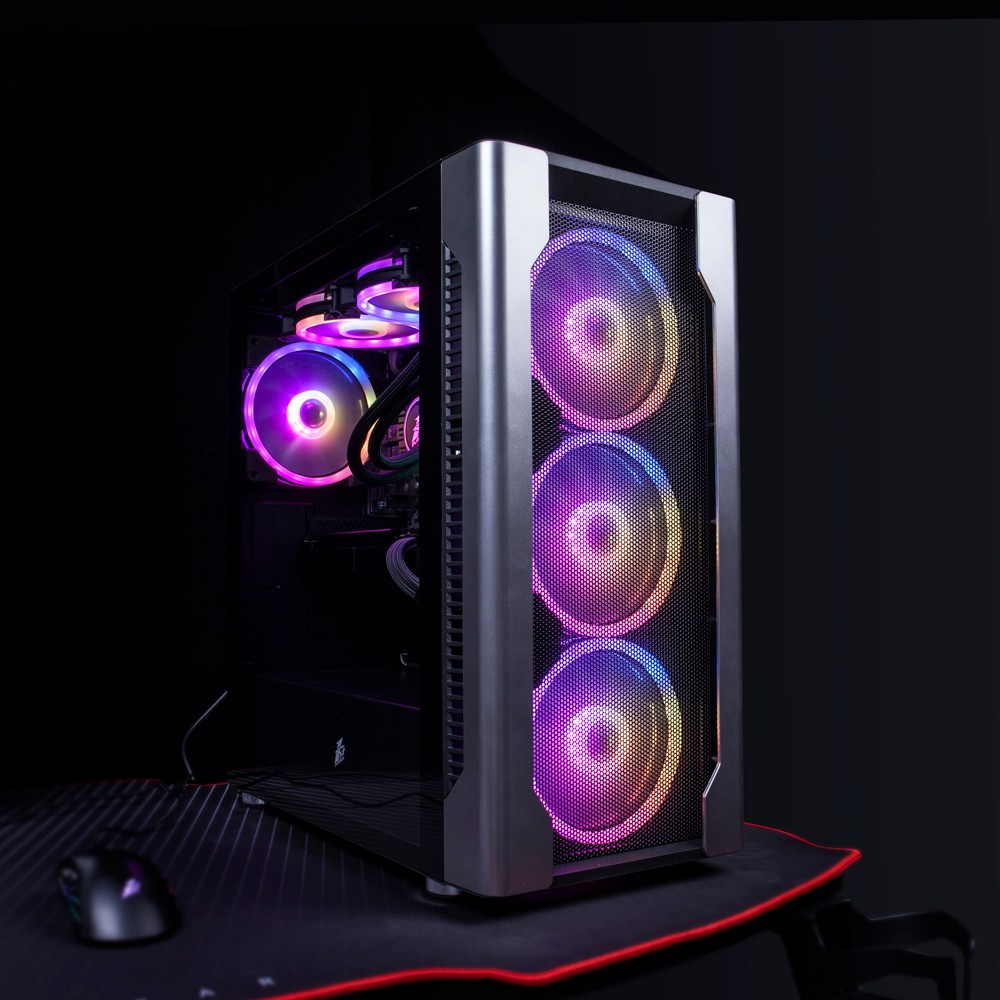

1STPLAYER Gaming Case

· 230mm Wide Body

· Metal Mesh Cover Panel

· E-ATX Support

· Rear & Top Panel Support 140mm Fan

*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

230MM
WIDE BODY

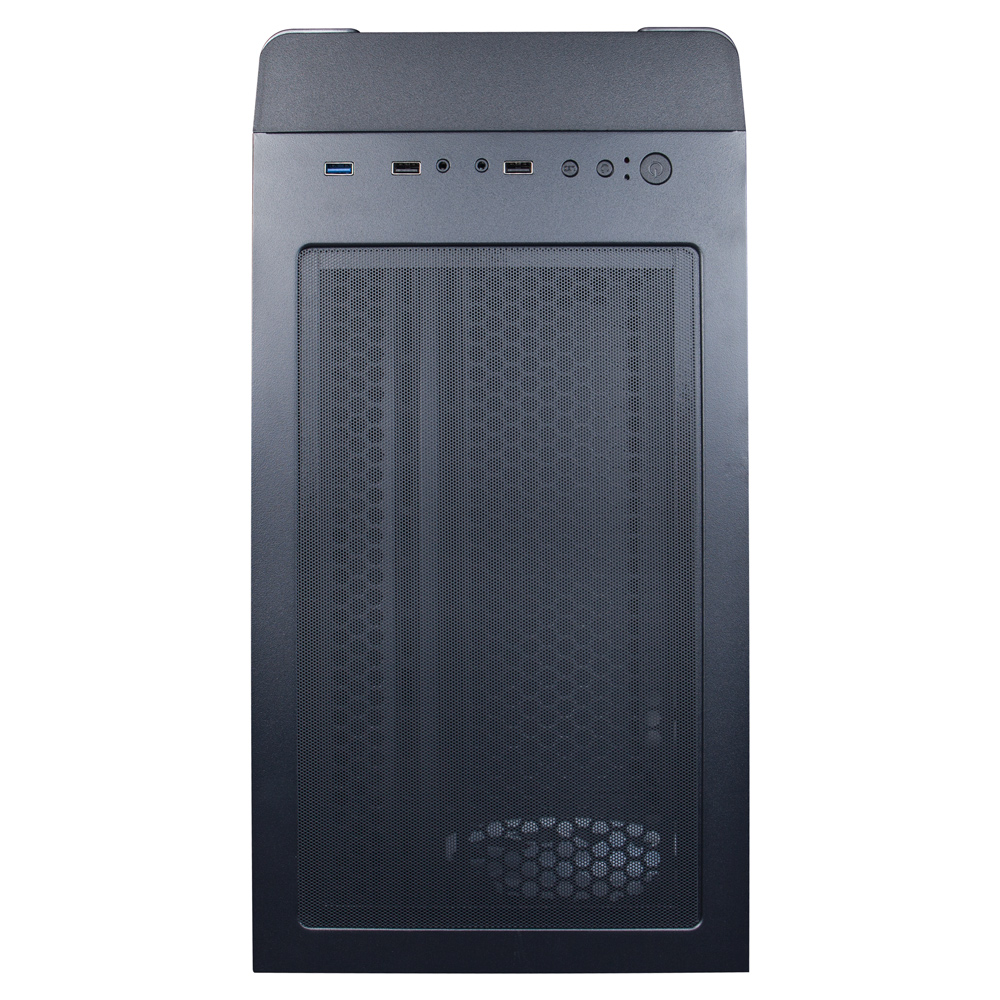

METAL MESH
COVER PANEL
E-ATX
SUPPORT

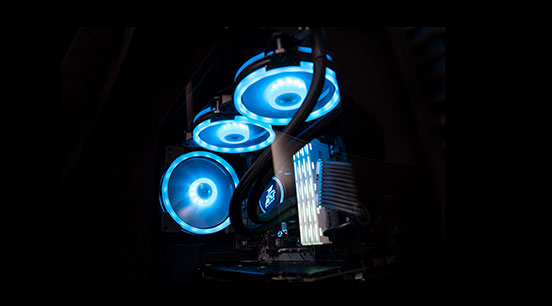

280MM AIO
LIQUID COOLER SUPPORT

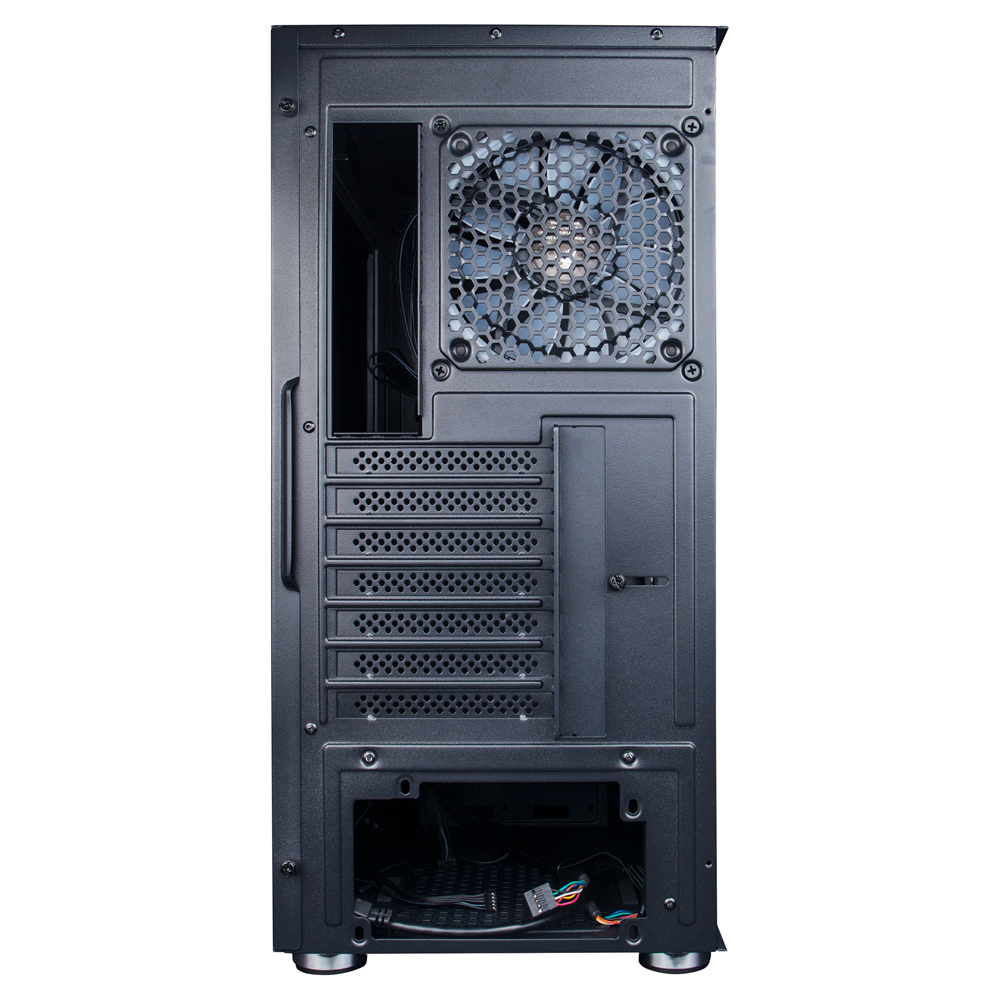

REAR&TOP PANEL
SUPPORT 140MM FAN
SCREWLESS
TEMPERED GLASS

E-ATX SUPPORT

280MM AIO LIQUID COOLER SUPPORT

230MM WIDE BODY

METAL MESH COVER PANEL

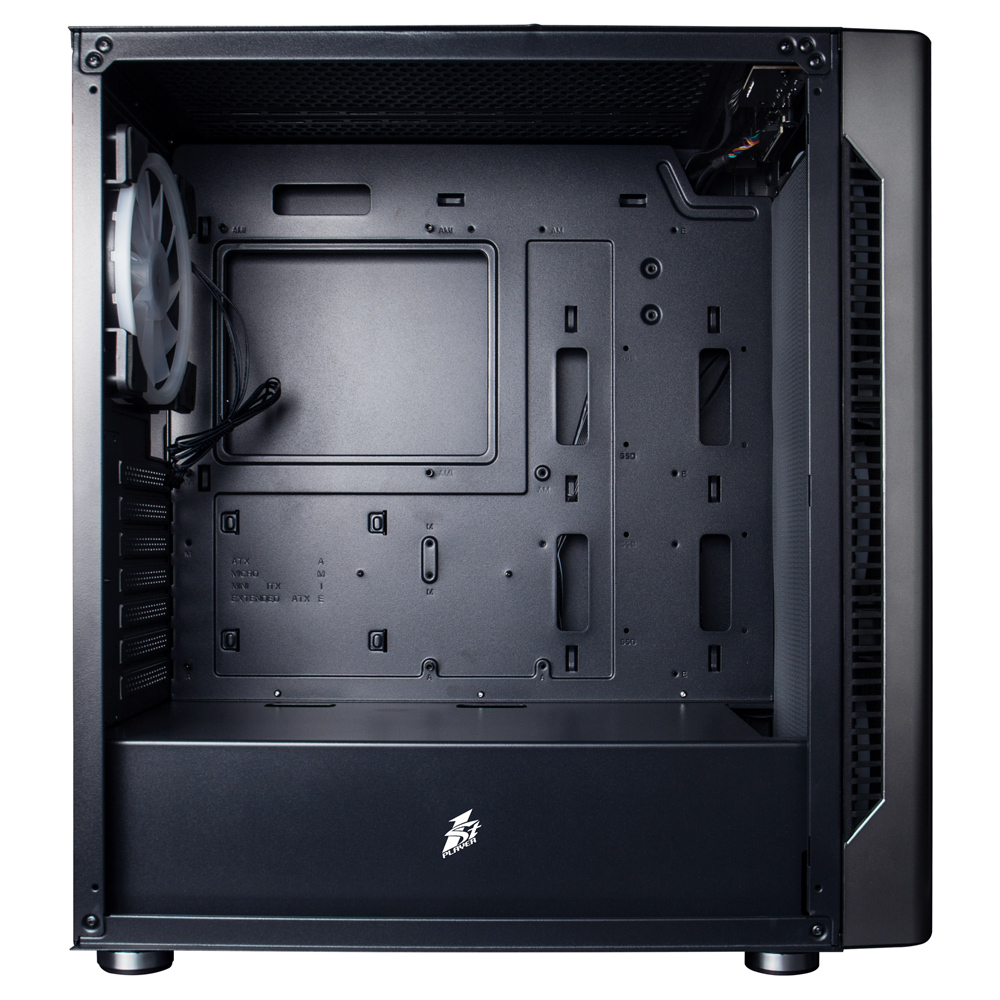

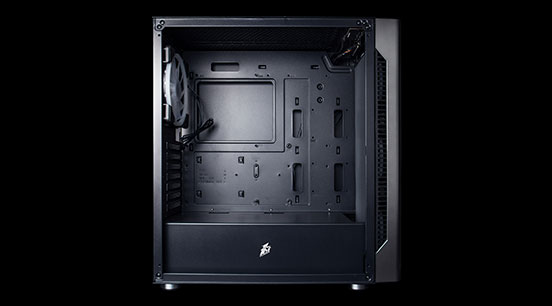

INTERNAL

Model

Structure Dimensions(L*W*H)

390*230*470MM

Product Dimensions(L*W*H)

440*230*485MM

Package Dimensions(L*W*H)

532*292*535MM

Structure Thickness

0.7MM

Materials

SPCC 0.7MM

LEFT SIDE PANEL：TEMPERED GLASS

Form Factor

E-ATX/ATX/M-ATX/ITX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 3

2.5"" SSD: 4

CPU MAX Height

188MM

VGA MAX Length

387MM

I/O Panel

USB2.0*2+USB3.0*1+HD AUDIO

PCI Card Slot

Fan Support

FRONT：3*120 MM/3*140 MM

TOP:2*120 MM/2*140 MM

REAR:1*120 MM/1*140 MM

Liquid Cooling Support

FRONT/TOP:240/280 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

6.62KG / 14.59lb

Gross Weight

8.29KG / 18.28lb
