CC

ARGB Case Fan

Charming Look & Powerful Performance Unified.


· Motherboard sync

· drive-by-wire

· Controller

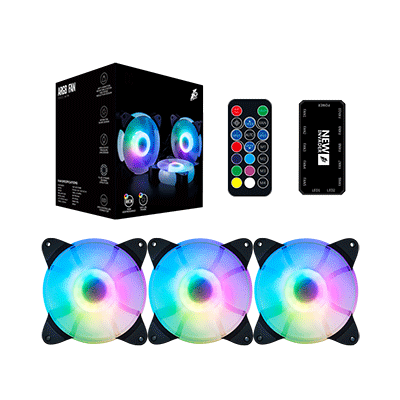

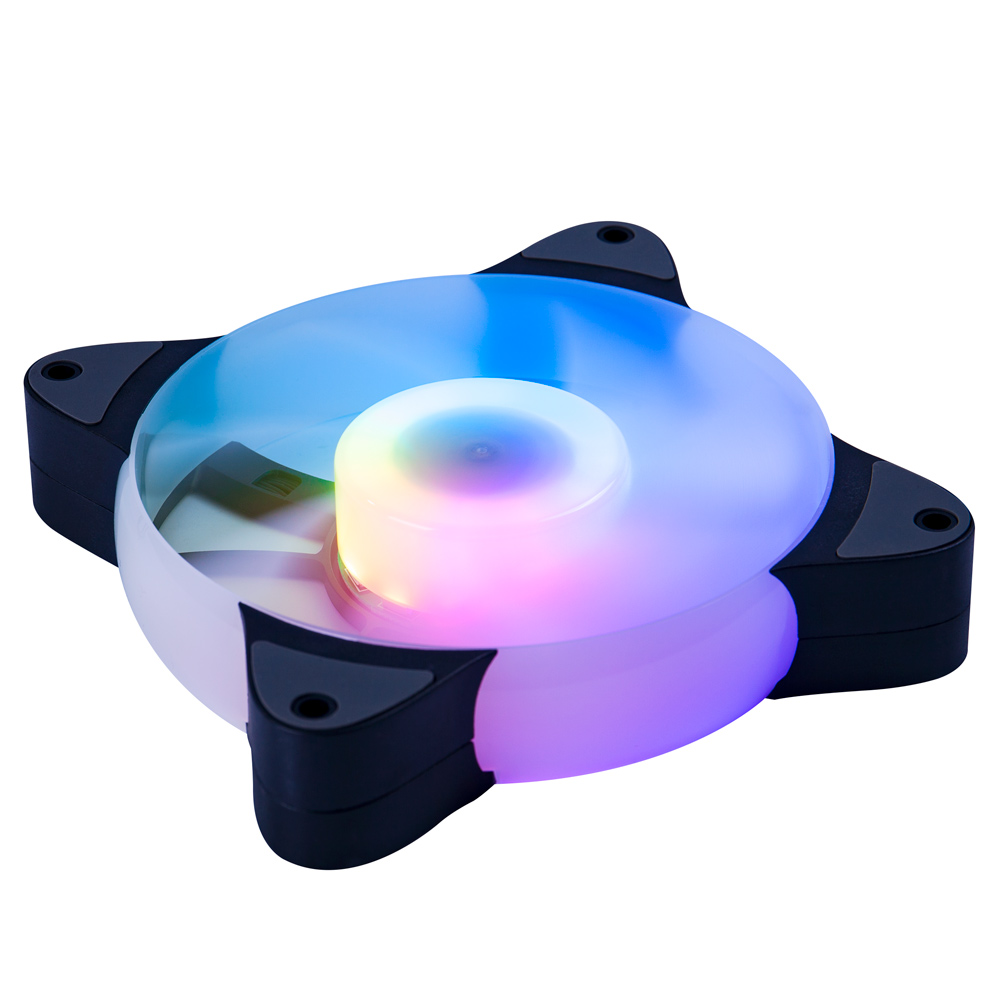

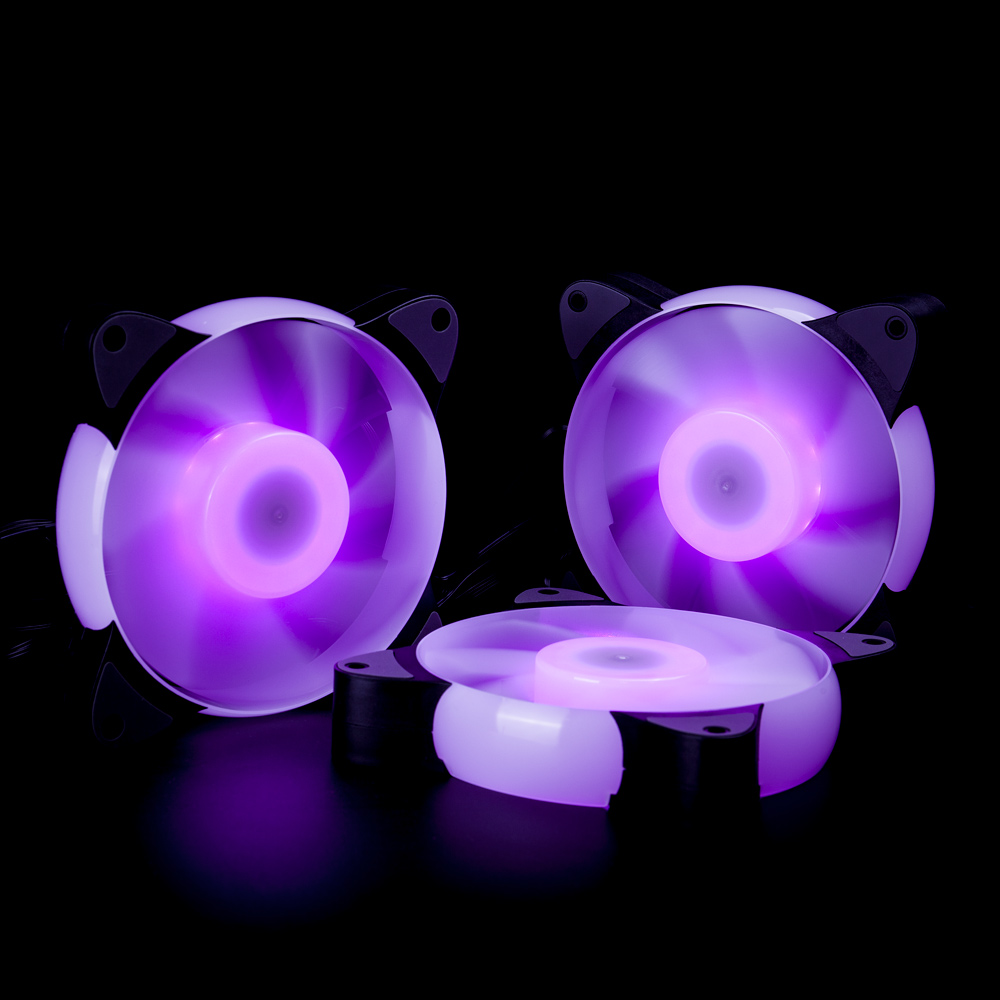

FIRE BASE CC ARGB FAN

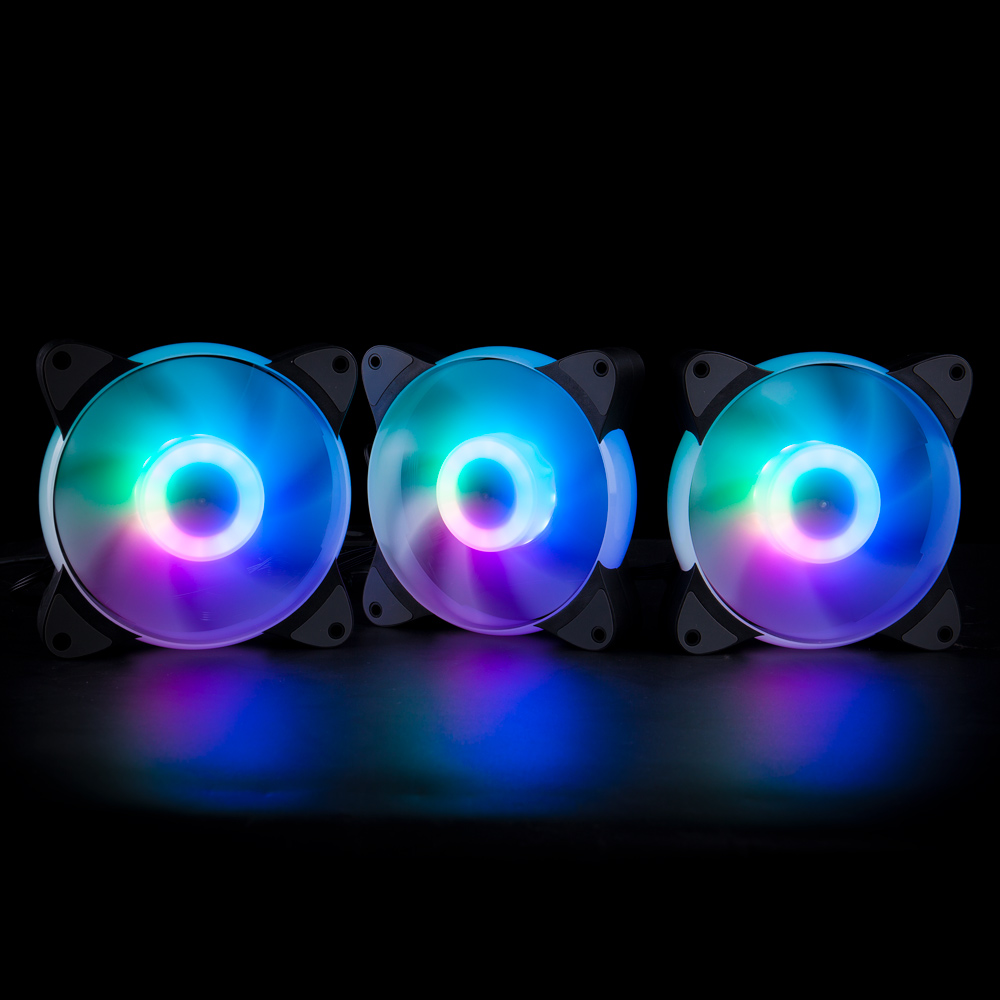

As if a flowing elf in the night sky.

Watch Video

  • 3 In 1 RGB
    Control Mode

  • 12 Highlighted
    LED Beads

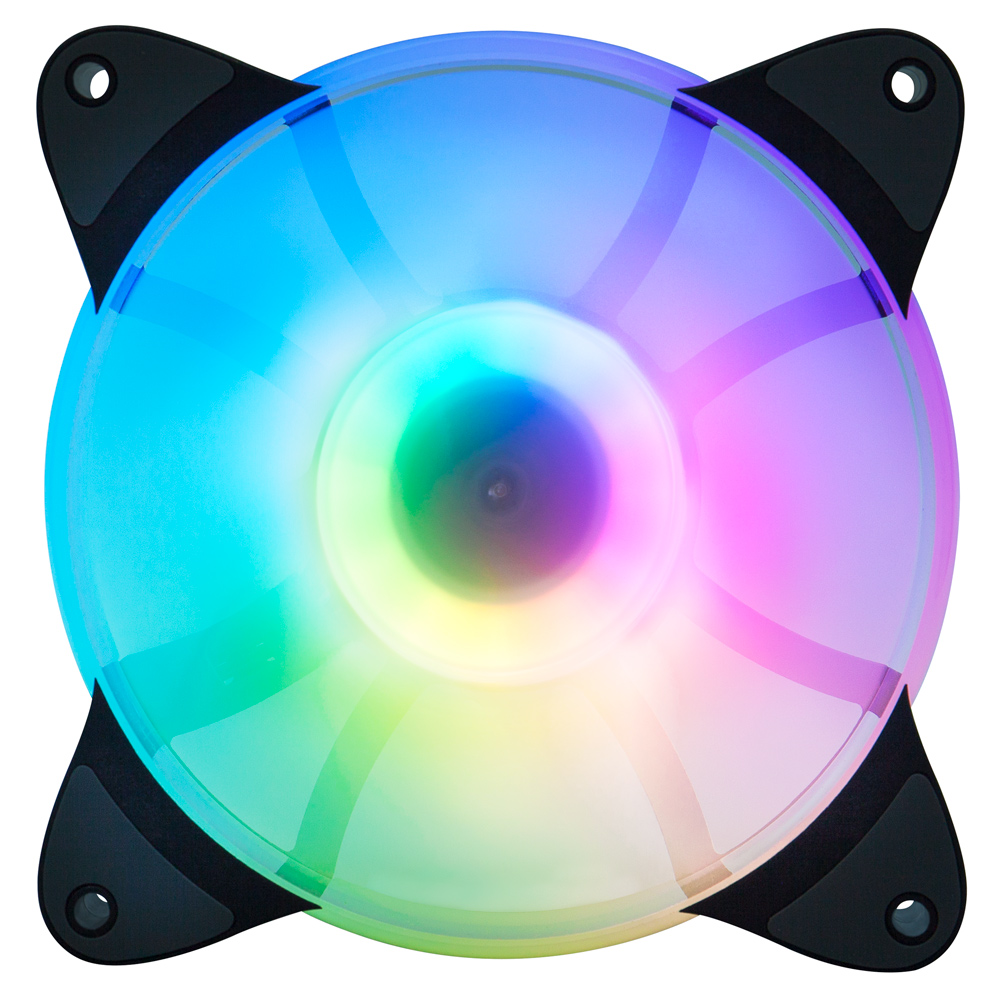

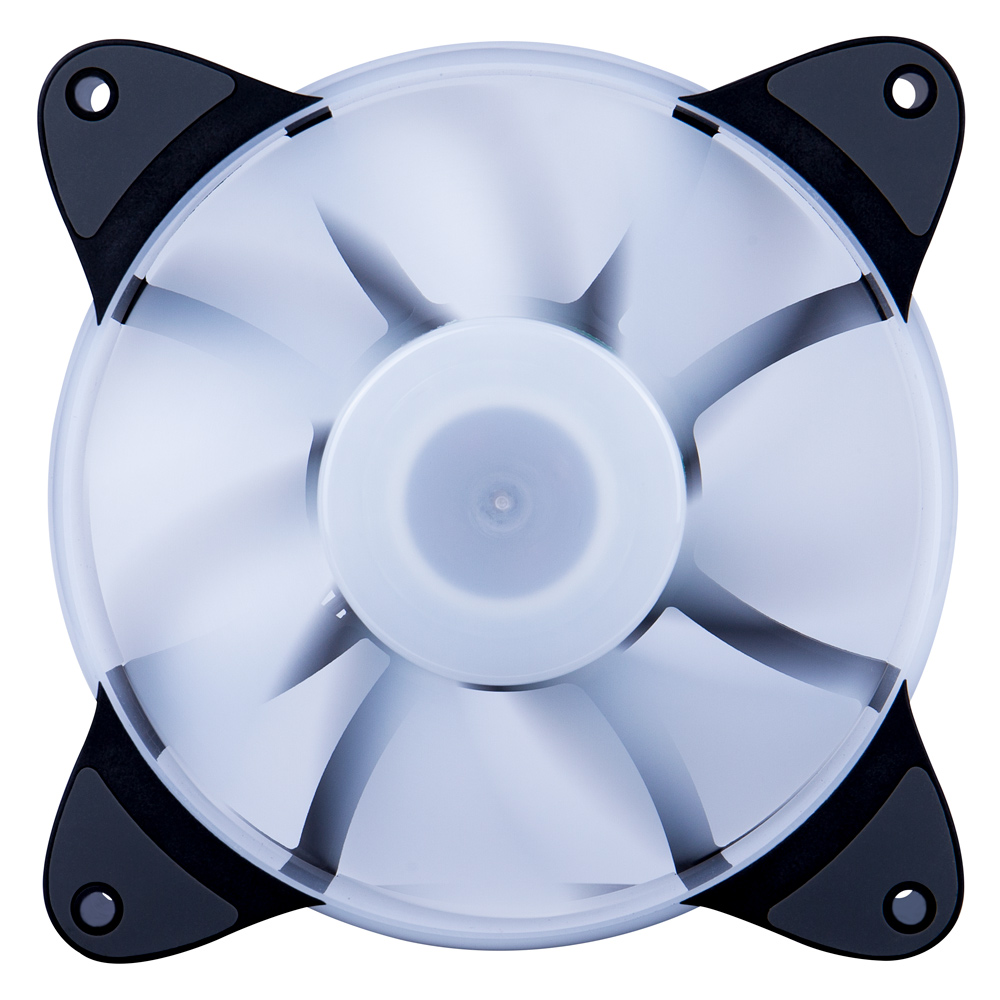

  • 7 Transparent
    Silent Fan Blade

  • Fluid Dynamic
    Bearing Structure

  • Anti-Vibration Mounting System
    And Noise Reduction Design

  • High Static
    Pressure Cfm Design

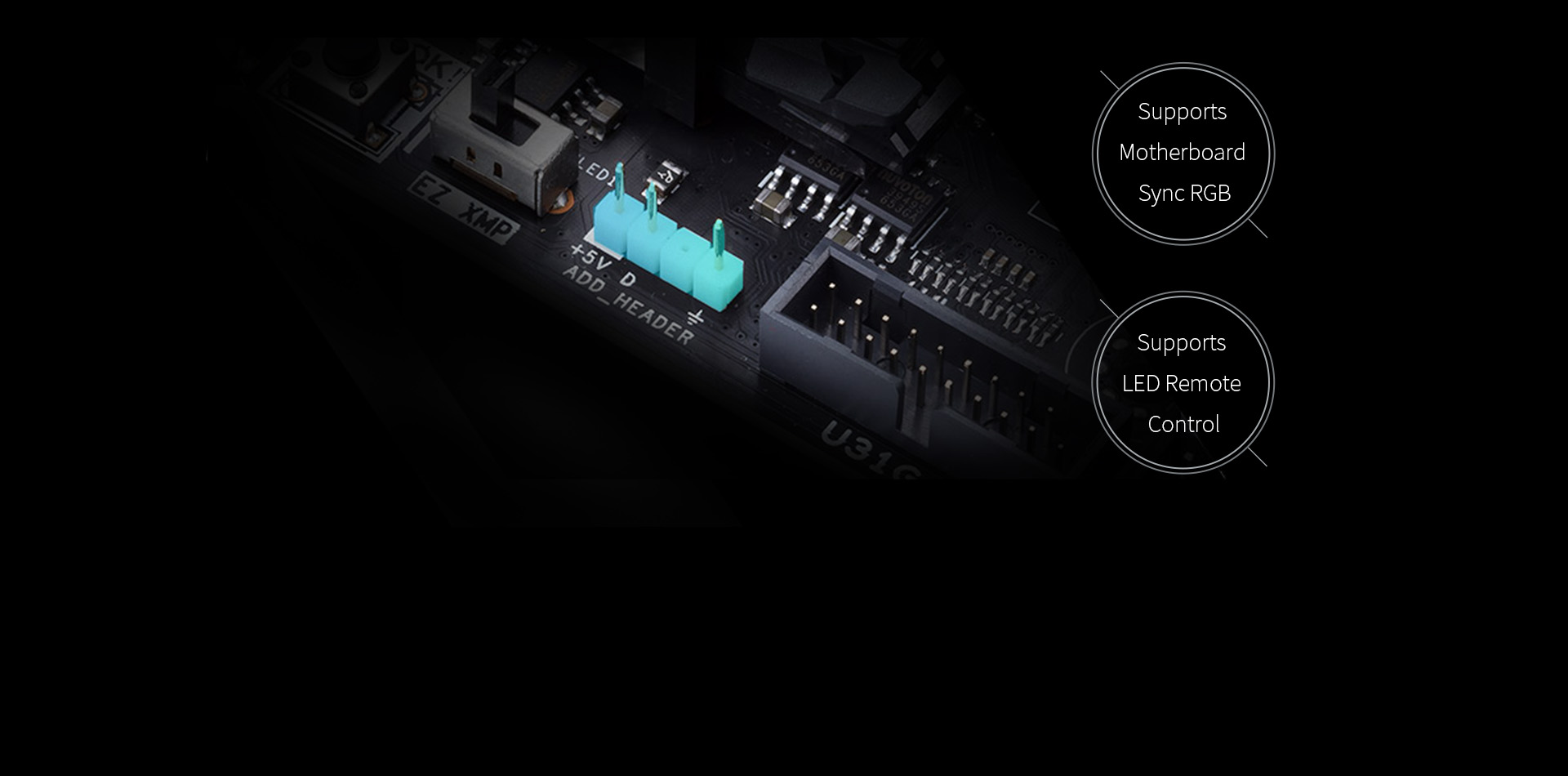

RGB Addressable

Designed to synchronize with top-end motherboard manufacturers, the CC case fan combo is compatible with the motherboards that have a RGB 3PIN connector. Through the motherboards RGB software, it allows you to synchronize 16.8 million LED of the case fans, strip lights directly.

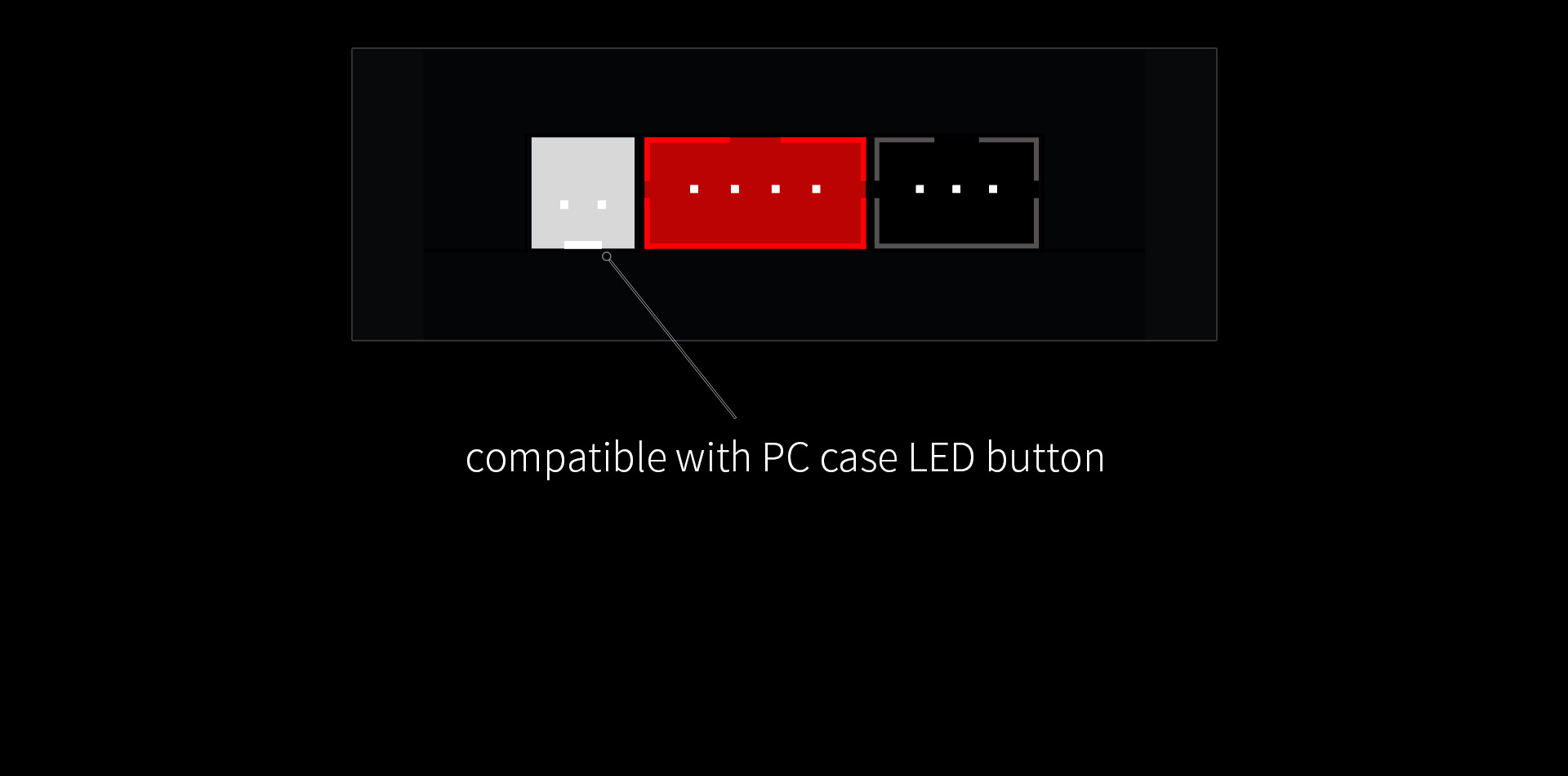

LED Button Control

 The CC case fan combo is compatible with PC case LED button. Gamers can control the RGB lighting without remote Controller or non RGB motherboards.

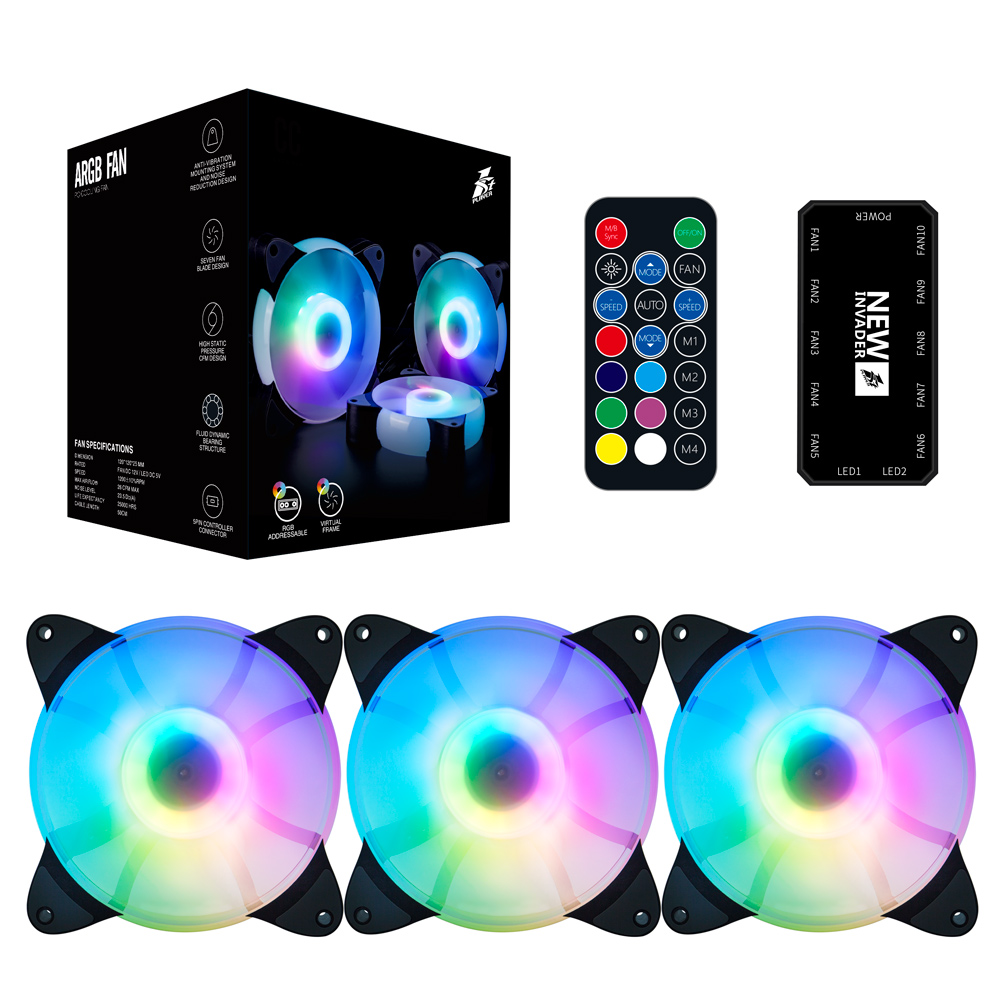

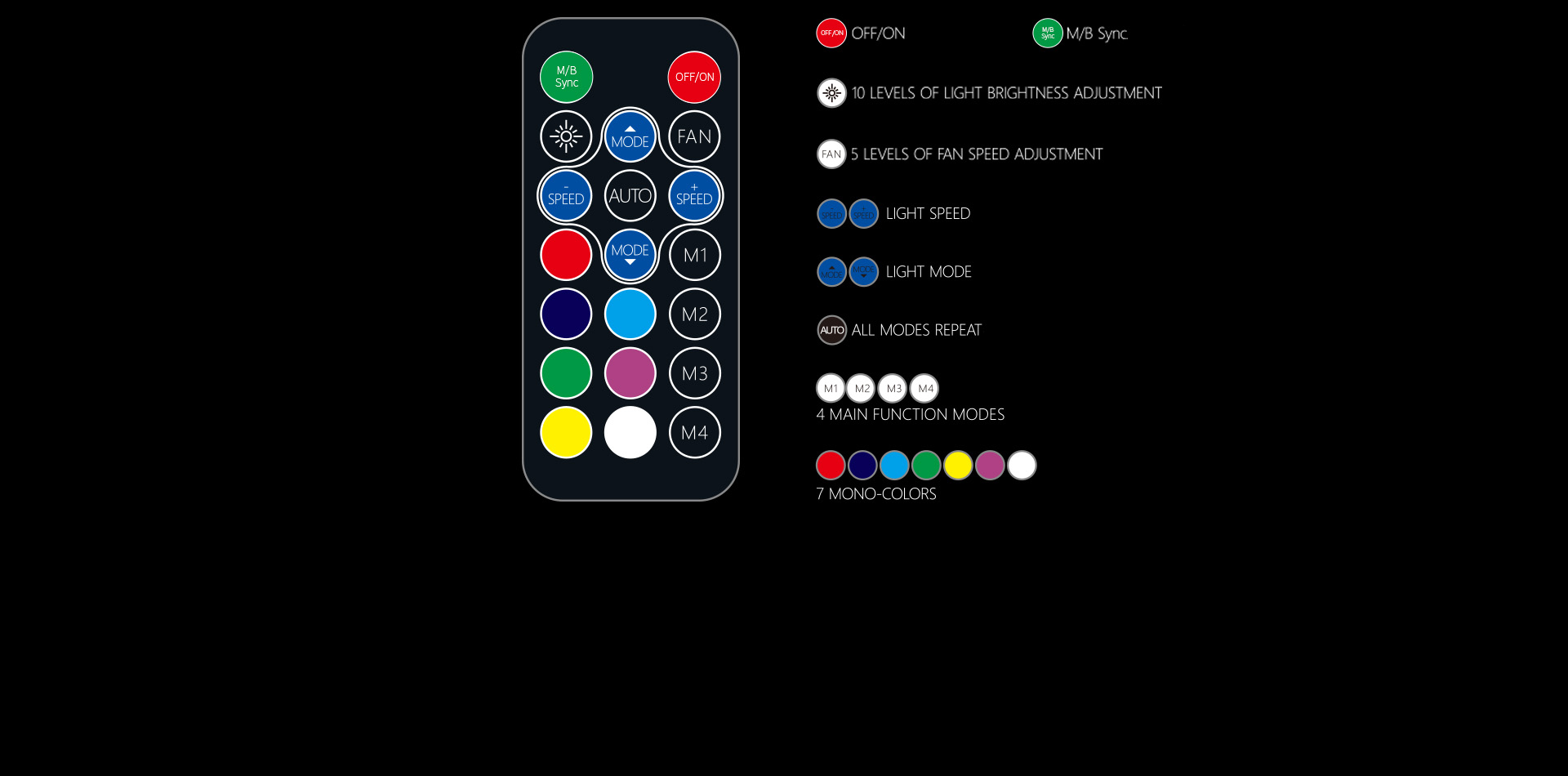

LED Controller

LED modes modes switch

Light brightnhess on-off control

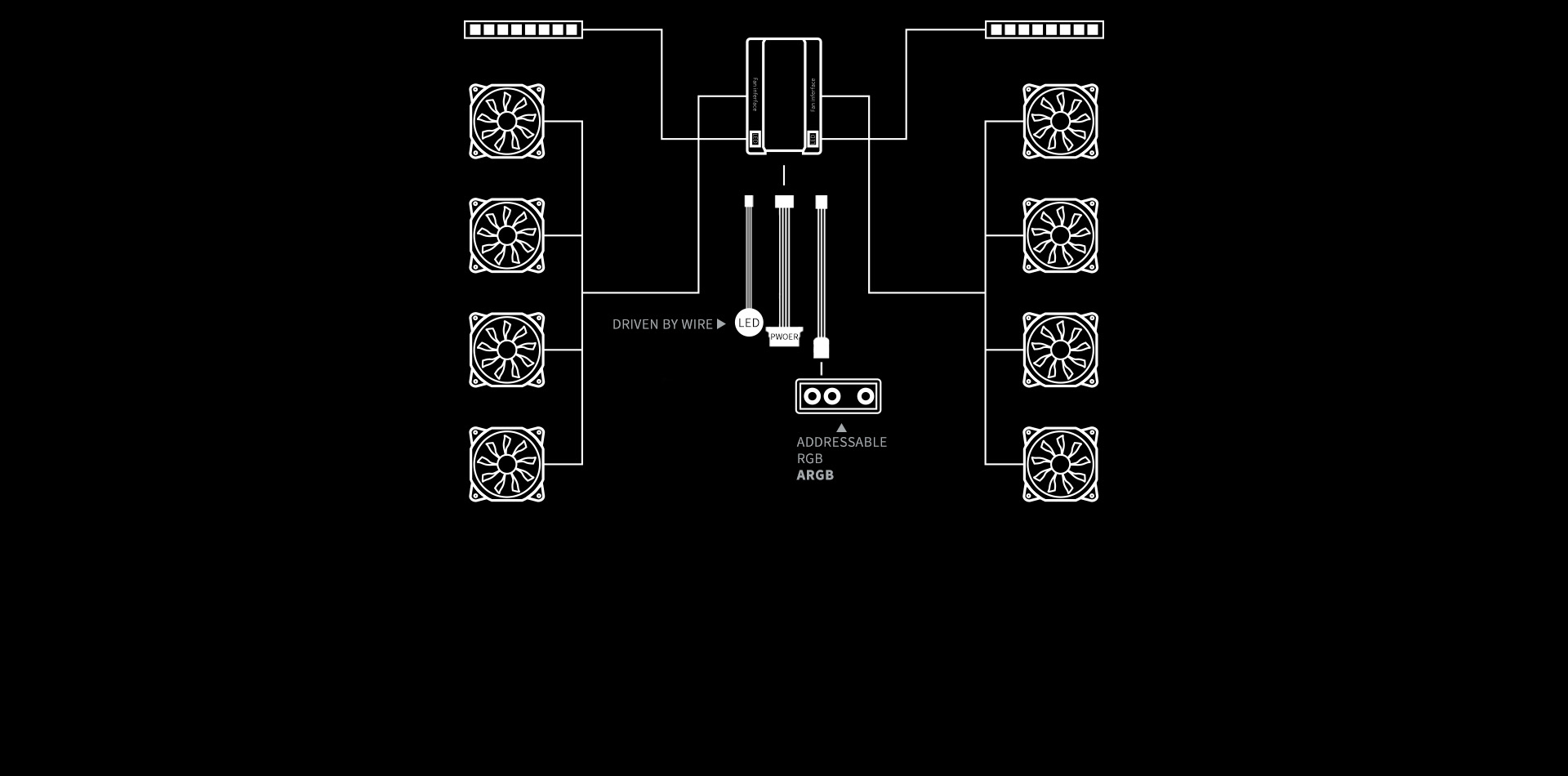

Wiring Diagram

Model
CC
DIMENSION
120*120*25mm
PRODUCT WEIGHT
165g
SUPPLIES LIFE
30000h
FAN RPM
1200RPM(±10%)
MAX CFM
30.54CFM
RATED VOLTAGE
FAN DC12V/LED DC5V
FAN RATED CURRENT
0.15A
BEARING STYLE
Hydro Bearing
LIGHT RATED CURRENT
0.29A
NUMBER OF BLADES
7 LEAF
MAX dBA
19dBA±10%
CONNECTOR
6 PIN
CABLE LENGTH
500±10MM
