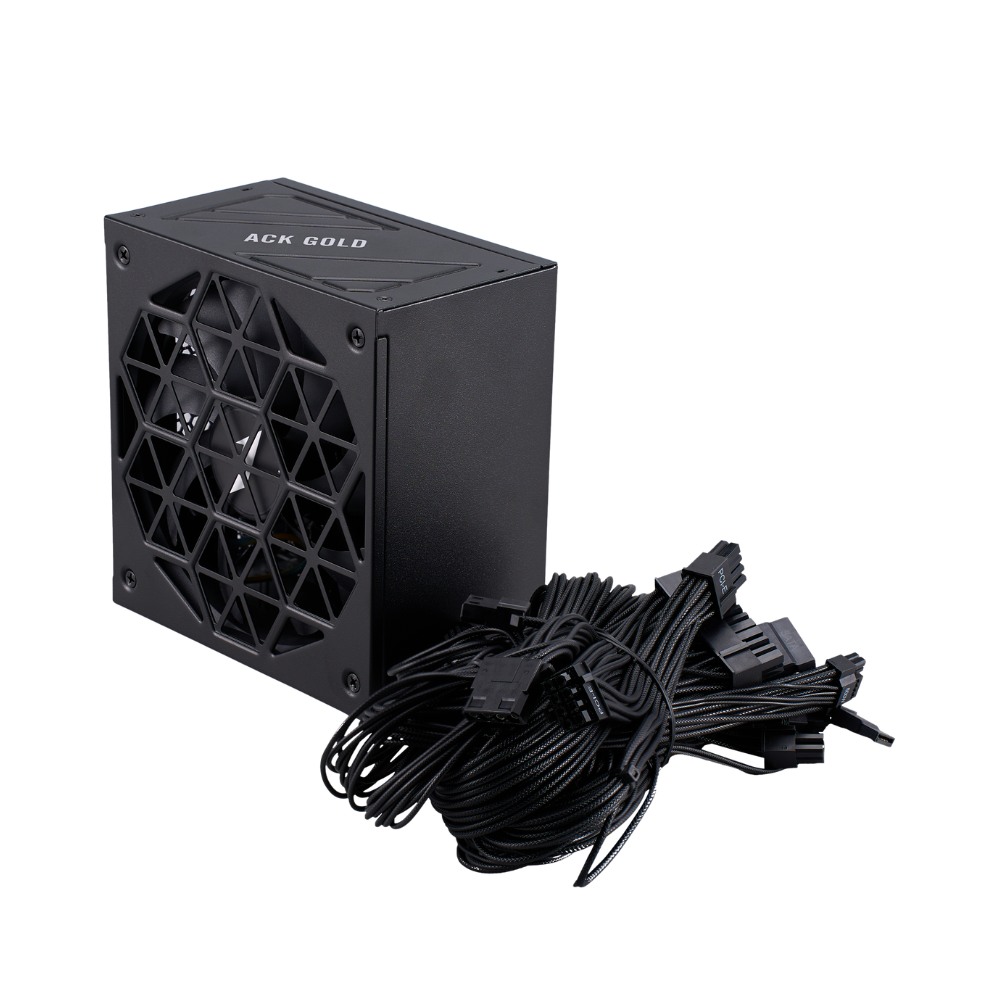

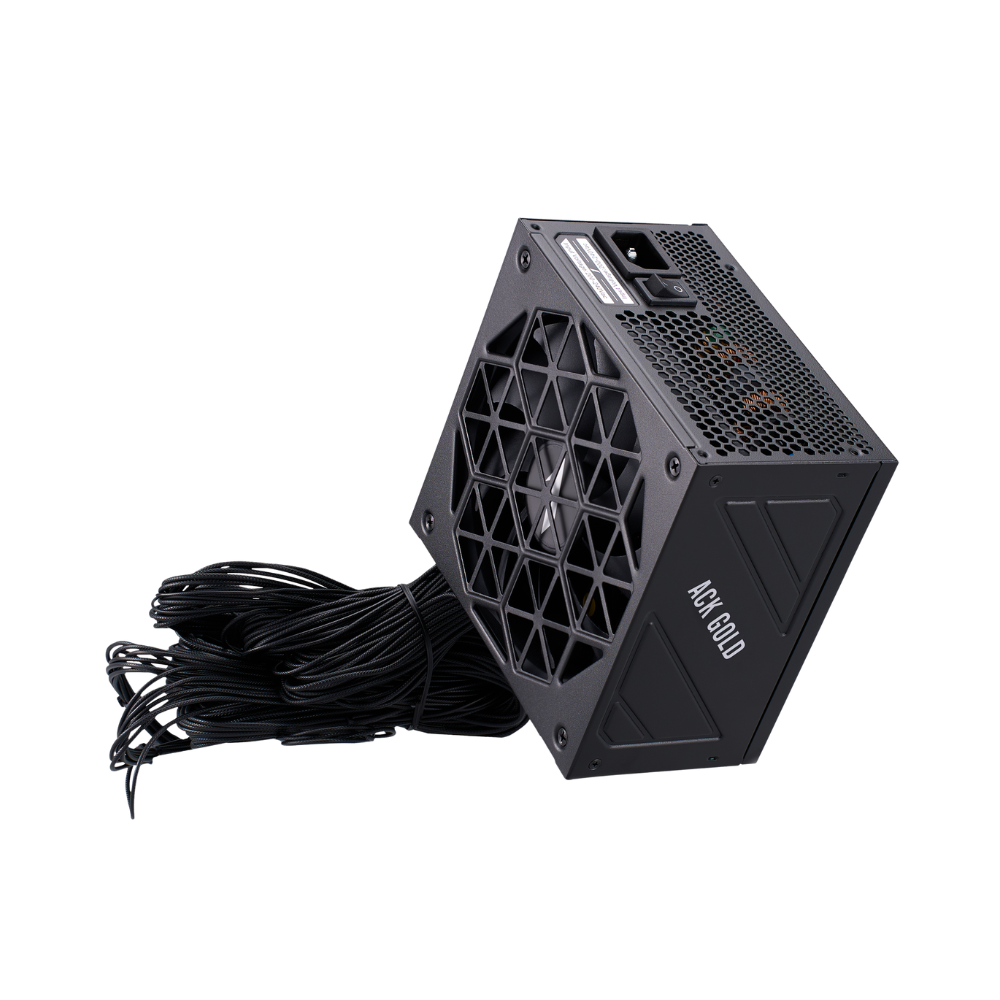

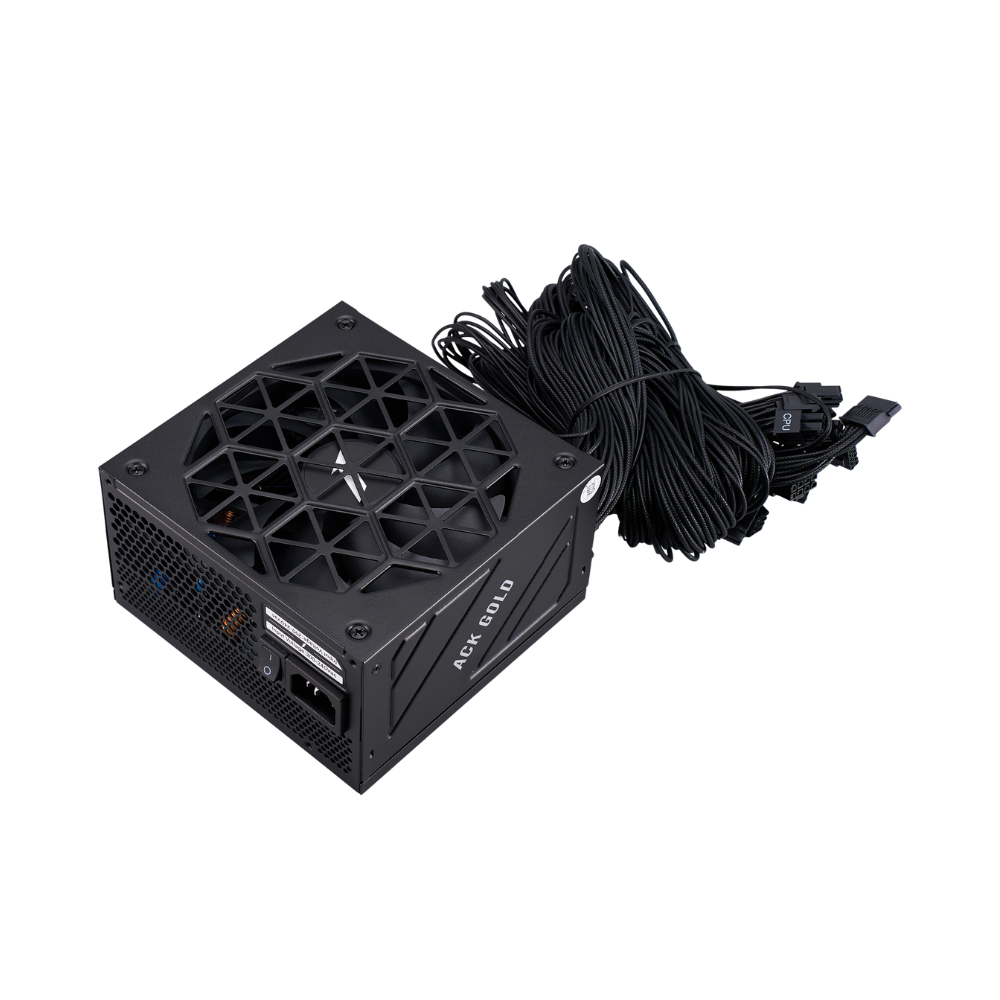

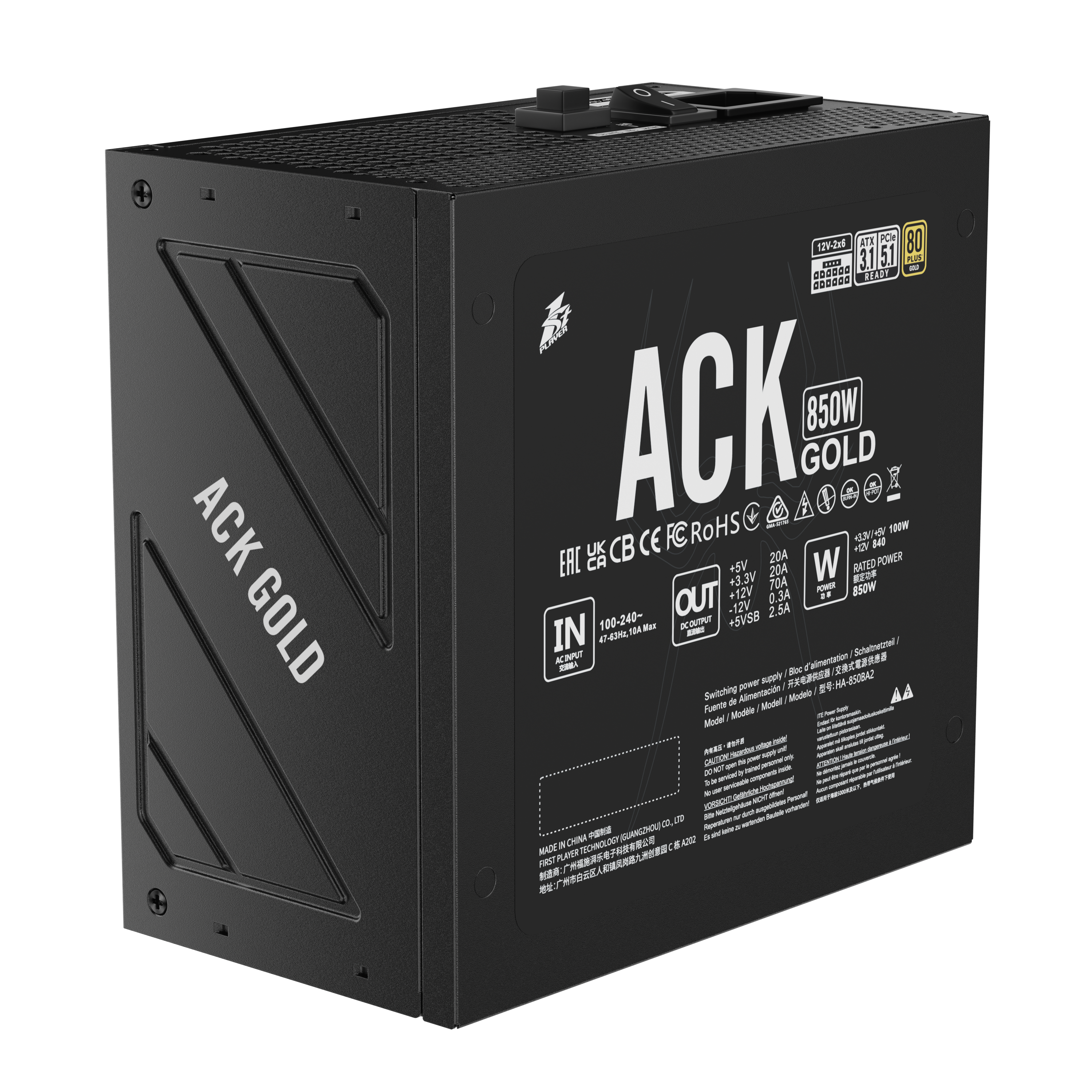

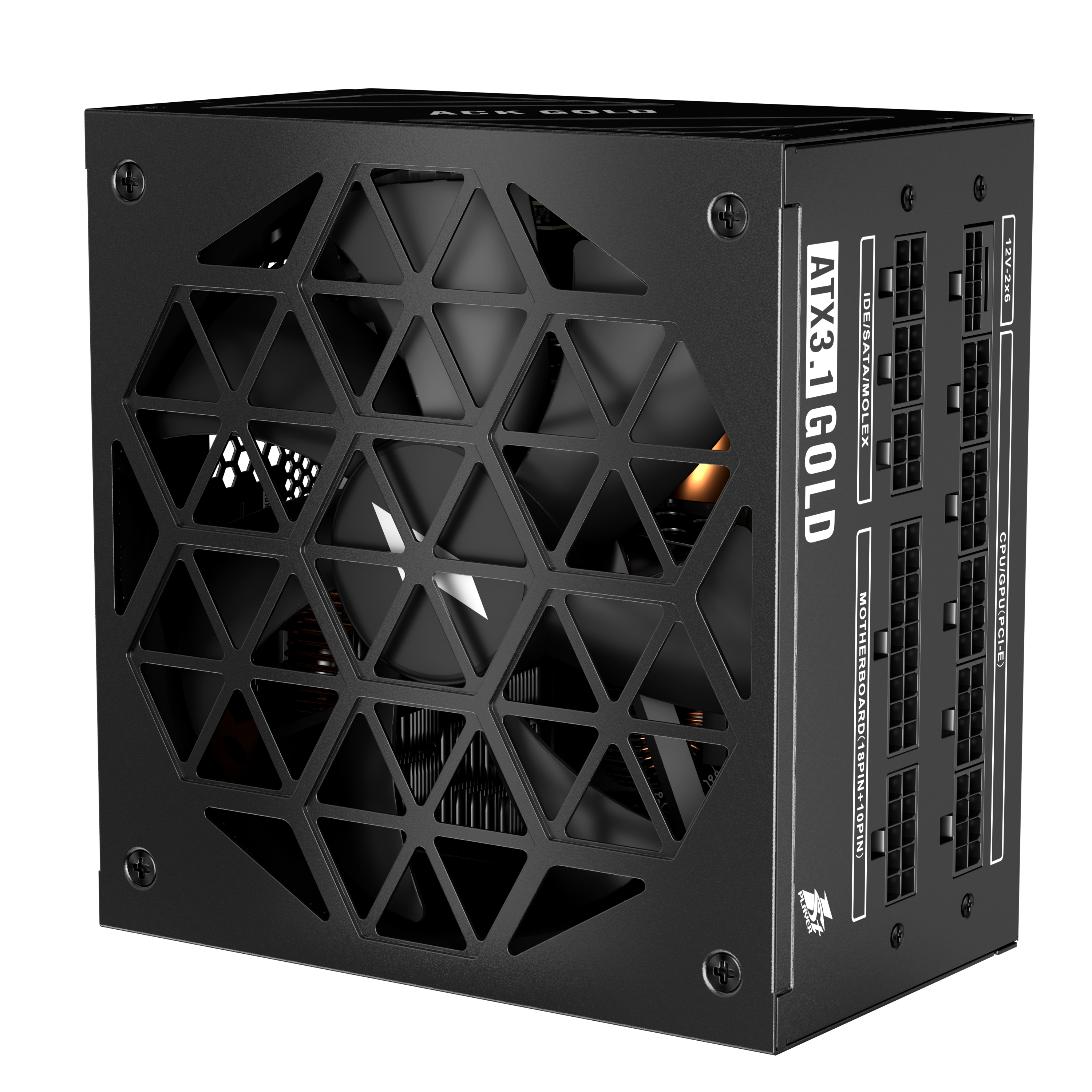

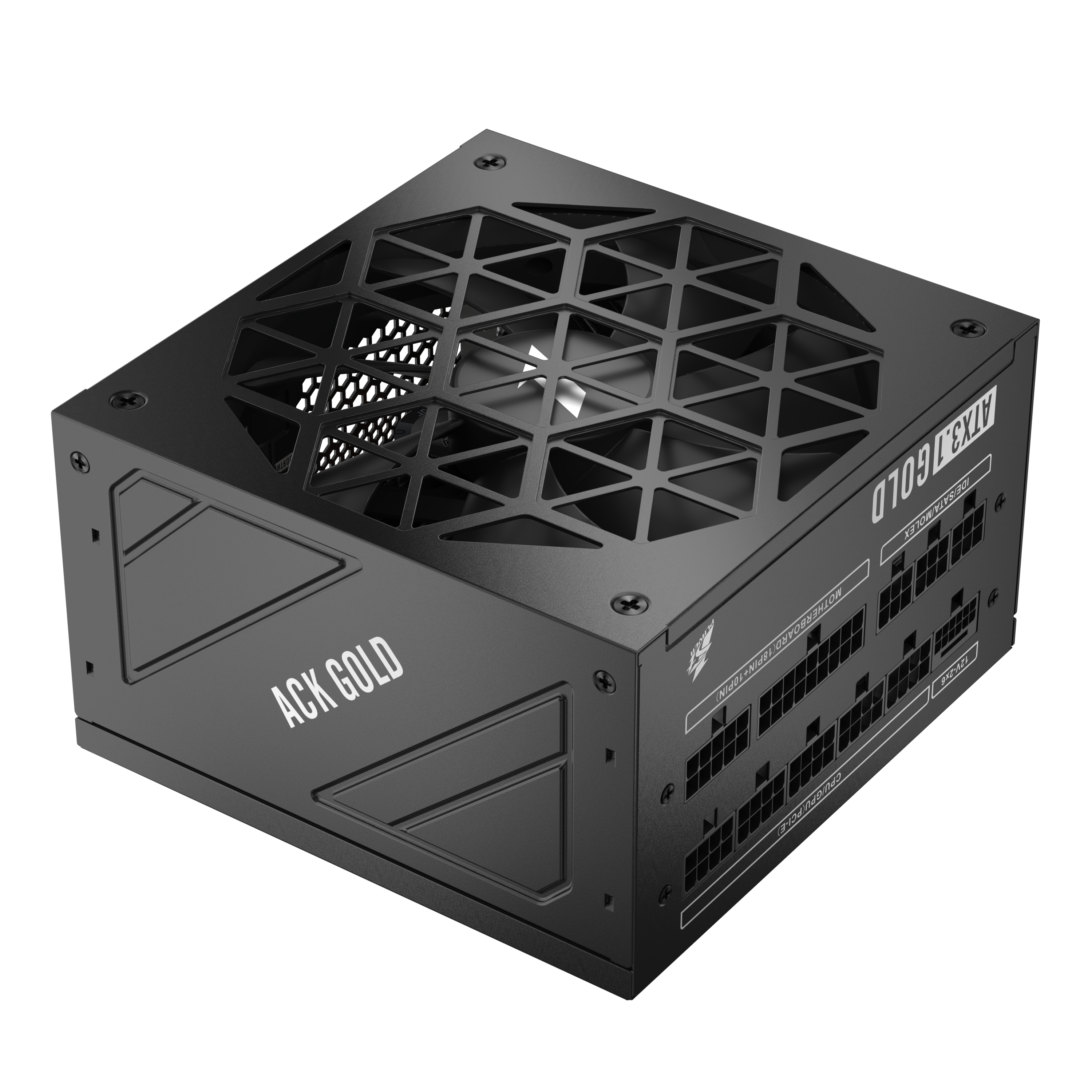

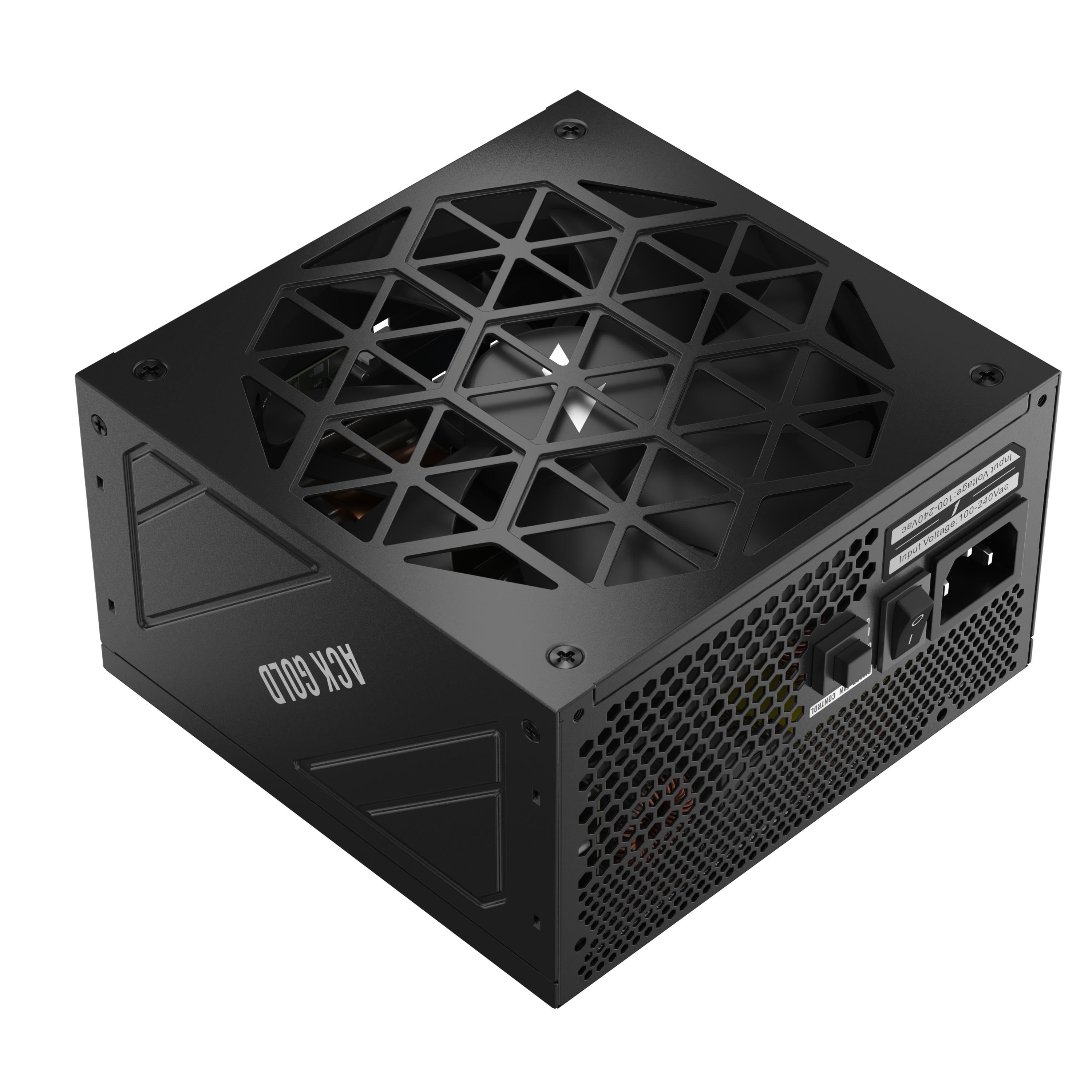

ACK Gold

MODEL

HA-750BA2 | HA-850BA2

DIMENSIONS (L x W x H)

145 x 150 x 86 mm

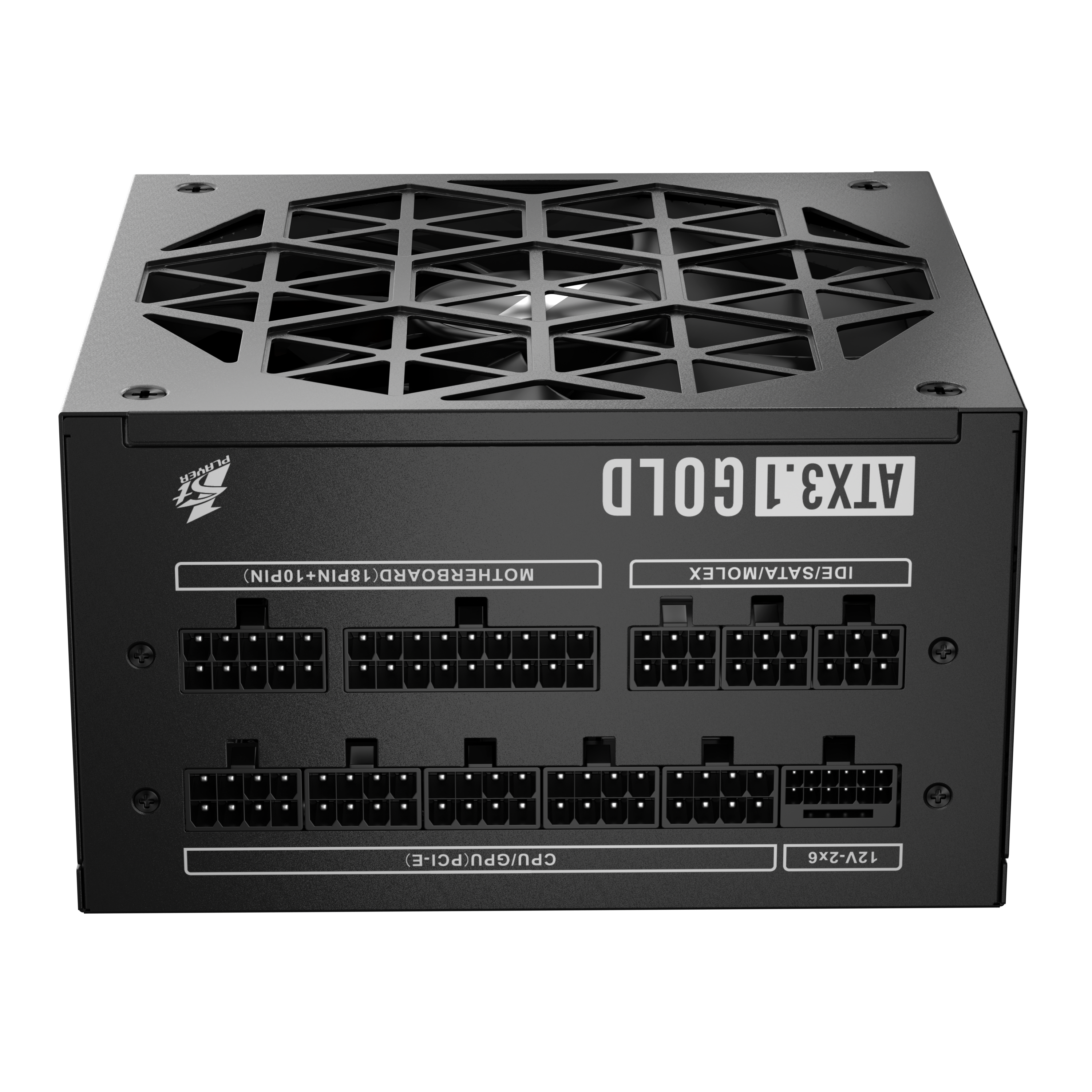

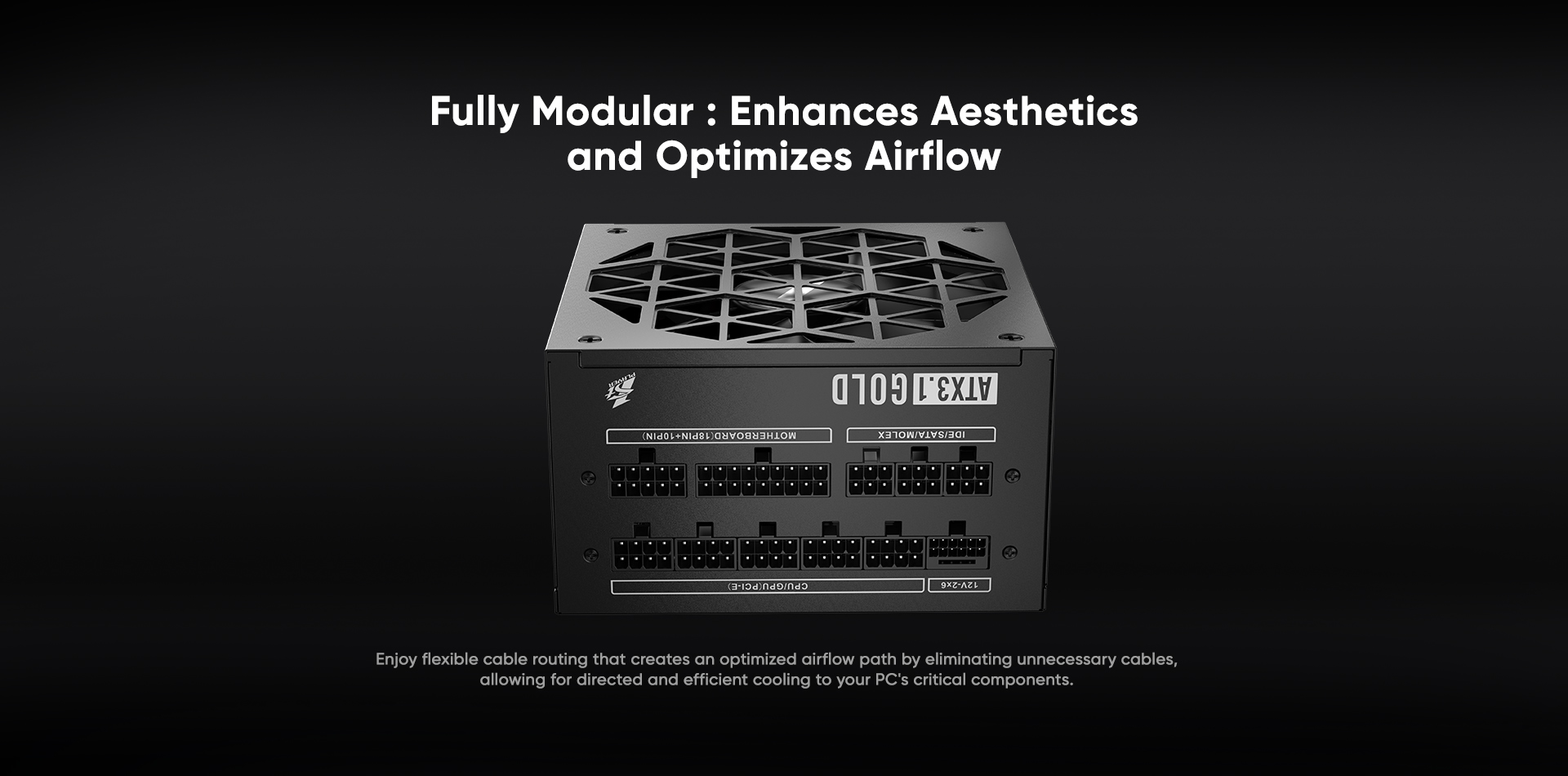

MODULAR

Full Modular

CERTIFICATIONS

750W: 80 PLUS GOLD and Cybenetics Gold

850W: 80 PLUS GOLD and Cybenetics Platinum

WARRANTY

7-year warranty

INPUT VOLTAGE

100 -240VAC

INPUT CURRENT

10 A

EFFICIENCY

91.07% (750W) and 91.42% (850W) at typical loading

OUTPUT CAPACITY

750W / 850W

INPUT FREQUENCY

47- 63 Hz

PFC

Active PFC

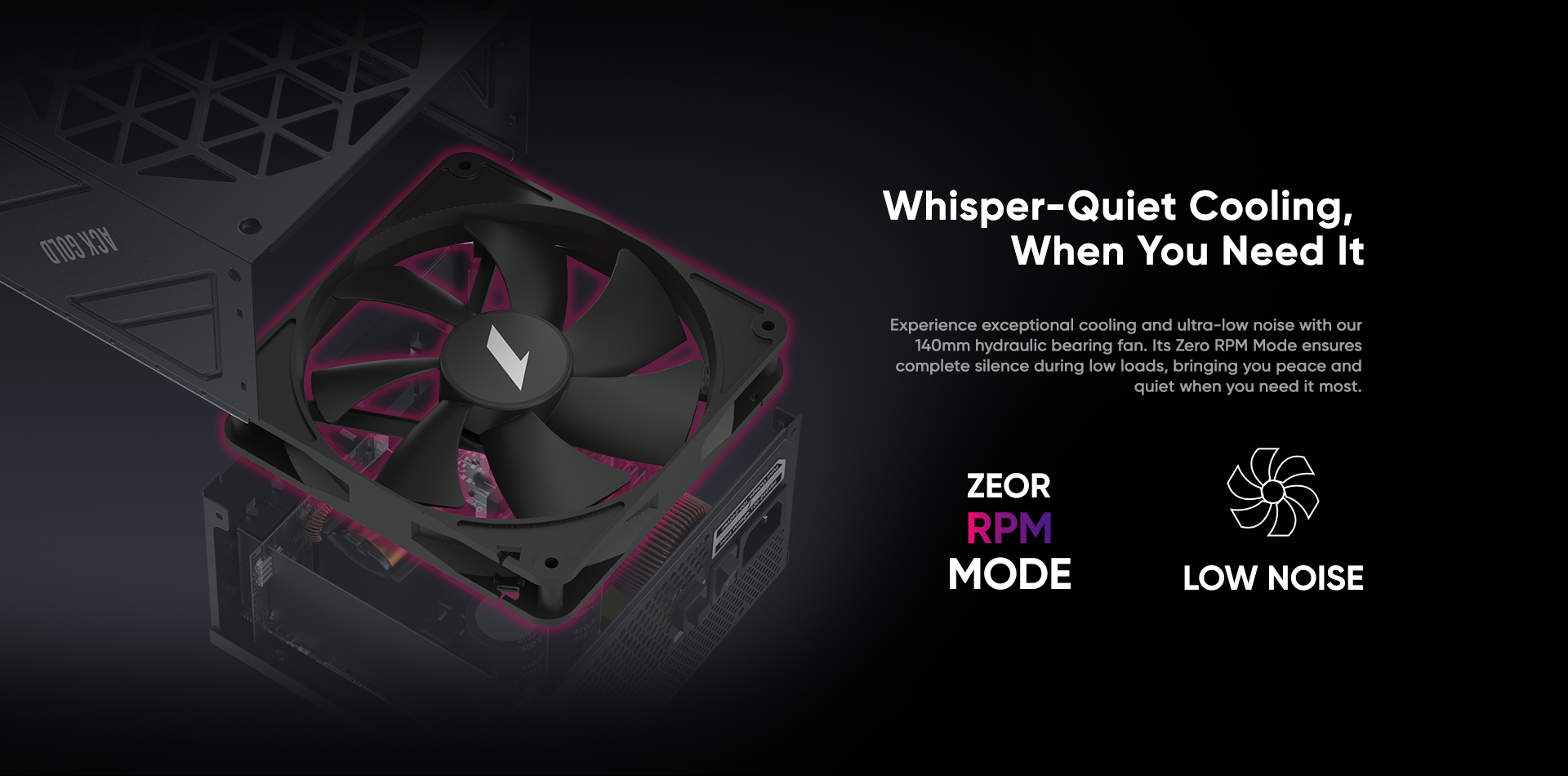

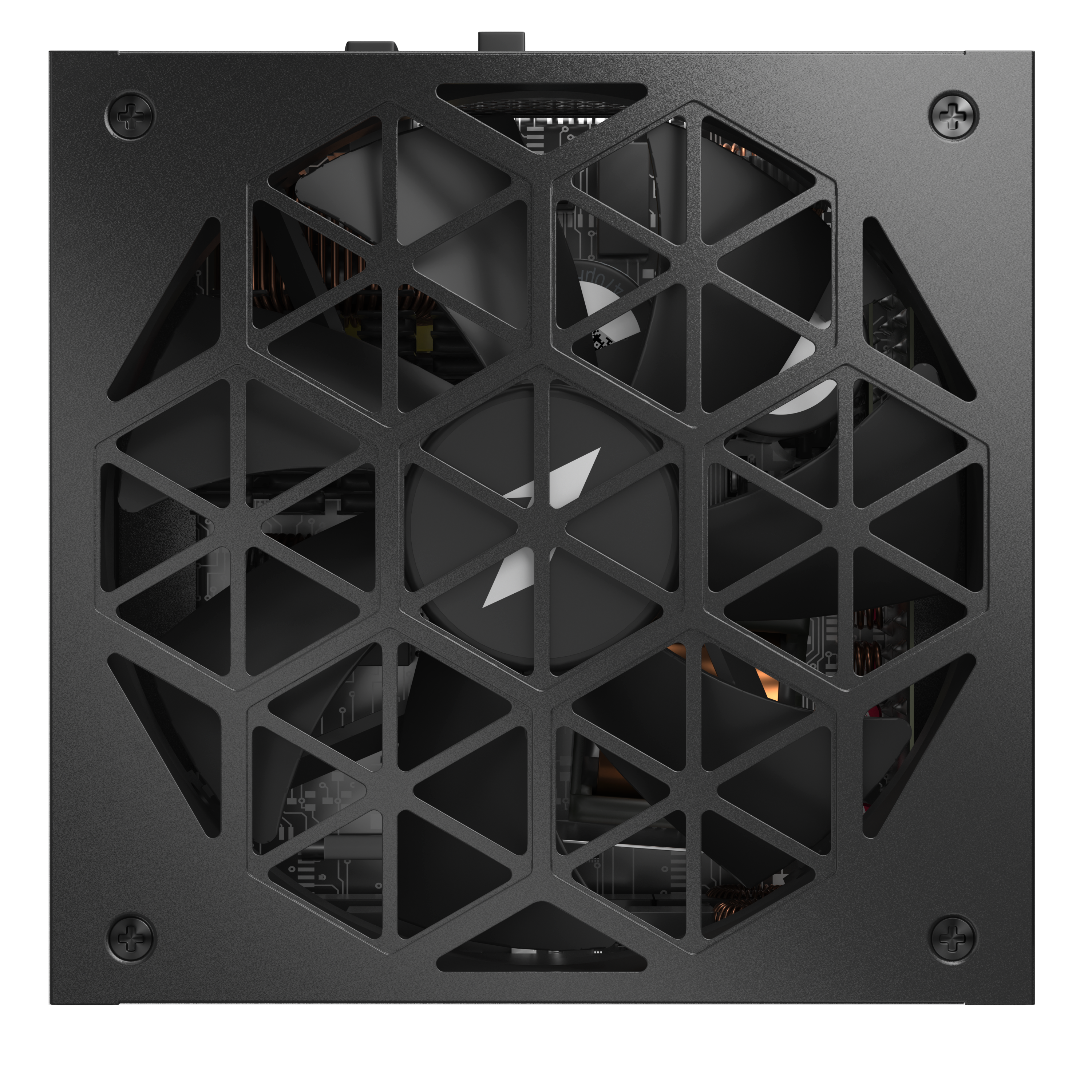

FAN SIZE

140 mm FDB

PROTECTIONS

OVP, OPP, SCP, OTP, OCP, UVP

CIRCUIT STRUCTURE

LLC+ DC-DC
