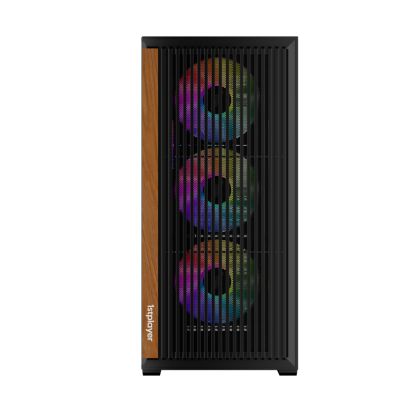

MODEL
WD6
STRUCTURE DIMENSIONS (L x W x H)
420 × 215 × 455 mm
PRODUCT DIMENSIONS (L x W x H)
454 × 215 × 465 mm
PACKAGE DIMENSIONS (L x W x H)
510 x 276 × 524 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC, tempered glass, plastic

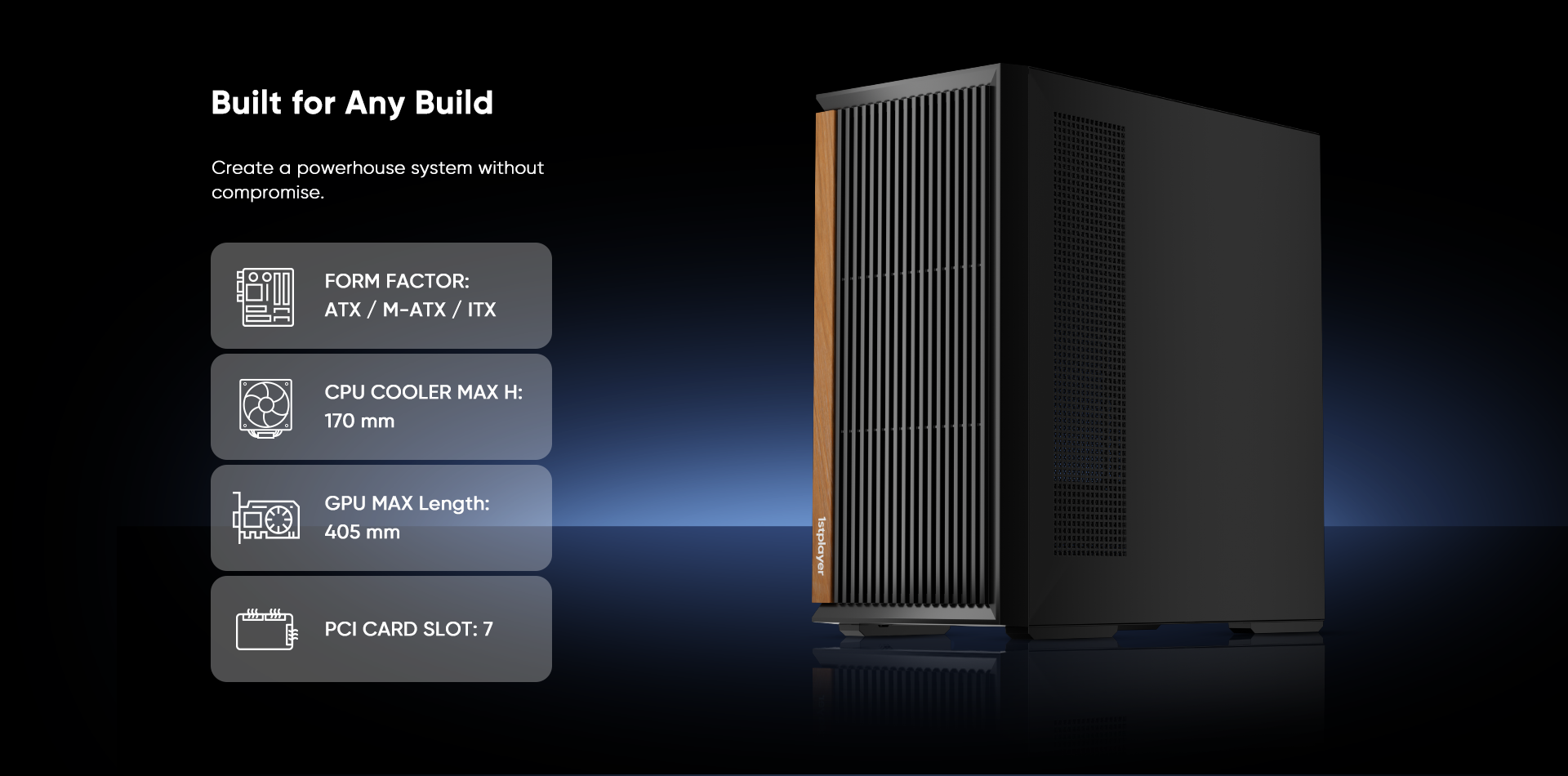

FORM FACTOR
ATX / M-ATX / ITX
3.5" HDD: 1 + 2.5" SSD: 2
3.5" HDD: 2 + 2.5" SSD: 1

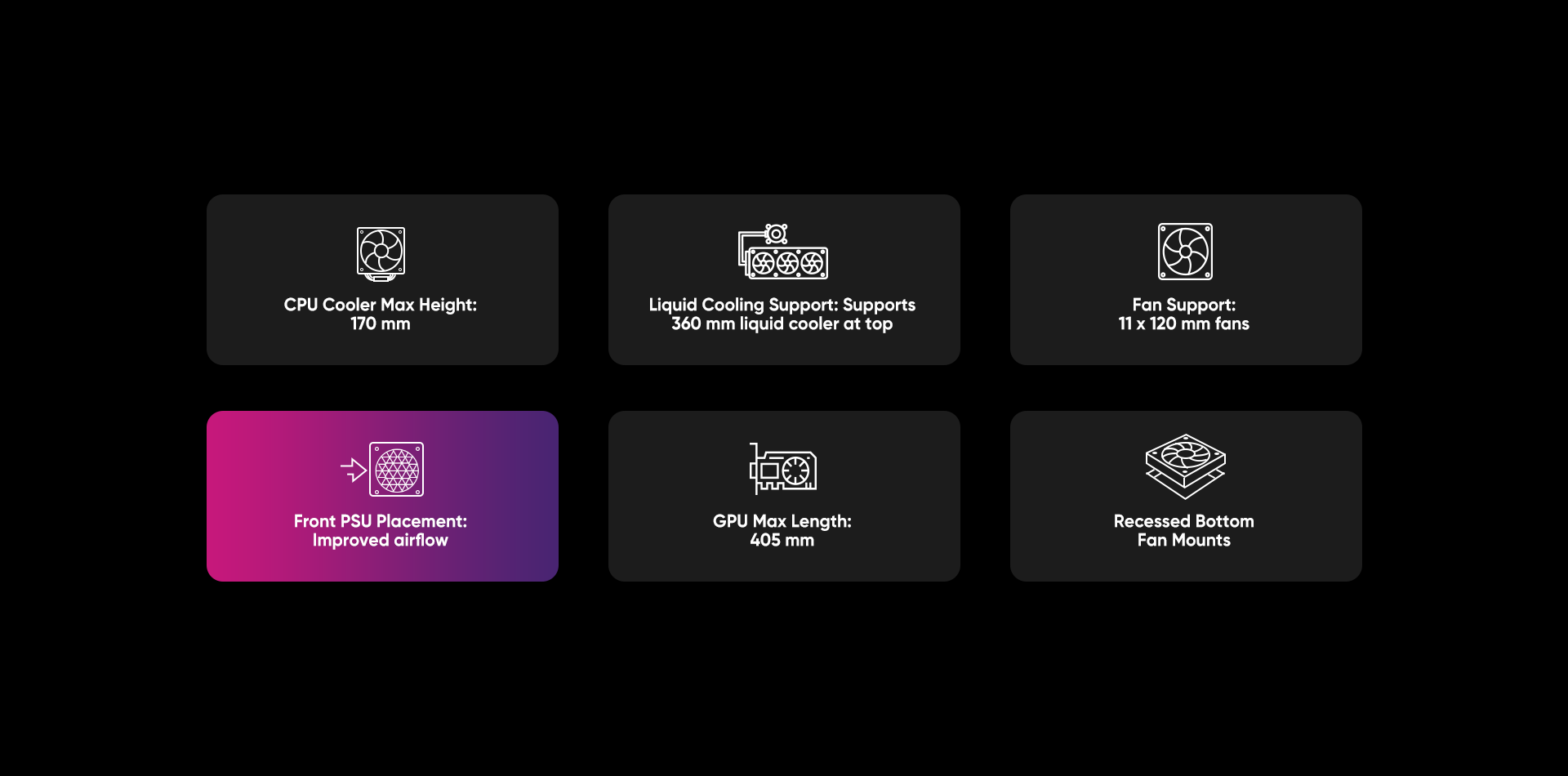

CPU MAX HEIGHT
170 mm
GPU MAX LENGTH
405 mm

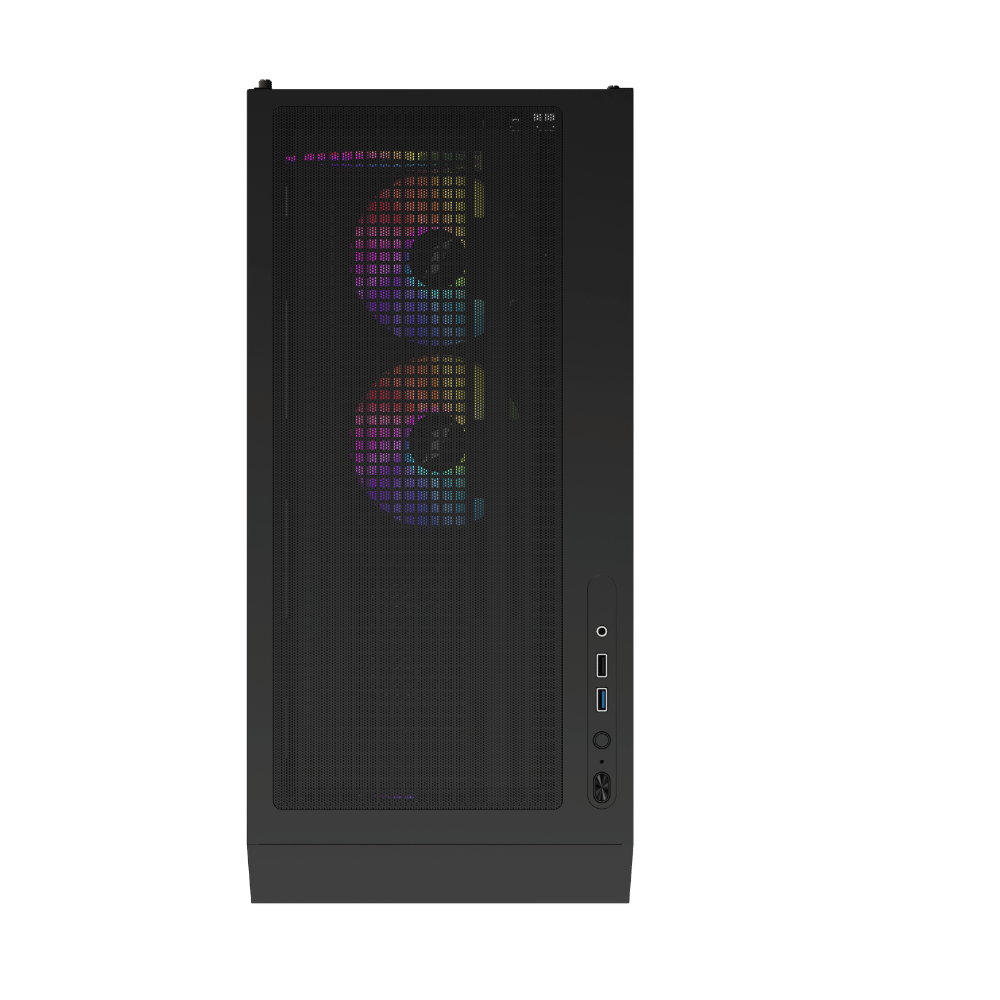

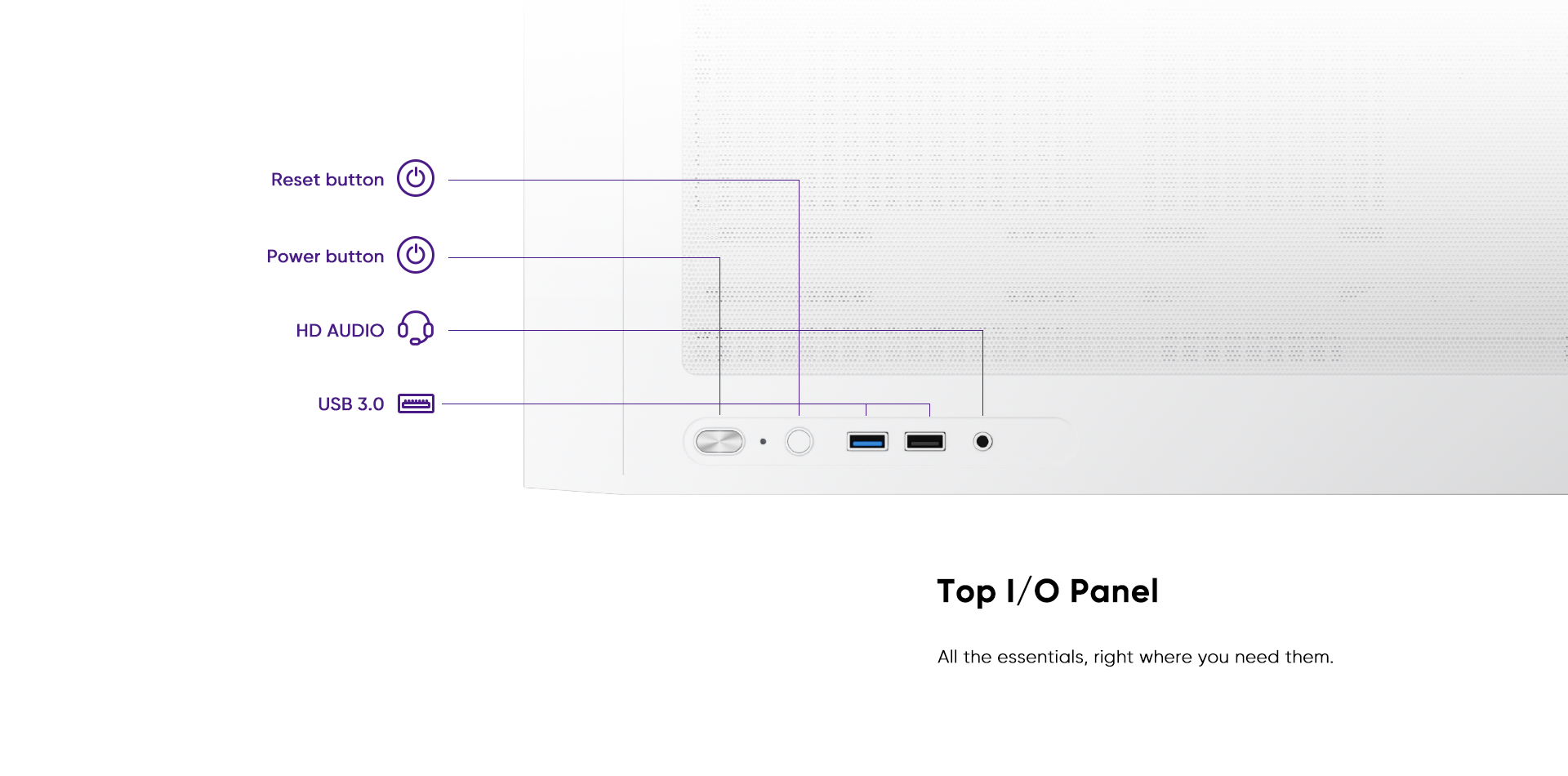

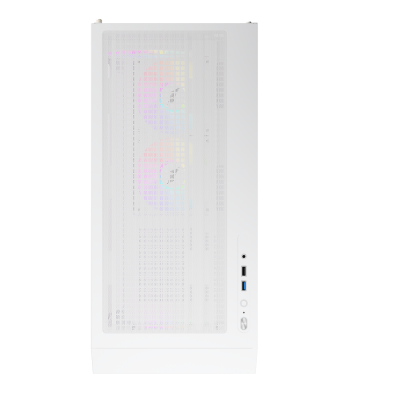

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 1 + HD Audio
PCI CARD SLOT
7

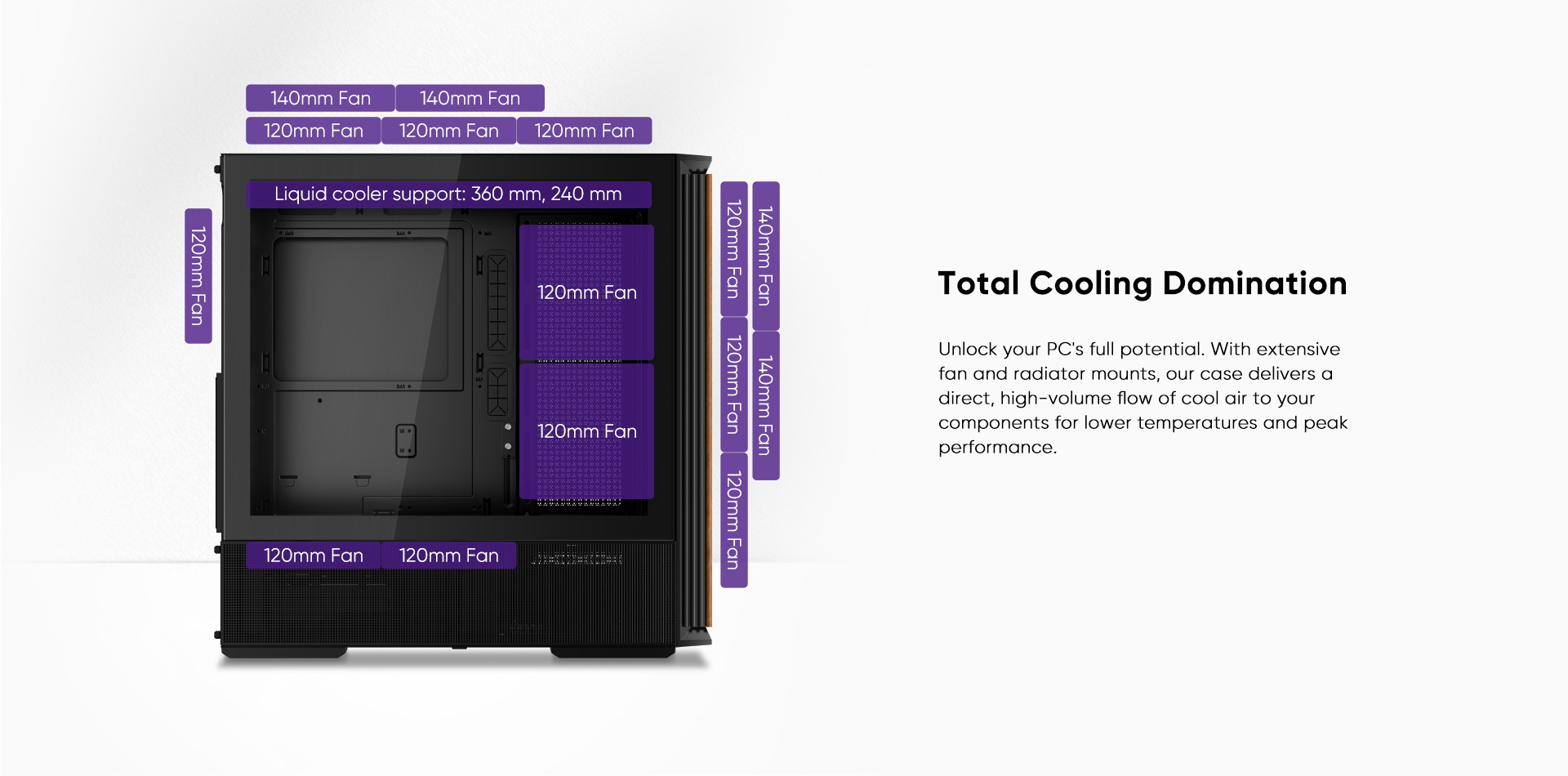

FAN SUPPORT

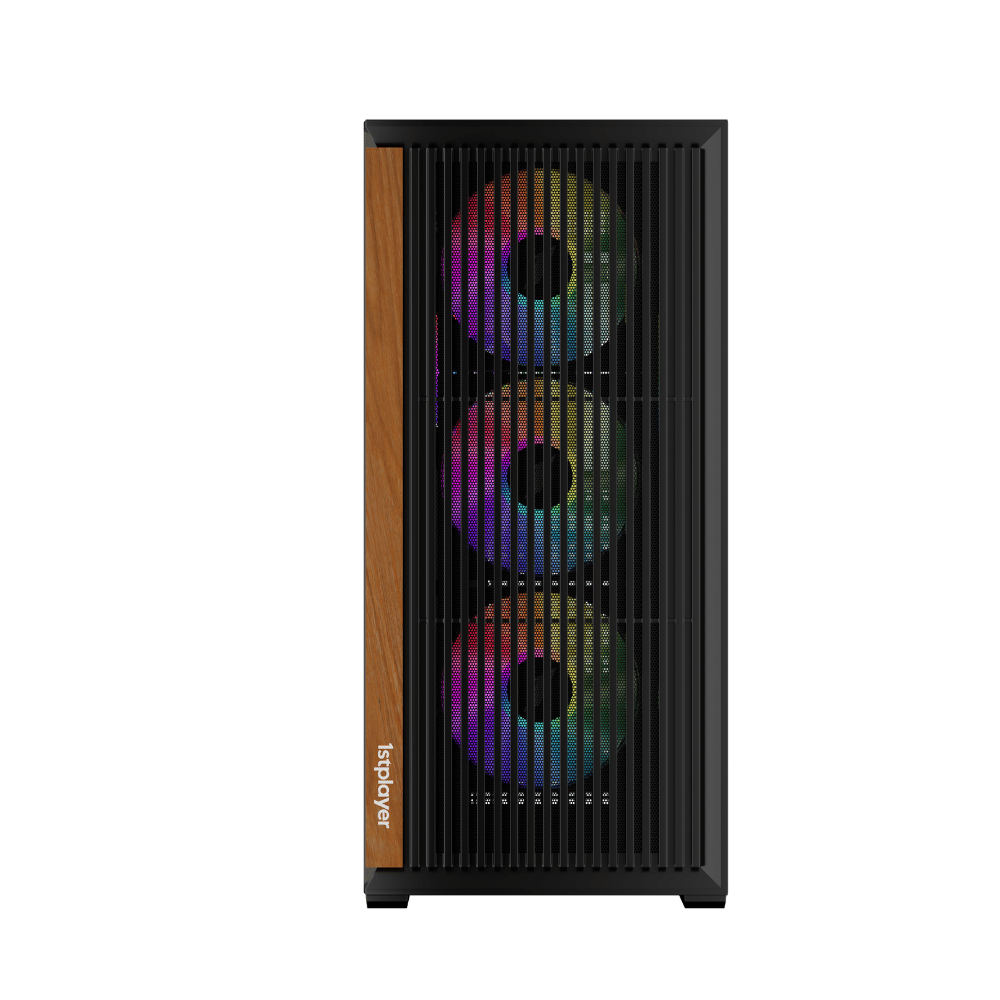

Front: 3 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm

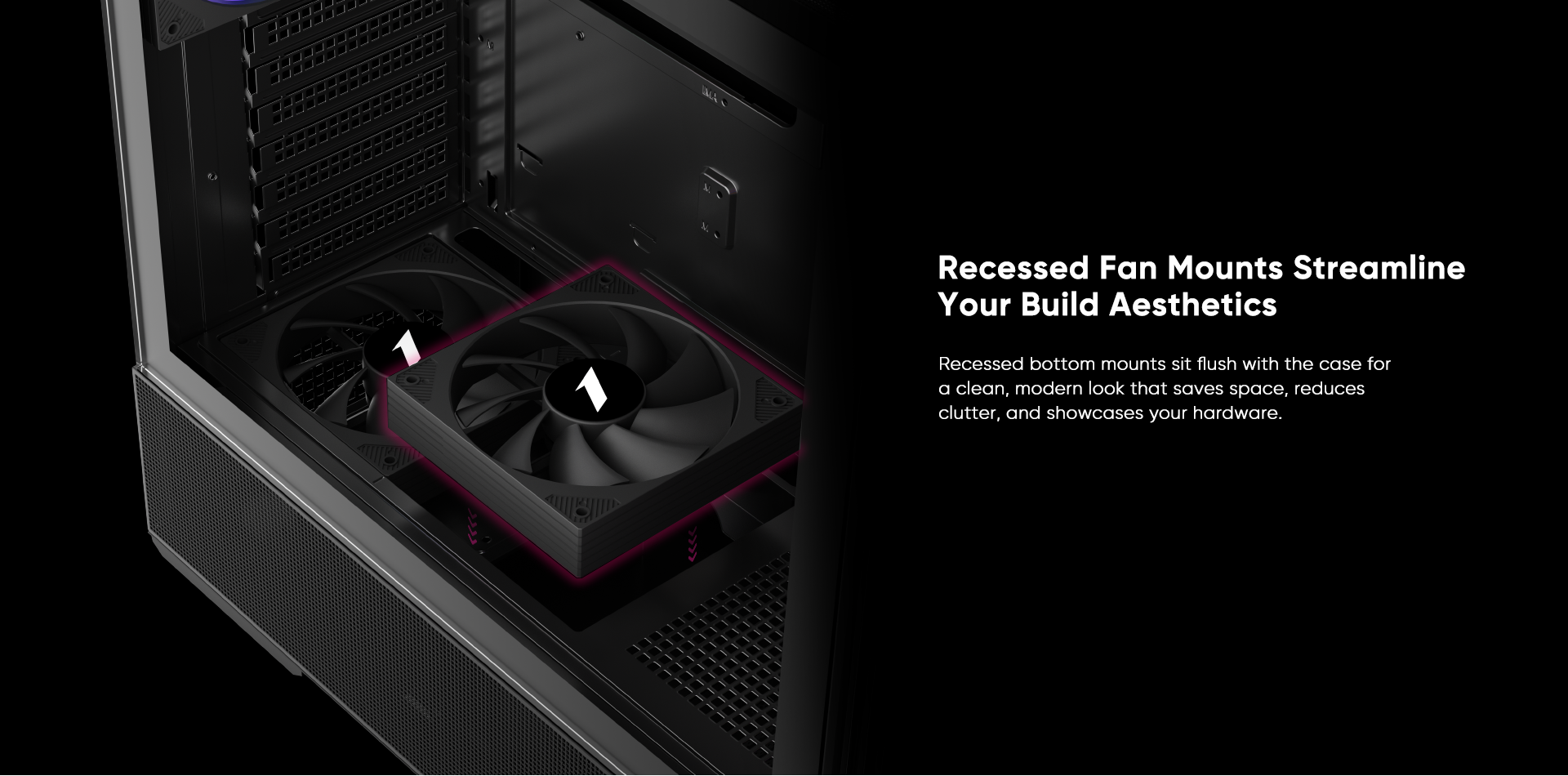

Bottom: 2 x 120 mm
LIQUID COOLING SUPPORT
Front: 360 mm, 240 mm

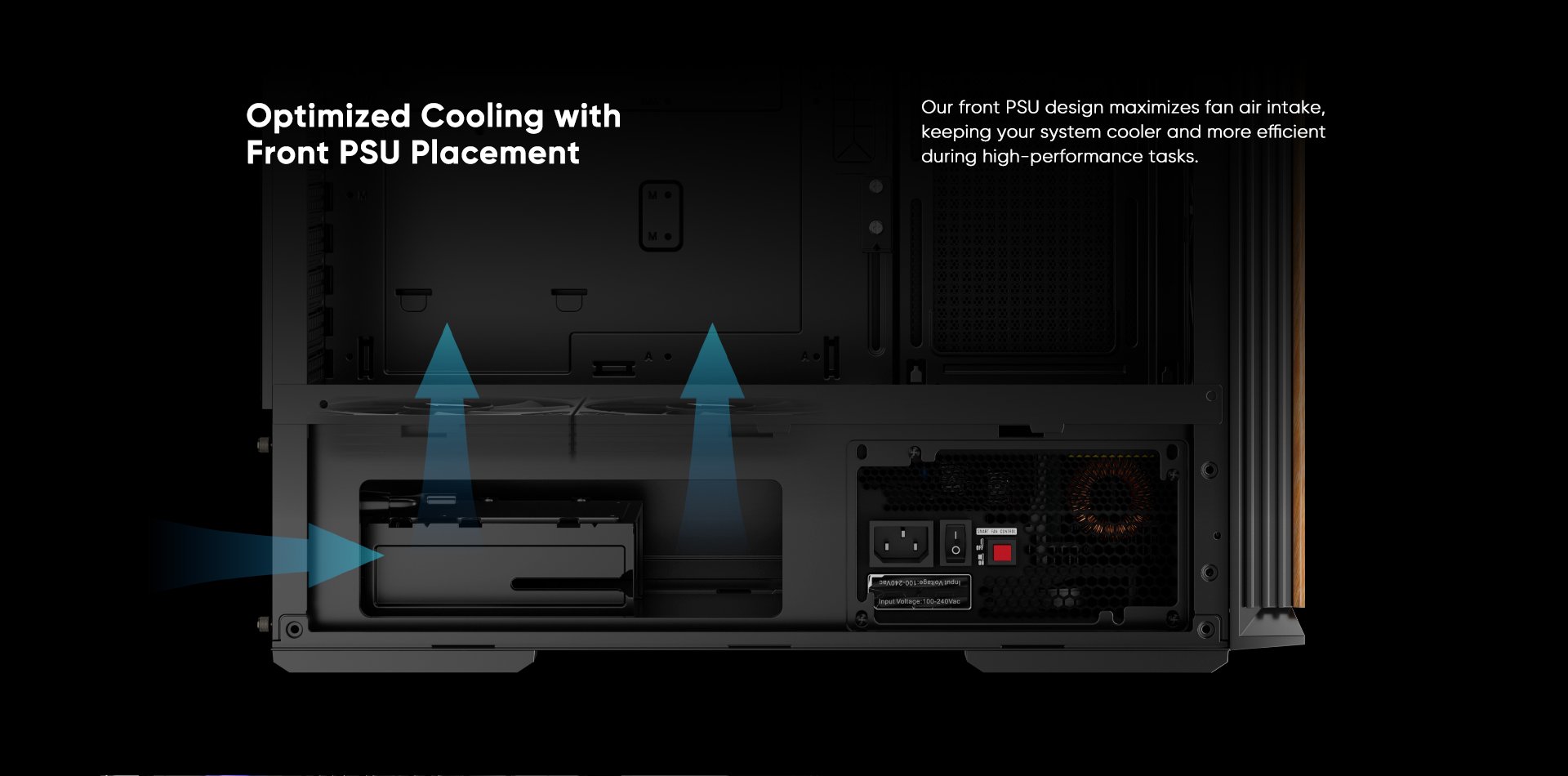

POWER SUPPLY SUPPORT
Bottom mounted (180 mm)
WEIGHT
N.W.: 5.28 kg ± 10%
G.W.: 6.18 kg ± 10%
