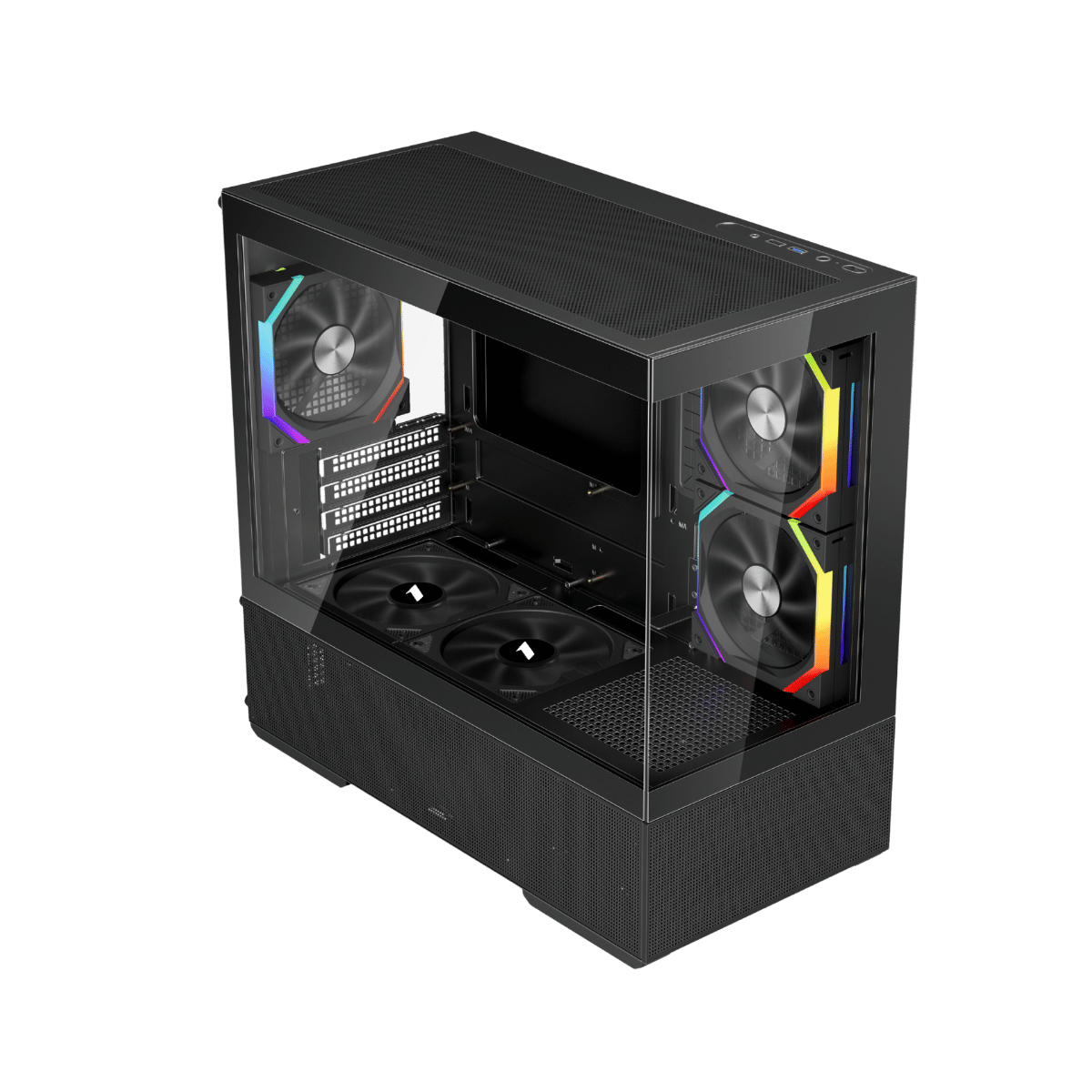

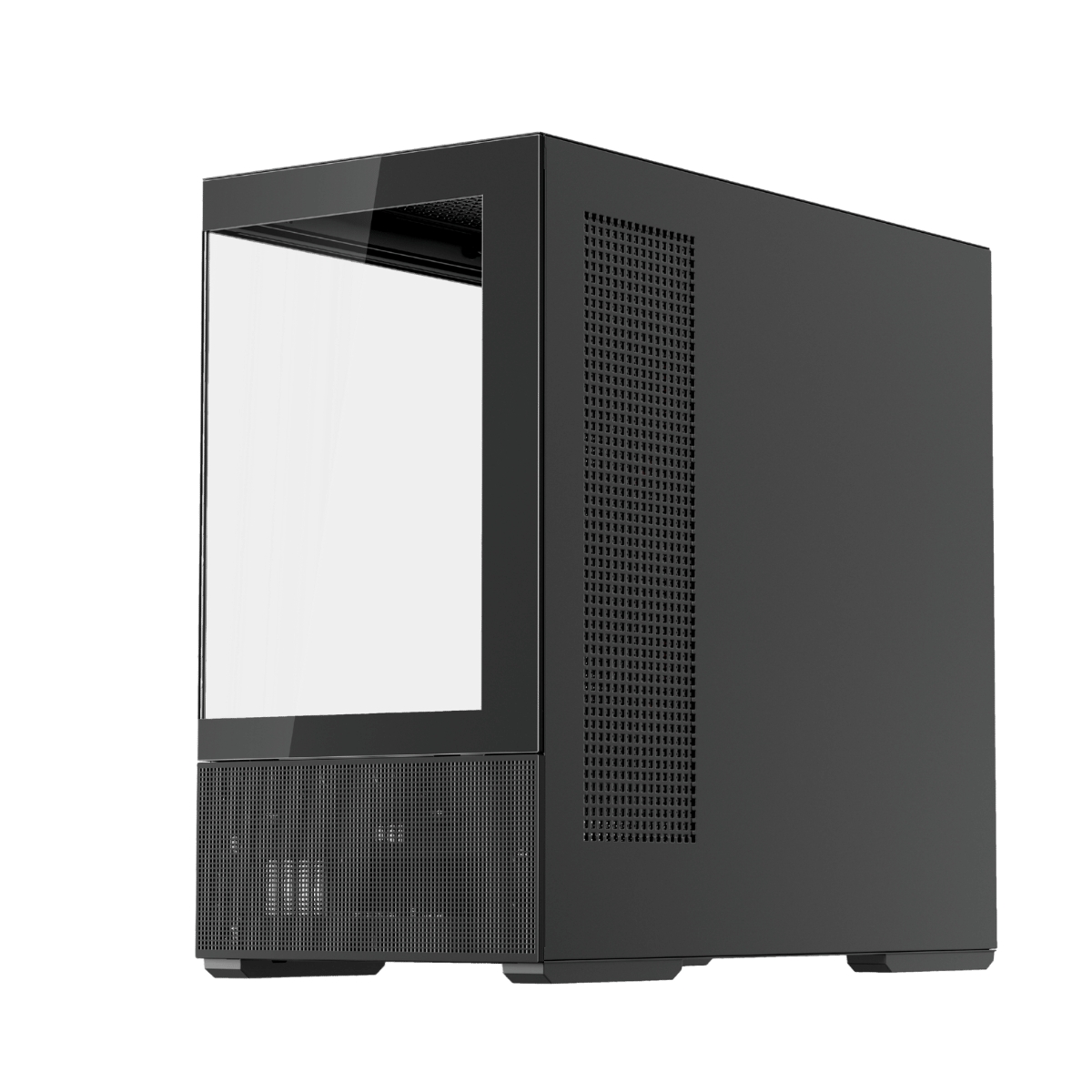

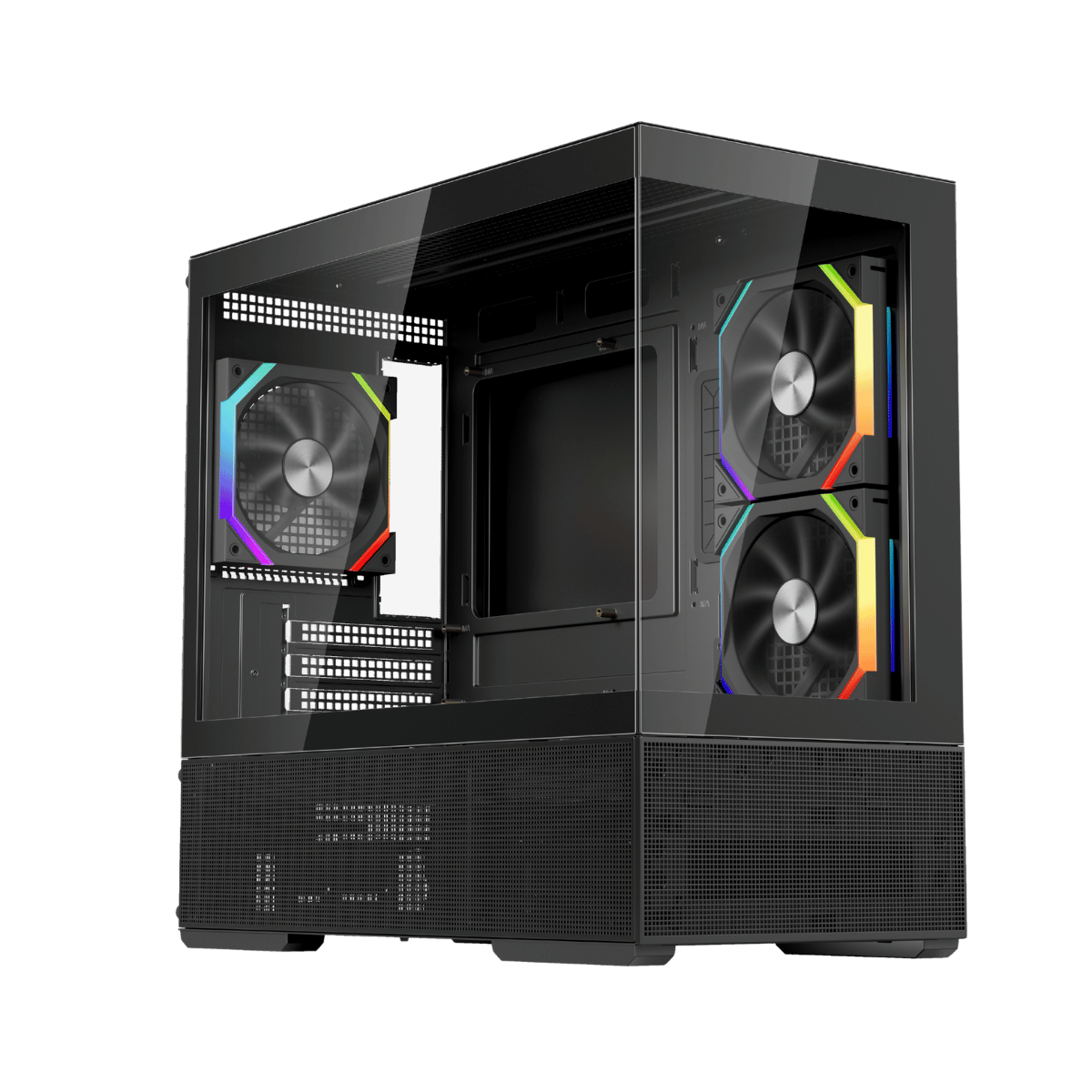

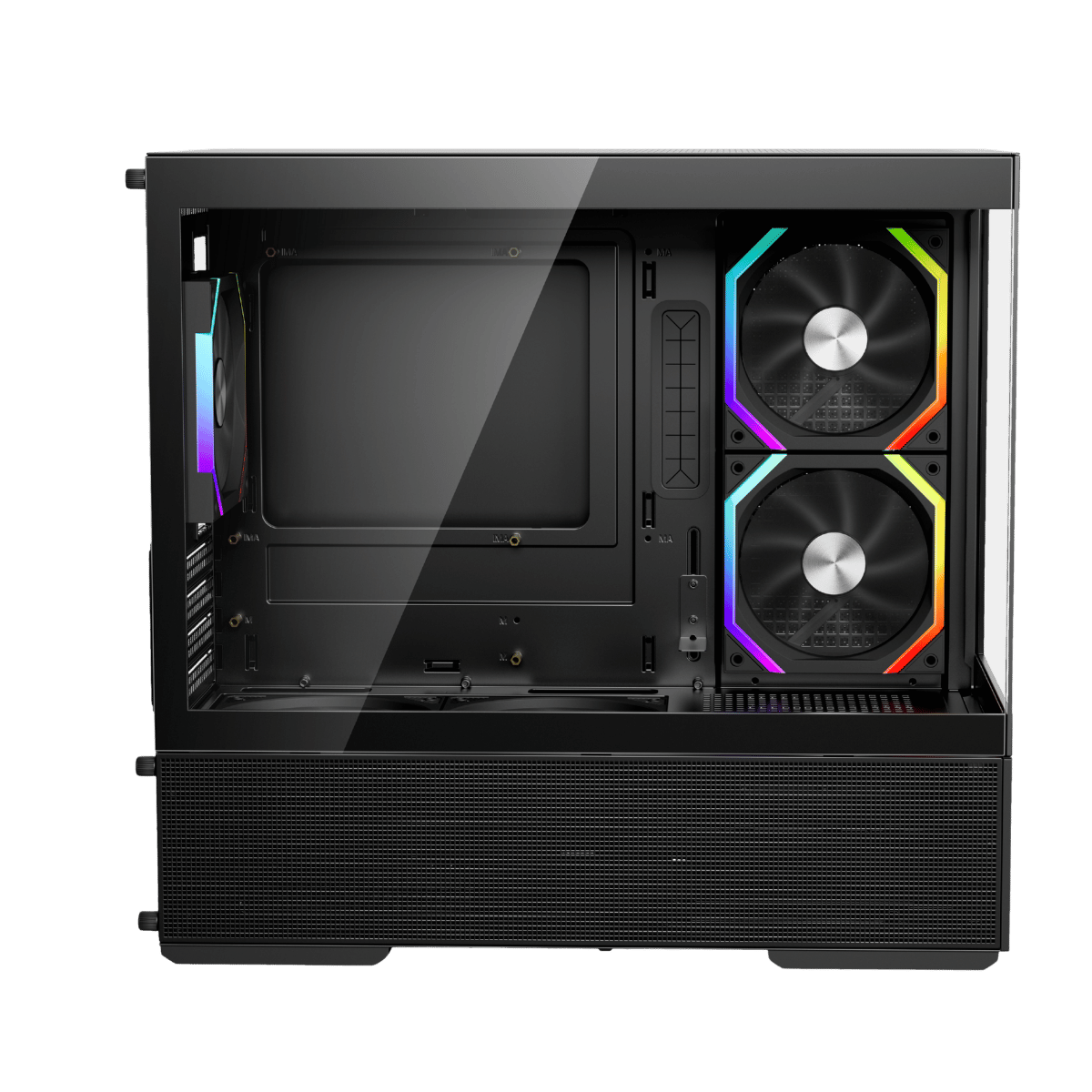

CV6

MINIMALIST DESIGN, MAXIMUM IMPACT

  • Support GPU length up to 390 mm

  • Support CPU cooler height up to 170 mm

  • Support installing of up to 8 x 120 mm fans

  • Support 360 mm radiator on the top and 240 mm radiator on the side

  • Expansive mesh base draws cool air directly beneath vital components, boosting cooling capacity

  • Bottom-front PSU placement allows for increased airflow beneath the fans and enhances GPU heat dissipation

  • Recessed bottom fan mounts keep fans flush with the case, preserving a sleek, clean aesthetic

*Computer parts are not included. Cooling fan may vary among different countries/regions.

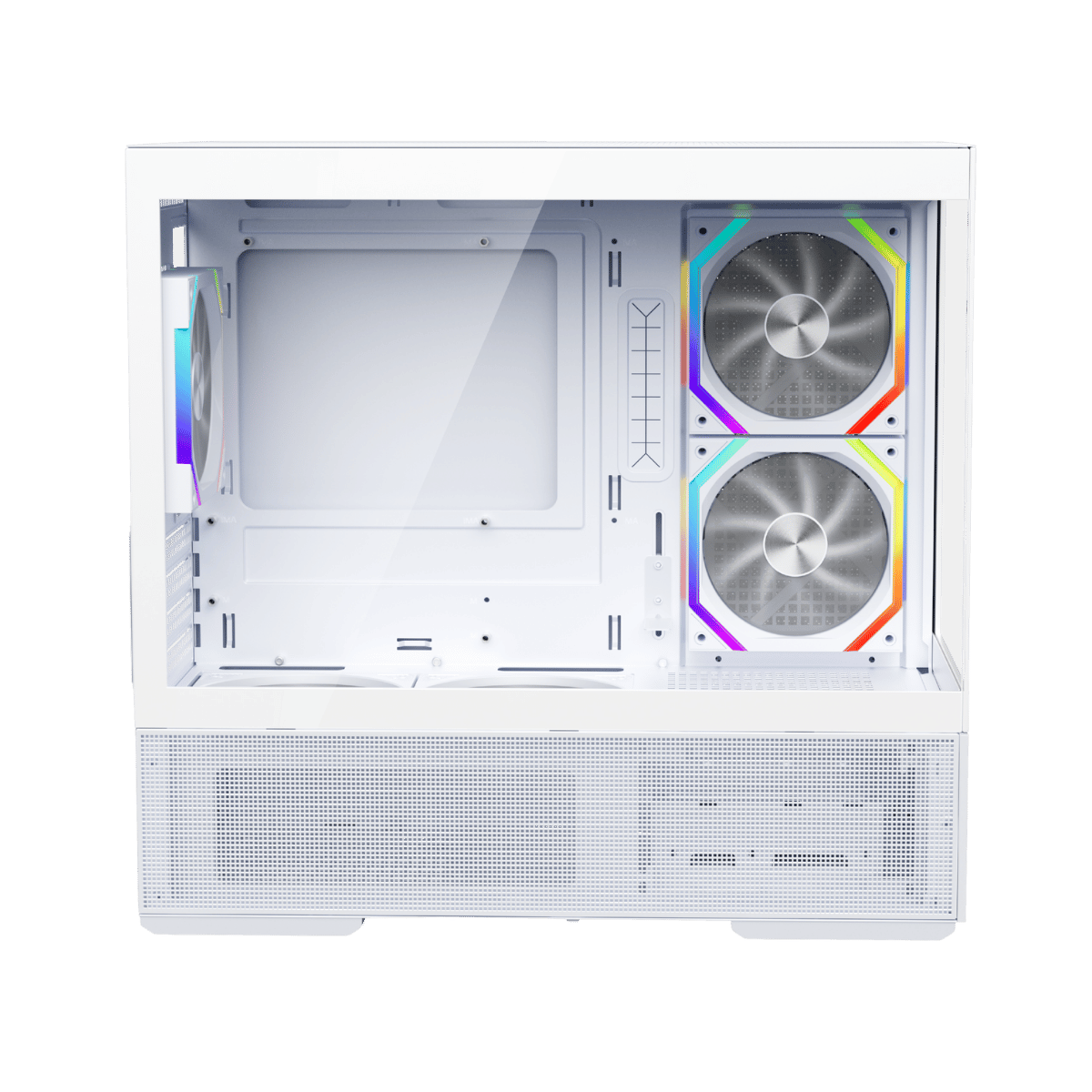

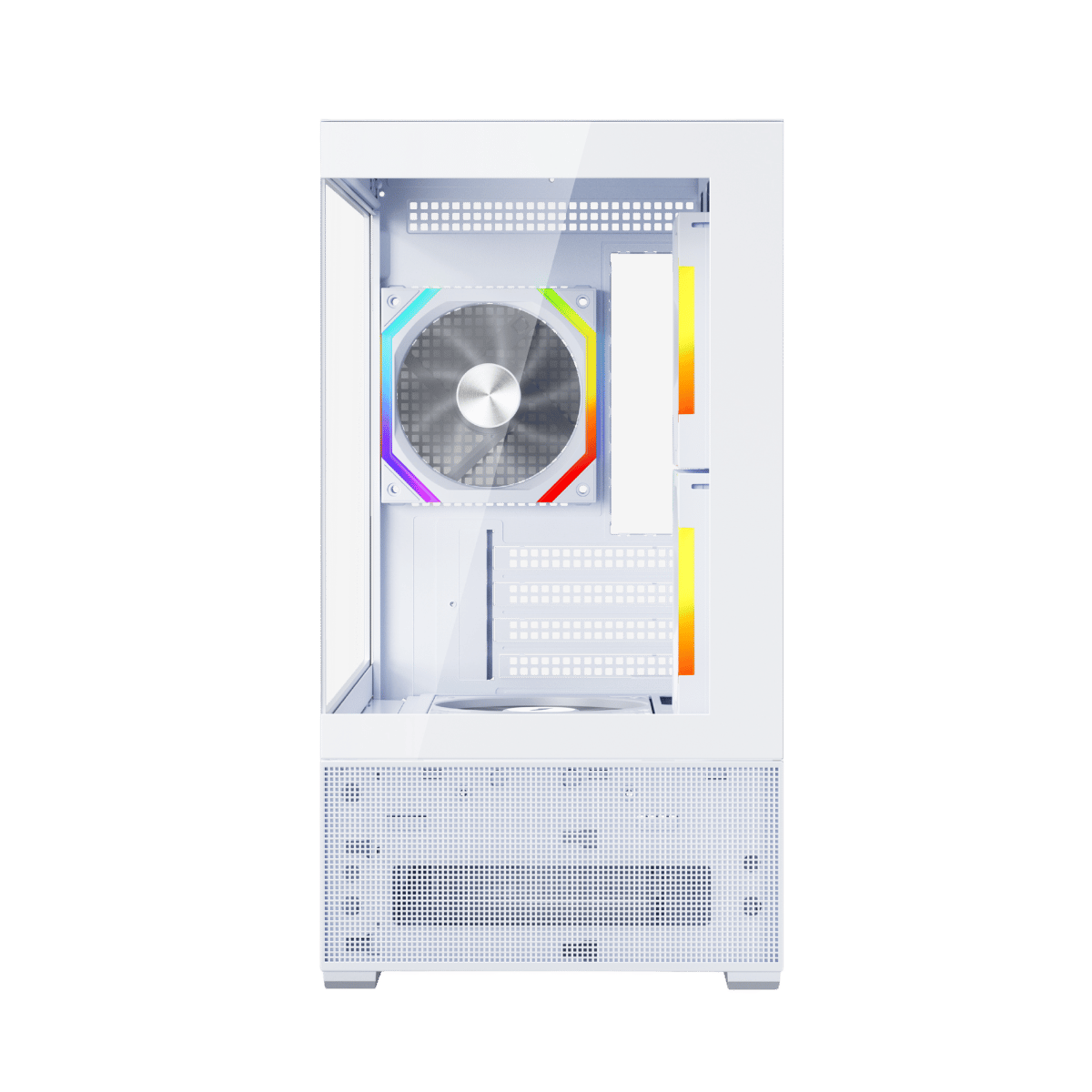

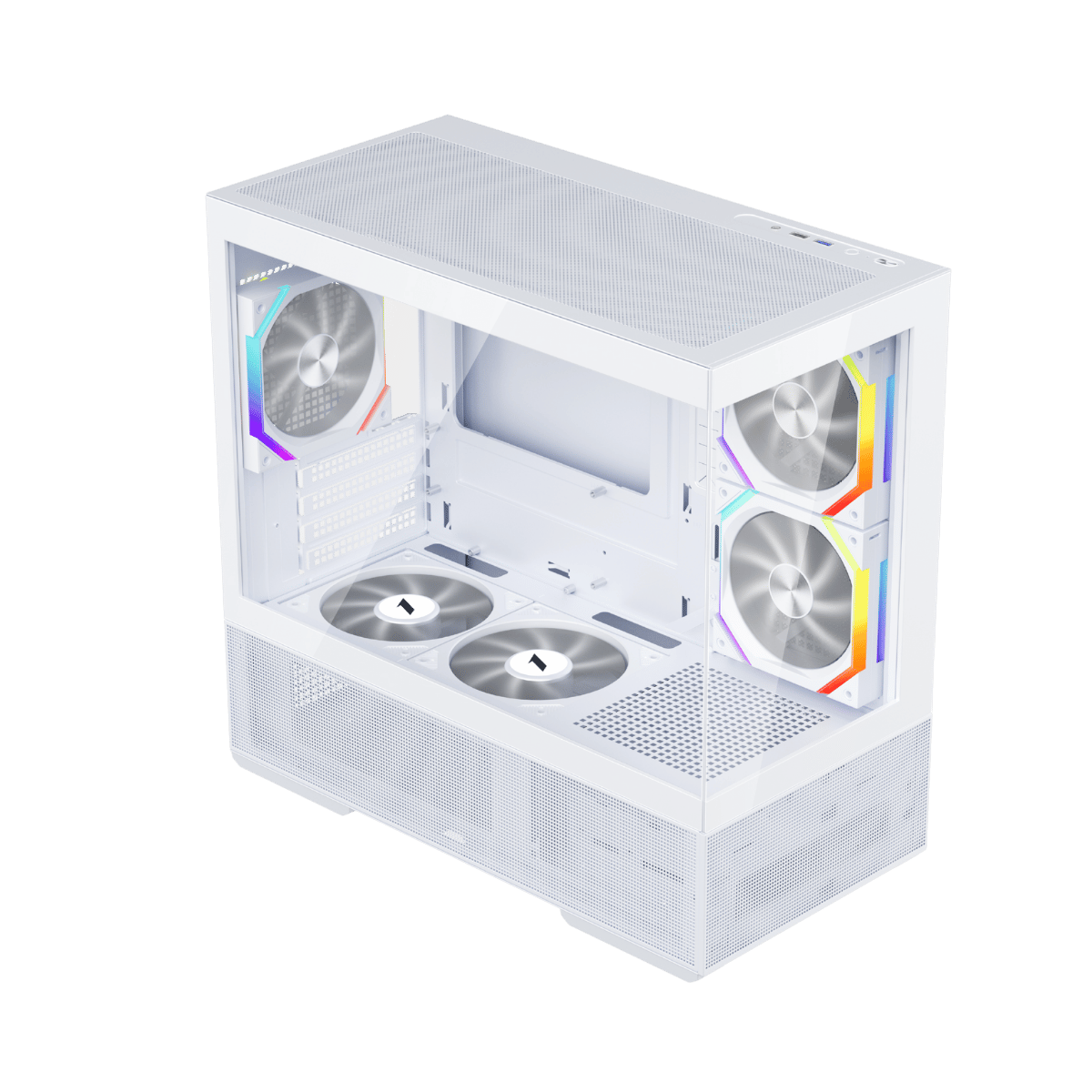

White

MODEL

CV6

STRUCTURE DIMENSIONS (L x W x H)

420 × 215 × 455 mm

PRODUCT DIMENSIONS (L x W x H)

425 × 215 × 465 mm

PACKAGE DIMENSIONS (L x W x H)

454 x 278 x 500 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC, tempered glass, plastic

FORM FACTOR

ATX / M-ATX / ITX

DRIVE BAYS

3.5" HDD: 1 + 2.5" SSD: 1

CPU MAX HEIGHT

170 mm

GPU MAX LENGTH

390 mm

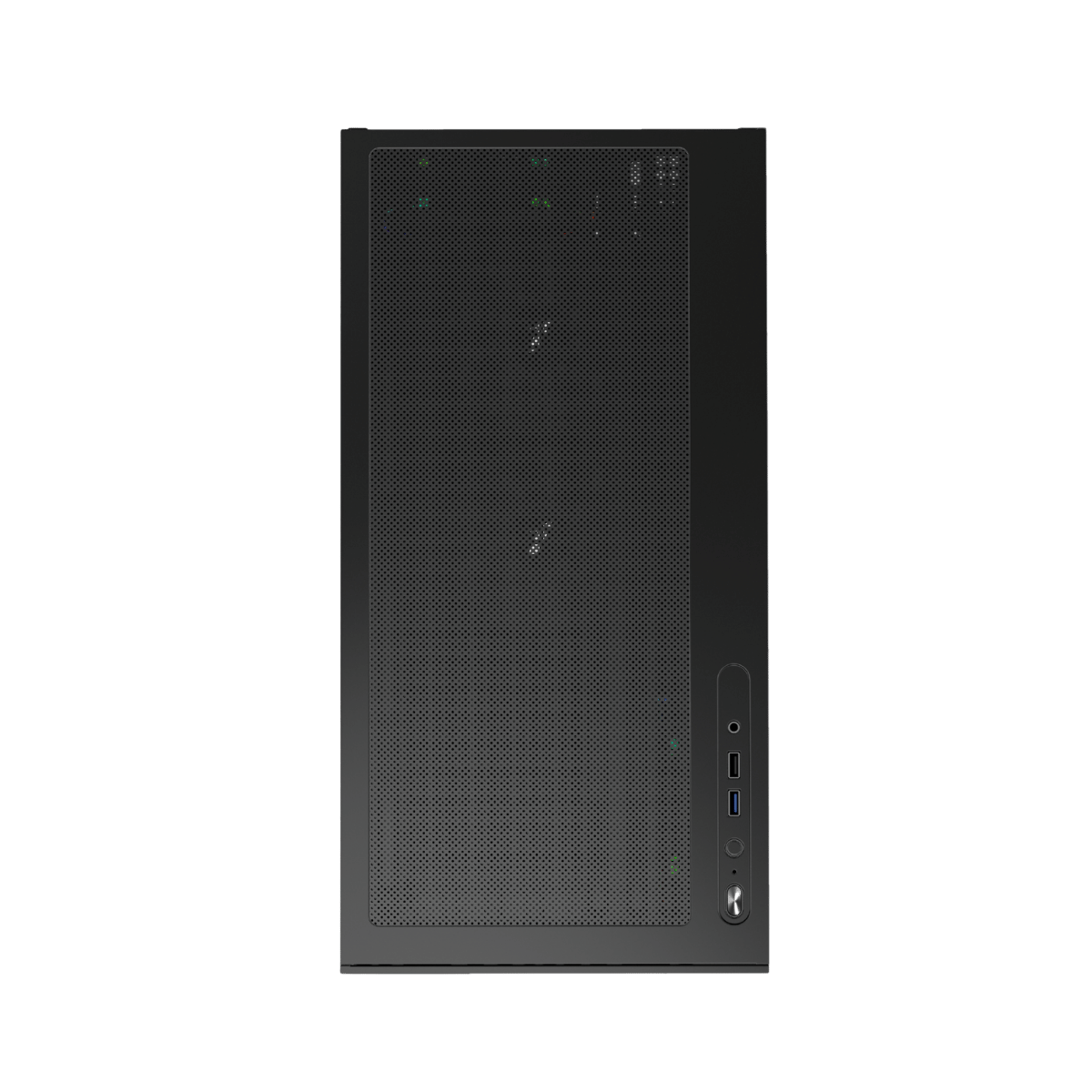

I/O PANEL

USB 3.0 x 1 + USB 2.0 x 1 + HD Audio

PCI CARD SLOT

4

FAN SUPPORT

Side: 2 x 120 mm

Rear: 1 x 120 mm

Top: 3 x 120 mm / 2 x 140 mm

Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Front: 360 mm, 240 mm

Side: 240 mm

POWER SUPPLY SUPPORT

Non-modular PSU: 170 mm

Modular PSU: 150 mm

WEIGHT

N.W.: 5.4  kg ± 10%

G.W.: 6.5  kg ± 10%
