FB12

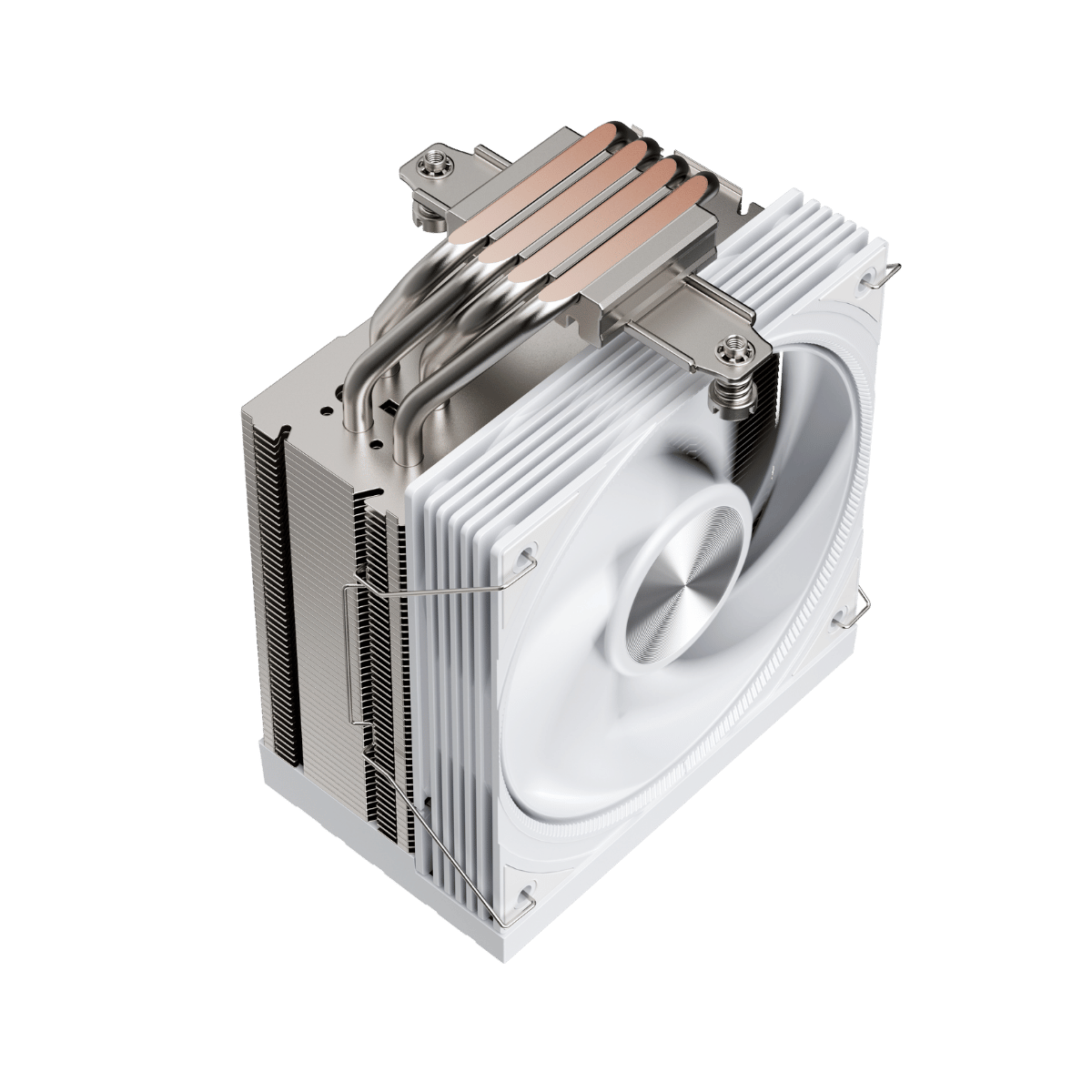

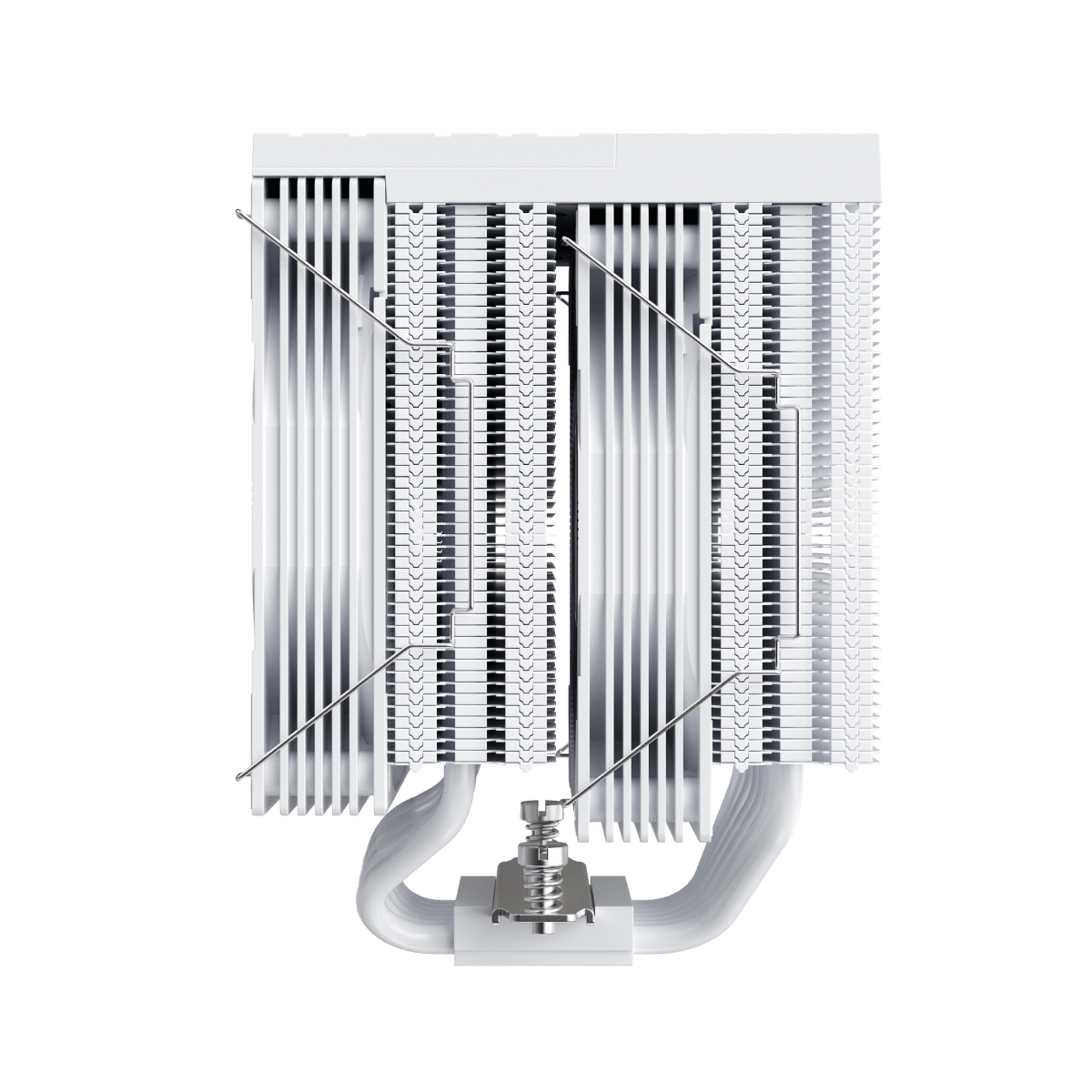

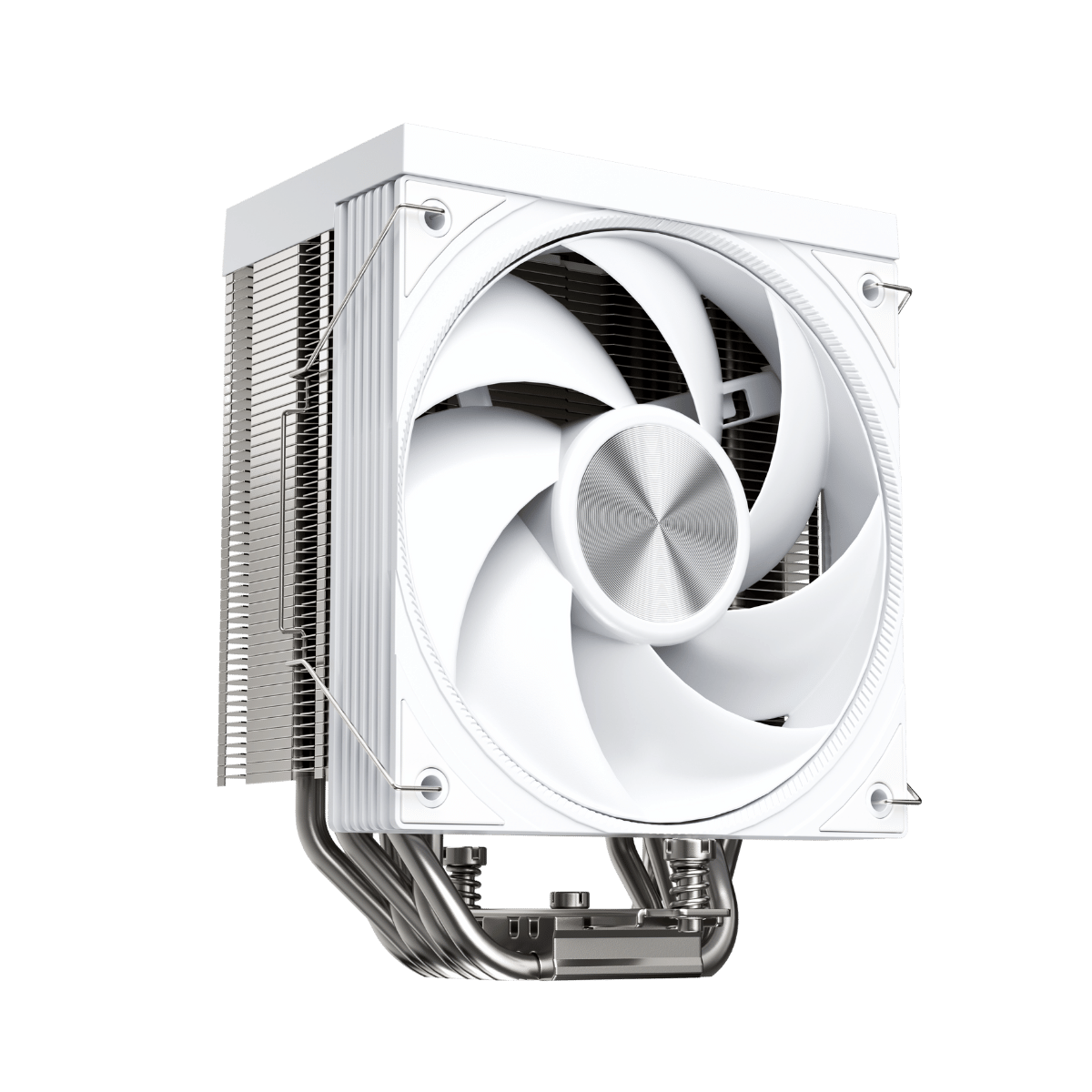

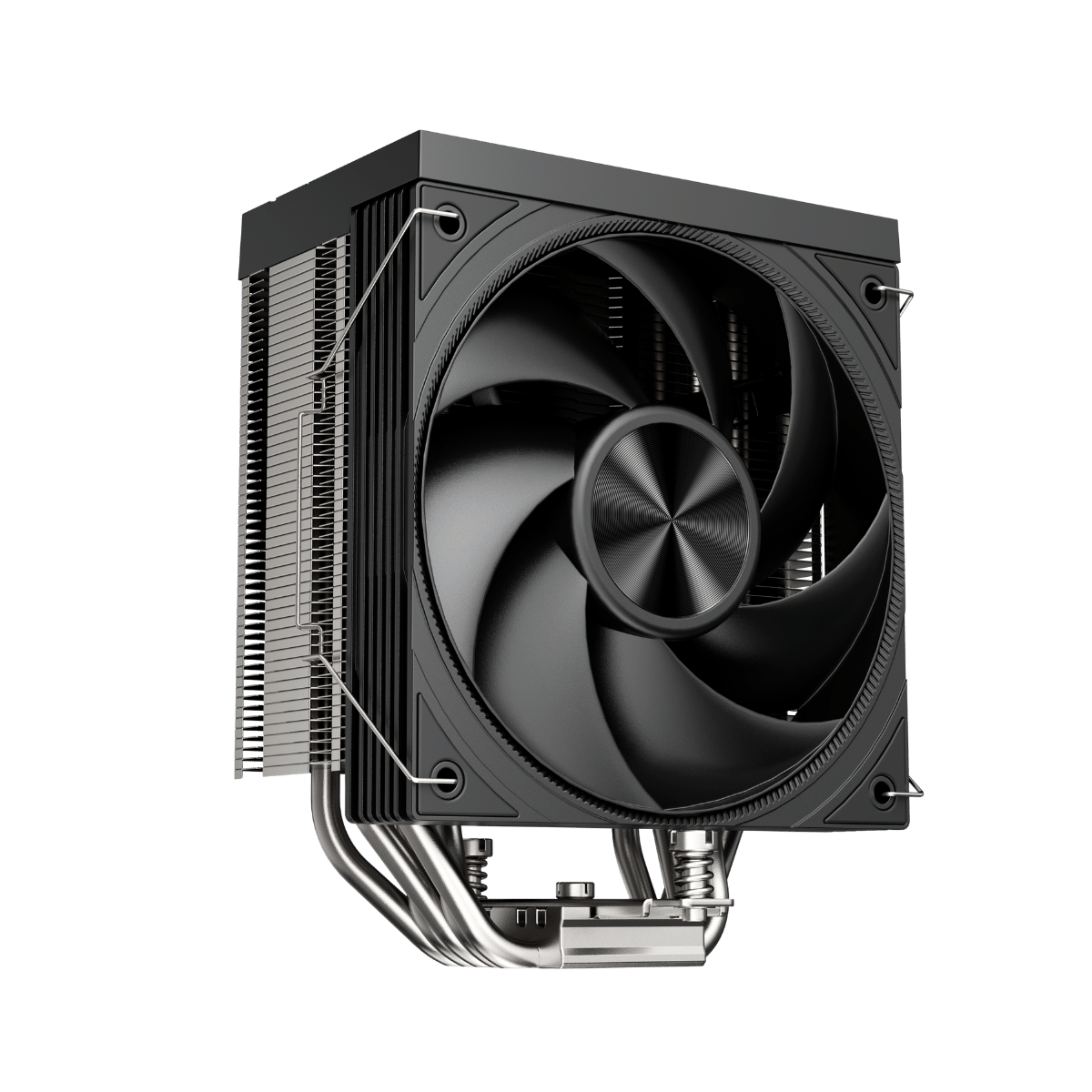

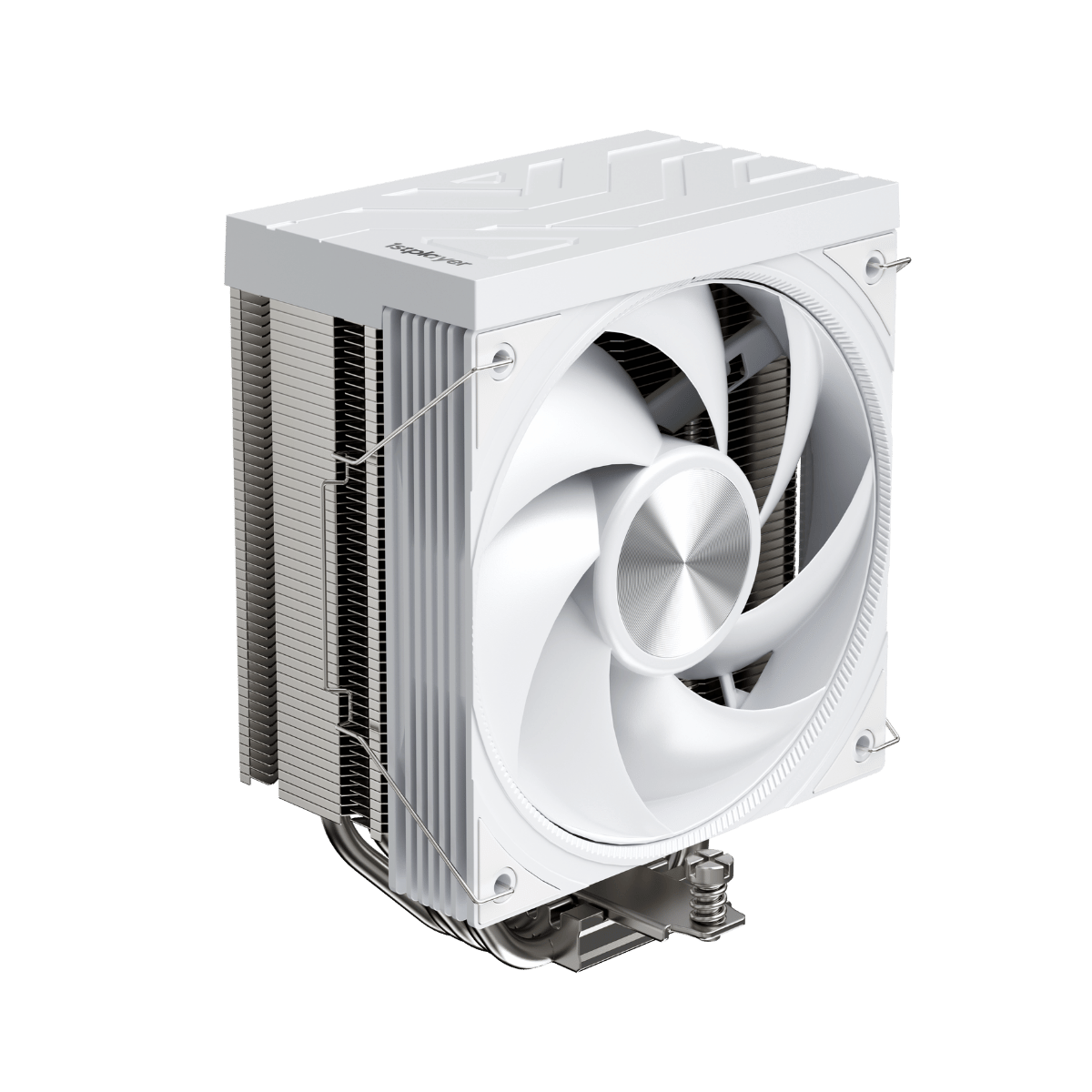

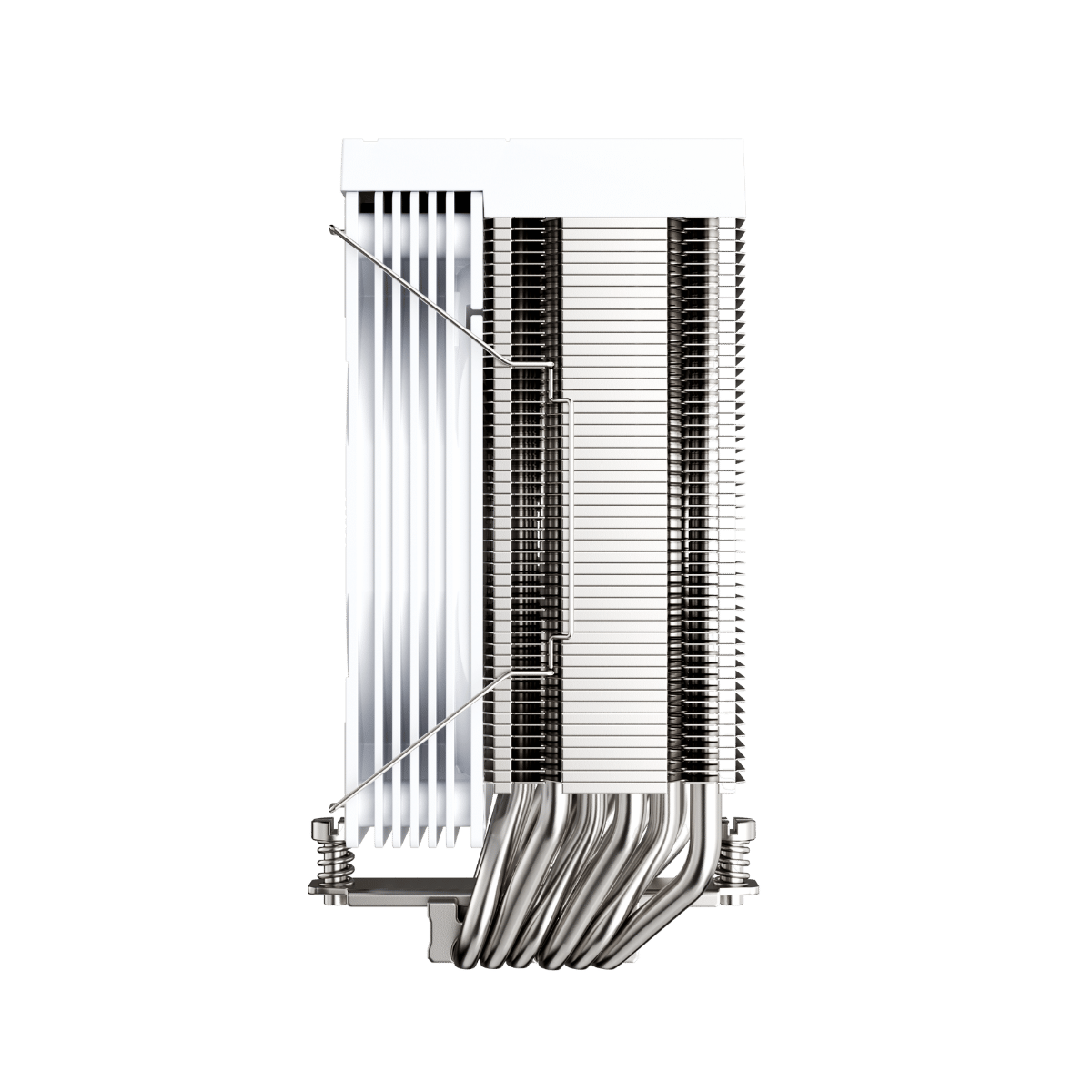

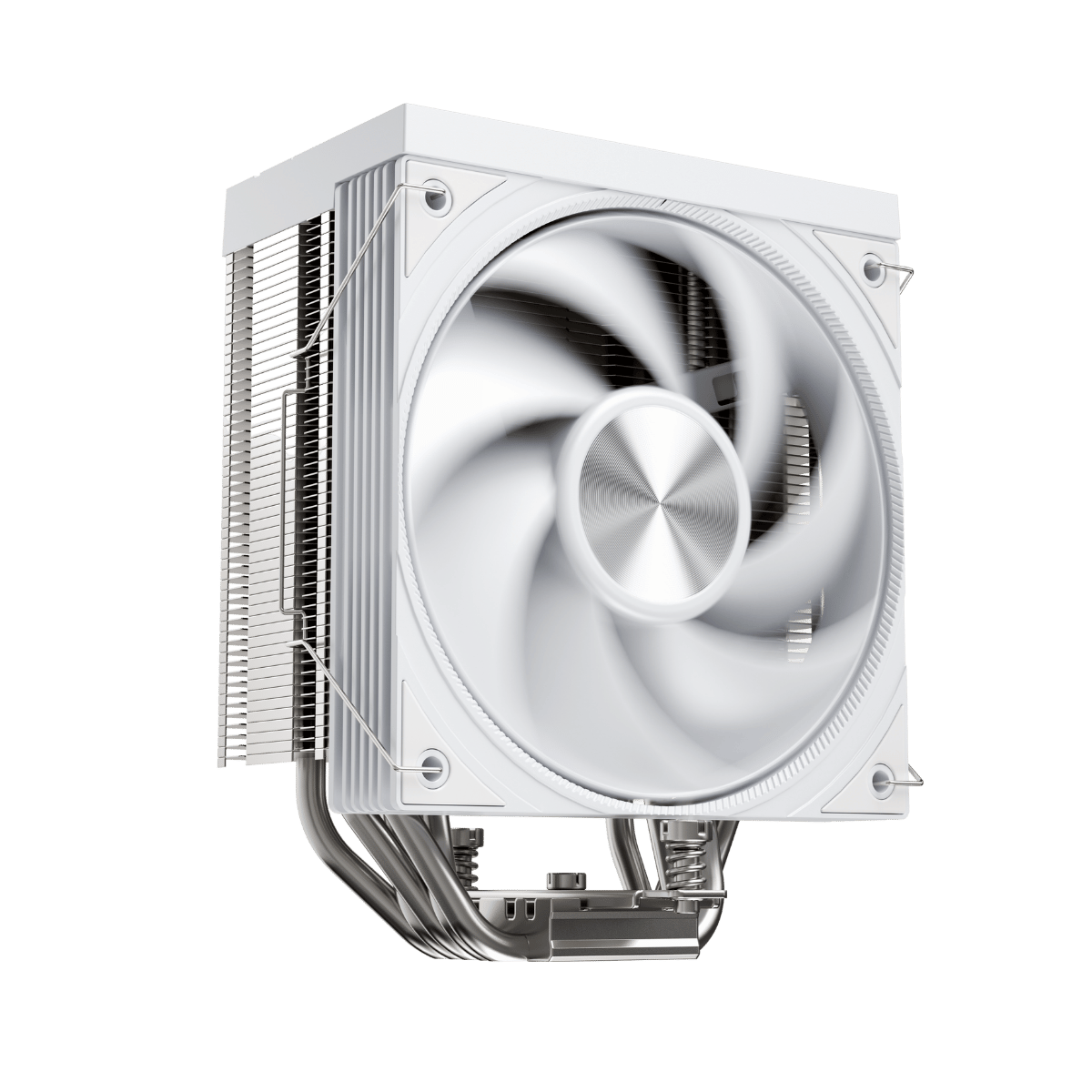

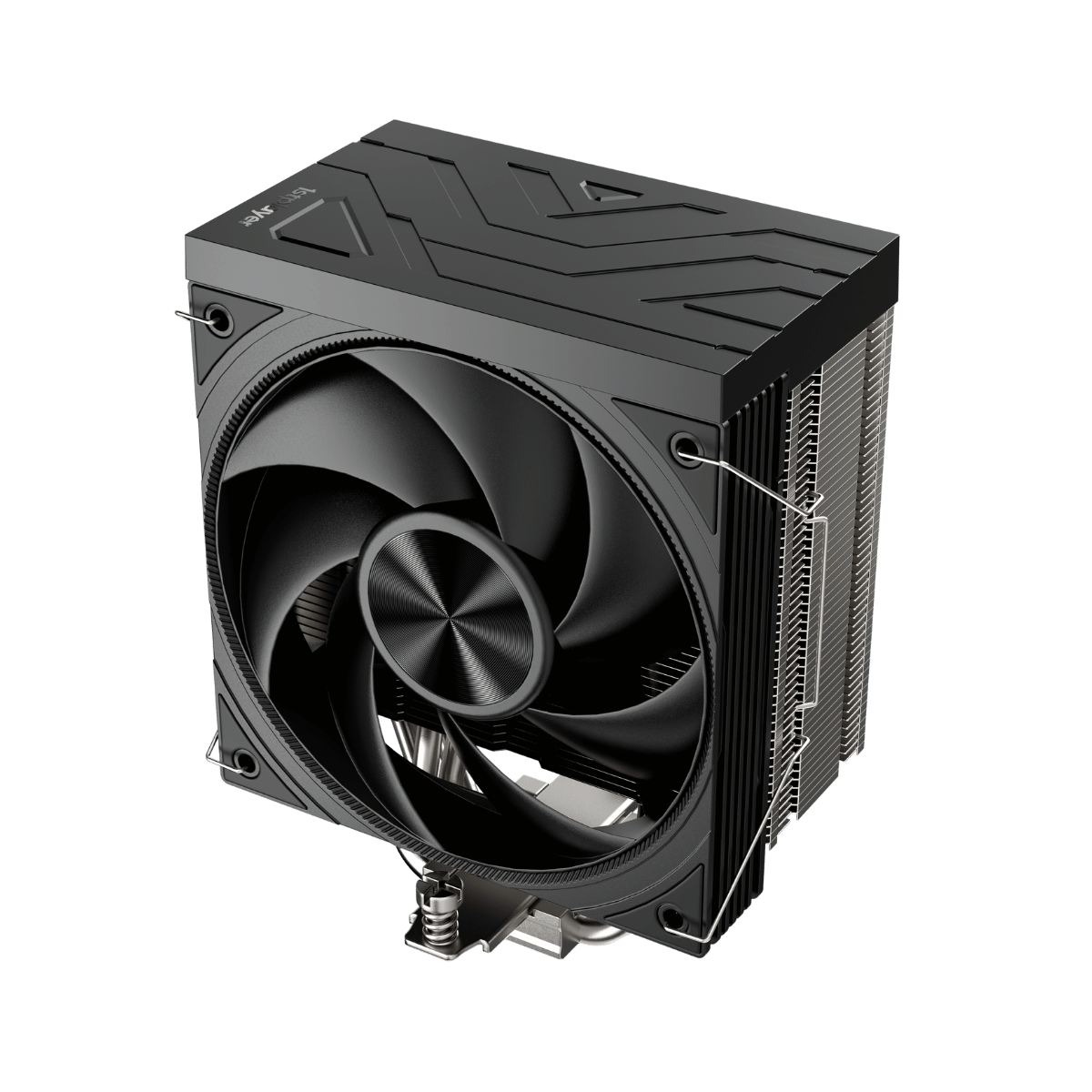

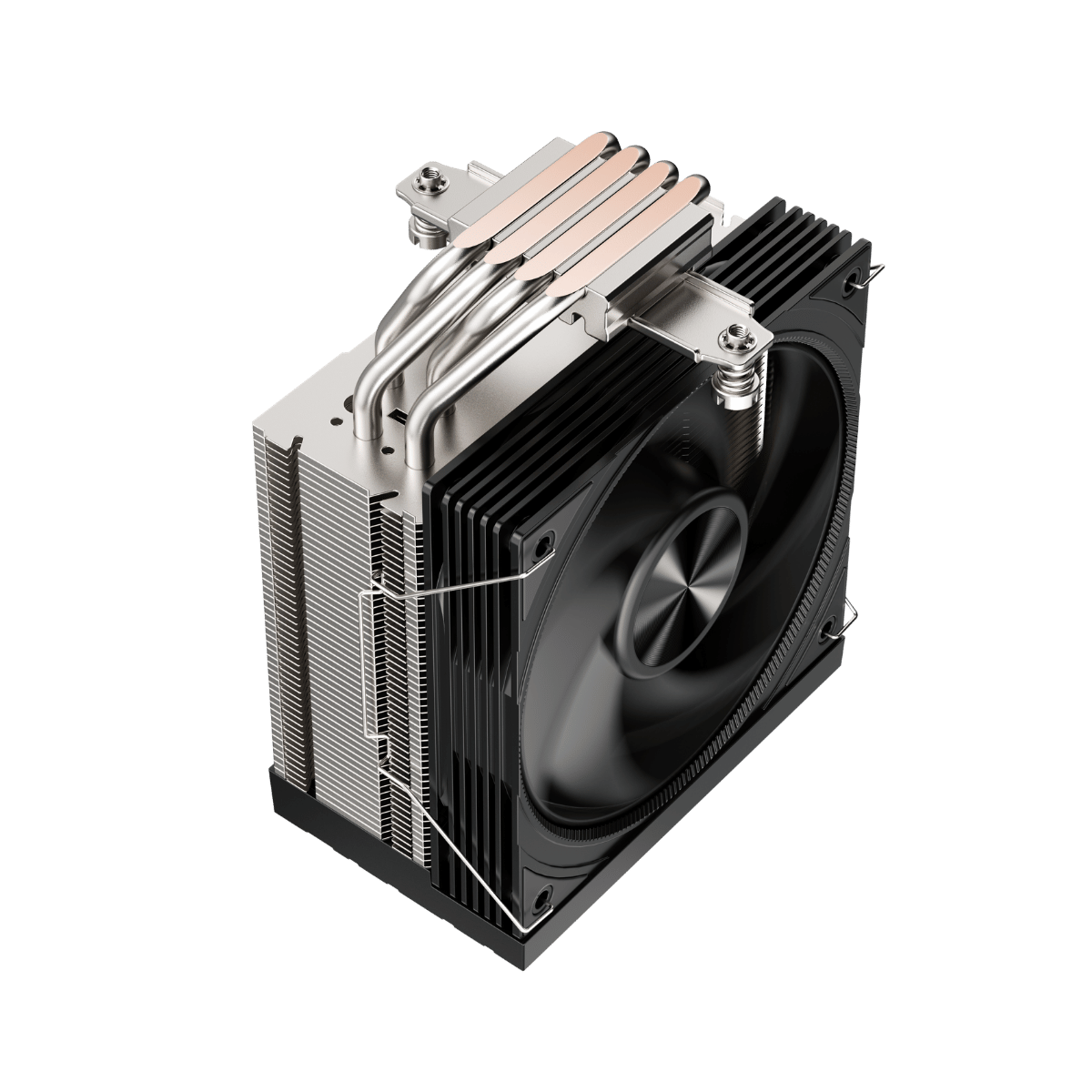

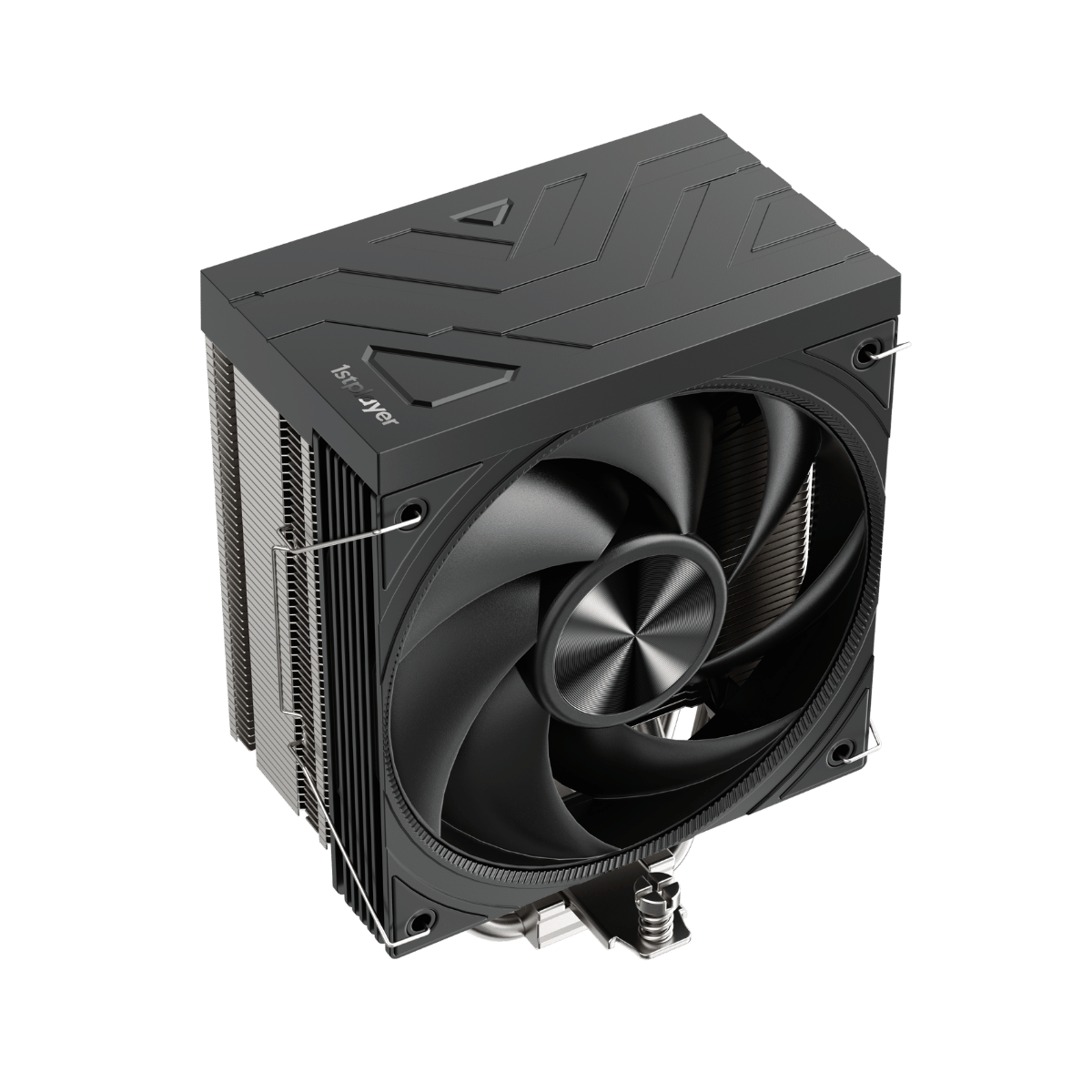

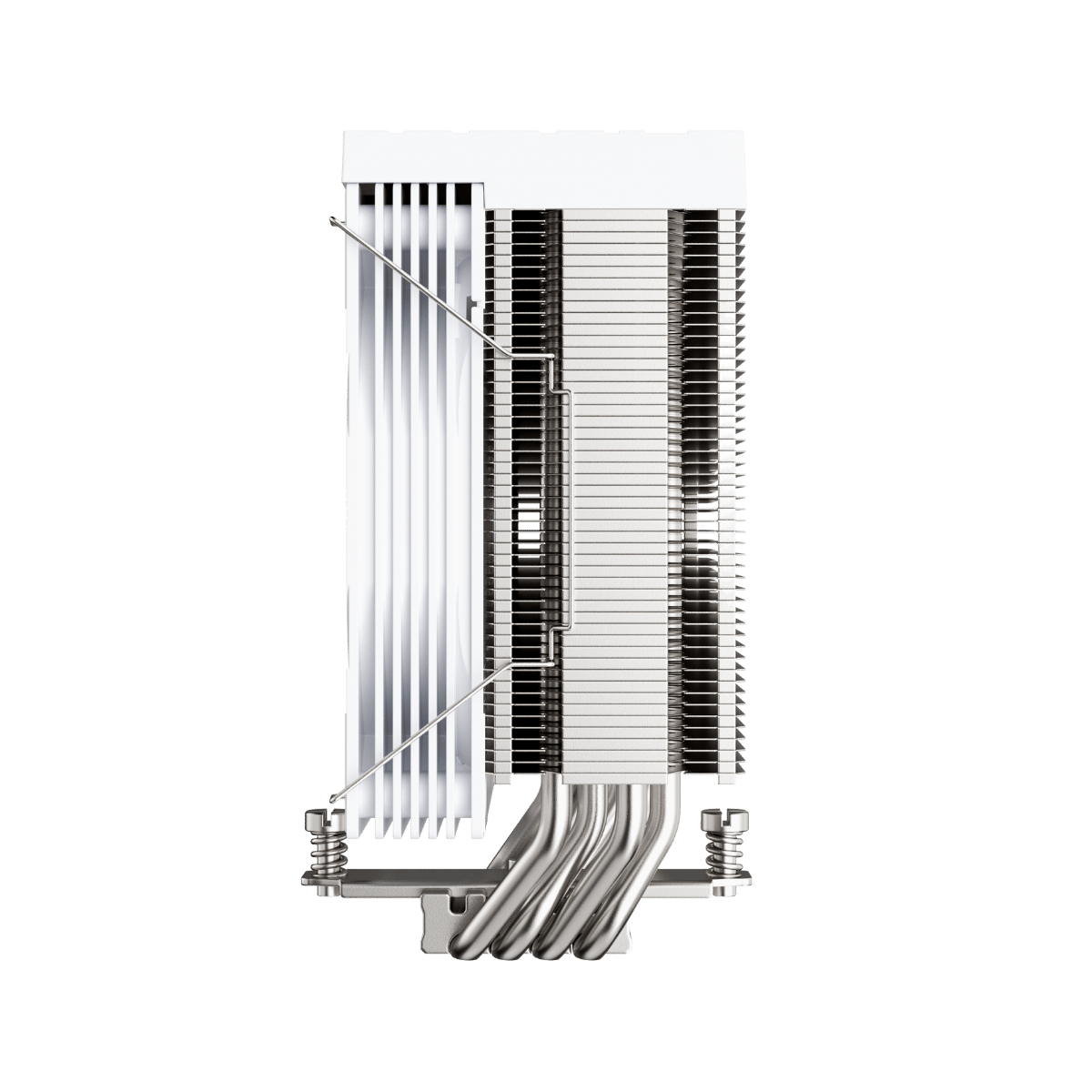

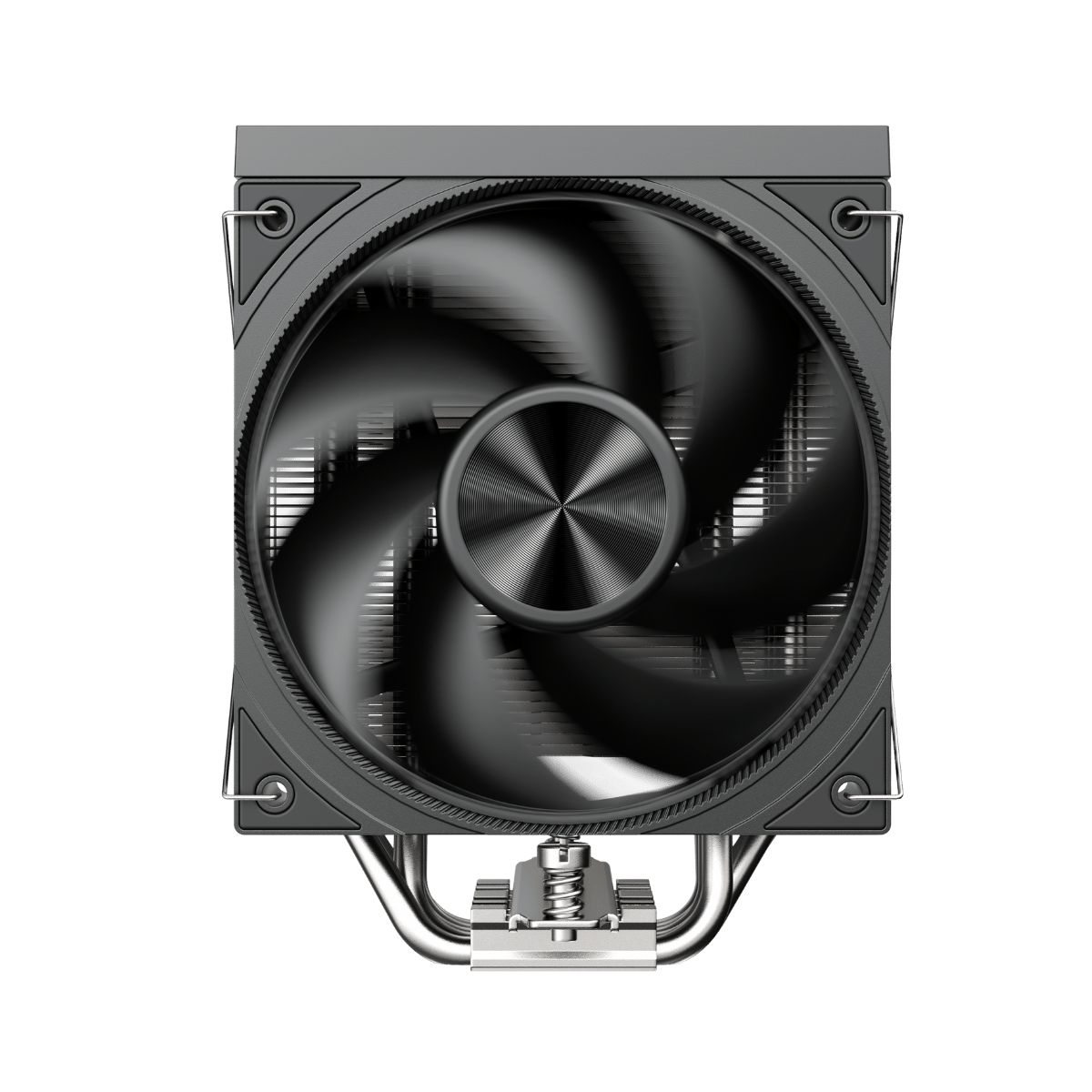

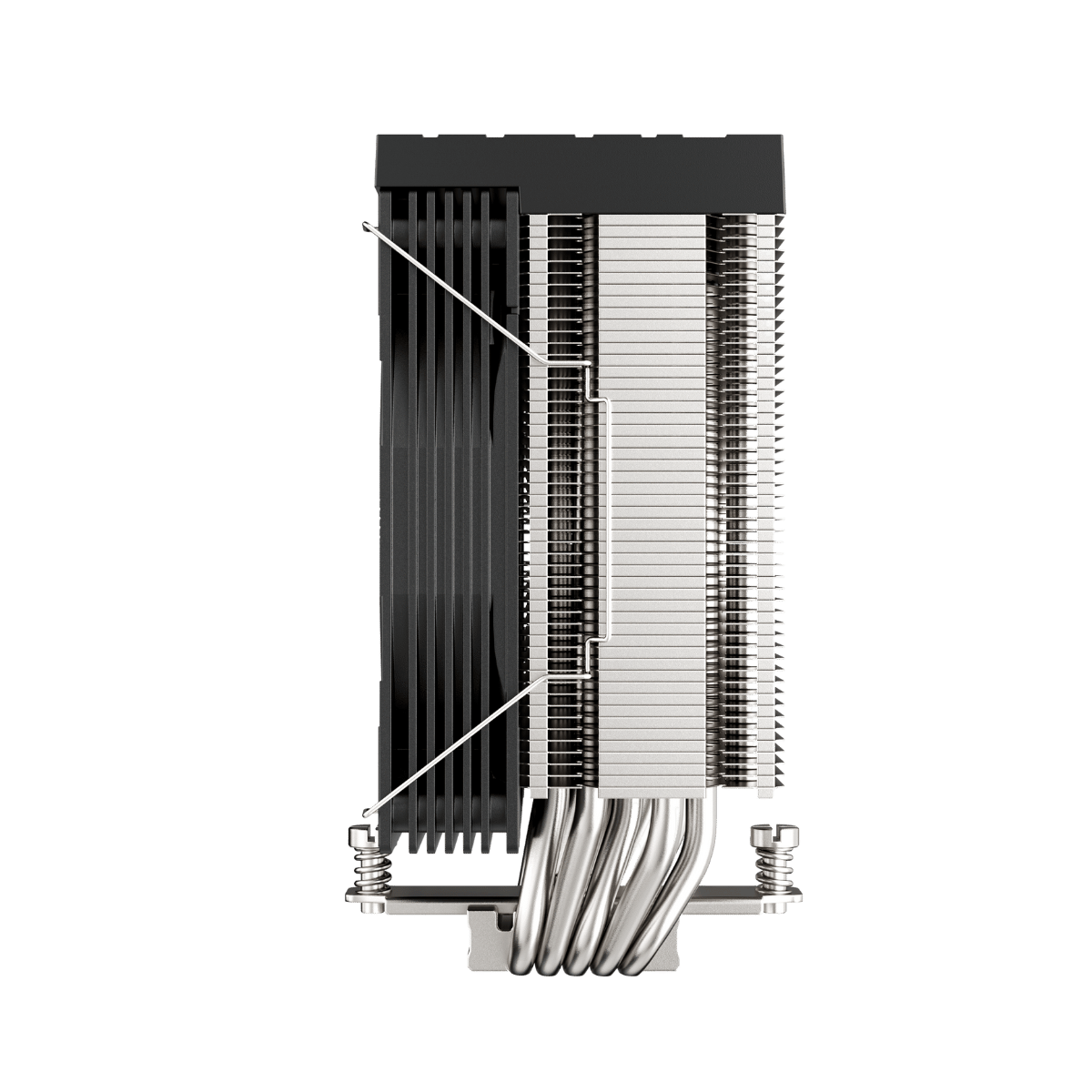

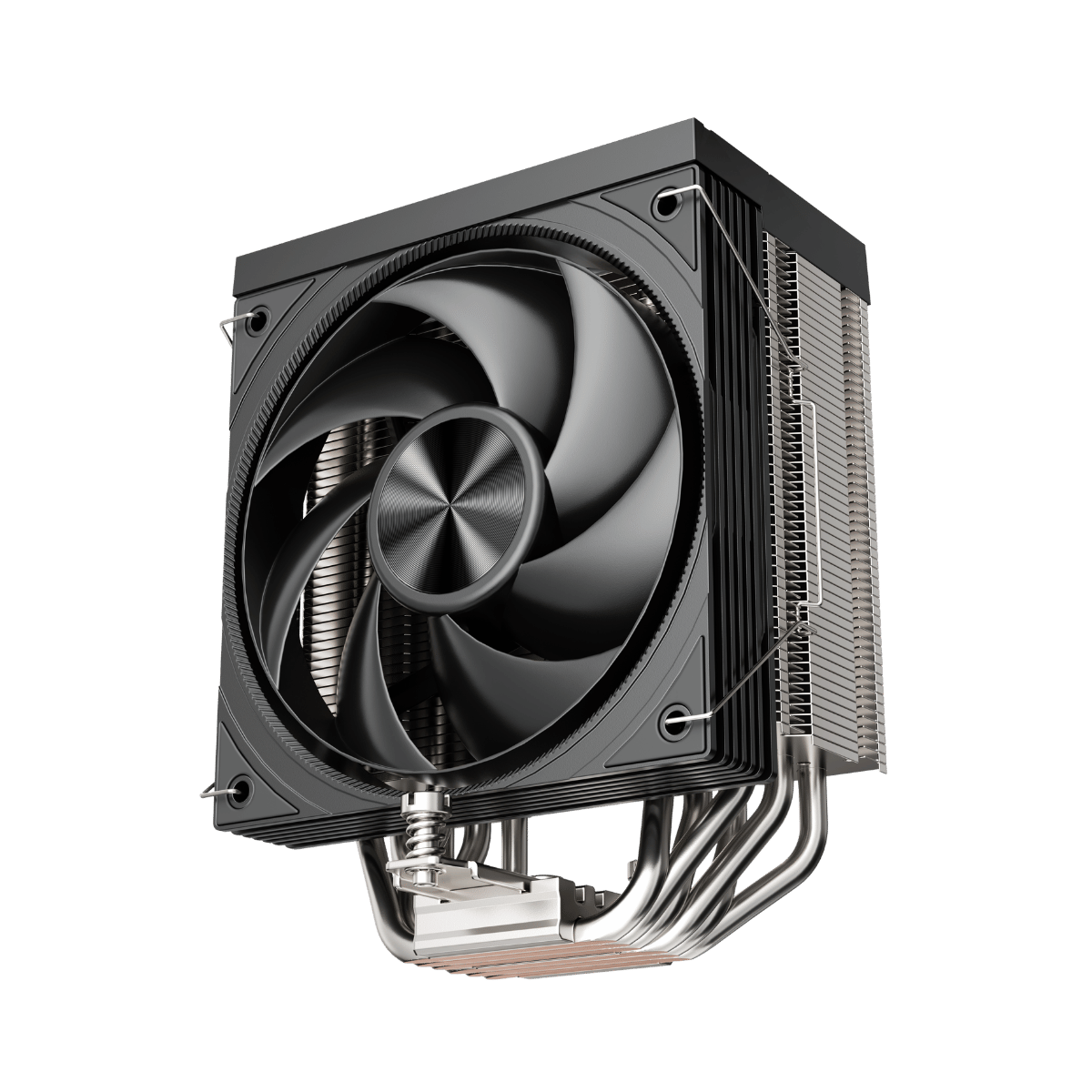

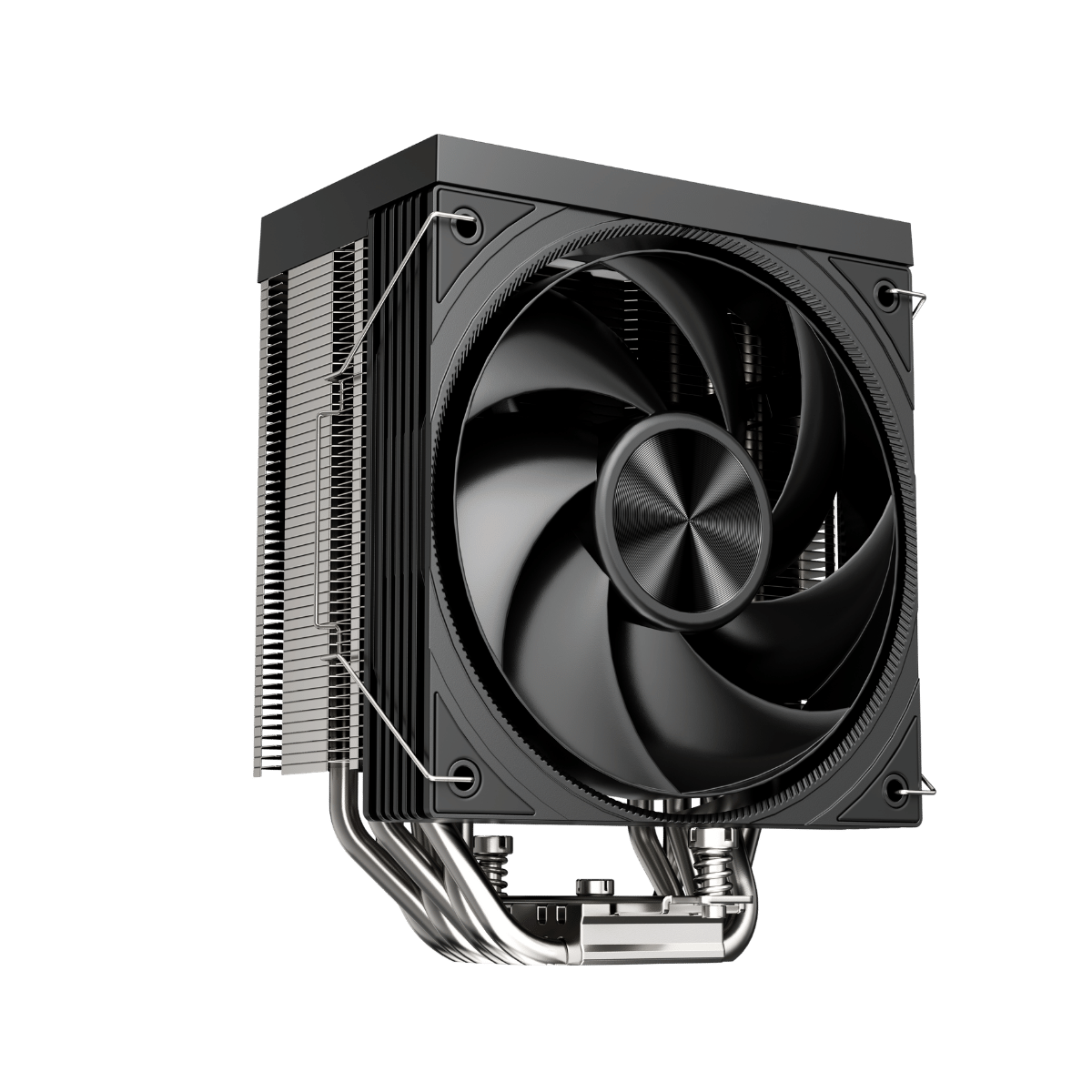

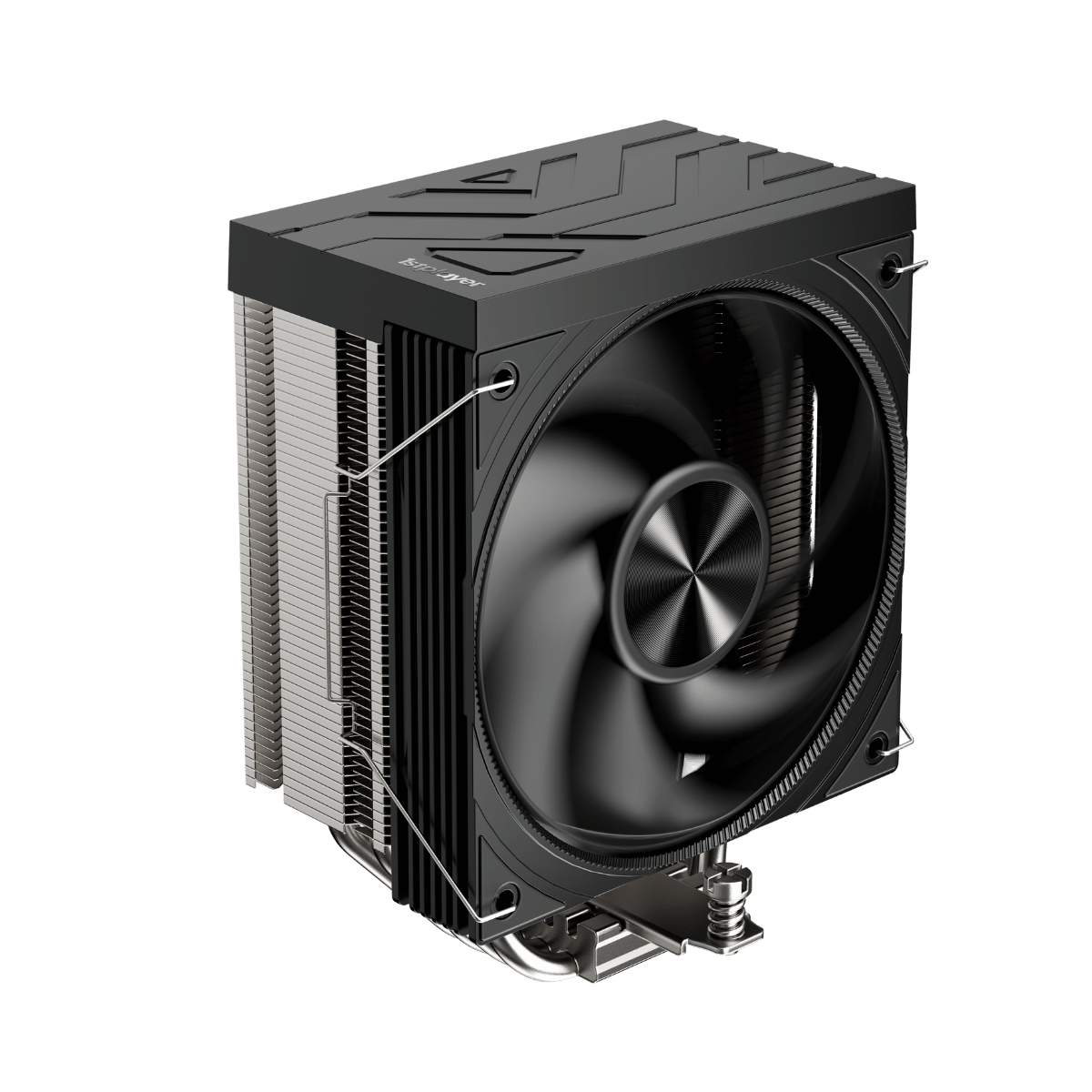

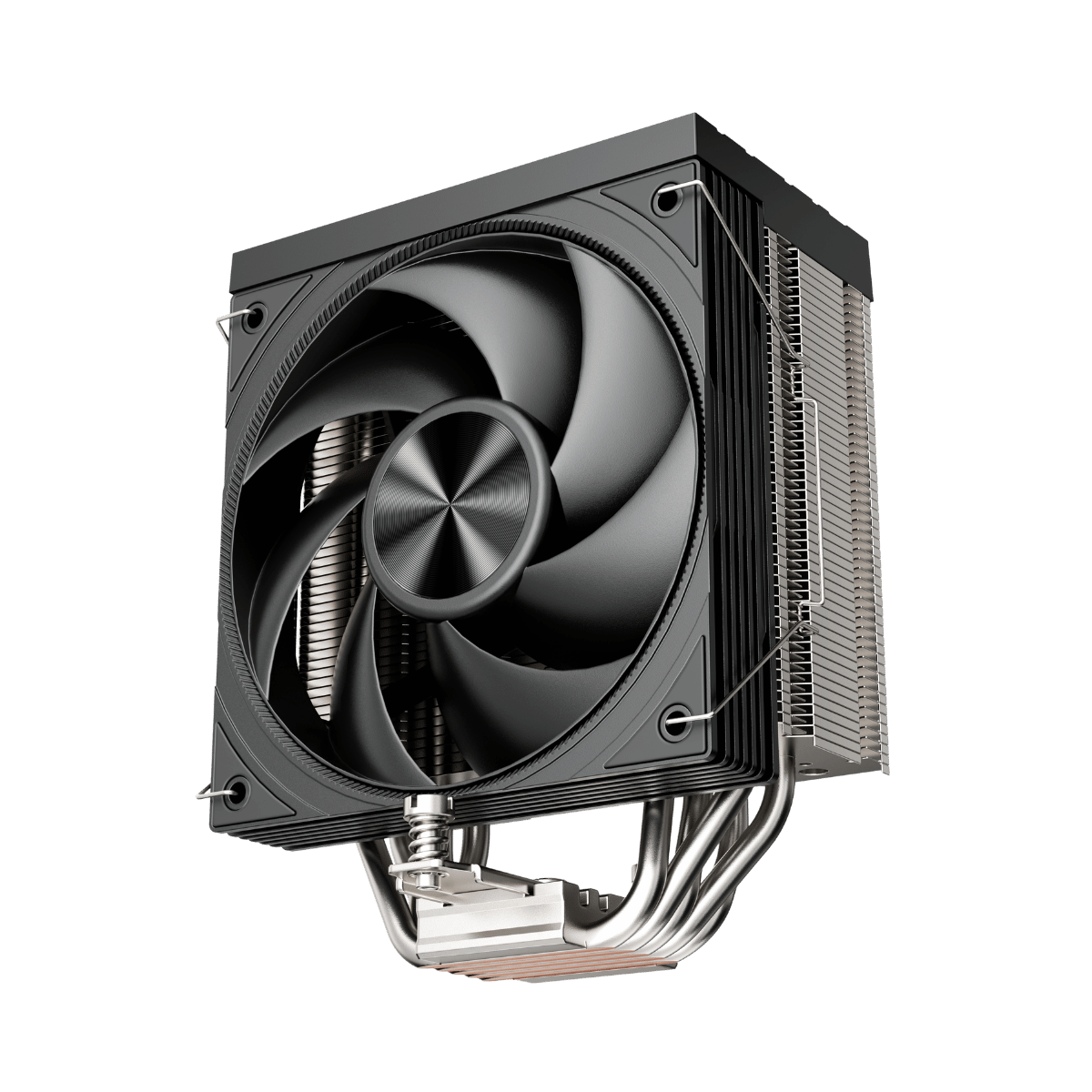

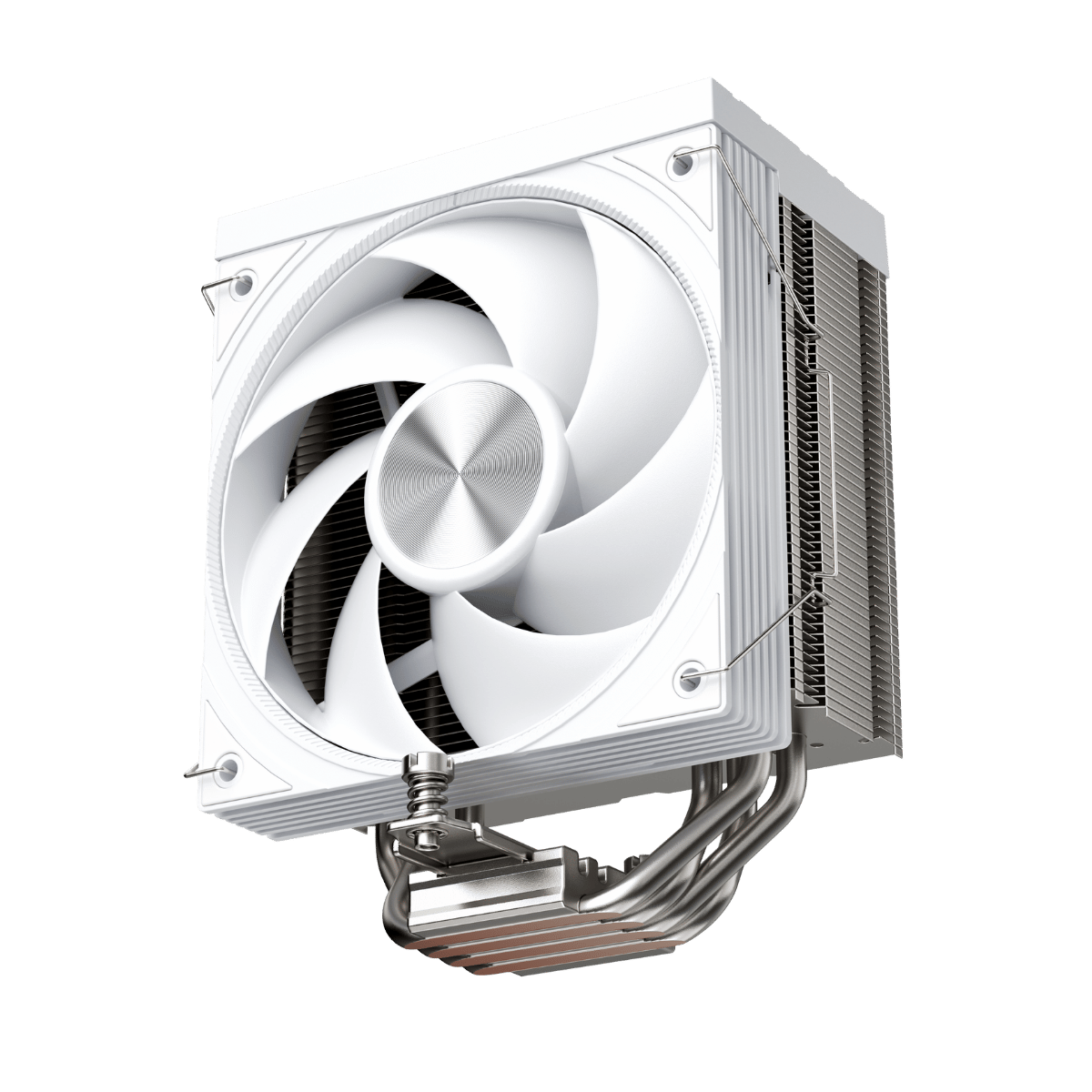

FROST BITE CPU AIR COOLER

  • The reinforced blade structure delivers more stable airflow, higher static pressure, and quieter, more efficient cooling performance

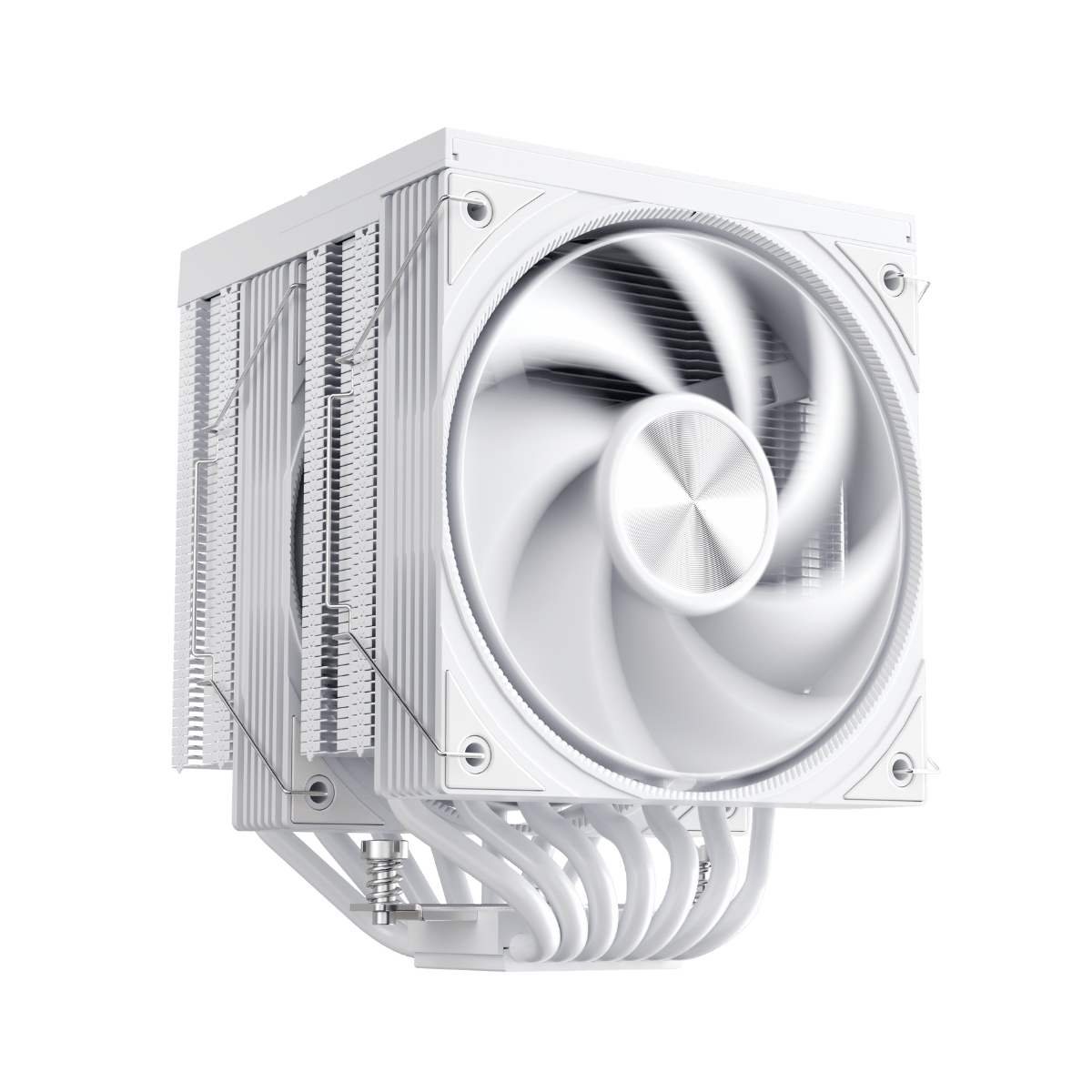

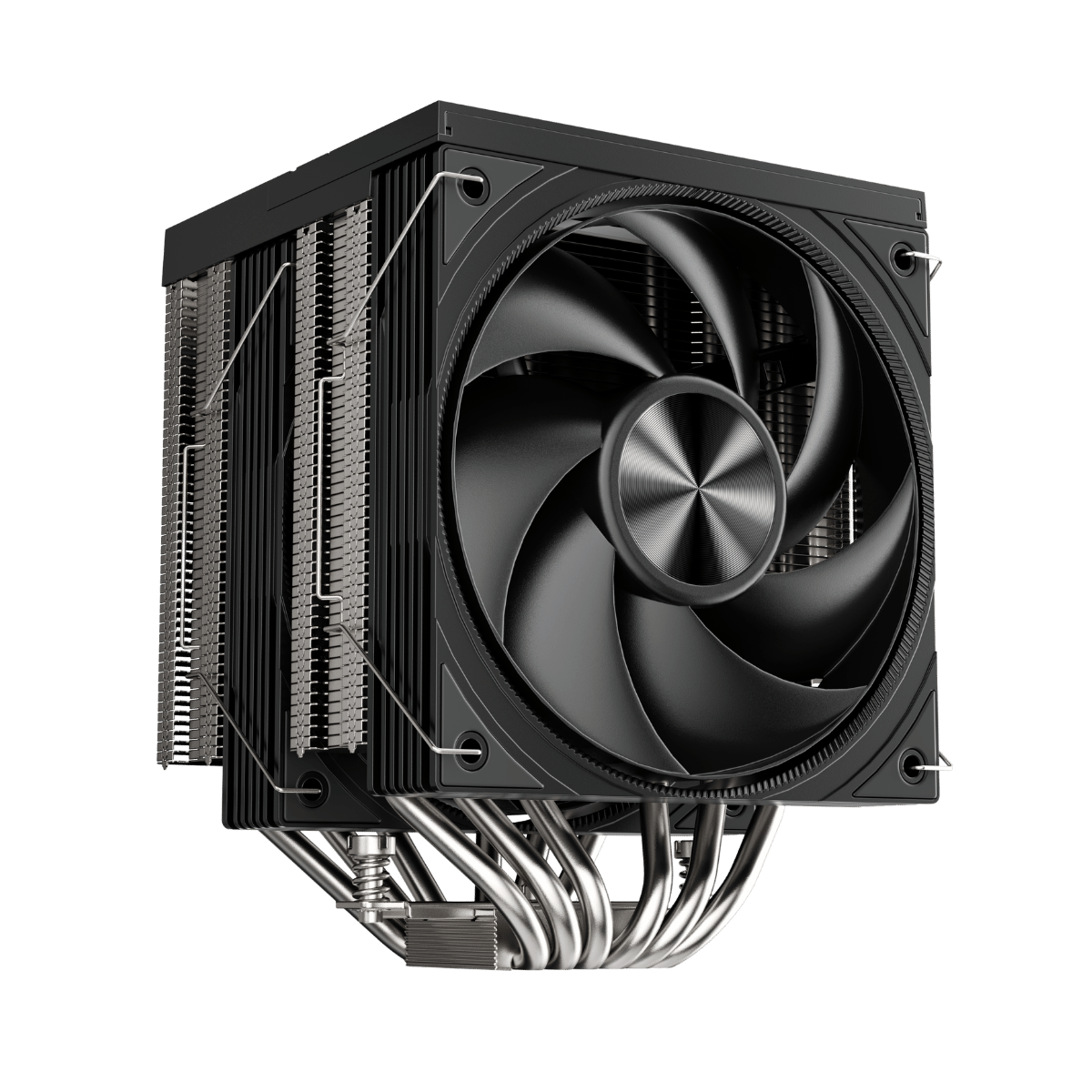

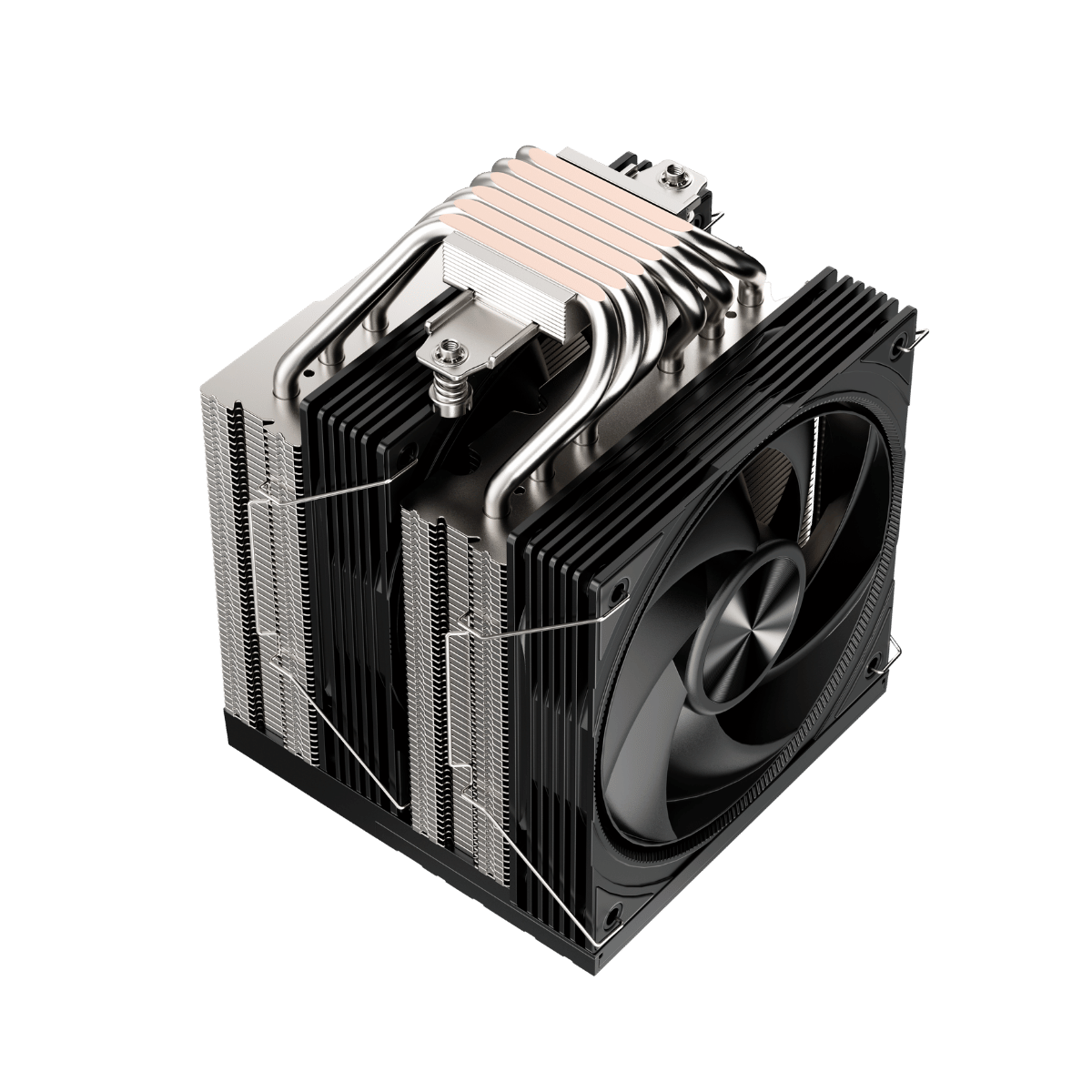

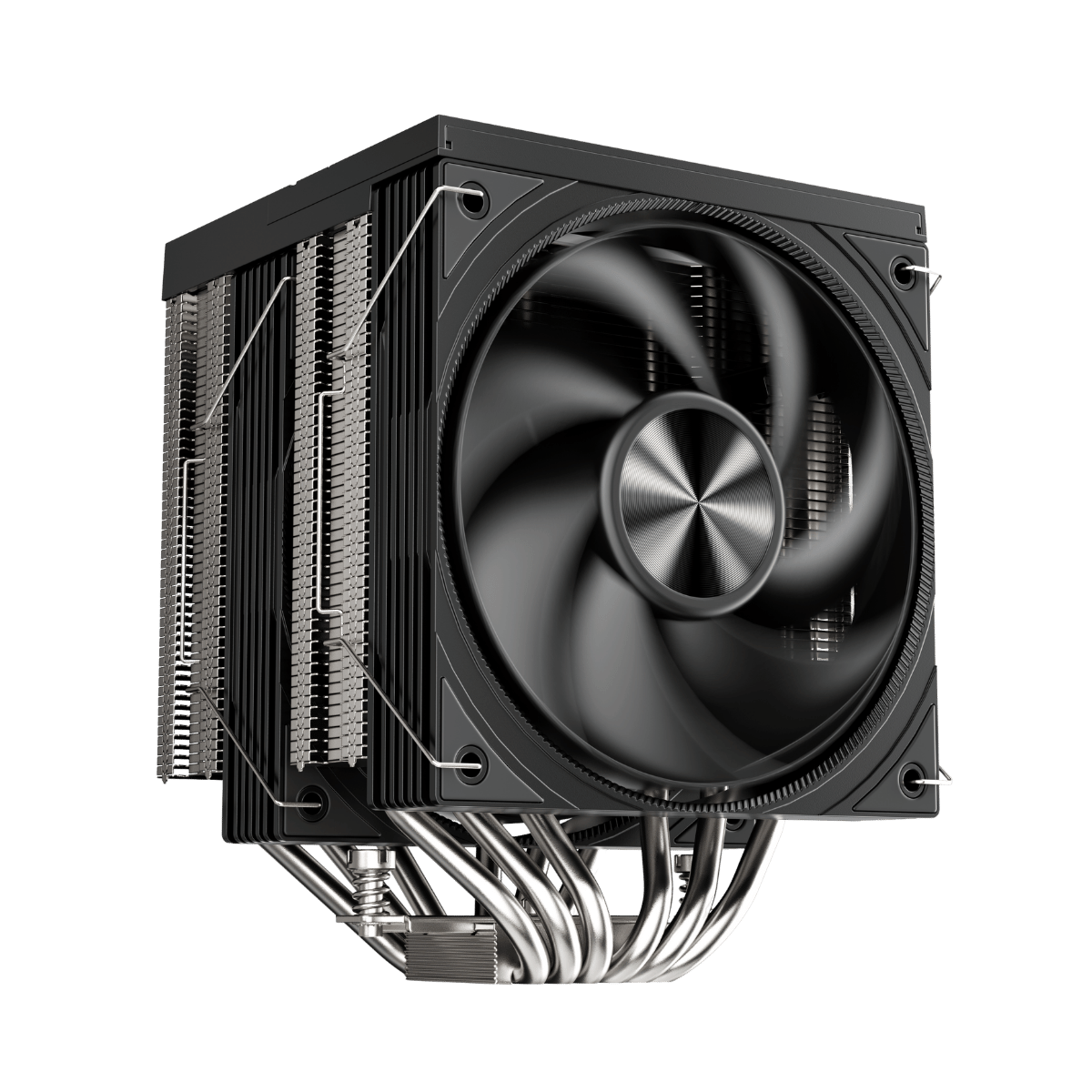

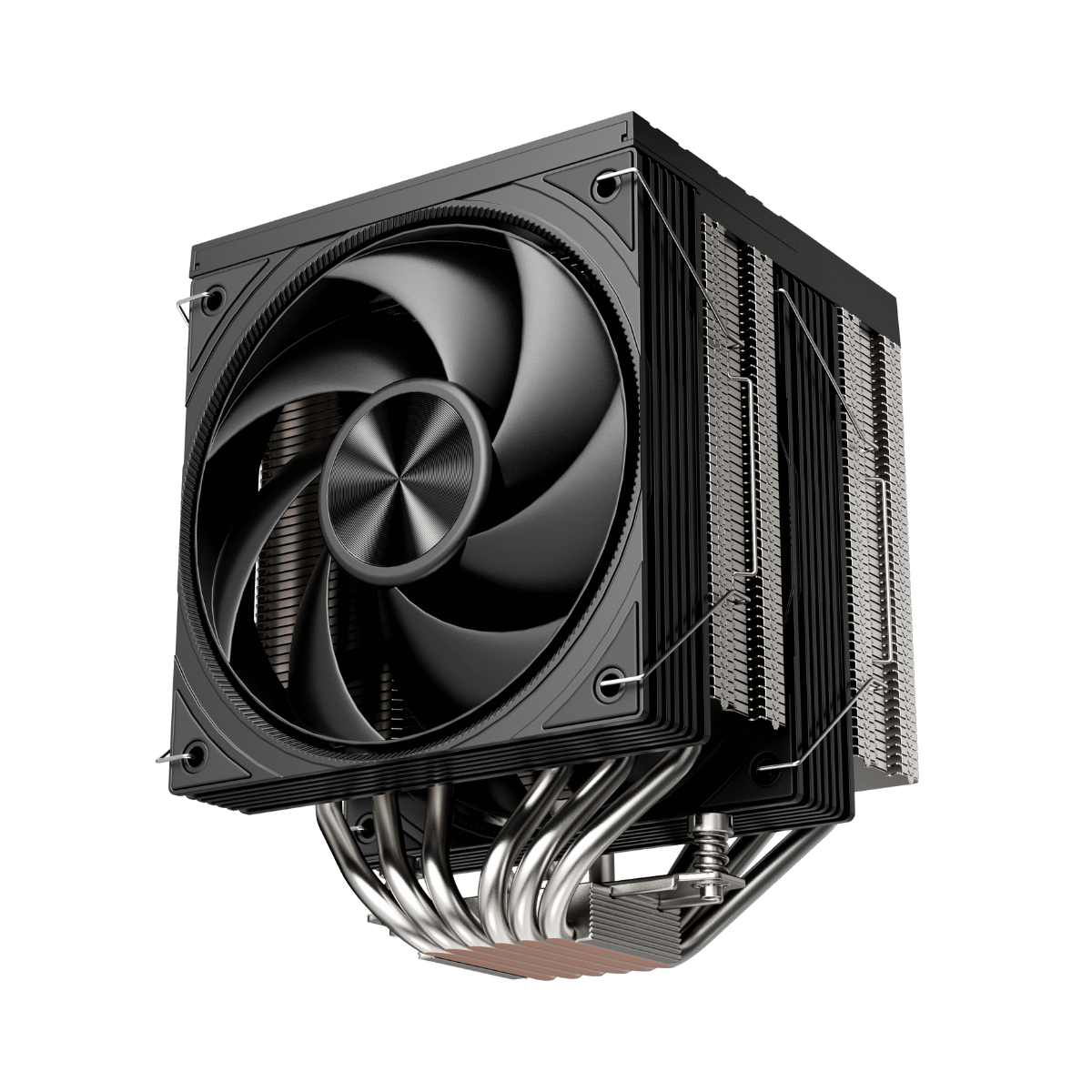

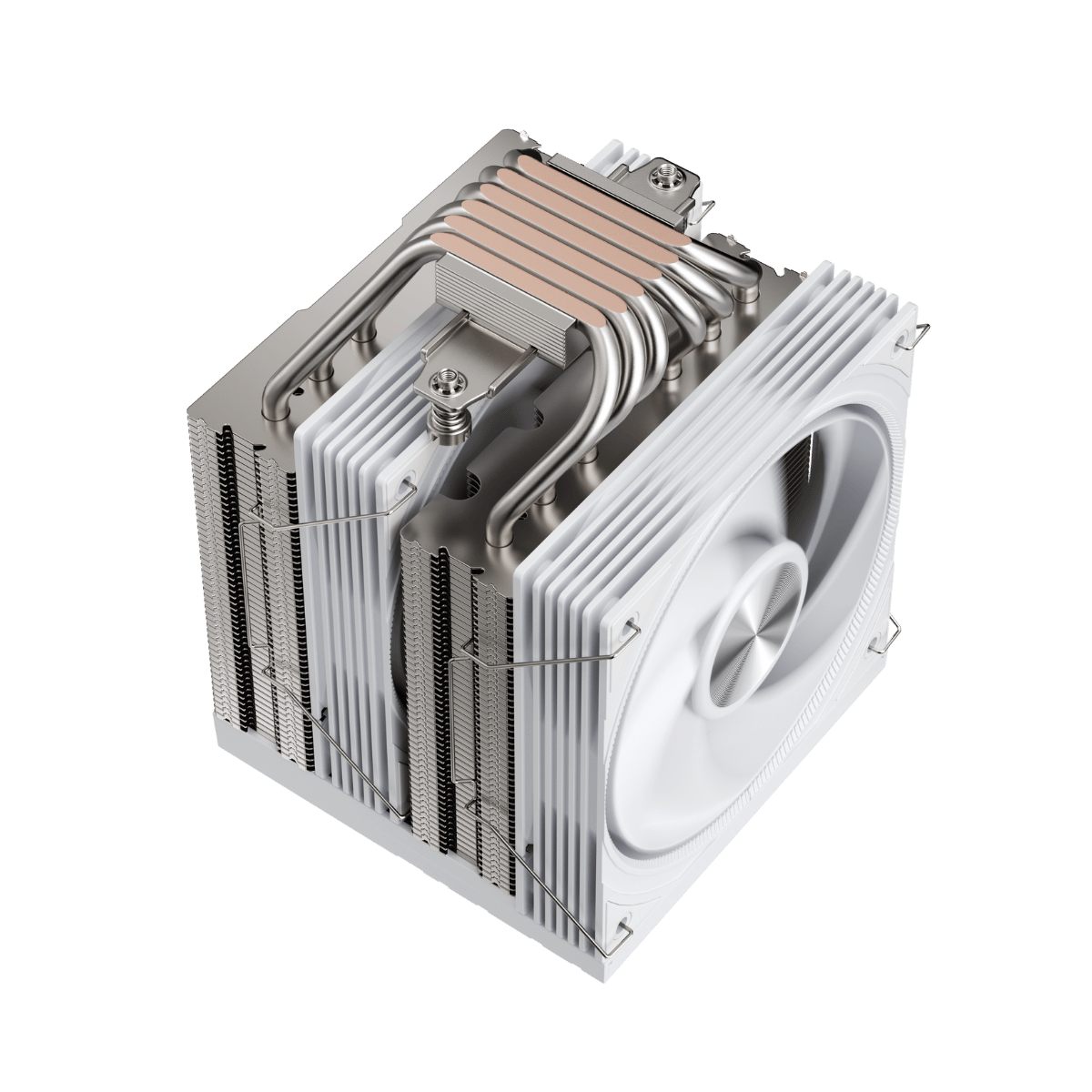

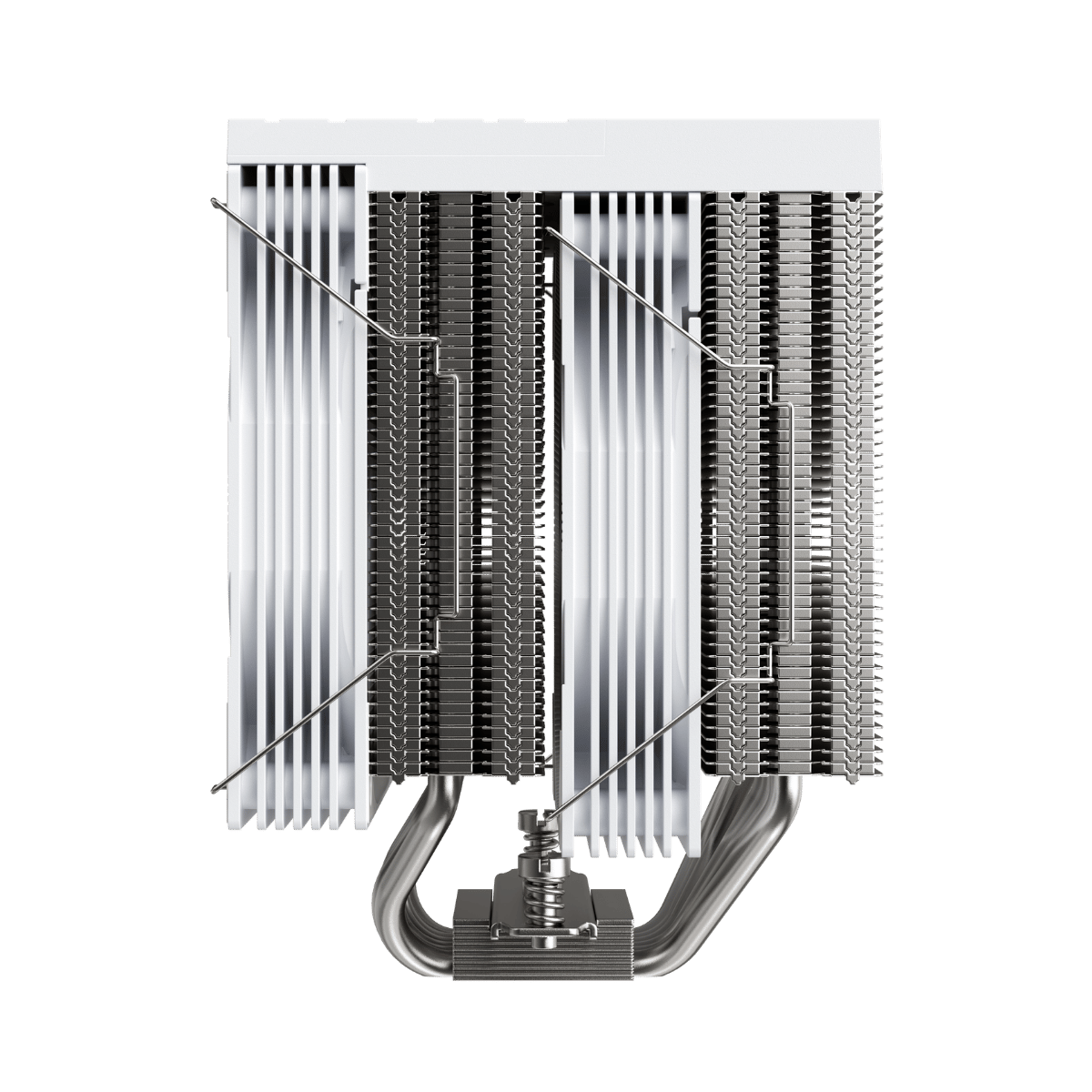

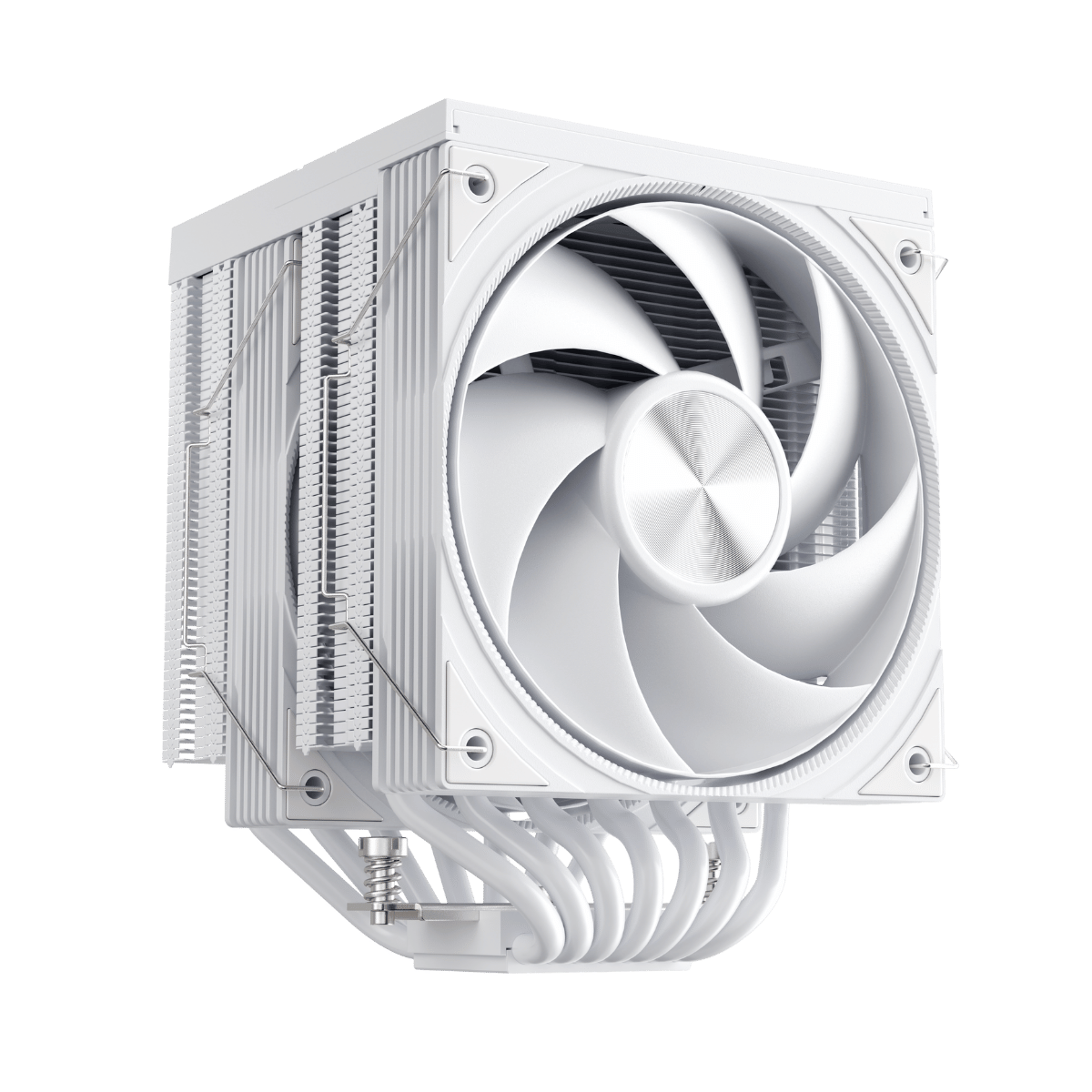

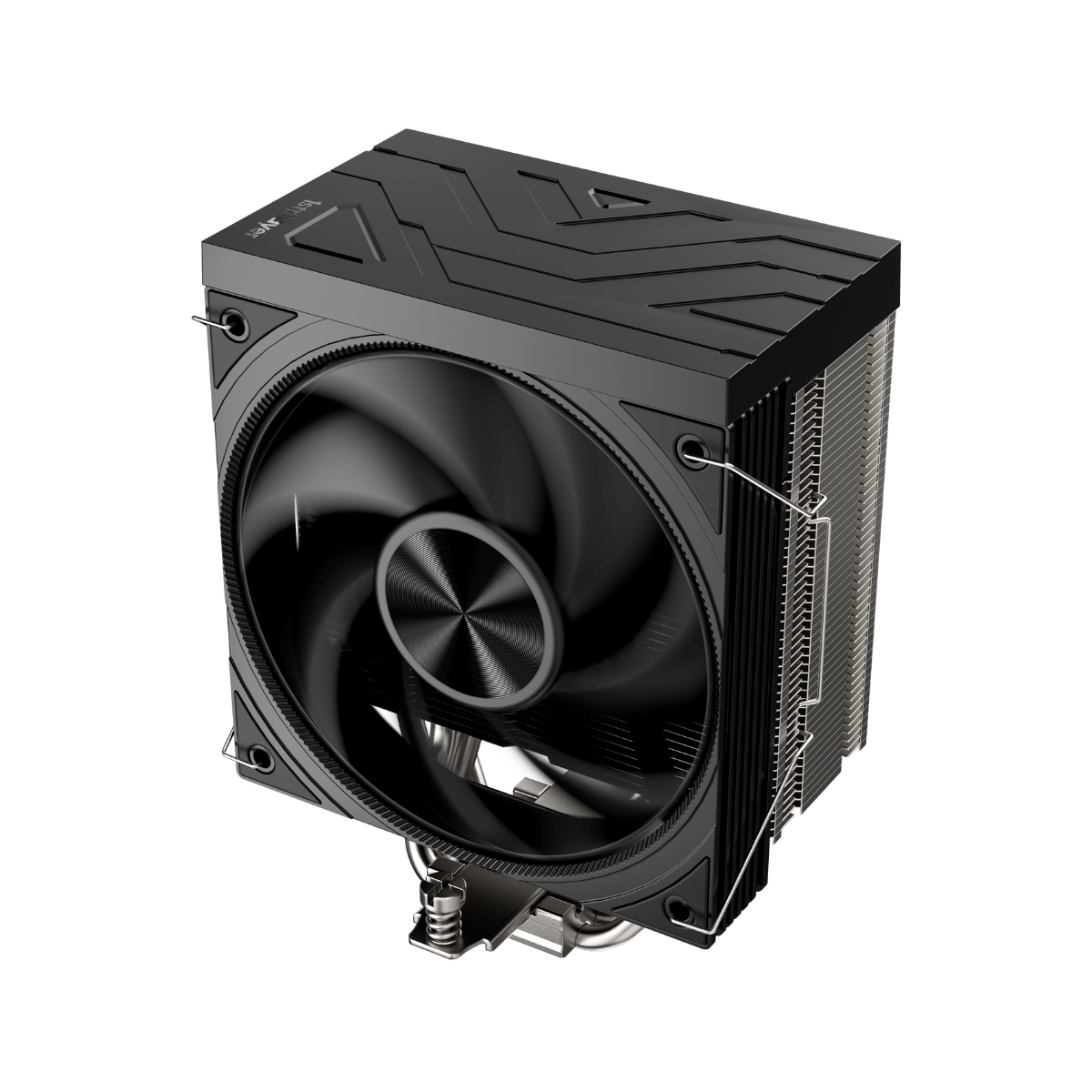

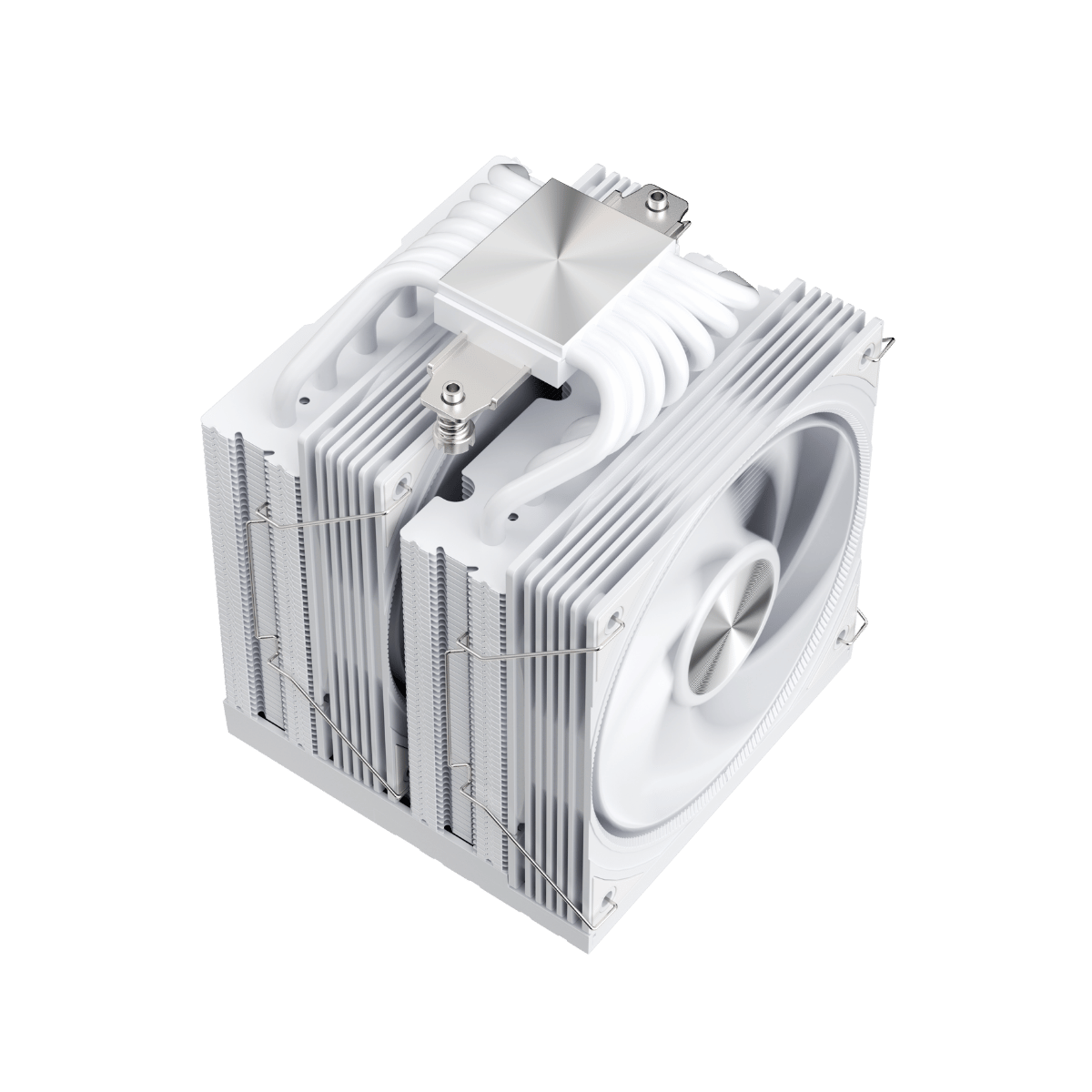

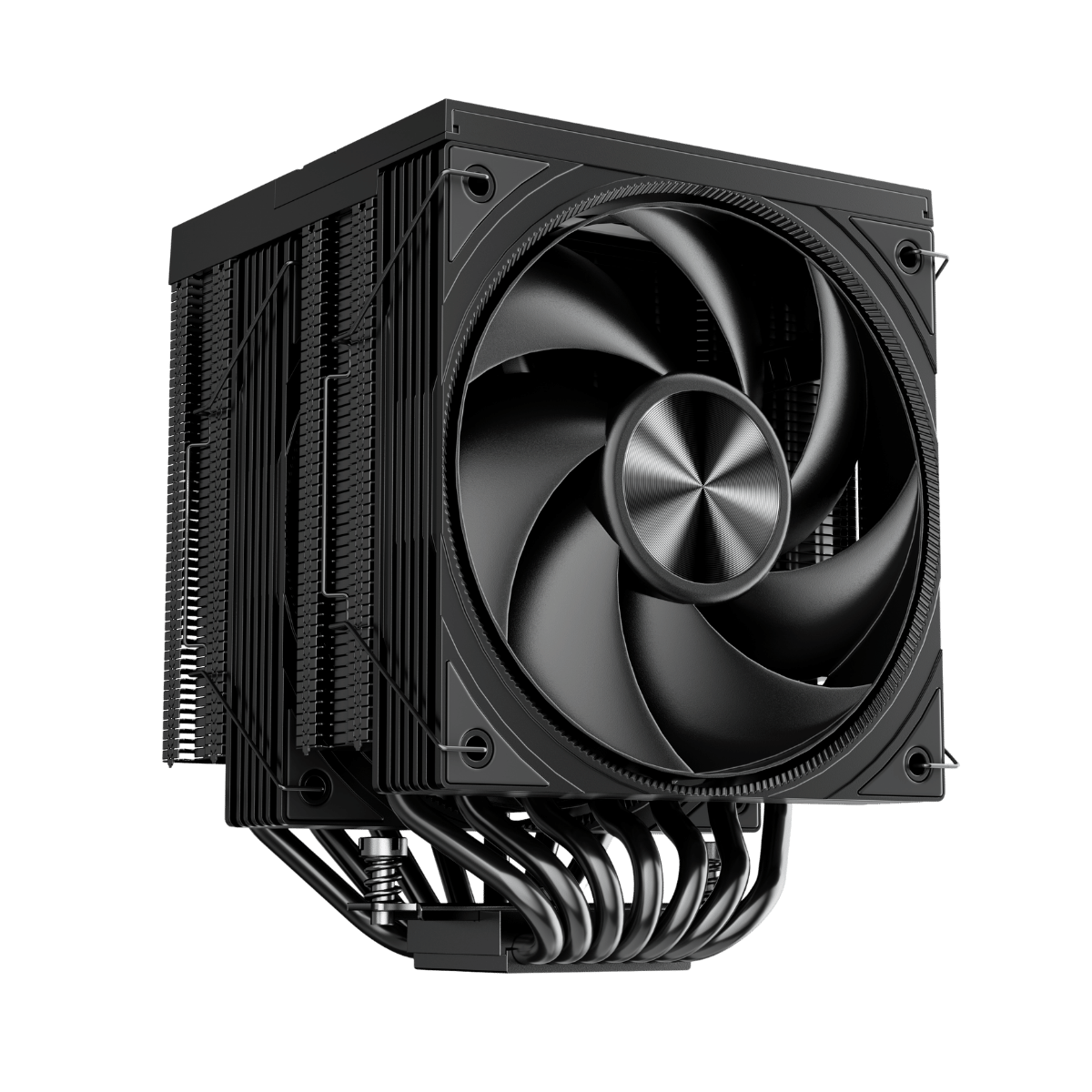

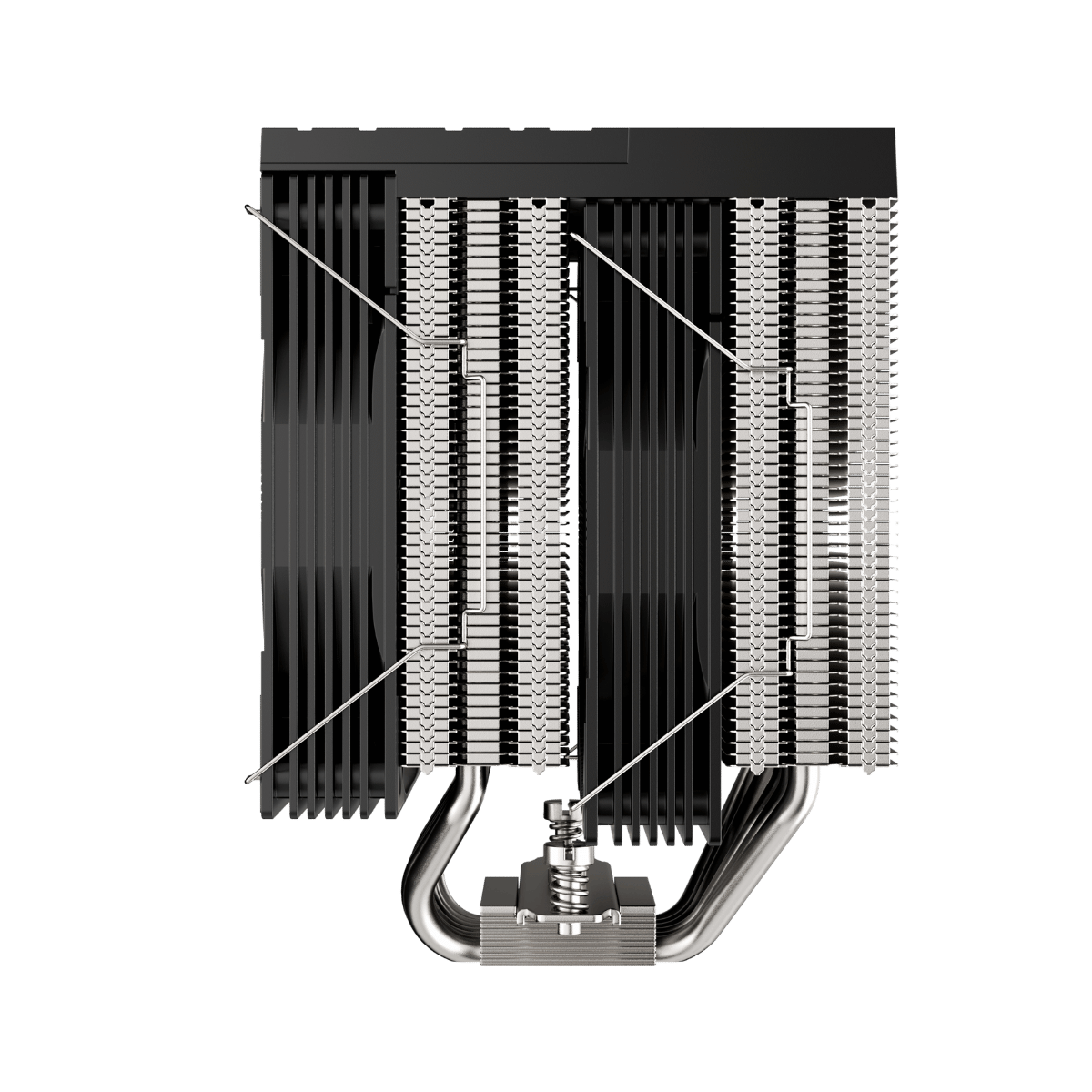

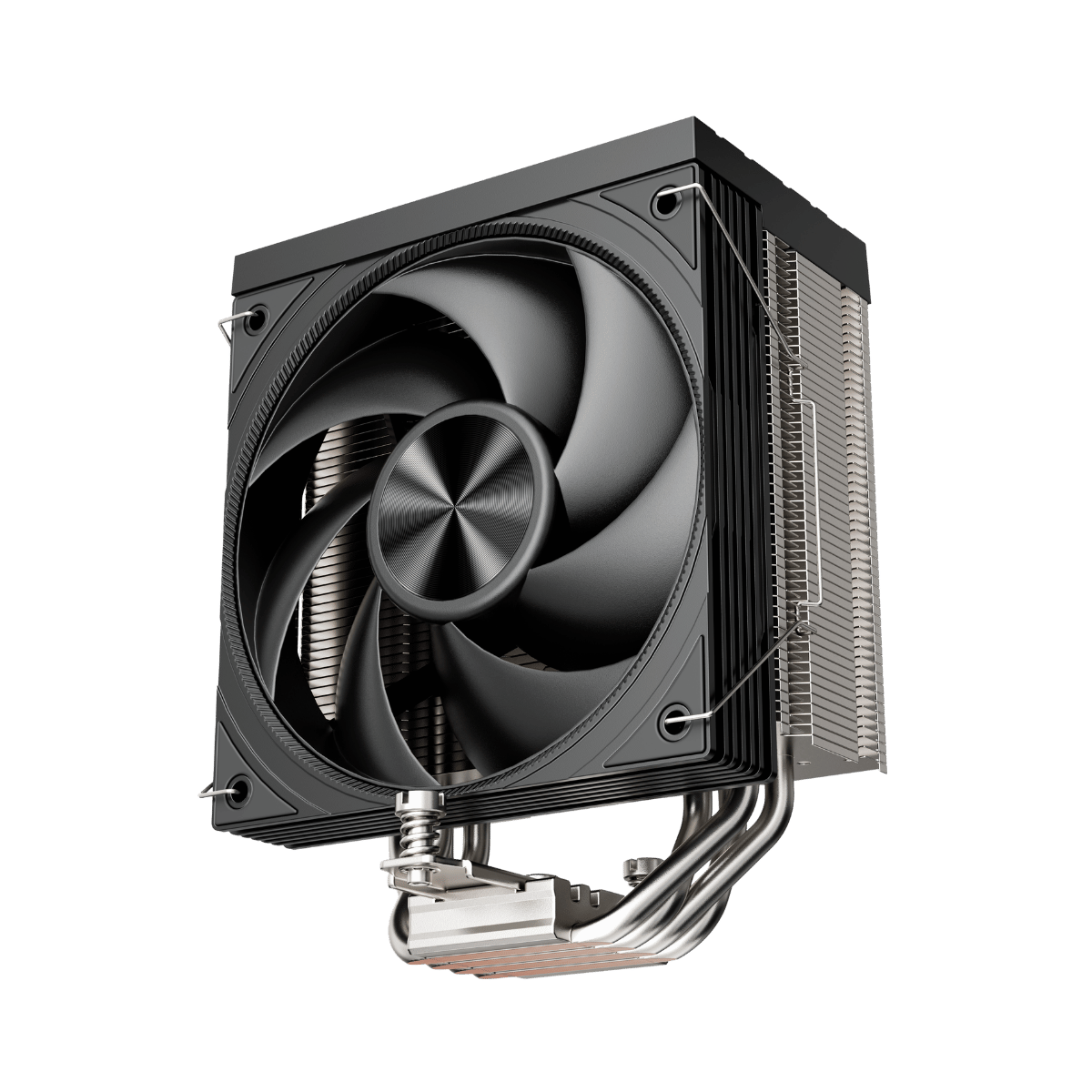

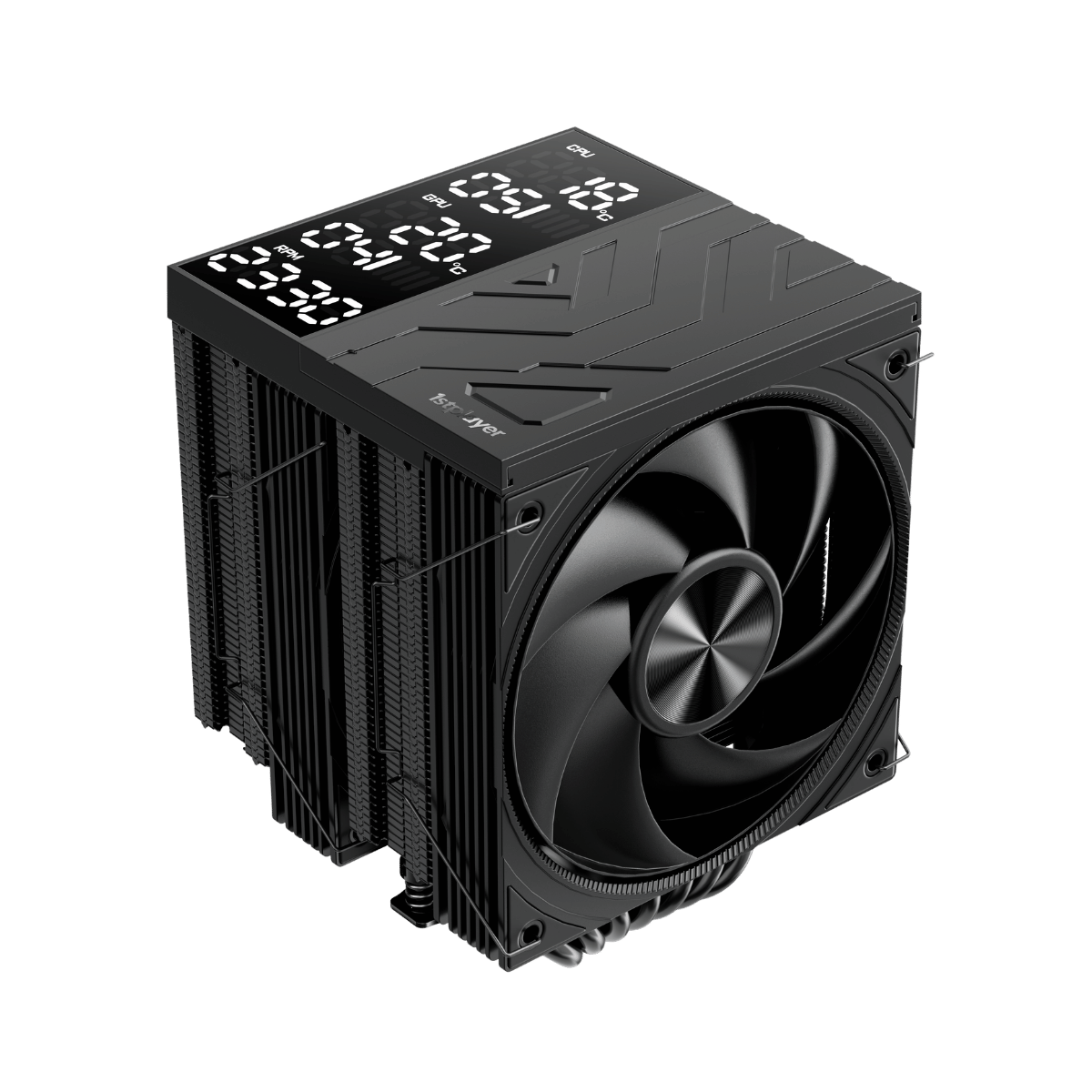

  • Single or dual tower: Streamlined airflow for compact builds or dual-path dissipation for high-TDP systems

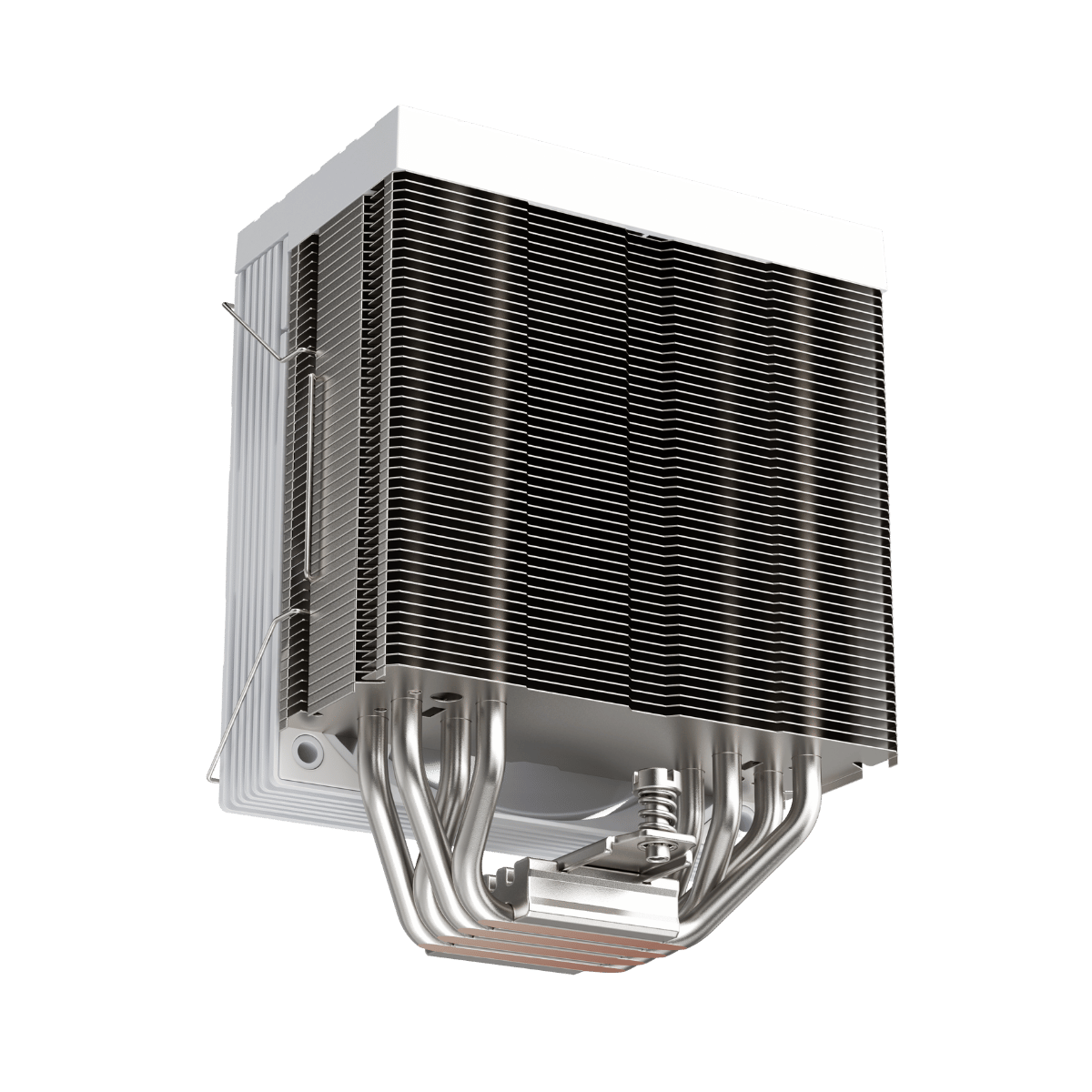

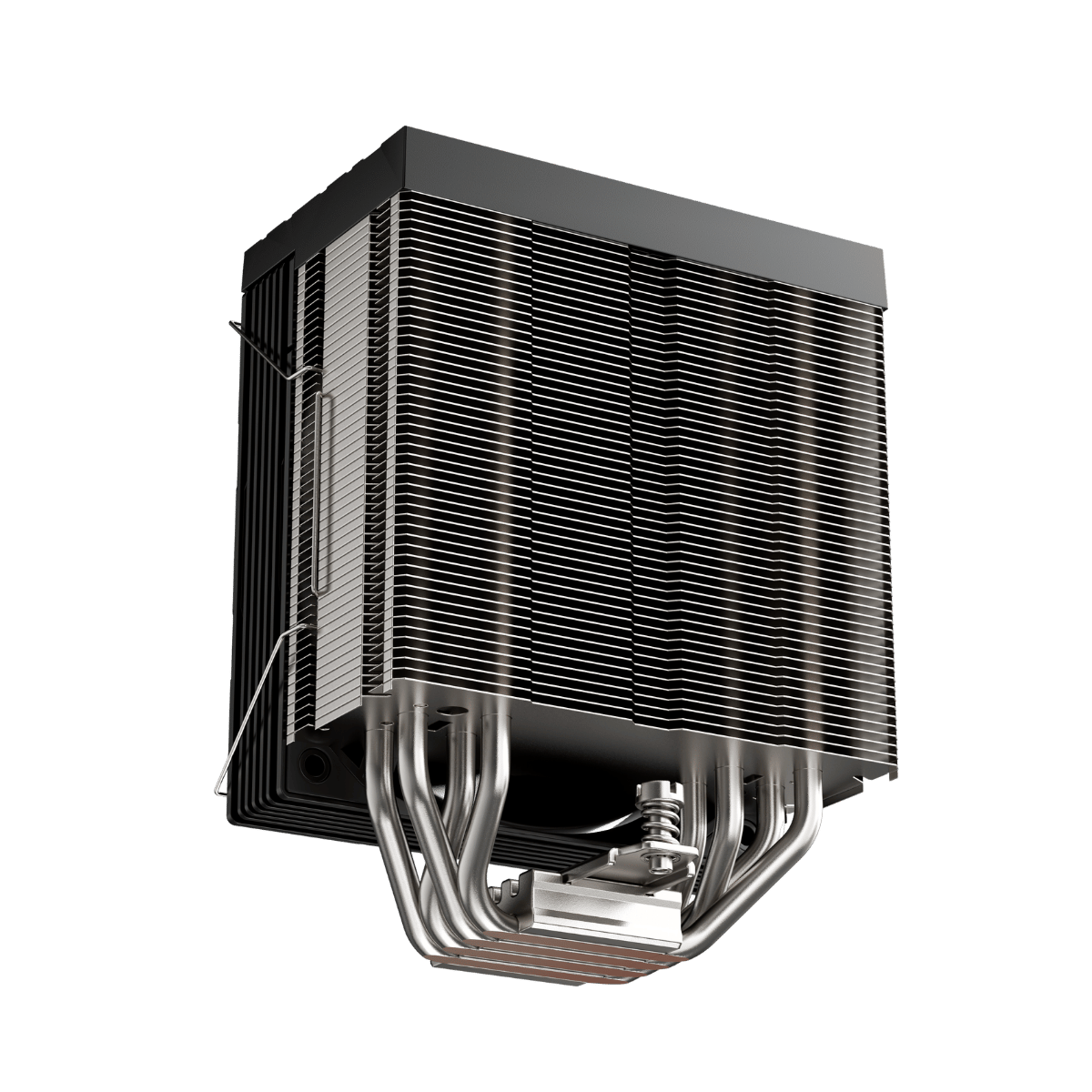

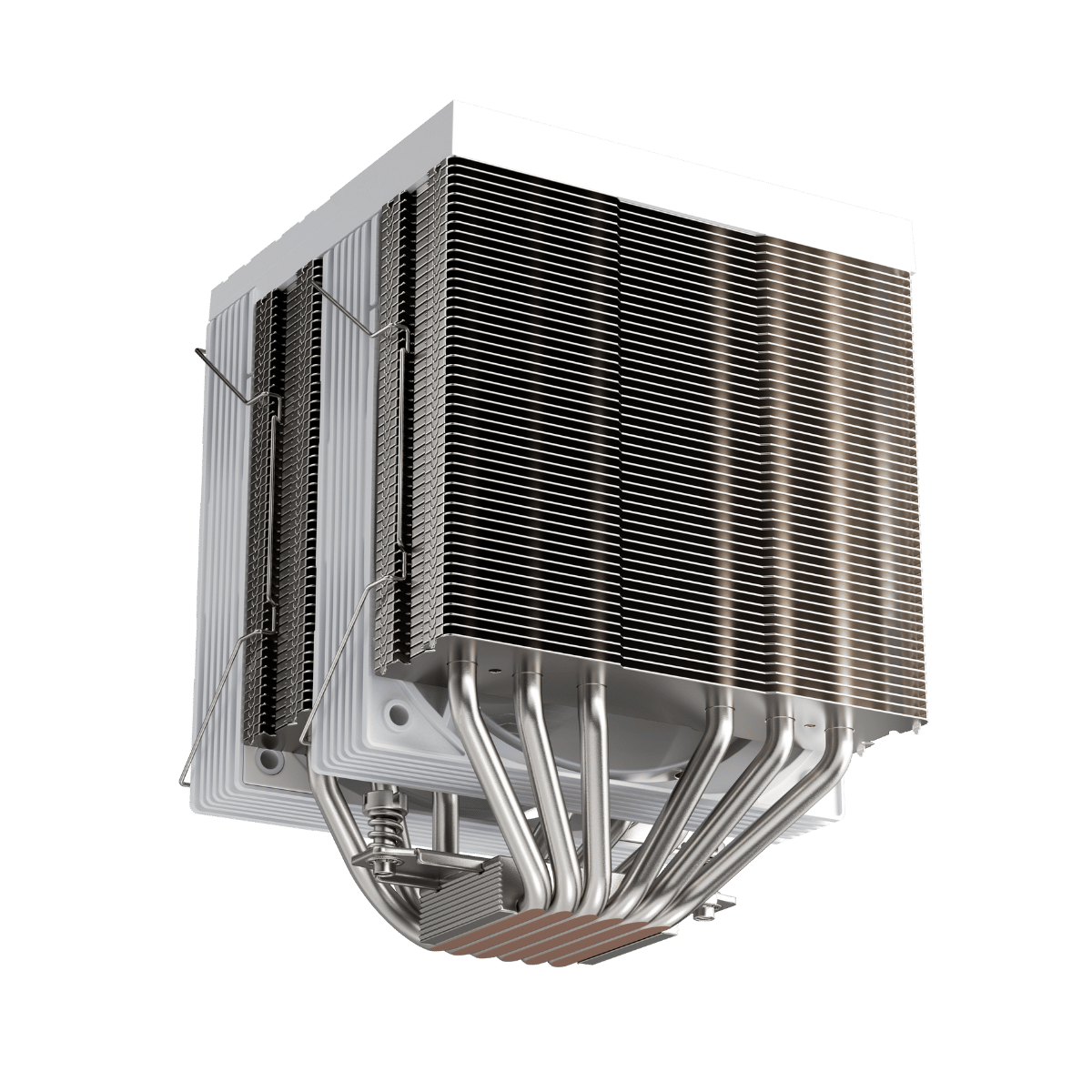

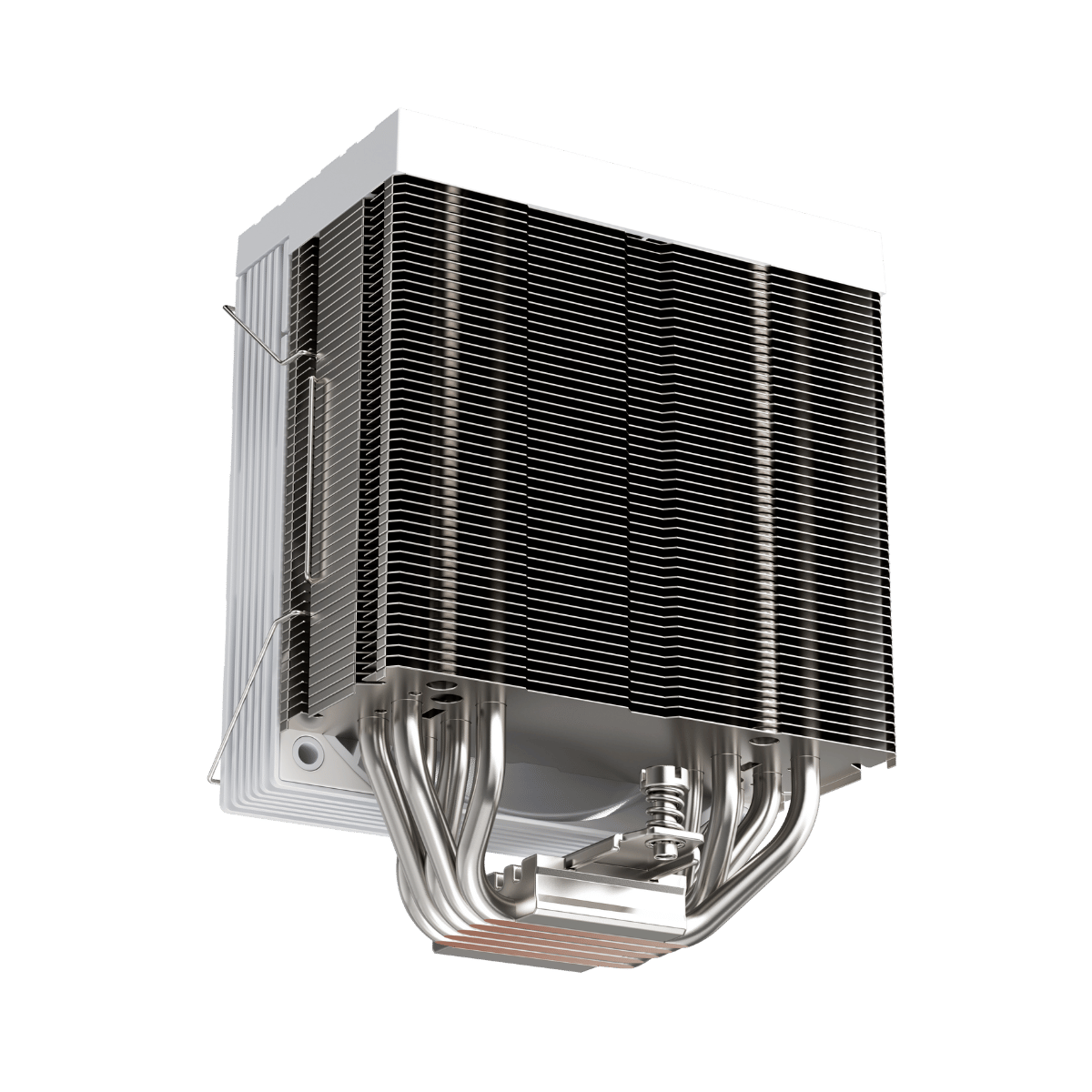

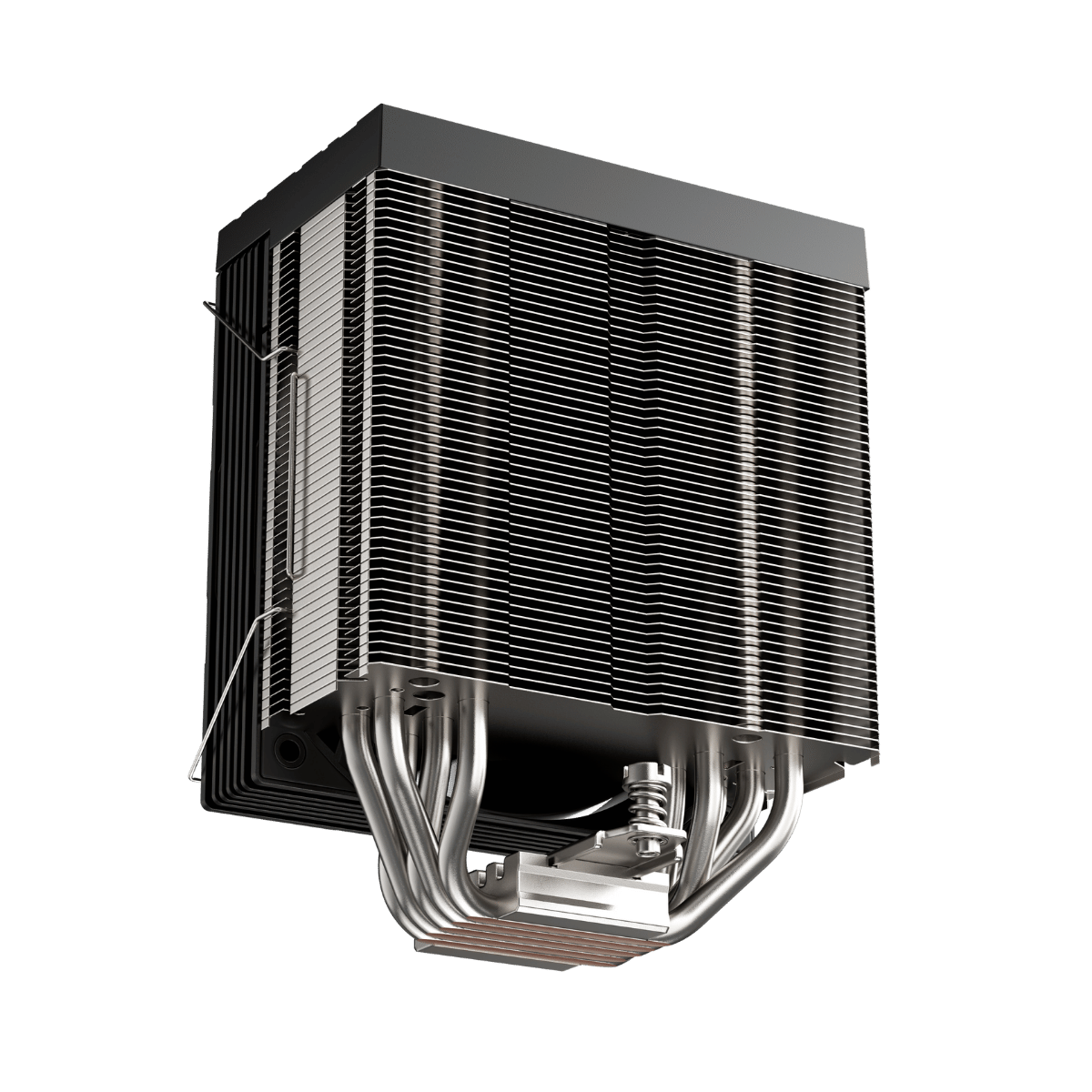

  • Dense aluminum fin arrays: With optimized spacing, tuned for high-airflow cooling efficiency

  • Interlocked Folded-Fin Structure: Rigid, tightly aligned fins for concentrated, smooth airflow

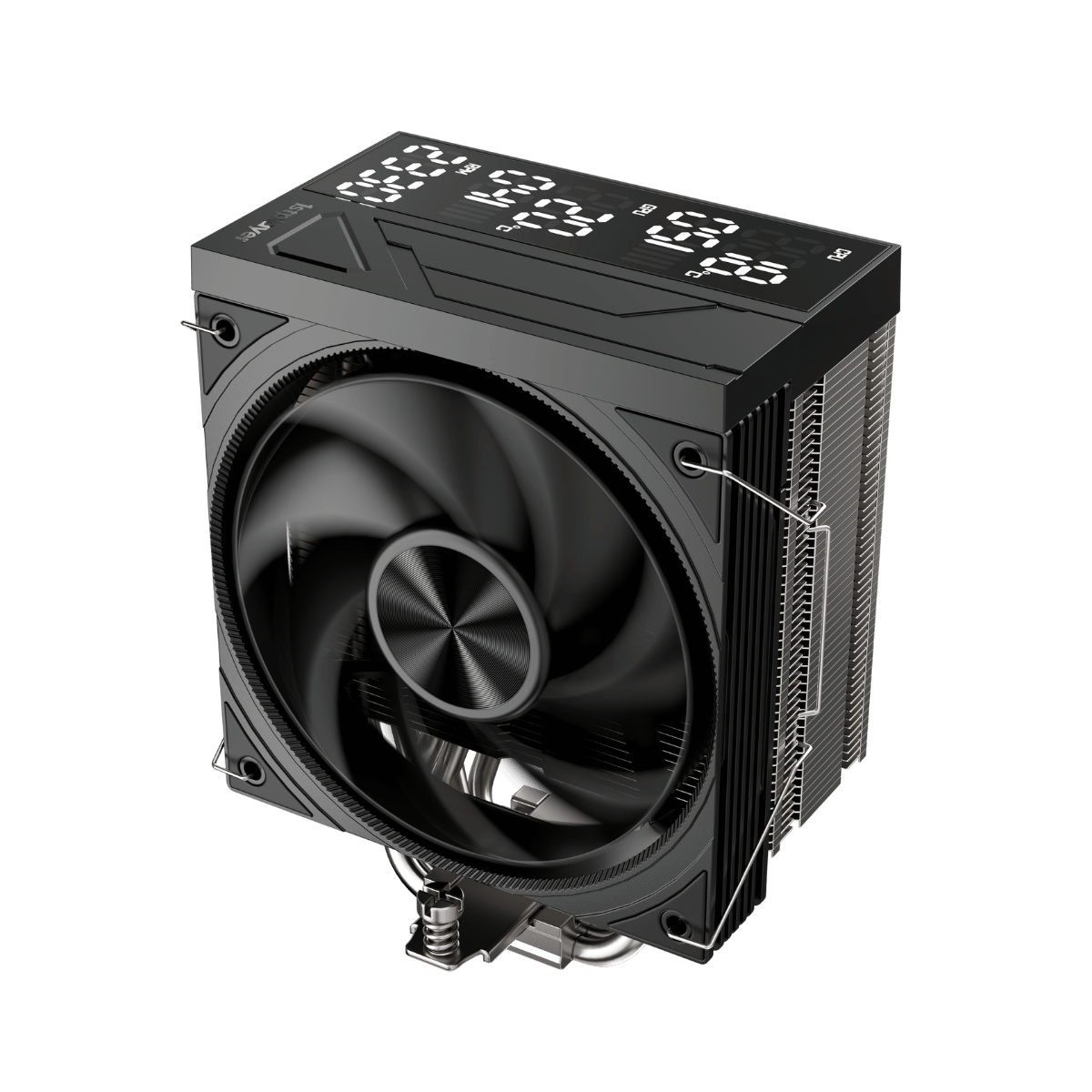

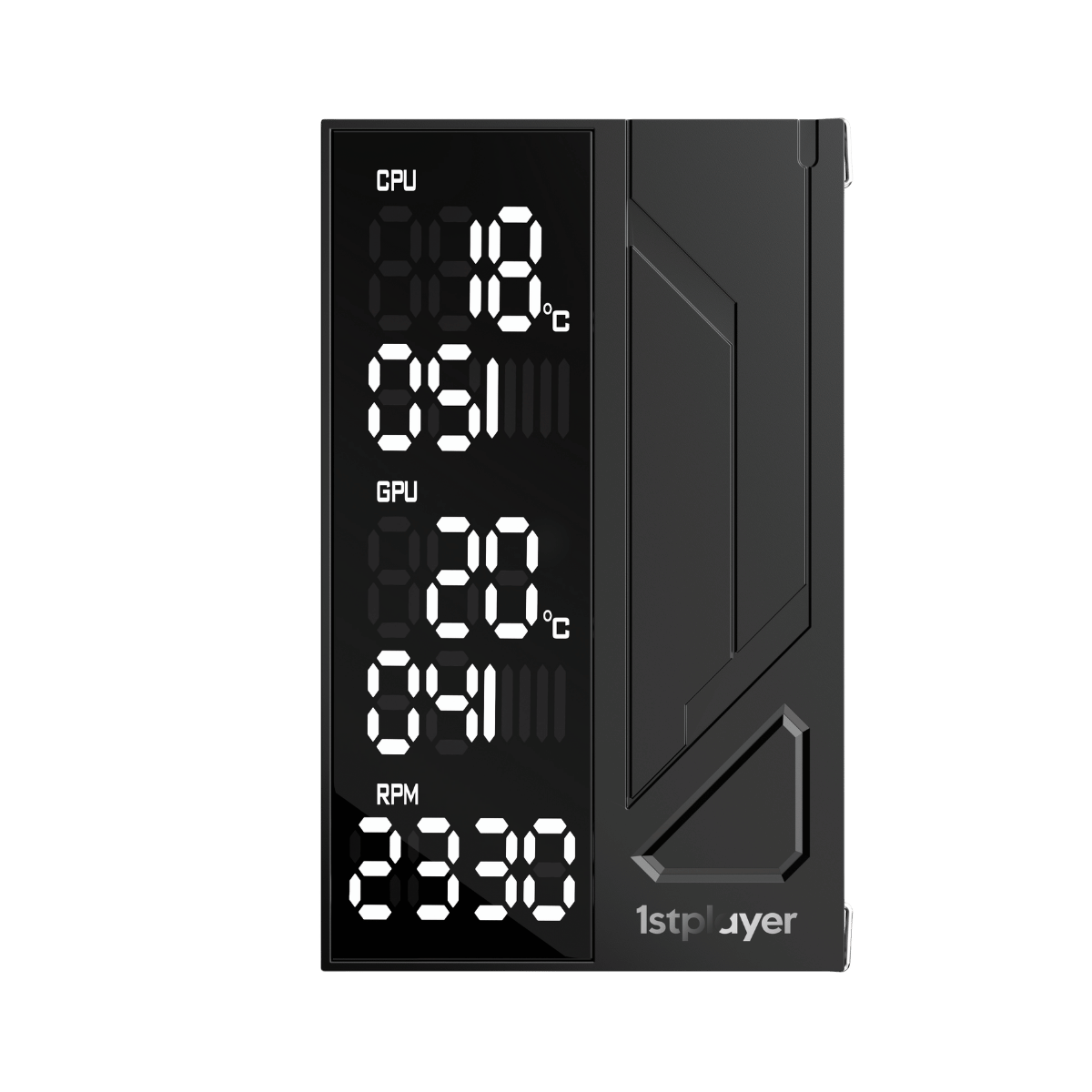

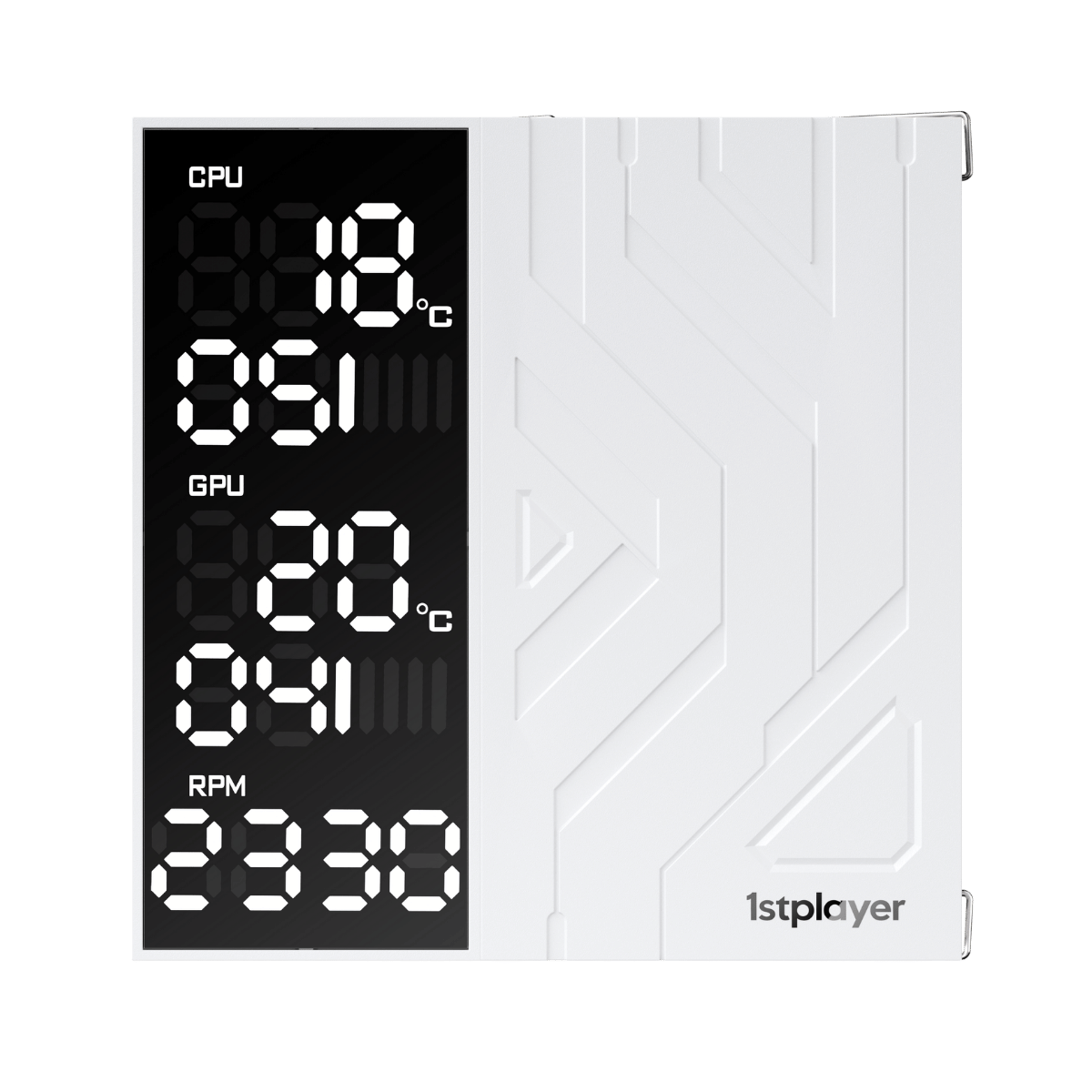

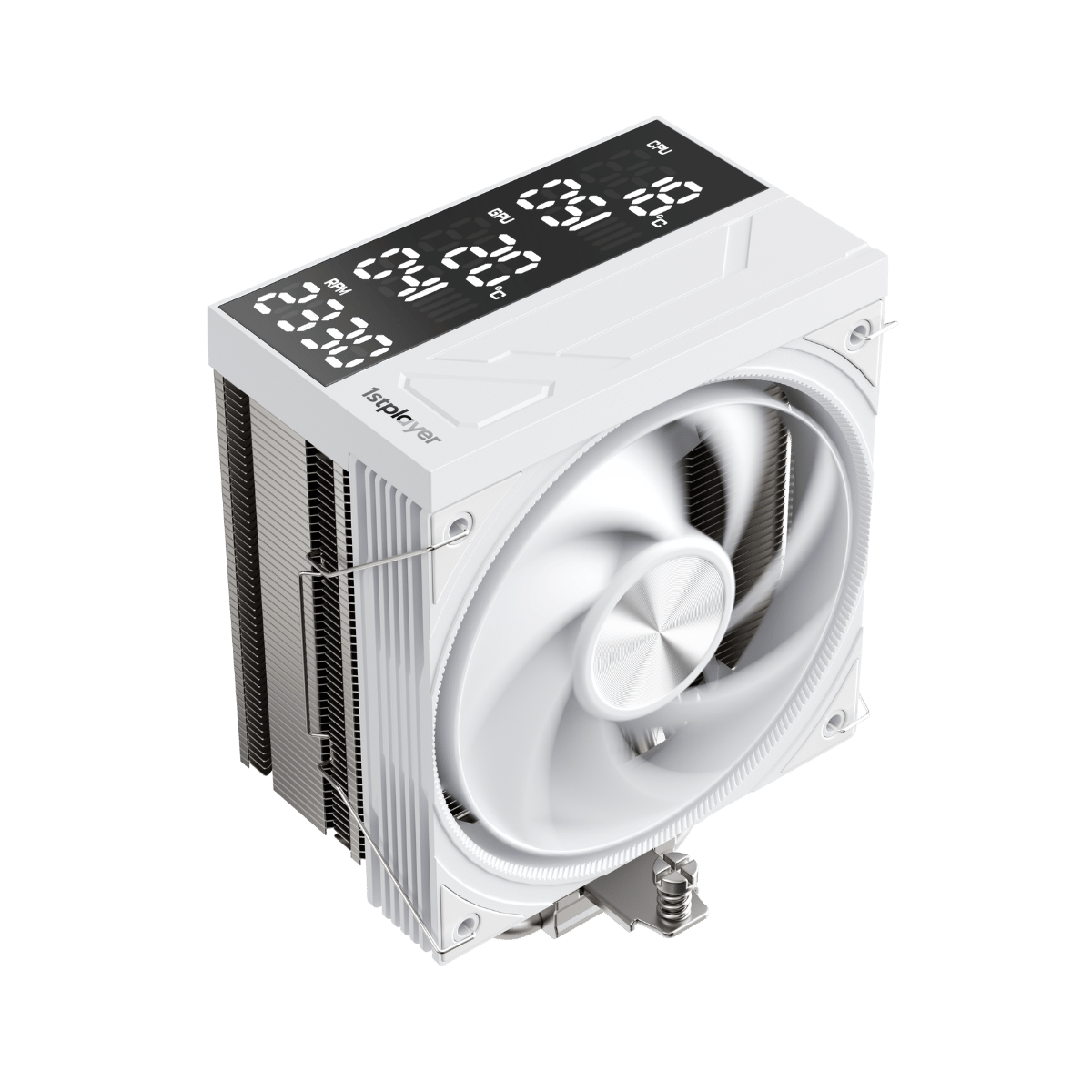

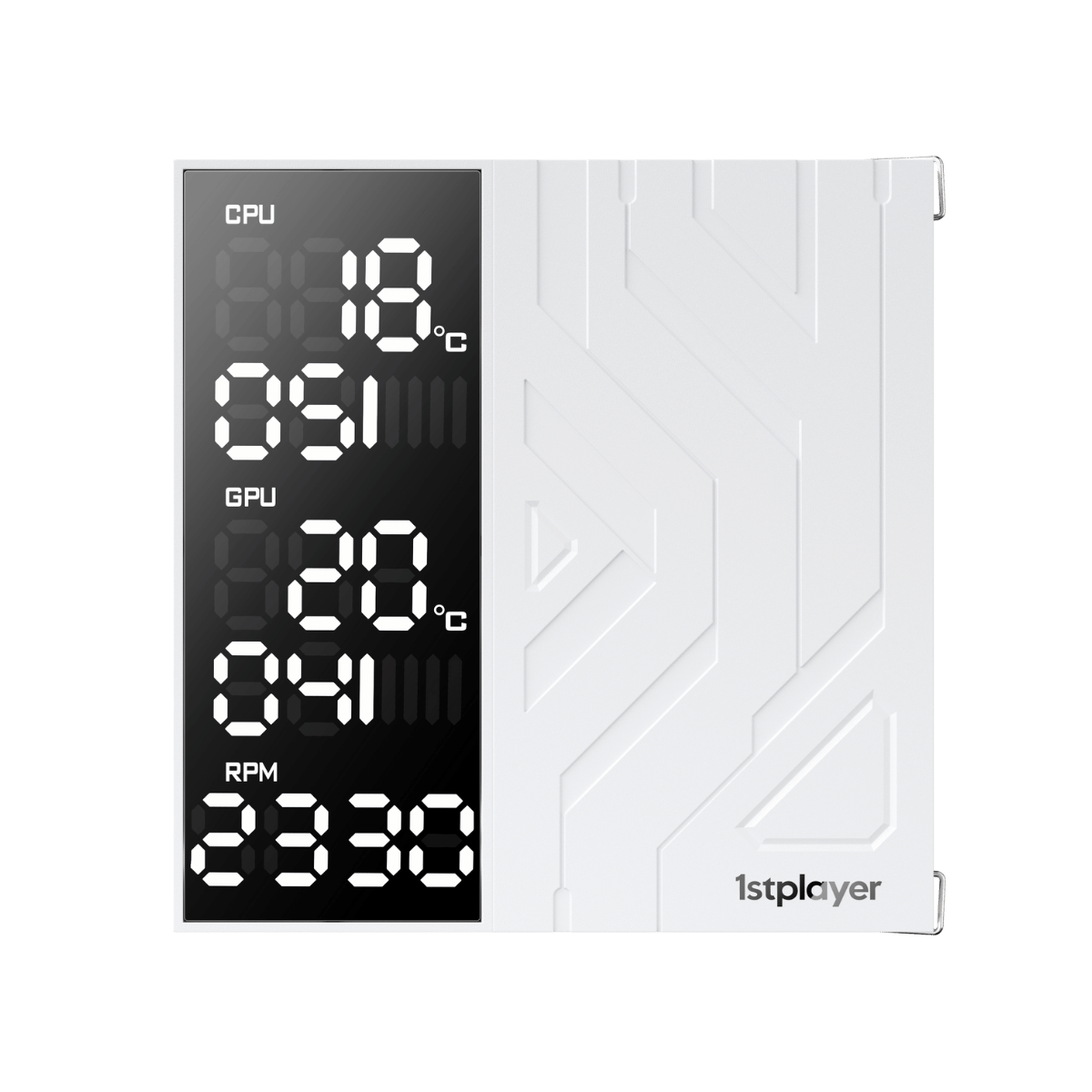

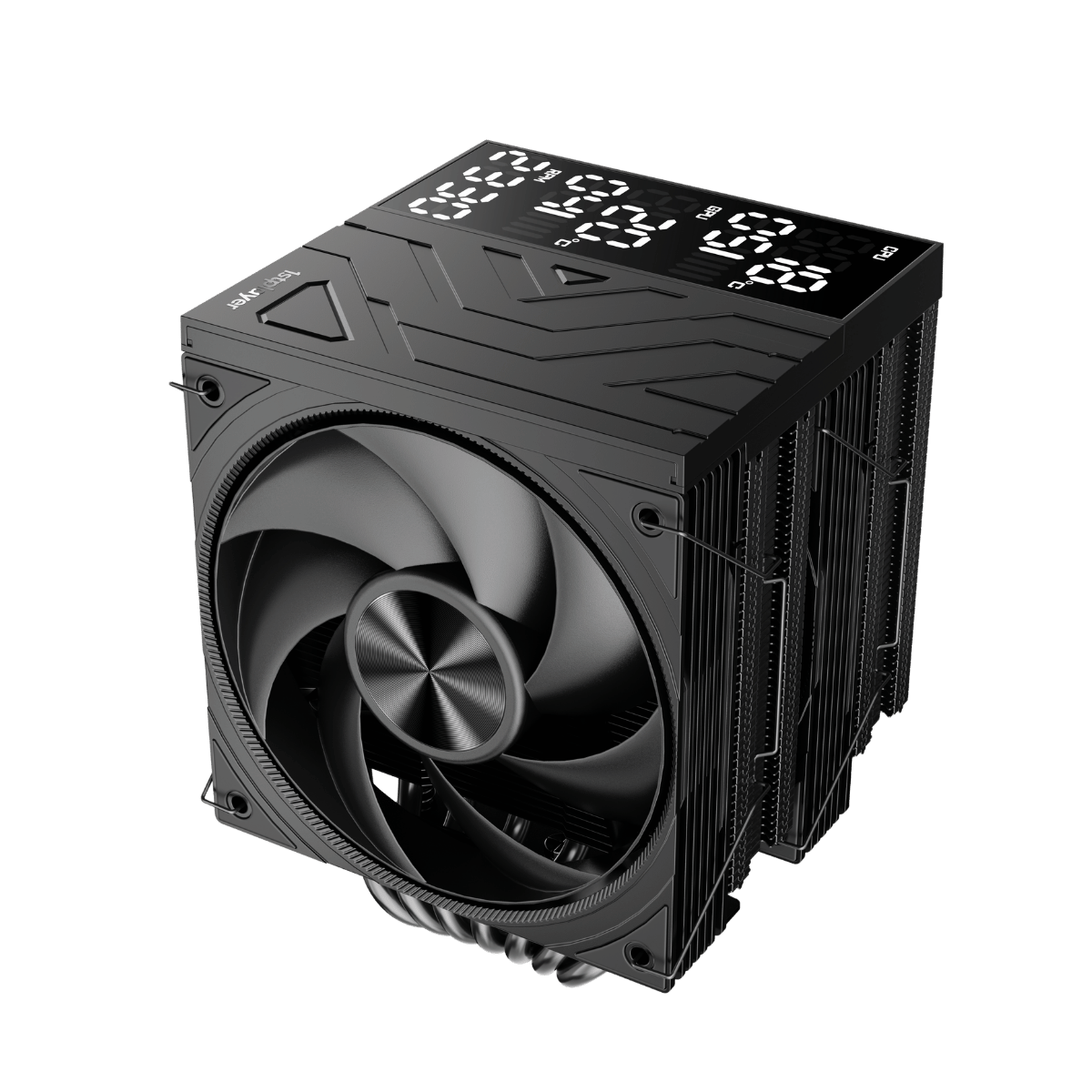

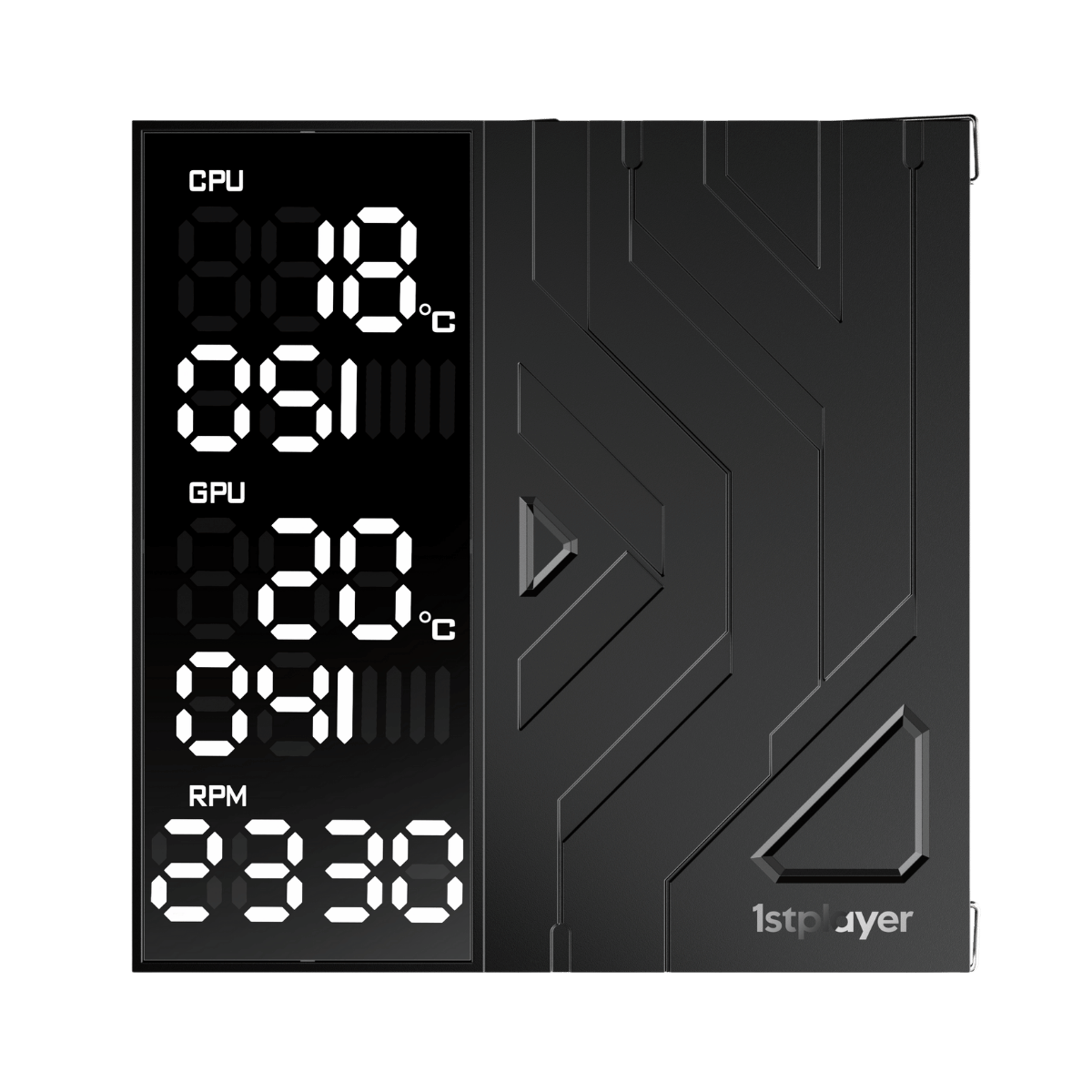

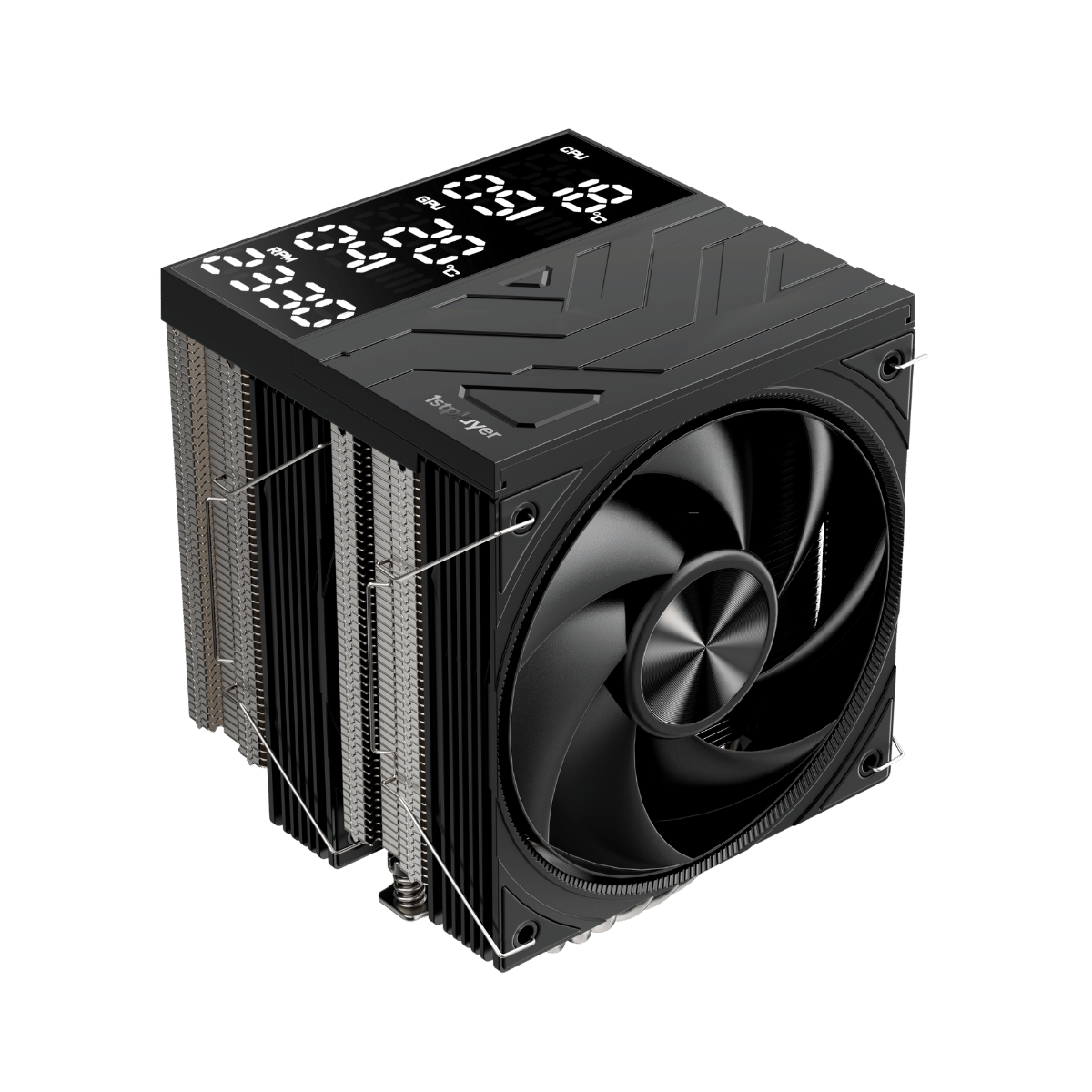

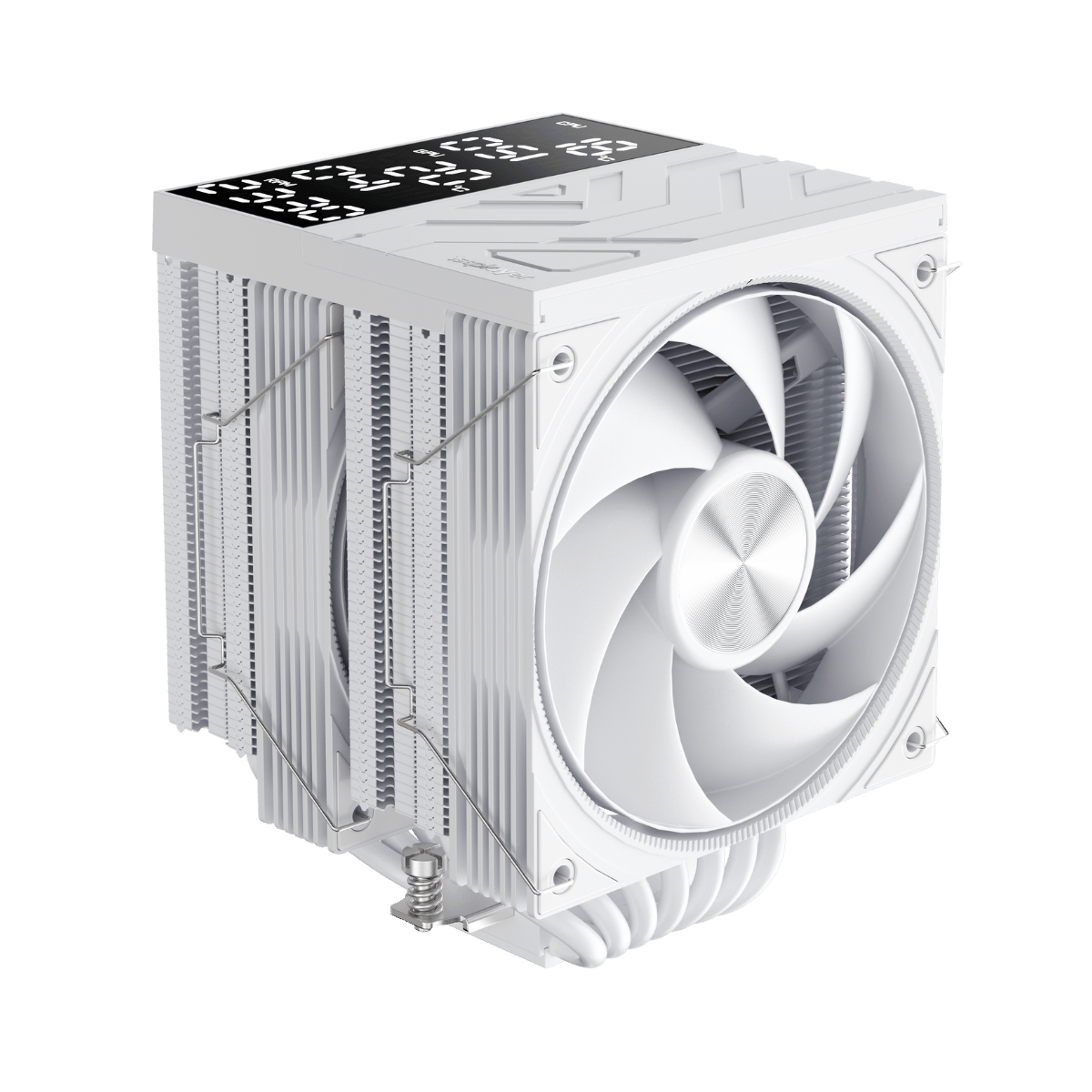

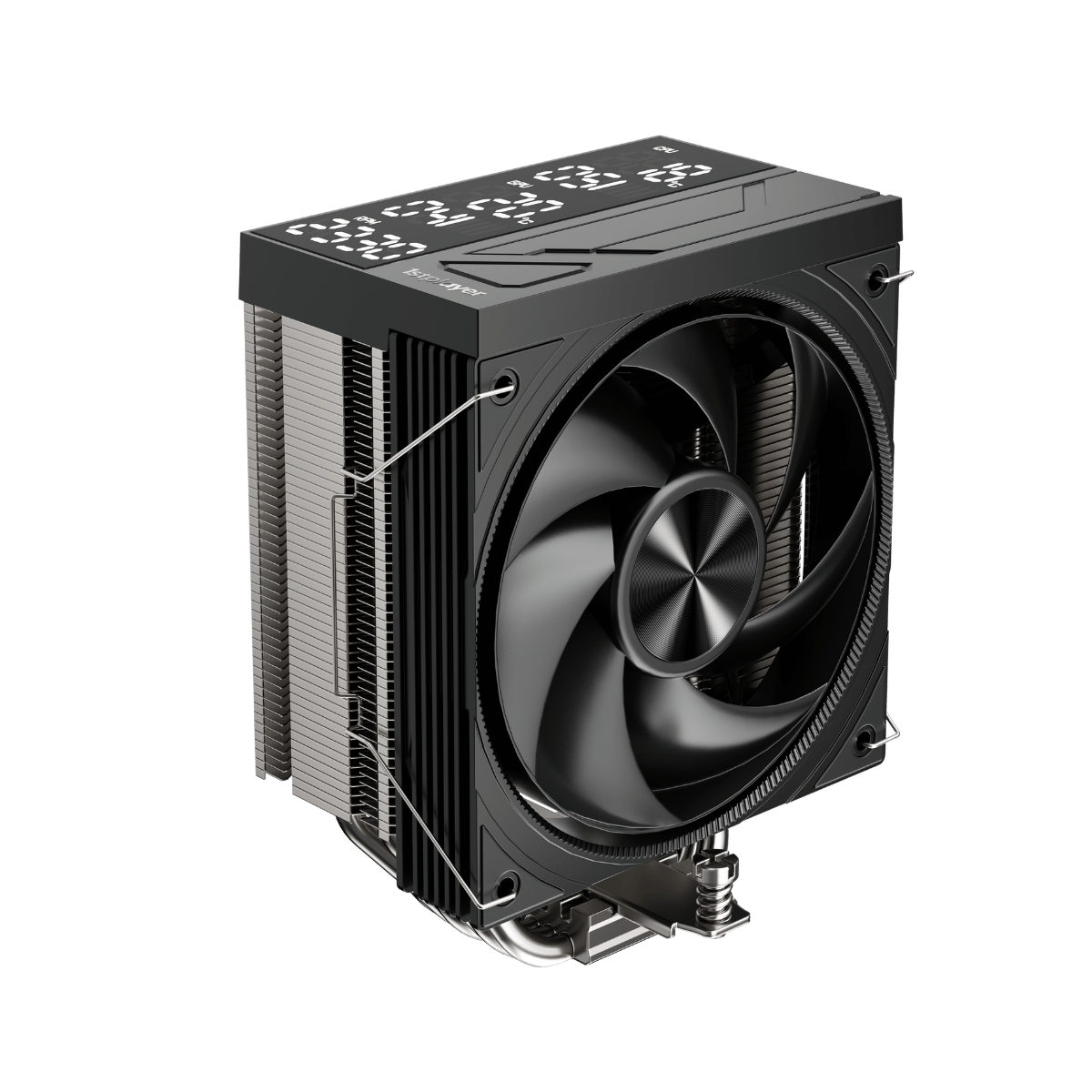

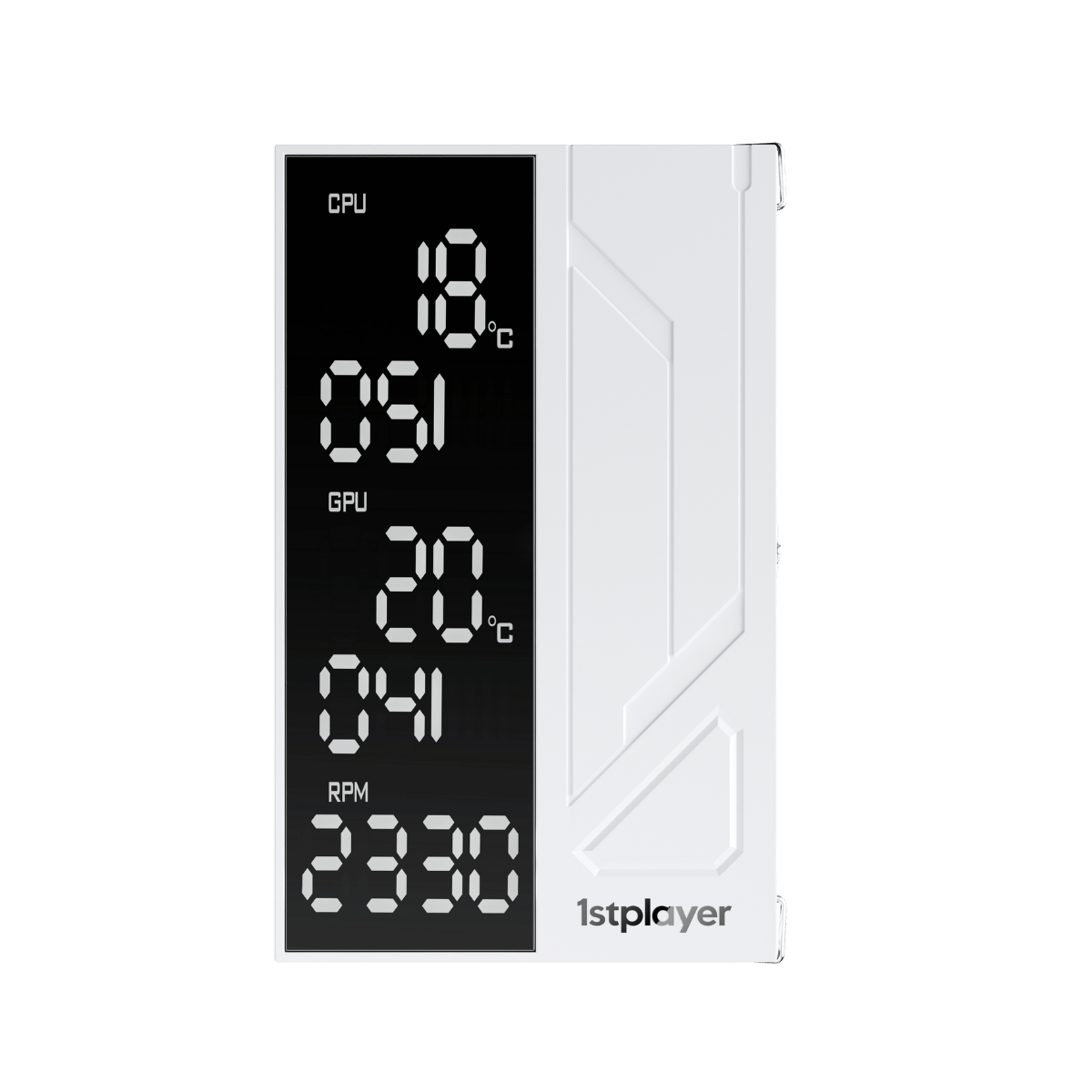

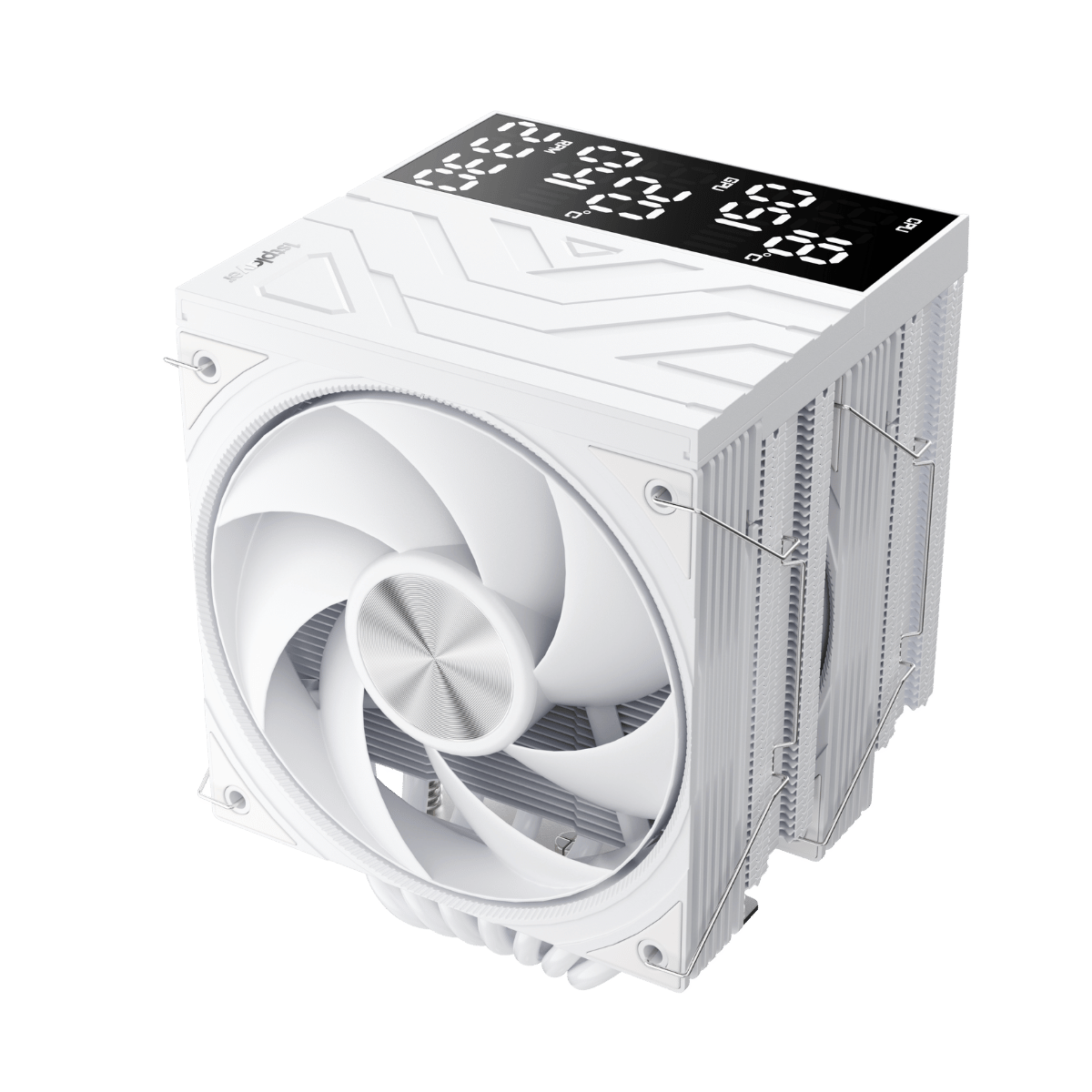

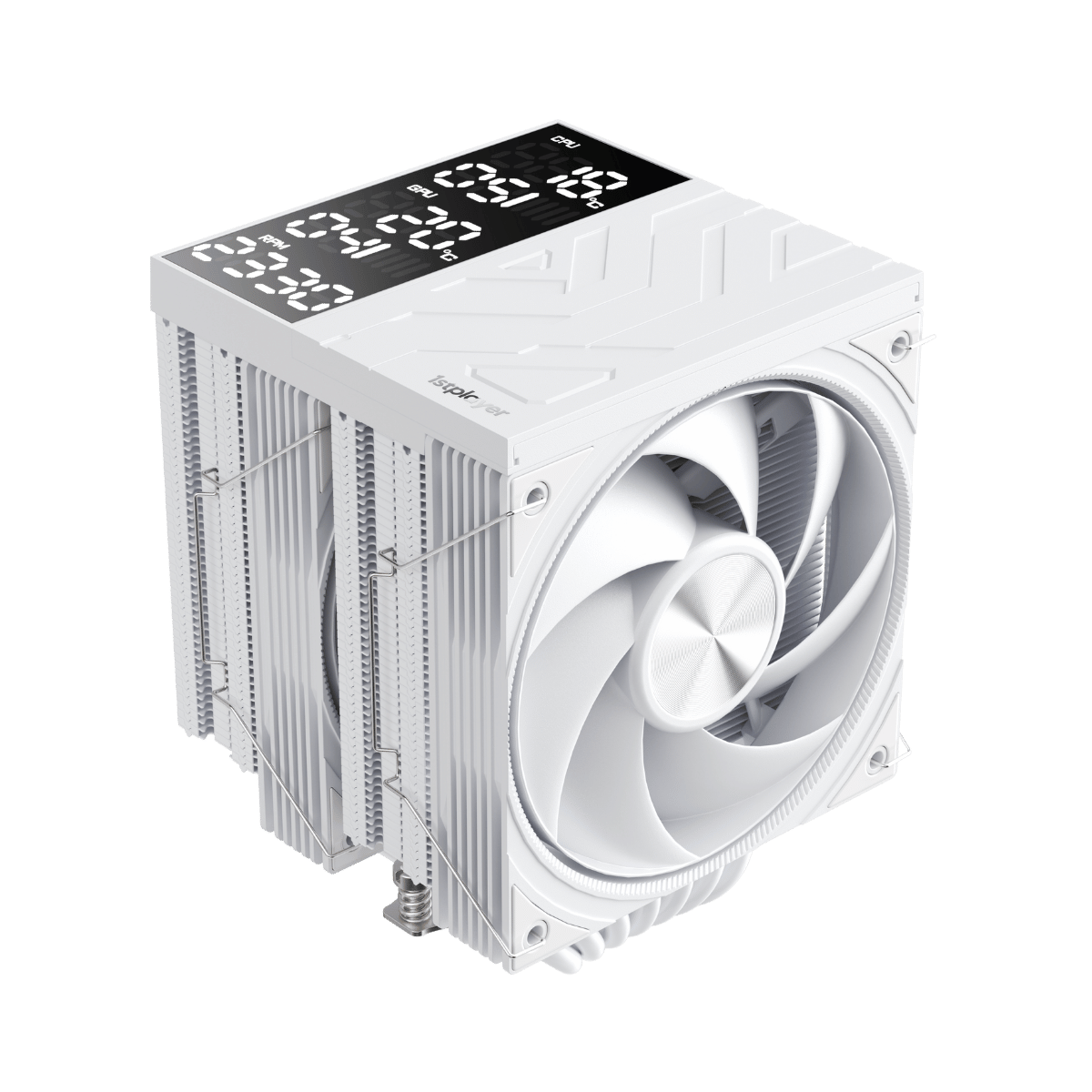

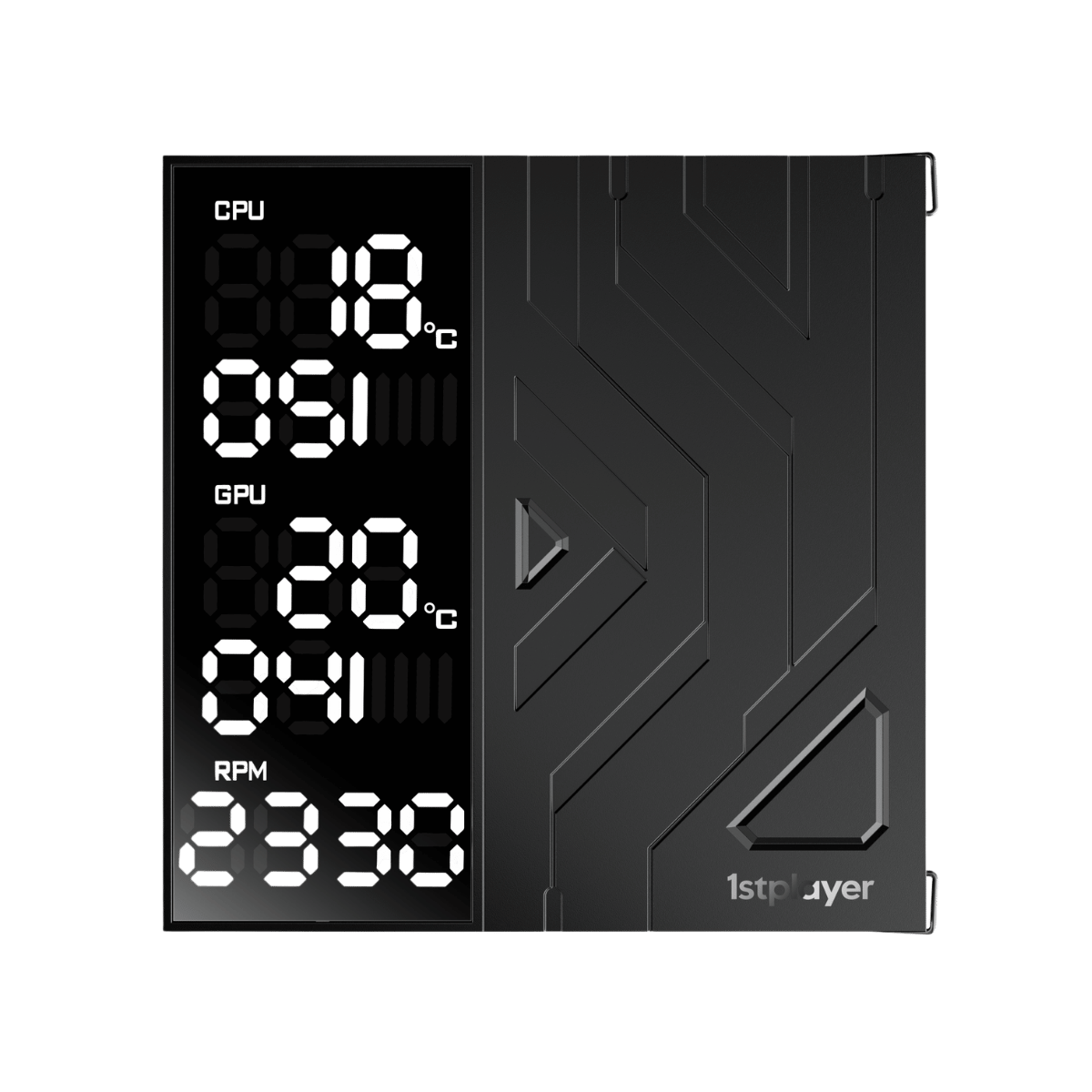

  • 7-Segment Display: Monitors CPU/GPU temps and fan speed in real time

  • 5-Year Warranty: Proven reliability, built to last

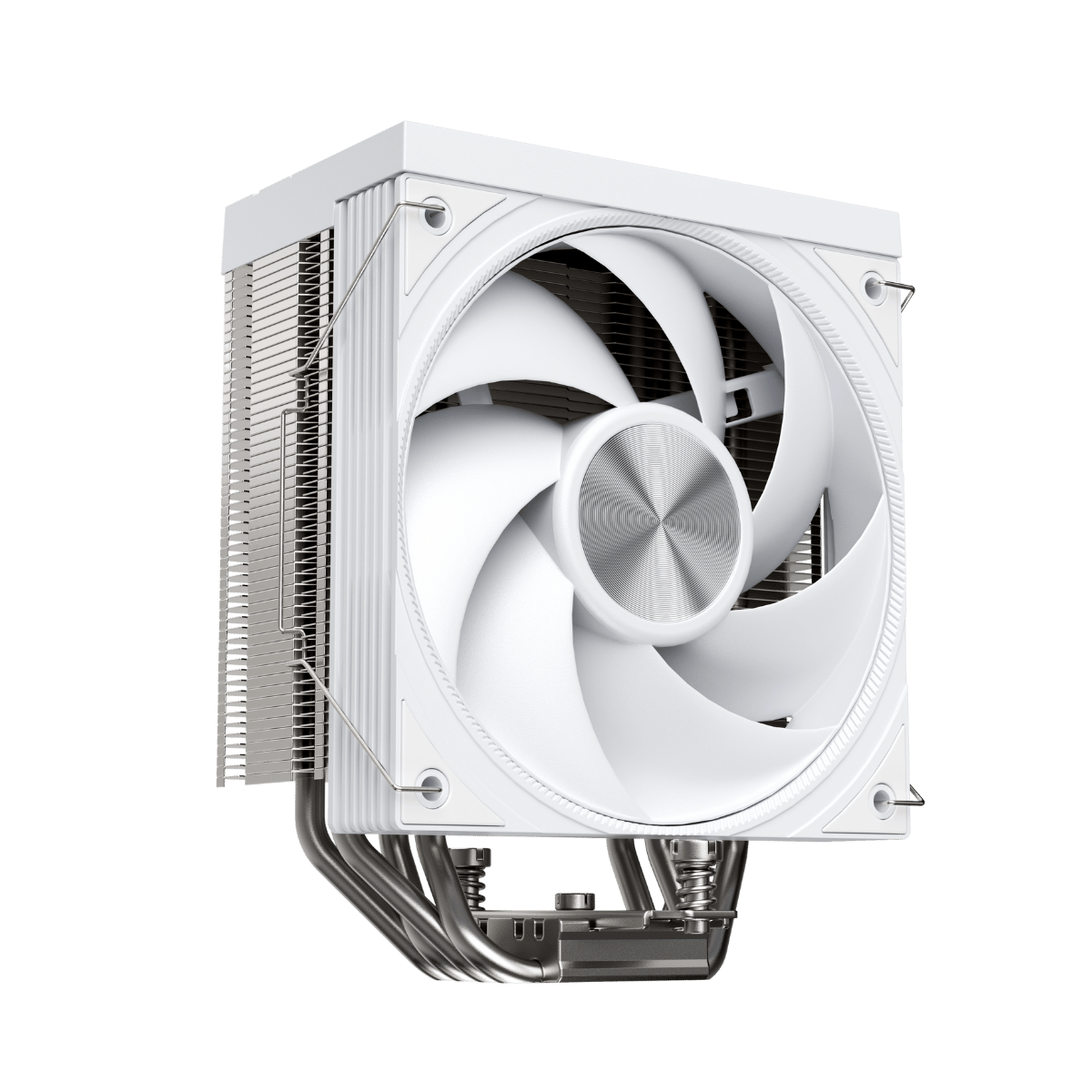

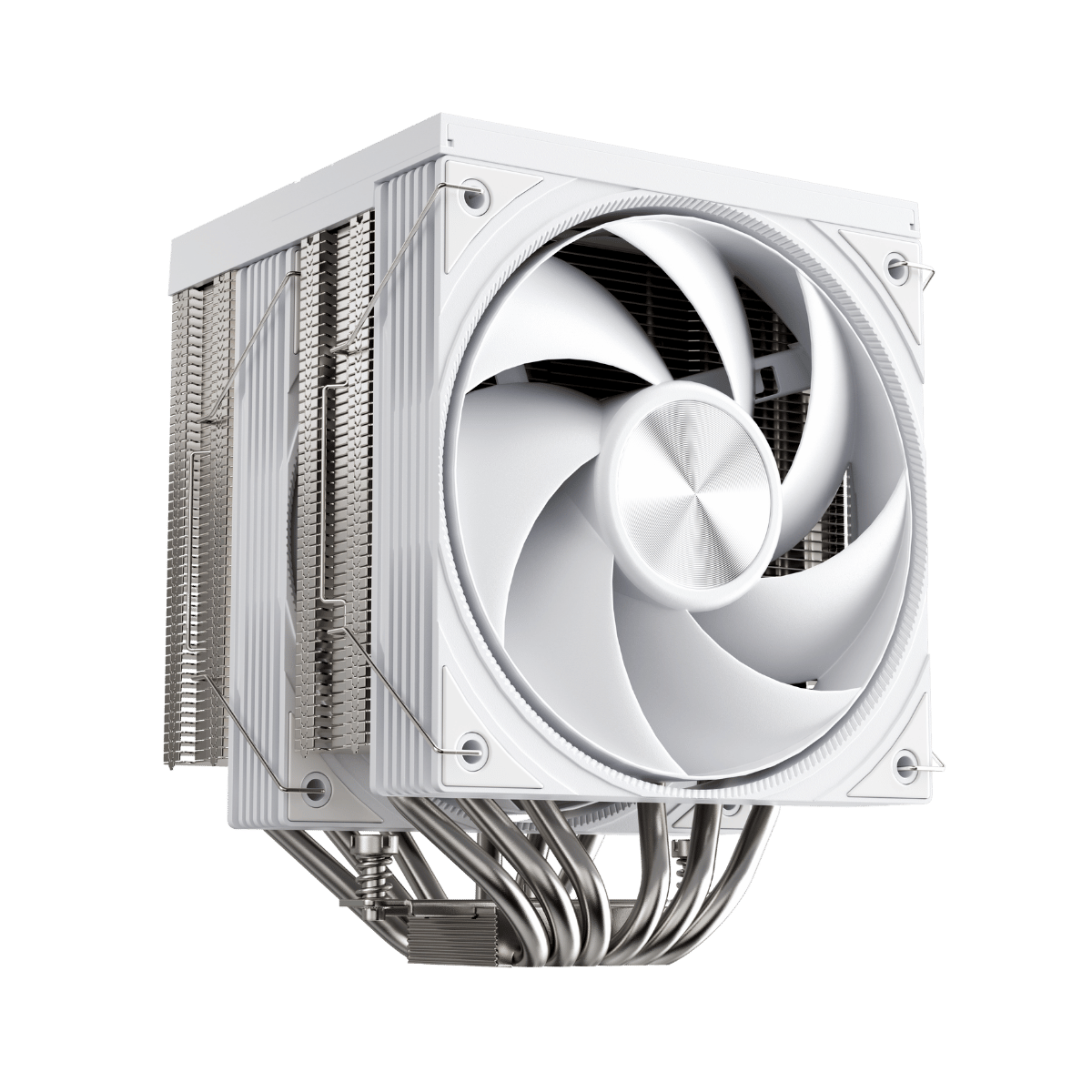

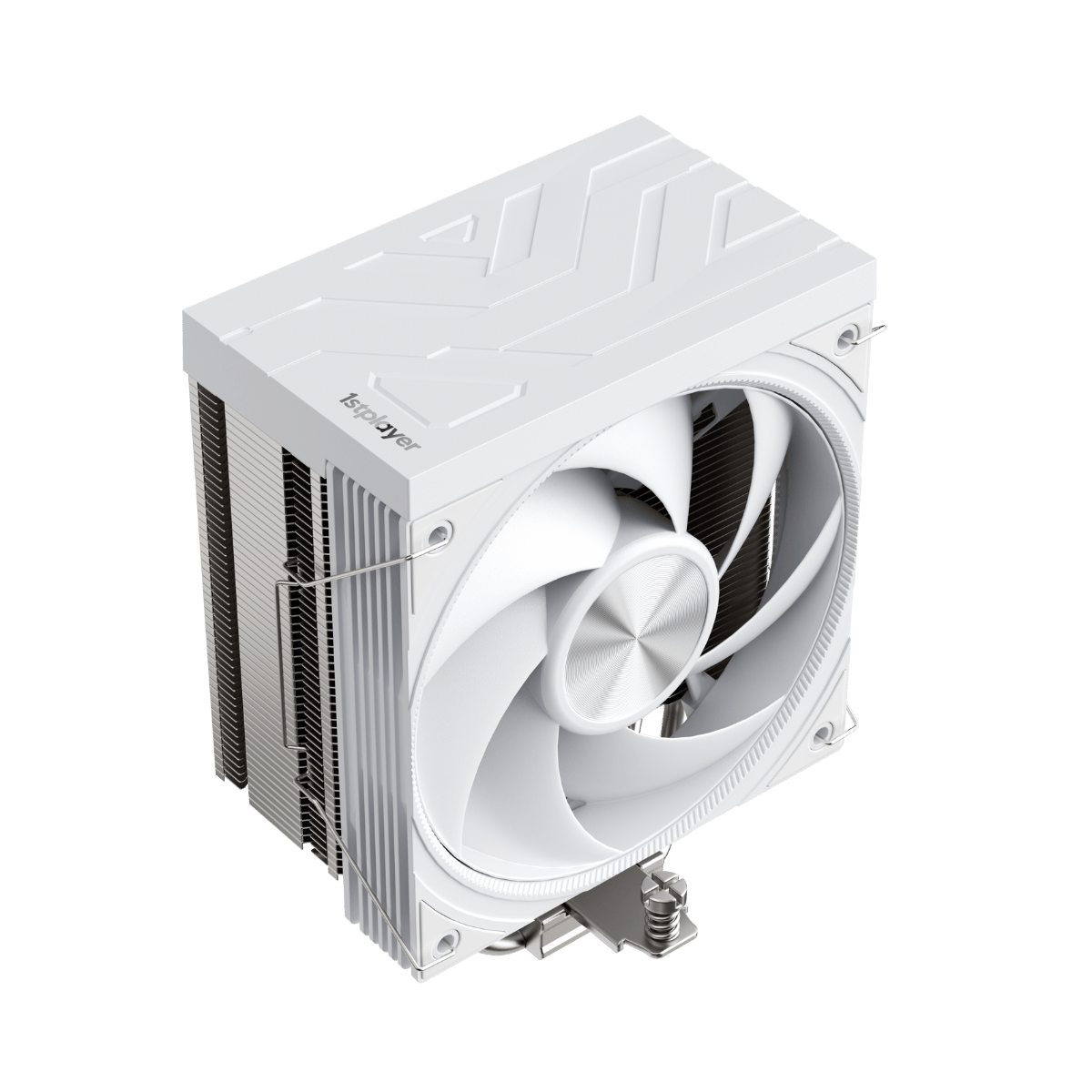

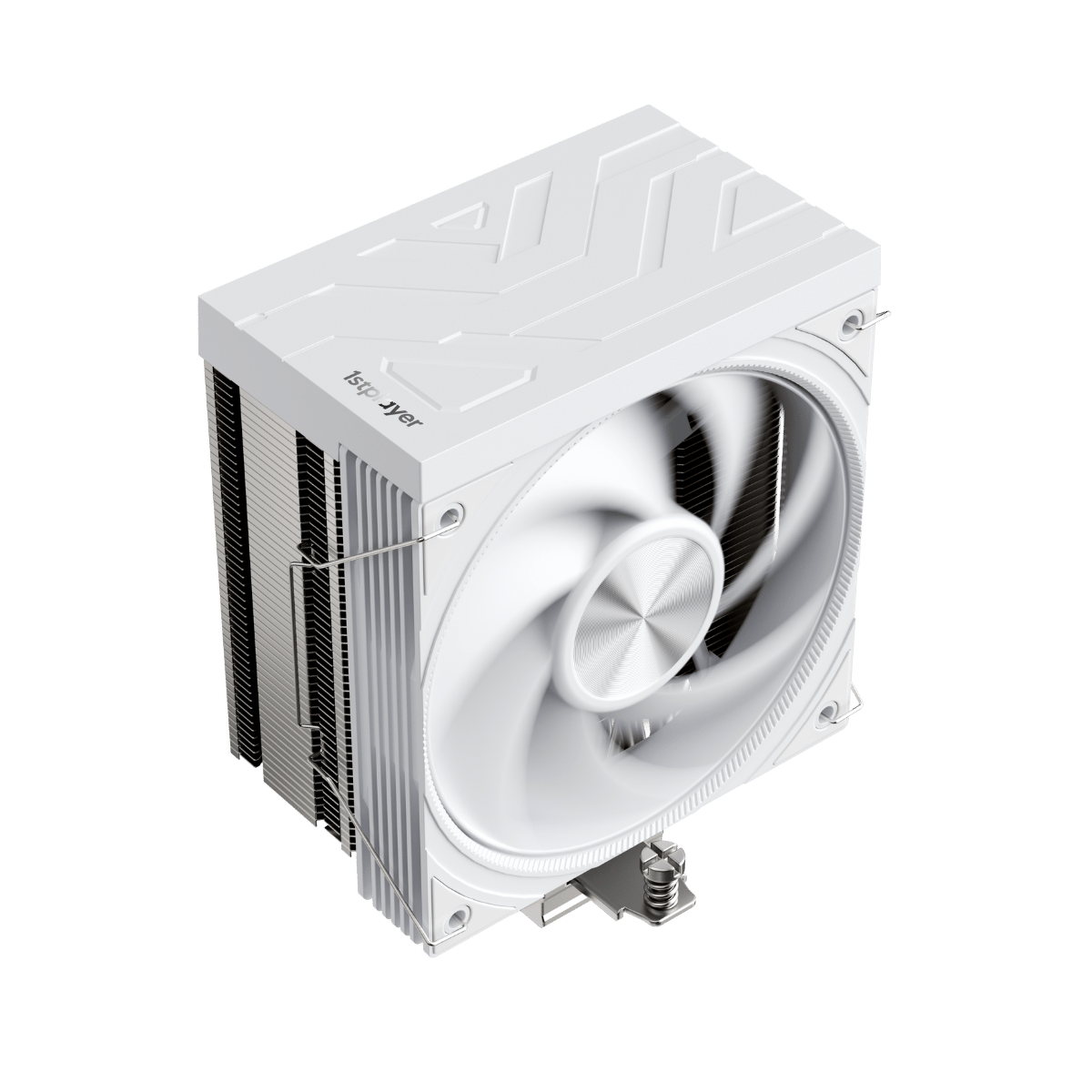

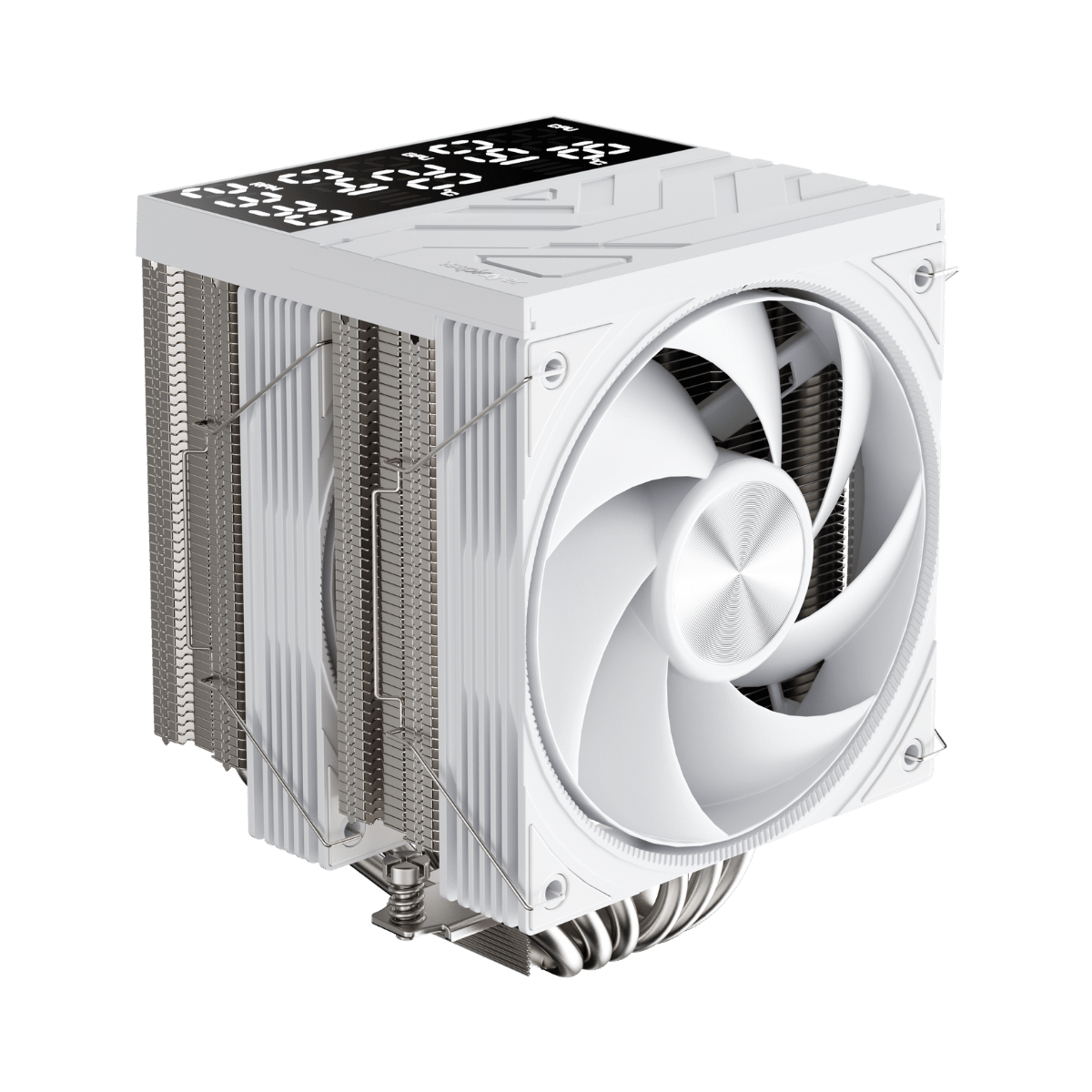

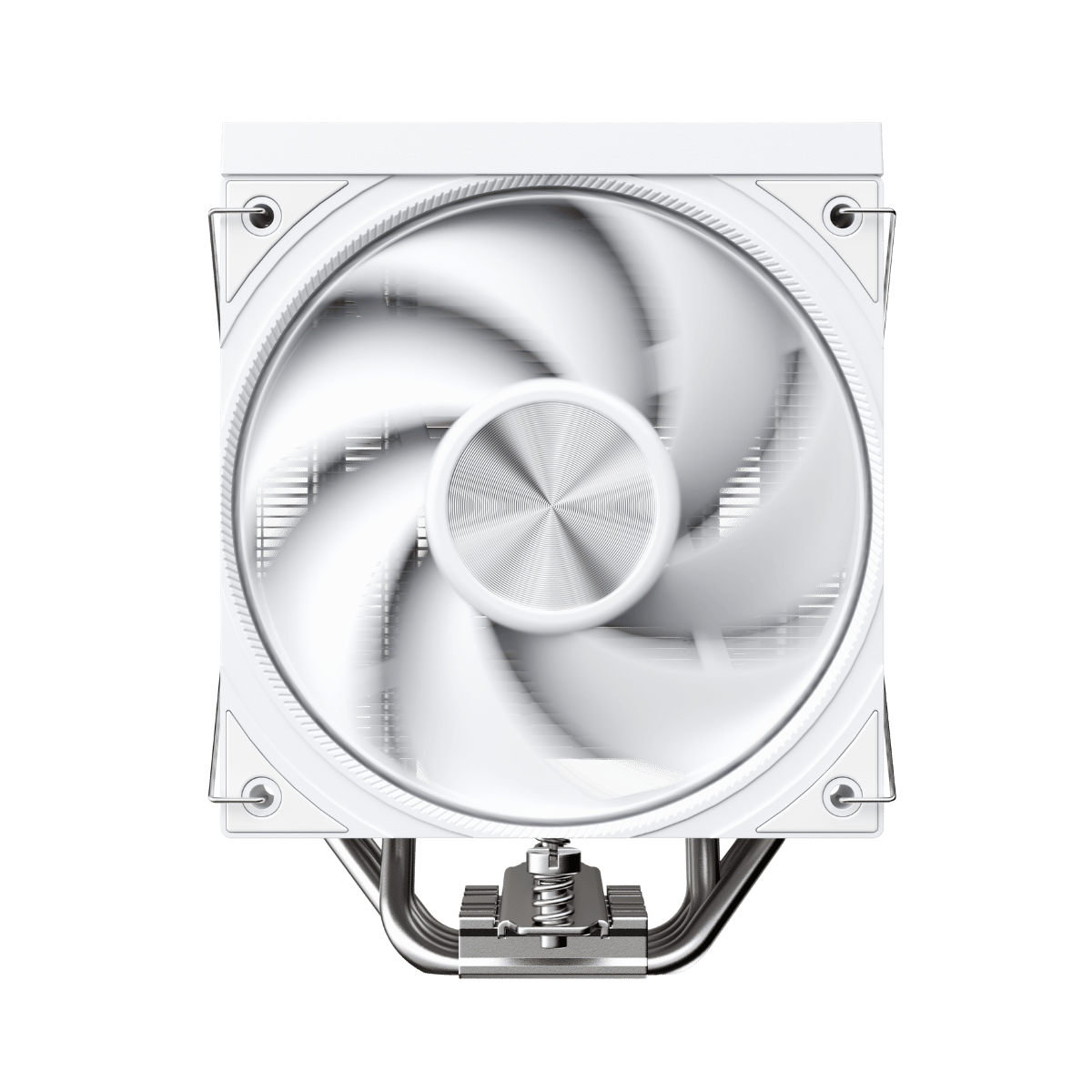

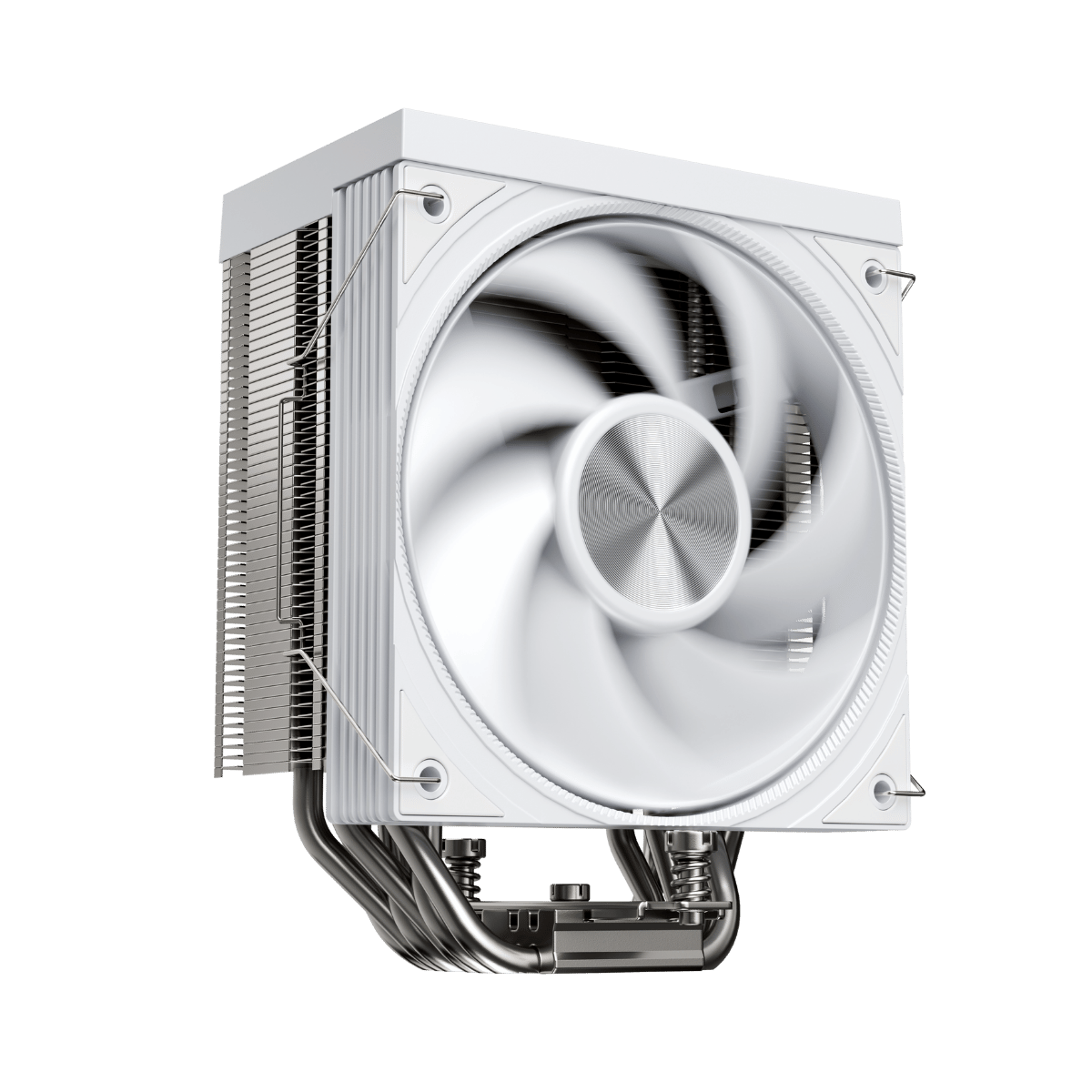

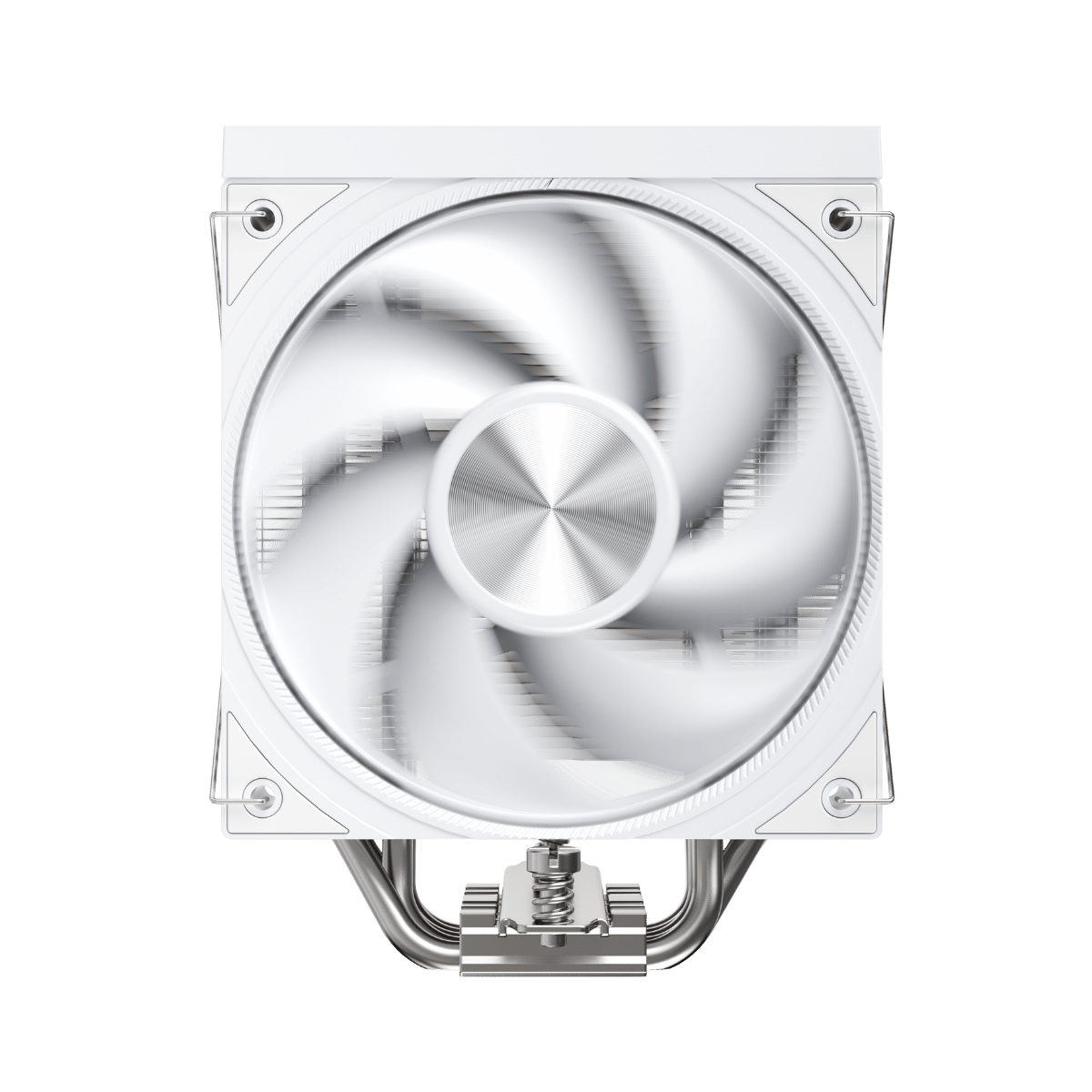

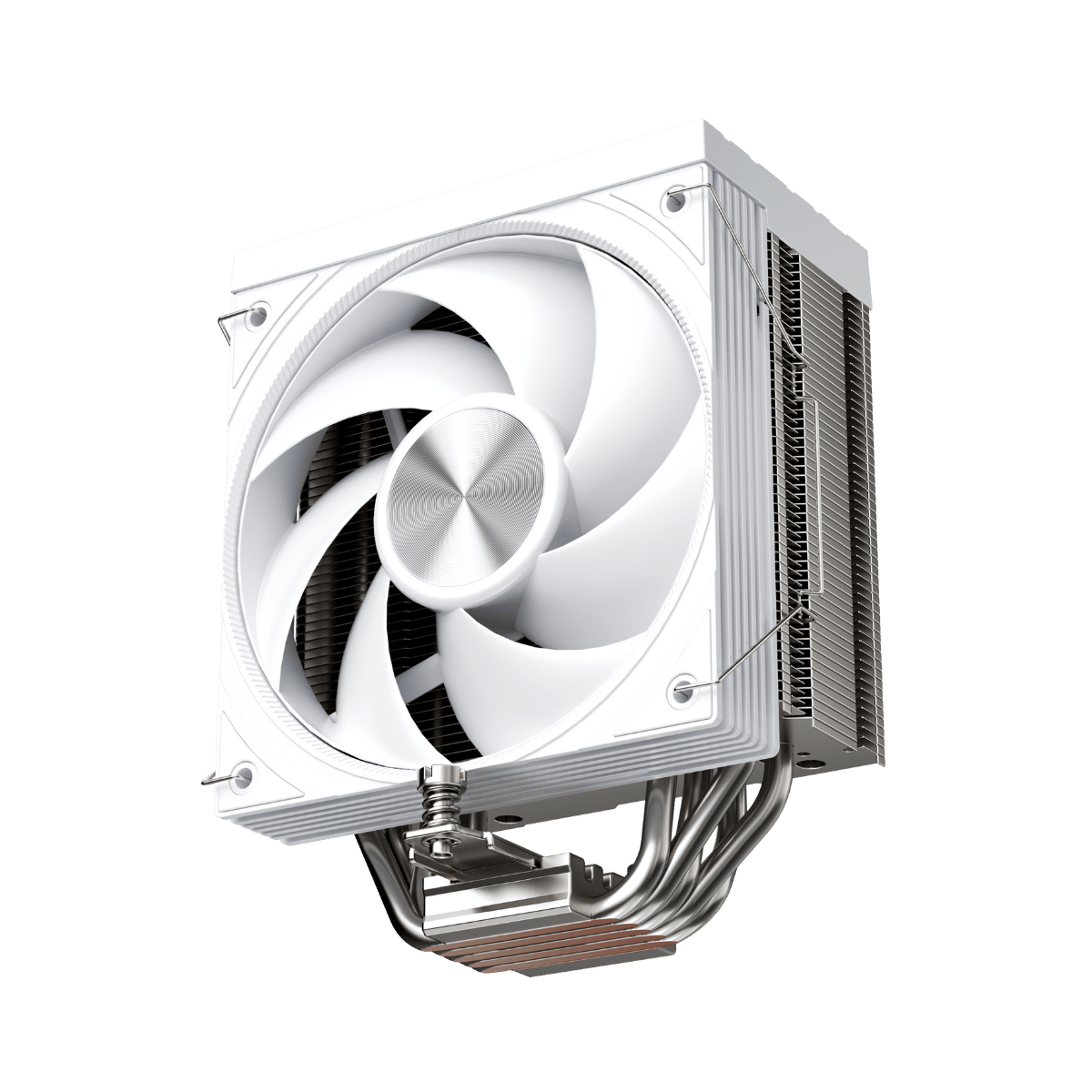

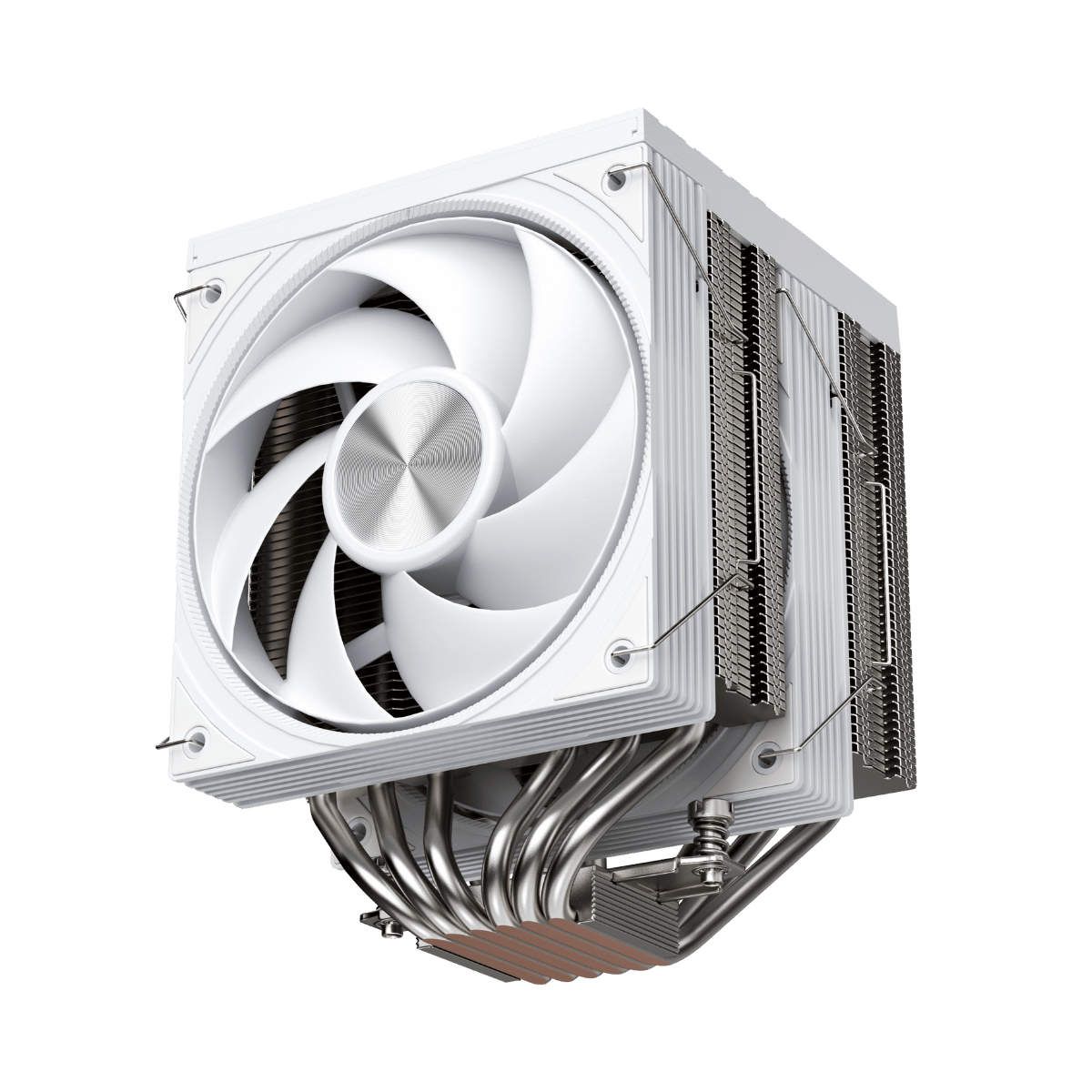

White




MODELFB12-4
FB12-5FB12S-6FB12DS-6FB12DS-7
MONITORING SCREENNONOYESYESYES
CONNECTOR 4-Pin(PWM)4-Pin(PWM)

4-Pin(PWM) USB 2.0

4-Pin(PWM) USB 2.04-Pin(PWM) USB 2.0TDP

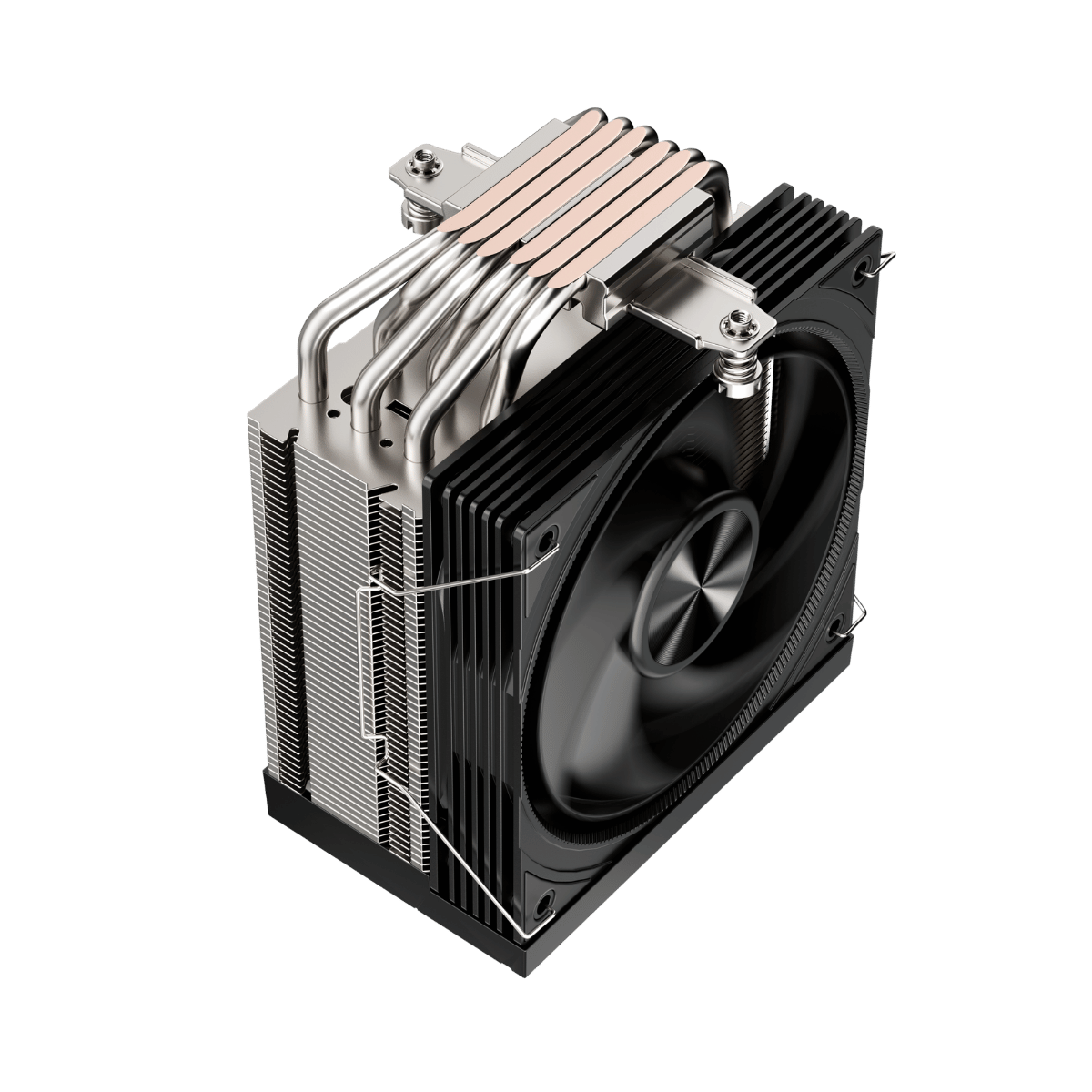

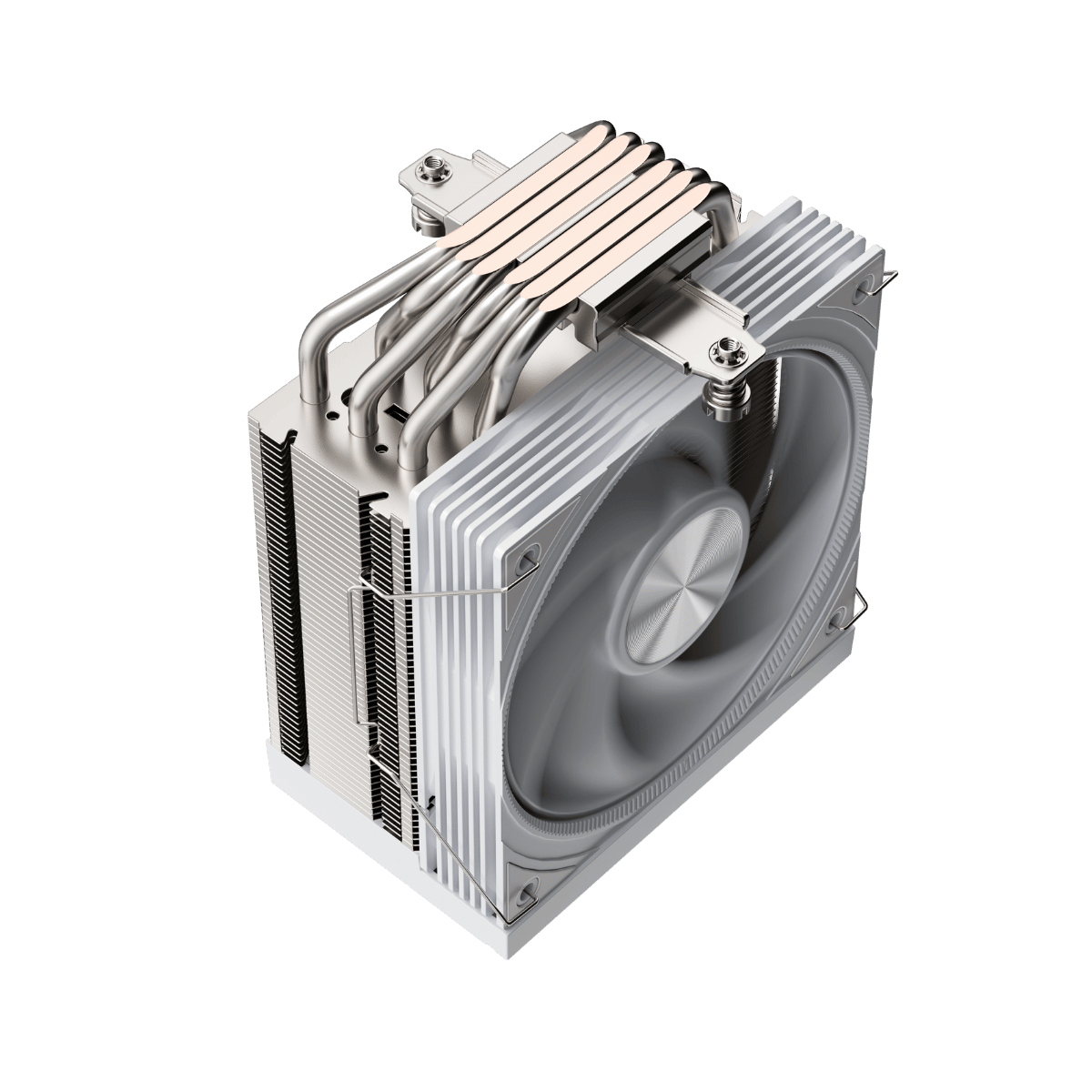

HEATPIPE CONFIGURATION



CY12 / CY12L: 4 x Ø6 mm                                           CY12-D / CY12LD: 6 x Ø6 mmHEATPIPE MATERIAL



Copper

FAN DIMENSION (L x W x H)





120 x 120 x 25 mmFAN RATED VOLTAGE



DC 12VFAN RATED CURRENT



0.17 A ± 10%FAN RATED POWER



2.04 W ± 10%FAN LEAVES



9
CABLE LENGTH
500 mm ± 10 mm
CPU COOLER HEIGHT
CY12 / CY12L:  155 mm                                     CY12D / CY12LD: 160 mm
FAN BEARING
Hydraulic bearing
FAN MAX AIRFLOW
57.56 CFM
FAN STATIC PRESSURE
2.48 mm-H₂O
FAN SPEED

750-1900 ± 10% RPM

FAN NOISE LEVEL

38.21dB @ 1000 mm
FAN LIFE SPAN
30,000/hrs @ 25℃
NO. of POLE
4 (Poles)
SUPPORTED CPU
Intel 1851 / 1700 / 1200 / 115x, AMD AM4 / AM5
WARRANTY
5 years
