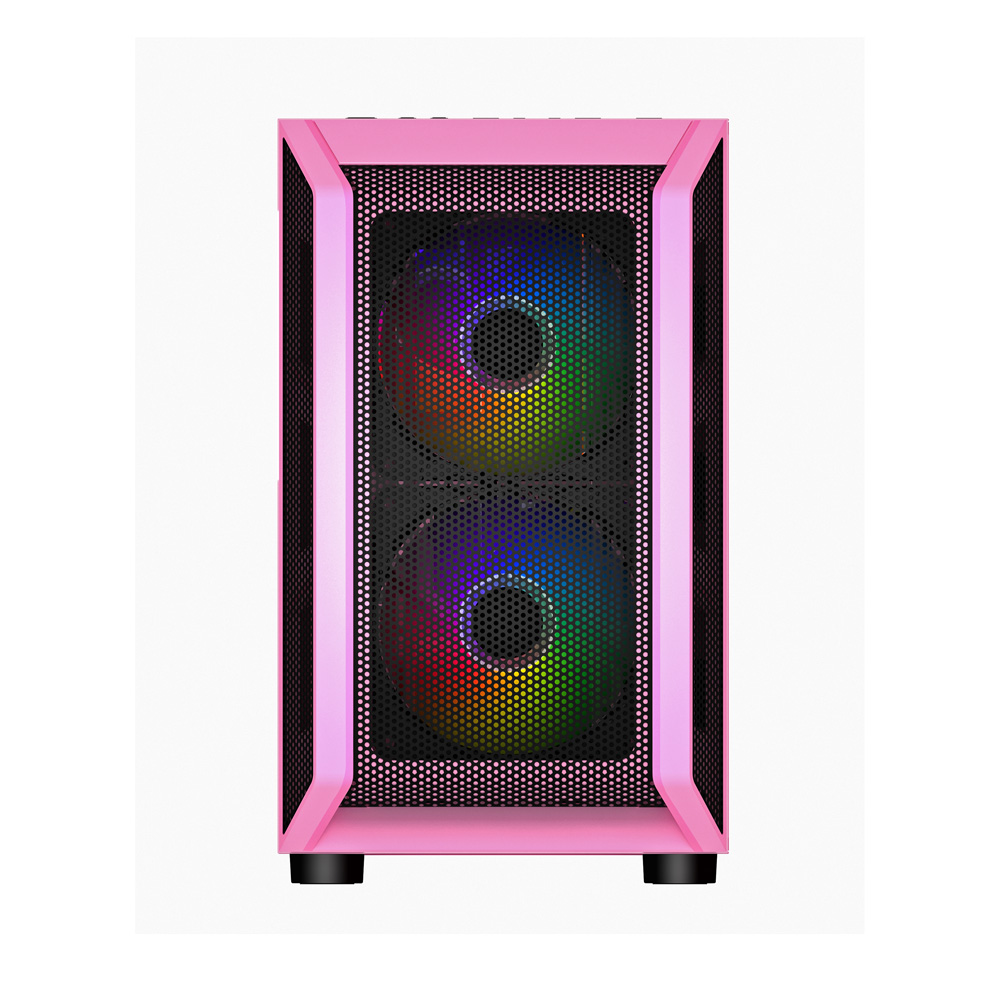

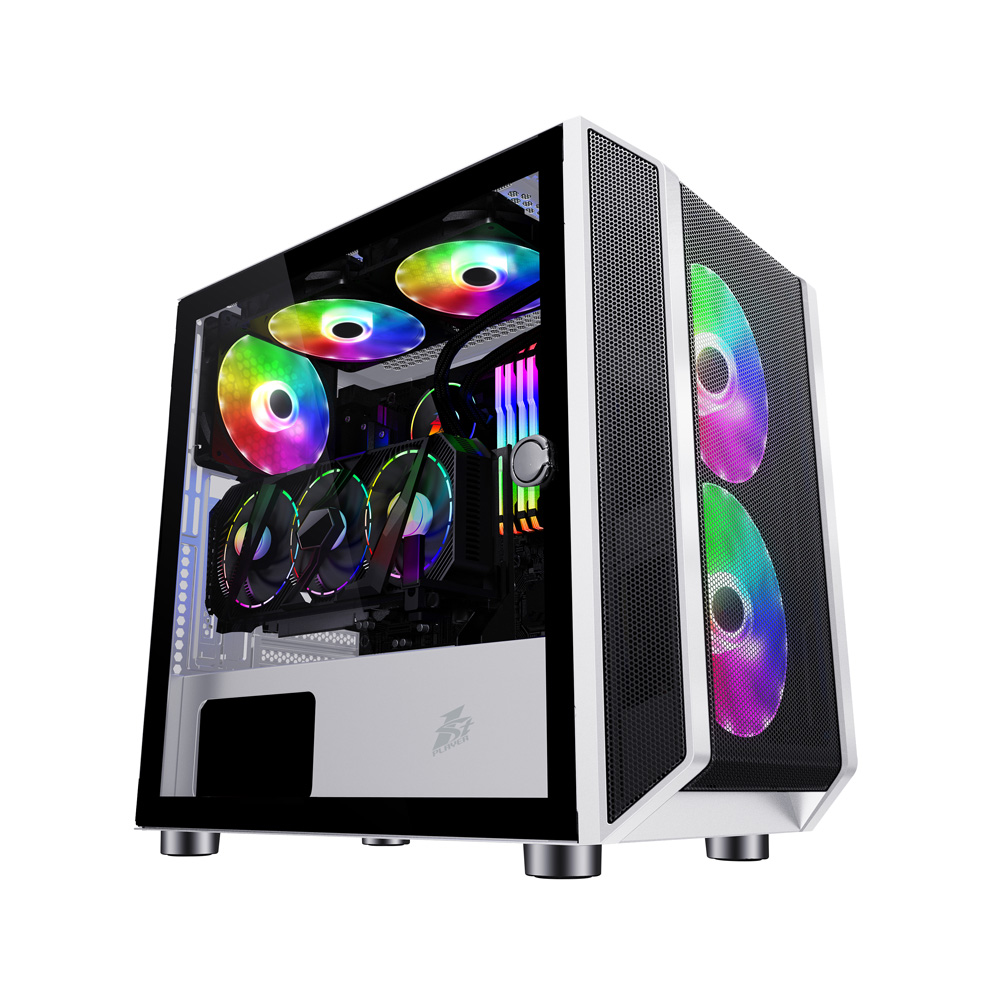

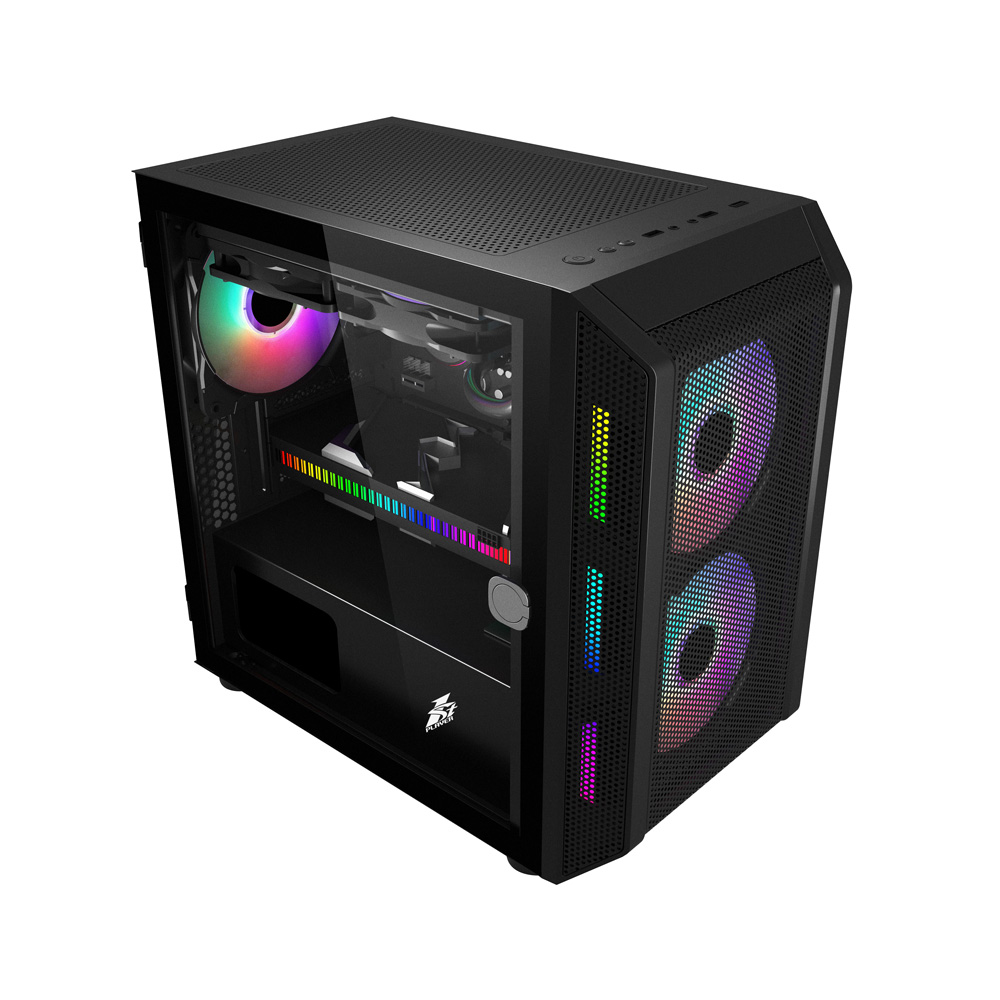

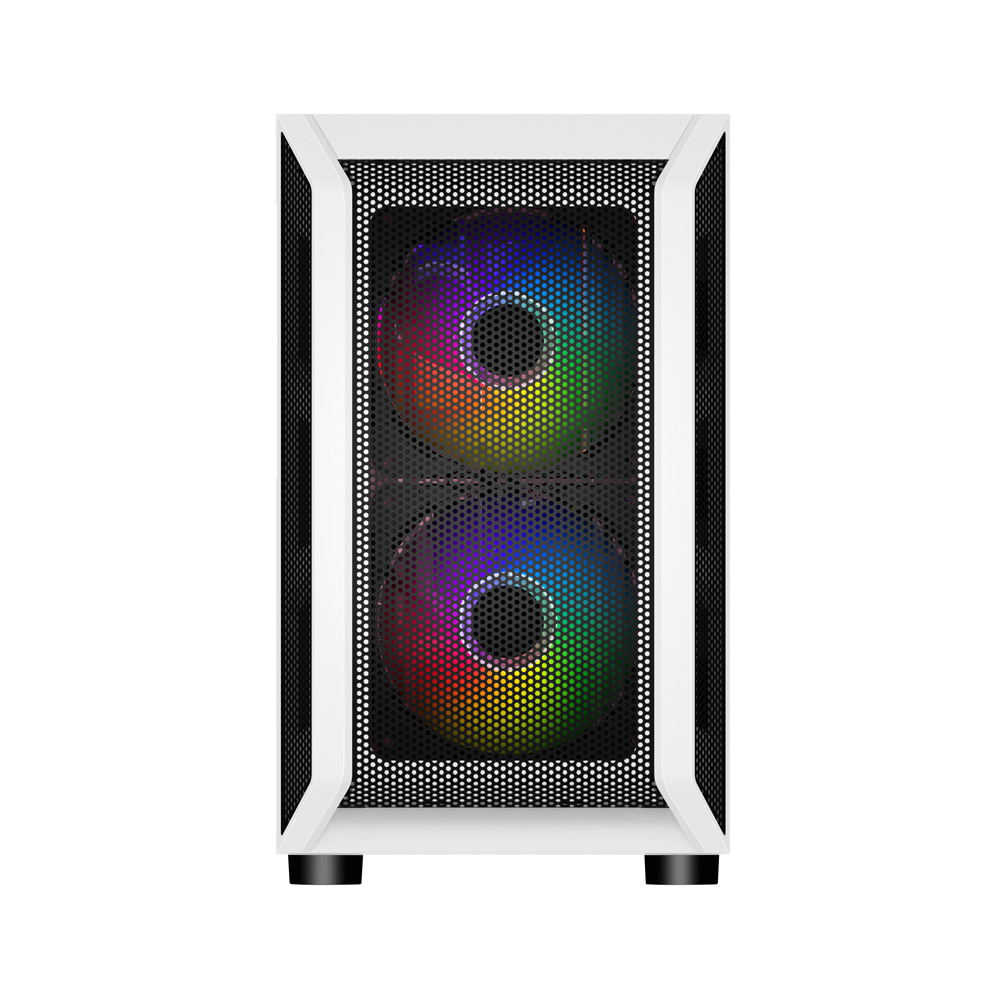

D3

1STPLAYER Gaming Case

DK series Micro ATX Case.


· D3 (Black)

· Liquid Cooling Support(Fans are Optional)  TOP:24cm

· Fans Support: 7fans

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD:2  2.5" SSD:3

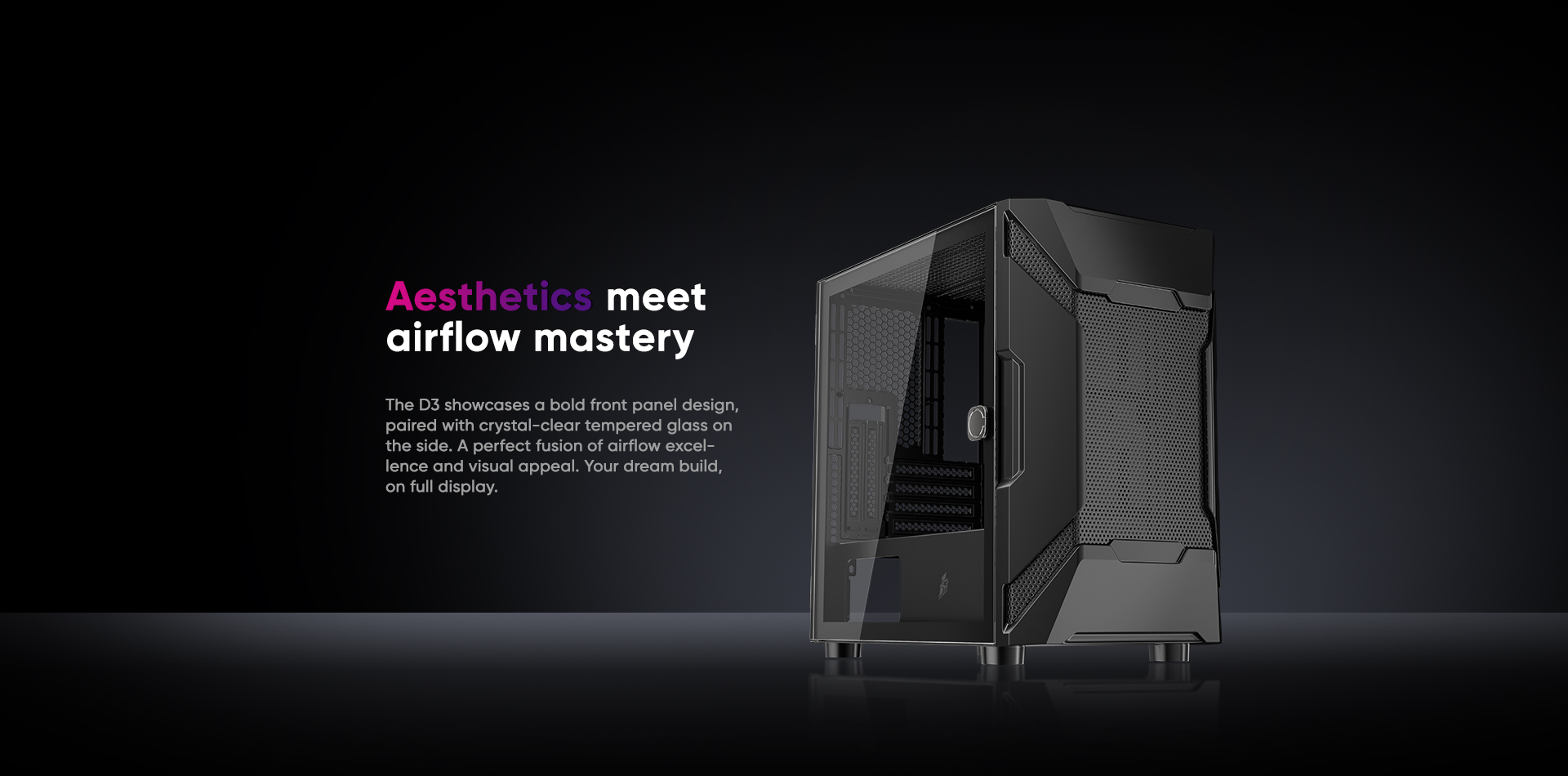

· Left Side Panel:Tempered Glass




DK-D3

Micro ATX Case

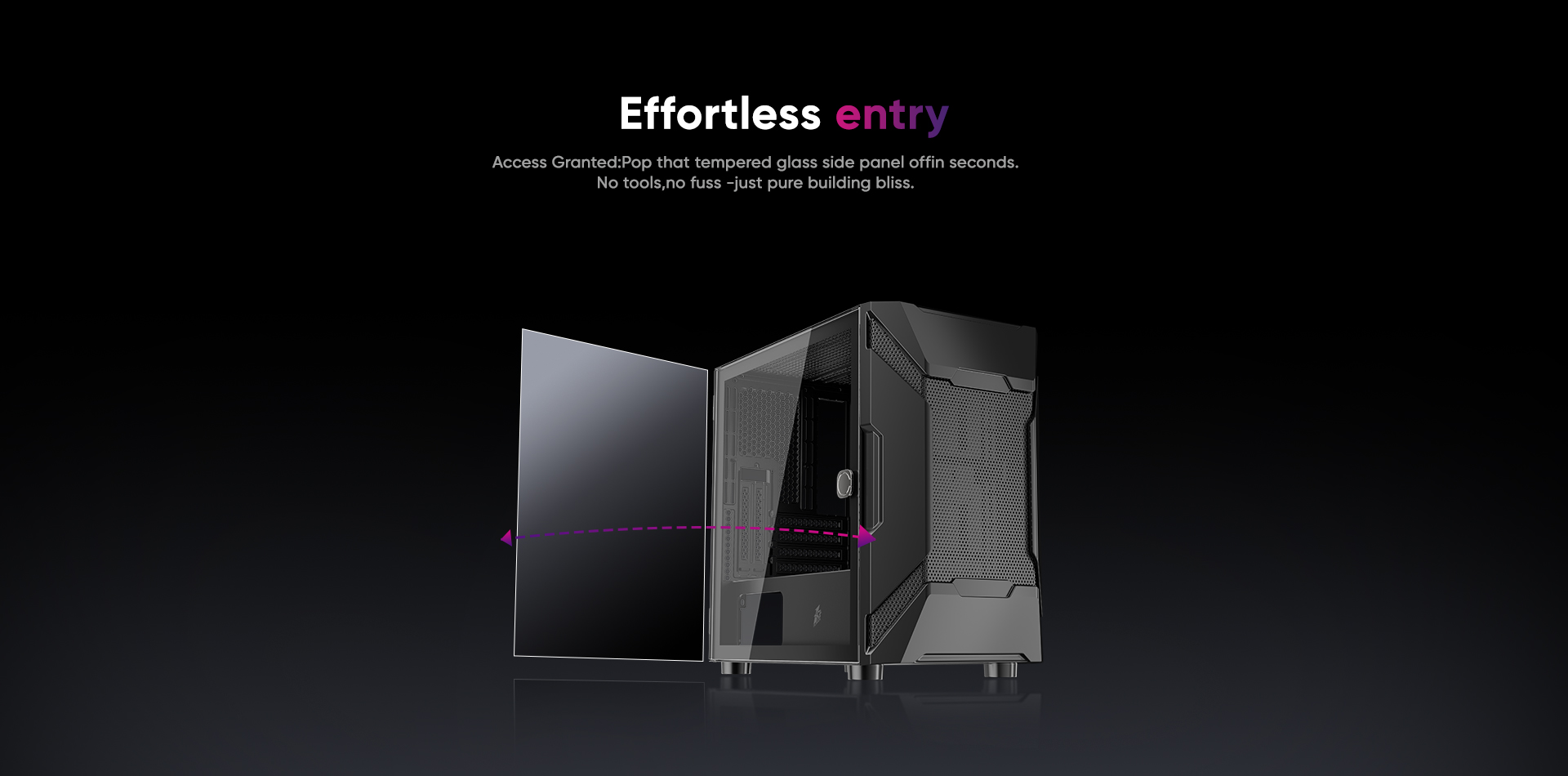

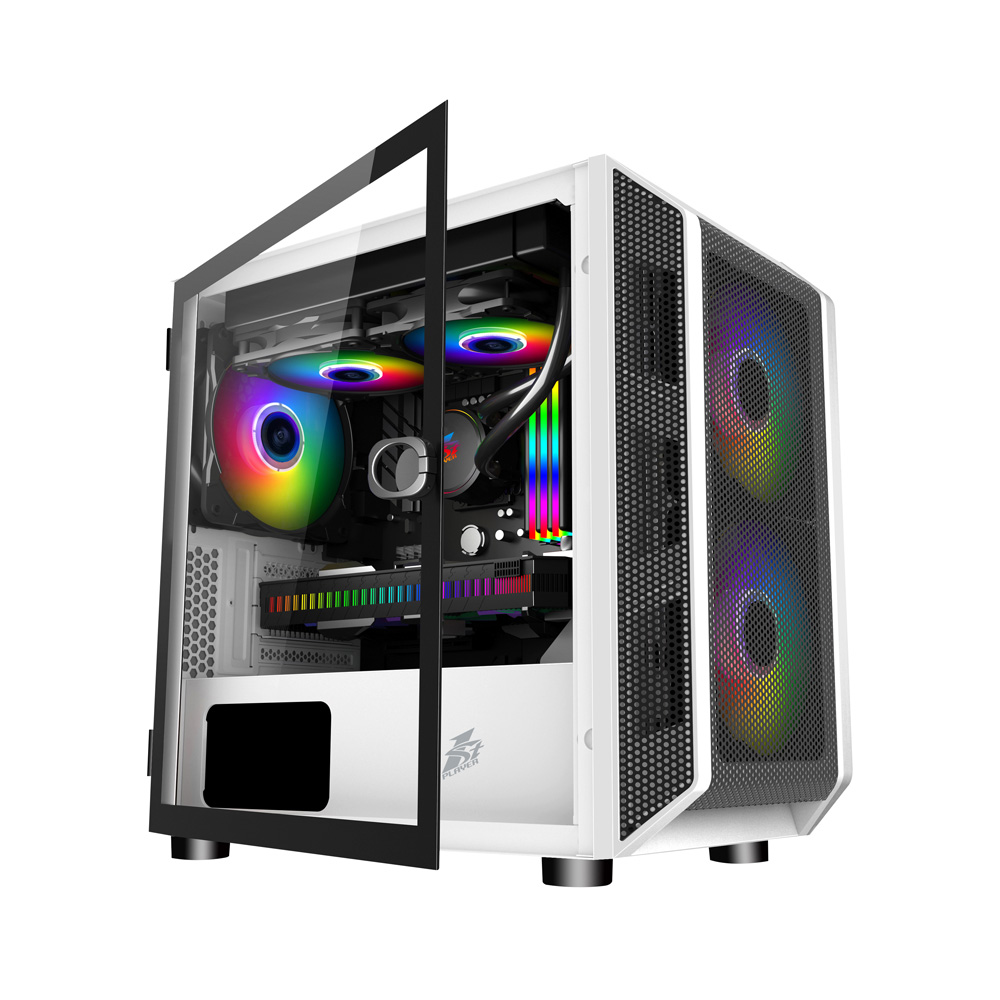

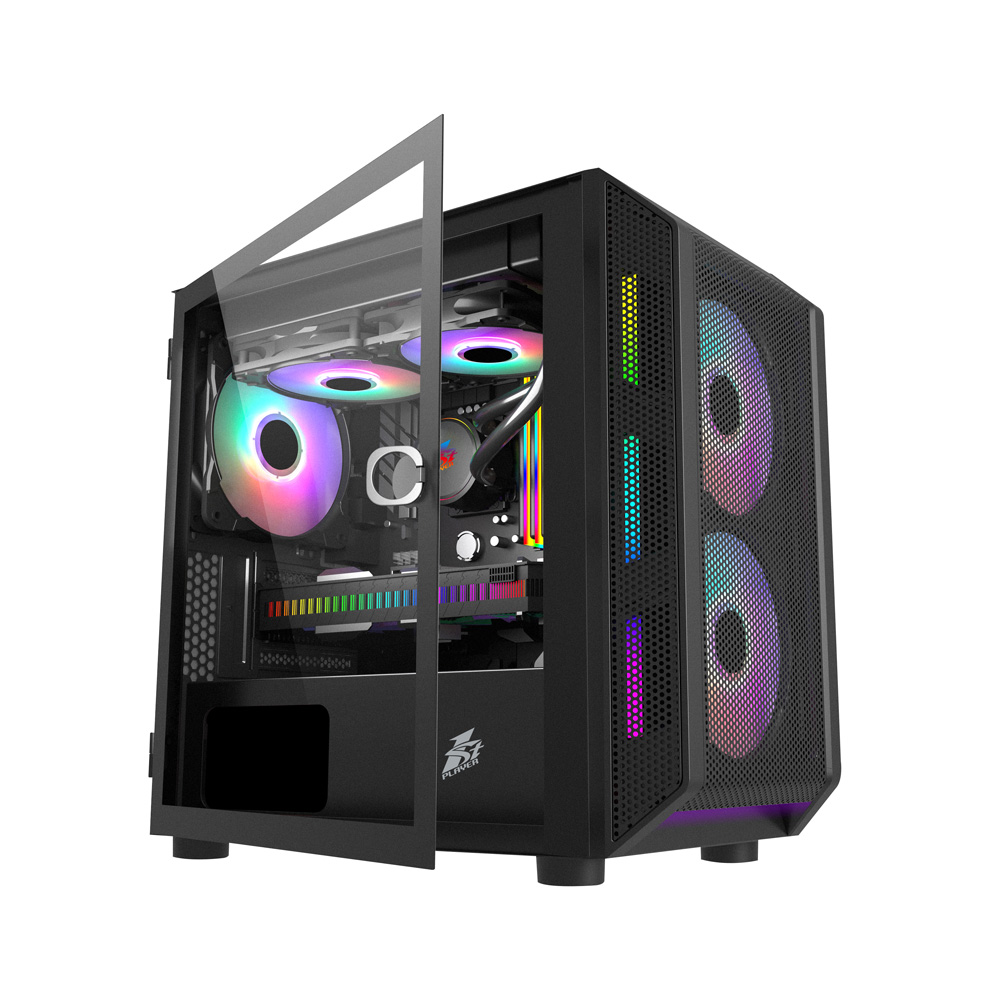

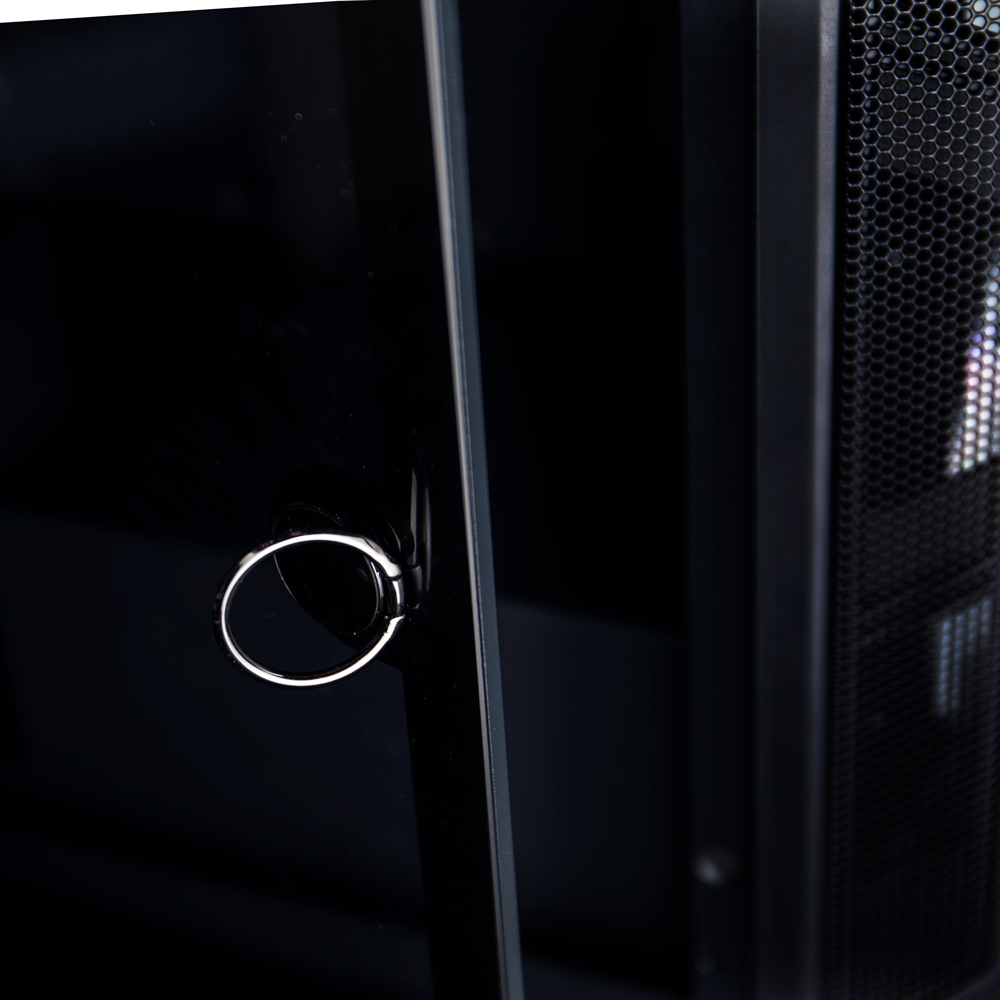

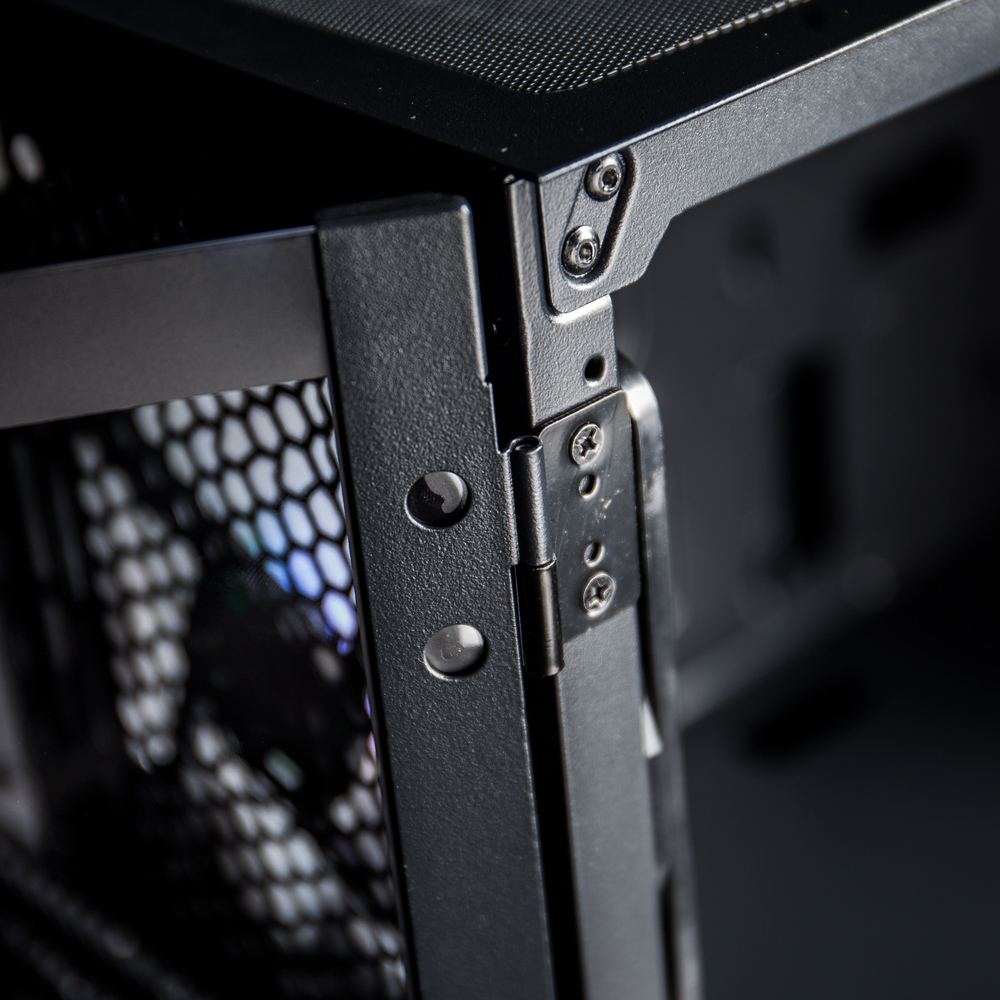

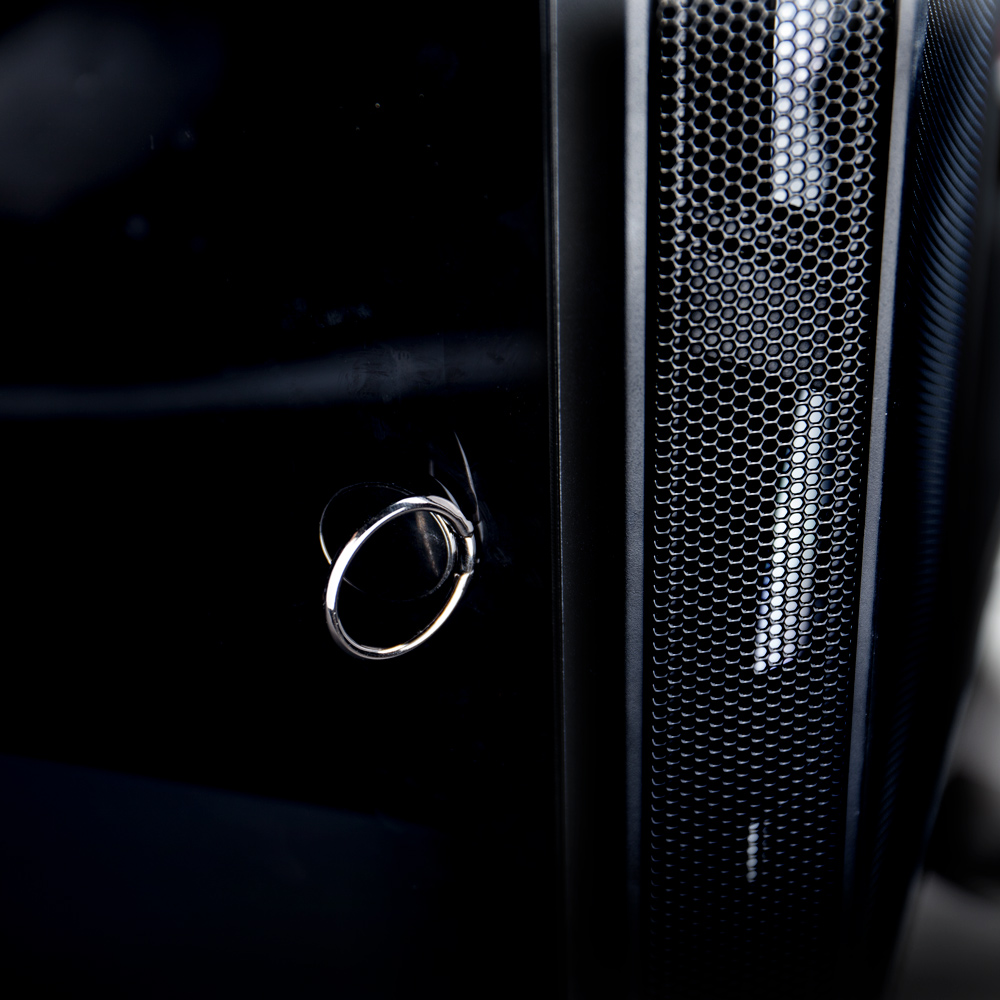

Iron Mesh Style/Hinged Side Panel/230MM Wide Body/240MM AIO Liquid Cooler Support.

ASSEMBLY

SHOWCASE +

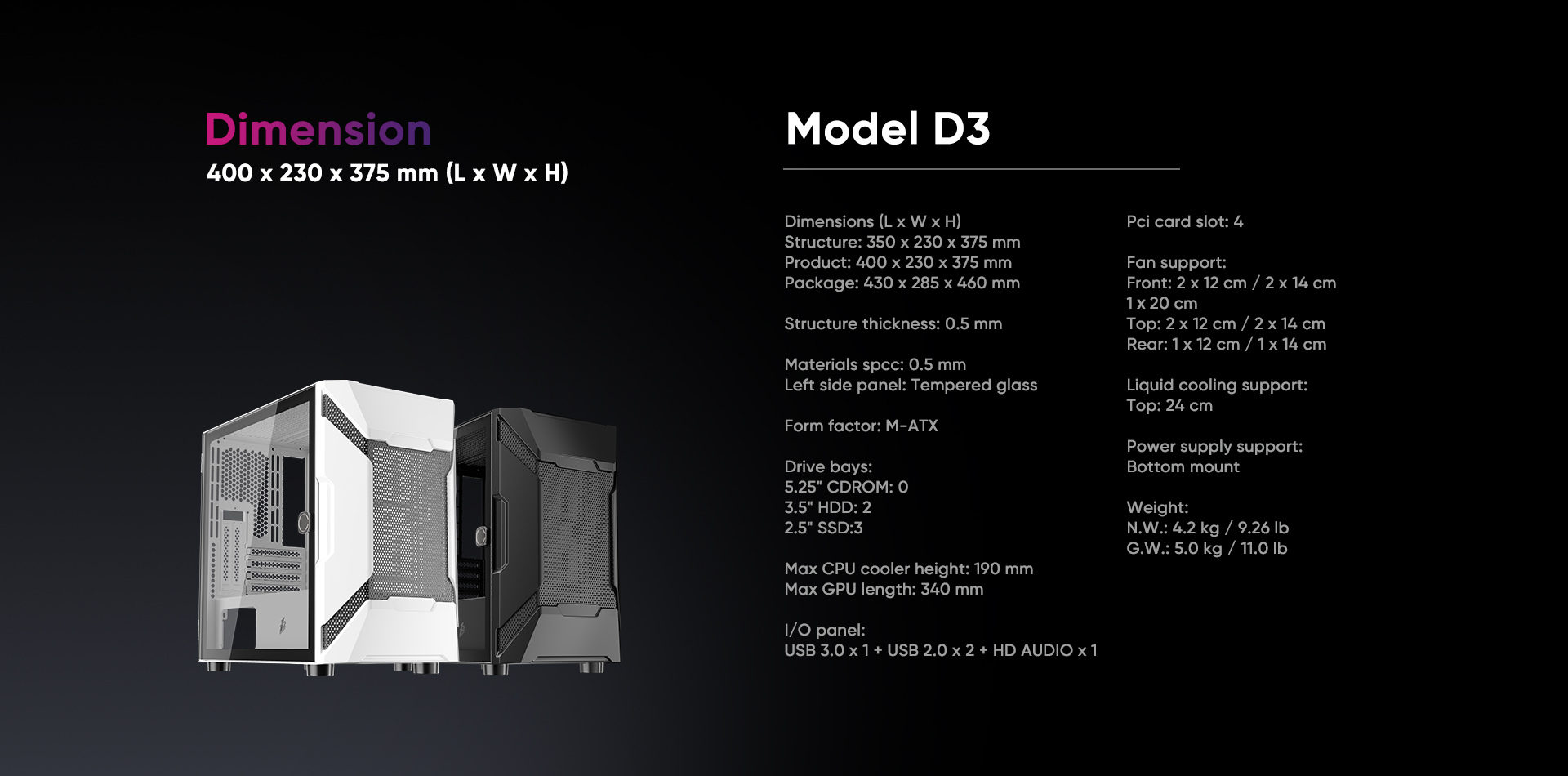

Model

D3

Structure Dimensions(L*W*H)

350*230*375MM

Product Dimensions(L*W*H)

400*230*375MM

Package Dimensions(L*W*H)

430*285*460MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM & LEFT SIDE PANEL:TEMPERED GLASS

Form Factor

M-ATX

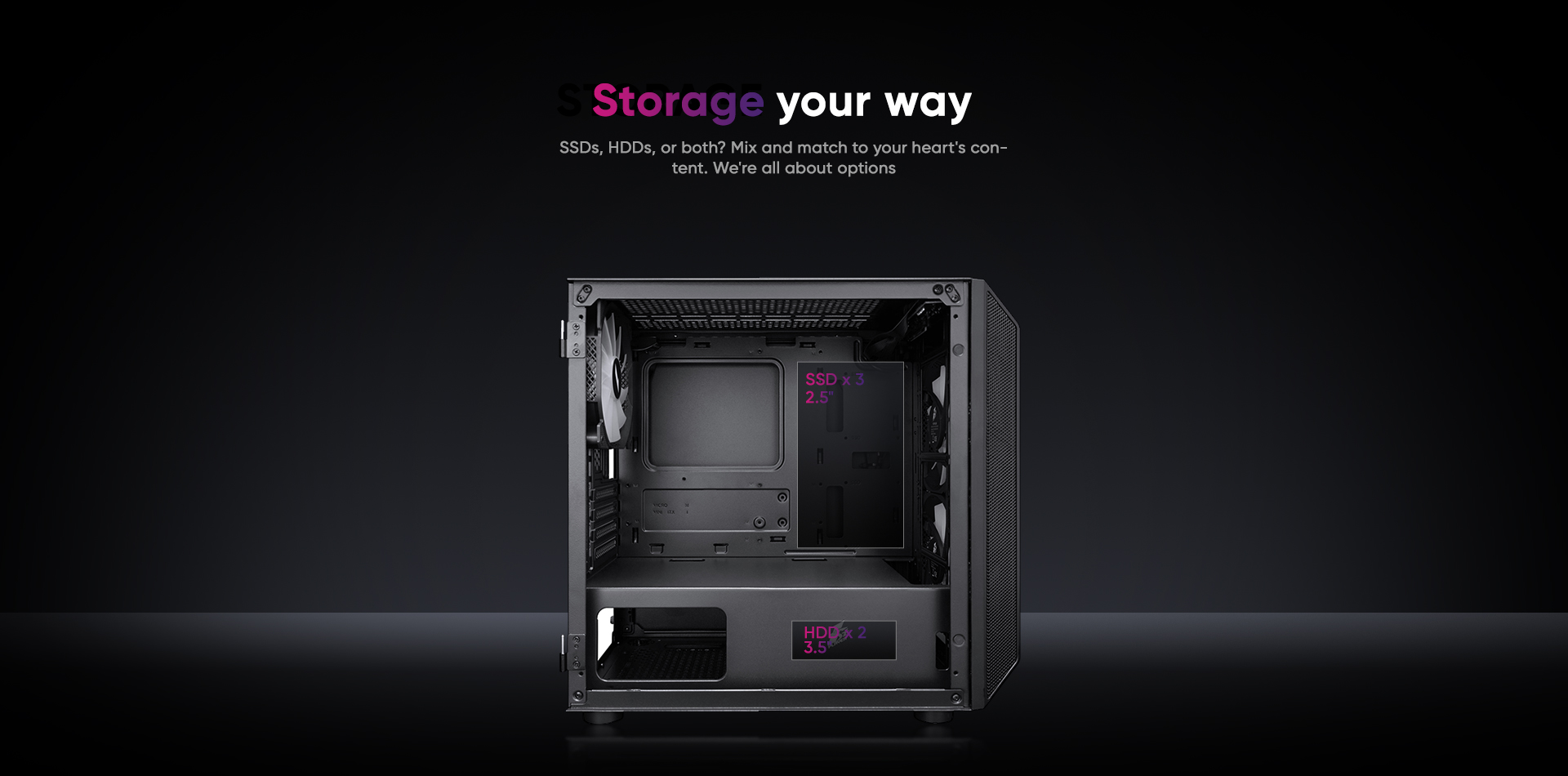

Drive Bays

"5.25”CD ROM:0

3.5”HDD:2

2.5”SSD:3"

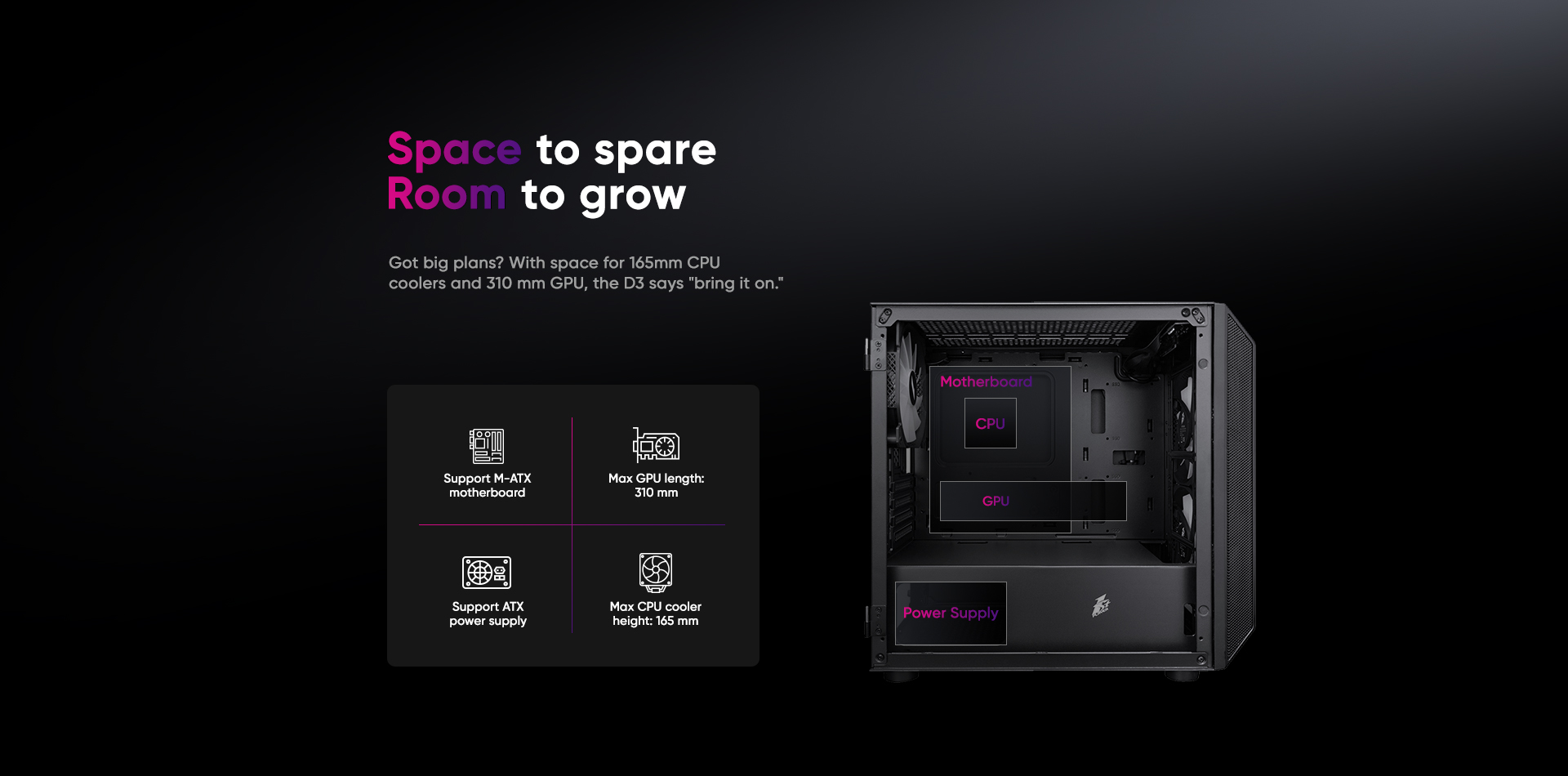

CPU MAX Height
190MM

VGA MAX Length

340MM

Net Weight

4.2KG / 9.26lb
Gross Weight
5.0KG / 11.0lb

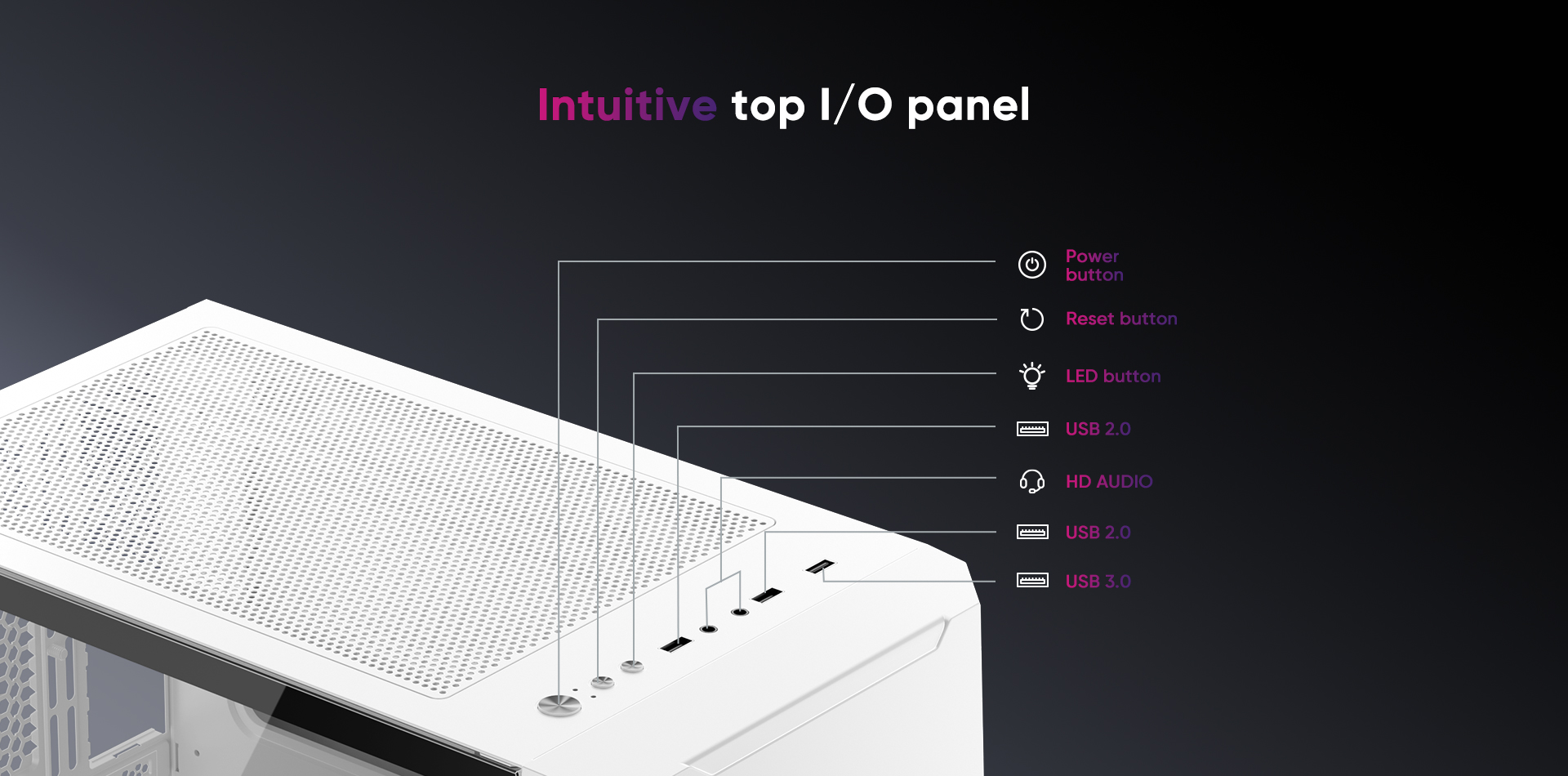

I/O Panel

USB3.0*1+USB2.0*2+HD AUDIO

PCI Card Slot

4

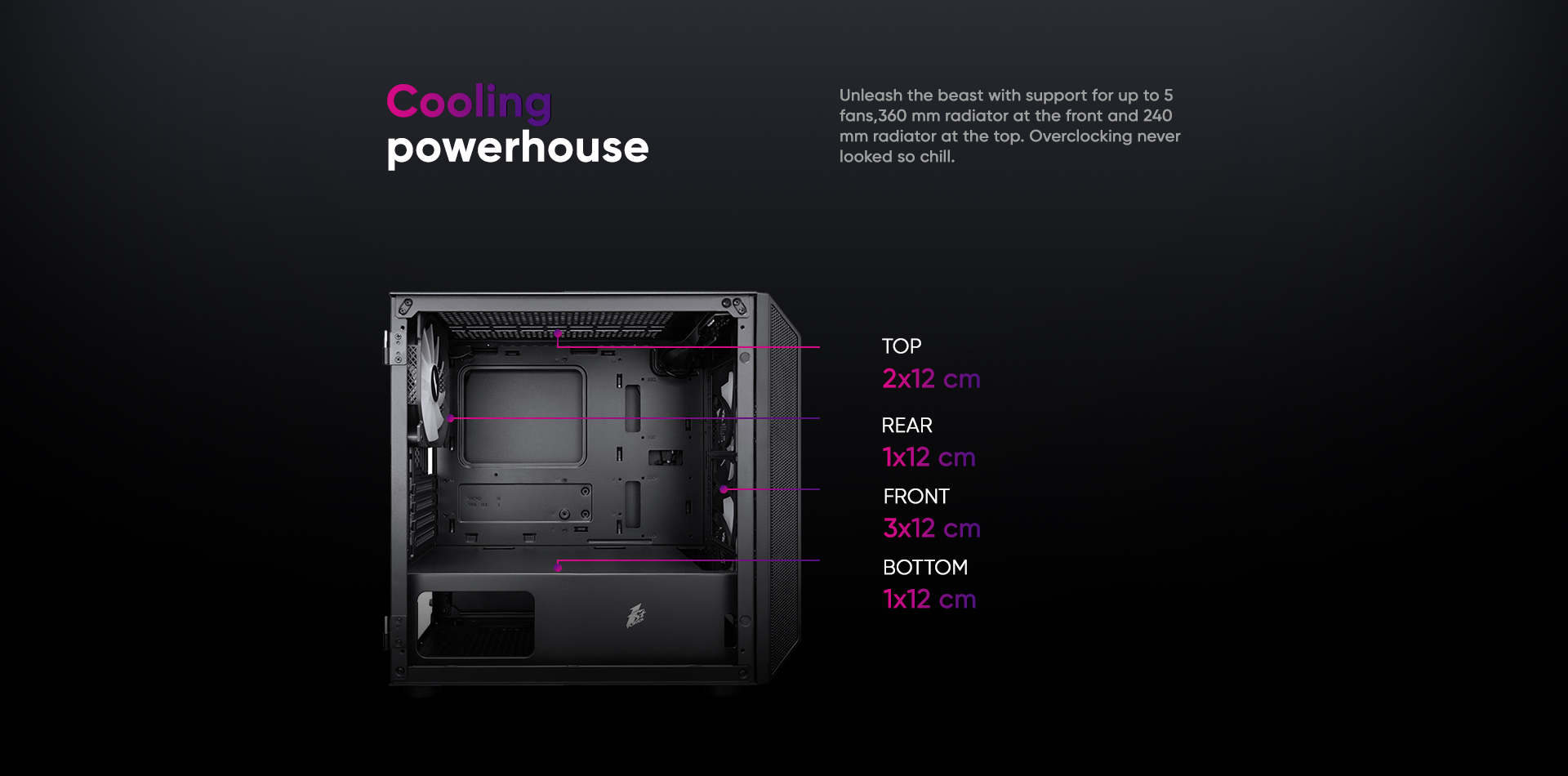

Fan Support

FRONT:2*12CM/2*14CM/1*20CM

REAR:1*12CM/14CM

TOP:2*12CM/14CM"

Liquid Cooling Support

TOP:240 MM

Power Supply Support

BOTTOM MOUNT(ATX)
