D3-A

1STPLAYER Gaming Case

DK series Micro ATX Case

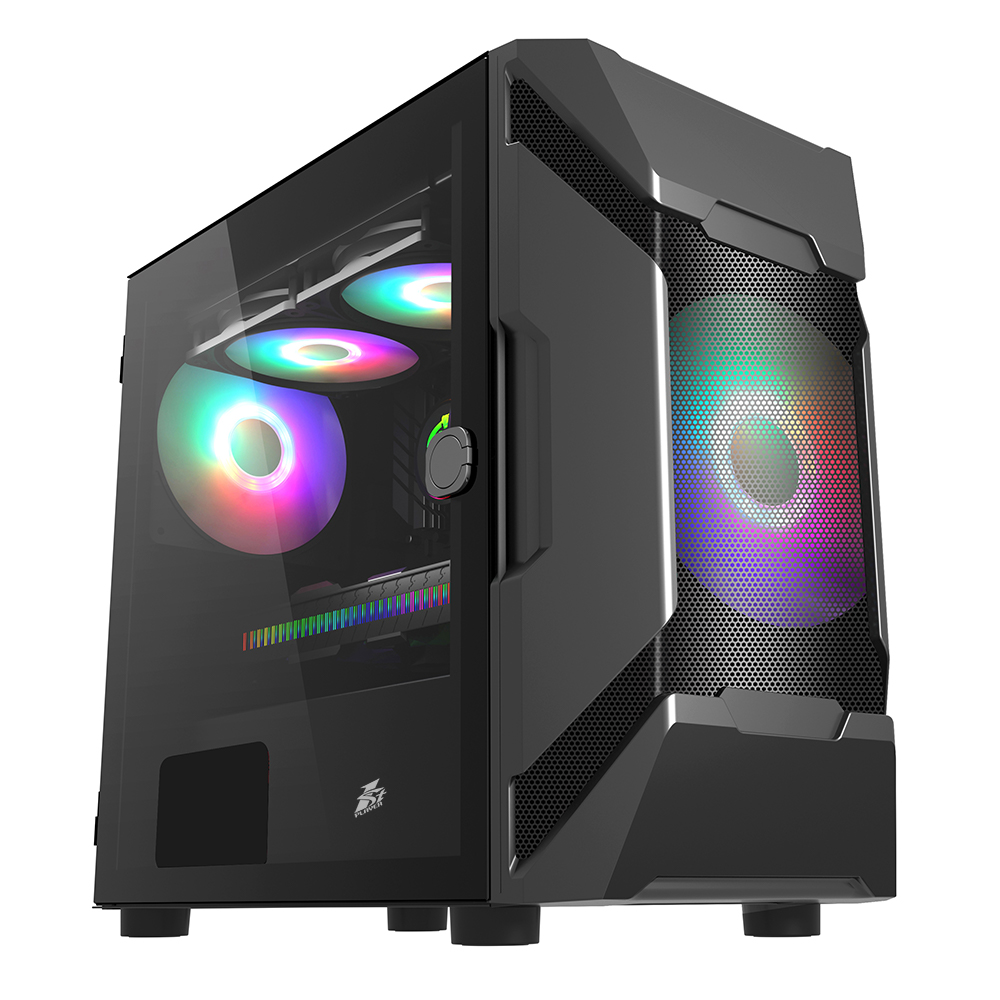

· D3-A (Black)

· Liquid Cooling Support(Fans are Optional)  TOP:24cm

· Fans Support: Up to 4 fans

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD:2  2.5" SSD:3

· Left Side Panel:Tempered Glass




DK D3-A

Iron Mesh Style/Hinged Side Panel/230MM Wide Body/240MM AIO Liquid Cooler Support

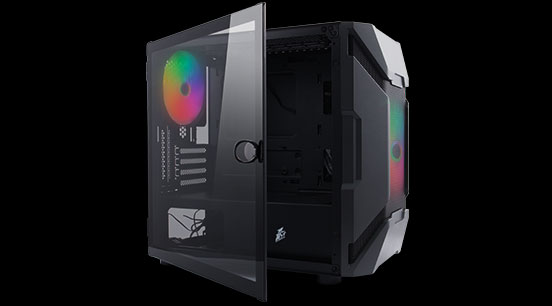

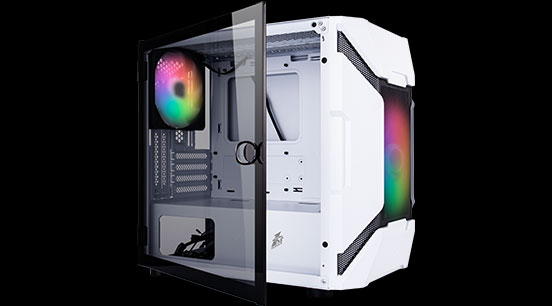

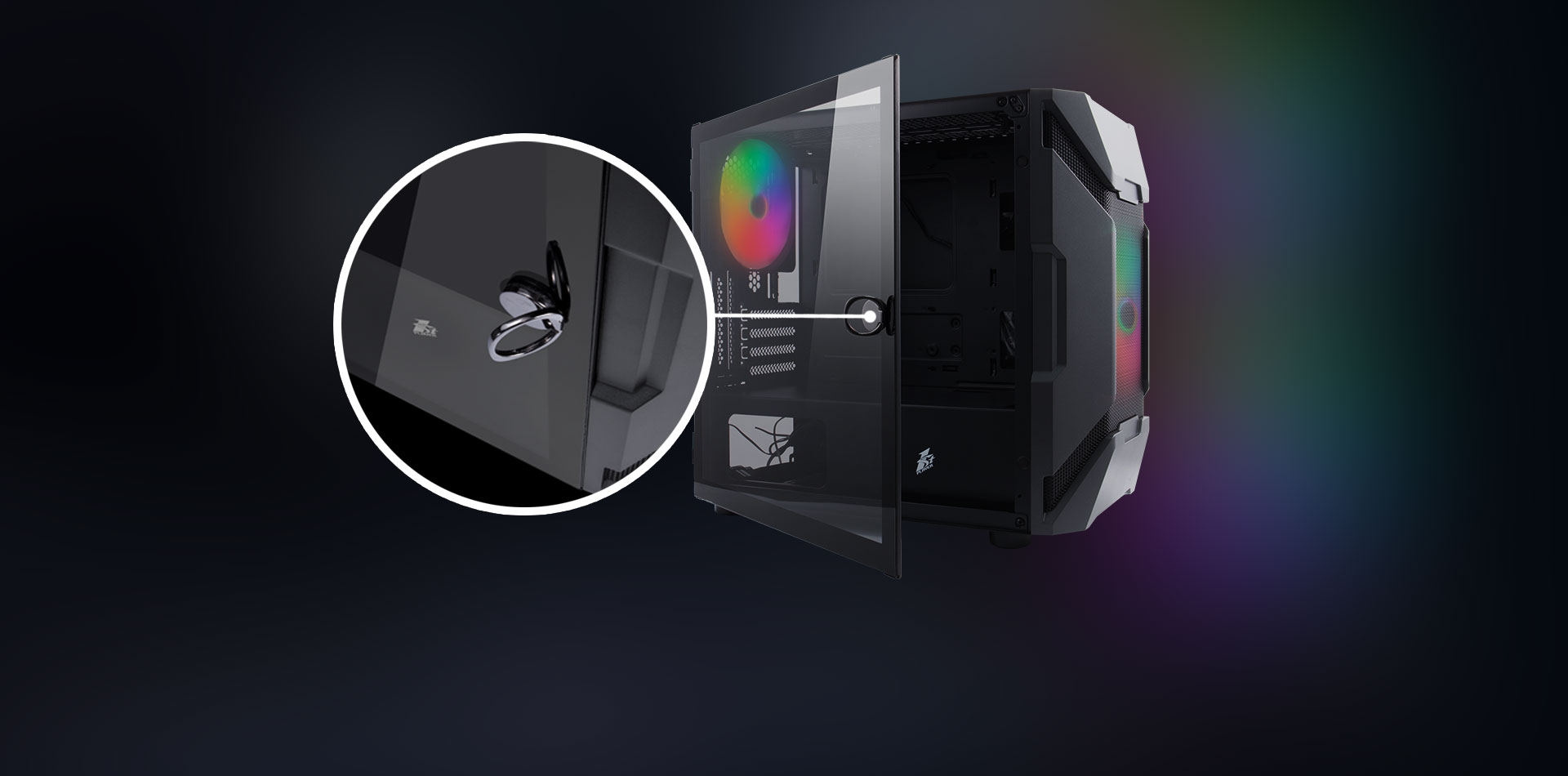

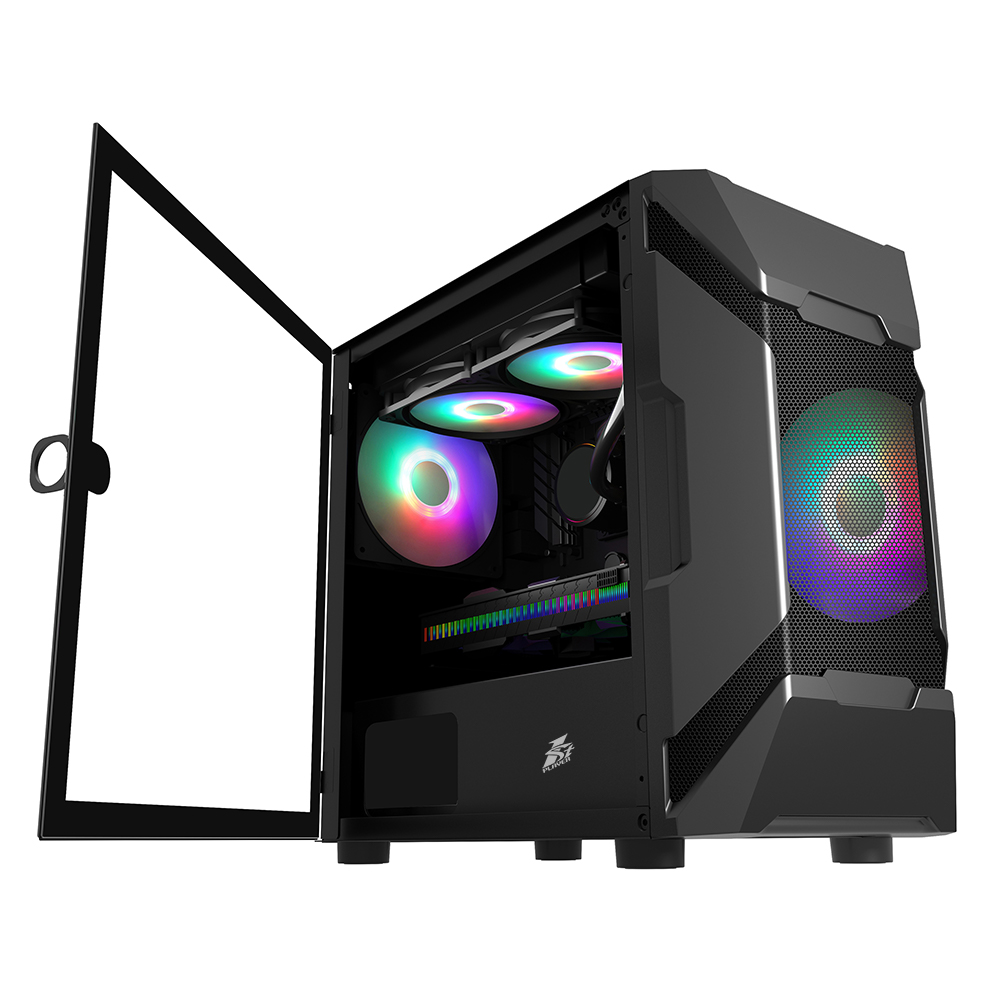

Hinged Side Panel

240MM AIO Liquid Cooler Support

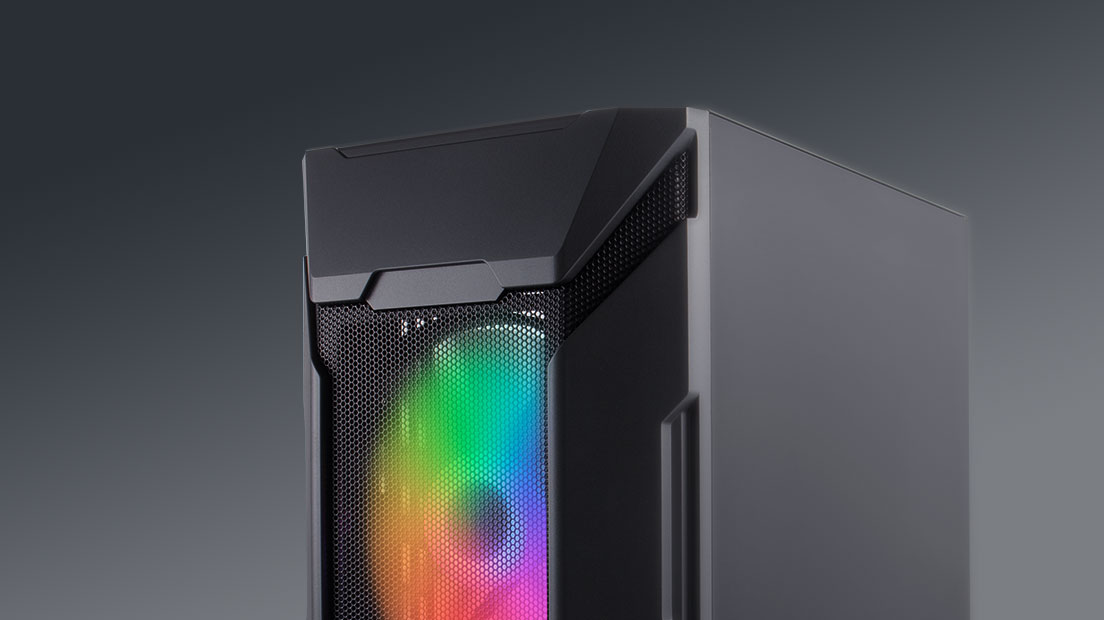

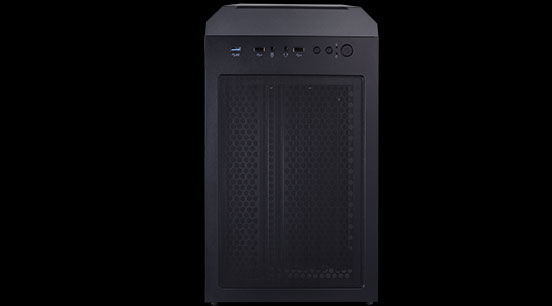

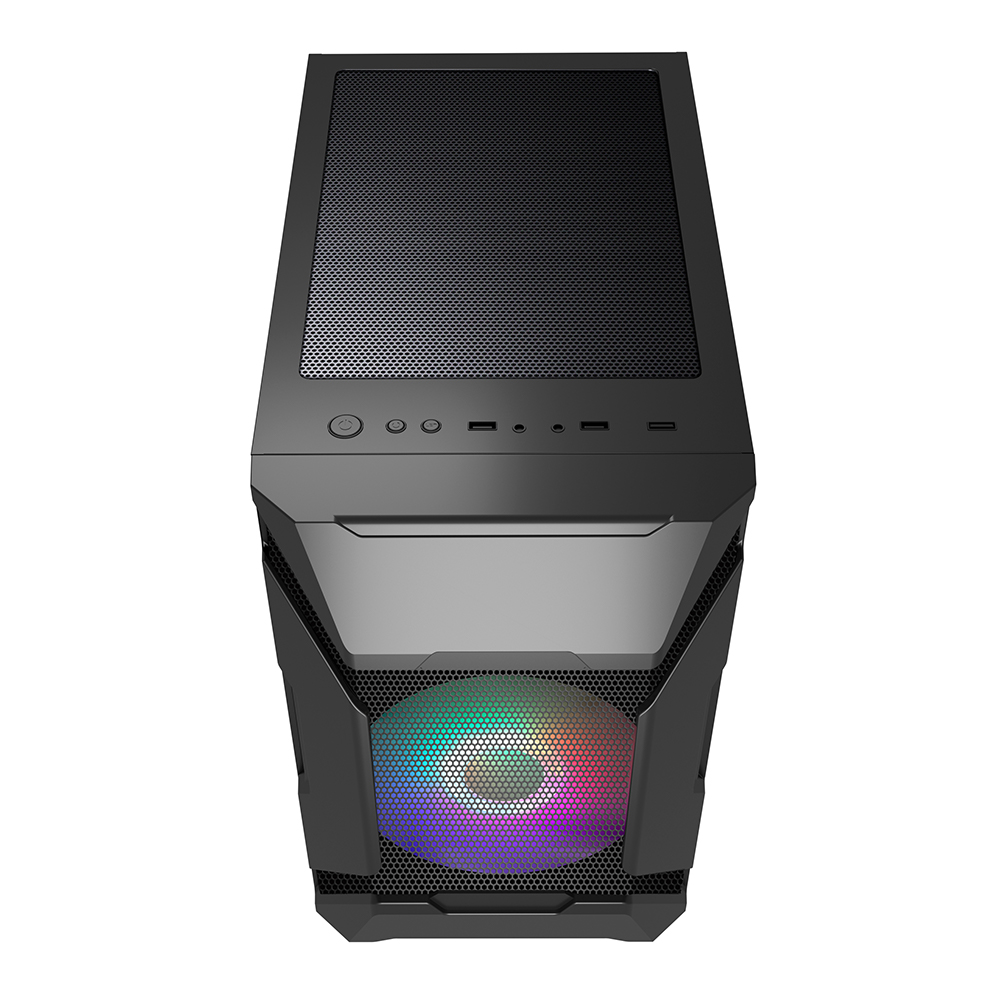

Iron Mesh Style

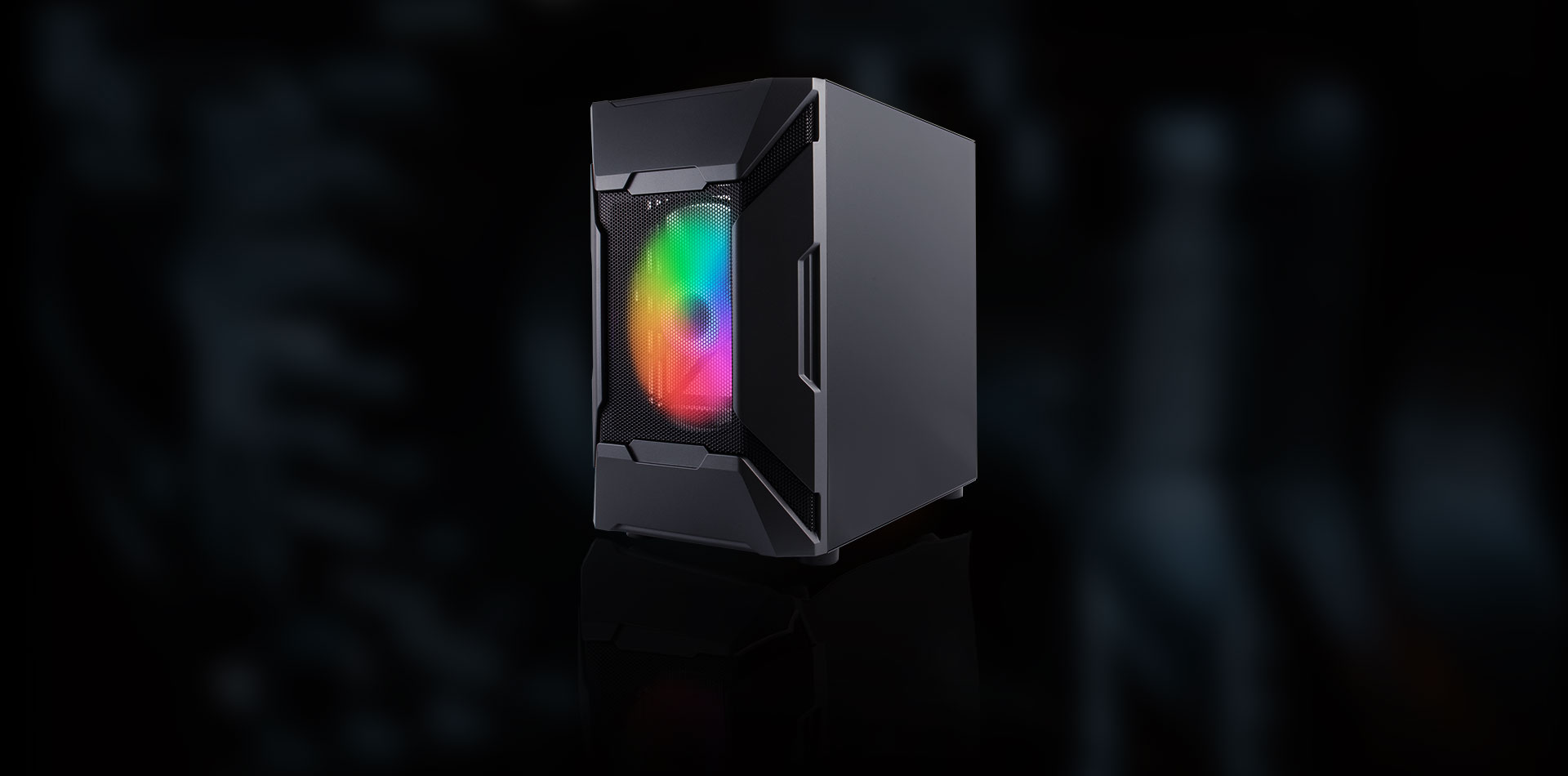

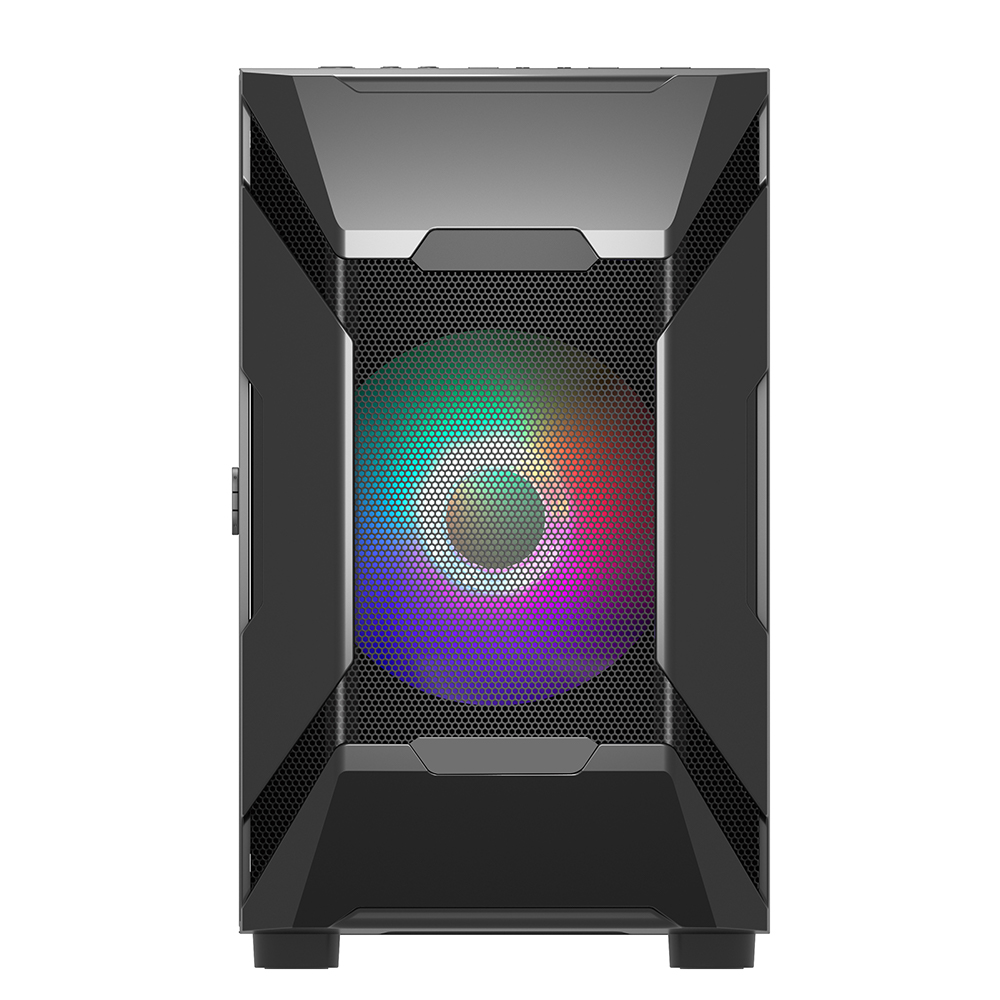

BLACK

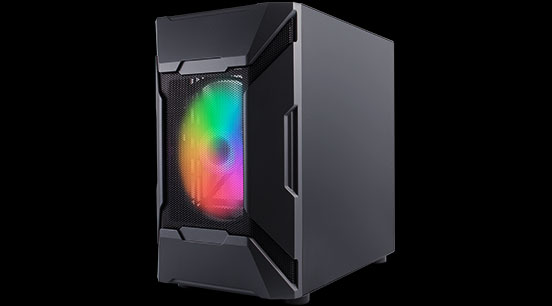

Showcase+

BLACK

Side

BLACK

Back

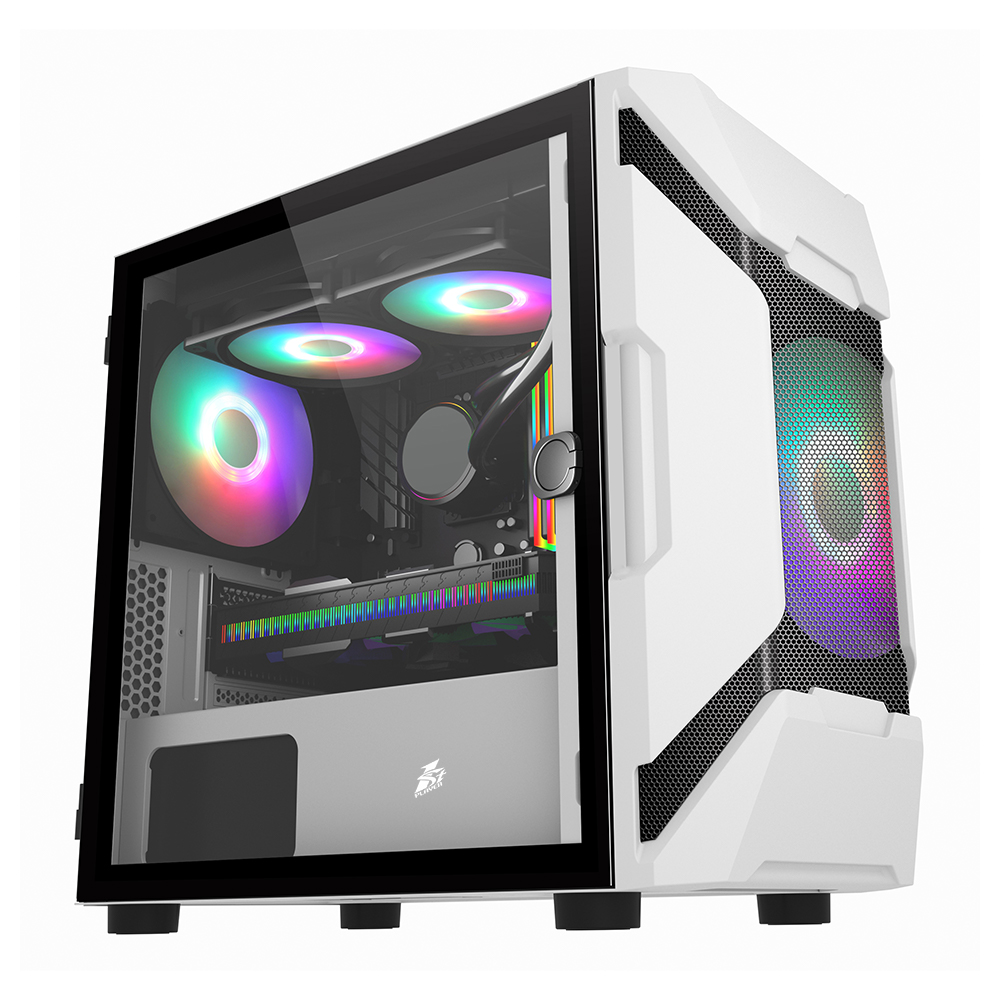

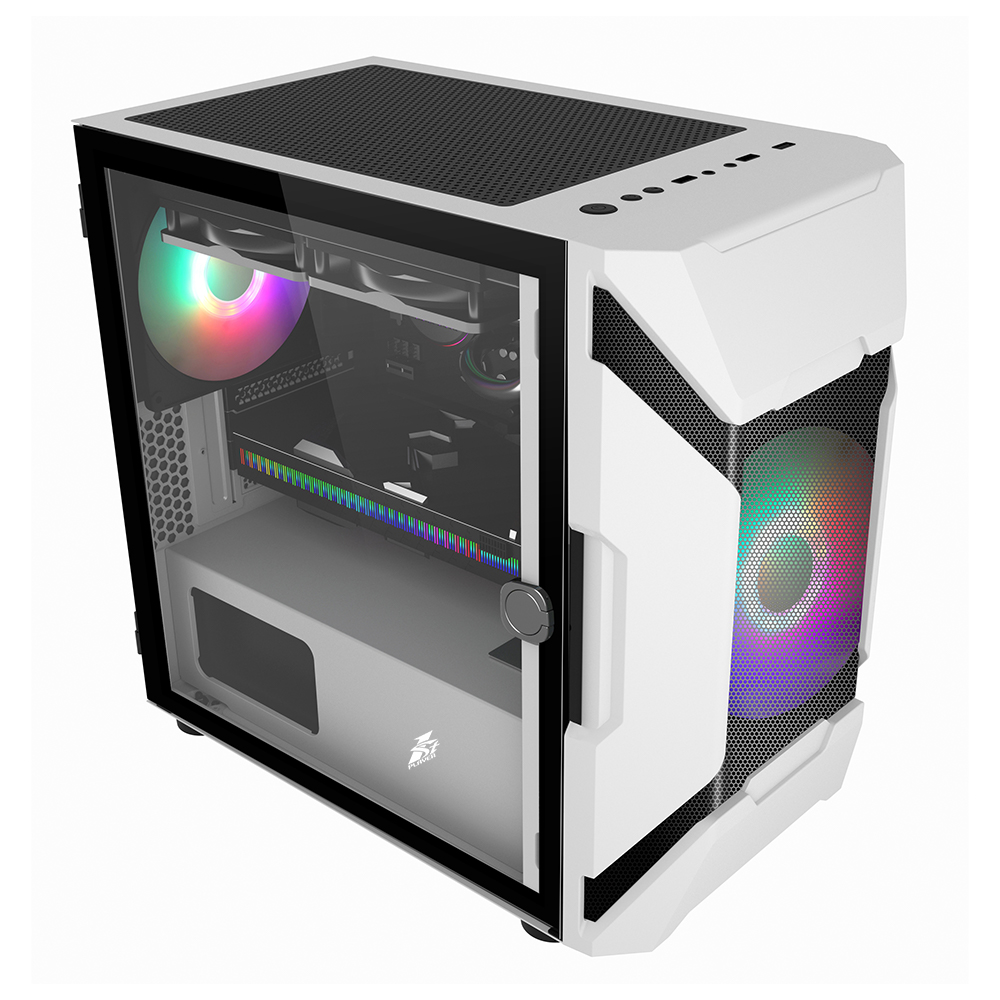

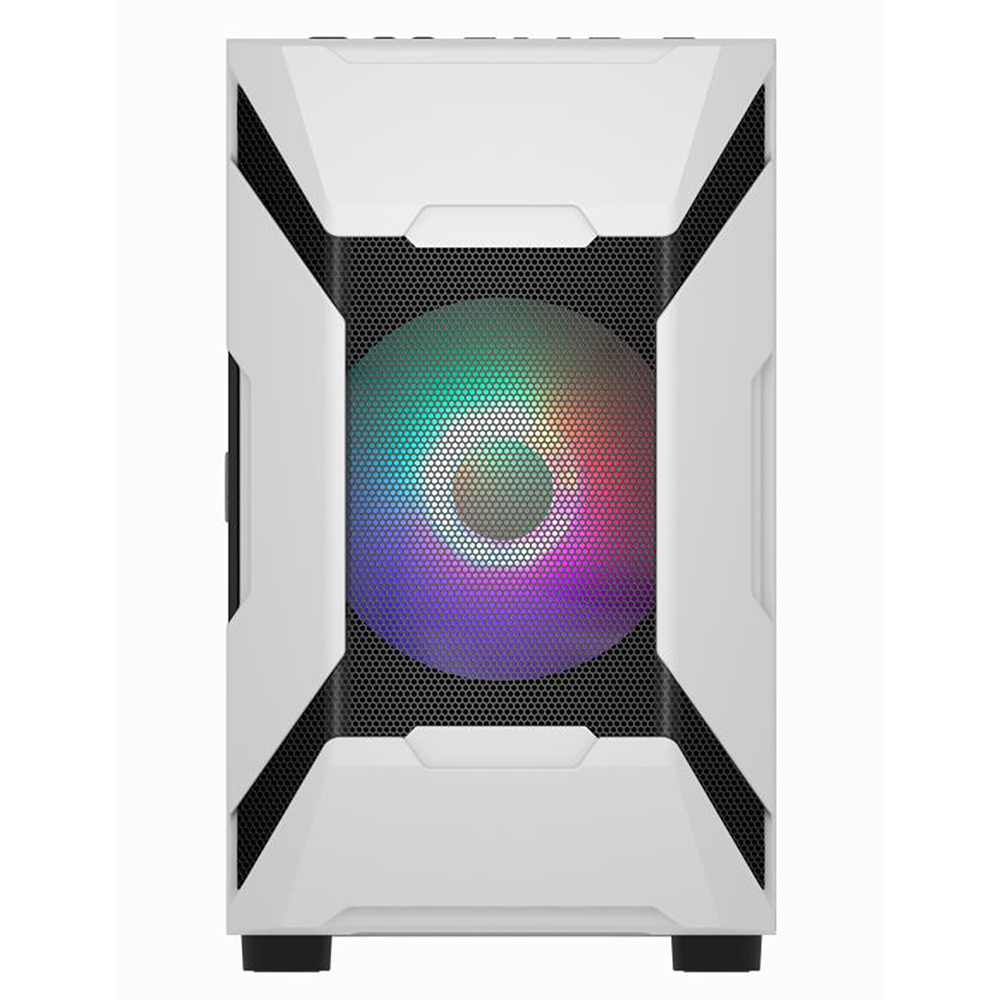

White

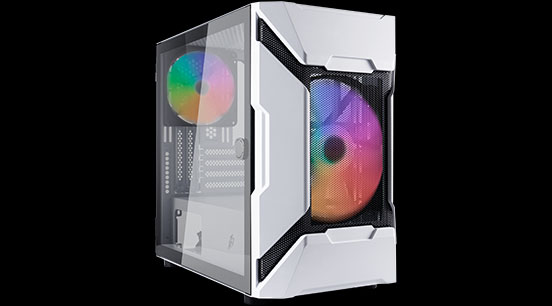

Showcase+

White

Side

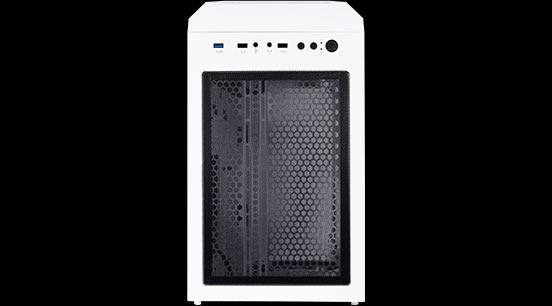

White

Back

Model

D3-A

Structure Dimensions(L*W*H)

350*230*375MM

Product Dimensions(L*W*H)

400*230*375MM

Package Dimensions(L*W*H)

430*285*460MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM&LEFT SIDE PANEL:TEMPERED GLASS

Drive Bays

"5.25”CD ROM: 0

3.5”HDD: 2

2.5”SSD: 3

Form Factor

M-ATX

CPU MAX Height

190MM

VGA MAX Length

340MM

I/O Panel

USB3.0*1+USB2.0*2+HD AUDIO

PCI Card Slot

4

Fan Support

FRONT:2*12CM/2*14CM/1*20CM

REAR:1*12CM/14CM

TOP:2*12CM/14CM

Liquid Cooling Support

TOP:240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

4.2KG / 9.26lb

Gross Weight

5.0KG / 11.0lb
