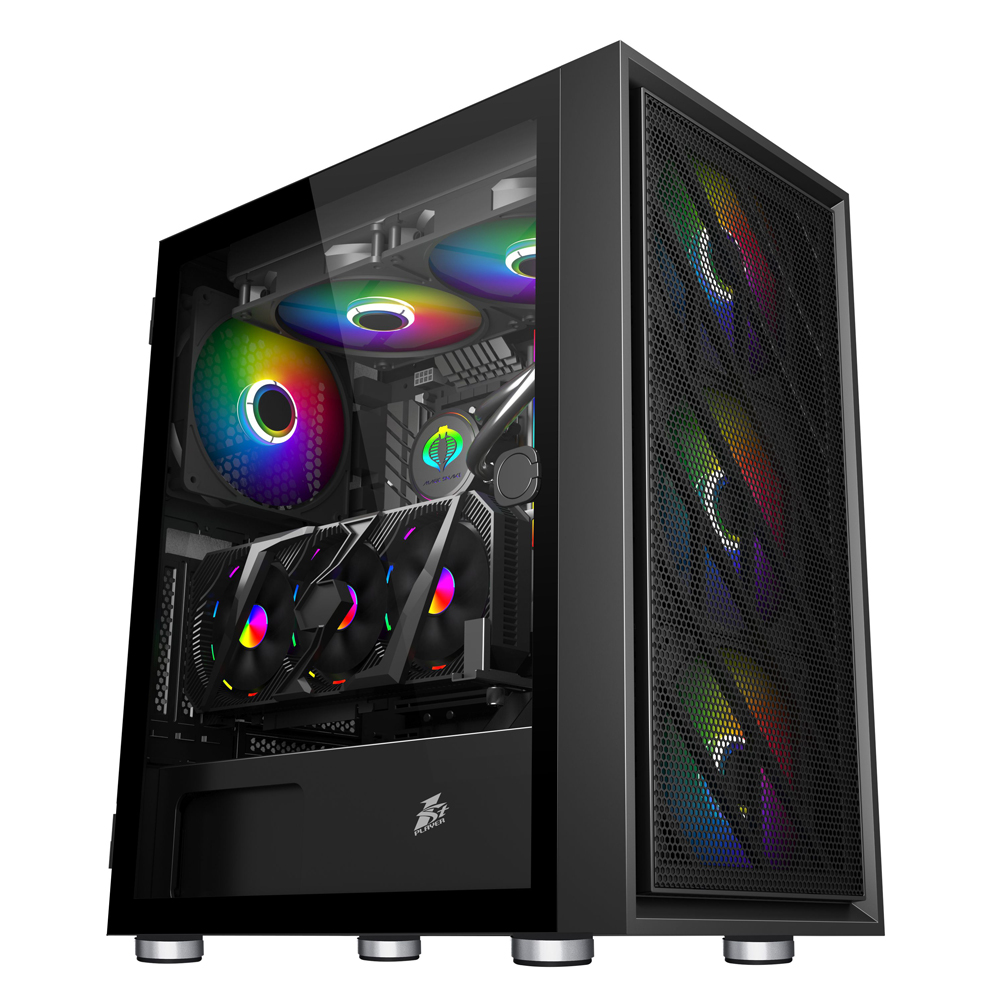

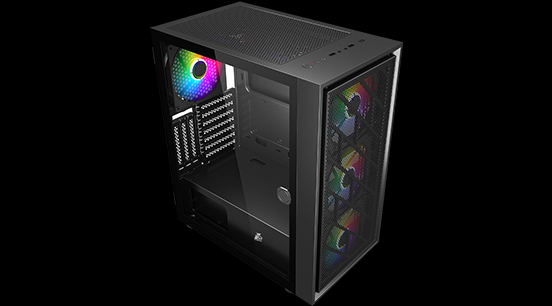

AR-7

1STPLAYER Gaming Case

AR series ATX Case


· Liquid Cooling Support(Fans are Optional)

   FRONT:24/28/36 CM TOP:24CM

· Fans Support: Up to 6 fans

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD:2  2.5" SSD:2

· Left Side Panel:Tempered Glass Front panel: metal mesh

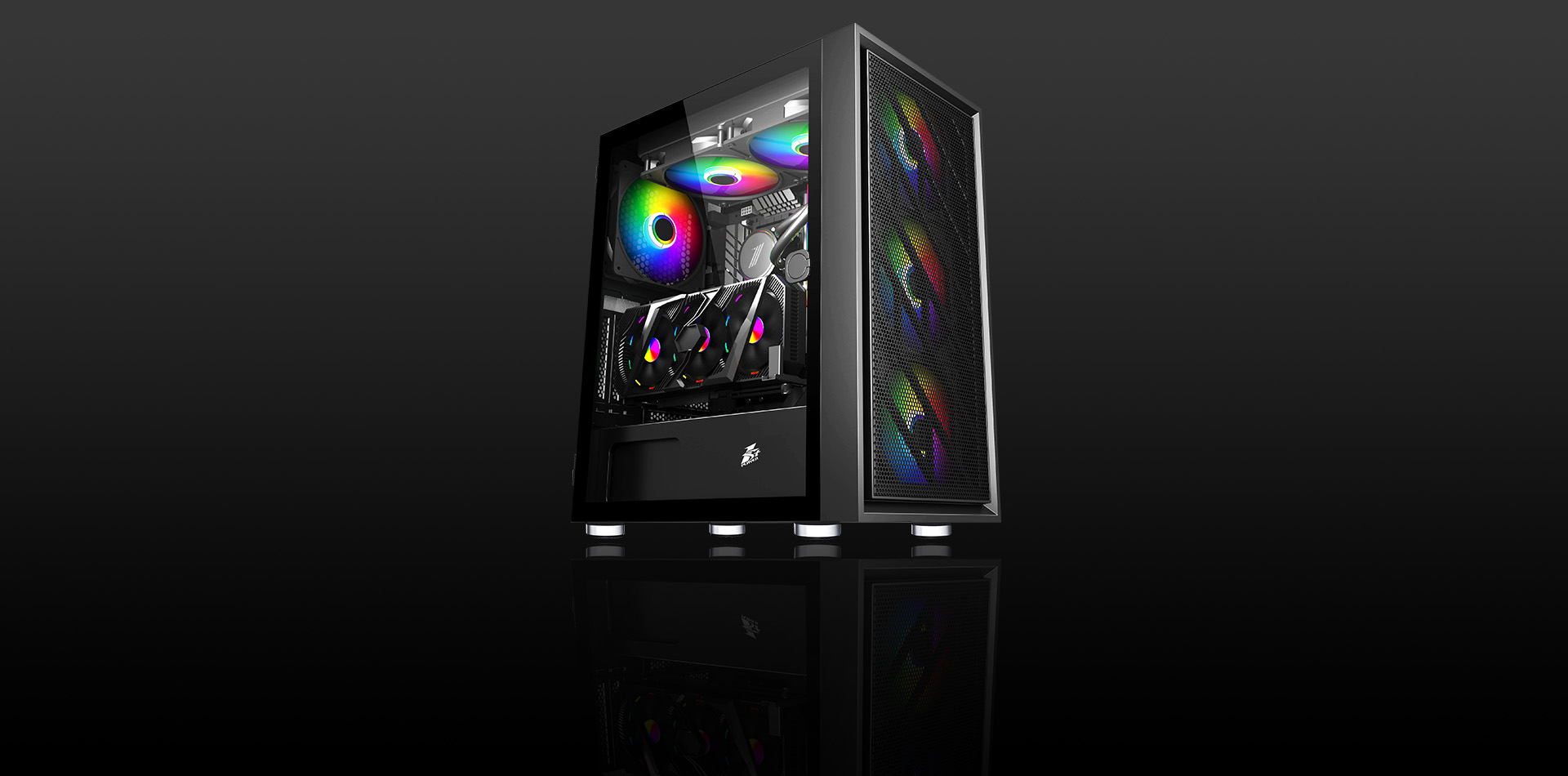

AR SERIES AR-7

1STPLAYER Gaming Gear

  • Support 24cm / 36cm Liquid Cooling

  • Support 2OCM Case Fan

  • 23CM Wide Body PC Case

  • Hinged Style Side Panel

  • Support Vertical VGA Installation

  • Front Panel Metal Mesh

Support 2OCM Case Fan+24cm / 36cm Liquid Cooling

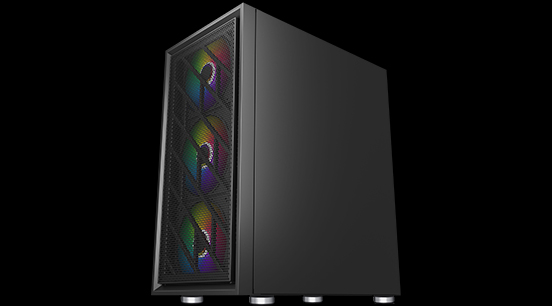

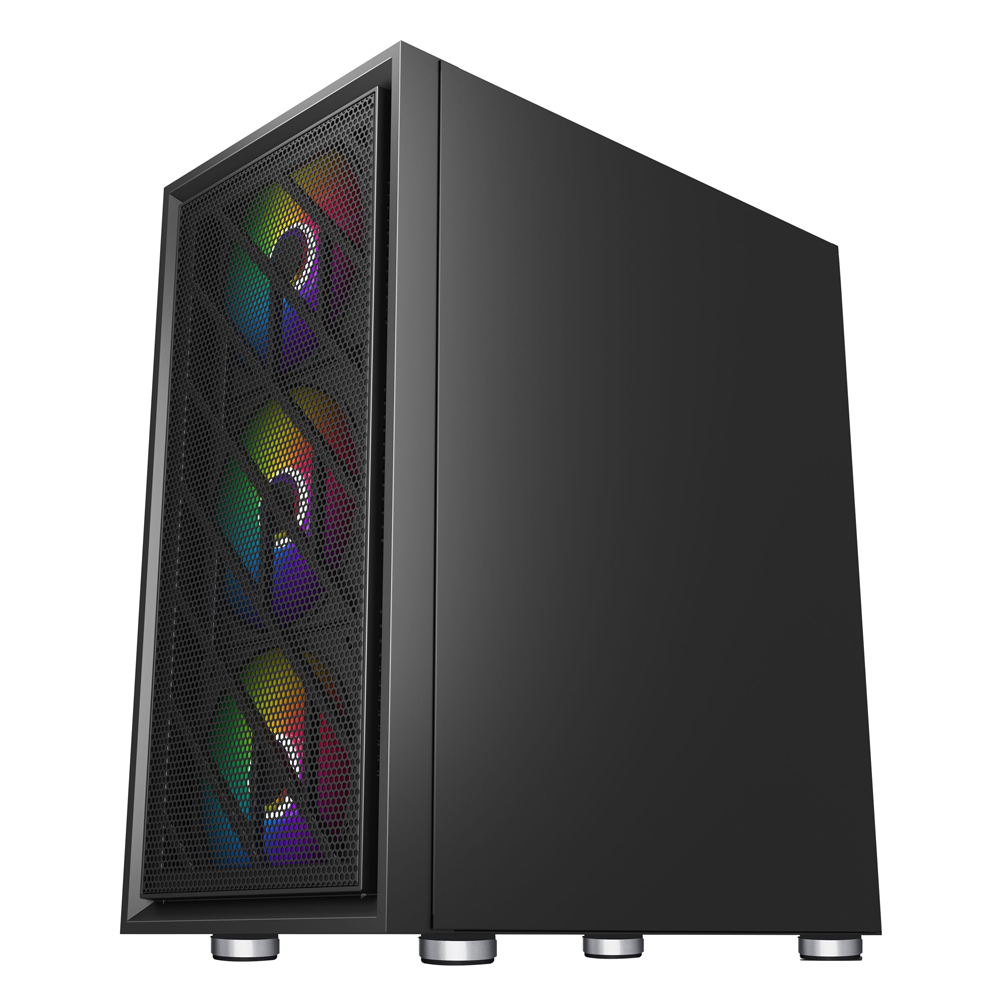

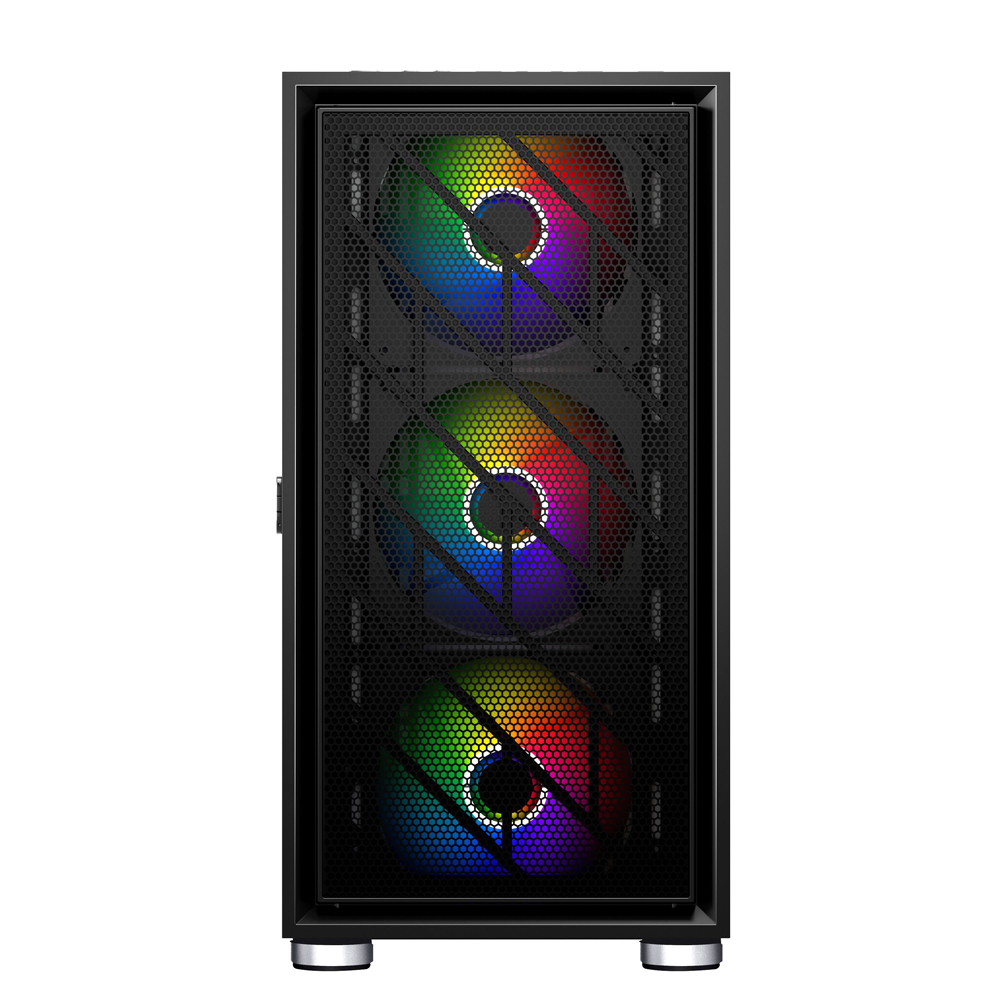

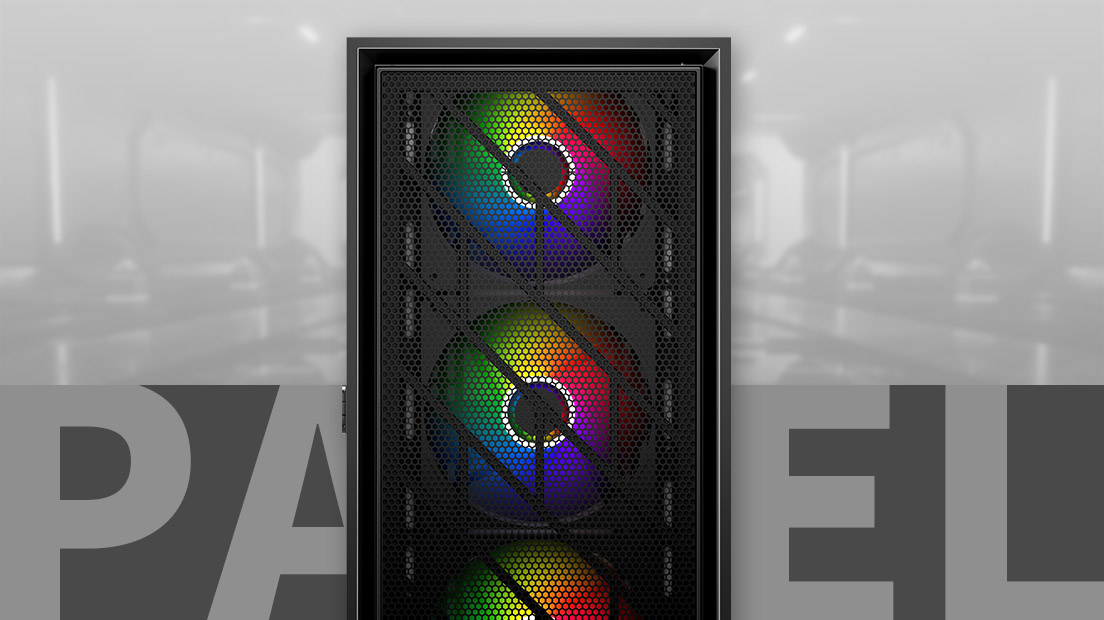

Front Panel Metal Mesh

23CM Wide Body PC Case

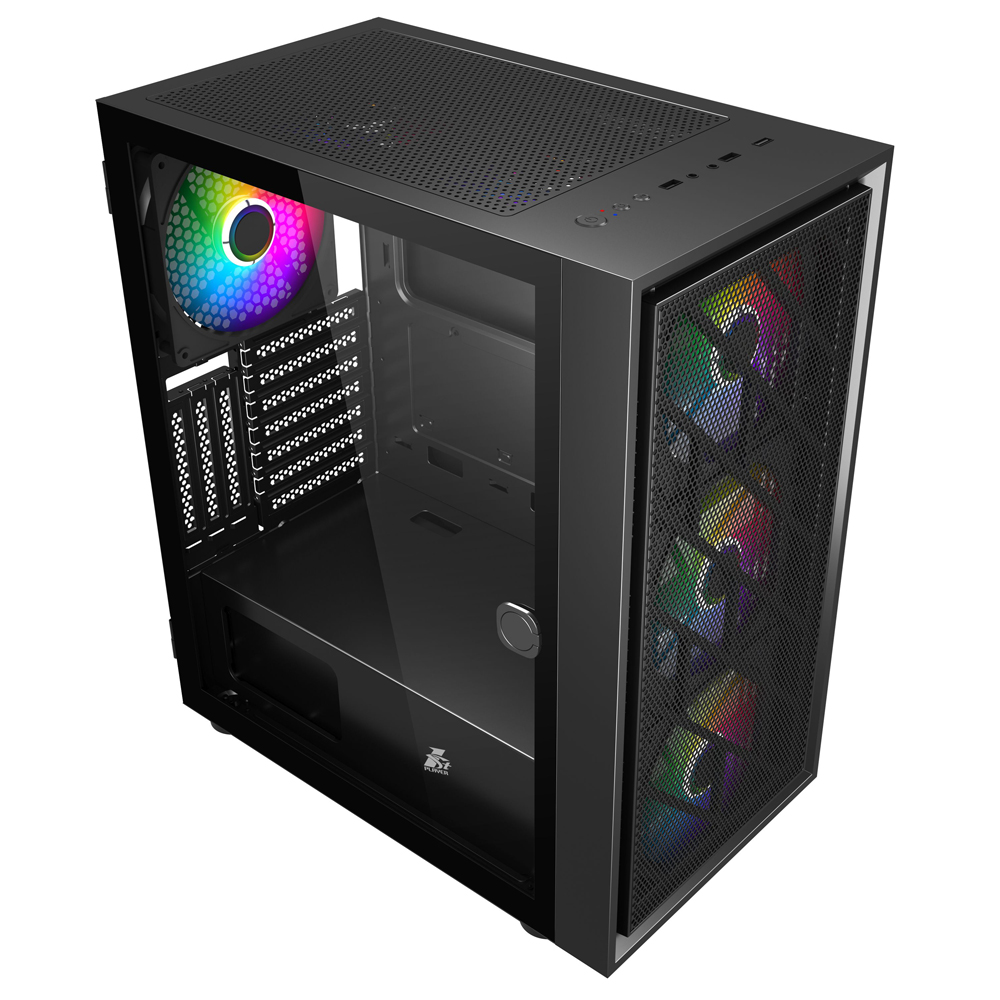

Hinged Style Side Panel

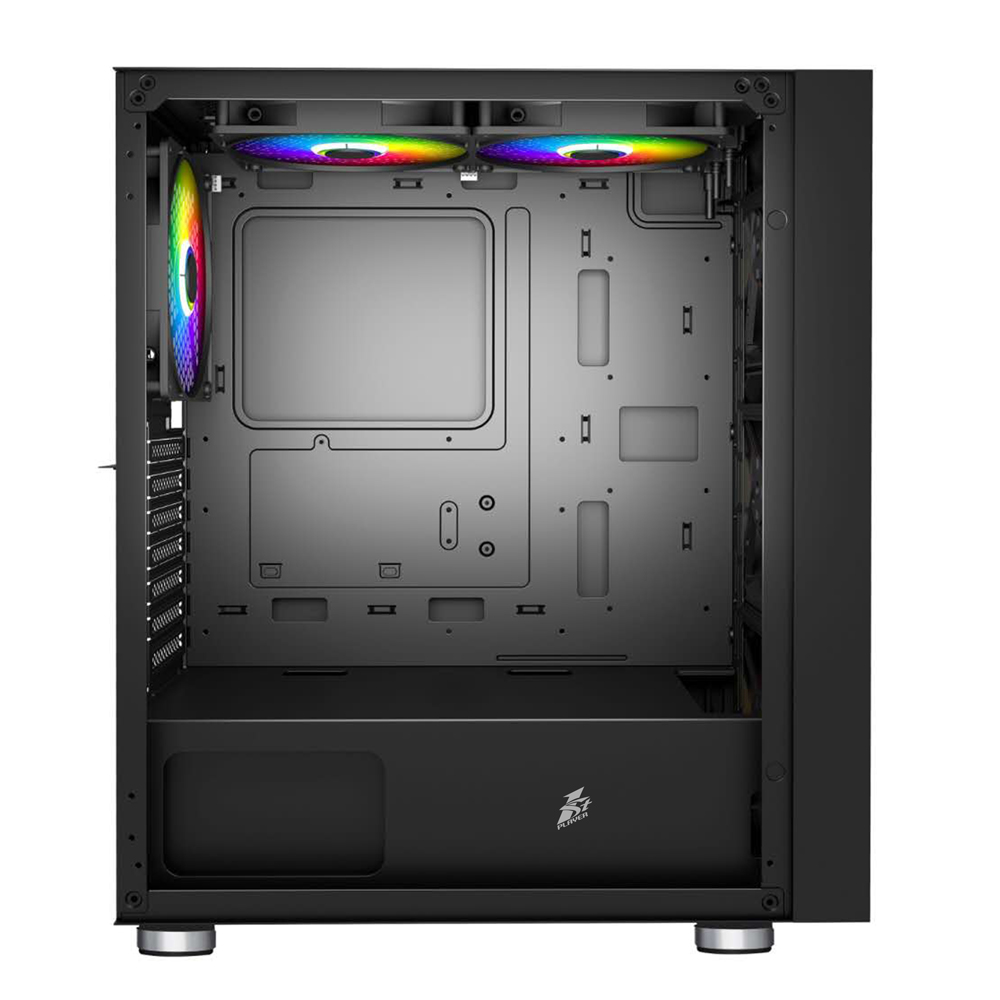

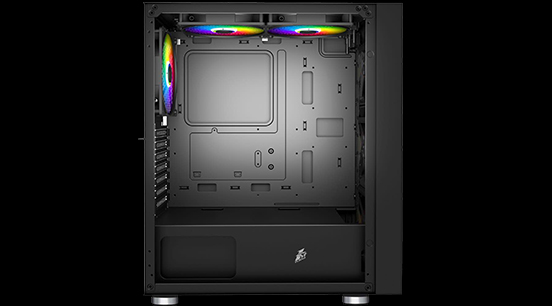

Support Vertical VGA Installation

Model

AR-7

Structure Dimensions(L*W*H)

350*230*445MM

Product Dimensions(L*W*H)

390*230*460MM

Package Dimensions(L*W*H)

500*280*465MM

Structure Thickness

0.6MM

Materials

SPCC 0.6MM

LEFT SIDE PANEL: TEMPERED GLASS

FRONT PANEL: METAL MESH

Form Factor
ATX/M-ATX/ITX

Drive Bays

5.25"" CD ROM: 0

3.5"" HDD: 2

2.5"" SSD: 2"

CPU MAX Height

190MM

VGA MAX Length


340MM

I/O Panel


USB3.0+USB2.0*2+HD AUDIO

PCI Card Slot


7

Fan Support


FRONT: 3*12CM/3*14CM/2*20CM

REAR: 1*12CM/1*14CM

TOP: 2*12CM/2*14CM

Liquid Cooling Support

FRONT: 24CM/28CM/36CM

TOP: 240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

6.4KG / 14.11lb
Gross Weight
6.8KG / 14.99lb
