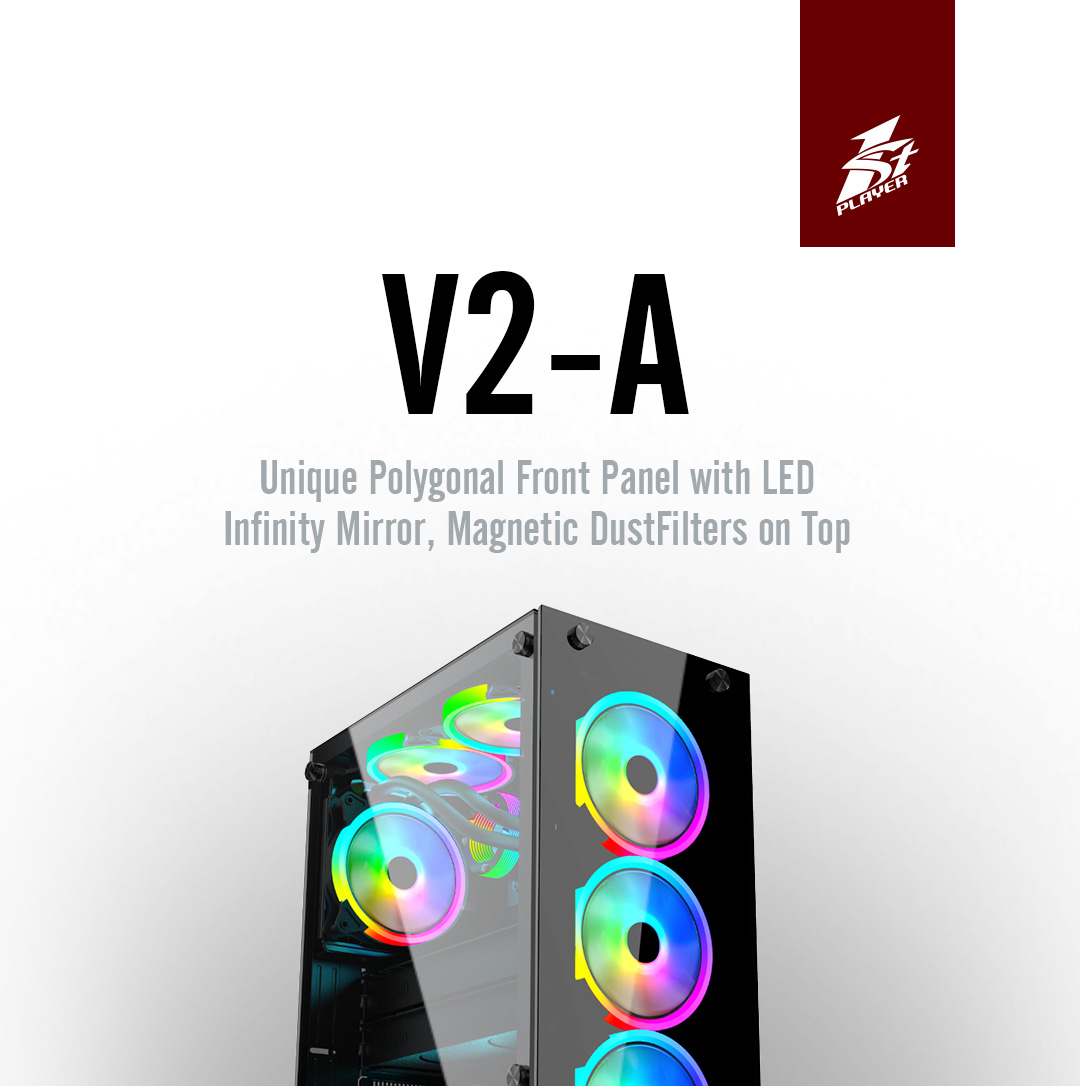

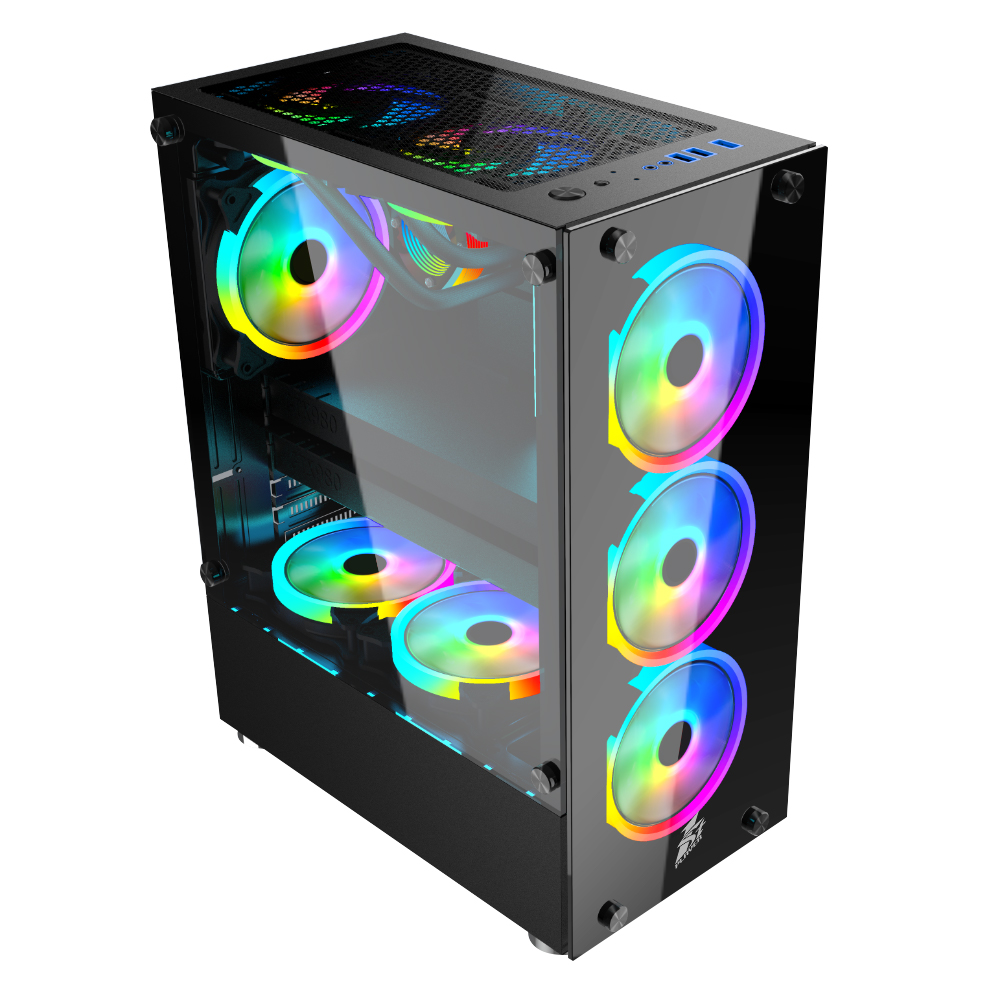

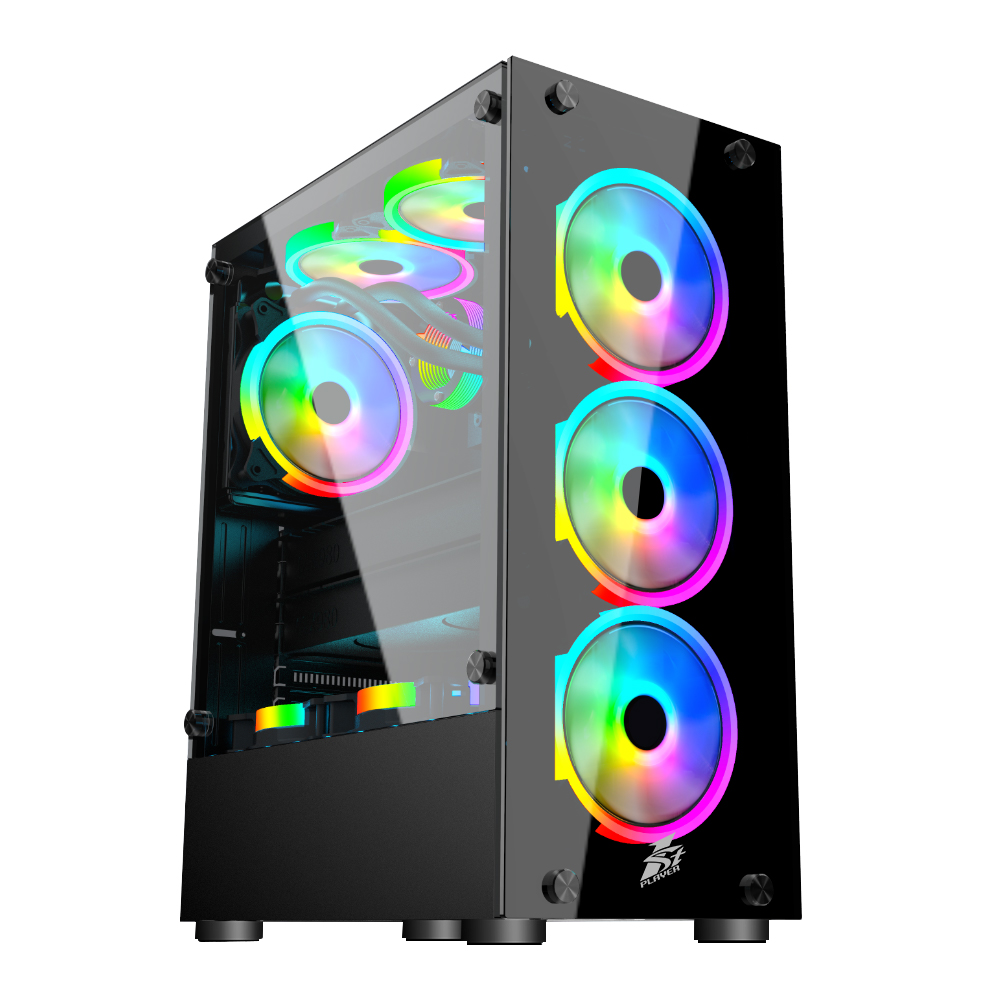

FIREDANCING series ATX Case.
· Liquid Cooling Support(Fans are Optional) TOP:24CM
· Fans Support: Up to 6 fans
· USB3.0*1+USB2.0*2+MICROPHONE*1+HD AUDIO PORT * 1
· 3.5" HDD：1 2.5" SSD：1
· 3.5" HDD：2 2.5" SSD：0

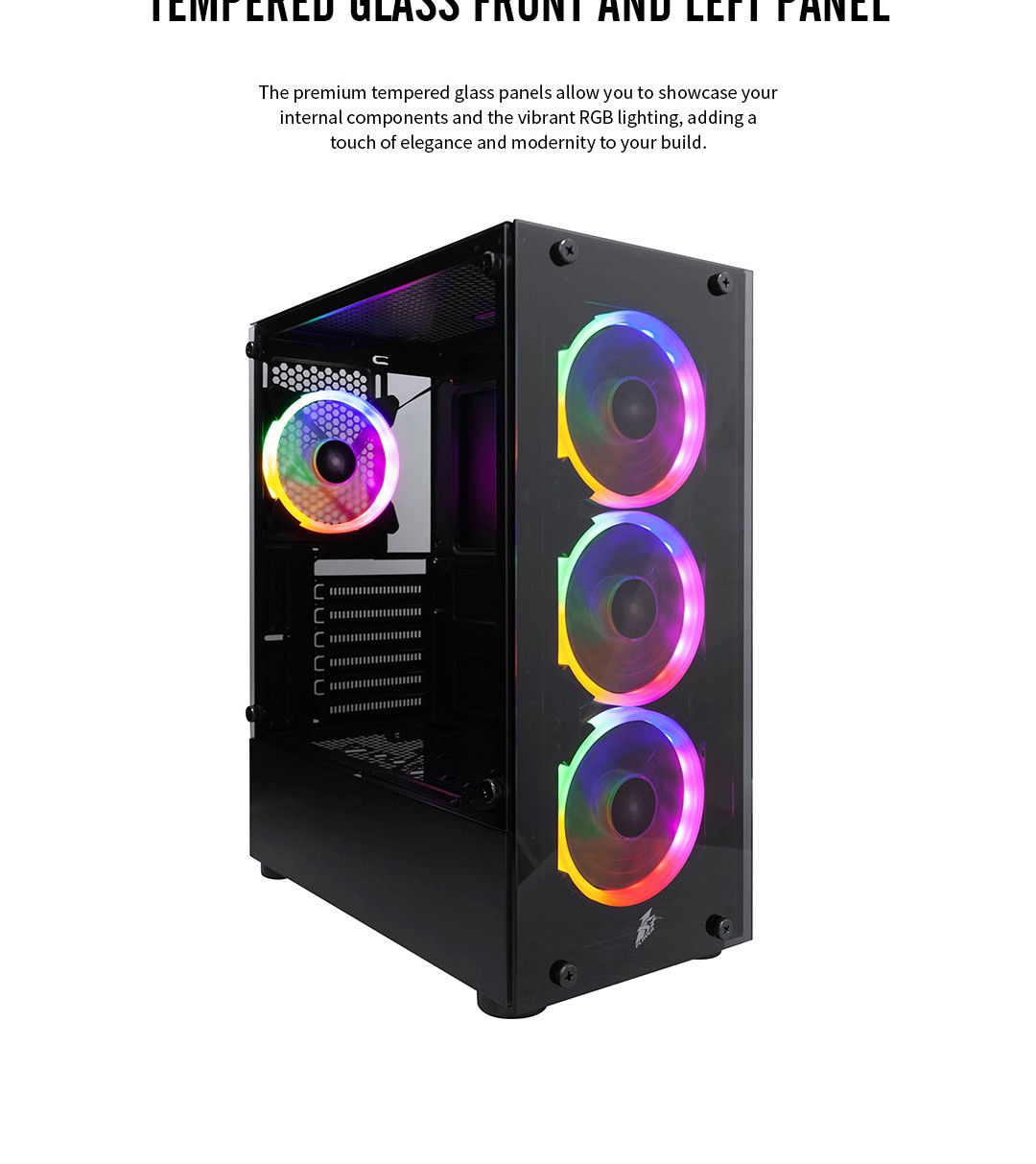

· Front panel&Left Side Panel:Tempered Glass
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
MODEL
V2-A
STRUCTURE DIMENSIONS (L x W x H)
335 x 190 x 435 mm

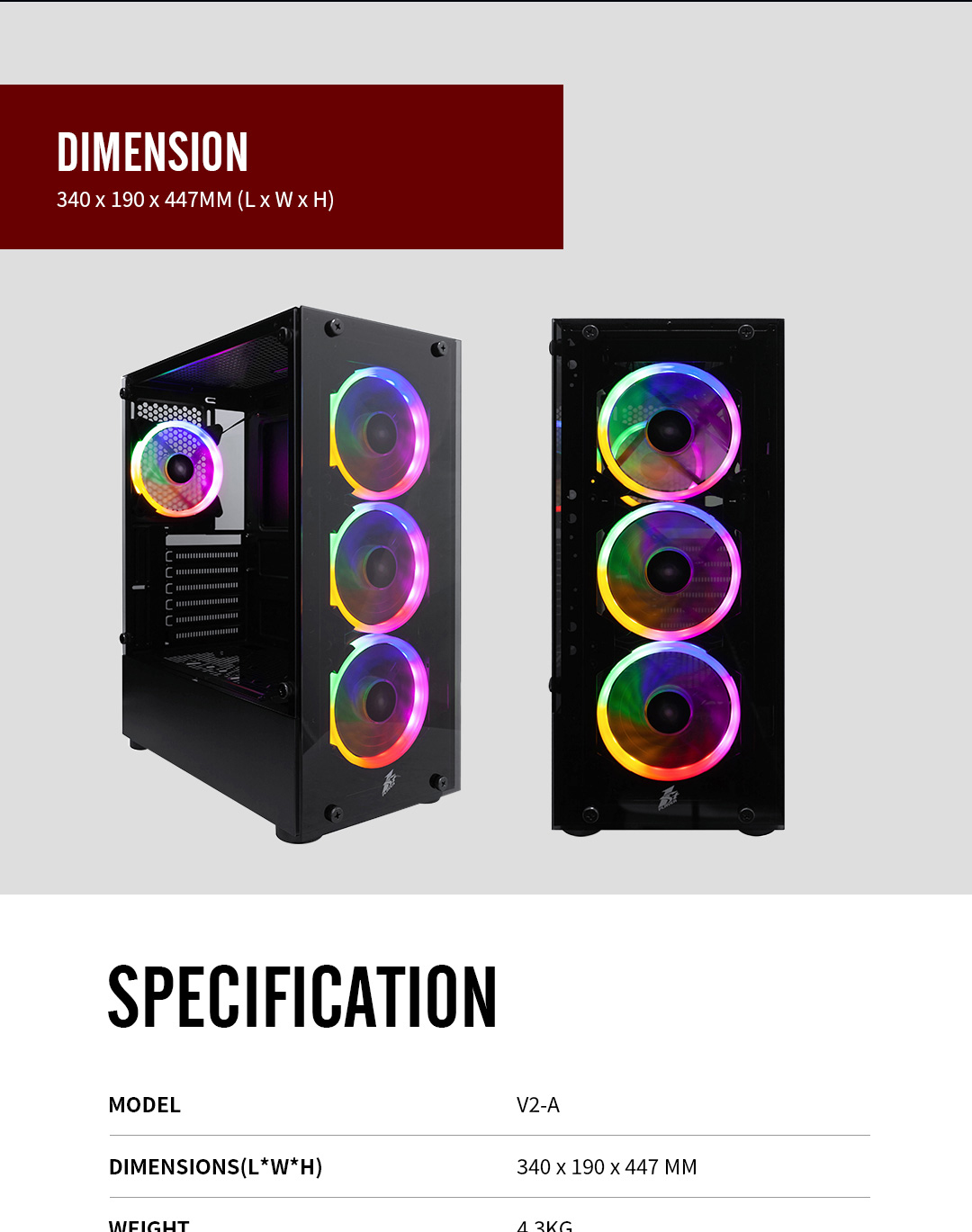

PRODUCT DIMENSIONS (L x W x H)
340 x 190 x 447 mm
PACKAGE DIMENSIONS (Lx W x H)
500 x 245 x 415 mm

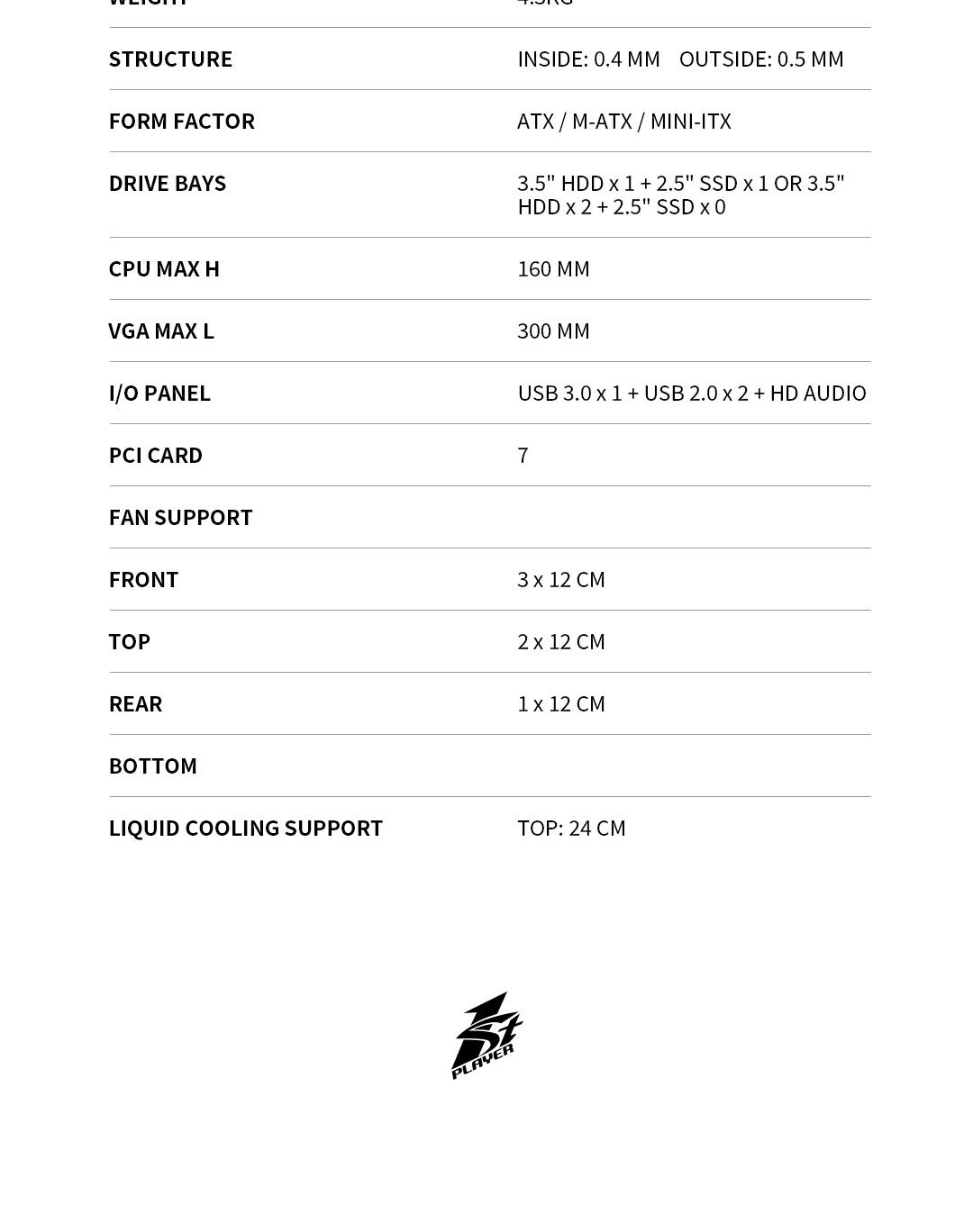

STRUCTURE THICKNESS
Interior: 0.4 mm
Exterior: 0.5 mm
MATERIALS
SPCC
Front / Left Panel: Tempered glass
FORM FACTOR
DRIVE BAYS
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 1
3.5" HDD: 2 + 2.5" SSD: 0

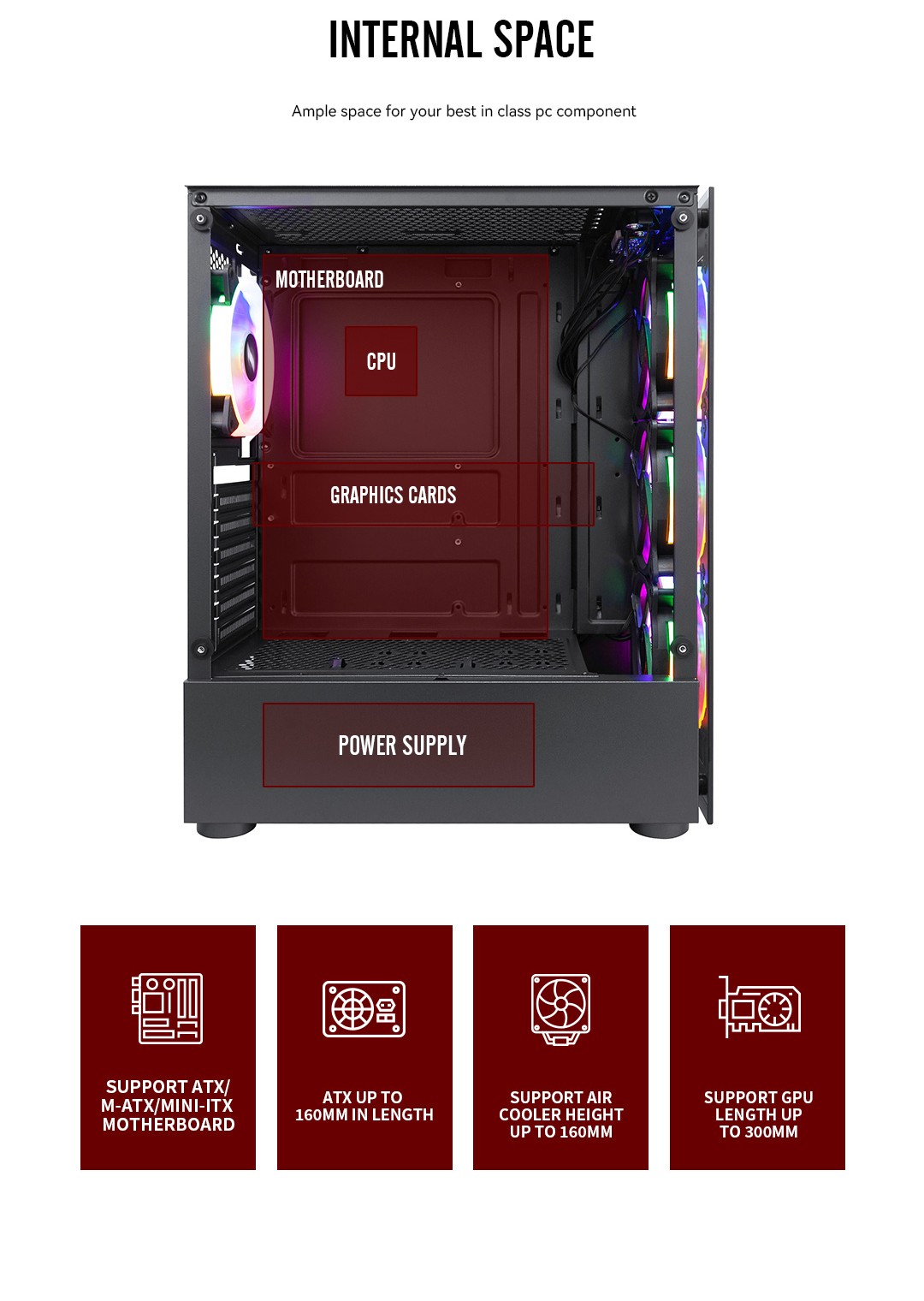

CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
300 mm

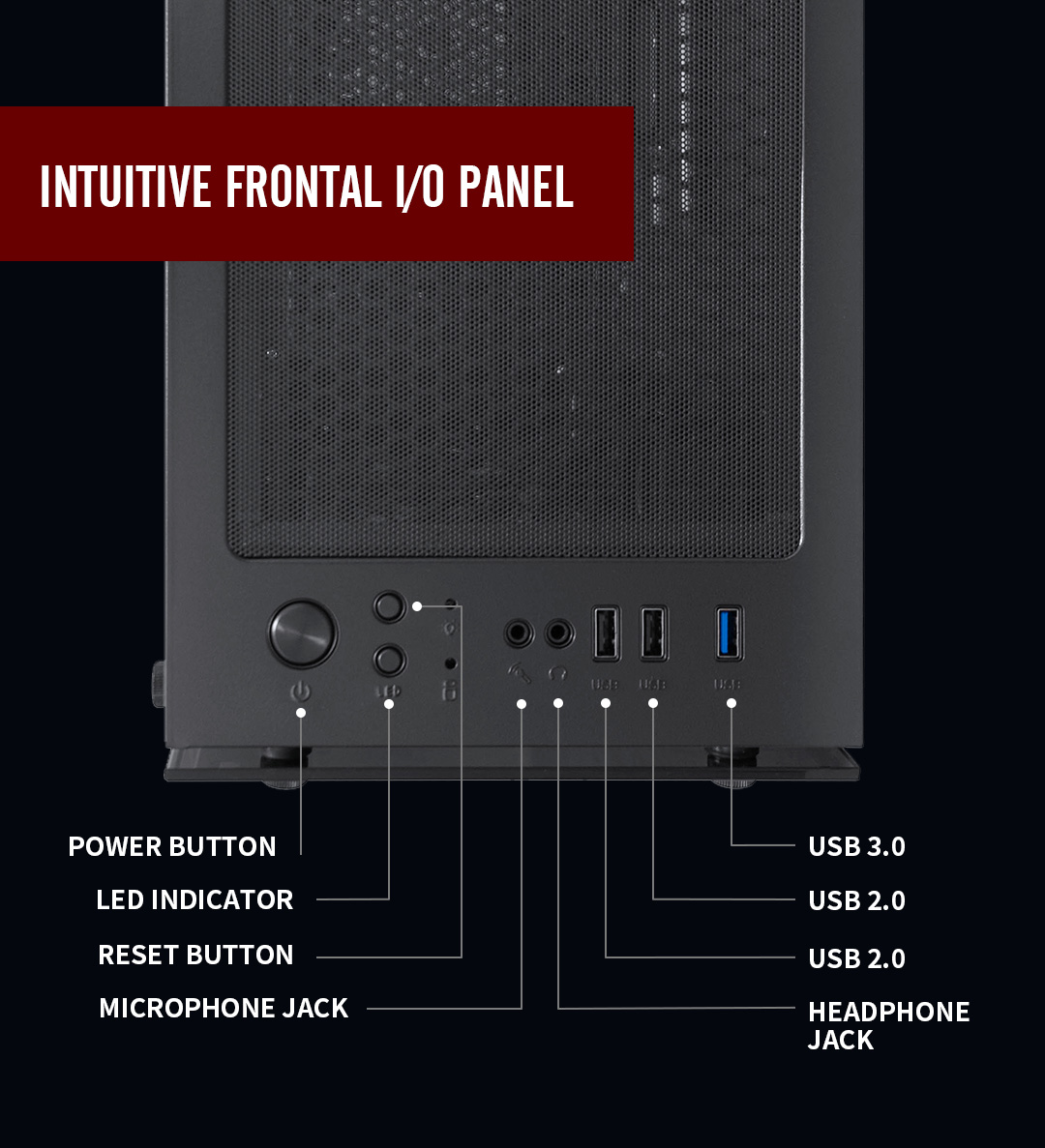

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO x 1 + Microphone x 1

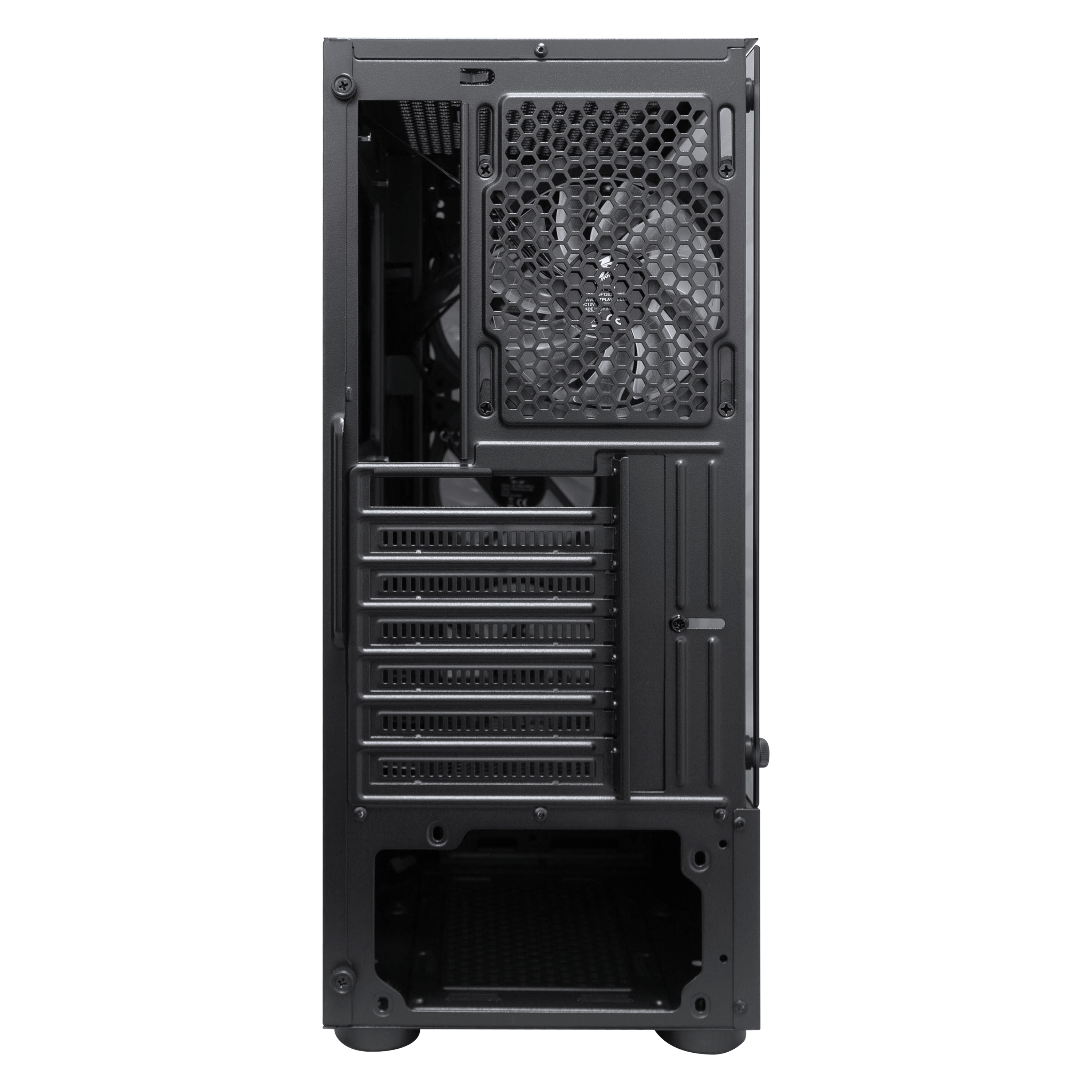

PCI CARD SLOT
7

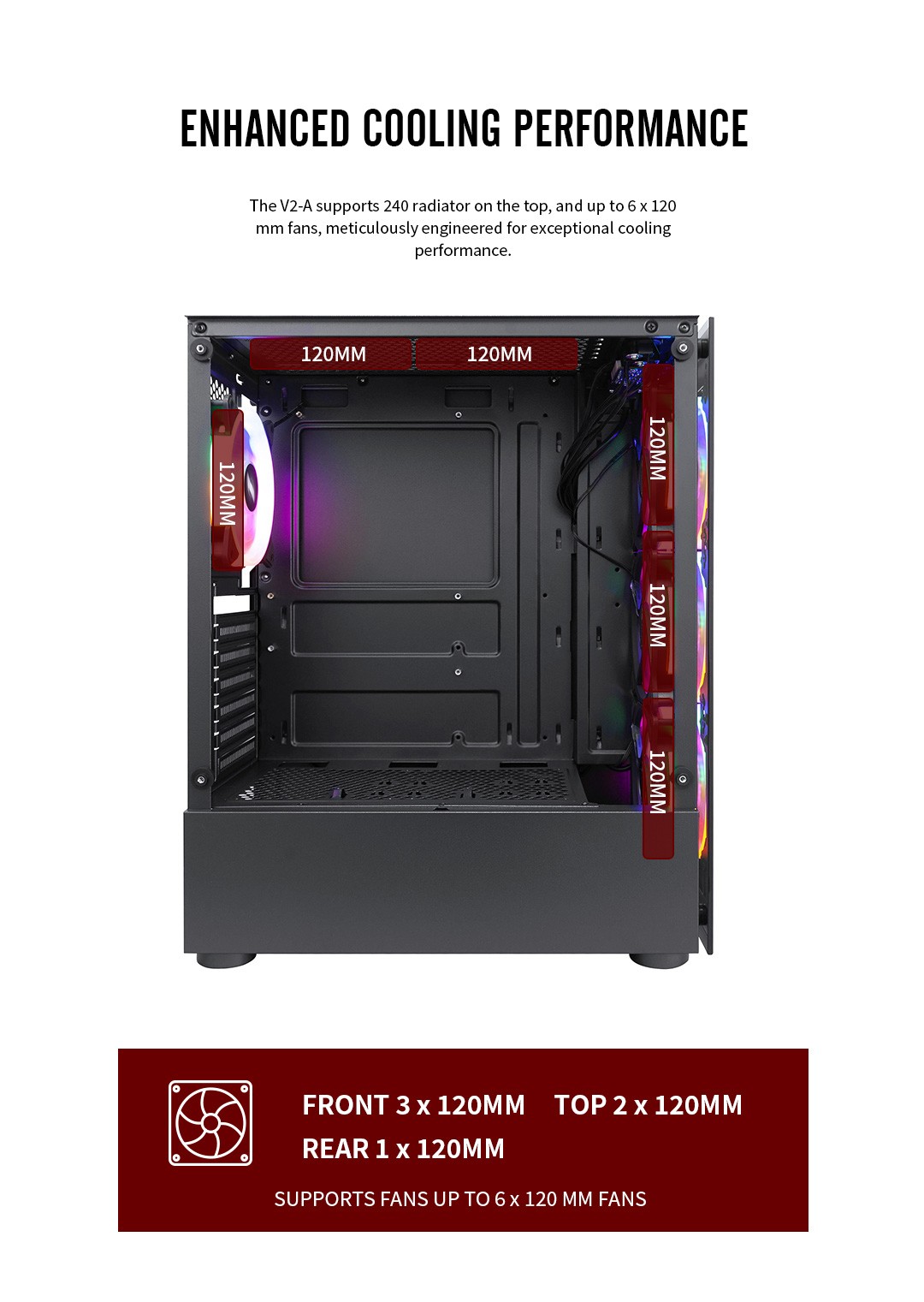

FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
LIQUID COOLING SUPPORT
Top: 240 mm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
4.3 kg / 9.48 lb
