FIREROSE series ATX Case
· Liquid Cooling Support(Fans are Optional) REAR：12cm
· Fans Support: Up to 6 fans
· USB3.0*1+USB2.0*2+AUDIO
· 3.5" HDD：1 2.5" SSD：1
· Left Side Panel:Tempered Glass
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
MODEL
F4
STRUCTURE DIMENSIONS (L x W x H)
340 x 180 x 425 mm
PRODUCT DIMENSIONS (L x W x H)
380 x 185 x 435 mm
PACKAGE DIMENSIONS (L x W x H)
480*240*445 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm
Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX
DRIVE BAYS
5.25" CD ROM: 0
3.5" HDD: 1
2.5" SSD: 1
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
300 mm

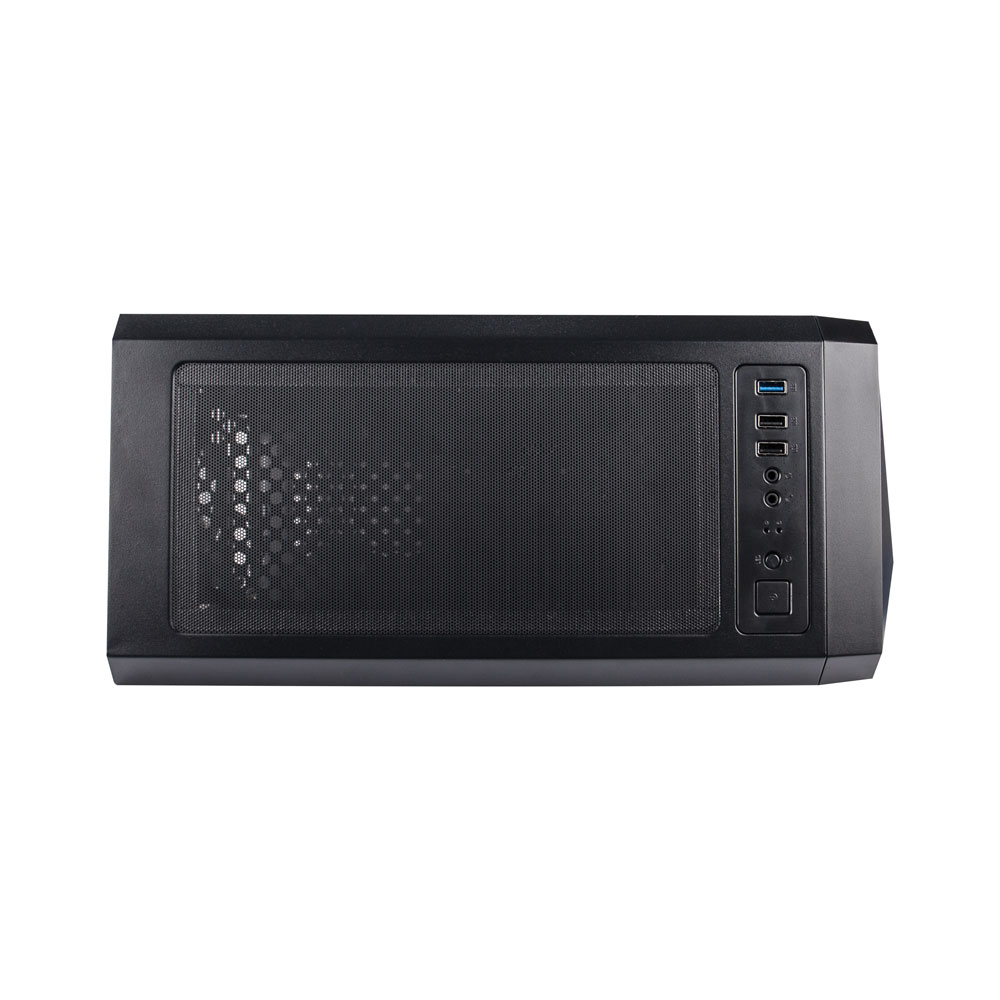

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO x 1

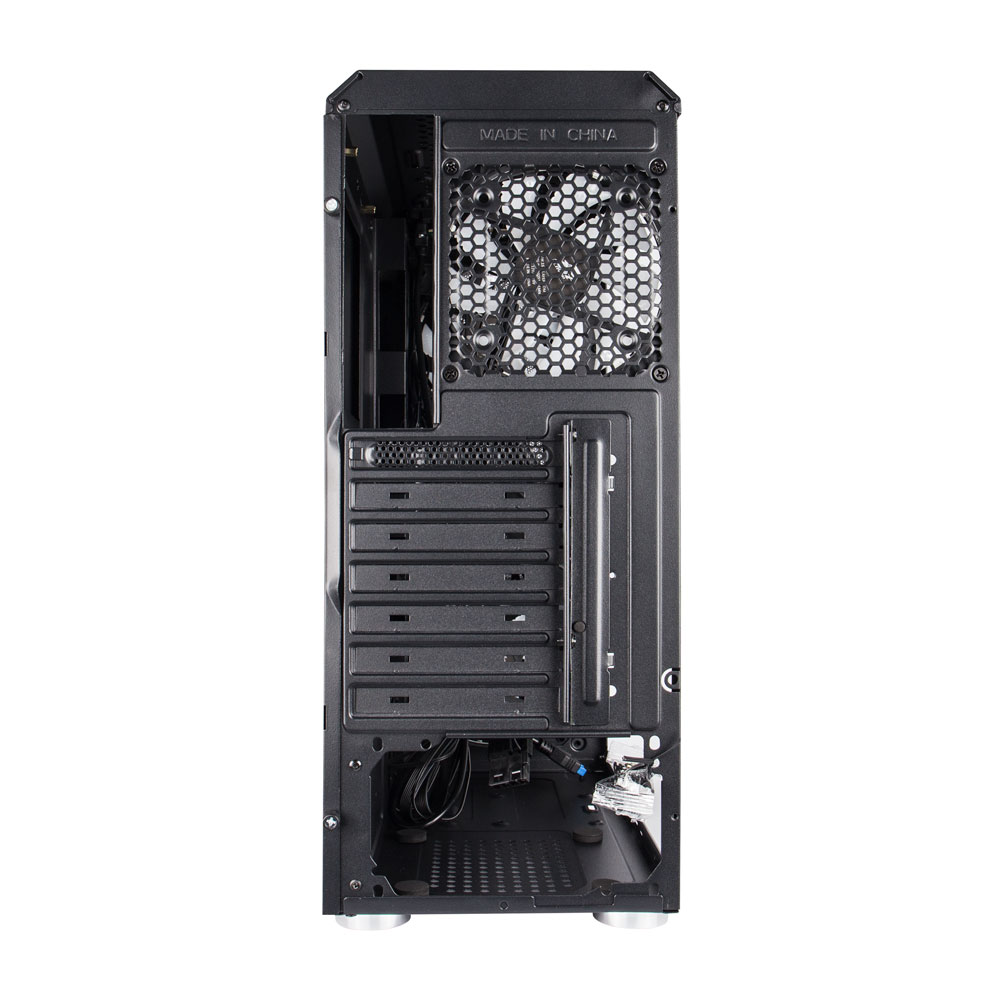

PCI CARD SLOT
7
FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
LIQUID COOLING SUPPORT
Rear: 120 mm
POWER SUPPLY SUPPORT
Bottom mounted ATX
NET WEIGHT
3.79 kg / 8.36 lb
4.46 kg / 9.83 lb
