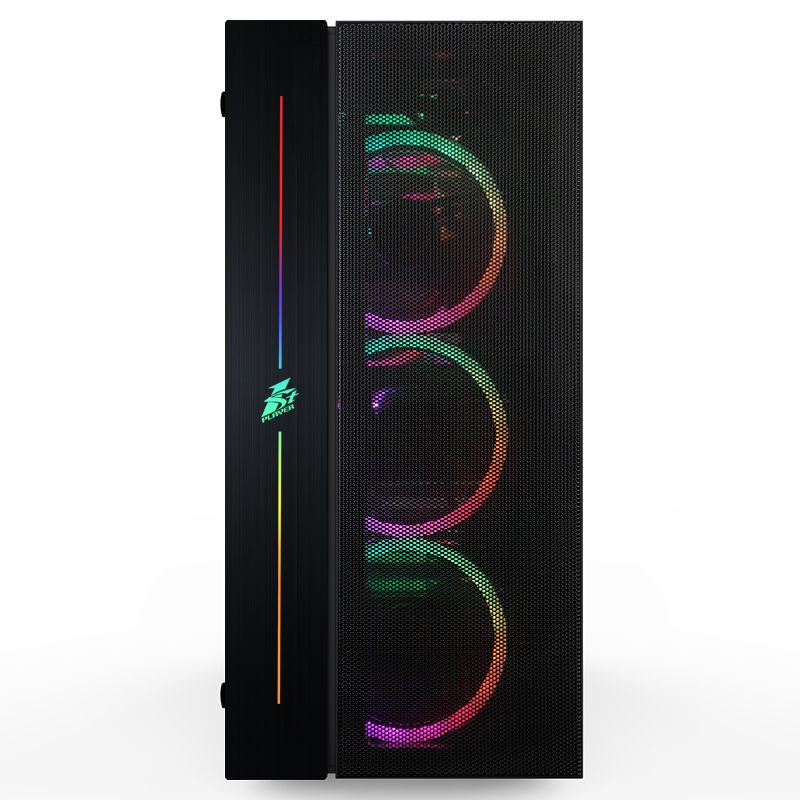

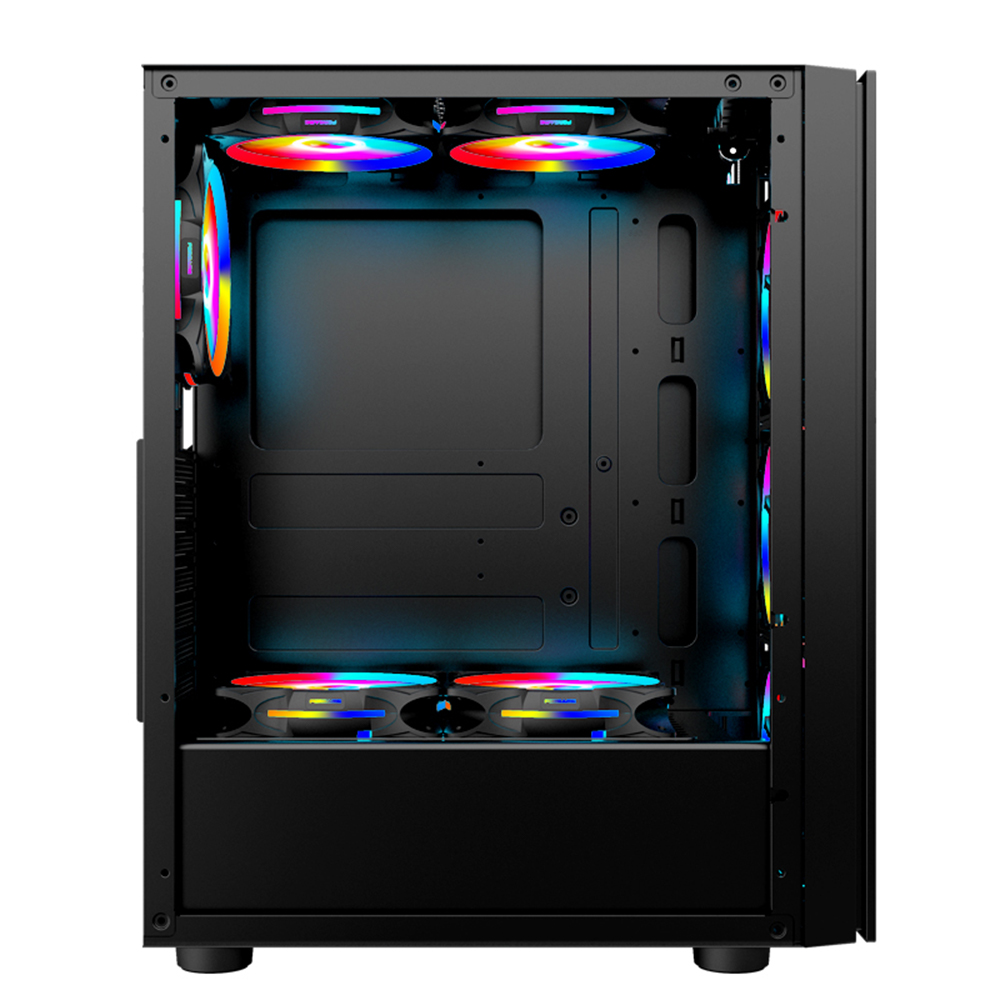

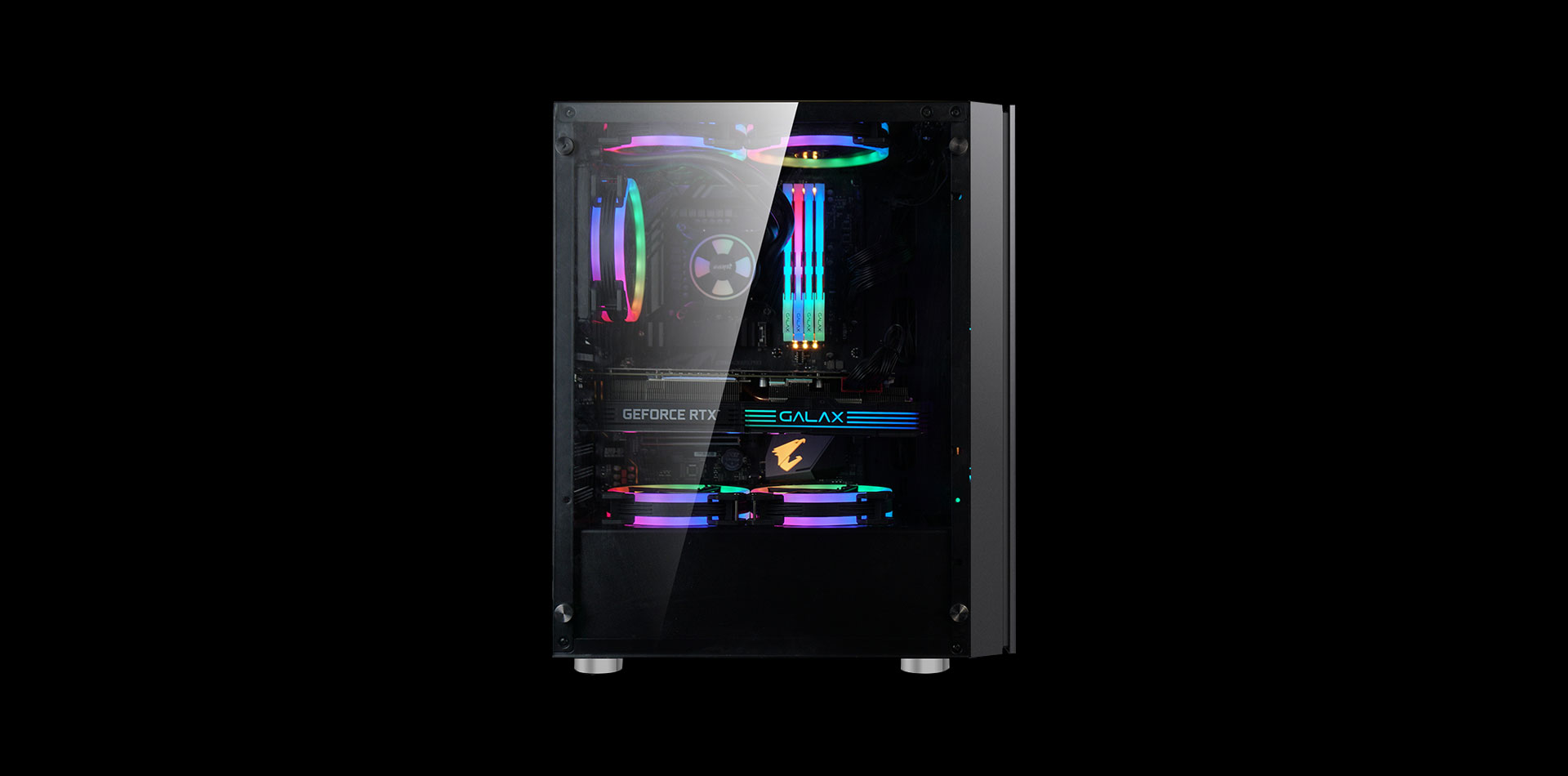

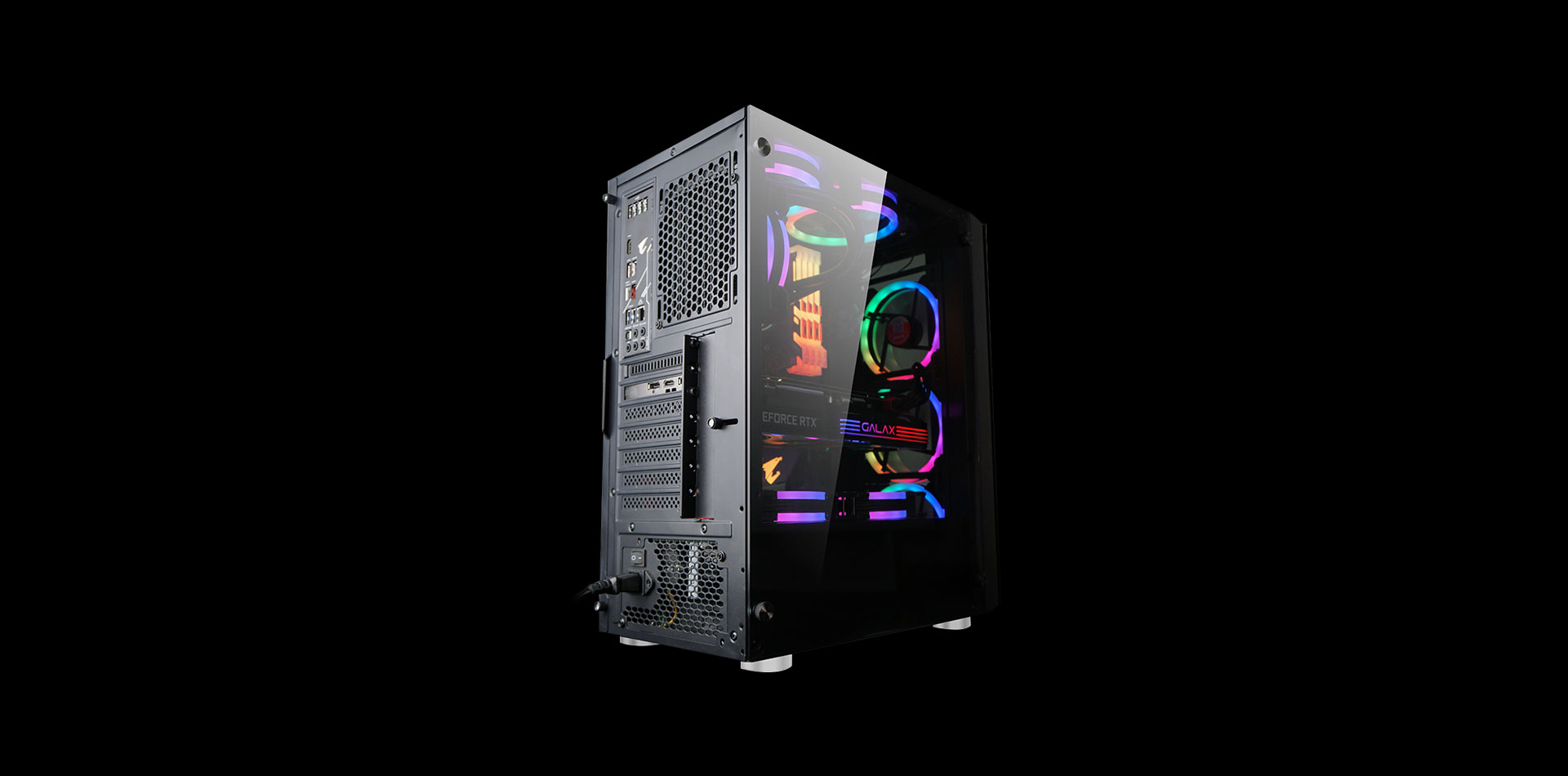

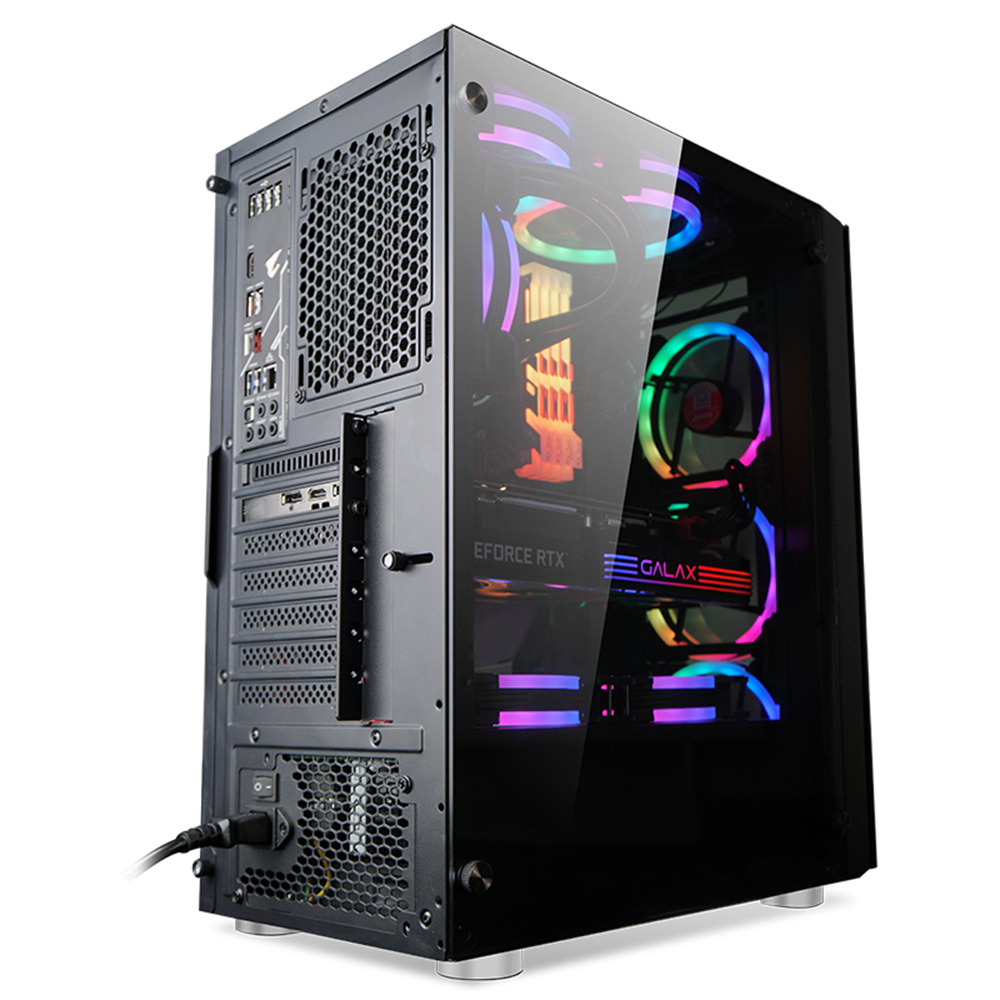

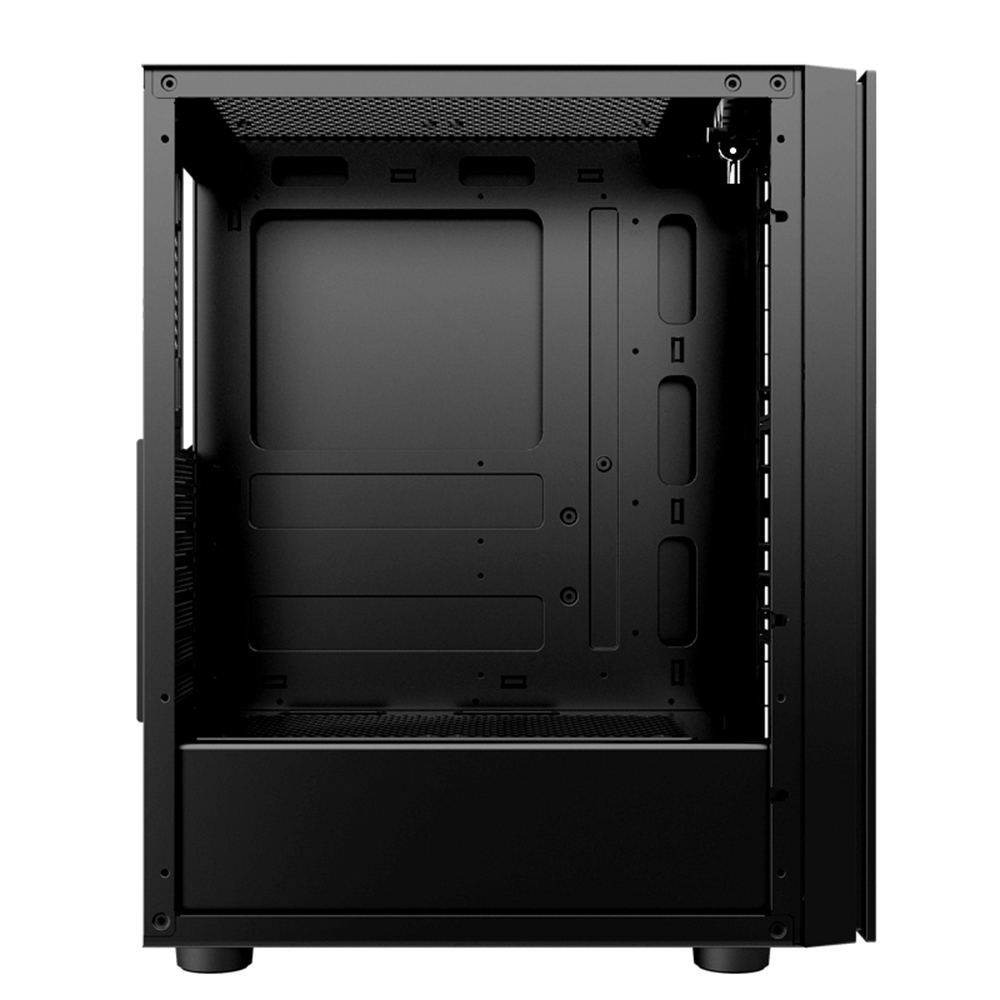

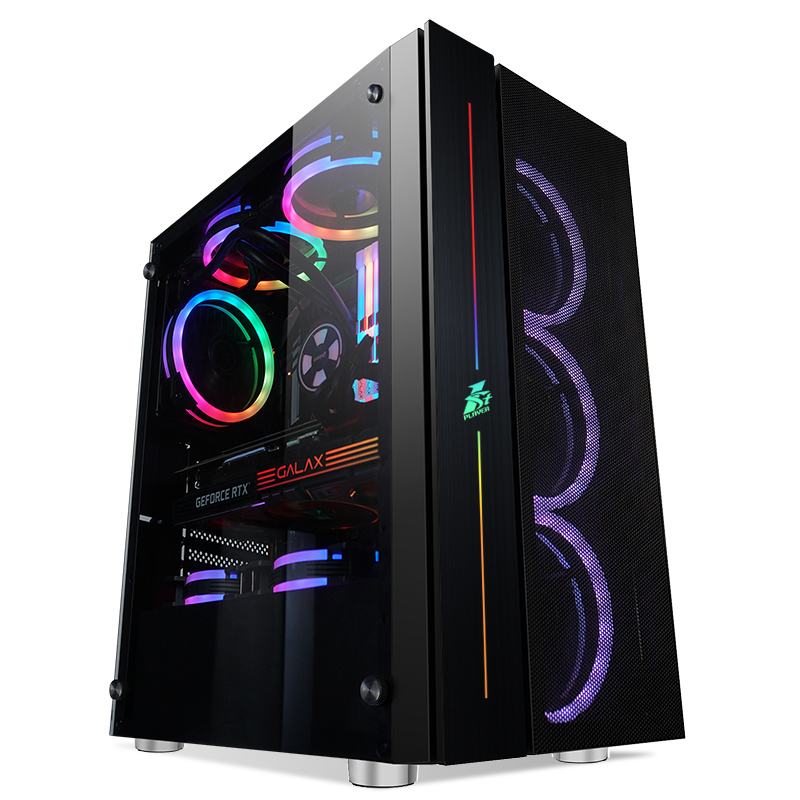

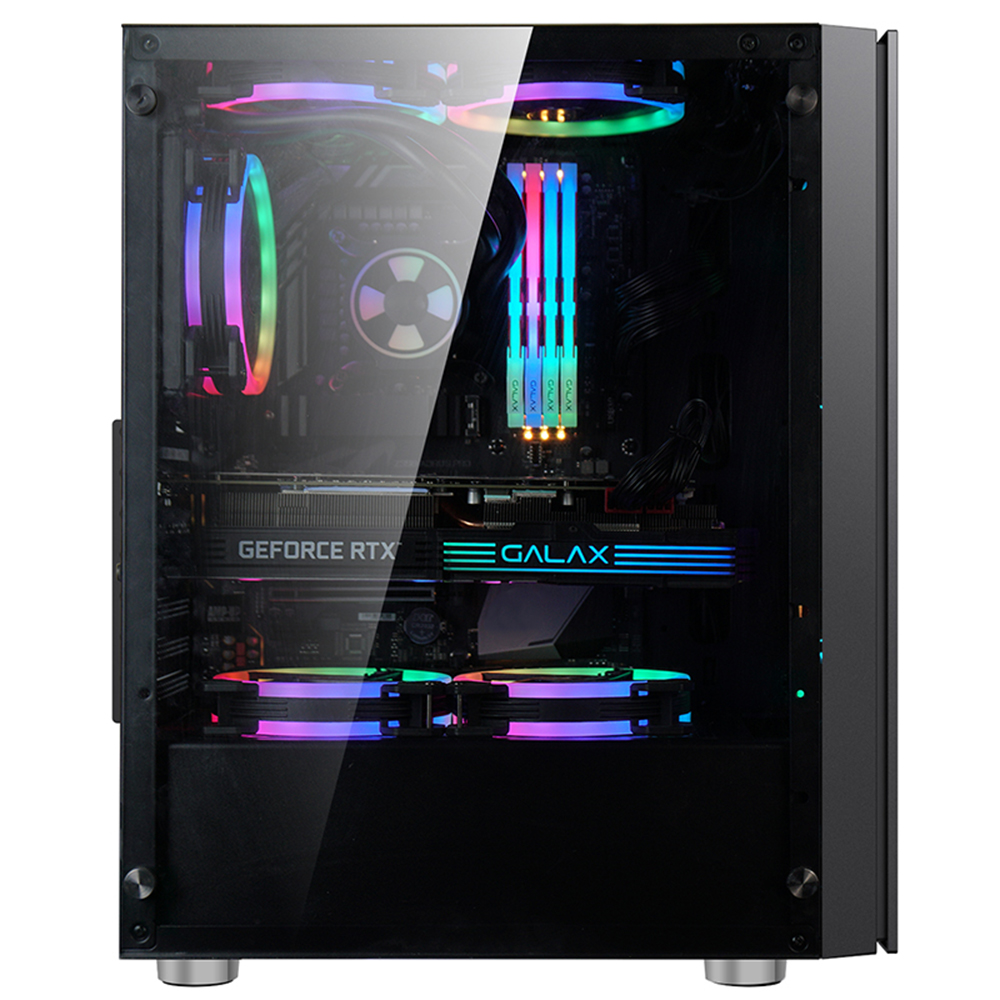

BLACK.SIR series ATX Case.
· Liquid Cooling Support(Fans are Optional) FRONT：24cm
· Fans Support: Up to 8 fans
· USB3.0*1+USB2.0*2+HD AUDIO+MIC
· 3.5" HDD：2 2.5" SSD：2
· Left Side Panel:Tempered Glass Front panel: Metal Mesh Cover with
light strip
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries
Model
B7
Structure Dimensions(L*W*H)
330*210*440MM
Product Dimensions(L*W*H)
365*210*452MM
Package Dimensions(L*W*H)
498*263*422MM
Structure Thickness
INSIDE:0.4MM&OUTSIDE:0.5MM
Materials
SPCC 0.4/0.5MM
FRONT&LEFT SIDE PANEL:TEMPERED GLASS
Form Factor
ATX/M-ATX/ITX
Drive Bays
5.25”CD ROM:0
3.5”HDD:2
2.5”SSD:2
CPU MAX Height
165MM
VGA MAX Length
320MM
I/O Panel
USB3.0+USB2.0*2+HD AUDIO+MIC
PCI Card Slot
7
Fan Support
FRONT:3*12CM
REAR:1*12CM
TOP:2*12CM
BOTTOM:2*12CM
Liquid Cooling Support
FRONT:240 MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
4.3KG / 9.48lb
5.2KG / 11.5lb
