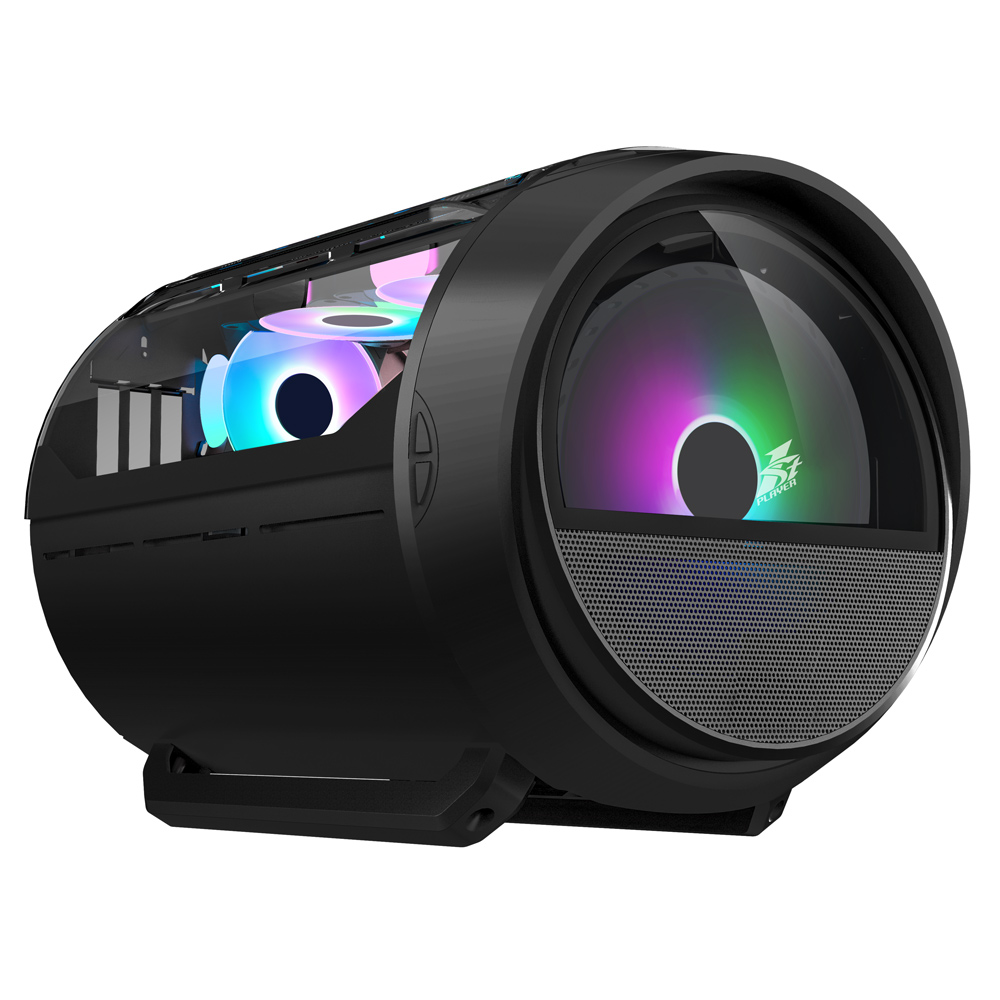

BASS

1STPLAYER Gaming Case

· Micro ATX Case

· Liquid Cooling Support(Fans are Optional)  TOP:24cm

· Fans Support: Up to 4 fans

· USB3.0*1+USB2.0*2+HD AUDIO

· 3.5" HDD:2  2.5" SSD:2

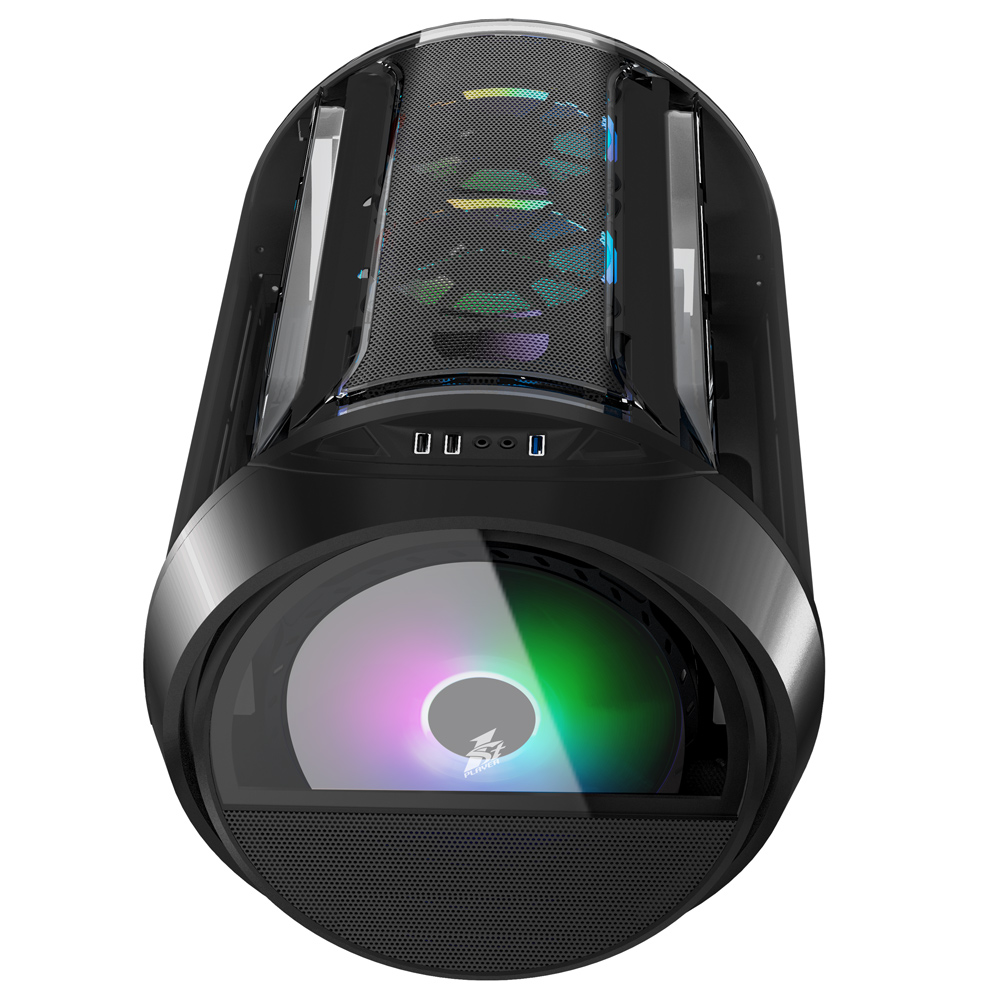

· FRONT PANEL:TEMPERED GLASS & METAL MESH

· TOP PANEL:ACRYLIC





BASS

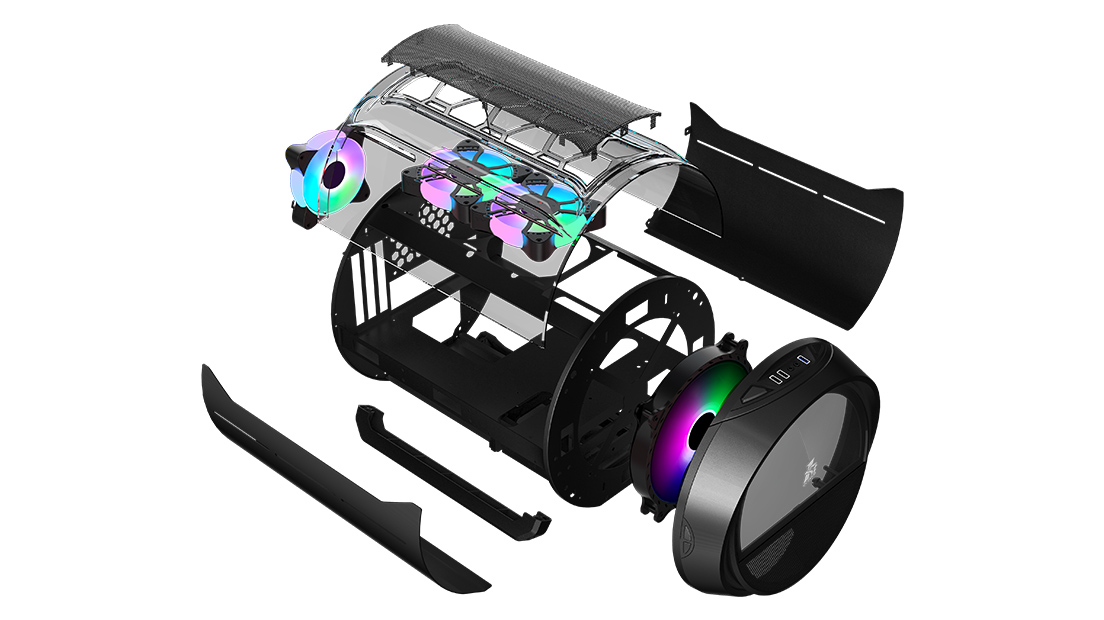

Special-Shaped M-ATX Support/Horizontal motherboard and Vertical VGA Installation/SPCC 1.2MM/200MM Fan&240MM Liquid Cooler Support

  • Horizontal Motherboard
    And VGA Installation

  • 20MM Fan Support

  • 240MM Liquid
    Cooler Support

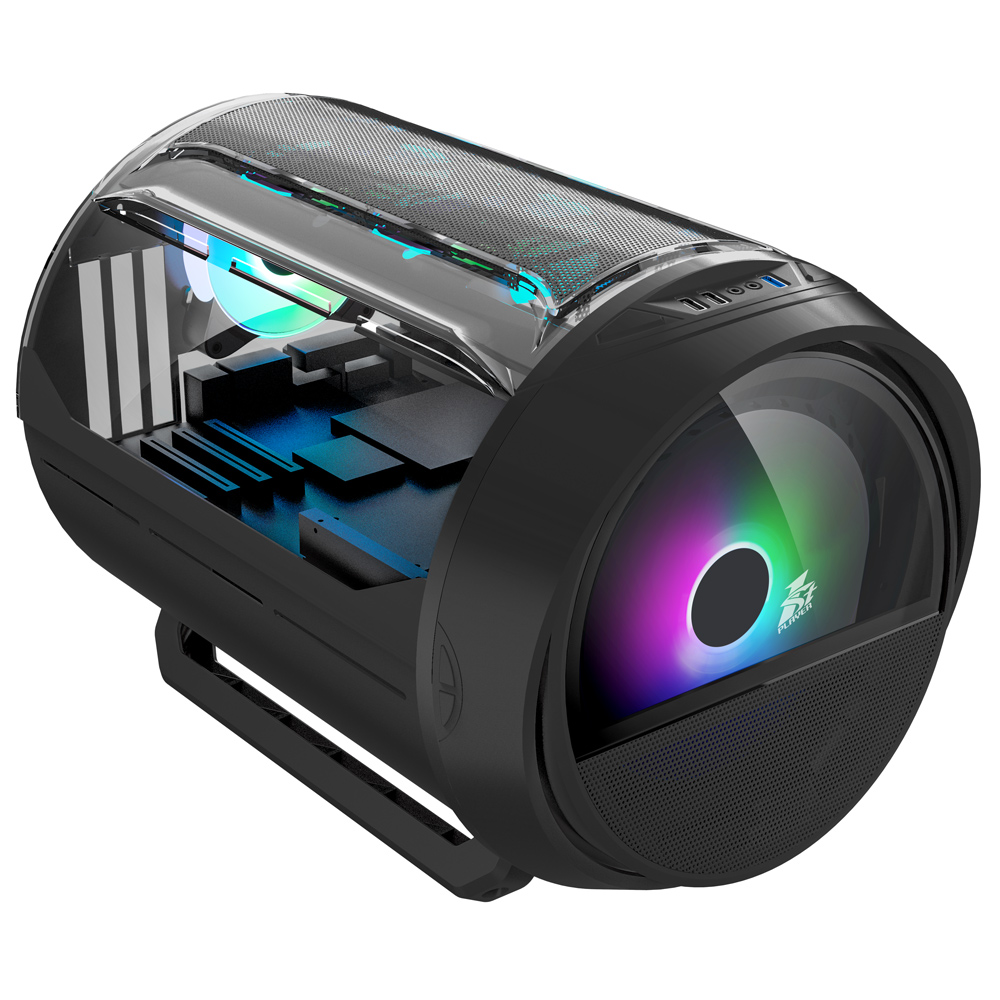

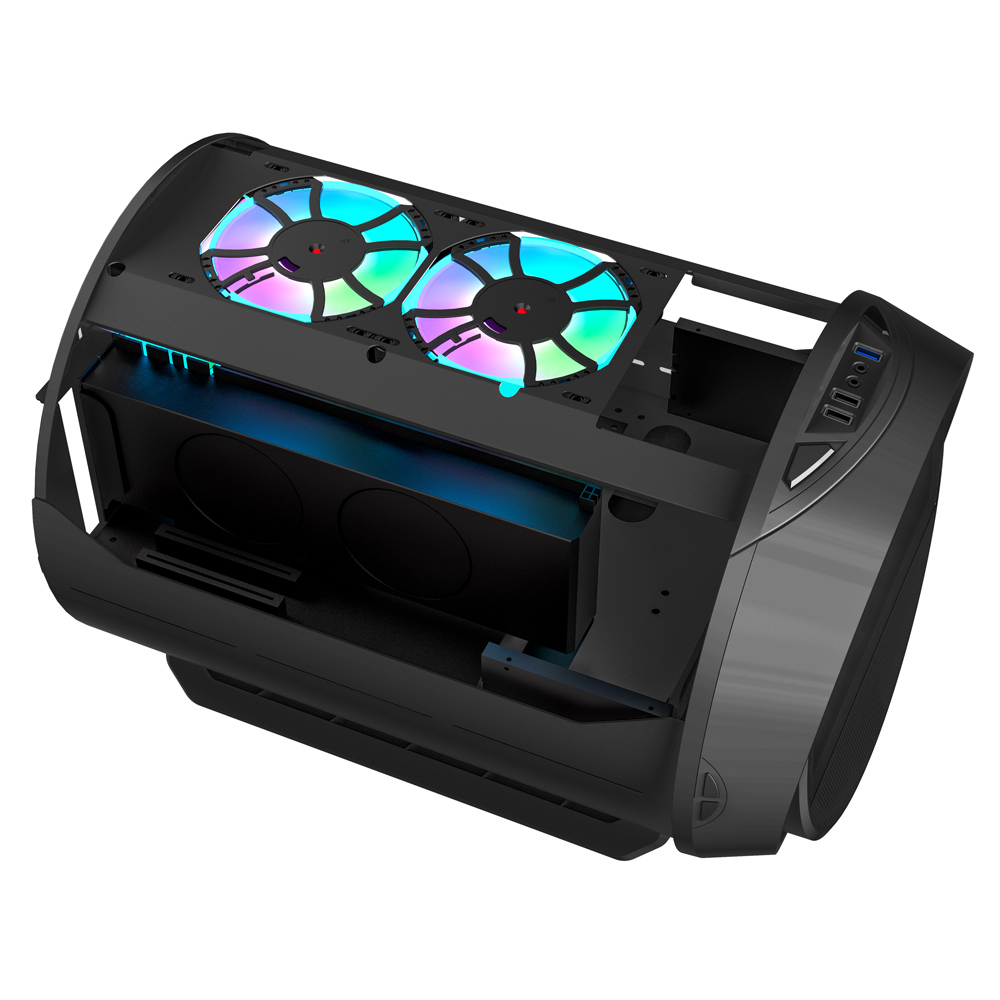

Horizontal Motherboard And VGA Installation

20MM Fan Support

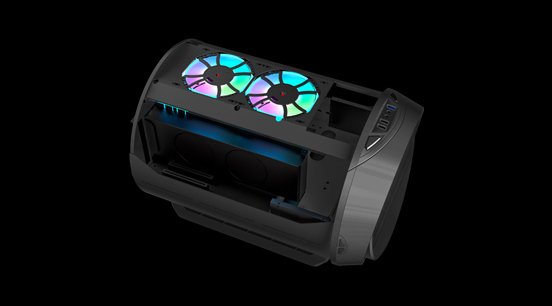

240MM Liquid Cooler Support(SPCC 1.2MM

Showcase+

Showcase+

Showcase+

Showcase+

Model

BASS

Structure Dimensions(L*W*H)

N/A

Product Dimensions(L*W*H)

450*315*350MM

Package Dimensions(L*W*H)

515*415*415MM

Structure Thickness

1.2MM

Materials

SPCC 1.2MM

FRONT PANEL: TEMPERED GLASS&METAL MESH

TOP PANEL:ACRYLIC

Form Factor

M-ATX/ITX

Drive Bays

5.25""Cd ROM:0

3.5""HDD:2

2.5""SSD:2

CPU MAX Height

165MM

VGA MAX Length

320MM

I/O Panel

USB3.0*1+USB2.0*2+HD AUDIO

PCI Card Slot

3

Fan Support

FRONT:1*200 MM

TOP:2*120 MM

REAR:1*120 MM

Liquid Cooling Support

TOP:240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

5.6KG / 12.35lb

Gross Weight

6.0KG / 13.23lb
