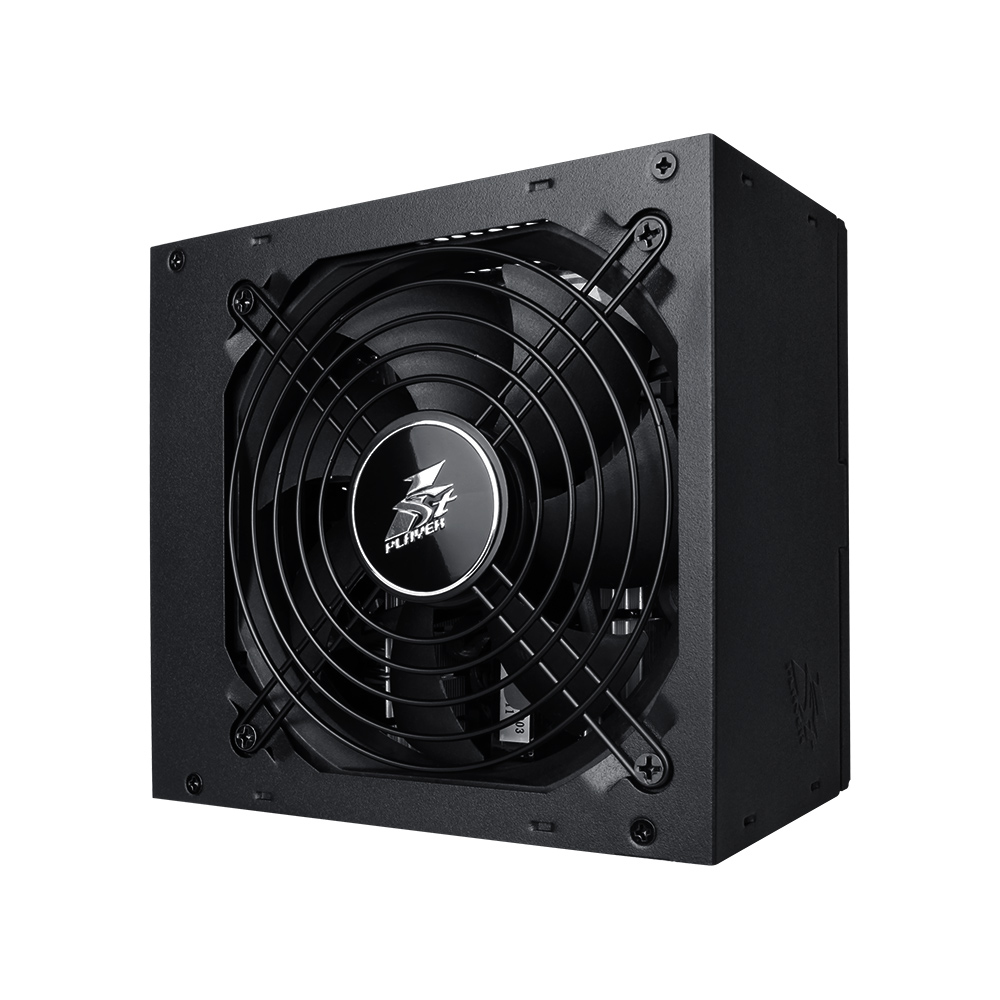

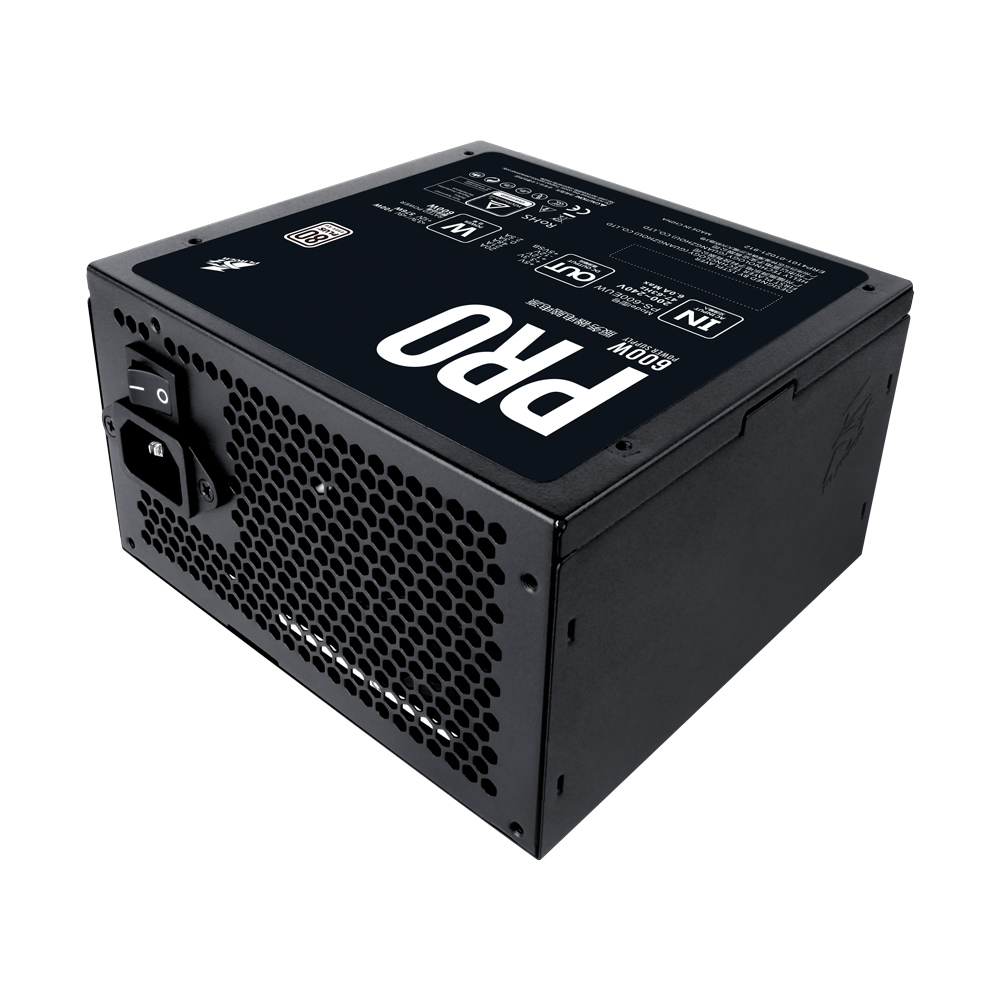

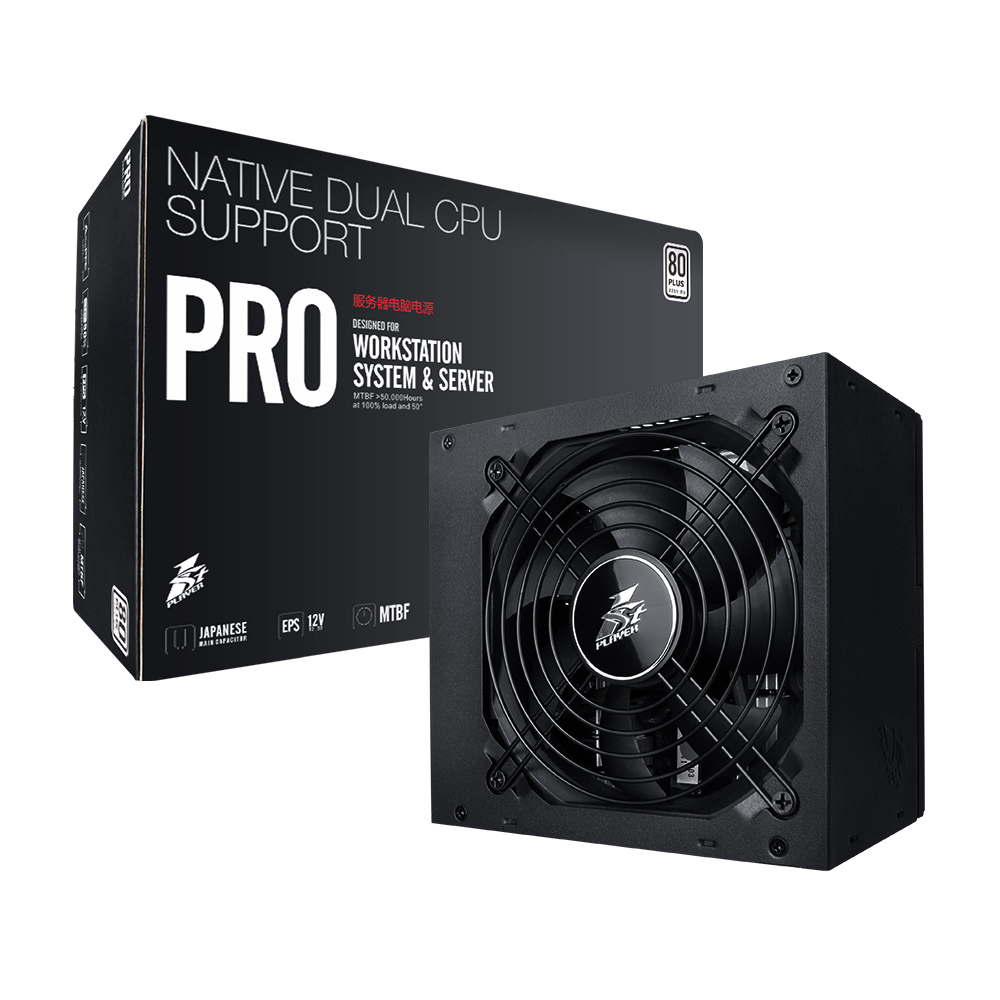

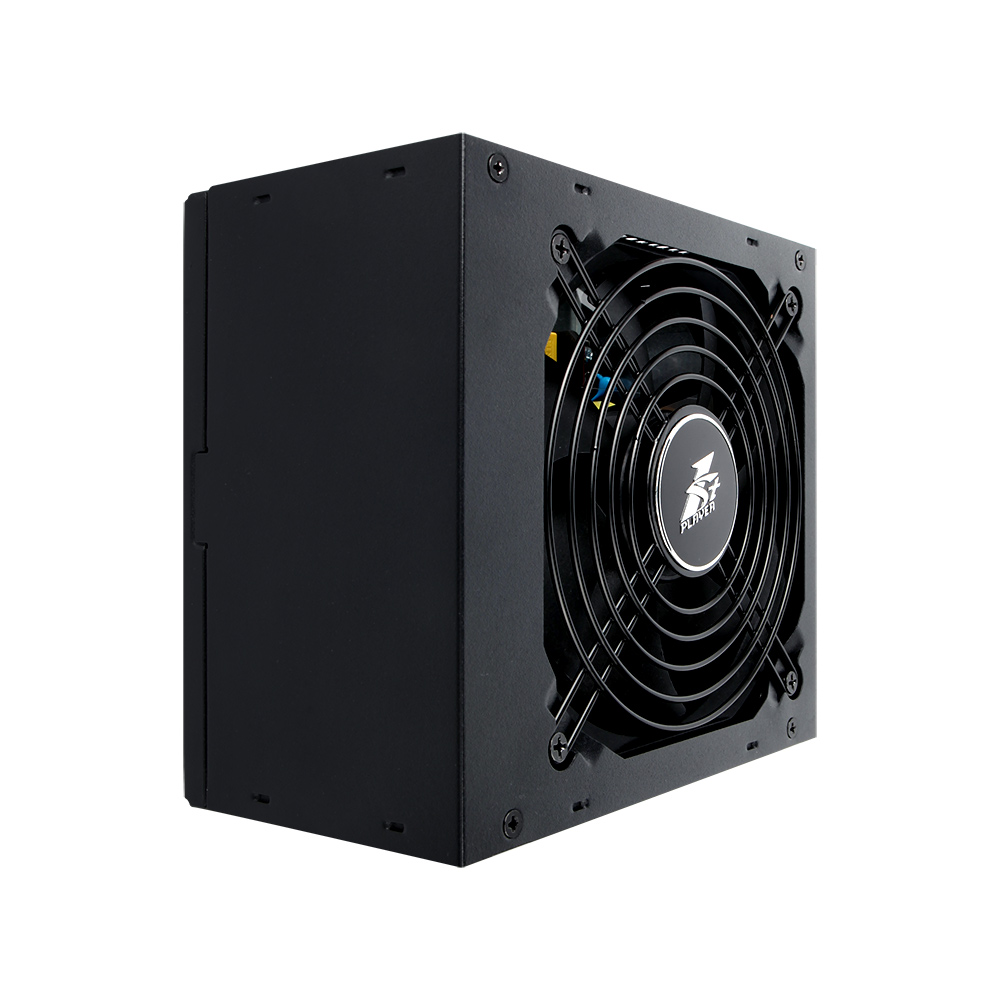

PRO 5.0 / 6.0 / 7.0

1STPLAYER Power Supply

500W

· NATIVE  DUAL CPU SUPPORT

· 80PLUS 230V EU Certified

· Double Forward + APFC

· Perfect combination of cooling and silent with 12CM Hydraulic

   Bearing fan

· Single +12V output,the output of +12V loading can be rated as 90%

   of the total power

· Comply with ErP LOT 6,Standby power low as 0.5W

· OVP, OPP, UVP, SCP

· CB CE ROHS TUV

· Black DC Cables

· Three years Warranty


PRO SERIES POWER SUPPLY

Double Forward + APFC/80PLUS 230V EU Certified/Three years Warranty

  • +12V Load Up
    To 90% Of Total Power

  • Active PFC

  • Standby Power
    Low As 0.5W

  • 12CM
    Hydraulic Beaning Fan

  • Japanese
    Main Capacitors

  • Double 8PIN
    Overclocking Support

(Data Provided by 1STPLAYER, For Reference Only)


Ray tracing and multi-threading overclocking provide players with excellent game graphics and multi-task performance, but they also require high power supply for GPU and CPU.The PRO series power supply is equipped with Japanese main capacitor, all black cables and multi GPU and CPU connectors, with stable output performance and instant power supply ability, with presence of mind in the face of games and works

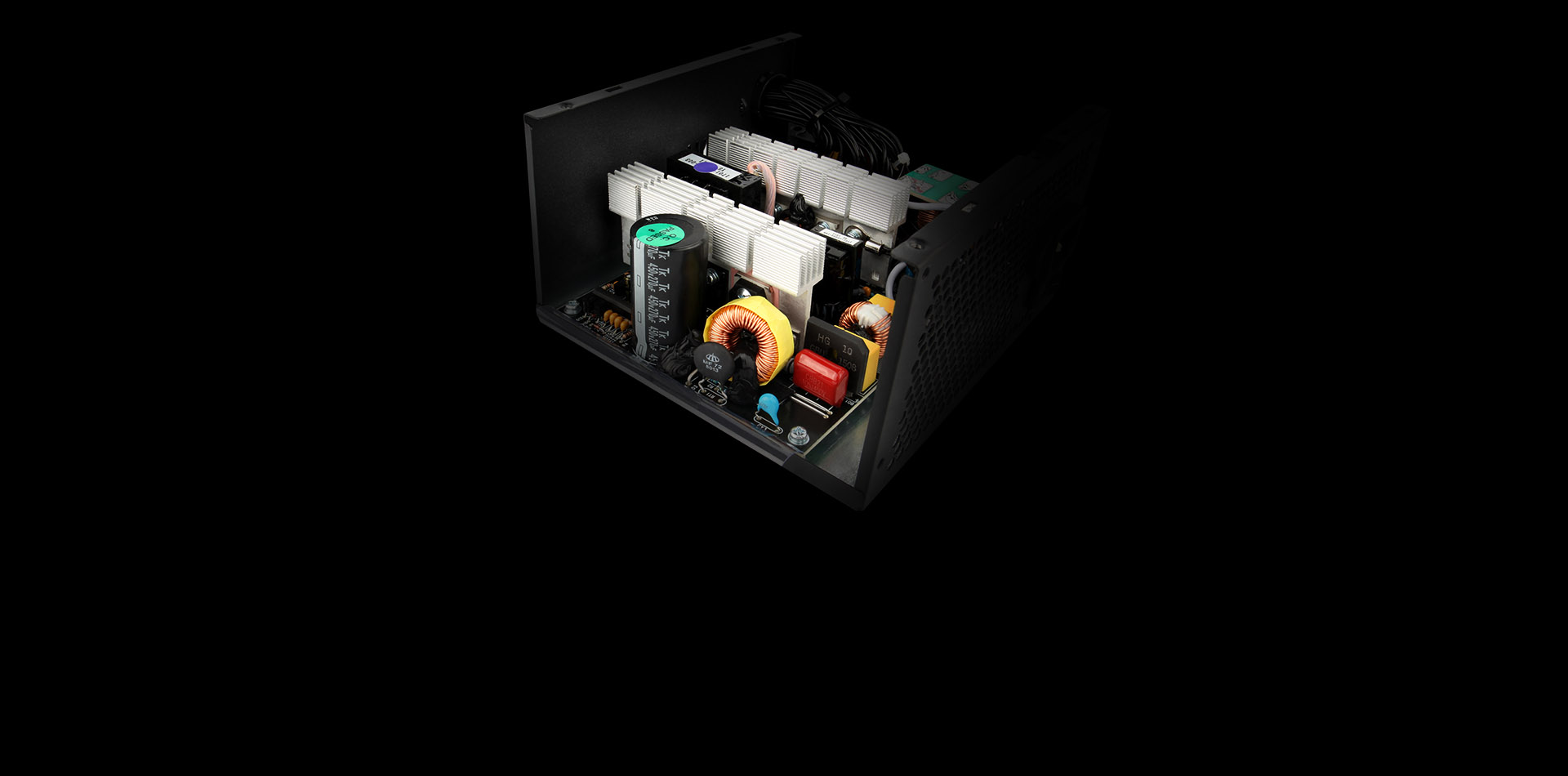

Japanese TK Main Capacitor

With the main capacitor from Toshin Kogyo Co.,Ltd, a company focus on the production of electrolytic capacitors and film capacitors, DK 4.0 delivers a reliable life expectancy and quality assurance.

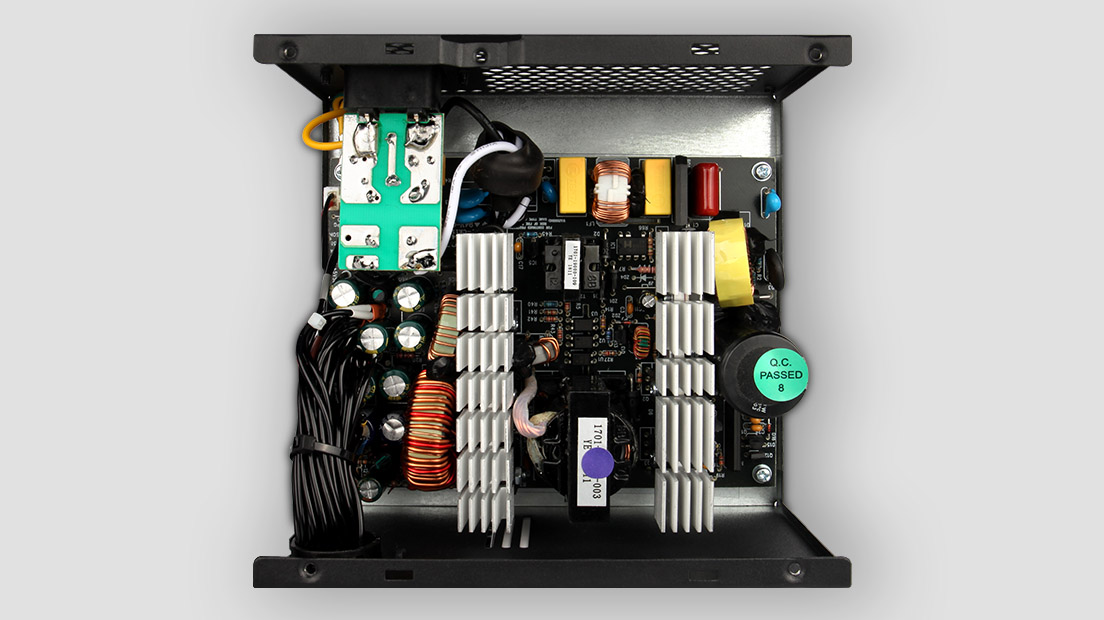

Double Forward + Active PFC

CPU decides the computing power in smartphone, PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK 4.0 ensures a supreme performance.

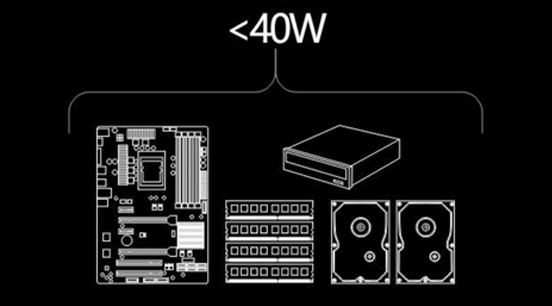

5V & 3Vsupply Power To

HDD/ ODD/ Floppy driver/Motherboard/Memory

+12V Supply Power To CPU, GPU, Cooling Fans

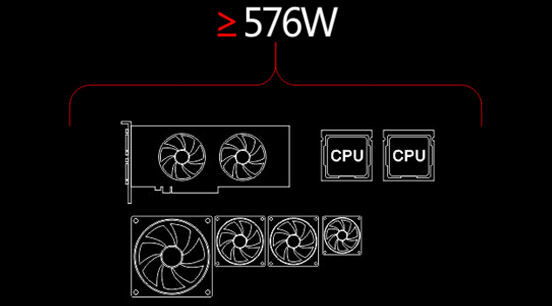

Mainstream gaming PC overall power under full load

(Data Provided by 1STPLAYER, For Reference Only)


  • Wide Range Voltage Power Off Protection

    With the wide range voltage (160V~264V) and SCP function, when the power is cut off under abnormal condition, PRO will activate the power fff protection function to protect the PSU and motherboard effectively.

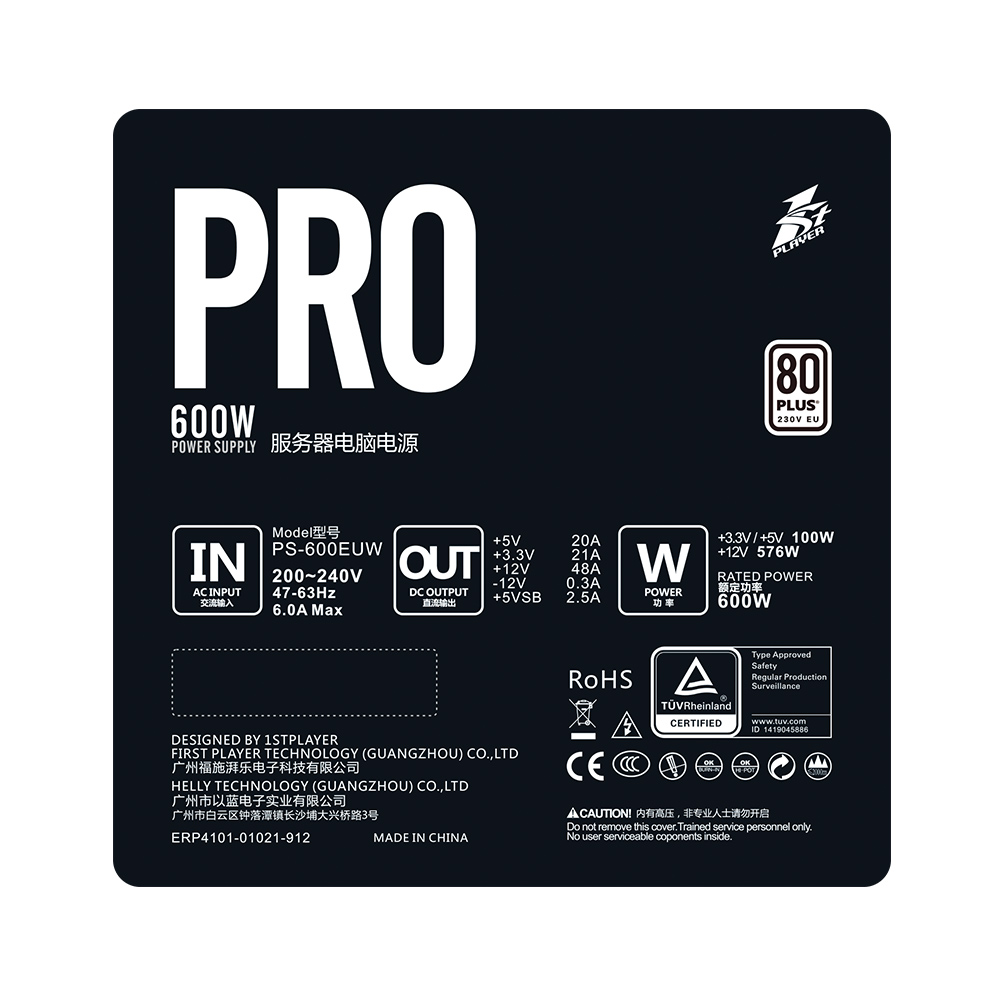

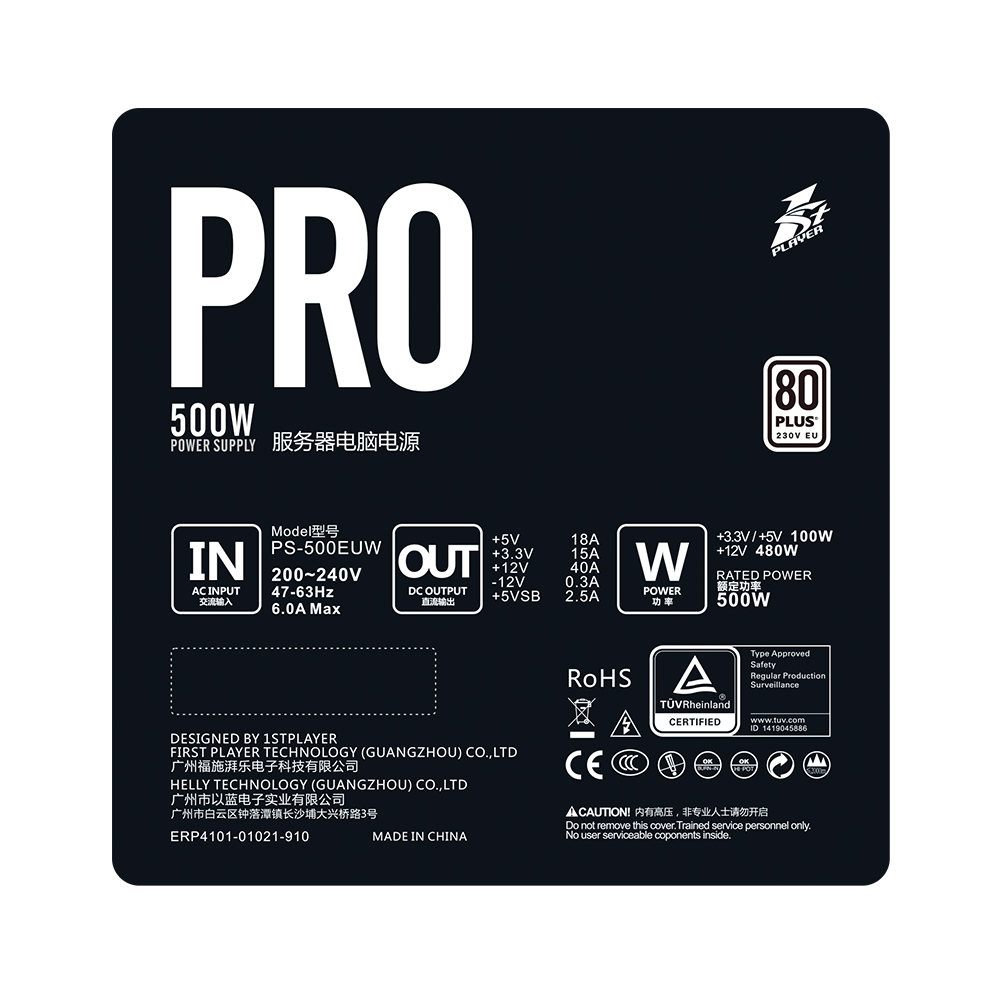

Model
PS-500EUW/PS-600EUW/PS-700EUW
Dimensions(L*W*H)
140*150*86 MM

Modular

Non-Modular

Certifications

80 PLUS
Warranty
3 years
Input Voltage
200-240 VAC
Input Current
10A MAX
Efficiency
80 PLUS, 85% Typically
Output Capacity
500/600/700 W
Input Frequency
50-60Hz
PFC
Active PFC
Net Weight
1.9kg
Gross Weight
2.4kg
Fan Size
120MM Hydraulic Bearing
Protections
UVP, OVP, OPP, SCP, Lightning Protection
Operation Temperature
0~40℃
MTBF
100,000 hours
Circuit Structure
Double Forward
Regulatory
CE/FCC/C-Tick/ROHS/CCC/IEC/EAC
