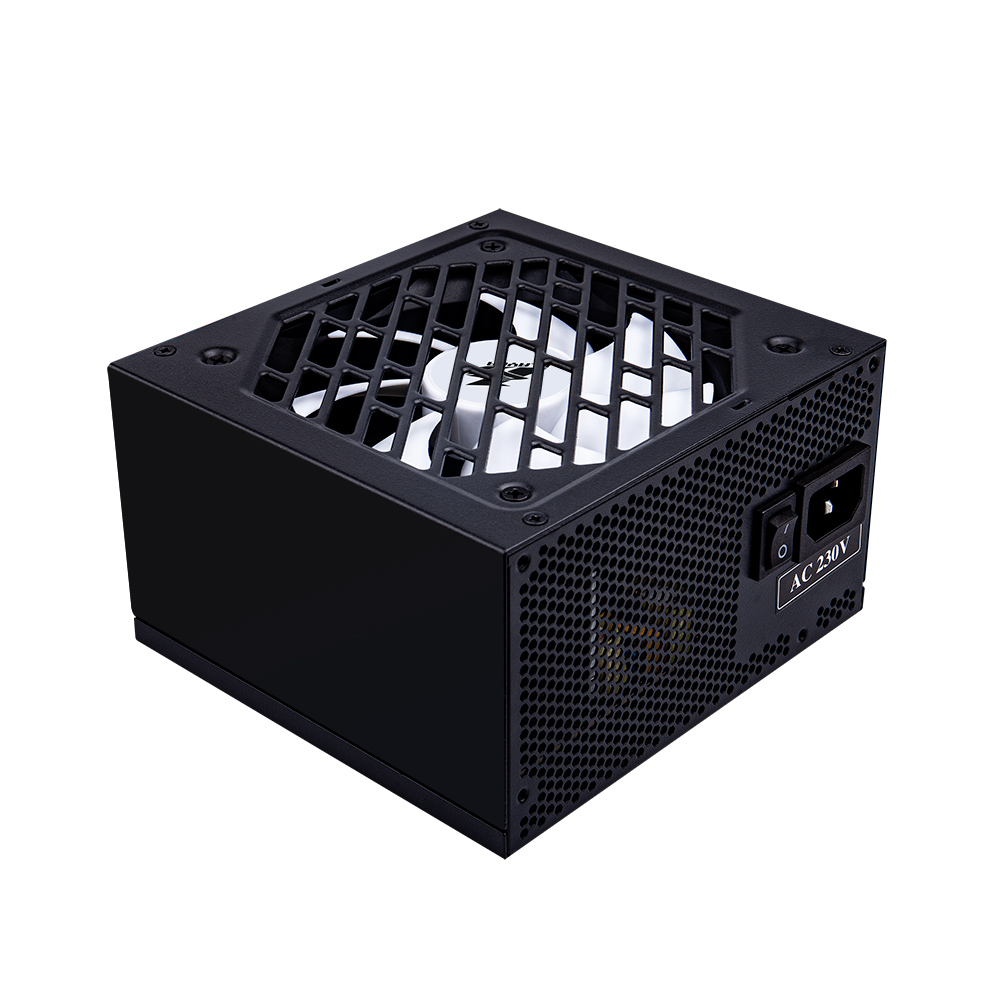

FK 4.0/5.0/5.5/6.0/6.5/7.0/7.5

400/500/550/600/650/700/750W Power Supply

· Double Forward + APFC (4.0 PPFC)

· EFF. high as 85% under typical loading

· Perfect combination of cooling and silent with 12CM Hydraulic

   Bearing fan

· Single +12V output

· Comply with ErP LOT 6,Standby power low as 0.5W

· OVP, OPP, UVP, SCP

· Flat Cable (6.5 / 7.0 / 7.5)




FK 4.0 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5

Double Forward + APFC/OVP, OPP, UVP, SCP/EFF. high as 85% under typical loading

  • +12V Loadup To
    90% Of Total Power

  • Active PFC

  • 3 Years
    Warranty

  • Standby Power
    Low As 0.5W

  • Open
    Circuit Protect

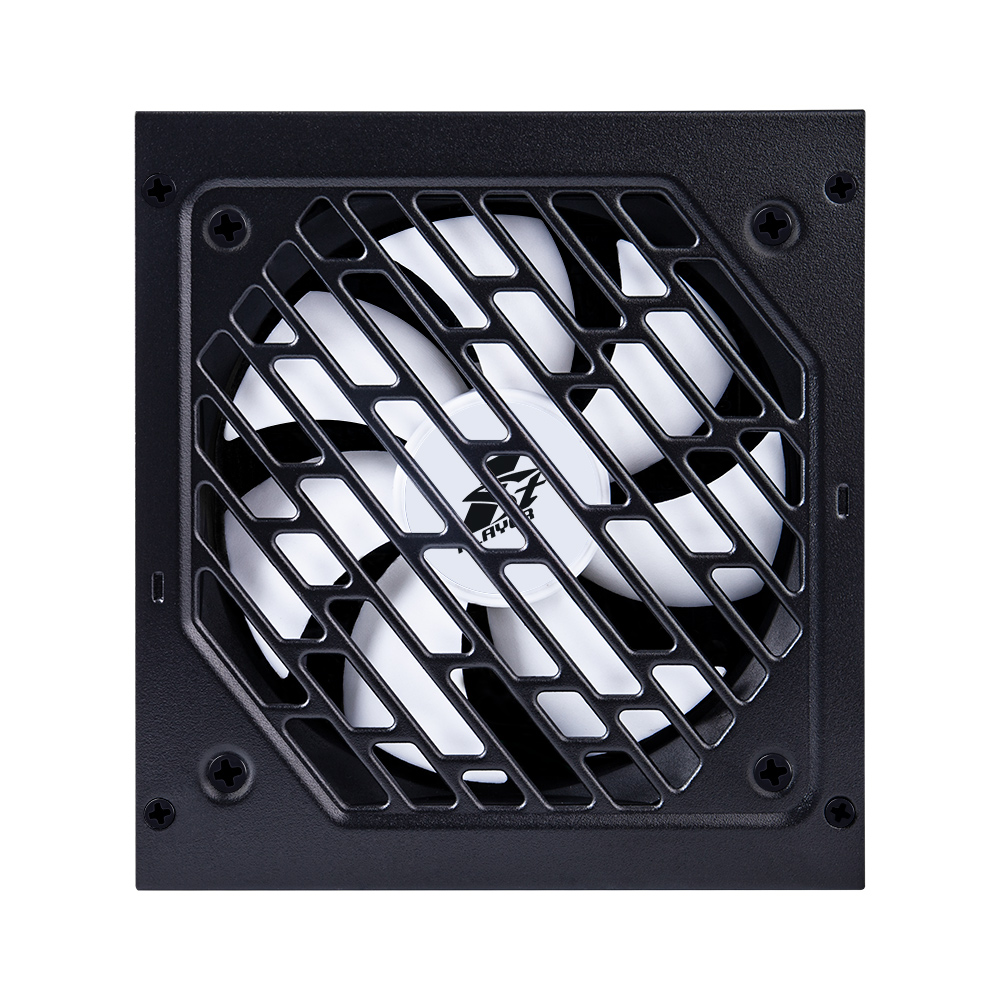

  • 12Cm Hydraulic
    Beaning Fan

Explosive Output RTX Gaming Power Supply

The new NVIDIA Turing™ GPU architecture and innovative RTX platform provide real-time ray tracing, artificial intelligence, and programmable coloring, which puts new demands on the power supply capability of instant power, while the FK series power supply can meet the rigid demand of 20 series GPU for explosive power.


Double Forward + Active PFC

CPU decides the computing power in smartphone, PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK 4.0 ensures a supreme performance.


+12V Supply Power To CPU, GPU, Cooling Fans

Mainstream gaming PC overall power under full load

(Data Provided by 1STPLAYER, For Reference Only)


  • 3 Years Warranty

Model
PS-400FK/PS-500FK /PS-550FK /PS-600FK /PS-650FK /PS-700FK /PS-750FK
Dimensions(L*W*H)
140*150*86 MM

Modular

Non-Modular

Certifications

None 80+
Warranty
3 years
Input Voltage
100-240 VAC
Input Current
8/10A MAX
Efficiency
None 80+
Output Capacity
400/500/550/600/650/700/750 W
Input Frequency
50-60Hz
PFC
Active PFC(400W is PPFC)
Net Weight
1.9kg
Gross Weight
2.4kg
Fan Size
120MM Hydraulic Bearing
Protections
UVP, OVP, OPP, SCP, Lightning Protection
Operation Temperature
0~40℃
MTBF
100,000 hours
Circuit Structure
Double Forward
Regulatory
CE/FCC/C-Tick/ROHS/CCC/IEC/EAC
