Dimension:335*210*407mm
CPUMaxL:160mm
VGAMaxL:330mm

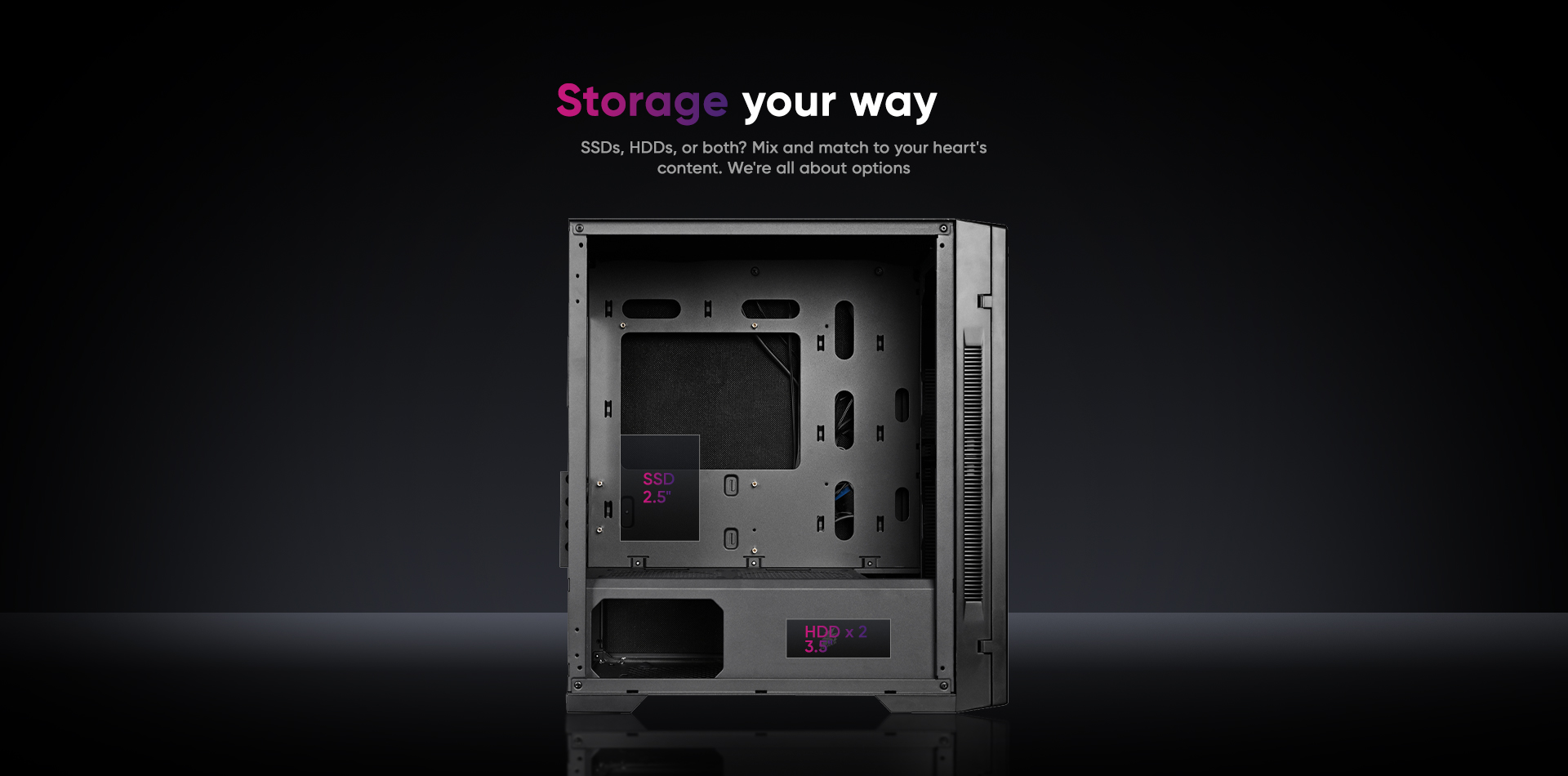

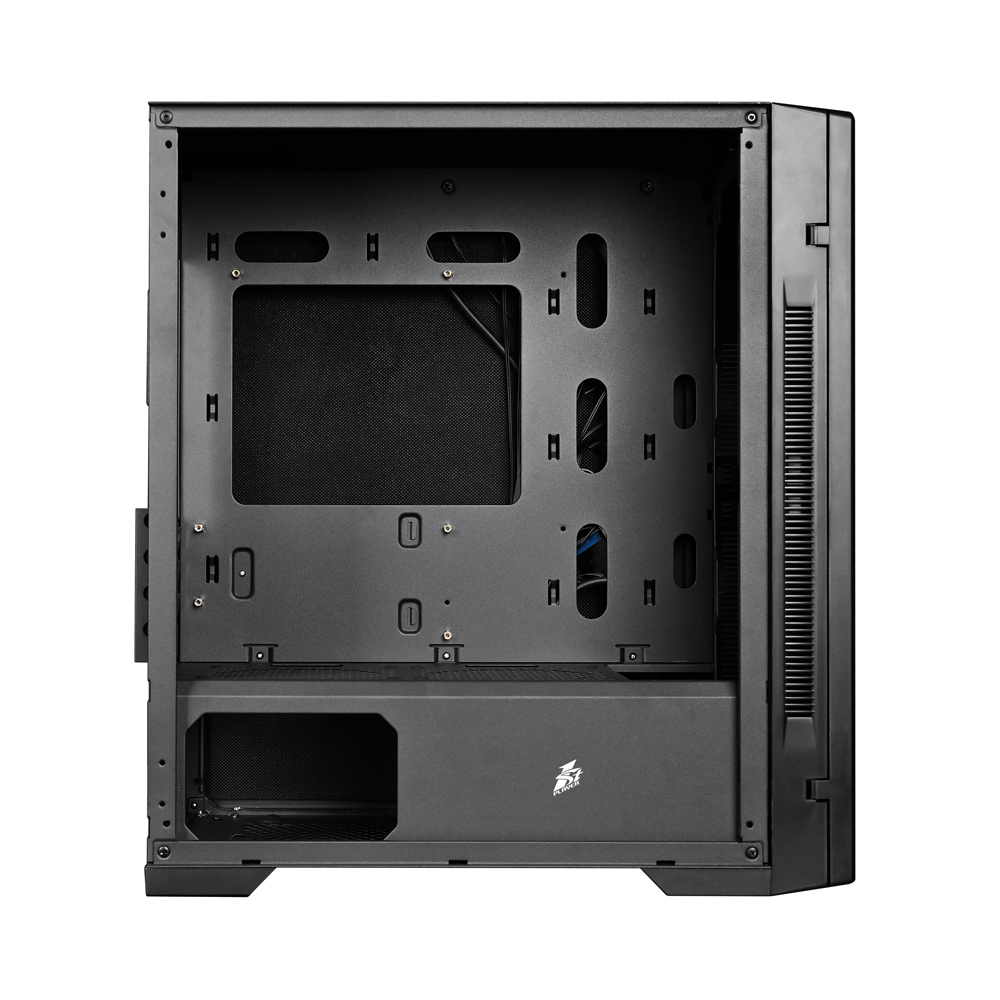

Case Drive Bays:
①3.5"HDD:2+2.5"SSD:1
②3.5"HDD:1+2.5" SSD:2

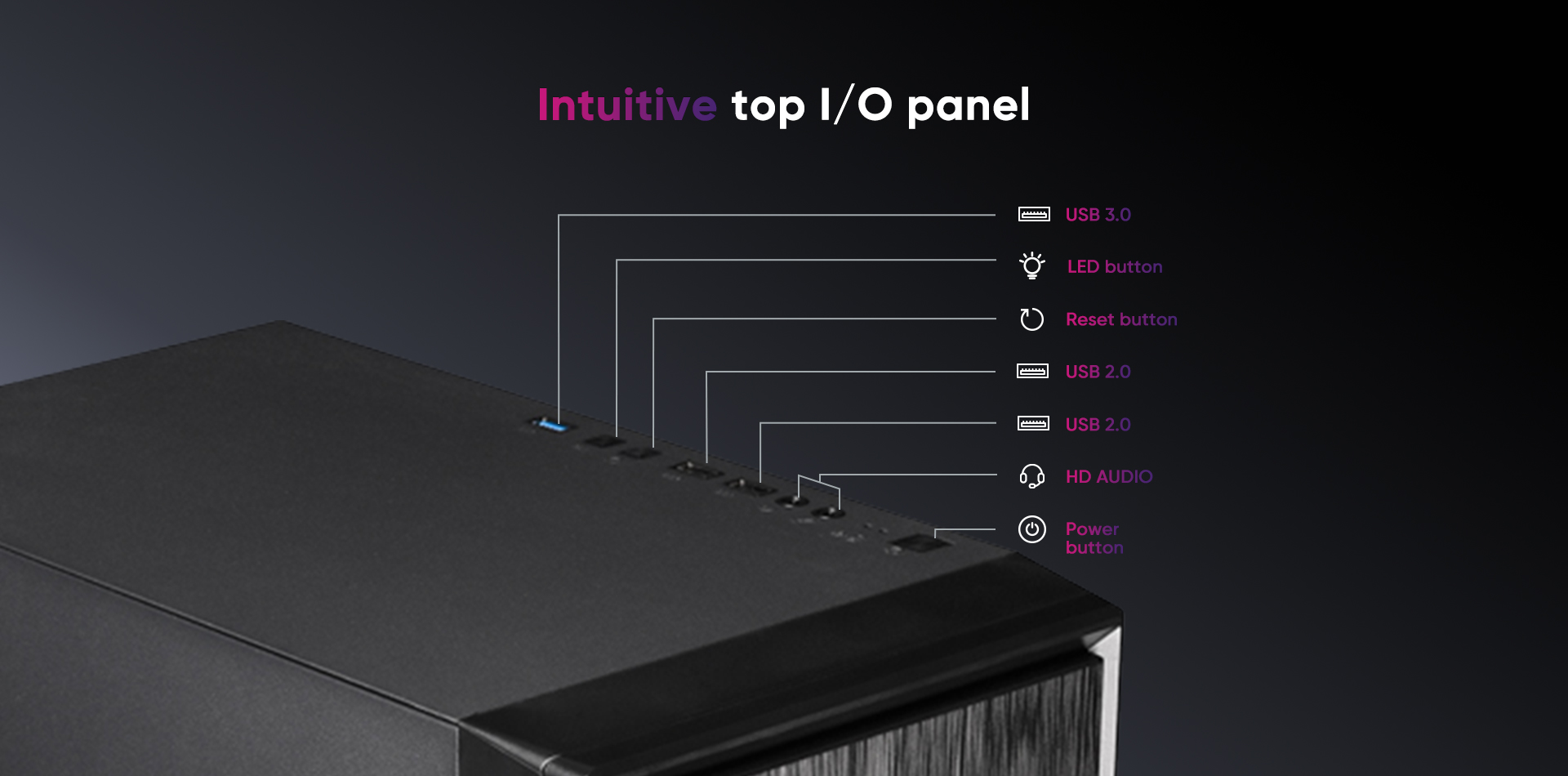

I/O Panel:USB2.0*2+USB3.0*1+HD AUDIO*1
Fan Support:Front:3*12cm/Rear:1*12cm Top:2*12cm/Bottom:2*12cm
Liquid Cooling Support: Top 24cm
*Computer parts are not included / Cooling fan may distinctively from diferent regions/countries

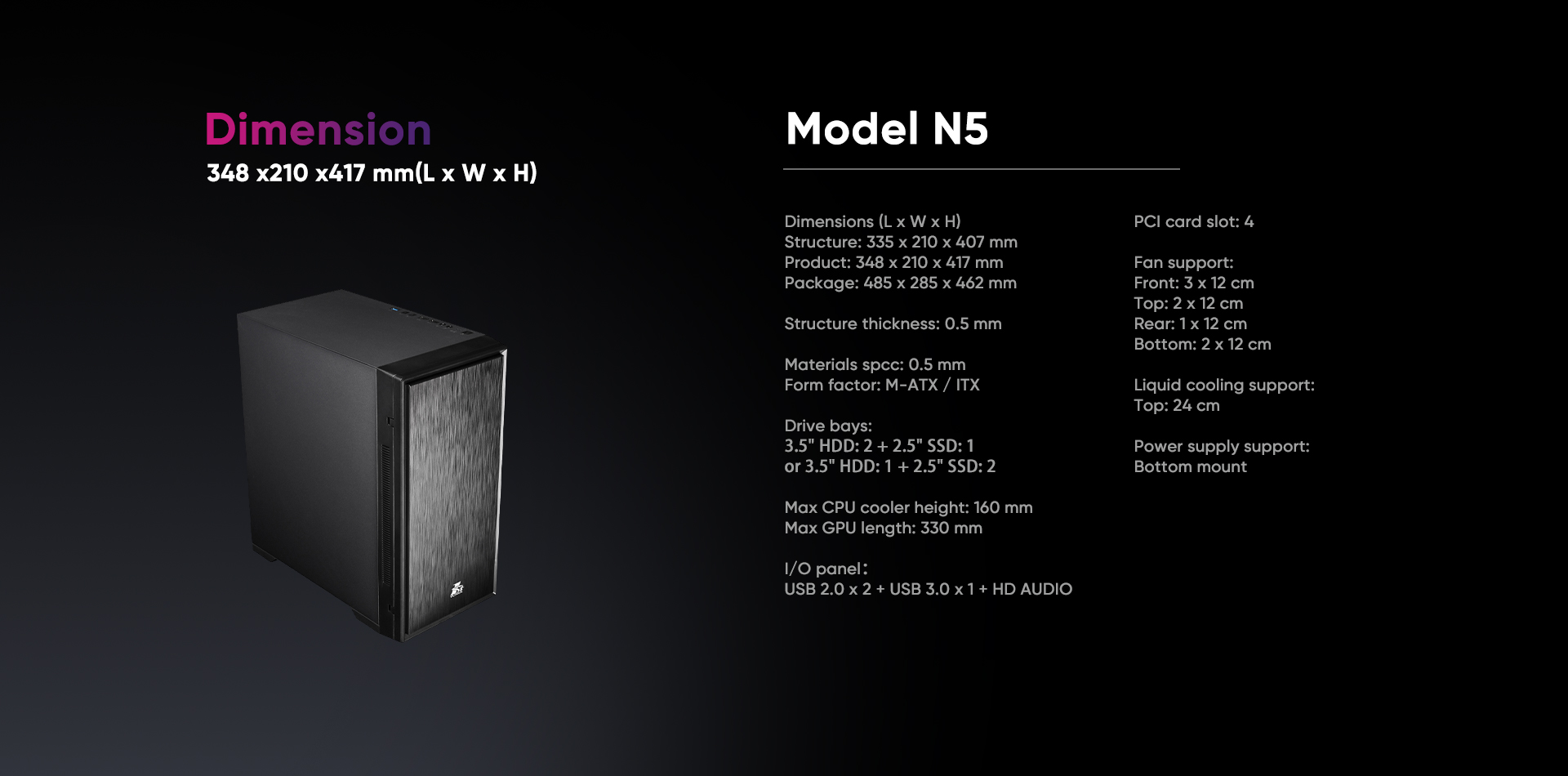

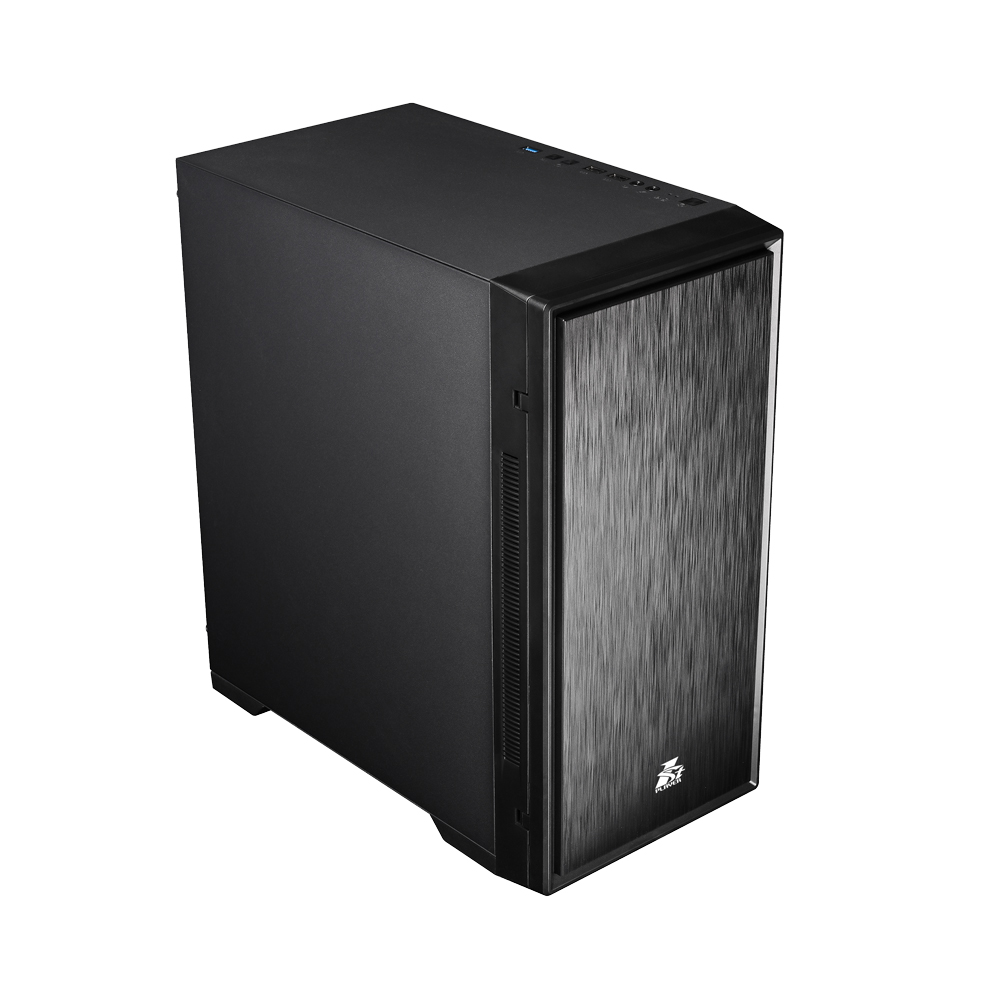

Model

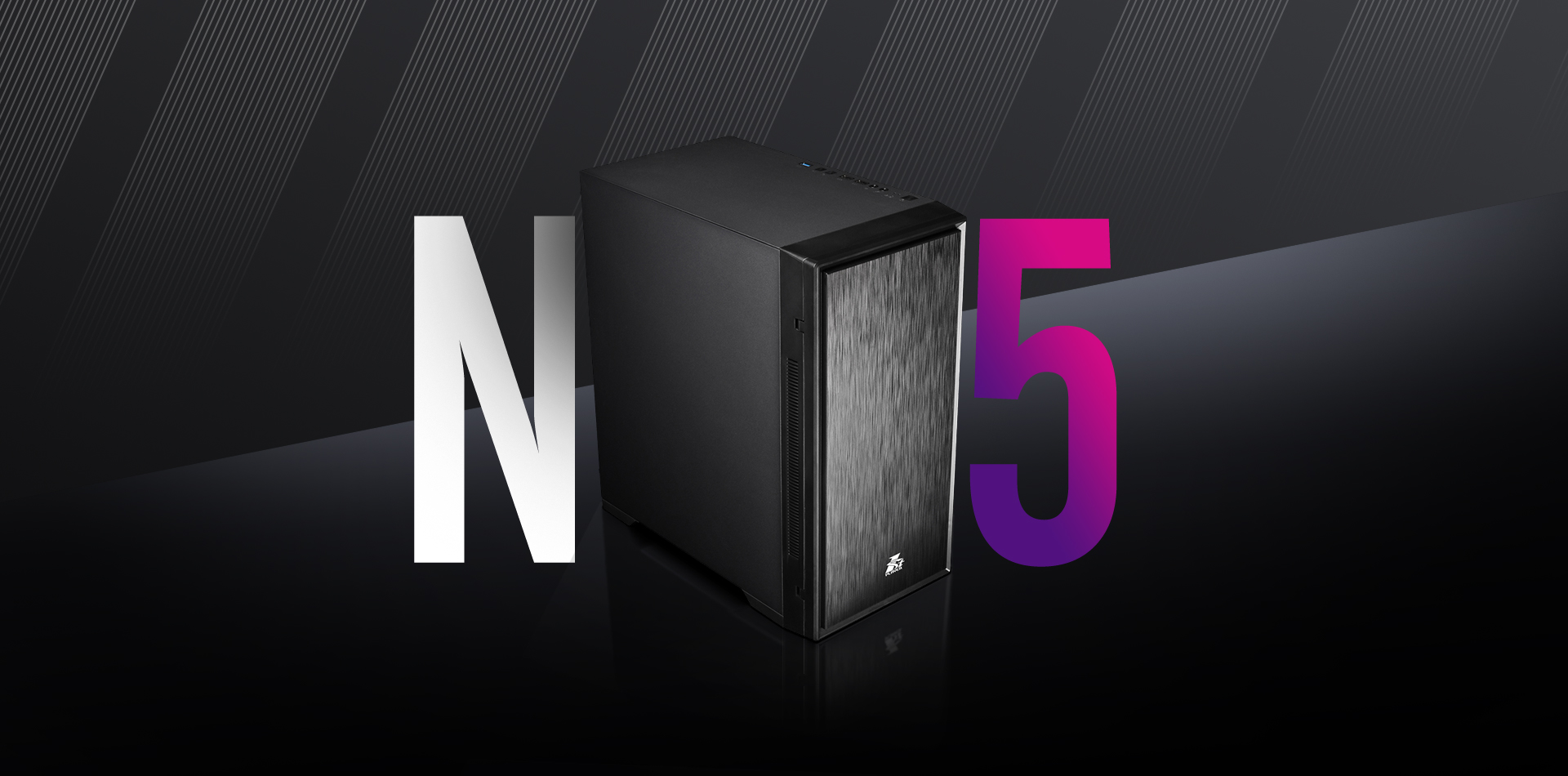

N5
Structure Dimensions(L*W*H)
335*210*407MM
Product Dimensions(L*W*H)
348*210*417MM
Package Dimensions(L*W*H)
485*285*462MM
Structure Thickness
0.5MM
Materials
SPCC 0.5MM
Form Factor
M-ATX/ITX
5.25" CD ROM: 0
3.5" HDD: 2+2.5" SSD: 1
3.5" HDD: 1+2.5" SSD: 2

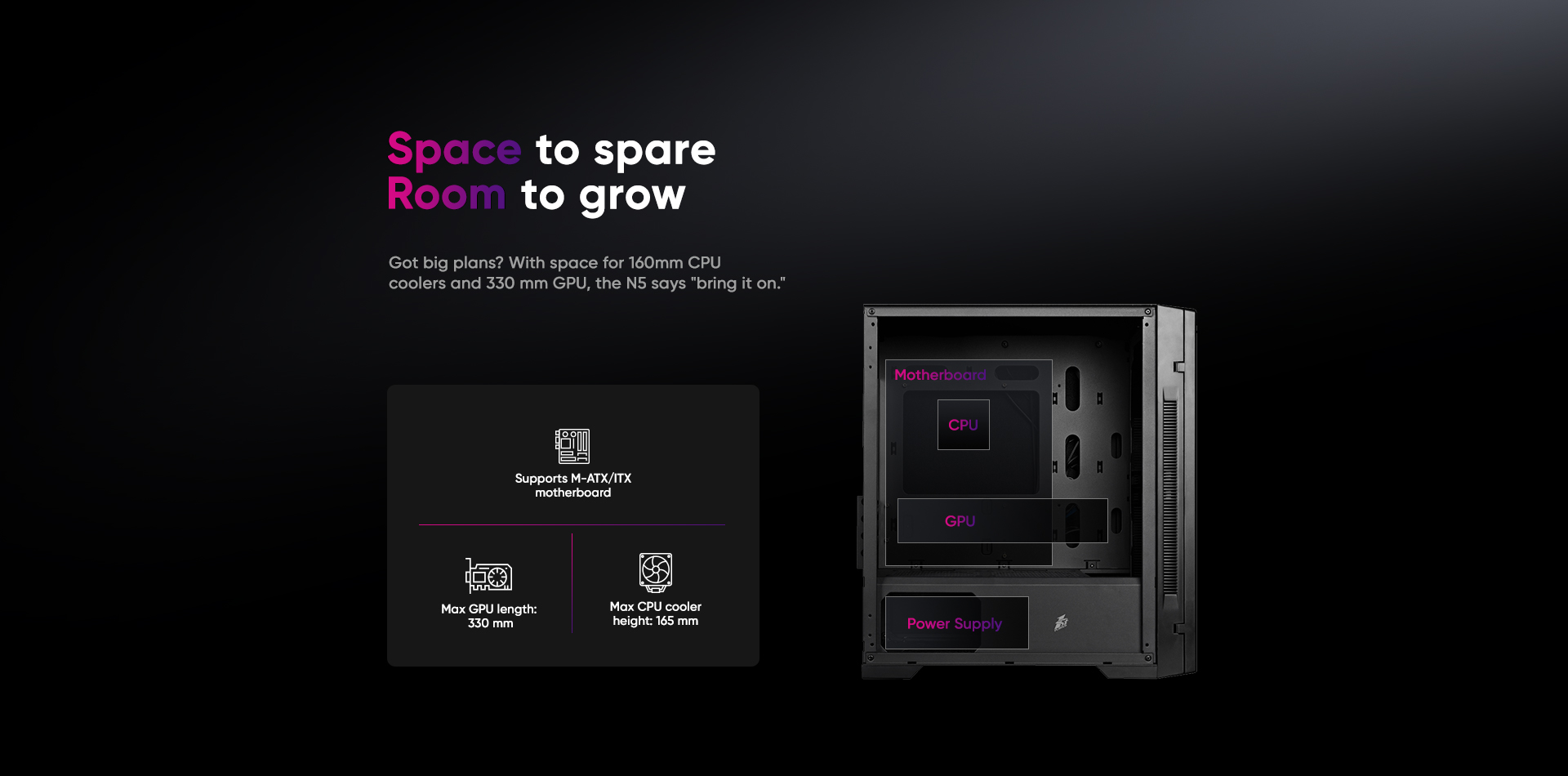

CPU MAX Height
160MM
VGA MAX Length
330MM
I/O Panel
USB2.0*2+USB3.0*1+HD AUDIO
PCI Card Slot
4

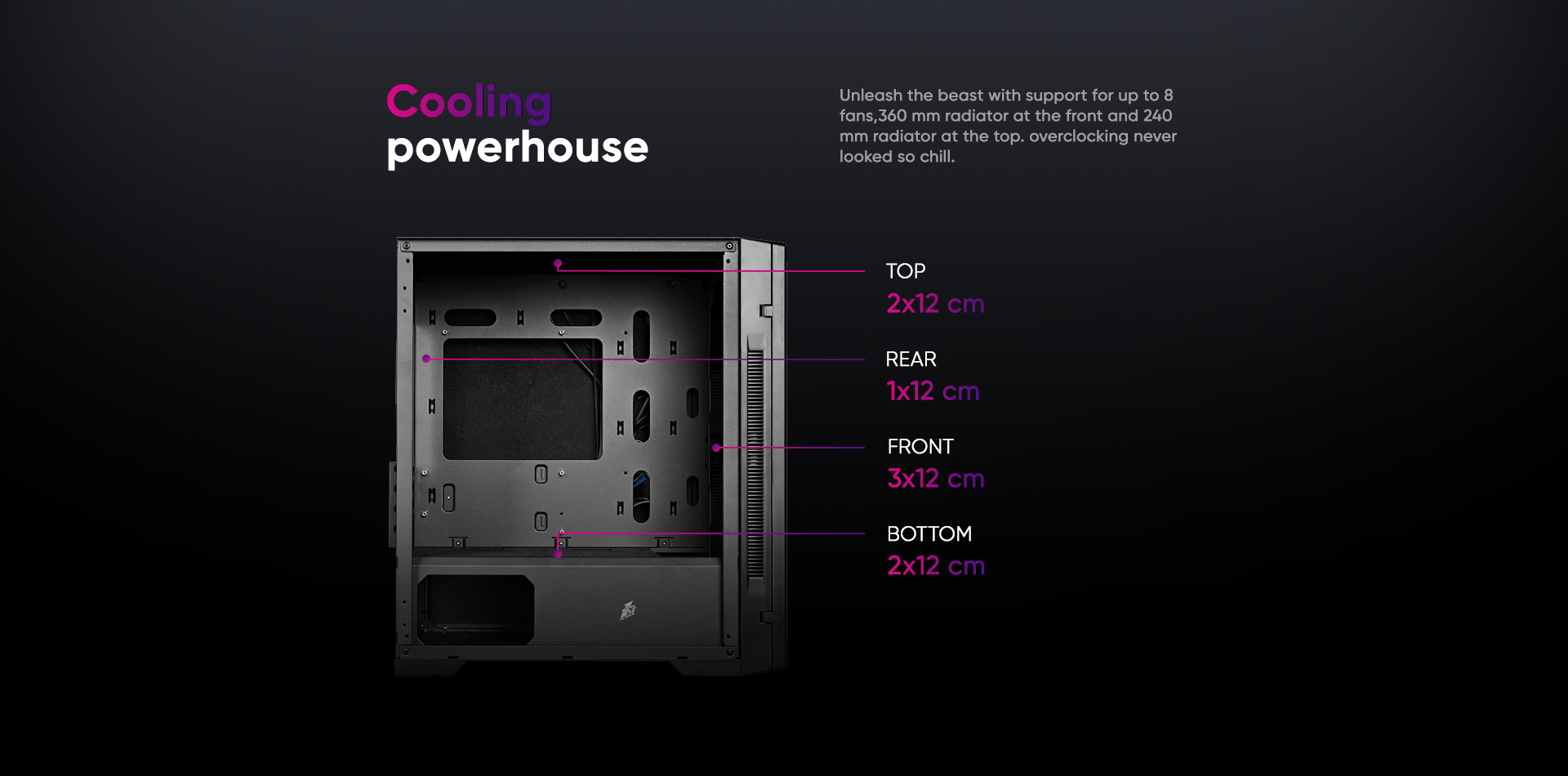

Fan Support
FRONT: 3*12CM
TOP: 2*12CM
REAR: 1*12CM
BOTTOM: 2*12CM
Liquid Cooling Support
TOP: 24CM
Power Supply Support
BOTTOM MOUNT
Net Weight
N.W.: KG
G.W.: KG
